Owner’s Manual:
5025X1

2
Owner’s Manual: 05025X1
1786850 Rev I
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
Table of Contents
Safety Information
1.1 Safety Precaution Labels
1.2 Saftey Precaution Summary
Introduction
2.1 Application
2.2 Specifications
Installation
3.1 Prepare for Use
3.2 Verify the Machine is Level
Operation
4.1 Control Panel
4.2 Install a Pail
Care and Maintenance
5.1 Cleaning
5.2 Mainenance
1.
2.
3.
4.
5.
Trouble Shooting
Wiring Diagram
Exploded Views
8.1 Electrical Assembly
8.2 Frame and Drive
8.3 Main Drive

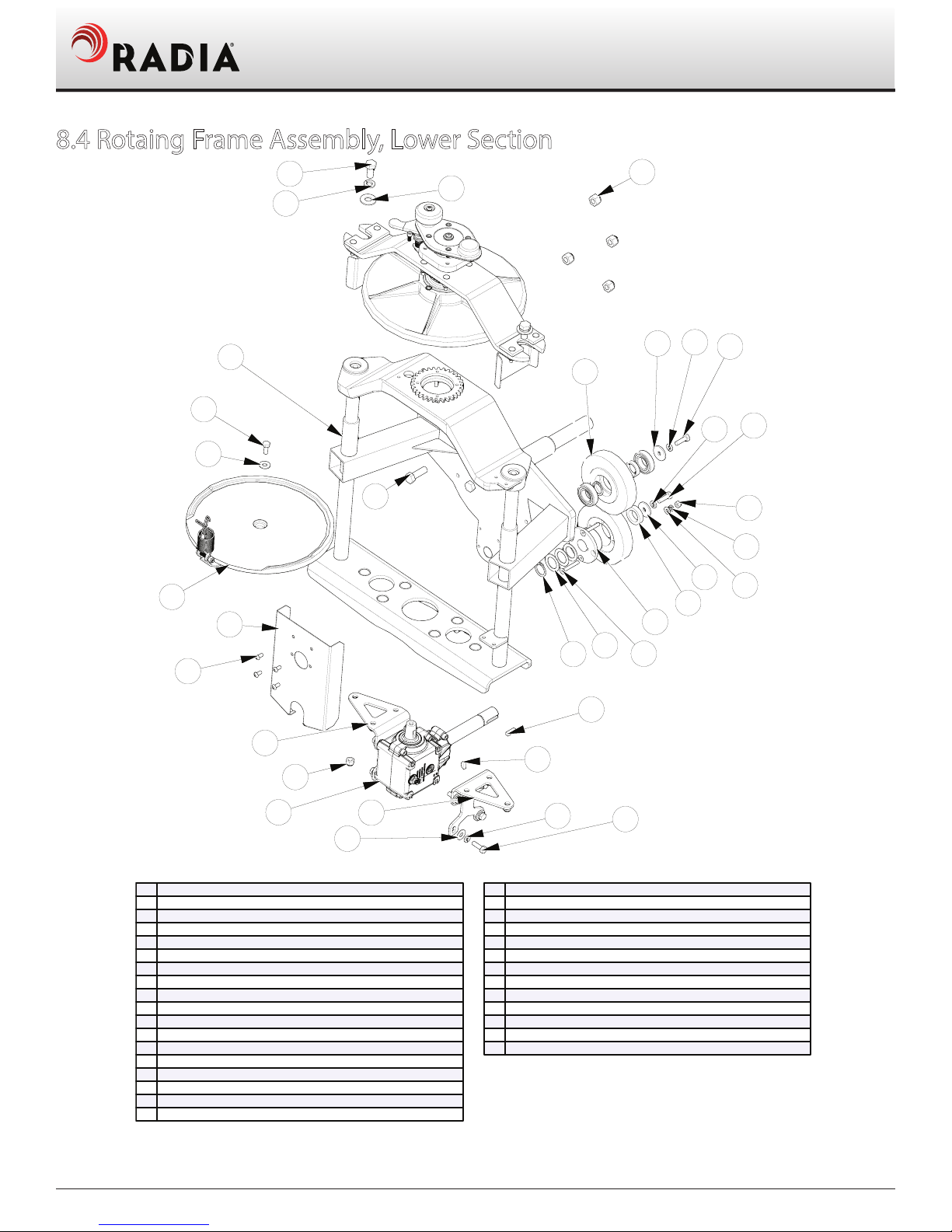

8.4 Rotating frame, Lower Section
8.5 Rotating frame, Upper Section
8.6 Crank Handle
8.7 Bearing Housing Assembly
8.8 Shroud

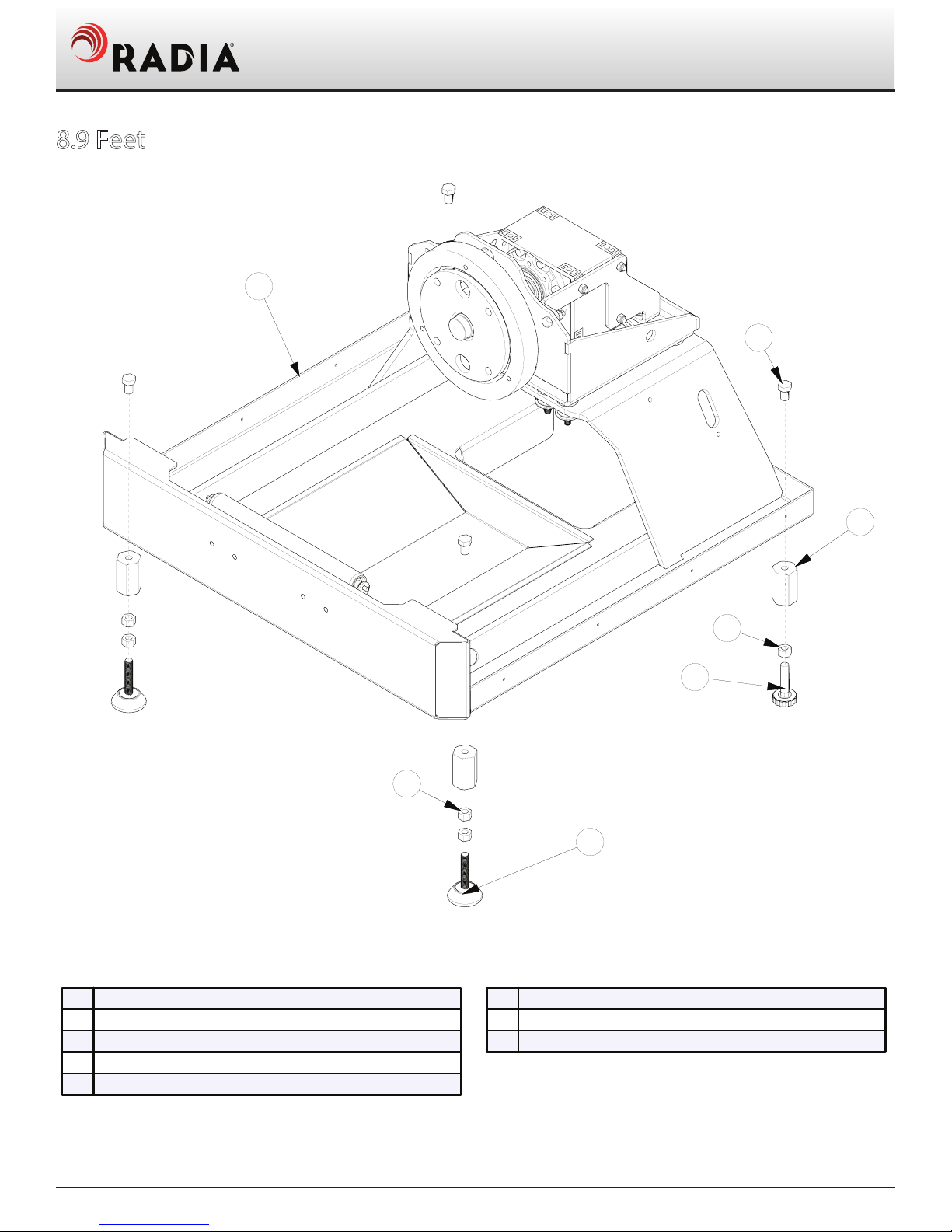

8.9 Feet
Ordering
Replacement Parts
Warranty
Notes
6.
7.
8.
9.
10.
3
4
5
6
6
6
7
7
7
8
8
8
9
9
9
10
11
12
12
13
14
15
16
17
18
19
20
21
21
22
23

3
Owner’s Manual: 05025X1
1786850 Rev I
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015

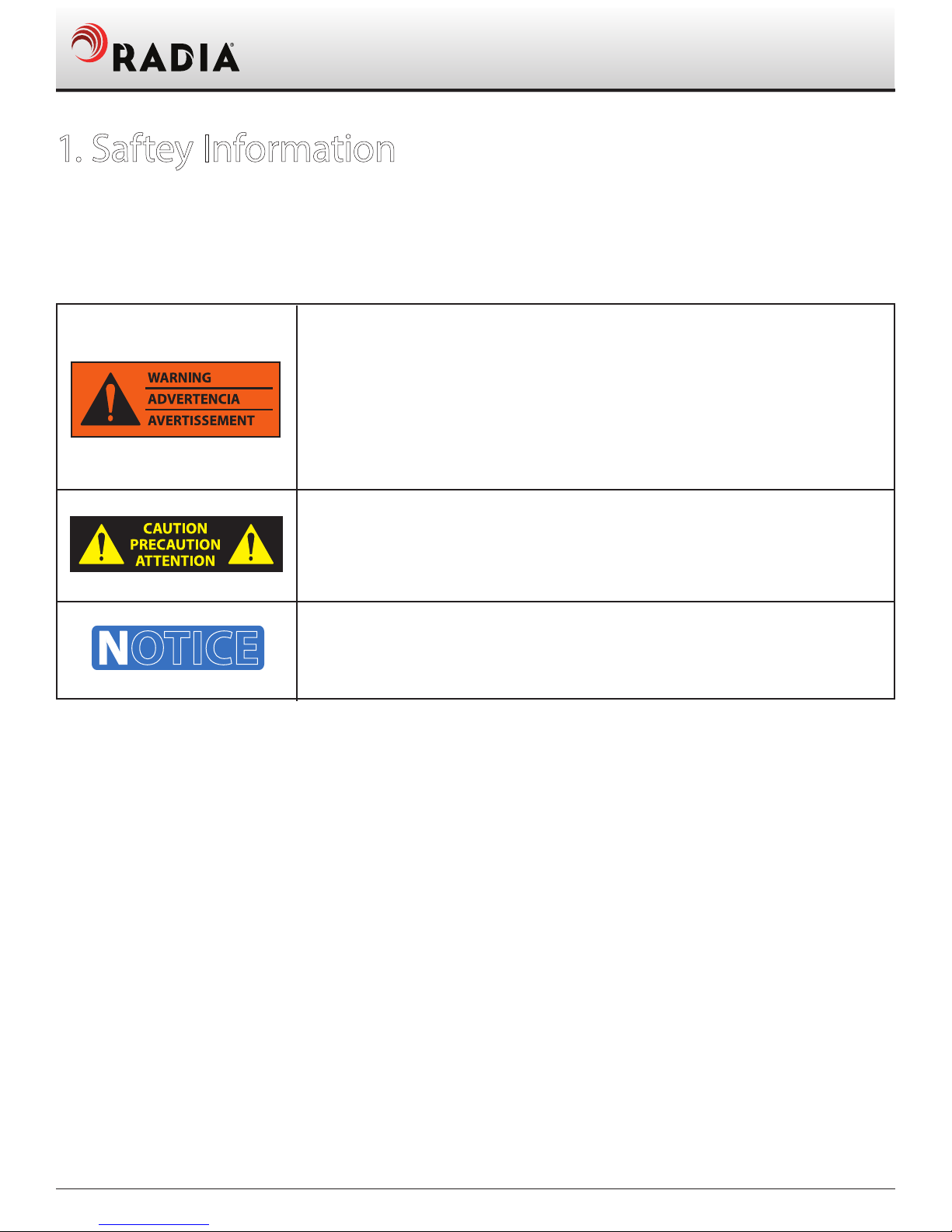

1. Saftey Information
“WARNING!” indicates a hazardous situation, which, if not
avoided, could result in death or serious injury. These serious
injuries could include permanent loss of function or significant
disfigurement, disability, considerable pain and suffering,
amputations, se vere burns, and loss or impairment of vision or
hearing. Take all necessary precautions to avoid unnecessary
“CAUTION!” indicates a hazardous situation, which, if not avoided,
could result in minor or moderate injury.
“NOTICE” indicates practices that do not involve physical injury
but may damage the machine.
NOTICE
Review this owner’s manual and read all warning labels on the machine prior to use.
The three main safety notifications used in this manual and on the warning labels are
WARNING, CAUTION and NOTICE. They have specific meanings and indicate the potential
Safety Information, Continued..

4
Owner’s Manual: 05025X1
1786850 Rev I
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
- Machine must be properly grounded before use; improper grounding could
cause electric shock and injury.
-Disconnect power cord before servicing, cleaning or removing any
cover, and follow lockout/ tagout procedures in owner manual; failure to
disconnect power could cause electric shock and injury.
-Review Owners Manual before installing or operating.
- La maquinaria debe ser apoyada correctamente en el suelo antes de usar,
el no apoyarla puede casuar choque elêctrico y daños.
-Desconecte la energía antes de dar mantenimiento, limpiar o quitar
caulquier cubierta, y siga los procedimientos de bloqueo/etiquetado del
manual, Fallar en desconectar puede causar choque eléctrico y daños.
- La machine doit e'tre correctement mis a' la terre avant de les utilizer
mise a' la terre incorrecte peut provoquer un choc e'lectrique et de
blessure.
- De'branchez le cordon d'alimentation avant de proce'der a'l'entretien,
le nettoyage ou le retrait des capots: suivez la proce'dure d'isolation/
consignation proce'dures dans le manul de l'opre'rateur; E'chec de
WARNING
ADVERTENCIA
AVERTISSEMENT
Part No. 1781570
NOTICE
1. POSTION CONTAINER PROPERLY?
2. ATTACH THE BAIL SPRING?
3. TIGHTEN CLAMP SECURELY?
BEFORE RUNNING MACHINE, DID YOU...
IMPORTANT MAINTENANCE ITEMS
WEEKLY
WEEKLY
WEEKLY
EVERY 6
MONTHS
EVERY 6
MONTHS
AS NEEDED
CLAMP
RELESE LEVER
THRUST
BEARING
BOTTOM PLATE
CLAMPING
SCREW
GREASE ZERKS
VERTICAL
SLIDE TUBES
ITEM MAINTENANCEFREQUENCY
LUBRICATE SHAFT WITH 3 IN OIL
TURN ROTATING ASSBEMLY UPSIDE DOWN AND
LUBRICATE ALL AROUND OUTSIDE EDGE OF
THRUST BEARING WITH 3 IN 1 OIL.
CLEAN OFF PAINT WITH HOT
SOAPY WATER.
GREASE WITH STANDARD MUlTI-PURPOSE
LITHIUM BASED GREASE, TWO SQUIRTS PER
ZERK ONLY, OVER GREASING WILL CAUSE
PREMATURE FAILURE OF BEARING.
GREASE WITH STANDARD MUTI-PURPOSE
LITHIUM BASED GREASE AS NEEDED.
CLEAN OFF DIRT AND PAINT
WITH HOT SOAPY WATER
Part No. 1784000
1.1 Safety Precaution Labels
Part No. 1784462
NOTICE
DO NOT OVER -TIGHTEN!
Tighten clamp up to 1/2 turn
after contact with pail lid.
Part No. 1784963
MOVING PARTS INSIDE
PARTES EN MOVIMENTO
PIE'CES EN MOVEMENT
-Do not open door until machine comes to complete stop;
moving parts inside could cause serious injury.
-No abra la puerta hasta que la marquina se detenga
completamente, las partes internas en movimiento pueden
causar heridas graves.
- Ne pas ouvrezla porte jusqu'a'ce que la machine esta
comple'tement arre'te'; pièces en mouvement à l'intérieur
pourrait provoquer des blessures grave.
WARNING
ADVERTENCIA
AVERTISSEMENT
Safety Information, Continued..

5
Owner’s Manual: 05025X1
1786850 Rev I
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
CAUTION!
Keep the work area free of clutter and
electrical cords.
Avoid extension cords. To minimize
the risk of improper electrical
grounding, extension cords are not
recommended. If an extension cords
are not recommended. If an extension
cord is unavoidable, consult a qualified
electrician to determine what type of
extension cord will satisfy the grounding,
current capacity, and other requirements
of the particular situsation.
Use the proper power source. Refer to
the machine data plate on the right side
panel or the section 2.1, Specifications,
in this manual.
DO NOT disable the limit switch. This
switch interrupts power when the mixer
door is opened.
Keep customers away from the work
area. This machine should be used only
by properly trained individuals.
Clamp the can carefully to ensure that it
is held securely durning the mixing cycle.
1.2 Safety Precaution Summary
Safety Information, Continued..
WARNING!
Be sure that the remote power switch is
installed by a qualified electrician. Refer
to local codes for proper placement of
the remote power switch.
Review this owner's manual before
installing or operating.
The machine must be properly grounded
prior to use. In the case of an electrical
short circuit, grounding reduces the risk
of electric shock by providing an escape
wire for the electric current.
Check with a qualified electrician if
you don’t completely understand these
grounding instructions, or if you are not
sure whether the machine is properly
grounded.
Follow the lock-out/tag-out procedures of
your company.
Do not open the door until the machine
comes to a complete stop.
Review the product label, Material Safety
Data Sheet, and HMIS rating of materials
prior to mixing to determine potential
hazards.
WARNING: This product may
expose you to chemicals including
DEHP, which is known to the State of
California to cause cancer. For more
information, go to www.P65Warnings.

6
Owner’s Manual: 05025X1
1786850 Rev I
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015

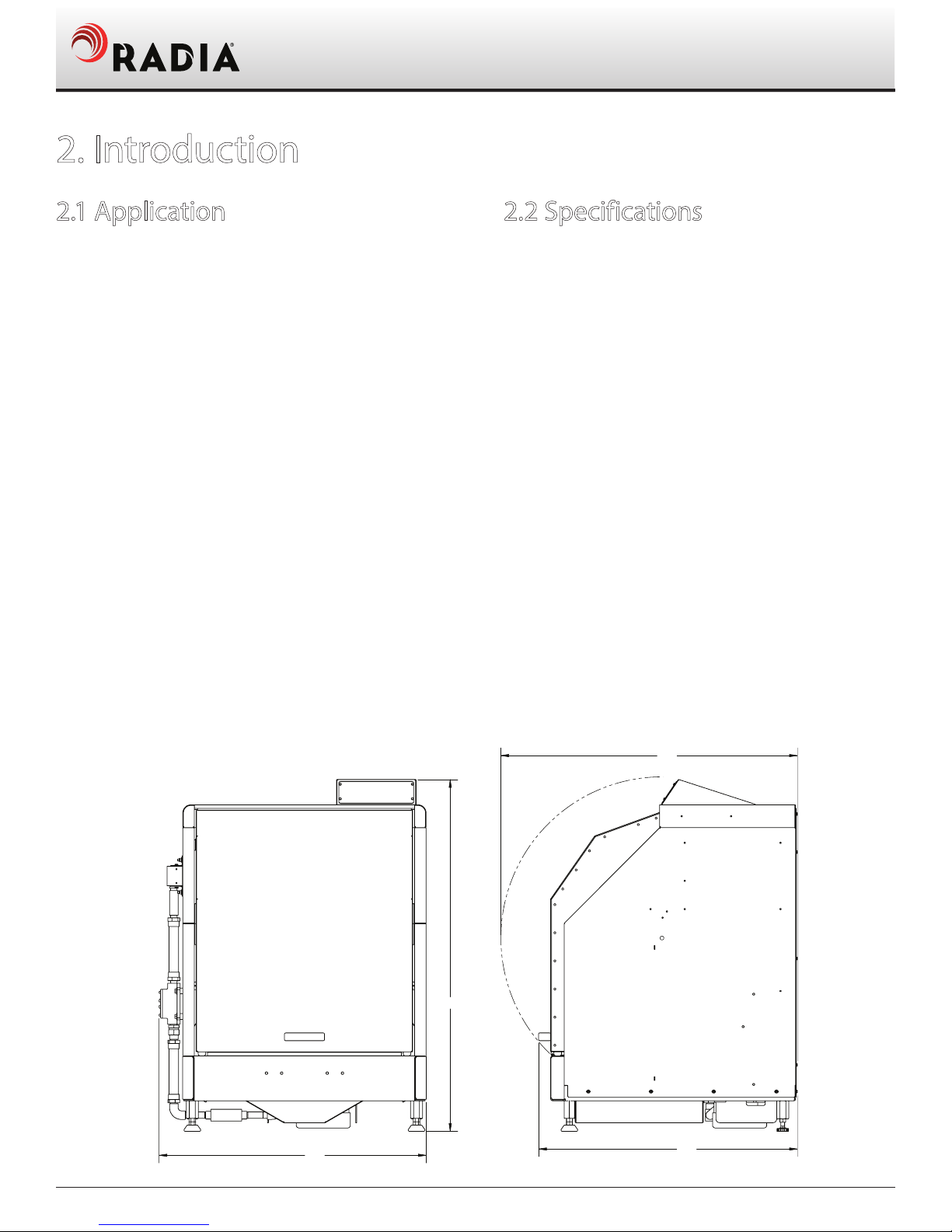

46 1/2"
35" 34"
39"
2. Introduction
2.1 Application 2.2 Specifications
Unit Size: W35 in (89 cm) D 34 in. (86.4 cm)
H46.5 in (118 cm)
Weight: 440 lb. (199.6 kg)
Electric Service: 110 V 60 Hz
Capacity: 125 lb. (45.3 kg)
Sizes Mixed: 5 gal. (19 L)
Load Height: 13 in. (33 cm) to 16 in. (41cm)
Congratulations on your purchase of the
05025 Gyro Mixer. This machine is designed to
accommodate standard five-gallon plastic or
metal pails weighing up to 125 lb. (45.3 kg).
Understand your machine's features and
proper operation to take full advantage of its
capabilities.
Read this entire manual completely before
operating the machine. Practice installing
and removing a pail before mixing for the first
time.
An optional Riser Leg Kit is available for
additional height adjustments. Please see
section 9, Ordering, for additional information.
Keep this manual for future reference.
Always follow all safety instructions!

7
Owner’s Manual: 05025X1
1786850 Rev I
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
(B)(A)
WARNING! Be sure that the remote power
switch is installed by a qualified electrician.
Refer to local codes for proper placement
of the remote power switch.
3. Installation
3.1 Prepare for Use 3.2 Verify the Machine is Level
IMPORTANT: Before attempting to operate
the machine:
1. Remove all packaging material.
2. Position the machine on a firm, level
surface.
3. Follow the electrical connection
instructions described in Section 1.2, Saftey
Precaution Summary.
1. Clamp a 5-gallon pail in the machine
as as per the instructions in Section 4.2,
install a Pail and Mix.
2. Turn the timer to start the machine.
3.Adjust any feet under which a piece of
paper can fit.
A. Loosen the upper jam nut (A).
B. Turn the foot (B) to adjust.
C. Tighten the jam nut (A) when the
foot makes full contact with the floor.
4. Repeat with any additional feet that
may still need adjustment.

8
Owner’s Manual: 05025X1
1786850 Rev I
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
WARNING! Avoid serious personal injury.
Do not open the door until the machine
comes to a complete stop; moving parts
inside could cause serious injury.
4. Operation

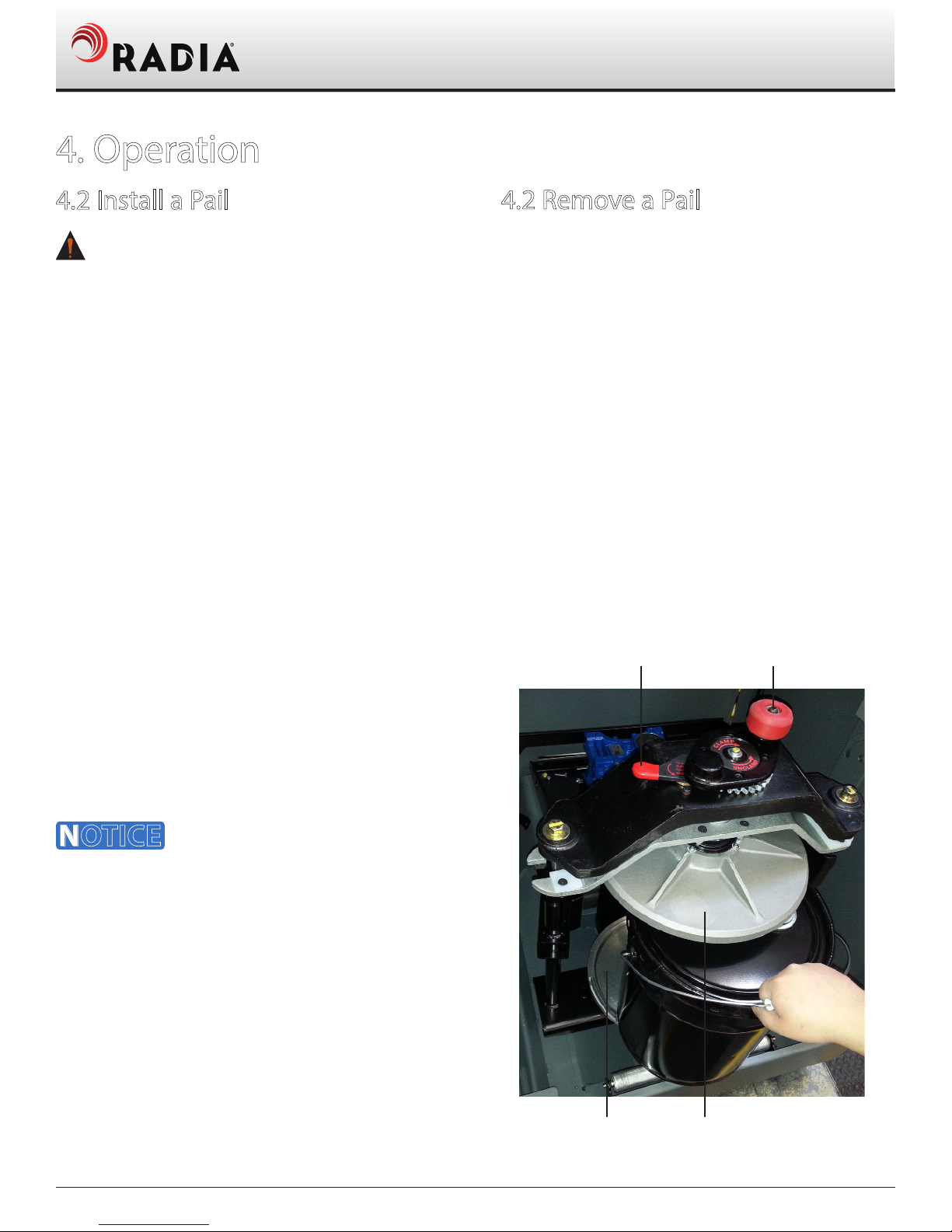

4.2 Install a Pail
1. Open the cabinet door
2. Pull the red racthet level (A) toward you
and turn the handle on the top of the clamp
(B) counterclockwise to raise the plate.
3. Slide the pail under the clamping (top)
plate (C)
4. Postion the pail in the grooves on the
bottom plate (D) The grooves on the plate
keep the pail in place during mixing.
5. Lower the clamping plate (C) by turning
the handle clockwise. Once the plate makes
contact with the pail, tighten another 1/4 turn.
6. Secure the bail with the bail spring.
7. Close the door and turn on the remote
switch. turn the switch off atfer the desired mix
time.
NOTICE
Avoid damage to the machine
• A saftey interlock intrerrupts machine
operation if the door is open
4.2 Remove a Pail
1. Raise the clamp all the way to the
top by holding the ratchet lever open
while turning the crank handle counter-
clockwise.
2. Unfasten the bail spring.
3. Remove the pail:
Metal Pails: Grab pail handle and pull
forward, allowing the base of the pail to
leverage its self off of the strike plate near
the roller. Pull the handle to remove the pail
from the machine.
Platsic Pails: Lift the pail by the lip with both
hands and pull it toward you, being careful
to keep the bottom from cathing on the
strike plate.
(A)
(D) (C)
(B)

9
Owner’s Manual: 05025X1
1786850 Rev I
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
WARNING! Avoid electric shock. Always remove poer from the machine per your company's
lock out/tag out procedures before preforming cleaning and maintanance tasks.
5. Care and Maintenace
5.1 Cleaning
Avoid serious personal injury. Do not
use solvent-based cleaners or thinners, or
other combustible cleaners.
• Keeping the machine clean is important
for reliable operation.
• Remove water-based/glycol colorants
or base paints spilled on machine
surfaces using lukewarm water and mild
detergent.
• To preserve the apperance of the
machine, do not use abrasives to clean
machine surfaces.
5.2 Maintenance
Lubrication:
1. Speed Reducer: Maintenance is not
required. If an oil change is necessary due
to debris build-up:
A. Remove the oil drain plug on the
bottom side of the machine and drain the
oil from the gearbox.
B. Remove the oil level plug and fill
only up to that level: with Mobil SHC 634
Synethic oil. Do not overfill or undefill.
2. Clamp: Lubricate the clamping screw
threads and thrust bearing as needed with
3-in-1 oil.
3. Racthet Lever: Lubrictae the shaft as
needed with 3-in-oil.

10
Owner’s Manual: 05025X1
1786850 Rev I
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
PROBLEM CAUSE REMEDY
6. Troubleshooting
Not connected to power source
Motor thermal protector
activated
Building ciruit breaker or fuse
blown
Machine door does not make
contact with limit switch
Machine circuit breaker tripped
Pail damaged
Faulty controller
Faulty door limit switch
Bearings worn or
damaged
Top clamp pad worn
Top clamp not secure
Connect to power source
Reset breaker or replace fuse
Read just switch to make contact with
limit switch screw when door is closed
Reset by pressing circuiut breaker
back in
Fix or replace pail
Contact Radia Customer Care
Contact Radia Customer Care
Contact Radia Customer Care
Allow to cool, then restart
Replace pad
Turn the crank handle down until top
plate is usnug on pail
Machine won't operate
pail won't fit properly
into clamping plates
Machine doesn't shut off
at end of mixing cycle
Machine doesn't shut off
when door is opened
Increasing mechincal
noise
Pail rotates inside the
clamping plates

11
Owner’s Manual: 05025X1
1786850 Rev I
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
7. Wiring Diagram

12
Owner’s Manual: 05025X1
1786850 Rev I
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
1
25
2
3
4
5
6
17
7
6
5
15
9
13
10
14
12
11
15
16
21
20
5
23
19
22
24
19
6
8
21
20
8
18
22
20
21
1
25
2
3
4
5
6
17
7
6
5
15
9
13
10
14
12
11
15
16
21
20
5
23
19
22
24
19
6
8
21
20
8
18
22
20
21
ID Description
1 5786182 motor, x-proof, 1 hp, 56c
2 9786840 ELBOW, 90, F-F, 1 NPT
3 9786837 REDUCER, CONDUIT, 1.0-.50
4 9785154 NIPPLE, .50NPT X 3.00
5 9784116 Elbow, 90, .5 NPT, female-female
6 9786843 NIPPLE, 1_2 NPT X 3.50
7 9786836 CONDUIT BODY, C - .50 NPT
8 9784124 bracket, limit switch
9 9782429 UNION, .5 NPT
10 9784067 Conduit Box, T 0.50
11 9780775 Screw Hex 5_16 X 1.50
12 9100023 WASHER, FLAT 5_16 USS
13 9784142 Spacer, .315ID x .750OD x .375 Long
ID Description
14 9780182 Nut, Nylock 5_16-18
15 9784117 Conduit, Flexible - .5 NPT, 6 Long
16 9784068 Fitting, Seal 0.50 M-F
17 9784115 Nipple, Close - .5 NPT
18 5784065 Switch, Limit Explosion Proof - 20A Rating
19 9159200 SCREW HEX 1_4-20 X .75
20 9760514 Washer 1_4 SAE .281 ID
21 9780343 Nut 1_4-20 Nylon Lock
22 9784079 Screw, Machine Washer HD #10-32 x .375
23 9786838 BRACKET, TRIP, LIMIT SWITCH
24 9786842 COVER, SWITCH, 5025 EX PROOF
25 9787290 CONDUIT LOCKNUT, 1.00
1
25
2
3
4
5
6
17
7
6
5
15
9
13
10
14
12
11
15
16
21
20
5
23
19
22
24
19
6
8
21
20
8
18
22
20
21
1
25
2
3
4
5
6
17
7
6
5
15
9
13
10
14
12
11
15
16
21
20
5
23
19
22
24
19
6
8
21
20
8
18
22
20
21
ID Description
1 5786182 motor, x-proof, 1 hp, 56c
2 9786840 ELBOW, 90, F-F, 1 NPT
3 9786837 REDUCER, CONDUIT, 1.0-.50
4 9785154 NIPPLE, .50NPT X 3.00
5 9784116 Elbow, 90, .5 NPT, female-female
6 9786843 NIPPLE, 1_2 NPT X 3.50
7 9786836 CONDUIT BODY, C - .50 NPT
8 9784124 bracket, limit switch
9 9782429 UNION, .5 NPT
10 9784067 Conduit Box, T 0.50
11 9780775 Screw Hex 5_16 X 1.50
12 9100023 WASHER, FLAT 5_16 USS
13 9784142 Spacer, .315ID x .750OD x .375 Long
ID Description
14 9780182 Nut, Nylock 5_16-18
15 9784117 Conduit, Flexible - .5 NPT, 6 Long
16 9784068 Fitting, Seal 0.50 M-F
17 9784115 Nipple, Close - .5 NPT
18 5784065 Switch, Limit Explosion Proof - 20A Rating
19 9159200 SCREW HEX 1_4-20 X .75
20 9760514 Washer 1_4 SAE .281 ID
21 9780343 Nut 1_4-20 Nylon Lock
22 9784079 Screw, Machine Washer HD #10-32 x .375
23 9786838 BRACKET, TRIP, LIMIT SWITCH
24 9786842 COVER, SWITCH, 5025 EX PROOF
25 9787290 CONDUIT LOCKNUT, 1.00
8. Exploded Views
8.1 Electrical Assembly
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued...

13
Owner’s Manual: 05025X1
1786850 Rev I
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
10
9
11
8
7
4
3
5
1
2
6
10
9
11
8
7
4
3
5
1
2
6
ID Description
19786804 BASE WELDMENT - 5925-5025
29786803 BRACKET, ROLLER - 5025
39100023 WASHER, FLAT 5_16 USS
49780182 Nut, Nylock 5_16-18
59782520 ROLLER
69785537 WASHER, NEO, .195 ID, .438 OD, .093T
ID Description
7 9783894 Screw Hex 3_8-16 x 2.50 Full Thd
8 9780367 Isolator set
9 9780368 Washer
10 9780193 Nut, Nylock 3_8-16
11 9786768 WASHER, FLAT, .406 ID X 1.50 OD X .062 TH, SS
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued...
8.2 Frame and Drive
...Exploded Views, Continued

14
Owner’s Manual: 05025X1
1786850 Rev I
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
3
8
1
15
19
6
11
17
9
4
22
12
18
5
4
16
10
2
11
13 14
21
23
4
13
8
4
7
3
8
1
15
19
6
11
17
9
4
22
12
18
5
4
16
10
2
11
13 14
21
23
4
13
8
4
7
ID Description
1 9786714 MOUNT, GEARBOX AND GEAR - 5025
2 9786723 SHAFT, TUMBLE, 3 GEAR - 5025
3 5786182 MOTOR, AC, 1 HP, EXPLOSION PROOF, 60-HZ, 56C FRAME
4 9100731 WASHER, FLAT 3_8 X .82 OD
5 9561700 Screw Hex 5_16 X 1
6 9688200 Washer 1_2
7 9780182 Nut, Nylock 5_16-18
8 9780193 NUT, NYLOCK 3_8-16
9 9780214 Washer 1_2 LOCK
10 9780402 Washer 3_8 split lock
11 9780886 SCREW HEX 3_8-16 X 1.00
12 9781083 Washer, Flat .507 ID x 2.00 OD x .19 Thk
ID Description
13 9781228 Screw Hex 3_8 X 1 1_4
14 9782172 Screw Hex 1_2 X 1_75
15 9783383 Nut 1_2 Nylon Lock
16 9785464 GEARBOX, RIGHT ANGLE SPEED REDUCER - 5925
17 9785585 KEY, SQUARE .250 X 4.125
18 9785587 WASHER, FLAT .512 ID X 1.456 OD X .118 THK
19 9785780 SCREW, HEX 1_2-13 X 1.25 LG
21 9786711 GEAR, HELICAL, 76 TOOTH - 5025, RH - 5025
22 9786712 BEARING, FLANGE - INSIDE, 1.5 ID
23 9786713 BRACE, GEARBOX - 5025-5925
Exploded Views, Continued...
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
8.3 Main Drive
...Exploded Views, Continued
3
8
1
15
19
6
11
17
9
4
22
12
18
5
4
16
10
2
11
13 14
21
23
4
13
8
4
7
3
8
1
15
19
6
11
17
9
4
22
12
18
5
4
16
10
2
11
13 14
21
23
4
13
8
4
7
ID Description
1 9786714 MOUNT, GEARBOX AND GEAR - 5025
2 9786723 SHAFT, TUMBLE, 3 GEAR - 5025
3 5786182 MOTOR, AC, 1 HP, EXPLOSION PROOF, 60-HZ, 56C FRAME
4 9100731 WASHER, FLAT 3_8 X .82 OD
5 9561700 Screw Hex 5_16 X 1
6 9688200 Washer 1_2
7 9780182 Nut, Nylock 5_16-18
8 9780193 NUT, NYLOCK 3_8-16
9 9780214 Washer 1_2 LOCK
10 9780402 Washer 3_8 split lock
11 9780886 SCREW HEX 3_8-16 X 1.00
12 9781083 Washer, Flat .507 ID x 2.00 OD x .19 Thk
ID Description
13 9781228 Screw Hex 3_8 X 1 1_4
14 9782172 Screw Hex 1_2 X 1_75
15 9783383 Nut 1_2 Nylon Lock
16 9785464 GEARBOX, RIGHT ANGLE SPEED REDUCER - 5925
17 9785585 KEY, SQUARE .250 X 4.125
18 9785587 WASHER, FLAT .512 ID X 1.456 OD X .118 THK
19 9785780 SCREW, HEX 1_2-13 X 1.25 LG
21 9786711 GEAR, HELICAL, 76 TOOTH - 5025, RH - 5025
22 9786712 BEARING, FLANGE - INSIDE, 1.5 ID
23 9786713 BRACE, GEARBOX - 5025-5925

15
Owner’s Manual: 05025X1
1786850 Rev I
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
8.4 Rotaing Frame Assembly, Lower Section
...Exploded Views, Continued
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued...
7
22
6
21
20
18
7
17
4
6
18
12
15
2
14
26
19
13
3
3
5
67
11
1
28
29
23
24
30
31
32
8
9
10
7
22
6
21
20
18
7
17
4
6
18
12
15
2
14
16
19
13
3
3
5
67
11
1
25
26
23
24
27
28
29
8
9
10
ID Description
19786757 WELDMENT, CLAMP FRAME, 5025 STYLE 3 GEAR
29786715 GEAR BOX, RIGHT ANGLE, STRAIGHT SHAFT, TAPER
39786743 BRACKET, GEARBOX SUPPORT - 5025 IN 5925
49780193 Nut, Nylock 3_8-16
59100023 WASHER, FLAT 5_16 USS
69760521 Washer 5_16 Lock, Split
79561700 Screw Hex 5_16 X 1
86786508 ASSY, BOTTOM PLATE - 5025
99787320 WASHER, FLAT .375 X .875 X .05-.07 THK
10 9787321 Screw Hex 5_16 X 3_4
11 9785481 KEY, WOODRUFF, NO. 806, FLAT BOTTOM
12 9786442 KEY, SQUARE .250 +.000 -.002 X .88 LG
13 9786725 RETAINING RING, EXTERNAL, HD, 1.00 SHAFT
14 9786728 WASHER, SHIM, 1.005 ID X 1.50 OD
15 9786811 GEAR, HELICAL, RH, 8DP. 38 TOOTH, MOLDED
16 6787365 GEAR, HELICAL, LH, 8DP, 38 TOOTH, MOLDED
17
ID Description
18
19
20
21
22
23
24
25
26
27
28
29
9786731 SPACER, 1.005 ID X 1.50 OD X .38 LONG
9784441 WASHER, FENDER 5_16
9783819 SCREW, FLAT HEAD 1_4 X 1.75
9760514 WASHER 1_4 SAE .281 ID
9780164 WASHER 1_4 LOCK
9780343 NUT 1_4-20 NYLON LOCK
9786718 GUARD, GEARS - 5025
9782154 SCREW HEX 1_2 X 1_50
9783383 NUT 1_2 NYLON LOCK
9688200 WASHER 1_2
9780214 WASHER 1_2 LOCK
9780221 SCREW HEX 1_2-13 X 1.00
9783365 SCREW BUTTON 1_4 X .5

16
Owner’s Manual: 05025X1
1786850 Rev I
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
3
24
23
3
22
5
9
26
21
6
4
19
8
20
7
9
18 17
3
3
2
16
1
25
15
11
12
13
3
23
22
3
21
5
9
25
20
6
4
18
8
19
7
9
17 16
3
3
2
15
1
24
14
10
11
12
(Spring catch)
ID Description
1 9786716 SUPPORT, TOP, LEADSCREW 5025
2 6783940 Brg Housing Assy, Double Row Ball Brg
3 9780343 Nut 1_4-20 Nylon Lock
4 9783934 Bar, Clamp Guide
5 9786720 Hub, Acme
6 6787543 SCREW, CLAMPING
7 9784892 WASHER, THRUST, THICK - 5025
8 9784100 Ring, Retaining- External
9 9782331 Screw, at head 1_4 X 1.25
13
14 6784490 Lever, Ratchet Pawl- KIT
15 9787051 BUSHING, BRONZE FLANGE
16 9783963 SHIM .515 X .875 X .053
17 9783962 Nut 1_2-20 Nylon Lock Thin Jam
18 9783960 SPRING, TORSION LH
19 9784488 Plate, Sprin
g
20 9783951 Nut, 3_8-16 Jam Nylon Lock
21 9783936 Guide, Alignment, Plastic
22 9786753 GUARD, VERTICAL SLIDE - 5025
23 6786702 TOP PLATE ASSEMBL
Y
24 9783791 Screw, Socket Hd Cap, .25-20 x .50
25 9654100 Nut 1_4-20
10 9787546 O-Ring, Squeese, Viton, Dash 212
11 9787545 Washer 1_4 LOCK
12 9781831 Screw, Hex 1_4 x 1
6787542 ASSY, HANDLE, CRANK
13
8.5 Rotating Frame Assembly, Upper Section
...Exploded Views, Continued
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued...

17
Owner’s Manual: 05025X1
1786850 Rev I
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
2
4
1
5
6
3
5
7
8
9
2
4
1
5
6
3
5
7
8
9
ID Description
1 9787063 HANDLE, CRANK, CAST - 5025
2 9783950 Gear, Ratchet
3 9783791 Screw, Socket Hd Cap, .25-20 x .50
4 9784729 WASHER, SHIM 1_4
5 9784629 BEARING, RADIAL BALL, DOUBLE SHIELDED
ID Description
69784628 WHEEL, CRANK HANDLE - 5025
79785283 BUSHING, STEEL - 5025 CRANK HANDLE
89784633 WASHER, SHIM, 5_16 X .030 THK
99784632 SCREW, BUTTON 1_4-20 X 1.75
...Exploded Views, Continued
8.6 Crank Handle
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued...
2
4
1
5
6
3
5
7
8
9
2
4
1
5
6
3
5
7
8
9
ID Description
1 9787063 HANDLE, CRANK, CAST - 5025
2 9783950 Gear, Ratchet
3 9783791 Screw, Socket Hd Cap, .25-20 x .50
4 9784729 WASHER, SHIM 1_4
5 9784629 BEARING, RADIAL BALL, DOUBLE SHIELDED
ID Description
69784628 WHEEL, CRANK HANDLE - 5025
79785283 BUSHING, STEEL - 5025 CRANK HANDLE
89784633 WASHER, SHIM, 5_16 X .030 THK
99784632 SCREW, BUTTON 1_4-20 X 1.75

18
Owner’s Manual: 05025X1
1786850 Rev I
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
5
4
3
1
2
5
4
3
1
2
ID Description
1 9783941 Brg Housing, Lead Screw, Double Ball Brg
2 9783942 Bearing, Double Row Radial Ball, 17mm Bore
3 9783943 Washer, Thrust Bearing, 1.125 Bore
ID Description
49783944 Cage, Thrust Bearing, 1.125 Bore
59784892 WASHER, THRUST, THICK - 5025
8.7 Double Row Bearing
...Exploded Views, Continued
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued...
5
4
3
1
2
5
4
3
1
2
ID Description
1 9783941 Brg Housing, Lead Screw, Double Ball Brg
2 9783942 Bearing, Double Row Radial Ball, 17mm Bore
3 9783943 Washer, Thrust Bearing, 1.125 Bore
ID Description
49783944 Cage, Thrust Bearing, 1.125 Bore
59784892 WASHER, THRUST, THICK - 5025

19
Owner’s Manual: 05025X1
1786850 Rev I
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
12
1
19
15
27
5
35
8
37
20
75
13
8
16
4
25
22
11
2
18
9
14
10
14
24
28
6
12
1
19
15
27
5
35
8
37
20
75
13
8
16
4
25
22
11
2
18
9
14
10
14
24
28
6
ID Description
11787056 NAMEPLATE, METAL - 5925X1
29100023 WASHER, FLAT 5_16 USS
39760514 Washer 1_4 SAE .281 ID
49780221 SCREW HEX 1_2-13 X 1.00
59780343 Nut 1_4-20 Nylon Lock
69781367 Screw Hex Thd Form #8 X .50
79781831 Screw, Hex 1_4 X 1
8 9780366 Screw, #10-32 SHWH Tap
99783426 Nut, Keps #10-32
10 9783987 Handle, Door - 5025
11 9783988 Screw Hex 5_16-18 X .50
12 9783994 Bumper, Recess
13 9785137 BUMPER, RUBBER - THREADED STUD
ID Description
14 9785773 SEAL, DOOR - 5925
15 9785779 SCREW, SERRATED FLANGE HEX HD, .25-20 X .50 LG
16 9785786 SCREW, HEX CAP 1_4-20 X 1.50 FULL THD
18 9786698 PANEL, TOP, 5025-5925
19 9786699 PANEL, BACK, 5025 - 5925
20 9786722 STOP, DOOR, ONE PIECE - 5925-5025
22 9786732 BEARING, BRONZE, FLANGED, .50 ID
24 9786734 DOOR WELDMENT - 5925-5025
25 9786736 PANEL, SIDE, RIGHT - 5925-5025
27 9786841 PANEL, SIDE, LEFT - 5925-5025 EX PROOF
28 9786848 COVER PLATE, 5025X1-5925X1
8.8 Shroud
...Exploded Views, Continued
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued...

20
Owner’s Manual: 05025X1
1786850 Rev I
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
2
6
3
1
4
5
3
2
6
3
1
4
5
3
ID Description
1 9786765 RISER, HEX, FLOOR - 5025 - 5925
2 9785721 FOOT, GLIDER - 1_2-13
3 9781711 NUT, 1_2-13
4 9785862 SCREW HEX 1_2-13 X .75 LG
ID Description
59785722 FOOT, NON SKID, LEVELING - 1_2-13
69786804 BASE WELDMENT - 5925-5025
8.9 Feet
...Exploded Views, Continued
2
6
3
1
4
5
3
2
6
3
1
4
5
3
ID Description
1 9786765 RISER, HEX, FLOOR - 5025 - 5925
2 9785721 FOOT, GLIDER - 1_2-13
3 9781711 NUT, 1_2-13
4 9785862 SCREW HEX 1_2-13 X .75 LG
ID Description
59785722 FOOT, NON SKID, LEVELING - 1_2-13
69786804 BASE WELDMENT - 5925-5025
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued...
