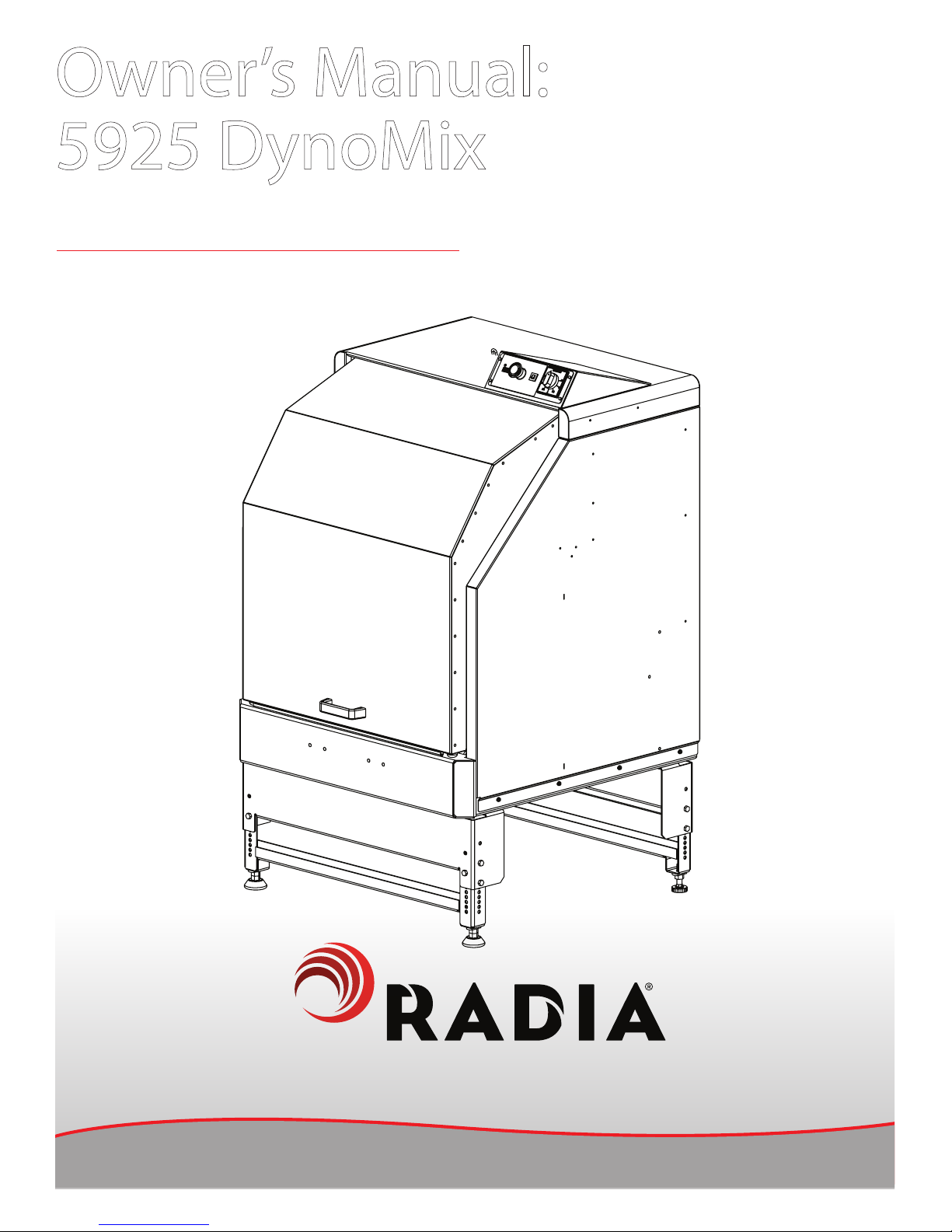

Radia 5925 DynoMix User manual

Owner’s Manual:
5925 DynoMix
Multisize Gyro Mixer
Models 0-5925-00 MRU; 0-5925U2
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015

2
Owner’s Manual: 5925 1785436 Rev U
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
Table of Contents
Safety Information
1.1 Safety Precaution Labels
1.2 Saftey Precaution Summary
Introduction
2.1 Application
2.2 Specifications
Installation
3.1 Prepare for Use
3.2 Adjust the Risers
3.3 Verify the Machine is Level
Operation
4.1 Control Panel

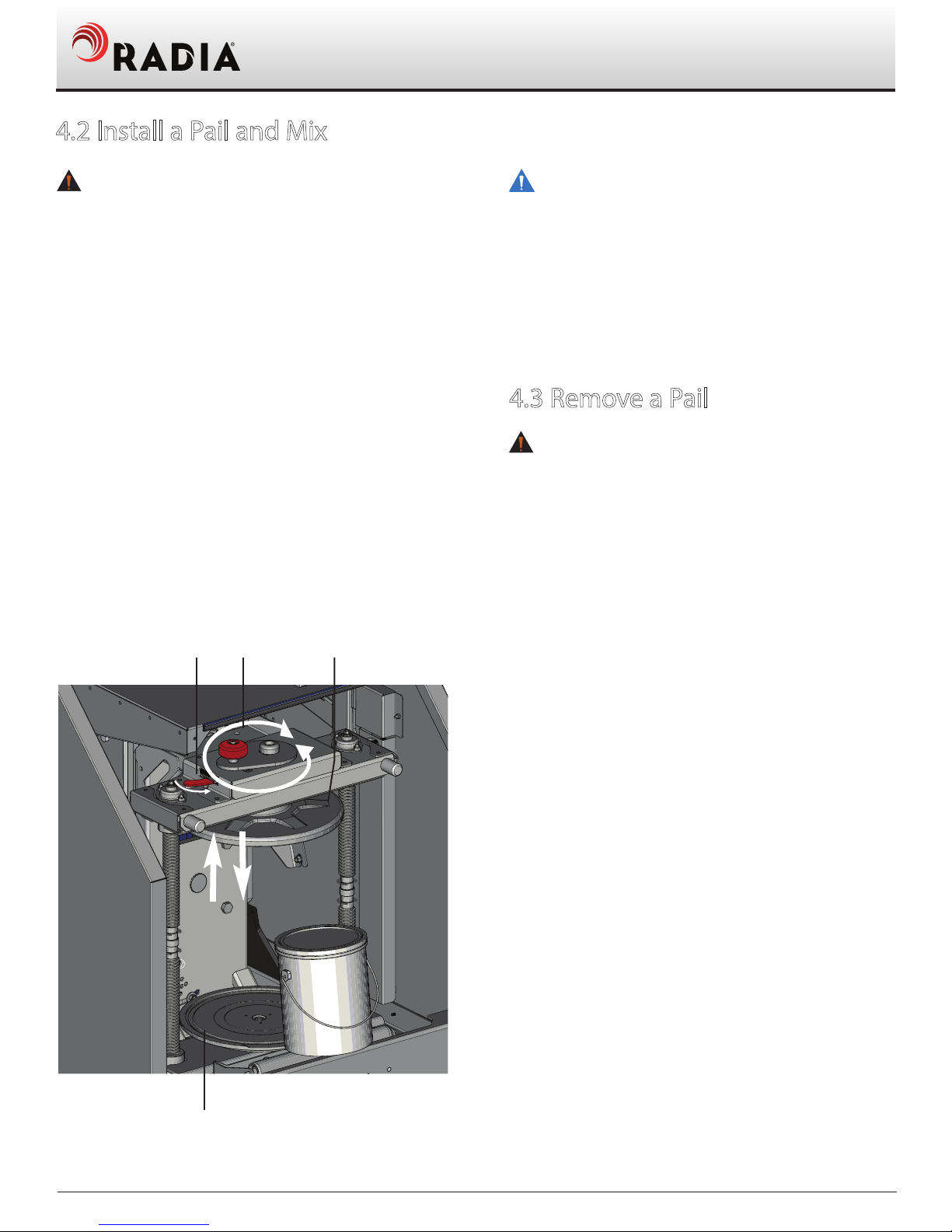

4.2 Install a Pail and Mix
4.3 Remove a Pail
4.4 Pail Extractor Option
Care and Maintenance
5.1 Cleaning
5.2 Maintenance
Trouble Shooting
1.
2.
3.
4.
5.
6.
3
3-4
5
6
6
6
7
7
7
7
8
8
9
9
10
11
11
11
12
Wiring Diagram
7.1 110 V 60 HZ
Exploded Views
8.1 Frame and Drive
8.2 Rotating Arm Lock Assembly
8.3 Rotating Frame

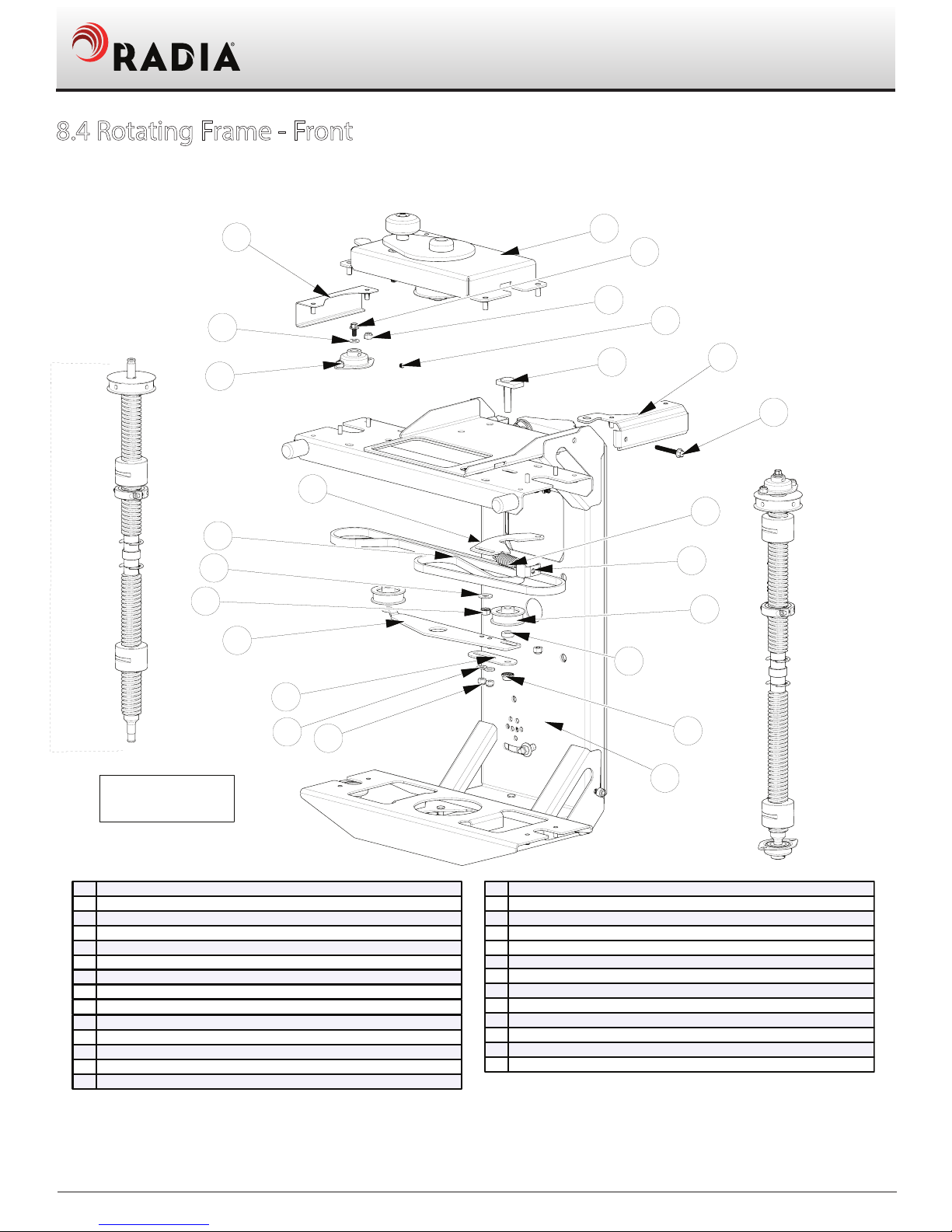

8.4 Rotating Clamp Belt
8.5 Rotating Frame Back
8.6 Ratchet Handle
8.7 Lead Screw
8.8 Shroud
8.9 Riser Kit
8.10 Control Panel 110 Volt 60 Hz
8.11 Extractor Arm
Ordering
Replacement Parts
Warranty
Notes
7.
8.
9.
10.
11.
13
13
14
14
15
16
17
18
19-20
21
22
23
24
25
26
26
27
28

3
Owner’s Manual: 5925 1785436 Rev U
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
“WARNING!” indicates a hazardous situation, which, if not
avoided, could result in death or serious injury. These serious
injuries could include permanent loss of function or significant
disfigurement, disability, considerable pain and suffering,
amputations, se vere burns, and loss or impairment of vision or
hearing. Take all necessary precautions to avoid unnecessary
“CAUTION!” indicates a hazardous situation, which, if not avoided,
could result in minor or moderate injury.
“NOTICE” indicates practices that do not involve physical injury
but may damage the machine.
NOTICE
1. Saftey Information
Review this owner’s manual and read all warning labels on the machine prior to use.
The three main safety notifications used in this manual and on the warning labels are
WARNING, CAUTION and NOTICE. They have specific meanings and indicate the potential
dangers from misuse of the machine.
1.1 Saftey Precaution Labels
Part No. 1785529
Safety Information, Continued..

4
Owner’s Manual: 5925 1785436 Rev U
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
Part No. 1785710
Safety Information, Continued..
Safety Information, Continued..
- Machine must be properly grounded before use; improper grounding could
cause electric shock and injury.
-Disconnect power cord before servicing, cleaning or removing any
cover, and follow lockout/ tagout procedures in owner manual; failure to
disconnect power could cause electric shock and injury.
-Review Owners Manual before installing or operating.
Part No. 1780899
- La maquinaria debe ser apoyada correctamente en el suelo antes de usar,
el no apoyarla puede casuar choque elêctrico y daños.
-Desconecte la energía antes de dar mantenimiento, limpiar o quitar
caulquier cubierta, y siga los procedimientos de bloqueo/etiquetado del
manual, Fallar en desconectar puede causar choque eléctrico y daños.
- La machine doit e'tre correctement mis a' la terre avant de les utilizer
mise a' la terre incorrecte peut provoquer un choc e'lectrique et de
blessure.
- De'branchez le cordon d'alimentation avant de proce'der a'l'entretien,
le nettoyage ou le retrait des capots: suivez la proce'dure d'isolation/
consignation proce'dures dans le manul de l'opre'rateur; E'chec de
-This machine is not explosion proof rated.
-Review product label, Material saftey Data Sheet, and HMIS rating of
materials and exposures prior to mixing to determine potentional hazards.
-Use in dry and well-ventilated environment where dust and ammable
vapors are not present; risk of physical injury exists if used in hazardous
environment.
-All containers must be properly sealed and void of leaks.
-Esta máquina no tiene la clasicatión de prueba de explosion.
-Revise la etiqueta del producto, la hoja informativa de datos de
seguridad, su clasicatión HMIS antes de mezclar y exposiciones de
materiales peligrosos para determinar los peligros potenciales.
-Use en un ambiente seco y bien ventilado donde polvo y vapores
inamables no estên presentes; Riesgo de daño sco existe si es untilizado en
un ambiente peligrosos.
-Todos los contenedores deben estar bien sellados y sin fugas.
-Cette machine n'est pas classê antidêagrant.
-Examen e'tiquette du prodiut, Fiche de dane;es de se'curite', Et
mate'riel HMIS cote et expositions, avant de faire le me'lange pour
de'terminer les risques poteniels.
-Utilisation a'sec et bien aere' environnement ou'la possie're et les
vapeurs inammables ne sont pas presents; risque de blessure physique
existe si ultilise' en environnement dangereux.
-Tous les conteneurs doivent être concenablement scellês pour èviter
les fuites.
WARNING
ADVERTENCIA
AVERTISSEMENT
Part No. 1781570
WARNING
ADVERTENCIA
AVERTISSEMENT
Part No. 1784963
MOVING PARTS INSIDE
PARTES EN MOVIMENTO
PIE'CES EN MOVEMENT
-Do not open door until machine comes to complete stop;
moving parts inside could cause serious injury.
-No abra la puerta hasta que la marquina se detenga
completamente, las partes internas en movimiento pueden
causar heridas graves.
- Ne pas ouvrezla porte jusqu'a'ce que la machine esta
comple'tement arre'te'; pièces en mouvement à l'intérieur
pourrait provoquer des blessures grave.
WARNING
ADVERTENCIA
AVERTISSEMENT
Part No. 1785715

5
Owner’s Manual: 5925 1785436 Rev U
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
Keep the work area free of clutter and
electrical cords.
Avoid extension cords. To minimize the risk
of improper electrical grounding, extension
cords are not recommended. If an extension
cord is unavoidable, consult a qualified
electrician to determine what type of
extension cord will satisfy the grounding,
current capacity, and other requirements of
the particular situation.
Use the proper power source. Refer to the
machine data plate on the right side panel or
the section 2.1, Specifications, in this manual.
Keep customers away from the work area.
The machine should be used only by properly
trained individuals.
Clamp the can carefully to ensure that it is
held securely during the mixing cycle.
1.2 Safety Precaution Summary
Safety Information, Continued..
WARNING!
DO NOT attempt to replace any damaged
electrical wire or components. Improper
replacement could result in electric
shock and serious injury. Only a qualified
service representative should attempt to
repair or replace any damaged electrical
components.
Review this owner's manual before
installing or operating.
The machine must be properly grounded
prior to use. In the case of an electrical
short circuit, grounding reduces the risk of
electric shock by providing an escape wire
for the electric current.
The machine’s power cord has a
grounding wire with an appropriate
grounding plug. This plug must be inserted
into an electrical outlet that is properly
installed and grounded according to all
local codes and ordinances.
If you must repair or replace the power
cord or plug, do not connect the
grounding wire to either flat-blade
terminal. The wire with insulation having an
outer surface that is green (with or without
yellow stripes) is the grounding wire.
Check with a qualified electrician if
you don’t completely understand these
grounding instructions, or if you are not
sure whether the machine is properly
grounded. DO NOT modify the plug
provided; if it won’t fit in the outlet, have
a proper outlet installed by a qualified
electrician.
Disconnect the power cord before
servicing, cleaning, or removing any
covers
Follow the lockout/tagout procedures of
your company.
DO NOT open the door until the machine
comes to a complete stop.
To avoid electric shock, don’t get the
timer, control panel, or wiring wet.
This machine is not explosion proof rated.
All containers must be properly sealed and
void of leaks.
Review product label, Material Safety Data
Sheet, and HMIS rating of materials prior to
mixing to determine potential hazards.
DO NOT use solvent-based cleaners or thinners.
Use in a dry and well-ventilated environment
where dust and flammable vapors are not
present.
Product safety labels should be inspected and
cleaned periodically to maintain good legibility.
Replace any labels that are no longer legible.
“ WARNING: This product may expose you to
chemicals including DEHP, which is known to
the State of California to cause cancer. For more
information, go to www.P65Warnings.ca.gov
CAUTION!

6
Owner’s Manual: 5925 1785436 Rev U
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
Congratulations on your purchase of the
0-5925 Dynomix. This machine is designed to
accommodate standard 1-gallon or 5-gallon
plastic or metal containers weighing up to 100
lb. (45.4 kg).
Understand your machine's features and
proper operation to take full advantage of its
capabilities.
Read this entire manual completely before
operating the machine. Practice installing and
removing a container before mixing for the first
time.
Keep this manual for future reference.
Always follow all safety instructions!
Unit Size: W32.25 in. (81.9 cm) D34.25 in. (87 cm)
H53.5 to 57.5in. (136.5 cm)
Unit Weight: 580 lb. (263.1 kg)
Electric Service, 0-5925-00 MRU; 0-5925U2: 110 V
60 Hz
Machines rated at 110 V, 60 Hz are for use with a
nominal 120 V circuit.
Electric Service, 5925-E5-MRU: 220 V 50 Hz
Machines rated at 220 V 50 Hz are shipped
without a plug. Have a qualified electrician
install the appropriate plug.
Capacity: 100 lb. (45.4 kg)
32 1/2"
57 1/2"
Max 57 1/2"
Min 53 1/2"
20 1/2"
Load
Height
Range
16 1/2"
to 20 1/2"
34 1/4"
39 1/4"
2. Introduction
2.1 Application 2.1 Specifications
1/4

7
Owner’s Manual: 5925 1785436 Rev U
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
IMPORTANT: Before attempting to operate
the machine:
1. Remove all packing material.
2. Position the machine on a firm, level
surface.
3. Follow the electrical connection
instructions described in section 2.2.
(A)
(B)
CAUTION! Avoid personal injury! Be sure
the machine is stable.
1. Loosen the screws (A).
2. Adjust the crossbar (B) to the appropriate
height.
3. Retighten the screws.
1. Clamp a 5-gallon pail in the machine
as per the instructions in Section 4.2, Install
a Pail and MIx.
2. Turn the timer to start the machine.
3. Adjust any feet under which a piece of
paper can fit.
a. Loosen the upper jam nut (A).
b. Turn the foot (B) to adjust.
c. Tighten the jam nut (A) when the
foot makes full contact with the floor.
4. Repeat with any additional feet that
may still need adjustment.
(A)
(B)
3. Installation
3.1 Prepare for Use 3.3 Verify the Machine Level
3.2 Adjust the Risers

8
Owner’s Manual: 5925 1785436 Rev U
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
• Cycle Counter (A): Displays the number of complete cycles performed.
• E-Stop Push-Button (B): Only use to immediately cut the power to the machine.
• Breaker Switch, 20-Amp (C): Turn o the power and push the switch if the breaker trips.
• Mechanical Timer (D): Set the time to the desired cycle length.
(A) (B) (C) (D)
05925-00 MRU; 05925U2
4. Operation
4.1 Control Panel
Operation, Continued..

9
Owner’s Manual: 5925 1785436 Rev U
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
WARNING! Avoid serious personal injury. Do
not mix flammable or combustible materials in this
mixer.
1. Open the cabinet door.
2. Pull the ratchet release lever (A) toward you
until it clicks. Turn the handle (B) on the top of the
clamp counterclockwise to raise the clamping
(top) plate (C).
3. Slide the pail onto the bottom plate (D).
4. Position the pail in the grooves on the bottom
plate. The grooves on the plate keep the pail in
place during mixing.
5. Lower the clamping plate by turning the
handle (B) clockwise. Once the plate makes
contact with the pail, tighten another 1/8 turn.
6. Secure the bail with the bail spring.
7. Close the door and select the desired cycle
length on the Timer.
(D)
(C)
WARNING! Avoid serious personal injury.
Do not open the door until the machine
comes to a complete stop; moving parts
inside could cause serious injury.
1. Raise the clamp all the way to the top by
(1) pulling ing the ratchet release lever (A)
torward you until it clicks and (2) turning the
crank handle counter-clockwise.
2. Unfasten the bail spring.
3. Pull pail forward onto roller to remove from
machine.
Notice: Avoid damage to the machine.
• A safety interlock interrupts machine
operation if the door is open.
• If the bail spring wasn’t properly secured,
press the EMERGENCY STOP button on the
control panel.
• Do not operate the machine without a
can installed.
(A) (B)
4.2 Install a Pail and Mix
4.3 Remove a Pail

10
Owner’s Manual: 5925 1785436 Rev U
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
4.4 Pail Extractor Options
EXTRACTOR ARM

11
Owner’s Manual: 5925 1785436 Rev U
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
Lubrication:
1. Speed Reducer: Maintenance is not
required. If an oil change is necessary due to
debris build-up:
a. Remove the oil drain plug on the
bottom side of the machine and drain the
oil from the gearbox.
b. Remove the oil level plug and fill only up
to that level with Mobil SHC 634 Synthetic
oil. Do not overfill or underfill.
2. Clamp: Lubricate the clamping screw
threads and thrust bearing as needed with
3-in-1 oil.
3. Ratchet Lever: Lubricate the shaft as
needed with 3-in-1 oil.
Avoid serious personal injury! DO NOT use
solvent-based cleaners or thinners, or other
combustible cleaners.
WARNING!Avoid serious personal injury. Always unplug the power cord before performing
maintenance tasks.
• Remove water-based/glycol colorants or
base paints spilled on machine surfaces using
lukewarm water and mild detergent.
• Do not use abrasives to clean machine
surfaces. Doing so may damage the
appearance of the machine,
• Keep the machine clean for reliable
5. Care and Maintenance
5.1 Ceaning 5.2 Maintenance
IMPORTANT MAINTANCE ITEMS
As Needed
As Needed
As Needed
As Needed
Monthly
6 Months
6 Months
Rachet Lever
Bottom Plate
Clamping Screw
Linkage on Door
Miter Gears Under
Bottom Plate
Lubricate Moving Parts with 3 in 1 OIl
Lubricate Screws with 3 in 1 Oil
ITEM MAINTENANCEFREQUENCY
Clean o Dirt and Paint With Hot Soap
Water
Lubricate Bushing in Slot on Door
Linkage with 3 In 1 Oil
Close Clamp & Lubricate the Length of
the Hex Shaft with 3 In 1 Oil.
Grease with "Open Gear & Fifth Wheel
Grease".
Turn Mixing Cradle Upside Down &
Lubricate With 3 In 1 Oil
Hex Shaft Under
Bottom Plate
Bar Slide Under
Bottom Plate

12
Owner’s Manual: 5925 1785436 Rev U
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
PROBLEM CAUSE REMEDY
Machine will not operate
Not connected to power source Connect to power source
Building circuit breaker or fuse
blown Reset breaker or replace fuse
Machine door does not make
contact with the door switch
Readjust switch to make contact with
door switch screw when door is closed
Motor thermal protector activated Allow to cool, then restart
Machine circuit breaker trippedReset by pressing circuit breaker back in
Faulty Control Panel Contact Red Devil Equipment Co.
Customer Care
Faulty Motor Contact Red Devil Equipment Co.
Customer Care
Worn, damaged, or loose drive
belt
Unplug power cord, open mixer door, and
visually inspect the drive belt
Emergency E-STOP push-button
is activated
Turn switch knob 1/4-turn clockwise to
disengage
Excessive Vibration
Pail damaged Fix or replace pail
Can not properly seated Reset can into holder
Feet are not level Adjust and level feet
Machine does not shut off
when door is opened Faulty door limit switch Contact Red Devil Equipment Co. Customer Care
Machine does not shut off at
the end of a mix cycle Faulty timer Contact Red Devil Equipment Co. Customer Care
Increasing mechanical noise Bearings worn or damaged Contact Red Devil Equipment Co.
Customer Care
Pail rotates inside the
clamping plates
Top clamp pad worn Replace pad
Top clamp not secure Turn the crank handle down until top
plate is snug on pail
Contact Radia's Customer Care
Contact Radia's Customer Care
Contact Radia's Customer Care
Contact Radia's Customer Care
Contact Radia's Customer Care
Top Plate
6. Troubleshooting

13
Owner’s Manual: 5925 1785436 Rev U
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
BL
COUNTER
5784008
R
B
B
W
G
9780543 YELLOW WIRE NUT
WIRE COLOR CODE: B = BLUE BL = BLACK B/W = BLACK W/WHITE STRIPE G = GREEN
R = RED
W = WHITE G/Y = GREEN WYELLOW STRIPE BRN = BROWN
CONTROL PANEL
9780543
YELLOW
WIRE NUT
5785400 MOTOR TO JUNCTION BOX HARNESS
G
W
RR
W G
5784036
MOTOR HARNESS
MOTOR
5785931
B/W
B/ W
BL
9780542
ORANGE
WIRE NUT
5782559
5782556
5782557
CIRCUIT BREAKER
5785315
B
5784033
MAIN HARNESS
DOOR
SWITCH
5783815
E-STOP SWITCH
5784827
B/W
2
1
1
1
5756690
4 MIN TIMER
BRN
POWER CORD
5784034
5784935
5784935
G/Y
BL
7. Wiring Diagrams
7.1 110 V 60 Hz
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY

14
Owner’s Manual: 5925 1785436 Rev U
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
7
19
21
20
1
22
2
18
25
26
27
28
11
6
5
4
12
3
10
14
23
6
13
17
8
15
9
16
11
10
24
9
7
19
21
20
1
22
2
18
25
26
27
28
11
6
5
4
12
3
10
14
23
6
13
17
8
15
9
16
11
10
24
9
ID Description
1 9786804 BASE WELDMENT - 5925-5025
2 9786861 MOUNT, GEARBOX - 5925
3 9785464 GEARBOX, RIGHT ANGLE - 5925
4 9780886 SCREW HEX 3_8-16 X 1.00
5 9780402 Washer 3_8 split lock
6 9100731 WASHER, FLAT 3_8 X .82 OD
7 5785931 MOTOR, AC, 1 HP 60-50HZ, 56C FRAME
8 9786862 BRACE, GEARBOX - 5925
9 9100023 WASHER, FLAT 5_16 USS
10 9561700 Screw Hex 5_16 X 1
11 9780182 Nut, Nylock 5_16-18
12 9786132 PULLEY, WITH BRG ASBY- 5925
13 9785368 SHAFT, TUMBLE - 5925
14 9785781 SCREW, SOCKET HEAD CAP 3_8-16 X 2.50
15 9785585 KEY, SQUARE .250 X 4.125
16 9782154 Screw Hex 1_2 X 1_50
17 9781228 Screw Hex 3_8 X 1 1_4
18 9783894 Screw Hex 3_8-16 x 2.50 Full Thd
19 9780367 Isolator set
20 9780368 Washer
21 9780193 Nut, Nylock 3_8-16
22 9786768 WASHER, FLAT, .406 ID X 1.50 OD X .062 TH, SS
23 9783383 Nut 1_2 Nylon Lock
24 6785949 STOP BLOCK, FLIP UP, ASBY - 5925
25 9785780 SCREW, HEX 1_2-13 X 1.25 LG
26 9780214 Washer 1_2 LOCK
27 9781083 Washer, Flat .507 ID x 2.00 OD x .19 Thk
28 9785587 WASHER, FLAT .512 ID X 1.456 OD X .118 THK
8. Exploded Views
8.1 Frame and Drive
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued..

15
Owner’s Manual: 5925 1785436 Rev U
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
14
13
91
5
5
22
16
3
11
621
12
18
17
3
19
2
6
4
1
5
10
15
8
20
7
14
13
91
5
5
22
16
3
11
621
12
18
17
3
19
2
6
4
1
5
10
15
8
20
7
ID Description
1 9100023 WASHER, FLAT 5_16 USS
2 9100731 WASHER, FLAT 3_8 X .82 OD
3 9561700 Screw Hex 5_16 X 1
4 9760514 Washer 1_4 SAE .281 ID
5 9780182 Nut, Nylock 5_16-18
6 9780193 Nut, Nylock 3_8-16
7 9781228 Screw Hex 3_8 X 1 1_4
8 9781541 Screw Hex 1_4 X 2 1_4
9 9782904 Screw Button 5_16-18 x .75
10 9784555 SCREW, HEX SEMS 1_4-20 X .75
11 9785092 Screw Hex 3_8-16 X 1.75 FULL THD
12 9785544 BLOCK, ROTATING STOP - 5925
ID Description
13 9785709 BALL STUD
14 9785939 DAMPER, COMPRESSION, 100 LBS
15 9785943 MOUNT, STOP LOCK, FLIP UP - 5925
16 9785944 BRACKET, BLOCK MOUNT, FLIP UP - 5925
17 9785945 BUSHING, BRONZE
18 9785946 SPRING, EXTENSION
19 9785947 CHAIN
20 9785950 WASHER, FLAT .688 ID X 1.75 OD X .134 THK
21 9785951 BUSHING
22 9785953 NUT, KEPS 1_4-20
8.2 Rotating Arm Lock Assembly
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued..
...Exploded Views, Continued

16
Owner’s Manual: 5925 1785436 Rev U
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
1
4
3
5
8
2
7
6
11
9
10
12
1
4
3
5
8
2
7
6
11
9
10
12
ID Description
1 9785348 ROTATING FRAME WELD’T - 5925
2 6785936 TOP PLATE AND BEARING ASSY - 5925
3 9785341 CHANNEL, BOTTOM PLATE - 5925
4 6785825 BOTTOM PLATE ASBY, NOTCHED - 5925
5 9785340 CHANNEL, TOP PLATE - 5925
6 9780221 SCREW HEX 1_2-13 X 1.00
7 9786096 WASHER, BELLVILLE, 1.000 OD X .505 ID X .067 TH
ID Description
89100023 WASHER, FLAT 5_16 USS
99782520 ROLLER
10 9785342 BRACKET, ROLLER - 5925
11 9785537 WASHER, NEO, .195 ID, .438 OD, .093T
12 9785782 NUT, KEPS 5_16-18
13
14 9787320 Flat washer 5/16 X 1.0 X 0.50
15 6787326 HexShaft leit
9787321 Screw Hex 5_16-18 X .50
15
13
14
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued..
8.3 Rotating Frame
...Exploded Views, Continued

17
Owner’s Manual: 5925 1785436 Rev U
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
19
9
18
17
20
3
4
11
21
14
13
12
15
24
2
22
23
1
5
10
6
7
8
19
9
18
17
20
3
4
11
21
14
13
12
15
24
2
22
23
1
5
10
6
7
8
See Lead Screw
Exploded View
ID Description
1 6786165 RATCHET ASSEMBLY - 5925
2 9785406 Tensioner, Pulley
3 9785531 COVER, LEAD SCREW PULLEY - 5925
4 9786101 BRACE, BOTTOM, CLAMP BELT - 5925
5 9786102 TENSIONER, CLAMP BELT - 5925
6 9786114 TAB, TENSIONER, U CHANNEL
7 9787598 COVER, TENSIOR - 5925 (05925U2 MODEL)
8 9786118 SCREW, SER FLANGE HEX HD, .25-20 X 2.00 LG FULL THD
9 9786100 TENSION ARM, CLAMP BELT - 5925
10 9786117 SPRING, TENSION, CLAMP BELT - 5925
11 9786081 BELT, TIMING, CLAMP - 5925
12 9786099 BRACE, SECONDARY, CLAMP BELT - 5925
ID Description
13 9760514 Washer 1_4 SAE .281 ID
14 9780343 Nut 1_4-20 Nylon Lock
15 9786098 NUT, FLANGED, SERRATED, HEX 3_8-16
17 9785434 BEARING, FLANGED 2-BOLT
18 9760514 Washer 1_4 SAE .281 ID
19 9780343 Nut 1_4-20 Nylon Lock
20 9785779 SCREW, SERRATED FLANGE HEX HD, .25-20 X .50 LG
21 SCREW, SET, KNURLED CUP POINT 1_4-28 X .25
22 9100023 WASHER, FLAT 5_16 USS
23 9785782 NUT, KEPS 5_16-18
24 9786091 SPACER, 3_8 BOLT
16 9785348 Rotating Frame Weldment
1516
7 9786115 COVER, LS PULLEY, TENSIONER - 5925 (05925 MRU MODEL)
8.4 Rotating Frame - Front
...Exploded Views, Continued
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued..

18
Owner’s Manual: 5925 1785436 Rev U
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
3
21
8
6
12
18
11
4
9
10
5
7
17
14
15
13
16
3
21
8
6
12
18
11
4
9
10
5
7
17
14
15
13
16
ID Description
1 6786544 MITER GEARBOX ASSY - 5925
2 9100023 WASHER, FLAT 5_16 USS
3 9780182 Nut, Nylock 5_16-18
4 9786134 TENSIONER ARM, SPRING ACTUATED, S8M - 5925
5 9783951 Nut, 3_8-16 Jam Nylon Lock
6 9780144 Screw Hex 3_8-16 x .75
7 9785437 BUSHING, SPRING, STOP BLOCK - 5925
8 9100023 WASHER, FLAT 5_16 USS
9 9785783 SCREW, SOCKET HEAD CAP, 3_8-16 X 1.75
10 9785407 IDLER, SPIN DRIVE TENSIONER - 5925
ID Description
11 9786086 SPRING, TENSION, DRIVE - 5925
12 9786090 BOLT, EYE 5_16-18 X 3.5 LG
13 9785545 PIN, ROTATING STOP - 5925
14 9785551 SPRING, COMPRESSION, TAPERED - 5925
15 9784746 WASHER, FLAT, 1_2 HARDENED
16 9784919 Screw Hex 1_2-13 X 3
17 9786131 BELT, TIMING, DRIVE, S8M - 5925
18 9783383 Nut 1_2 Nylon Lock
8.5 Rotating Frame - Back
...Exploded Views, Continued
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued..

19
Owner’s Manual: 5925 1785436 Rev U
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
36
32
12
11
10
34
33
30 9
31 8
7
29
26
6
28
27 5
4
3
2
1
25
13
19
35
15
24 16
20
21
17
22
23 18
36
32
12
11
10
34
33
30 9
31 8
7
29
26
6
28
27 5
14
4
3
2
1
25
13
19
35
15
24 16
20
21
17
22
23 18
37
8.6 Ratchet Handle
...Exploded Views, Continued
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued..

20
Owner’s Manual: 5925 1785436 Rev U
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
ID Description
19785386 PLATE, RATCHET MOUNT - 5925
29785467 BEARING, RADIAL BALL 25 MM X 47 MM X 12 MM
39785387 HOUSING, RATCHET BEARING - 5925
49780343 Nut 1_4-20 Nylon Lock
59785466 BEARING, 1 WAY NEEDLE-ROLLER, 1.00 SHAFT
69785389 COG, RATCHET LARGE BORE - 5925
79785538 WASHER, .531 ID 1.5 OD .047 THK
89785465 BEARING, 1 WAY NEEDLE-ROLLER, .500 SHAFT
99785390 COG, RATCHET - 5925
10 9786080 PULLEY, TIMING RATCHET, S8M-28T - 5925
11 9786097 RETAINING RING, EXT., .500 Shaft
12 9786095 BEARING, RADIAL BALL .500 X 1.125 X .3125
13 9786094 SHAFT, CLAMP HANDLE, LONG - 5925
14 9785573 RETAINING RING, EXT., 0.984 SHAFT
15 9786084 HANDLE, CRANK - 5925
16 9783505 SCREW FLAT HD SOC 1_4-20 X 5_8
17 9783994 Bumper, Recess
18 9780827 Screw, Truss Head, 1_4-20 X 3_4
19 9785423 Spacer, Round, RATCHET - 5925
20 9784628 WHEEL, CRANK HANDLE - 5025
21 9784629 BEARING, RADIAL BALL, DOUBLE SHIELDED
22 9784729 WASHER, SHIM 1_4
23 9784632 SCREW, BUTTON 1_4-20 X 1.75
24 9784629 BEARING, RADIAL BALL, DOUBLE SHIELDED
25 9785785 SCREW, FLAT HEAD SOC 5_16-18 X 2.00 LG
26 9785447 SPRING, EXTENSION 2.25 X .312 X .035
27 9785986 WASHER, BELLVILLE, .877 OD X .402 ID X .062 TH
28 9785539 PIVOT, RATCHET PAWL - 5925
29 9785396 PAWL, LEVER RATCHET LOCK - 5925
30 9785398 PAWL, SECONDARY RATCHET - 5925
31 9785448 SPRING, EXTENSION, RATCHET - 5925
32 9783483 Key, Square .125_.5625
33 9785576 WASHER, FLAT M8 ZINC
34 9780182 Nut, Nylock 5_16-18
35 9785283 BUSHING, STEEL - 5025 CRANK HANDLE
36 9784846 SCREW, SET, TORX 1_4-28 X .375
6786165 Ratchet Assembly37
8.6 Ratchet Handle, Part List
...Exploded Views, Continued
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued..
