Radiantek TH23F User manual

Cleaning and Storage:
The Probe is the most delicate part of the thermometer.
Use with care when cleaning the probe to avoid damage.
a. Allow the lens to fully dry for at least 1 minutes.
b. Keep the unit dry and away from any liquids and direct sunlight.
c. Please use the alcohol swab or the soft cotton moistened with the 70% alcohol to clean the probe lens.
d. Clean the probe and probe lens after each use to ensure an accurate reading and avoid cross contamination.
Important Notes:
1. Make sure the Probe is clean and avoid the smothered with Rubber boat (Protector).
2. Before the measurement, please stay in a stable environment for 5mins and avoid the exercise, bath for 30minutes.
3. Remember to keep the temple area clean and away from sweat, cosmetics and scar while taking temperature.
4. During the measurement, please away from the direct sunshine and wind.
** Storage temperature range: It should be stored at room temperature between -20~+50°C, RH≦85%
Transportation temperature shall be less than 70°C, RH≦95%
Changing the Battery:
It is supplied with one lithium cell (CR2032x1pcs)
①Open the battery compartment by turning the cover 45° clockwise with a coin. ②Remove the battery safety strip with a sharp-pointed
object. ③Insert a new battery under the metal hook and press down until you hear a “click” sound ④Close the battery cover.
Keep the battery away from children. Disposal of the used batteries：Please comply with the local regulation.
Ref No.：022010

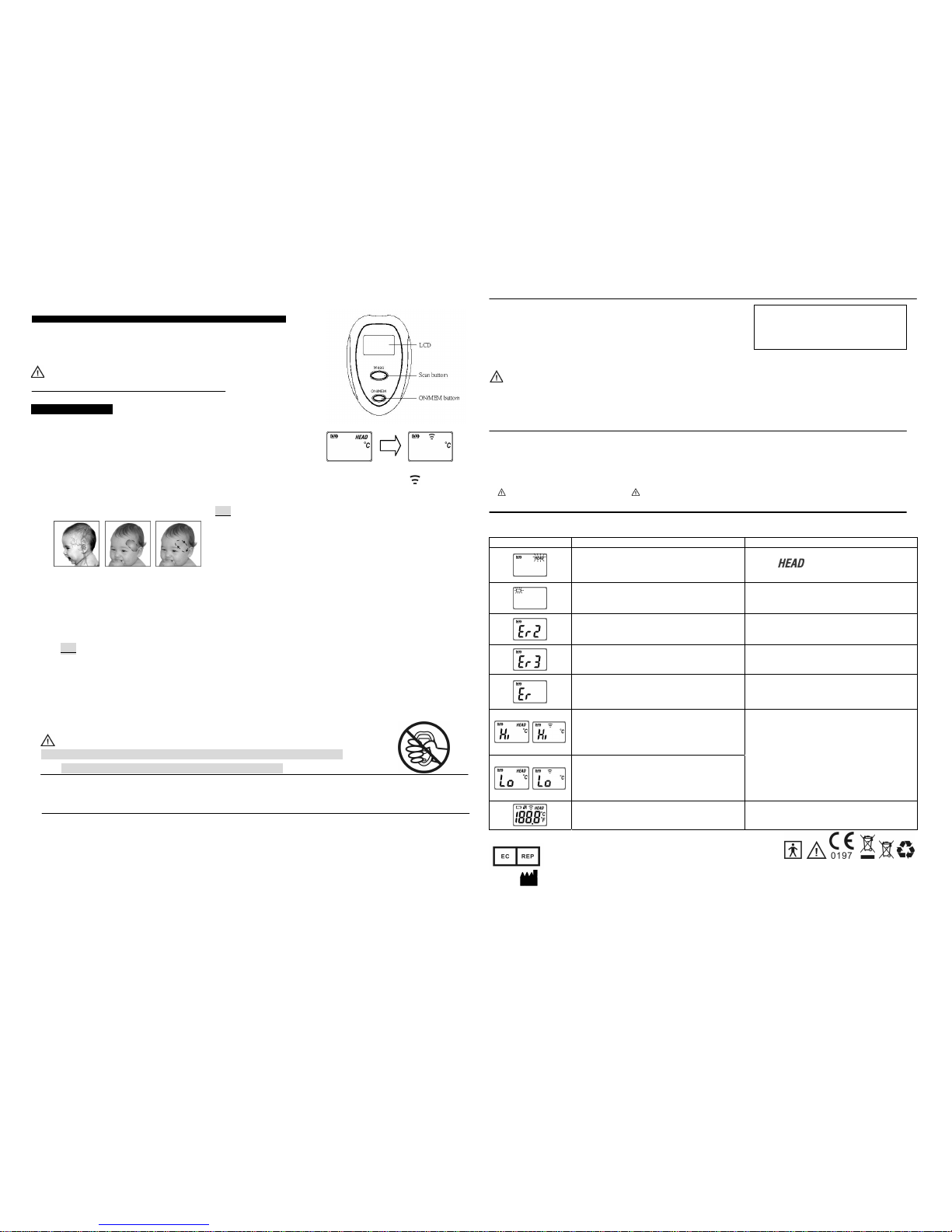

TH23F Forehead Thermometer
Thank you for purchasing this Forehead thermometer. This thermometer is
designed with advance infrared and ambient temperature compensation
technology for accurate and fast temperature measurements.
It also has a wide range mode to scan real time temperature.
Do not use this device for Live & Dead decision or
Safety related applications.
Operating Instructions:
1Always make sure the probe lens is clean without any damage,
and the forehead is clean.
2Power on: Press the “ON/MEM” button.
3Mode selection:
3.1 FOREHEAD Mode: The preset mode of thermometer is forehead. The
thermometer is ready for use after the “HEAD” icon stops flashing and two beep sound.
3.2 SCAN Mode: In “Power On” mode, press and hold the “ON/MEM” button, then press the “SCAN” button,the ‘ ’ icon will
replace “HEAD” icon in the LCD display.
4Temperature taking:
Measuring the FOREHEAD temperature:
Figure 4.1 Figure 4.2 Figure 4.3
Note: Forehead temperature is displayed in Oral Mode. This mode converts
the forehead temperature to display its "Oral equivalent."
4.1 The temporal artery connect to heart via the carotid artery. Forehead
thermometer is designed to measure the skin surface over the temporal
artery, the major artery of the head ( Fig.4.1 ).
4.2 Attach the device to the required measurement location on the forehead
( Fig.4.2 ).
4.3 Press the “SCAN” button, and gently scan around the temple area( Fig.4.3 ) , you can select the left side of the left temples or the
right side of the right temples. Measurement is completed after a long beep is heard. (The time of measurement might be
between 5~8sec (up to 30sec). That depends on how long the thermometer get the highest temperature of the forehead.)
4.4 Measuring temperature under SCAN mode: When you press the “Meas.” button, you will get the temperature immediately
about 0.6 sec. If you hold down the scan button, the reading of measurement will be continuous updated. (Scan mode shows
the actual, unadjusted temperatures, which is different from the forehead mode.)
Note：Classification according to IEC 60601-1：Not classified as AP/APG equipment ; Continuous operation equipment.
5Switching between Celsius(°C) and Fahrenheit(°F):
To change the LCD from °C to °F: In “Power Off” mode, press and hold the “SCAN” button, then press the “ON/MEM” button for 3
seconds, icon “°C” will be switched to icon “°F”. You can also use the same process to change the LCD display from °F to °C.
6Memory Function: Press the “ON/MEM” button to see the temperature stored. This thermometer provides 25 sets memory for the last
measurements. ** Please notice that only the “HEAD” function’s reading will be recorded. (When the thermometer is turned off, the last
measurement data is saved into memory.)
7Power off: Device will automatically shut down after 1 minute pending to extend battery life. At
next power on, it will get back to the default setting of “HEAD” temperature function
Holding the thermometer too long may cause a higher ambient temperature reading of the probe.
This could make the body temperature measurement lower than usual.
Fever Alarm:
If the thermometer detects a temperature >37.5°C (or 99.5°F) under forehead mode, three short beep sound will follow one long beep
sound to warn the user for potential fever.
Specifications:
1.Compliance with ASTM E1965-98, IEC60601-1, IEC60601-1-2(EMC) standards.
2.Temperature measurement range: Forehead mode 34~42.2°C (93.2~108°F), Scan mode: -22~80°C (-7.6~176°F)
3.Accuracy is +/-0.3°C(0.5°F)during 22~42.2°C (71.6~108°F), others +/-4% or +/-2°C(4°F) whichever is greater.
4.Operating Range：10~40°C (50 oF ~104 oF)，the relative humidity < 85%
Troubleshooting:
Error Message Problem Solution
Device stabilization in process. Wait until stops flashing.
Battery is low and no more measurements are
possible. Replace the battery.
The device showing a rapid ambient temperature
change.
Allow the thermometer to rest in a room for at least 30
minutes at room temperature:
10°C and 40°C(50°F~104°F).
The ambient temperature is not within the range
between 10°C and 40°C (50°F~104°F).
Allow the thermometer to rest in a room at least 30
minutes at room temperature: 10°C and 40°C(50°F~
104°F).
Error 5~9, the system is not functioning properly.
Unload the battery, wait for 1 minute and repower it. If
the message reappears, contact the retailer for
service.
Temperature taken is higher than 42.2°C (108.0°F) for
forehead mode or 80°C (176°F) for scan mode.
Temperature taken is lower than 34°C (93.2°F) for
forehead mode or –22°C (-7.6°F) for scan mode.
1) For forehead mode, please stay in a stable
environment for 5mins and avoid the exercise and bath
for 30min, then make sure the probe lens is clean
before take a new temperature measurement.
2) For scan mode, please select target within
specifications.
ÆIf a mal-function still exists, please contact the
nearest retailer.
Device can not be powered on to the ready stage. Change with a new battery.
Service: Contact the nearest retailer if service is needed.
** The thermometer is NOT
water-proof. Please keep the unit
dry and away from any liquids.
Medical Technology Promedt Consulting GmbH
Add: Altenhofstrasse 80, D-66386 St. Ingbert, Germany
Radiant Innovation Inc. Tel: [phone], Fax: [phone], E-mail:[e-mail]
Add: 1F, No.3, Industrial East 9th Rd., Science-Based Industrial Park, HsinChu, Taiwan
Http://www.radiantek.com.tw

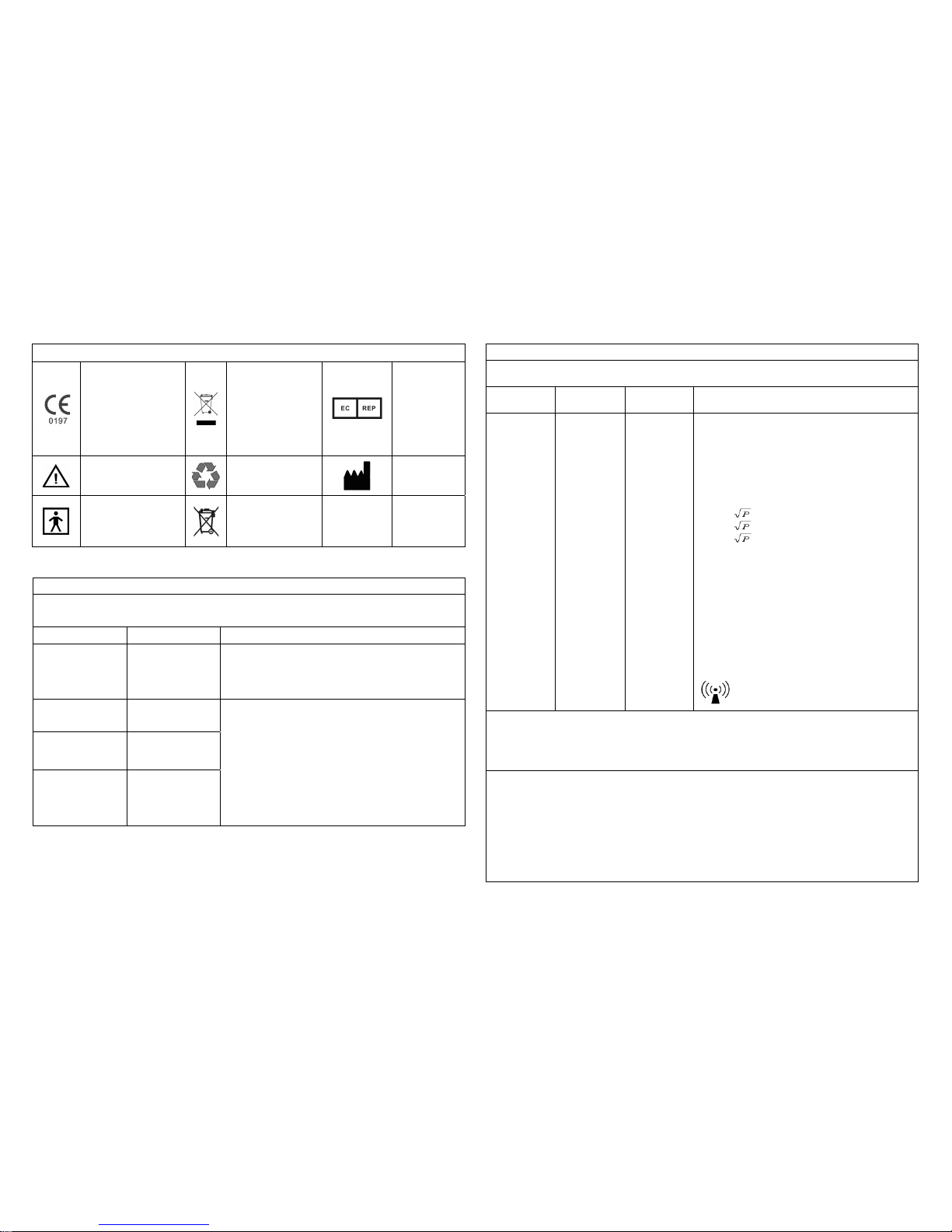

Symbol Descriptions
The CE mark and
Notified Body
Registration
Numbers, the
requirement of Annex
II from Medical
Device Directive
93/42/EEC are met.
Indicates this
device is subject to
the Waste
Electrical and
Electronic
Equipment
Directive in the
European Union.
Authorised
representative
in the
European
community
Please read the
instructions for use
Paper Recycling Manufacturer
BF type applied part
Battery Recycling
Guidance and manufacturer’s declaration – electromagnetic immunity
The TH2xyz series is intended for use in the electromagnetic environment specified below. The
customer or the user of the TH2xyz series should assure that it is used in such an environment.
Immunity test IEC 60601
test level
Compliance
level Electromagnetic environment – guidance
Conducted
RF
IEC
61000-4-6
Radiated RF
IEC
61000-4-3
3 Vrms
150 kHz to
80 MHz
3 V/m
80 MHz to
2,5 GHz
Not
applicable
3 V/m
Portable and mobile RF communications
equipment should be used no closer to any part
of the TH2xyz series, including cables, than the
recommended separation distance calculated
from the equation applicable to the frequency of
the transmitter.
Recommended separation distance
d = 1,2
d = 1,2 80 MHz to 800 MHz
d = 1,2 800 MHz to 2,5 GHz
where P is the maximum output power rating of
the transmitter in watts (W) according to the
transmitter manufacturer and d is the
recommended separation distance in meters (m).
Field strengths from fixed RF transmitters, as
determined by an electromagnetic site survey, a
should be less than the compliance level in each
frequency range b.
Interference may occur in the vicinity of
equipment marked with the following symbol:
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected
by absorption
and reflection from structures, objects and people.
a. Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless)
telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV
broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic
environment due to fixed RF transmitters, an electromagnetic site survey should be considered.
If the measured field strength in the location in which the TH2xyz series is used exceeds the
applicable RF compliance level above, the TH2xyz series should be observed to verify normal
operation. If abnormal performance is observed, additional measures may be necessary, such
as reorienting or relocating the TH2xyz series.
b. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
Guidance and manufacturer’s declaration – electromagnetic emissions
The TH2xyz series is intended for use in the electromagnetic environment specified below. The
customer or the user of the TH2xyz series should assure that it is used in such an environment.
Emissions test Compliance Electromagnetic environment – guidance
RF emissions
CISPR 11 Group 1
The TH2xyz series uses RF energy only for its
internal function. Therefore, its RF emissions are very
low and are not likely to cause any interference in
nearby electronic equipment.
RF emissions
CISPR 11 Class B
Harmonic
emissions
IEC 61000-3-2
Not applicable
Voltage
fluctuations/
flicker emissions
IEC 61000-3-3
Not applicable
The TH2xyz series is suitable for use in all
establishments, including domestic establishments
and those directly connected to the public low-voltage
power supply network that supplies buildings used for
domestic purposes.

Guidance and manufacturer’s declaration – electromagnetic immunity
The TH2xyz series is intended for use in the electromagnetic environment specified below. The
customer or the user of the TH2xyz series should assure that it is used in such an environment.
Immunity test IEC 60601 test
level
Compliance
level
Electromagnetic environment –
guidance
Electrostatic
discharge
(ESD)
IEC 61000-4-2
6 kV contact
8 kV air
6 kV
contact
8 kV air
Floors should be wood, concrete
or ceramic tile. If floors are
covered with synthetic material,
the relative humidity should be at
least 30 %.
Electrical fast
transient/burst
IEC 61000-4-4
2 kV for power
supply lines
1 kV for
input/output lines
Not applicable
Mains power quality should be that of
a typical commercial or hospital
environment.
Surge
IEC 61000-4-5
1 kV line(s) to
line(s)
2 kV line(s) to earth
Not applicable
Mains power quality should be that of
a typical commercial or hospital
environment.
interruptions and
voltage
variations on
power supply
input lines
IEC 61000-4-11
<5 % UT
(>95 % dip in UT)
for 0,5 cycle
40 % UT
(60 % dip in UT)
for 5 cycles
70 % UT
(30 % dip in UT)
for 25 cycles
<5 % UT
(>95 % dip in UT)
for 5 sec
Not applicable
Mains power quality should be that of
a typical commercial or hospital
environment. If the user of the
TH2xyz series requires continued
operation during power mains
interruptions, it is recommended that
the TH2xyz series be powered from
an uninterruptible power supply or a
battery.
Power frequency
(50/60 Hz)
magnetic field
IEC 61000-4-8
3 A/m 3 A/m
Power frequency magnetic fields
should be at levels characteristic of a
typical location in a typical
commercial or hospital environment.
NOTE UT is the a.c. mains voltage prior to application of the test level.
Recommended separation distances between
portable and mobile RF communications equipment and the
ME EQUIPMENT or ME SYSTEM
The TH2xyz series is intended for use in an electromagnetic environment in which radiated RF
disturbances are controlled. The customer or the user of the TH2xyz series can help prevent
electromagnetic interference by maintaining a minimum distance between portable and mobile RF
communications equipment (transmitters) and the TH2xyz series as recommended below,
according to the maximum output power of the communications equipment.
Separation distance according to frequency of transmitter
m
Rated maximum
output power of
transmitter
W 150 kHz to 80 MHz
d = 1,2
80 MHz to 800 MHz
d = 1,2
800 MHz to 2,5 GHz
d = 2,3
0,01 0,12 0,12 0,23
0,1 0,38 0,38 0,73
11,2 1,2 2,3
10 3,8 3,8 7,3
100 12 12 23
For transmitters rated at a maximum output power not listed above, the recommended separation
distance d in meters (m) can be estimated using the equation applicable to the frequency of the
transmitter, where P is the maximum output power rating of the transmitter in watts (W) according
to the transmitter manufacturer.
NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected
by absorption and reflection from structures, objects and people.
