Radiantek TH005 User manual

Before the measurement
,
please make sure the
selected button
accords with the measured position.
TH005 Multi-function Infrared Thermometer
Functions
eal Time Clock
The real time clock will be recorded with the memory function and help you to recognize each
measurement result. (It includes the 12/24 ormat_Hour_Minutes_Date.)
→
→→
→ Please see the “ eal time clock setting” section to learn how to setup the time in the first use.
oom Temperature
Suitable ambient temperature is important for the baby and patient, the t
hermometer always help you
recognize the room temperature.
→
→→
→ Setting “Real time clock” first to enable this function. After power off, room temperature will be shown
on the screen with icon.
→
→→
→ Please see the “Use of the thermometer” section to learn how to get the correct room temperature.
Forehead / Ear
Temperature
The thermometer has been designed for practical use. It’
s not meant to replace a visit to the doctor.
Please also remember to compare the measurement result to your regular body temperature.
→
→→
→ Please see the “Use of the thermometer” section to learn how to measure the body temperature.
Surface Mode
The surface mode
shows the actual, unadjusted surface temperatures, which is different from the body
temperature. It can help you to monitor
if the object temperature is suitable for the baby or patient, for
example the baby’s milk.
→
→→
→ Please see the “Use of the thermometer” section to learn how to measure the object temperature.
Stopwatch
The thermometer built the stopwatch function to help you to monitor the heartbeat
since heartbeat is one
of the healthy indexes for people.
→
→→
→ Please see the “Use of the Stopwatch” section to learn how to measure the heartbeat result.
Fever Alarm If thermometer detects a body temperature
≧ 37.5°C under ear
and forehead mode, there will be a long
beep sound followed by three short beep sound to warn the user for potential fever.
Memory Locations
There are total 9 sets memories for ear and forehead measurements. Each memory also records the
measurement date/time/mode icon.
→
→→
→ When in power on, Press the “ON/MEM” button to see the temperature stored with icon.
°C / °F Switch
→
→→
→ In “power off” mode (The LCD only shows the date, time and room temperature
). Press and hold the
“Ear” button, then immediately press and hold the “ON/MEM” button for 3 seconds
. After 3 seconds, icon
“°C” will be switched to icon “° ”. (You may use the same way to switch back to “°C”)
eal time clock setting
1. Power on: Press the “ON/MEM” button. The thermometer is ready for use after hearing two beep sounds.
2. Press and hold the “ON/MEM” button for 5 sec. When you see the Set icon starts flashing, it indicates that you are in the setting screen.(see the following figure.)
3. Press the “ orehead” button to make the “24” icon flash. This indicates that you are in the 12/24-hour setting screen. Press the “ orehead” button to set 12/24-hour
ormat from “24”(24-hour) to “12”(12-hour).
4. Press “ON/MEM” button to move the flashing in the sequence shown below to select our settings:
hour →
→→
→ minutes →
→→
→ year →
→→
→ month →
→→
→ day →
→→
→ leave the setting screen.
5. While the hour, minutes, year, month, day setting is flashing, use “ orehead” button to change it.
Use of the thermometer
1. Always make sure the probe is clean, and without damage.
2. Power on: Press “ON/MEM” button.(see figure 1)
3. Mode selection:
3.1 Ear mode :Press the “Ear” button, you can get the body temperature by ear measurement after
hearing two beep sounds. (see figure 1)
Specifications
Temperature measurement range:
orehead / Ear mode: 34~42.2°C (93.2~108° ),
Surface mode: -22~80°C (-7.6~176° )
Operating temperature range: 10~40°C (50~104° )
Storage temperature range: It should be stored at room temperature between
-20~+50°C, RH ≦ 85%
Transportation temperature shall be less than 70°C, RH ≦ 95%
Comply with ASTM E1965-98, EN12470-5:2003 Clinical thermometers-Part
5:Performance of infra-red ear thermometers(with maximum device),
IEC/EN60601-1-2(EMC),IEC/EN60601-1(Safety) standards.
Accuracy:
or ear mode: +/-0.2°C (0.4° ) within 35.5~42°C (95.9~107.6° ),
+/-0.3°C (0.5° ) for other range.
or forehead mode: +/-0.2°C (0.4° ) within 36~39°C (96.8~102° ),
+/-0.3°C (0.5° ) for other range.
or surface mode: +/-0.3°C (0.5° ) within 22~42.2°C (71.6~108° ),
others +/-4% or +/-2°C (4° ) whichever is greater.
ever alarm & Memory locations under “Ear/ orehead mode” (with each measurement
date/time/mode icon)
Real time clock, °C / ° Switch mode
Battery: one lithium cell battery (CR2032 *1pcs)
This thermometer converts the ear/forehead temperature to display its “oral equivalent.”
There is no gender and age limitation for using infrared thermometer.
This is not an AP or APG product.
Do not use this device for Live & Dead decision or Safety related applications.
Please consult with doctor if you have health concerns.
igure 1 igure 2 igure 3 igure 4

3.2 Forehead mode: Press the “ orehead” button, you can get the body temperature by forehead
measurement after hearing two beep sounds. (see figure 2)
3.3 Surface mode: Press and hold the “ON/MEM” button, and press the “Forehead” button one time,
you can see the icon on your LCD display(see figure 3).
In this mode, press the “ orehead” button to get the target surface temperature.
3.4 Stopwatch: Press and hold the “ON/MEM” button, and press the “Forehead” button twice, you can
see the icon on your LCD display(see figure 4).
In this mode, press the “ orehead” button to count by 0.01 second to 3 minutes.

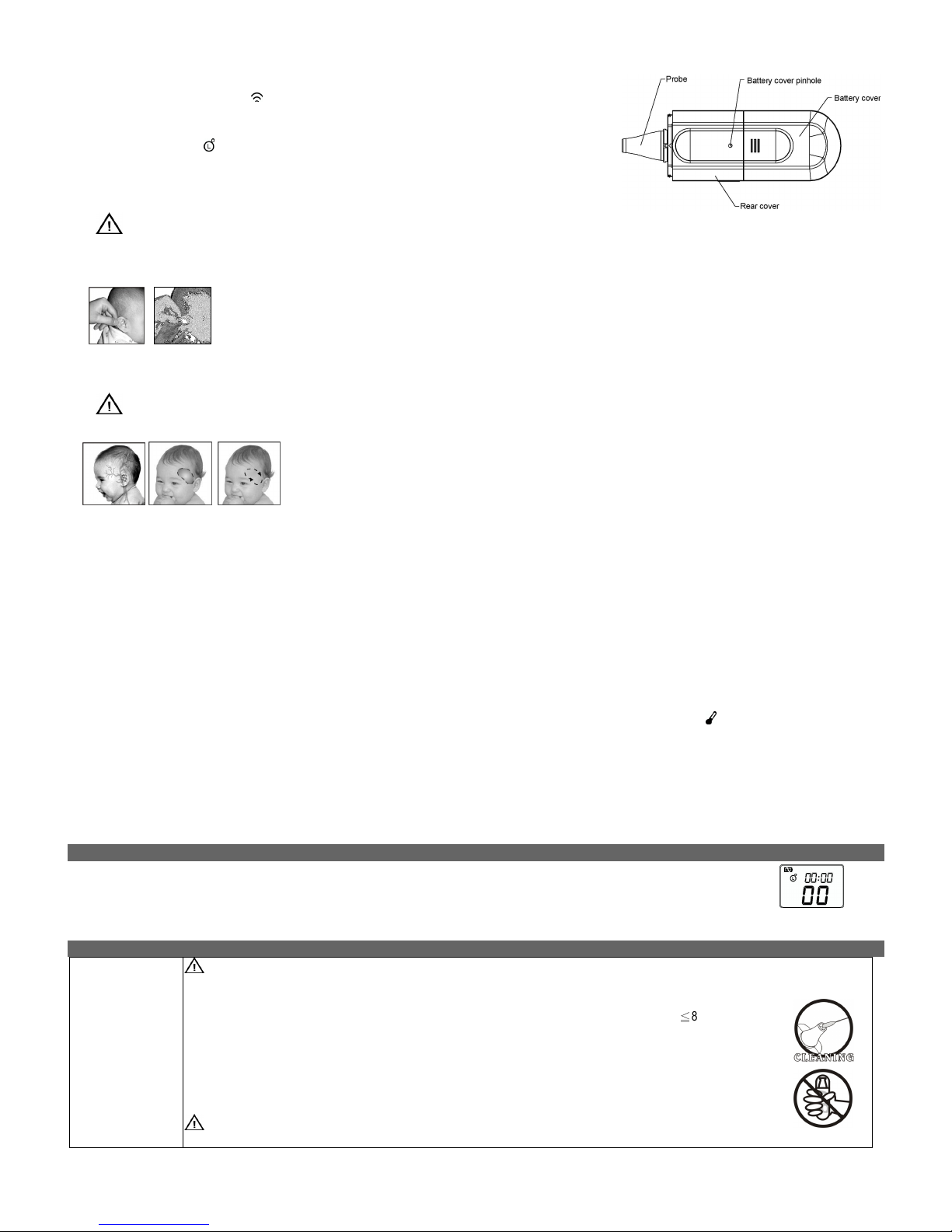

4. Temperature taking:
4.1 Ear temperature measuring, points for attention:
emarks: a. It is recommended that you measure 3 times with the same ear. If the 3 measurements are different, select the highest temperature.
b. To avoid the risk of cross contamination, please clean the probe according to “ Care and cleaning ” section after each use.
c. The different temperature varies in healthy persons between different parts of the body can be between 0.2~1°C
d. Clinical repeatability: 0.23°C (<1 year old),0.22°C (1~5 years old),0.21°C (>5 years old)
4.1.1 Gently pull the ear back to straighten the ear canal ( ig.4.1.1) and snugly position the probe into the ear canal, aiming towards
the membrane of the eardrum to obtain an accurate reading ( ig.4.1.2).
4.1.2 Press and hold the “Ear” button until you hear a beep sound. Remove the probe from ear and read the temperature
measurement on the LCD.
4.2 Forehead temperature measuring, points for attention:
emarks: a. Forehead temperature is displayed in oral mode. This mode converts the forehead temperature to display its “oral-equivalent” Value.
b. Before the measurement, please stay in a stable environment for 5 mins and avoid exercise, bath for 30 mins.
c. emember to keep the temple area clean and away from sweat, cosmetics and scar while taking temperature.
4.2.1 The temporal artery is
connected to the heart via the carotid artery. It is designed to measure the skin surface around
temporal artery, a major artery of the head ( ig.4.2.1).
4.2.2 Attach the thermometer to the required measurement location on the forehead ( ig. 4.2.2). (You can choose left or
right temple.)
4.2.3 Press the “ orehead” button, and gently scan around the temple area ( ig. 4.2.3). While scanning, you will hear a
beep sound, which indicates you the newest measurement is taking place. Measurement has been completed after
two short beeps are heard and the forehead icon stops flashing. The time consuming for measurement might be
between 5~8 sec (up to 30sec). It depends on how much time the device needs to get the correct forehead
temperature.
4.3 Measuring temperature under surface mode:
4.3.1 When you press the “ orehead” button, you will get the real time temperature immediately. If you press and hold the “ orehead” button, the reading of
measurement will be continuous updated.
4.3.2 Applications include temperature measurements for Water, Milk, Cloth, Skin or other object.
* Note: This mode shows the actual, unadjusted surface temperatures, which is different from the body temperature.
4.4 Get the room temperature
4.4.1 Setting “Real time clock” first to enable this function. After power off, room temperature will be shown on the screen with icon.
4.4.2 or room temperature, the thermometer should be placed on the table and avoid the direct sunshine or air conditioner flow on.
4.4.3 The room temperature can be reference after 15min later.
5. After measurement:
5.1 Power off: Device will automatically shut off if left idle for more than 1 minute to extend battery life. The LCD will only show the date, time and room temperature.
5.2 Clean the probe after each use to ensure an accurate reading and avoid cross contamination. (See the section of Care and Cleaning for details.)
5.3 Remember to put on the Probe Cap when not in use.
Use of the Stopwatch
1. Press and hold the “ON/MEM” button, and press the “ orehead” button twice for “stopwatch” mode.
2. or start or stop counting, press the “ orehead” button; for reset counting, press the “ON/MEM” button.
3. Press and hold the “ON/MEM” button, and press the “ orehead” button to enter the forehead mode.
4. How to measure the heartbeat? If you count out the number of beating is 18 in 15sec, then you can calculate the heartbeat of patient is 72 times in 1min.
Important Notes
Care and cleaning
The probe is the most delicate part of the thermometer. Use with care when cleaning the lens to avoid damage.
a. After the measurement, please use the cotton swab with the Alcohol (70% concentration) to clean the lens( on the inside of the probe).
b. Allow the probe to fully dry for at least 1 minute.
c. Storage temperature range: It should be stored at room temperature between -20~+50°C , RH ≦ 85%
d. Keep the unit dry and away from any liquids and direct sunlight.
e. The Probe should not be submerged into liquids.
* Note: Please check the device if damaged once it falls. If you can’t make sure of it ,please send the complete device to
the nearest retailer for recalibration.
Holding the thermometer too long may cause a higher ambient temperature reading of the probe.
This could make the body temperature measurement lower than usual.
igure 4.2.3 igure 4.2.2 igure 4.2.1
igure 4.1.1
igure 4.1.2

Battery replacement
○
1
Open the battery cover: Insert a pointed object, such as a pen, into battery cover pick hole.
At the same time, use thumb to push battery cover out.
○
2
Hold the device and flip the battery out with a small screwdriver
○
3
Insert the new battery under the metal hook on the left side and press the right side of the battery down
until you hear a click sound.
○
4
Replace the battery cover
Keep the battery away from children. (This device is supplied with one lithium cell (CR2032x1).)
The positive (+) side up and the negative (-) side pointed down.
Trouble shooting:
Error Message
Problem Solution
Error 5~9, the system is not functioning properly. Unload the battery, wait for 1 minute and repower it. If the message
reappears, contact the retailer for service.
Measurement before device stabilization. Wait until all the icons stop flashing.
The device showing a rapid ambient temperature change.
The ambient temperature is not within the range between 10
o
C and 40
o
C (50
o
~104
o
).
Allow the thermometer to rest in a room for at least 30 minutes at room
temperature: 10
o
C and 40
o
C (50
o
~104
o
).
(1) In ear/forehead mode: Temperature taken is higher than +42.2
o
C (108° )
(2) In surface mode: Temperature taken is higher than +80
o
C (176° )
(1) In ear/forehead mode: Temperature taken is lower than +34
o
C (93.2° )
(2) In surface mode: Temperature taken is lower than –22
o
C (-7.6° )
Please select the target within specifications. If a malfunction still exists,
please contact the nearest retailer.
Device cannot be powered on to the ready stage. Change with a new battery.
Warranty:
Warranty :12 months
Manufacture Date ： as the serial number( please open the battery cover, it is shown on the inside of the device.)
Ex.SN:E912A000001, the first “E” is External, the second number “9” is the manufacture year 2009, the third and the fourth number “12” is the manufacture month, the
others is the serial number.
Note: The thermometer is calibrated at the time of manufacture. If at any time you question the accuracy of temperature measurements, please contact the
dealers or nearest service address.
Please read the instructions for use BF type applied part
Radiant Innovation Inc. Http://www.radiantek.com.tw
Add: 1 , No.3, Industrial East 9
th
Road, Science-Based Industrial Park,
HsinChu, Taiwan 300.
Medical Technology Promedt Consulting GmbH
Add: Altenhofstrasse 80, D-66386 St. Ingbert, Germany
Ref No. ： 082012

Symbol Descriptions
The CE mark and Notified Body
Registration Numbers, the requirement of
Annex II from Medical Device Directive
93/42/EEC are met.
Indicates this device is subject to the
Waste Electrical and Electronic
Equipment Directive in the European
Union. To protect the environment,
dispose of useless device at
appropriate collection sites according
to national or local regulations.
Authorized
representative in the
European community
Caution
Please read the instructions for use
Manufacturer
BF type applied part
Battery Recycling Paper Recycling
Guidance and manufacturer’s declaration – electromagnetic emissions
The TH00xy series is intended for use in the electromagnetic environment specified below. The customer or the user of the TH00xy series
should assure that it is used in such an environment.
Emissions test Compliance Electromagnetic environment – guidance
RF emissions
CISPR 11 Group 1
The TH00xy series uses RF energy only for its internal function. Therefore, its RF
emissions are very low and are not likely to cause any interference in nearby electronic
equipment.
RF emissions
CISPR 11 Class B
Harmonic emissions
IEC 61000-3-2 Not applicable
Voltage fluctuations/
flicker emissions
IEC 61000-3-3
Not applicable
The TH00xy series is suitable for use in all establishments, including domestic
establishments and those directly connected to the public low-voltage power supply
network that supplies buildings used for domestic purposes.
Guidance and manufacturer’s declaration – electromagnetic immunity
The TH00xy series is intended for use in the electromagnetic environment specified below. The customer or the user of the TH00xy series
should assure that it is used in such an environment.
Immunity test IEC 60601 test level
Compliance
level Electromagnetic environment – guidance
Conducted RF
IEC 61000-4-6
Radiated RF
IEC 61000-4-3
3 Vrms
150 kHz to 80 MHz
3 V/m
80 MHz to 2,5 GHz
Not
applicable
3 V/m
Portable and mobile RF communications equipment should be used no closer to any
part of the TH00xy series, including cables, than the recommended separation
distance calculated from the equation applicable to the frequency of the transmitter.
Recommended separation distance
d = 1,2
d = 1,2 80 MHz to 800 MHz
d = 2,3 800 MHz to 2,5 GHz
where P is the maximum output power rating of the transmitter in watts (W) according
to the transmitter manufacturer and d is the recommended separation distance in
meters (m).
Field strengths from fixed RF transmitters, as determined by an electromagnetic site
survey, a should be less than the compliance level in each frequency range b.
Interference may occur in the vicinity of equipment marked with the following symbol:
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption
and reflection from structures, objects and people.
a. Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM
and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to
fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the
TH00xy series is used exceeds the applicable RF compliance level above, the TH00xy series should be observed to verify normal operation.
If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the TH00xy series.
b. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.

Guidance and manufacturer’s declaration – electromagnetic immunity
The TH00xy series is intended for use in the electromagnetic environment specified below. The customer or the user of the TH00xy series
should assure that it is used in such an environment.
Immunity test IEC 60601 test level Compliance level
Electromagnetic environment – guidance
Electrostatic
discharge (ESD)
IEC 61000-4-2
6 kV contact
8 kV air
6 kV contact
8 kV air
Floors should be wood, concrete or ceramic tile. If floors are
covered with synthetic material, the relative humidity should be at
least 30 %.
Electrical fast
transient/burst
IEC 61000-4-4
2 kV for power supply lines
1 kV for input/output lines Not applicable Mains power quality should be that of a typical commercial or hospital environment.
Surge
IEC 61000-4-5
1 kV line(s) to line(s)
2 kV line(s) to earth Not applicable Mains power quality should be that of a typical commercial or hospital environment.
interruptions and
voltage variations
on power supply
input lines
IEC 61000-4-11
<5 % UT
(>95 % dip in UT)
for 0,5 cycle
40 % UT
(60 % dip in UT)
for 5 cycles
70 % UT
(30 % dip in UT)
for 25 cycles
<5 % UT
(>95 % dip in UT)
for 5 sec
Not applicable
Mains power quality should be that of a typical commercial
or hospital environment. If the user of the TH00xy series
requires continued operation during power mains
interruptions, it is recommended that the TH00xy series be
powered from an uninterruptible power supply or a battery.
Power frequency
(50/60 Hz)
magnetic field
IEC 61000-4-8
3 A/m 3 A/m
Power frequency magnetic fields should be at levels
characteristic of a typical location in a typical commercial or
hospital environment.
NOTE UT is the a.c. mains voltage prior to application of the test level.
Recommended separation distances between
portable and mobile RF communications equipment and the ME EQUIPMENT or ME SYSTEM
The TH00xy series is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the
user of the TH00xy series can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF
communications equipment (transmitters) and the TH00xy series as recommended below, according to the maximum output power of the
communications equipment.
Separation distance according to frequency of transmitter
m
Rated maximum output power
of transmitter
W 150 kHz to 80 MHz
d = 1,2
80 MHz to 800 MHz
d = 1,2
800 MHz to 2,5 GHz
d = 2,3
0,01 0,12 0,12 0,23
0,1 0,38 0,38 0,73
11,2 1,2 2,3
10 3,8 3,8 7,3
100 12 12 23
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m) can be estimated
using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W)
according to the transmitter manufacturer.
NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures,
objects and people.
