RADICAL R-D210 Owner's manual

1
MAIN MANUAL
R-D210

23
ABOUT THIS MANUAL
This manual contains important information for the operation of this
RADICAL device.
Please store the manual in a location where you have access later on.
R-D210 Front Panel Sensor keys 6
Main Menu 7
FM Tuner Mode 8
DAB Tuner Mode 9
USB / Audio / Video 10 - 11
BT Mode 12 - 19
System Settings 20 - 27
Installation Notes 28 - 33
Statutory Rights and Warranty 34 - 35
NOTE
1. The description and other content shown in this manual may deviate
from the real device.
2. Pictures shown in this manual and some HMI screenshots may deviate
from the real unit.
3. Specications and technical design of this device model are necessarily
subject to change without notice.
CONTENT

45
SAFTY INFORMATION
Read the instructions entirely. Heed all warnings. Follow the instructions
given in this manual. Retain this manual. Whoever will use the unit should
have access to this manual.
This unit is designed to be functional in vehicles with 12 V DC battery and
negative ground.
Do not operate the unit in any other way than described. Failure to follow
the instructions as provided may void your warranty.
Do not disassemble or alter the unit in any way, as these actions will void
your warranty. Do not attempt to repair or to service the unit yourself.
Contact an authorized RADICAL dealer instead.
Don‘t expose the unit to hard impacts. A mechanical or electrical malfunction
of the unit could be the result.
Use only the original accessories that come with the device, which are
designed and manufactured for this particular model. Install the unit in
accordance to the mounting instructions given, using the supplied
mounting accessories. Keep in mind, acceleration forces during accidents
can be huge. Incorrectly mounted devices pose serious risks for driver and
passengers during an accident.
Protect the unit from water and other liquids that could enter the housing.
A short circuit or even a re could result.
Before you replace a defective fuse try to nd the cause for the short
circuit. Pay attention to the cables of the power supply! If the short circuit
does not result from a failure of the power supply or wiring, you can replace
the defective fuse with a new one (use identical Amperage value). If the
short circuit persists, contact an authorized RADICAL dealer.
When connecting this device to auxiliary units read the user‘s guide for
compatibility and notes on electrical connections. Do not try to connect
incompatible products.
Be careful not to drain the car battery while using the unit when the car’s
engine is off. Because the unit consumes a considerable amount of energy
and the battery gets charged only when the engine is running. If you drain
the battery too much, it might become impossible to start the engine later on.
According to trafc laws in different European countries, driving with
monitors showing movies in the viewing range of the driver is not permitted
due to driver distraction. Thus, respect the local trafc regulations or you
may face penalties in case of accidents.
Pay attention to the playback volume inside your vehicle since you are
required to notice exterior warning sounds like police or emergency vehicle
sirens etc..
Should any problems or questions occur during the installation, please
consult your RADICAL dealer from which the device was purchased, or
the importer.

67
FRONT PANEL SENSOR KEYS
Sensor Key Buttons/ Touch-Screen Buttons:
1. Power Long press to turn device ON/OFF. Short press to Mute
Vol ON/OFF
2. Home Short press to enter Main Menu
3. Volume + Press to adjust Volume Up
4. Volume - Press to adjust Volume Down
5. Back Press to go to the previous page
Various:
A. Built-In BT microphone
B. microSDHC Card Slot for A/V playback
C. Power Reset Press to perform a device Reset
1. Home Tap to jump back to the Home Screen
2. Display illumination Tap to turn OFF the display illumination
3. Bluetooth Shows active Bluetooth connection
4. Time Tap to open the Time Screensaver
5. Back Tap to jump one page back
MAIN MENU
Touch arrow, swipe or slide on the touchscreen in left or right direction
to change the displayed page. To select a source, tap on or touch the
corresponding icon.
1
2
3
5
C
B
A
4
MAIN MENU
1 2 35 4

89
DAB TUNER Operation buttons:
1. Preset/Station List Tap to select Preset/Station Tap & hold to save
current station as Preset
Press and hold to delete preset from the list
2. PREV/adjust down Tap to play previous Station in same Ensemble
3. NEXT/adjust up Tap to play next Station in same Ensemble list
4. Scan Tap to start scan
5. DSL-Text/slideshow DSL-text/slideshow view
6. Comfort scan Tap to start comfort scan
7. Adjust up Tap to scroll up in the Station/Preset list
8. Adjust down Tap to scroll down in the Station/Preset list
9. List change Tap to change between Station/Preset list
10.Played Station Shows actual played station
11. FM Switch Tap to switch to the DAB+ Tuner
12.Signal Quality Shows signal strength
13.Source Info Shows the active source
FM TUNER MODE
FM TUNER Operation buttons:
1. Band Tap to switch the radio band
2. Scale Slide arrow on the scale to tune to a station
3. Preset Tap to select a Preset
Press and hold to save actual station as a preset
4. PREV/adjust down Tap to adjust frequency 0.10 Mhz down
Press and hold to start next station search
5. NEXT/adjust up Tap to adjust frequency 0.10 MHz up
Press and hold to start next station search
6. LOC Tap to change between LOC and DX
7. Search Tap to auto search FM band
8. AF Tap to turn ON/OFF Alternative Frequency
9. TA Tap to turn ON/ OFF Traf c Announcements (“TA”)
10. EQ Tap to enter the Equalizer page
11. DAB+ switch Tap to switch to the DAB+ tuner page
12. Source Info Shows the active source
DAB TUNER MODE
1
2
3
5
6
4
7 8 9 10
11
12
1
2
3
5
6
4
7
8
9
10
11
12
13

10 11
USB/-Audio/Video List
1. Arrow Key up Tap to scroll up
2. Arrow Key down Tap to scroll down
3. Title Disp. Tap to return to actual played title
4. Audio Tap to show audio  les
5. Picture Tap to show picture  les
6. Video Tap to show video  les
7. Folder Tap to jump one folder up at USB
8. File Tap on line to start playback of track
9. Folder directory Shows folder directory
10. Source Info Shows the active source
USB / SD / VIDEO MODE
USB Operation Buttons
1. Progress Bar Tap to jump to different track position
2. PREV Tap to jump to previous track
3. PLAY/PAUSE Tap to pause/continue playback
4. NEXT Tap to jump to next track
5. LIST Tap to show  le list mode
6. REPEAT Tap to REPEAT (1/Dir/all)
7. Shuf e Tap to turn ON/OFF shuf e function
8. A-B Tap to loop section from A to B
9. Folder overview Tap to open folder overview
10. Keypad Tap to open Keypad and enter a track number directly
11. EQ Tap to open Equalizer
12. ID 3 Tag display Shows the ID 3 Tag information of the actual played
track/song.
13. Source Info Shows the active source
1
2 35
6
4
7
8 9 10 11
12
13
1
2
3 5 64 7
8
9
10

12 13
BT Devices Display
1. Bluetooth device Shows BT device and connection status
2. Connection Button Tap to connect or disconnect device
3. Delete Tap to delete a device from the list
BT MODE
Bluetooth Operation Buttons
1. Connect Tap to open device manager list for paired or
connected smartphones
2. Phonebook Tap to open synced phonebook
3. Call log Tap to open Call log
4. Keypad Tap to open Keypad
5. Media. Ctr Tap to open and start A2DP playback/Media Ctr.
6. BT Settings Tap to open Bluetooth settings
7. Source Info Shows the active source
1
23
5
6
4
7
123

14 15

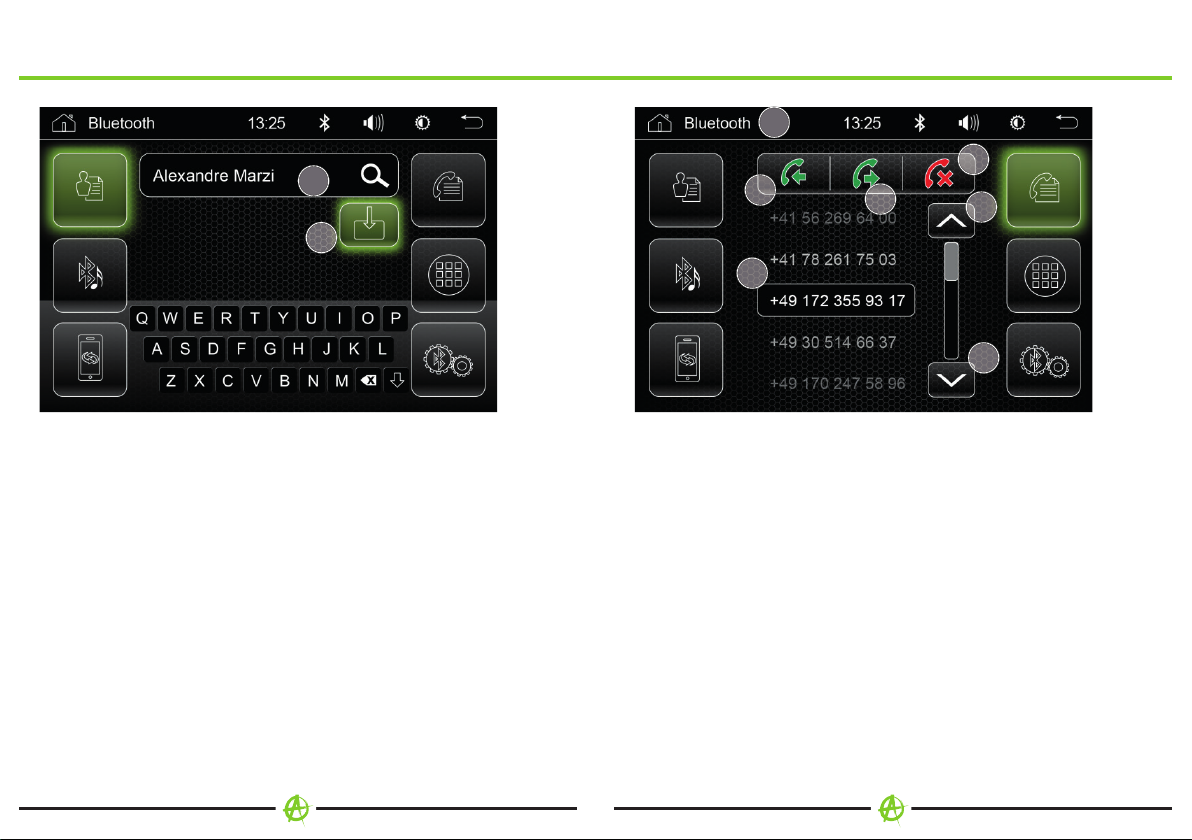

Phonebook Display
1. Search Bar Type in contact name to start search
2. Sync. Phonebook Tap to start synchronisation of Phonebook
Call Log Display
1. Dialled Numbers Tap to show dialled contacts/numbers
2. Received Calls Tap to show received calls from contacts/numbers
3. Missed Calls Tap to show missed calls from contacts/numbers
4. Arrow Key up Tap to scroll up in the current list
5. Arrow Key down Tap to scroll down in the current list
6. List Shows the current list
7. Source Info Shows the active source
BT MODE
1
2
12
3
4
5
6
7

16 17

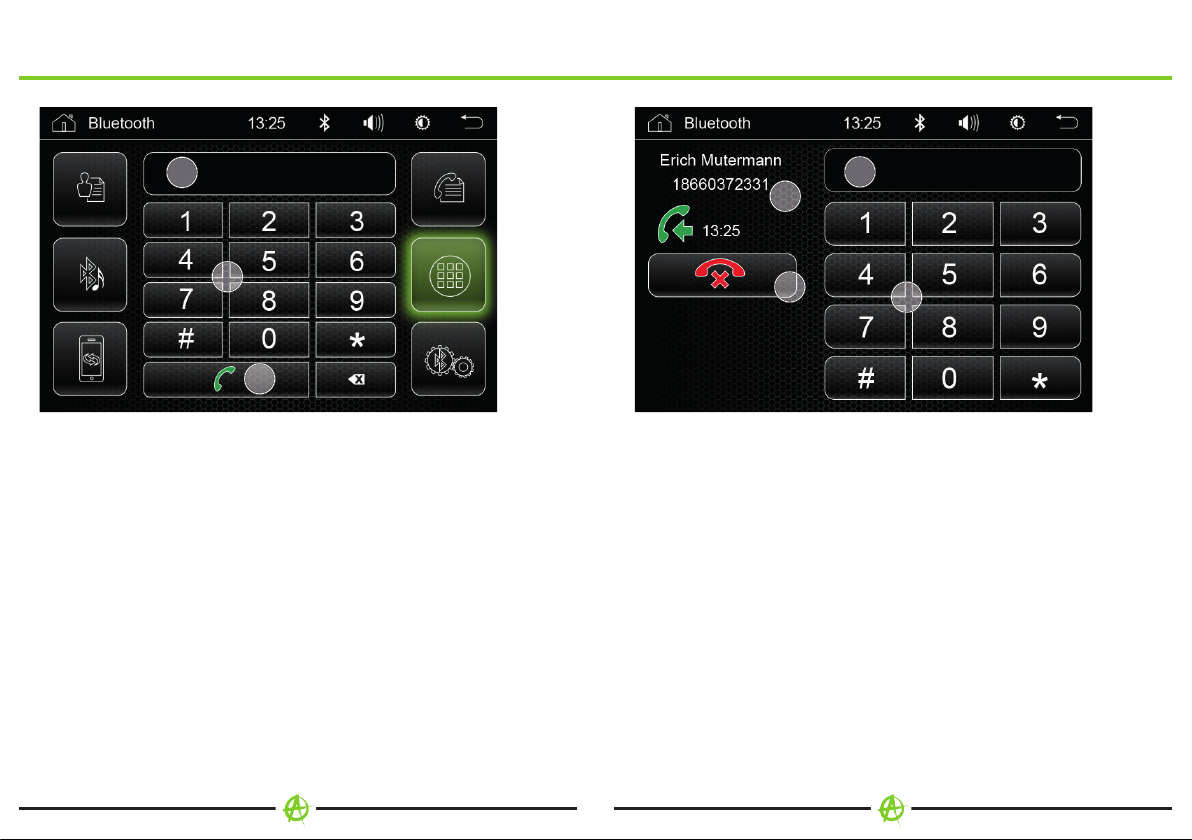

Keypad Display
1. Number/Delete Keys Tap 0-9 or *,+,#
Tap to delete last input
2. Accept incoming Call Tap to accept or make a call
3. Number area info Shows entered number
BT MODE
1
2
3
Active Call Screen
1. Call Info Shows number and contact name, if available
2. End call Tap to end call
3. Number Tap 0-9 or *,+,#
4. Input info Shows number which was entered
1
23
4

18 19
A2DP BT Music:
1. PREV Tap to jump to previous track
2. PLAY/PAUSE Tap to pause/continue playback
3. NEXT Tap to jump to next track
BT MODE
1 2
BT Setup:
1. Auto Connect Tap to turn OFF/ON auto connect
2. Auto Answer Tap to turn OFF/ON auto answer
3. Device Name Shows device name
1
2
3
3

20 21
Item Selection:
To select an item, touch the corresponding icon
SYSTEM SETTINGS
General Settings:
1. BEEP Tap on the arrow to disable/enable acoustic “beep”
feedback on device operation
2. Reverse Mute Tap to turn ON/OFF Reverse audio mute function
3. Power on Volume Tap to turn ON/OFF  xed Vol start volume setting
4. Fixed Volume Tap the arrow keys to adjust the start volume
5. Subwoofer Tap to turn ON/OFF 12 V power on the Subwoofer
remote line.
1
2
3
4
5

22 23
Radio Settings
In the menu point “Radio”, you can choose the radio region for FM.
SYSTEM SETTINGS
1
Video Settings:
1. Aspect Ratio Tap the arrow keys to set the aspect ratio of
the video playback
2. Camera Picture Mirroring Tap to set the mirror function for the rear
view camera picture ON/OFF
OSD Language Setting:
Here you can change the on-screen display text language
1
2
1

24 25

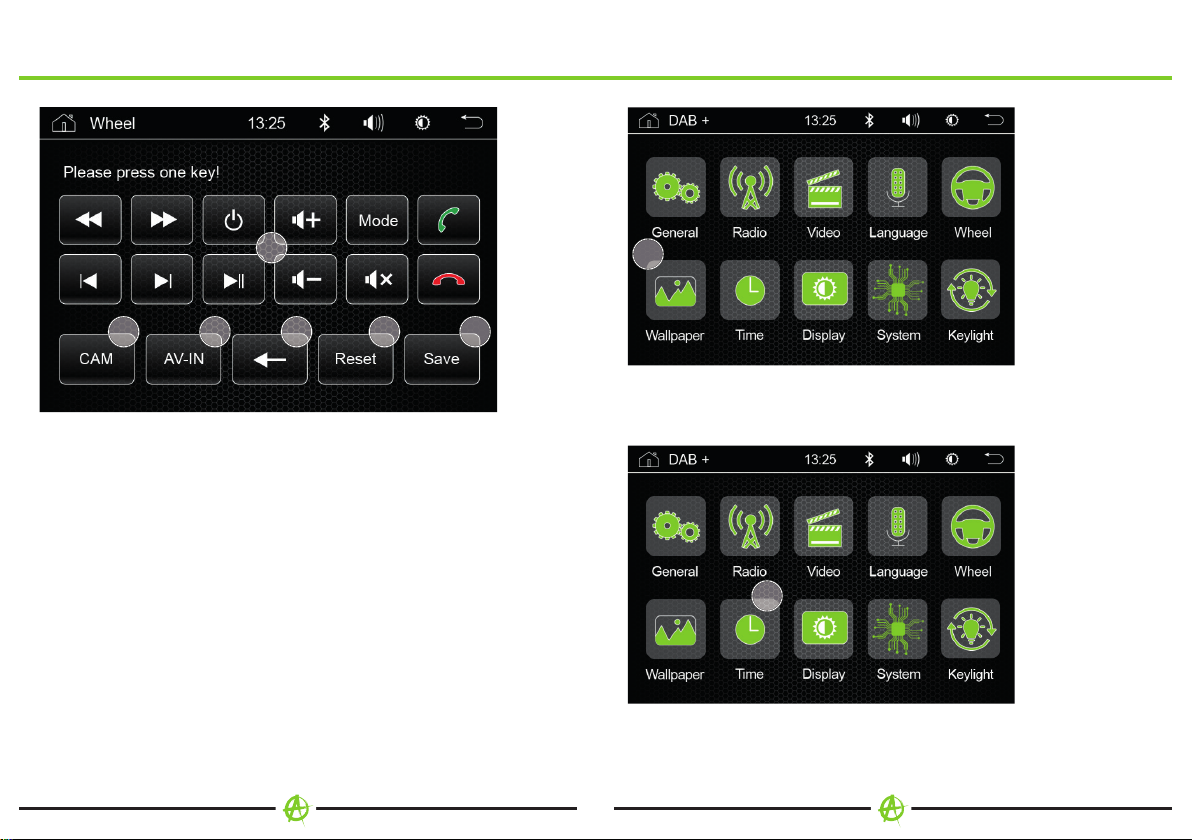

SWC Button Assignment:
1. SWC Key Icons Tap on the icon you want to assign
2. ←Tap to clear the selected SWC Key
3. Reset Tap to reset the SWC assignment
4. Save Tap to save the SWC assignment
5. AV-In Tap to assign an SWC button to open the
AV-In source
6. CAM Tap to assign an SWC button to open the
CAM source
SYSTEM SETTINGS
1
Wallpaper Setting:
Here you can choose a different wallpaper.
Time and Date Setting:
Here you can set the actual Time and Date manually.
1
2 3 456
1

26 27
Display Settings:
Here you can adjust the display brightness, colour balance and contrast
settings.
SYSTEM SETTINGS
1
System Info / Loading Factory Default:
1. Software Version Shows the installed Software version
2. Default Tap to reset device to factory default settings
All user applied settings will be lost.
Key Light
Here you can choose the color of the key illumination
1
1
2

28 29

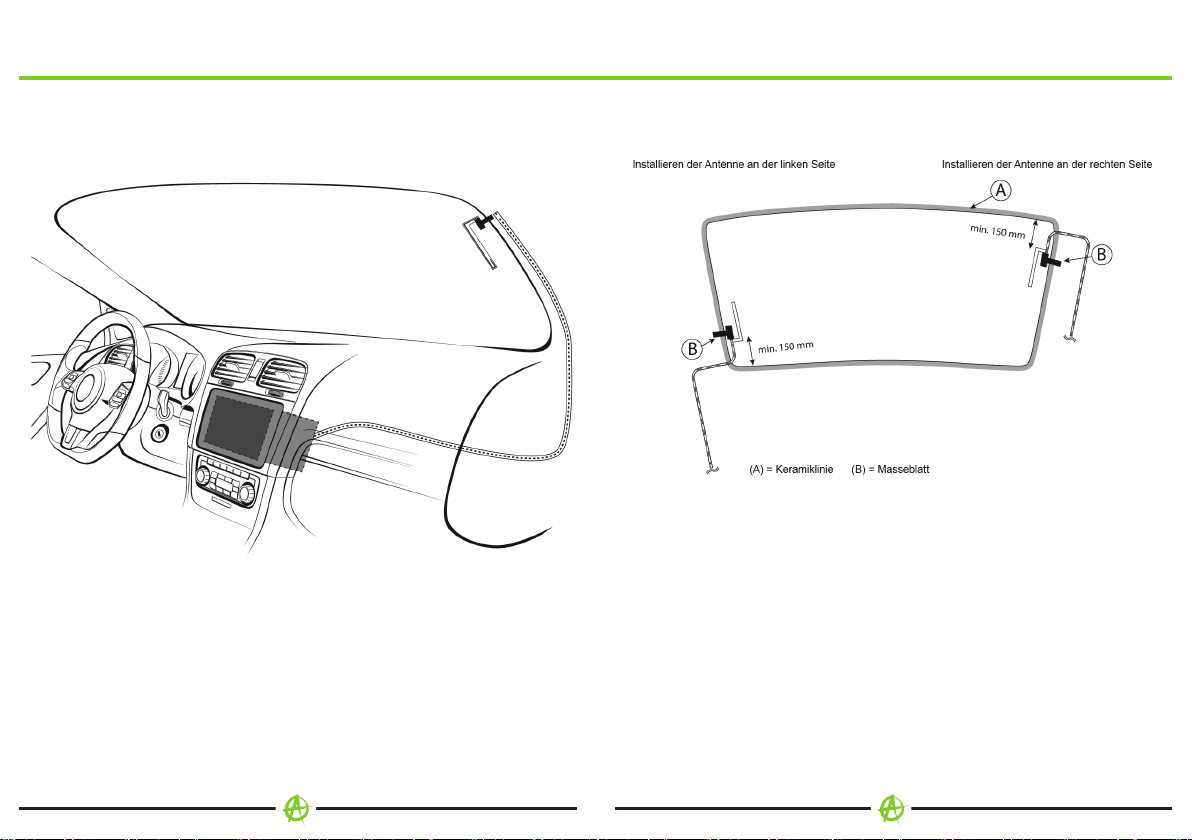

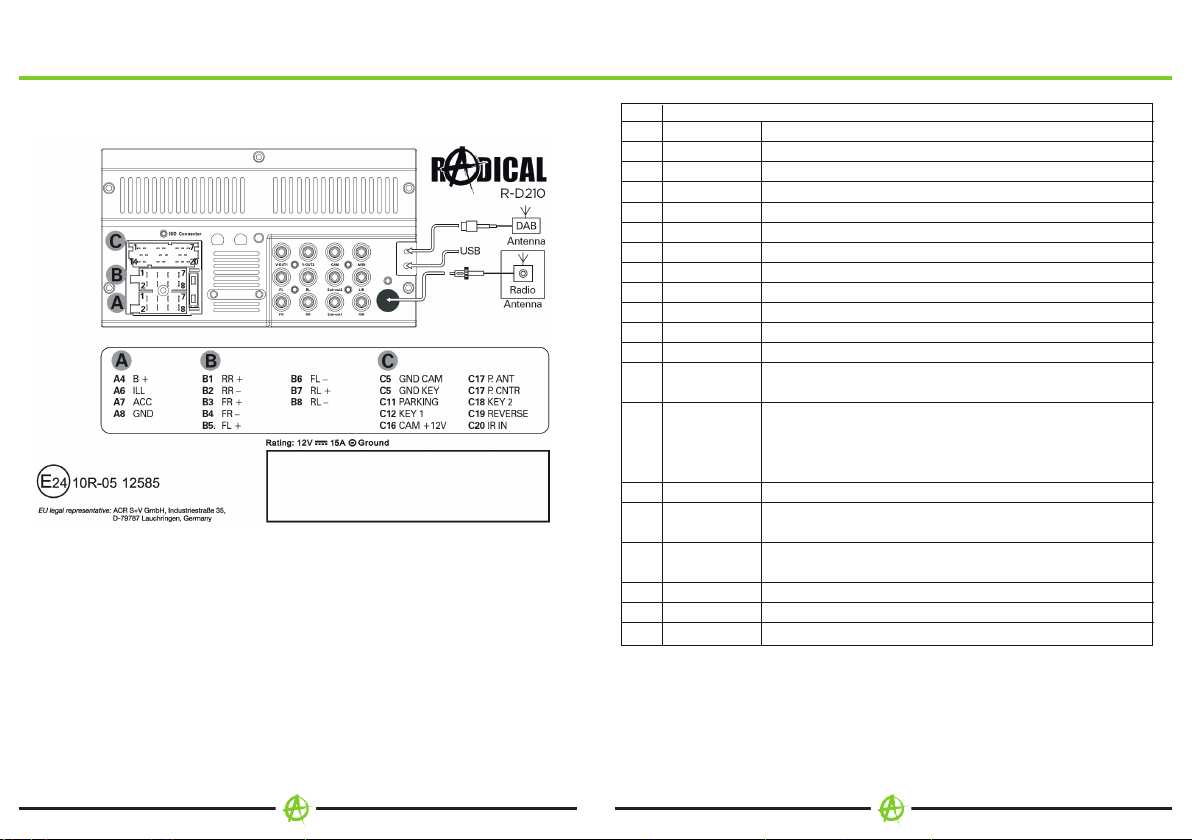

CAUTION:
- The installation of the RADICAL system should be carried out by an
authorized installer. Specic knowledge and tools are required to do the
installation. Incorrect installation can cause damage to the vehicle and
the RADICAL system.

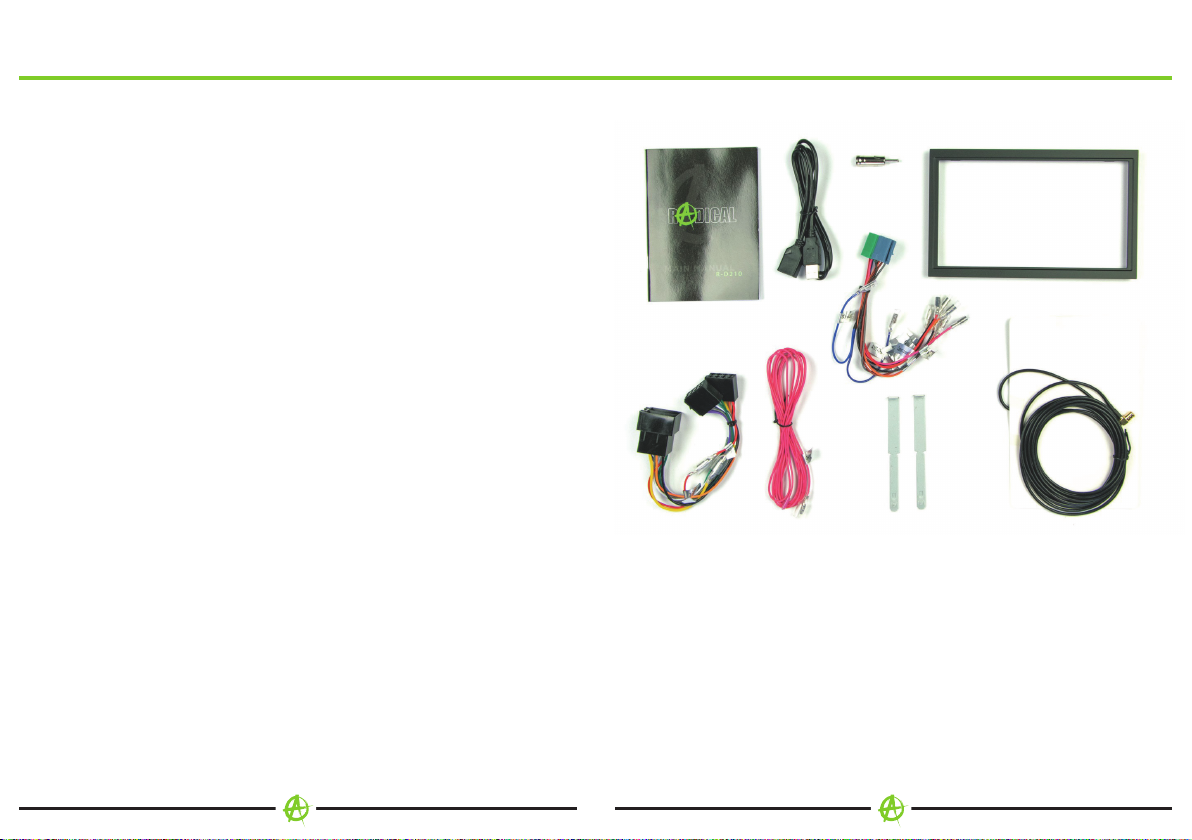

- Correct functioning can only be guaranteed when you use the RADICAL
original accessories included in the kit or those optionally available. The
RADICAL system and the original accessories must under no circumstances
be modied or altered in any way. Inappropriate actions can cause
damage to the vehicle and the RADICAL system.
NOTE:
- The RADICAL system is not compatible with vehicles, which are equipped
with a hybrid or electro drive ex factory.
- The RADICAL R-D210 is equipped with an integrated DAB+ receiver. To
make use of this you will need a suitable DAB antenna (included in kit)
that must be connected to the RADICALsystem.
REMOVAL WORK AND PREPARATION
- Remove the ignition key and keep it outside the car until the installation
is nished.
- Please wait for ca. 10 minutes until the CAN bus system is completely
shut down, before you start with the deinstallation of the original device.
- Start with the deinstallation of the original device.
NOTE:
- Make sure that all connectors at the rear of the ZENEC system have
sufcient room and are not bent.
- Connectors without a retaining mechanism must be additionally secured
with insulating tape.
INSTALLATION NOTES
ÜBERSICHT EINBAU- UND ANSCHLUSSZUBEHÖR
Nr.
Artikel
Menge
1
Hauptbedienungsanleitung Gerät
1
2
USB-Verlängerungskabel
1
3
FM Antennenadapter ISO/DIN
4
2DIN Trim-Rahmen
1
5
6 Pin Anschlusskabel (CAM +12V, Ant-Con, Amp-Con, Brake, GND, K1, K2,
Reverse, IR)
1
6
DAB-Antenne
1
7
Radio Ausbauwerkzeug
2
8
Kabel für Handbremskontakt
1
9
ISO-DIN Hauptanschlusskabel
1
1
2
3
4
9
6
7
8
5
OVERVIEW OF INSTALLATION AND CONNECTION ACCESSORIES
No. Article Qty
1 Main device user manual 1
2 USB extension cable 1
3 FM antenna adapter ISO/DIN 1
4 2DIN trim frame 1
5 6 Pin connection cable (CAM +12V, Ant-Con, 1
Amp-Con, Brake, GND, K1, K2, Reverse, IR)
6 DAB antenna 1
7 Removal tool 2
8 Parking brake cable 1
9 ISO-DIN main harness 1

30 31
CONNECTION DIAGRAM R-D210
INSTALLATION NOTES
No. Cable assignment
A4 B+ Battery +12V (Terminal 30)
A6 ILL Illumination (Terminal 58)
A7 ACC Terminal 15 - ignition
A8 GND Chassis Ground (Terminal 31)
B1 RR+ Rear right (+)
B2 RR- Rear right (−)
B3 FR+ Front right (+)
B4 FR- Front right (−)
B5 FL+ Front left (+)
B6 FL- Front left (−)
B7 RL+ Rear left (+)
B8 RL- Rear left (−)
C5 GND CAM / Ground
GND KEY
С11 PARKING Parking (Handbrake). The signal must be at ground
when the handbrake is applied. To avoid accidents
caused by carelessness, the screen goes dark while
driving.
C12 KEY1 Analog steering wheel remote control (analog connection)
C16 CAM +12V Connect the power supply for the camera to either
ignition plus or reverse signal
C17 P.ANT / Power for Electric Antenna. Output +12 V (300 mA)
P.CNTR
C18 KEY2 Analog steering wheel remote control (analog connection)
C19 REVERSE Reverse signal
C20 IR IN IR-in input for connecting an external CAN / stalk interface
ANSCHLUSSDIAGRAMM R-D210
Nr.
Kabelzuordnung
A4
B+
Dauerplus (Klemme 30)
A6
ILL
Beleuchtung (Klemme 58)
A7
ACC
Klemme 15 - Zündung
A8
GND
Masse (Klemme 31)
B1
RR+
Hinten rechts (+)
B2
RR-
Hinten rechts (−)
B3
FR+
Vorne rechts (+)
B4
FR-
Vorne rechts (−)
B5
FL+
Vorne links (+)
B6
FL-
Vorne links (−)
B7
RL+
Hinten links (+)
B8
RL-
Hinten links (−)
C5
GND CAM /
GND KEY
Masse
С11
PARKING
Handbremse. Das Signal muss bei angezogener Handbremse auf Masse
liegen. Während der Fahrt wird der Bildschirm zur Vermeidung von Unfällen
durch Unachtsamkeit dunkel geschaltet.
C12
KEY1
Analoge Lenkradfernbedienung (analoge Anbindung)
C16
CAM +12V
Stromversorgung für Kamera entweder mit Zündungsplus oder
Rückwärtssignal verbinden
C17
P.ANT /
P.CNTR
Spannung Antenne / (300 mA)
C18
KEY2
Analoge Lenkradfernbedienung (analoge Anbindung)
C19
REVERSE
Rückwärtssignal
C20
IR IN
IR-In Eingang für den Anschluss eines externen CAN/Stalk Interfaces

32 33
INSTALLATION NOTES
DAB-AntennA
Route the antenna cable downwards along the A-pillar, along the dashbo-
ard and into the radio bay.
DAB-Antenne
Verlegen Sie das Antennenkabel an der A-Säule herab im Armaturenbrett entlang in den
Radioschacht.
BESTIMMEN DER ANTENNEEINBAUPOSITION
WORKING OUT THE INSTALLATION POSITION OF THE ANTENNA
DAB-Antenne
Verlegen Sie das Antennenkabel an der A-Säule herab im Armaturenbrett entlang in den
Radioschacht.
BESTIMMEN DER ANTENNEEINBAUPOSITION

34 35
Dear customer,
Please read the warranty terms below carefully.
Should your RADICAL product require warranty service, please return it
to the retailer from whom it was purchased or else, the distributor of your
country. Do not send-in any product to RADICAL directly.
This RADICAL product is protected against defective materials and/or
improper workmanship by a manufacturer warranty for the period of
2 years from date of purchase at retail, to the original buyer.
The statutory consumer protection regulation („EU statutory warranty“)
remains unaffected by the provided manufacturer product warranty.
For the treatment of warranty related claims, the dealer / importer needs to
register the device with an RMA number and provide a valid product serial
number together with the original slip of purchase or the invoice, showing
the purchase date.
Not covered by the manufacturer warranty are damages due to:
1. Unauthorized or unapproved installation, incorrect audio or mains
connection(s).
2 Defects caused by exposure of product to moisture, water and organic
uids (“solvents”), excessive heat and prolonged exposure to sun rays,
as well as excessive dirt or dust.
3. Mechanical defects caused by accidents, fall or impact.
4. Damage due to unauthorized repair attempts and modications of
product not explicitly authorized by the manufacturer.
5. Damage caused by normal “wear and tear” over time.
This warranty is limited to the repair or the replacement of the defective
product at the manufacturer‘s option and does not include any other form
of damage, whether incidental, consequential or otherwise.
Damages caused by improper packaging during transportation of product
back to dealer or importer are not covered under the warranty. Any
compensation claims of consequential damages to other auxiliary devices
STATUTORY RIGHTS AND WARRANTY
or components in the dashboard caused by the device directly or indirectly,
are excluded.
Not covered by the manufacturer are consequential costs arising from
handling of product to conduct warranty service labor like for example the
un-installation and re-installation of devices, to cure a hardware failure or
other defect.
My-Radical.com
EU Legal Representative:
ACR S & V GmbH ∙ Industriestraße 35 ∙ D-79787 Lauchringen ∙ Germany
RADICAL ∙ Bohrturmweg 1 ∙ CH-5330 Bad Zurzach ∙ Switzerland
Hereby, ACR Brändli + Vögeli AG declares that the type of radio equip-
ment R-D210 complies with the 2014/53/EU Directive. The full text of the
EU Declaration of Conformity is available at the following Internet address:
http://www.my-radical.com (see link „Product Conformity Documents“ in the
footer area of the page).

36 37
ÜBER DIESES HANDBUCH
Diese Bedienungsanleitung enthält wichtige Informationen und Warnun-
gen für den Umgang mit diesem Gerät. Bewahren Sie dieses Dokument
an einem geeigneten Ort für ein späteres Nachschlagen auf.
R-D210 SENSORTASTEN 40
HAUPTMENÜ 41
FM TUNER MODUS 42
DAB TUNER MODUS 43
USB/VIDEO MODI 44 - 45
BT MODUS 46 - 55
EINSTELLUNGEN 56 - 61
HINWEISE ZUM EINBAU 62 - 67
GARANTIE UND GEWÄHRLEISTUNG 68 - 69
INHALTSVERZEICHNIS
HINWEIS
Technische Änderungen am Gerät nach Druck dieser Bedienungsanlei-
tung bleiben vorbehalten. Daher gilt:
1. Die Angaben und Beschreibungen in dieser Bedienungsanleitung
können unter Umständen von der des Geräts abweichen.
2. Die Abbildungen in dieser Bedienungsanleitung können unter
Umständen von denen des Geräts abweichen

38 39
SICHERHEIT
Lesen Sie die Anleitung vollständig durch und beachten Sie sämtliche
Warnungen und Anweisungen. Bewahren Sie die Anleitung sorgfältig auf.
Sie sollte jedem Benutzer des Geräts frei zugänglich sein. Das Gerät ist
nur zum Betrieb in einem Fahrzeug mit +12 V DC Bordnetz und Minus
gegen Masse geeignet.
Montieren und bedienen Sie das Gerät nur so, wie es in der Bedienungs-
anleitung beschrieben wird. Nicht bestimmungsgemässer Gebrauch kann
zum Erlöschen Ihres Garantieanspruches führen.
Zerlegen oder modizieren Sie das Gerät nicht. Ihr Garantieanspruch er-
lischt dadurch. Versuchen Sie nicht, das Gerät selbst zu reparieren oder zu
warten, sondern wenden Sie sich an einen autorisierten RADICAL-Fach-
händler.
Benutzen Sie nur das Originalzubehör, um das Gerät zu installieren und
zu betreiben, da ansonsten eine Beschädigung des Gerätes riskiert wird.
Befestigen Sie das Gerät gemäß der Installationsanleitung, unter Verwen-
dung des mitgelieferten Montagezubehörs. Die bei Unfällen auftretenden
Beschleunigungskräfte sind teilweise enorm. Unsachgemäß montierte Ge-
räte stellen bei Unfällen ein großes Risiko für den Fahrer und die Insassen
des Fahrzeuges dar.
Schützen Sie das Gerät vor Wasser oder anderen Flüssigkeiten, die in
das Innere des Gerätes eindringen können. Sonst könnte ein Kurzschluss
mit Brandfolge daraus resultieren. Zur Vermeidung eines Kurzschlusses
achten Sie darauf, dass keine metallischen Gegenstände in das Gerät ge-
langen.
Bevor Sie eine defekte Sicherung austauschen, überprüfen Sie zunächst,
was der Grund für den Kurzschluss war. Achten Sie dabei besonders auf
die Kabel der Spannungsversorgung! Wenn der Kurzschluss nicht durch
einen Fehler in der Spannungsversorgung verursacht wurde, müssen Sie
die defekte Sicherung gegen ein neues Exemplar mit identischen Werten
austauschen. Sollte der Kurzschluss immer noch vorhanden sein, wenden
Sie sich bitte an einen autorisierten RADICAL-Fachhändler.
Bevor Sie ein fremdes Gerät an das RADICAL Gerät anschliessen, lesen
Sie dessen Bedienungsanleitung und versichern Sie sich, daß es kompati-
bel ist. Schließen Sie keinesfalls inkompatible Geräte an.
Achten Sie darauf, dass bei ausgeschaltetem Motor die Batterie des Fahr-
zeuges nicht entladen wird. Da es sich bei dem Gerät um einen Verbrau-
cher handelt und die Batterie nur bei laufendem Motor aufgeladen wird,
kann es passieren, dass bei einer Benutzung des Gerätes ohne laufenden
Motor die Batterie tiefentladen wird und das Fahrzeug sich nicht mehr star-
ten lässt.
Gemäß der in den verschiedenen Ländern der EU geltenden Verkehrsvor-
schriften darf ein Monitor, der in Sichtweite des Fahrers montiert ist, wäh-
rend der Fahrt, außer zu Navigationszwecken, nicht mit bewegten Bildern
oder Filmen betrieben werden, da er den Fahrer vom Verkehrsgeschehen
ablenkt. Beachten Sie unbedingt die geltenden Vorschriften in Ihrem Land,
da ansonsten bei einem Unfall Regressansprüche von der Kfz-Versiche-
rung geltend gemacht werden können. Achten Sie zusätzlich darauf, dass
die Lautstärke in Ihrem Fahrzeug nur so hoch ist, dass Sie Außengeräu-
sche, wie z.B. eine Polizeisirene, noch klar wahrnehmen können.
Setzen Sie das Gerät keinen harten Stößen aus. Eine mechanische und
elektronische Beschädigung des Gerätes könnte daraus resultieren. Wenn
Sie Fragen oder Probleme bei der Installation haben, wenden Sie sich bitte
an einen RADICAL-Händler oder den jeweiligen Landesvertrieb.
