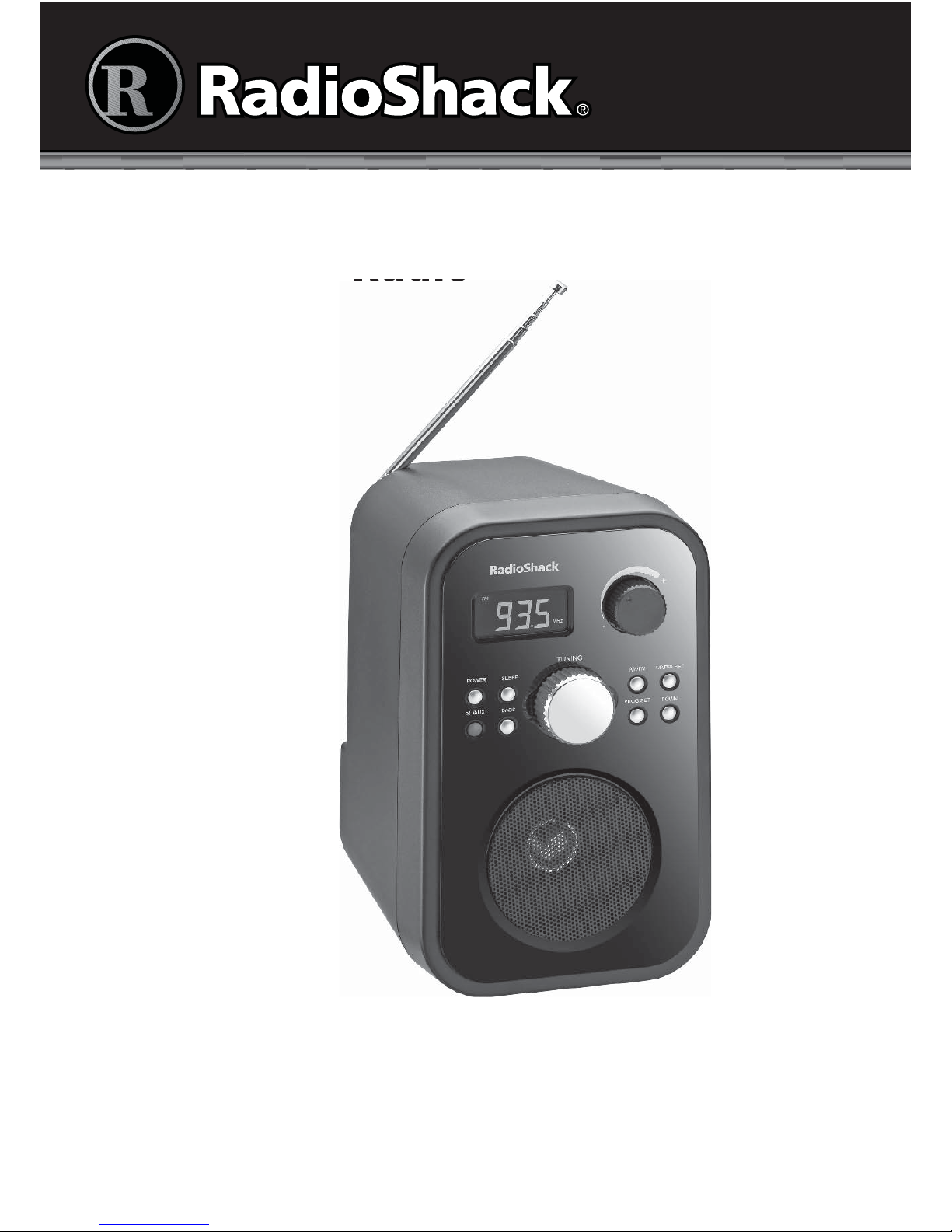

Radio Shack 1201479 User manual

1201479
User’s Guide
AM/FM
Bluetooth
®
Radio
Thank you for purchasing your AM/FM Bluetooth Radio from
RadioShack. Please read this user’s guide before installing,
setting up, and using your new radio.

2
Important Safety Information
1. Read instructions before operating the product.
2. Retain instructions for future reference.
3. Heed all warnings.
4. Follow all instructions.
5. Unplug this product from the wall outlet before cleaning. Do not
use liquid cleaners or aerosol cleaners. Clean only with a dry cloth.
6. Do not use this product near water – for example, near a bath tub,
wash bowl, kitchen sink, or laundry tub; in a wet basement, or near a
swimming pool, etc.
7. Slots and openings in the cabinet are provided for ventilation and
to ensure reliable operation of the product and to protect if from
overheating. Do not block or cover these openings. Never block by
placing the product on a bed, sofa, rug, or other similar surface. Do
not place this product in a built-in installation such as a bookcase
or rack unless you provide proper ventilation or are adhering to the
manufacturer’s instructions.
8.
For added protection for this product during a lightning storm,
or when it is left unattended and unused for long periods of time,
unplug it from the wall outlet and disconnect the antenna or cable
system. This will prevent damage to the product due to lightning
and power-line surges.
9. Do not overload wall outlets, extension cords, or integral convenience
receptacles as this can result in a risk of fire or electric shock.
10.Never push objects of any kind into this product through openings
as they may touch dangerous voltage points or short-out parts that
could result in a fire or electric shock. Never spill liquid of any kind
on the product.
11.Do not attempt to service this product yourself as opening or
removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.
12.
When replacement parts are required, be sure the service technician
has used replacement parts specified by the manufacturer or
have the same characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, or other hazards.
SAVE THESE INSTRUCTIONS

3
Package Contents
• AM/FM Bluetooth Radio
• AC Adapter
• User’s Guide
Features
• Ability to store 20 preset stations (10 AM, 10 FM)
• Clock with sleep function
• Bluetooth connectivity streams music wirelessly from
your phone, tablet or computer
• Auxiliary input
• Bass boost to enhance your listening experience
Specifications
Power Input..............................AC 9V, 1A, or 3 ×AA batteries
Output Power ...............................................................2W RMS
Frequency Range....................................... AM: 520 - 1710kHz;
........................................................................ FM: 88 -108 MHz;
Tuning Step ..............................................................AM: 10kHz;
.................................................................................. FM: 200kHz
Bluetooth Connection Range............................... 32.8 ft (10m)
Bluetooth Protocol ....................................V2.1 + EDR Class 2
Specifications are subject to change and improvement
without notice. Actual product may vary from the images
found in this document.

4

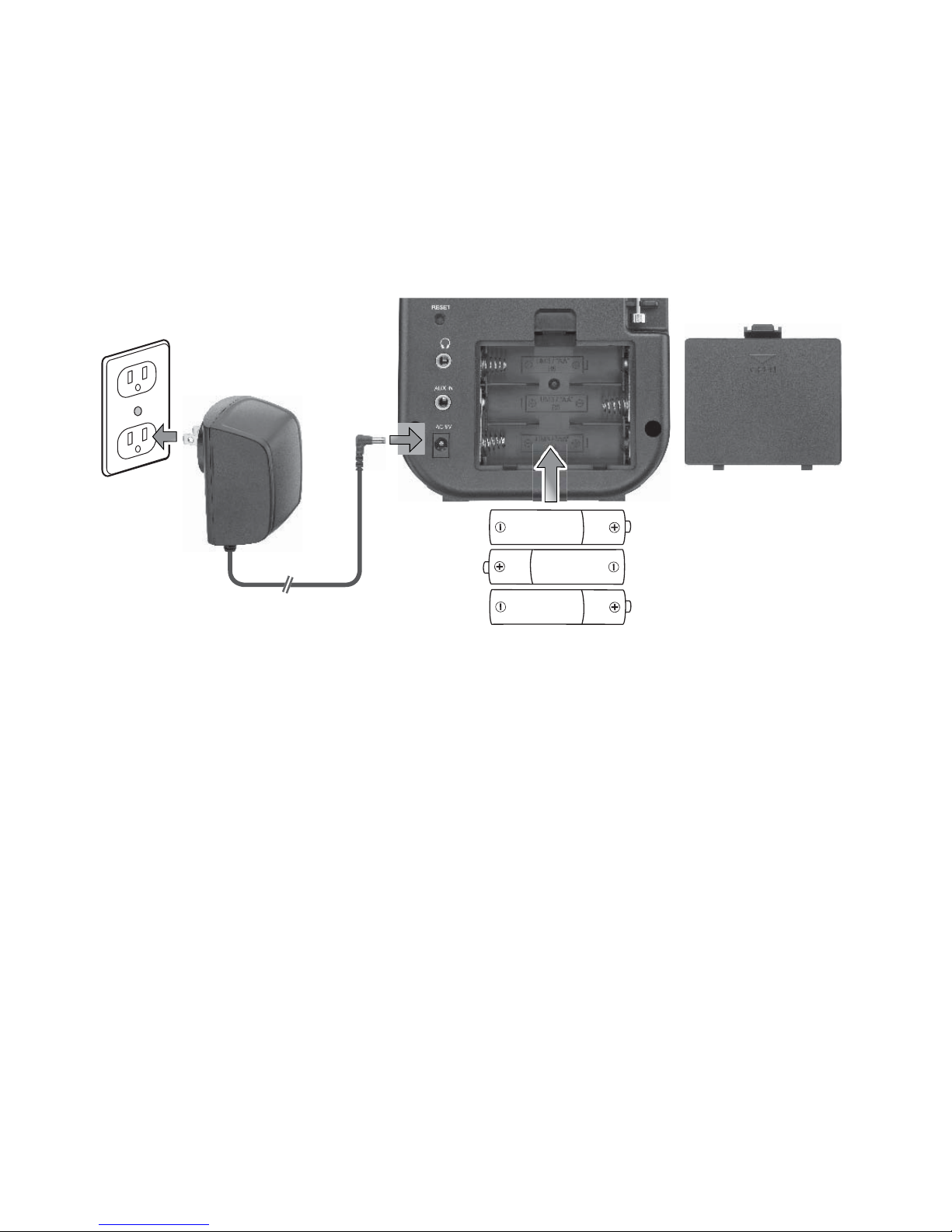

Power Your Radio
•Install three AA batteries (not included), matching the
polarity symbols (+ and –) marked inside.
Or
• Use the AC adapter to connect your radio’s AC 9V jack
to a standard wall outlet.
nNote:
•
Always connect the AC adapter to the radio first, and unplug
it from the outlet before unplugging it from the radio.
• Replace the batteries when the sound becomes weak or
distorted. Keep the AC adapter connected to retain the
clock and radio preset settings.
Battery Notes:
• Dispose of batteries promptly and properly. Do not burn
or bury them.
• Use only fresh batteries of the required size and type.
Do not mix old and new batteries, different types of
batteries (alkaline or rechargeable), or rechargeable
batteries of different capacities.
• If you do not plan to use the radio for a long time,
remove the batteries. Batteries can leak chemicals that
can damage electronic parts.
OR
AA
AA
AA

5
BASS
Enables bass
boost.
UP/PRESET
- Radio scan
up.
- Set hour.
- Next track.
DOWN
- Radio scan
down.
- Set minute.
- Previous
track.
PROG/SET
- Preset radio
stations.
- Set the clock.
- Play/pause
(Bluetooth).
SLEEP
Sets the timer
function.
/AUX
Activates
Bluetooth or
AUX function.
Listen to Your Radio
1. Flip up and fully extend the antenna.
2. Press POWER to turn on the radio.
3. Press AM/FM to select a band.
4. Rotate TUNING +/– knob to tune to a station, or press
and hold UP/PRESET or DOWN to scan radio stations.
5. Press POWER to turn off the radio.
Bass Boost
After turning on the radio, press BASS to activate bass
boost. Press again to deactivate.

6
Listen to a Bluetooth Device
1. Press /AUX once to use the
Bluetooth function. The icon blinks
as the radio searches for a Bluetooth-
enabled device.
2. Activate your device’s Bluetooth function (refer to your
device’s user’s guide).
3. When RS1201479 appears in the Bluetooth devices list,
pair it to your device. After Bluetooth connection, the
icon remains on the display.
4.
You can control your radio through your device or with the
radio’s buttons:
PROG/SET = Play/pause
UP/PRESET = Skip to next track
DOWN = Skip to previous track
nNote:
• If the connected device moves too far away from the
radio, you will lose the Bluetooth connection.
• If your device uses Bluetooth 2.0 and below, enter the
password 0000 for Bluetooth connection.
• When you turn on the radio, it attempts to connect with
the last connected Bluetooth device. If the connection
fails, the radio will search for other Bluetooth devices.
Listen to an AUX Device
1. Press /AUX twice to use the AUX
function. AUX appears on the display.
2. Use an audio cable (not supplied) to
connect your audio device to AUX IN of the radio.
3. Use the connected device to control playback.

7
Set the Clock
1. Turn off the radio.
2.
Press and hold PROG/SET. The hour and minute digits flash.
3. Press UP/PRESET to set the hour, and DOWN to set the
minute.
4. Press PROG/SET.12H or 24H flashes.
5. Press UP/PRESET or DOWN to select 12-hour or 24-hour
display. For 12-hour display, PM appears for those hours
from noon to midnight.
5. Press PROG/SET to exit.
Store Preset Stations
You can store 10 FM and 10 AM stations.
1. Press AM/FM to select a band.
2. Tune to your desired station.
3. Press PROG/SET.PRESET flashes on
the display.
4. Press UP/PRESET or DOWN to store a preset in
locations 0 to 9. Press PROG/SET to confirm.
5. Repeat steps 2 – 4 to store more stations.
To listen to a preset station, turn on the radio, then press
UP/PRESET or DOWN to find the preset location.
Use the Sleep Function
You can set the radio to switch to standby mode
automatically after a set period of time.
1. Turn on the radio.

8
2. Press SLEEP repeatedly to select a sleep period ranging
from 15 to 90 minutes: 90,75,60,45,30,15. When you
stop pressing SLEEP for a few seconds, the radio returns
to the normal display.
When the timer period is reached, the radio enters
standby mode.
3. To view the remaining time, press SLEEP again. If you
wish to cancel the sleep timer, press SLEEP repeatedly
until OFF appears.
Connect Headphones
For private listening, plug your headphones or earphones
into the headphone jack *.
Listening Safely
Do not wear headphones, earphones, or earbuds while
operating a motor vehicle or riding a bicycle. This can create
a traffic hazard and could be illegal in some areas. To protect
your hearing, follow these guidelines:
• Do not listen at high volume levels. Extended high-
volume listening can lead to permanent hearing loss.
•
Set the volume to the lowest setting. Then turn on your
audio device and adjust the volume to a comfortable level.
• Avoid increasing the volume. Your ears will adapt to the
volume level, so a level that does not cause discomfort
could still damage your hearing.
Reset the Radio
If the radio or the display fails to operate properly, use a
pointed object (such as a toothpick) to press the RESET
button on the back of the radio. The clock time and preset
stations are cleared.

9
FCC Information
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult your local RadioShack store or an experienced radio/TV
technician for help.
If you cannot eliminate the interference, the FCC requires that you stop
using your equipment. Changes or modifications not expressly approved
by the party responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with Part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Limited Warranty
RadioShack warrants this product against defects in materials and
workmanship under normal use by the original purchaser for ninety (90)
days after the date of purchase from a RadioShack-owned store or an
authorized RadioShack franchisee or dealer. RADIOSHACK MAKES NO
OTHER EXPRESS WARRANTIES.
This warranty does not cover: (a) damage or failure caused by or attributable
to abuse, misuse, failure to follow instructions, improper installation or
maintenance, alteration, accident, Acts of God (such as floods or lightning),
or excess voltage or current; (b) improper or incorrectly performed repairs
by persons who are not a RadioShack Authorized Service Facility; (c)
consumables such as fuses or batteries; (d) ordinary wear and tear or
cosmetic damage; (e) transportation, shipping or insurance costs; (f) costs
of product removal, installation, set-up service, adjustment or reinstallation;
and (g) claims by persons other than the original purchaser.
Should a problem occur that is covered by this warranty, take the product
and the RadioShack sales receipt as proof of purchase date to any

10
Printed
in China
04A13
1201479
©2013. RadioShack Corporation. All rights reserved.
RadioShack is a trademark used by RadioShack Corporation.
RadioShack store in the U.S. RadioShack will, at its option, unless otherwise
provided by law: (a) repair the product without charge for parts and labor;
(b) replace the product with the same or a comparable product; or (c) refund
the purchase price. All replaced parts and products, and products on which a
refund is made, become the property of RadioShack. New or reconditioned
parts and products may be used in the performance of warranty service.
Repaired or replaced parts and products are warranted for the remainder of
the original warranty period. You will be charged for repair or replacement of
the product made after the expiration of the warranty period.
RADIOSHACK EXPRESSLY DISCLAIMS ALL WARRANTIES AND
CONDITIONS NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED
WARRANTIES THAT MAY BE IMPOSED BY LAW, INCLUDING THE IMPLIED
WARRANTY OF MERCHANTABILITY AND, IF APPLICABLE, THE IMPLIED
WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, SHALL EXPIRE ON
THE EXPIRATION OF THE STATED WARRANTY PERIOD.
EXCEPT AS DESCRIBED ABOVE, RADIOSHACK SHALL HAVE NO
LIABILITY OR RESPONSIBILITY TO THE PURCHASER OF THE PRODUCT
OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY,
LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR
PERFORMANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH
OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES
RESULTING FROM INCONVENIENCE AND ANY LOSS OF TIME, DATA,
PROPERTY, REVENUE, OR PROFIT AND ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF RADIOSHACK
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Some states do not allow limitations on how long an implied warranty lasts
or the exclusion or limitation of incidental or consequential damages, so the
above limitations or exclusions may not apply to you. This warranty gives you
specific legal rights, and you may also have other rights which vary from state
to state. You may contact RadioShack at:
RadioShack Customer Relations,
300 RadioShack Circle, Fort Worth, TX 76102 04/08
www.RadioShack.com
Complies with the European Union’s “Restriction of Hazardous
Substances Directive,” which protects the environment by
restricting specific hazardous materials and products.
The Bluetooth®word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by
RadioShack is under license.
Other trademarks and trade names are those of their respective owners.
