raditeq RadiCoupler CPL M User manual

Models:
www.raditeq.com
CPL M | CPL AF2 | CPL T2 | CPL USB
RadiCoupler®
Product Manual
Coupling & Decoupling
Networks (CDN)

Page2of46
RadiCoupler® product manual
This product manual pertains to the RadiCoupler series®.
Models: CPL M | CPL AF2 | CPL T2 | CPL USB Made by Raditeq.
08/11/21
All trademarks used in this manual are the property of their respective owners
Supplier Information
Raditeq B.V.
Vijzelmolenlaan 3
3447 GX, Woerden
The Netherlands
Tel.: [phone]
Internet: www.raditeq.com
Email: [email protected]
Read this manual carefully before operating the product and make sure all the safety instructions
are strictly followed.
For your convenience, a Quick Start Guide has been added to this product. This Quick Start Guide
contains the basic start-up steps and the safety warnings.
Please keep the Quick Start Guide (and this regular manual) close at hand when you operate your new
Raditeq product(s).
Please contact your local reseller if you have any questions.
Page 2 of 46
This manual is subject to change without notice
Copyright © 2008 - 2021 Raditeq B.V.
RadiCoupler® Product Manual
CPL M | CPL AF2 | CPL T2 | CPL USB

Page3of 46
Page 3 of 46
This manual is subject to change without notice
Copyright © 2008 - 2021 Raditeq B.V.
RadiCoupler® Product Manual
CPL M | CPL AF2 | CPL T2 | CPL USB
Table of contents
WARNINGS & PRECAUTIONS 4
The RadiCoupler 6
Product Characteristics 6
Components 6
Dierent models 6
Hardware 7
CDN Dimensions 7
CPL CAL set 8
Calibration of RadiCoupler® CDN’s 9
Mechanical xation 9
RadiCoupler® specications 10
Warranty Conditions 13

Page 4 of
Page 4 of 46
This manual is subject to change without notice
Copyright © 2008 - 2021 Raditeq B.V.
RadiCoupler® Product Manual
CPL M | CPL AF2 | CPL T2 | CPL USB
WARNINGS & PRECAUTIONS
Read the contents of this product manual carefully and become familiar with the safety markings, the product instructions
and the handling of the system. Please refer to the applicable product manual(s) for further information regarding the
operation and control of the product(s).
This product requires a protective earth connection. The mains power source for the equipment must supply an uninterrupted
safety ground to the IEC input connector(s).
This equipment is designed to be used as a plug-in card for the RadiCentre® series. Do not use this card on its own or in combination with
any other mainframe. Using this product with any other mainframe can cause harm and will void warranty.
To make the product as safe as possible, this plug-in card has its own safety interlock system that is designed to work with the
RadiCentre® series.
Only Raditeq qualied maintenance personnel is allowed to perform maintenance and/or repair service on the equipment.
This product® contains materials that can be recycled and reused to minimize material waste. At the ‘end-of-life’, specialized
companies can dismantle the discarded system to collect the reusable and recyclable materials. If your product is at its ‘end-
of-life’, please return it to your local reseller or to Raditeq for recycling.
Position the product in such a fashion that power cables are easily accessible or connect the equipment to a mains network that can be
easily disconnected from the mains.
For cleaning, use a clean, dry cloth (or a damp cloth where needed) and wipe the surface of equipment.
This product contains no hazardous substances as described in the RoHS Directive (2015/863/EU).
This product contains embedded software, which is eld upgradeable from the RadiCentre® using the USB-A connection port on the
backside panel of the RadiCentre®. For more information about updating your Raditeq plug-in card, please read the RadiCentre®
manual.

Page 5 of 46
This manual is subject to change without notice
Copyright © 2008 - 2021 Raditeq B.V.
RadiCoupler® Product Manual
CPL M | CPL AF2 | CPL T2 | CPL USB
Introduction
The international basic standard for conducted immunity testing (IEC 61000-4-6) species the design and
characteristics of a range of coupling / decoupling networks (CDN’s). To be able to perform conducted
immunity testing on an EUT (Equipment Under Test) with several types of connecting cables, dierent
CDN’s are needed.
Raditeq introduces a complete range of high quality, full compliant and easy-to-use CDN’s that enables
customers to perform full compliant, simple and reliable conducted immunity testing on any kind of EUT
cable.

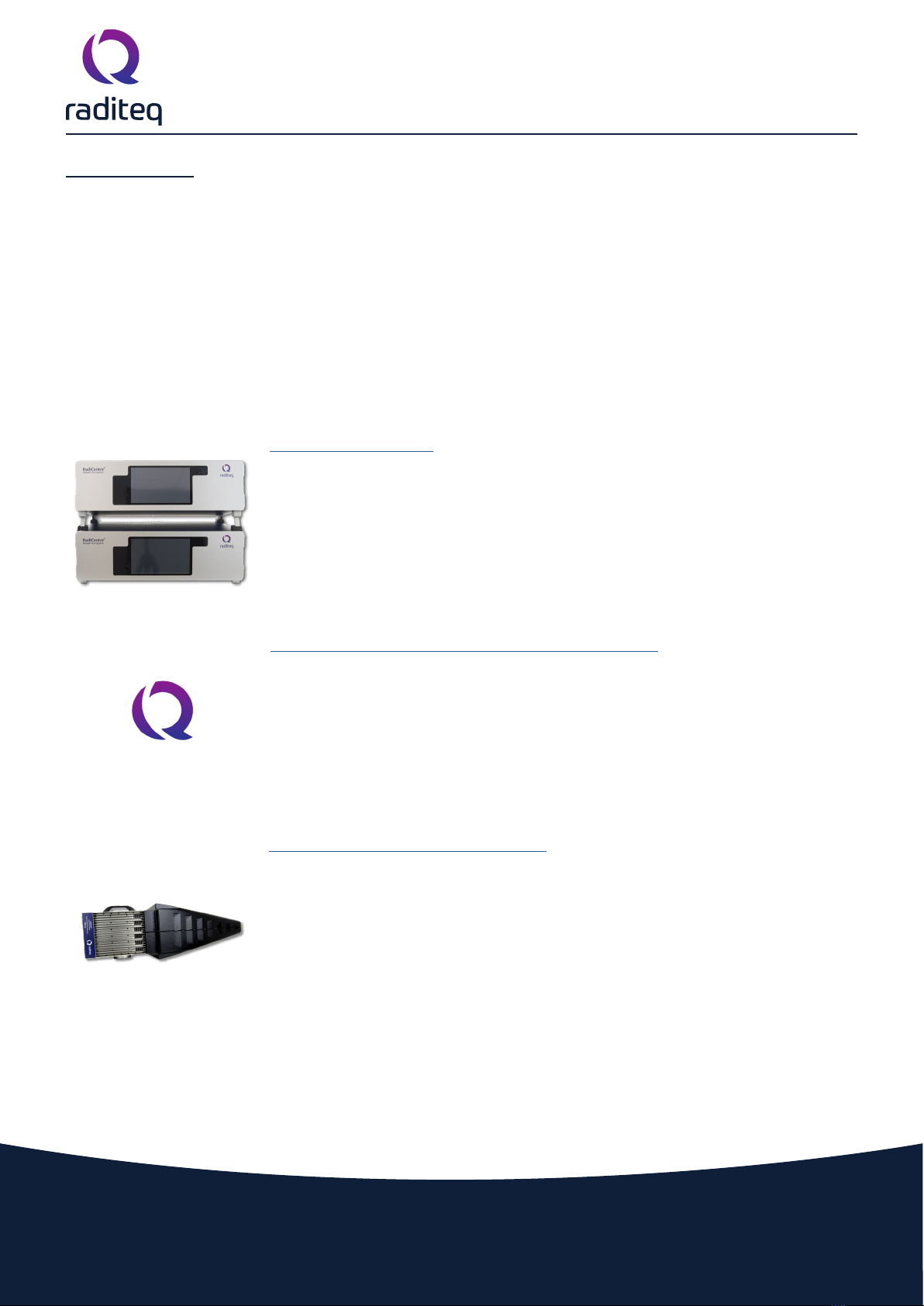

RadiCentre® system
The RadiCentre® is a modular EMC/RF test system that serves as the user
and computer interface for all the RadiCentre® plug-in cards and modules.
RadiMation® Automated EMC/RF Test Software
RadiMation® is the EMC software package from Raditeq. RadiMation is
used for remote control and automated RF and EMC testing. In combination
with the RadiCentre® the software really shines brightest and enables the
user fully automated and eective EMC and RF testing. Plug-in cards and
modules are sold separately.
RadiField® Electric eld generator
The patented RadiField® Triple A is no less than a revolution in EMC
immunity testing. A complete paradigm shift involves a combination of high-
level integration and a eld combining technique, making several discrete
components like combiner, coupler, power meters and cabling superuous.
This product is sold separately.
RadiMation

Page 6 of 46
This manual is subject to change without notice
Copyright © 2008 - 2021 Raditeq B.V.
RadiCoupler® Product Manual
CPL M | CPL AF2 | CPL T2 | CPL USB
The RadiCoupler
Product Characteristics
The RadiCoupler® Coupling / Decoupling Network (CDN) is intended for conducted immunity testing
on EUT cables. The RadiCoupler® is full compliant to the international standards CISPR16, IEC61000-4-6,
EN55015 and EN55035.The models cover a frequency range from 100 kHz to 300 MHz. The RadiCoupler®
has a robust RF N-type input connector and uses a magnetic-grounding connection for easy and
conductive ......?
Components
The RadiCoupler® is delivered with the following items:
• The RadiCoupler® Coupling / Decoupling Network
• 2x calibration adapter connectors
• Traceable calibration certicate (ISO17025 accredited calibration is optional)
• USB stick containing the (digital) User Manual
Cable type Product Name Application Connector EUT port Connector AE port
Mains CPL M1 16A 1 line, 16 A 4 mm safety banana 4 mm safety banana
Mains CPL M2 16A 2 line, 16 A 4 mm safety banana 4 mm safety banana
Mains CPL M3 16A 3 line, 16 A 4 mm safety banana 4 mm safety banana
Mains CPL M3 32A 3 line, 32 A 4 mm safety banana 4 mm safety banana
Unscreened CPL T2 2 line, balanced 4 mm safety banana 4 mm safety banana
Unscreened CPL T4 RJ11 4 line, balanced RJ11 RJ11
Unscreened CPL T8 RJ45 8 line, RJ45 RJ45 RJ45
Screened CPL S8 RJ45 8 line, RJ45 RJ45 RJ45
Screened CPL USB-C USB USB-B USB-A
Screened CPL USB-P USB USB-A USB-B
Screened CPL USB-3.0-C USB 3 USB-B 3.0 USB-A 3.0
Screened CPL USB-3.0-P USB 3 USB-A 3.0 USB-B 3.0
Screened CPL HDMI HDMI HDMI HDMI
Unbalanced CPL AF2 2 line, unbalanced 4 mm safety banana 4 mm safety banana
Unbalanced CPL AF3 3 line, unbalanced 4 mm safety banana 4 mm safety banana
Unbalanced CPL AF4 4 line, unbalanced 4 mm safety banana 4 mm safety banana
Dierent models
The RadiCoupler® is available as a range, suitable for dierent types of cables and/or connectors

Page 7 of 46
This manual is subject to change without notice
Copyright © 2008 - 2021 Raditeq B.V.
RadiCoupler® Product Manual
CPL M | CPL AF2 | CPL T2 | CPL USB
RadiCoupler® specications
For measurements using CDN’s, several standards are available. The table below gives an overview of
these standards with each specific requirement for the impedances, transfer and isolation.
Standard - CISPR 16-1-2 Value Frequency RadiCoupler®
Impedance (magnitude) 150 ± 20 Ω 0,15 - 30 MHz
Impedance (phase) ± 20 °C 0,15 - 30 MHz
Response - 9,6 to 12,6 0,15 - 150 MHz
Isolation > -40 dB 0,15 - 108 MHz
Standard - IEC 61000-4-6 Value Frequency RadiCoupler®
Impedance (magnitude) 150 ± 20 Ω 0,15 - 24 MHz
150 ± 60 Ω / -45 Ω 24 - 80 MHz
150 ± 60 Ω 80 - 230 MHz
Standard - EN 55015 Value Frequency RadiCoupler®
Impedance (magnitude) 150 ± 20 Ω 0,15 - 26 MHz
150 ± 0 Ω / -45 Ω 26 - 80 MHz
150 ± 60 Ω 80 - 300 MHz
Standard - EN 55020 Value Frequency RadiCoupler®
Impedance (magnitude) 150 ± 20 Ω 0,15 - 30 MHz
Impedance (phase) ± 20 °C 0,15 - 30 MHz
Standard - EN 55035 Value Frequency RadiCoupler®
Response ± 30 dB 0,15 - 30 MHz
Standard - All Combined Value Frequency RadiCoupler®
Impedance (magnitude) 150 ± 20 Ω 0,15 - 30 MHz
Impedance (phase) ± 20 °C 0,15 - 30 MHz
Response - 9,6 to 12,6 0,15 - 150 MHz
Isolation > -40 dB 0,15 - 108 MHz

Page 8 of 46
This manual is subject to change without notice
Copyright © 2008 - 2021 Raditeq B.V.
RadiCoupler® Product Manual
CPL M | CPL AF2 | CPL T2 | CPL USB
Hardware
CDN Dimensions
Top view of the RadiCoupler®
Mechanical Specications Dimensions
Dimensions CDN housing (W x H x D) 100 mm x 100 mm x 200 mm
Dimensions CDN outline (W x H x D) 140 mm x 120 mm x 206 mm
Weight ± 1.2 kg

Page 9 of 46
This manual is subject to change without notice
Copyright © 2008 - 2021 Raditeq B.V.
RadiCoupler® Product Manual
CPL M | CPL AF2 | CPL T2 | CPL USB

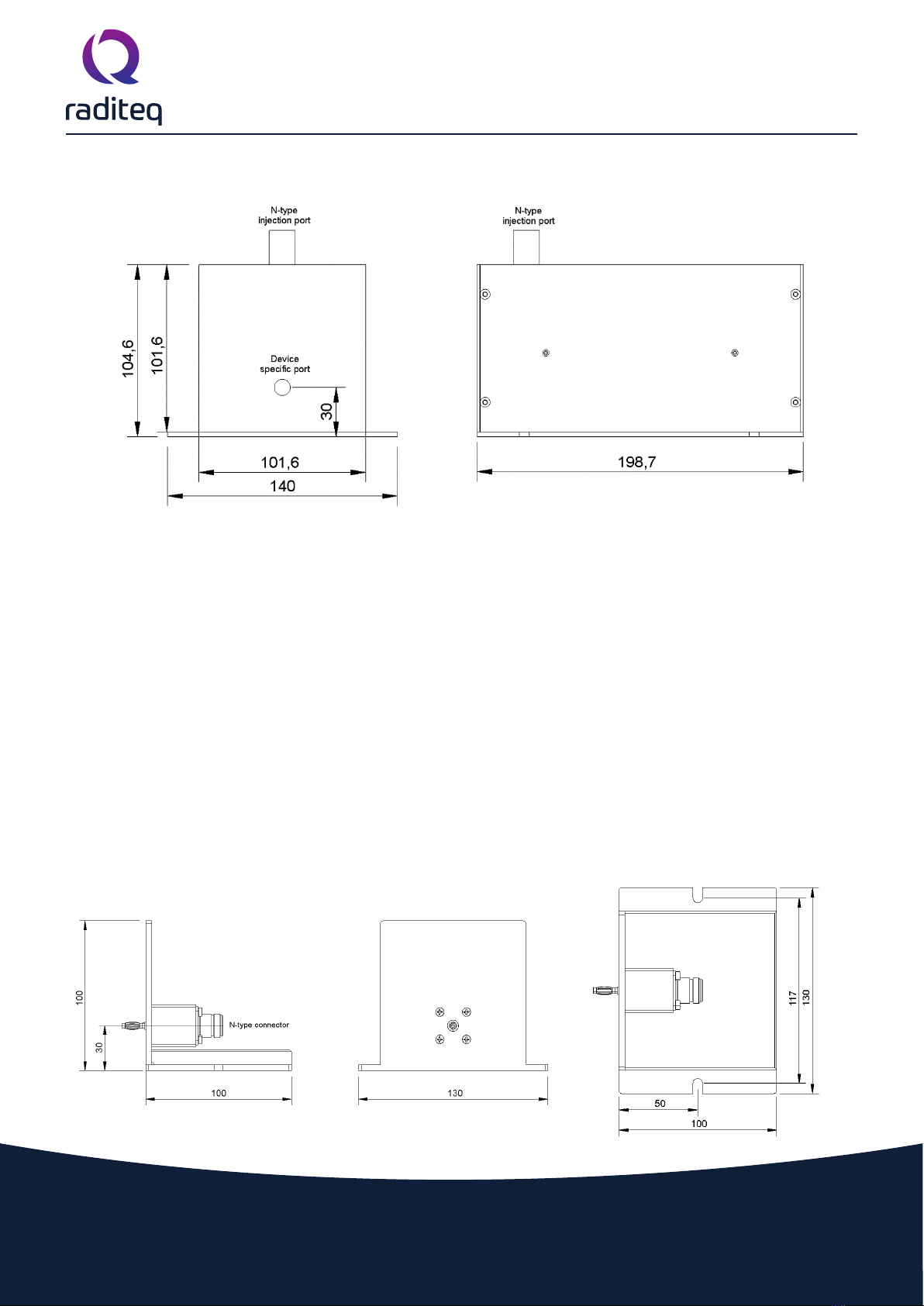

Side views of the RadiCoupler®
Each RadiCoupler® has a device specic connector for the EUT and AE-port. This connector is located
at 30mm above the bottom plate of the CDN.
CPL CAL set
The optional RadiCoupler® CPL CAL SET consists of:
• 2x CAL adapter (100 Ohm)
• 1x 50 Ohm terminator
The CPL CAL set is required to calibrate the CDN in accordance to IEC61000-4-6. The set consists of 2x
mechanical CAL adapter (one for EUT side, one for AE side) to match the impedance from 50 Ohm to
150 Ohm. Each CAL adapter has an internal 100 Ohm resistor and matches the height of the CDN. The
CAL adapter can be connected to the CDN using the adapter connectors, which are standard delivered
with each RadiCoupler® CDN.
Side, back, top view of the CAL adapter

Page 10 of 46
This manual is subject to change without notice
Copyright © 2008 - 2021 Raditeq B.V.
RadiCoupler® Product Manual
CPL M | CPL AF2 | CPL T2 | CPL USB
Calibration of RadiCoupler® CDN’s
Before the RadiCoupler® CDN can be used for immunity testing, the CDN needs to be calibrated in a
150 Ohm common mode impedance environment. This can be achieved by connecting the EUT side of
the RadiCoupler® CDN to the RF port of the RadiPower® model RPR2006C via one of the 100 Ohm CAL
adapters. This adapter ensures that the impedance is matched from 150 Ohm to 50 Ohm. Please ensure
that a 20dB @ 1w attenuator is used.
The USB port of the RadiPower® needs to be connected to the ‘current sensor’ USB input of the BCI1004A
plug-in card.
The other side (AE port) of the RadiCoupler® CDN will need to be connected to the other 100 Ohm CAL
adapter and needs to be closed with a 50 Ohm terminator.
The RF port of the second RadiPower® model RPR2006C will need to be connected to the ‘forward
power output port’ of the RadiAmp® RF amplier (on the back side).
The USB port of this RadiPower® needs to be connected to the ‘forward power’ USB input of the BCI1004A
plug-in card.
Mechanical xation
All RadiCoupler® CDN’s as well as the Cal adapters are provided with an integrated powerful magnet
for easy and quick xation to a metal ground plane. Please beware that while placing the CDN or Cal
adapter on any metal plate, the force can be quite large. The housings of the CDN’s and Cal adapters
are all conductive to provide good grounding to the ground plane of the test setup.
