RAILKING

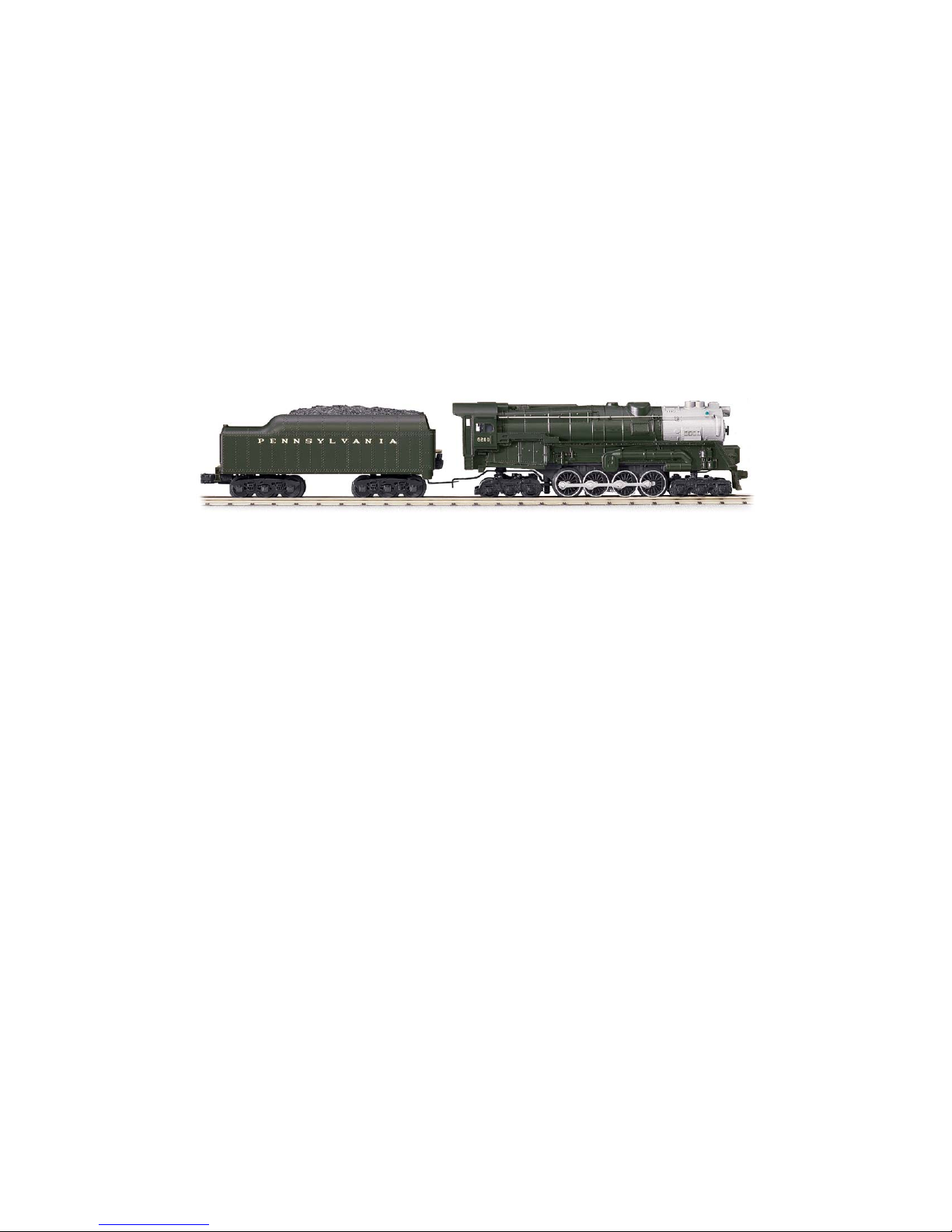

6-8-6 BANTAM TURBINE
STEAM ENGINE
OPERATING INSTRUCTIONS
This RailKing 6-8-6 Bantam Turbine Steam Engine is produced in detailed Die-Cast
Metal and operates on O-31 track. This RailKing Steam Engine contains state-of-the-art
electronics with many built-in automatic features for incredibly realistic operation.
Despite these advanced features, the locomotive is easy to operate with any compatible
standard AC transformer (see the compatibility chart on page 18), and is completely
compatible with most other 3-rail locomotives, rolling stock, and accessories.
This locomotive is equipped with Proto-Sound 2.0 with Digital Command System
(DCS). This new system will allow you to operate your locomotive in Command mode
(when used with the DCS Remote Control System, sold separately) or Conventional
mode. Conventional operating features are described in the following pages, while the
DCS operating features are covered in the set of operating instructions that
accompanies the DCS equipment. Conventional Mode operation of this locomotive is
much simpler than operation of original Proto-Sound engines. For your own safety and
that of your equipment, please read the instructions before you operate this engine.

2
RailKing 6-8-6 Bantam Turbine Steam Engine
Table of Contents
Set Up 3
Basic Operation 4
Transformer Controls 4
Volume Control 4
Proto-Sound 2.0 Operation 5
Activating Proto-Sound 2.0 Conventional Mode Features 5
Freight Yard Sounds (FYS) 6
Tips on Using FYS 7
Proto-Coupler®Operation 8
Speed Control 8
Lock into a Direction State 9
Reset to Factory Defaults 9
Automatic Sounds 9
Maintenance 10
Lubrication and Greasing Instructions 10
Cleaning the Wheels, Tires and Track 11
Locomotive Traction Tire Replacement 11
Smoke Unit Maintenance 12
Locomotive Light Bulb Replacement 13
Self-Charging Battery Back-Up 14
Troubleshooting 15
Compatibility 17
Transformer Compatibility Chart 18
Additional Features with DCS Remote Control System 19
Safety Precautions 21
Service and Warranty Information 24

3
RailKing 6-8-6 Bantam Turbine Steam Engine
Set Up
There are a few simple steps you must take before operating this RailKing
steamer.
1. You should prime the operating smoke unit with smoke fluid before
operating. Add 15-20 drops of smoke fluid through the smokestack, then
gently blow into the stack to eliminate any air bubbles in the fluid. See Fig. 4
on pg. 12.
2. If you choose not to prime the unit with fluid, turn the smoke unit switch
located under the engine to the OFF position (Fig. 5 on pg. 12). Running the
engine without a primed smoke unit may cause damage. See the “ProtoSmoke
Unit Operation” section of this book for more information on smoke unit
maintenance.
3. You should lubricate all side rods and linkage components and pickup
rollers to prevent them from squeaking. Use light household oil and follow the
lubrication points marked “L” in Fig. 2 on pg. 10. Do not over-oil. Use only a
drop or two on each pivot point.
4. Put your engine on the track and insert the reverse unit plug that extends out
of the tender into the receptacle at the back of the engine. WARNING: DO
NOT CONNECT THIS ENGINE TO A TENDER FROM ANOTHER
ENGINE; IT MAY CAUSE SERIOUS DAMAGE TO YOUR MODEL. Look
at the bottom of the engine and tender where each will have a color-coded
stamp. If they match you may connect those two pieces; if not, don’t.
5. Connect the draw bar between the engine and tender. If there are two holes
in the draw bar, the hole located farthest from the tender is for the minimum
track operation, such as O-31 circles of track. The second hole is for O-72 or
larger operation.
At this point, you are ready to begin running your engine.

4
RailKing 6-8-6 Baby Turbine Steam Engine
Basic Operation
Throttle – Throttle up the power to your track. Give enough power so that
the engine’s headlight shines brightly. Then put the engine into motion by
either firmly pressing the Direction button on your transformer or remote once
or dropping and advancing the throttle to put the engine in forward.
Operation Buttons
Use the operation buttons on your transformer as described below.
Horn/Whistle - To sound the whistle, firmly press the Horn/Whistle button.
The whistle will sound for as long as you continue to depress the button. It
will stop when you release the button. The whistle has four different endings,
depending on whether you hold the button for less than three seconds, three
seconds, four seconds, or five seconds or longer.
Bell - To sound the bell, firmly press and release the Bell button. To turn the
bell off, press and release the Bell button again. The bell will continue to ring
from the time your turn it on until you press and release the button again to
turn it off.
Direction – Your train is programmed to start in neutral. To put the engine
into forward and then to change the direction of the train or to put it into
neutral, firmly press and release the Direction button on your transformer. Just
as you must stop your car between forward and reverse, this engine will not go
directly from forward to reverse; it goes into neutral between directions. If the
train has been moving forward, the first press of the Direction button will put
the train from forward into neutral, the second press into reverse, the third
press back into neutral, and the fourth back into forward. To prevent accidental
high-speed start-ups, this engine is programmed to restart in neutral each time
the track voltage is turned off for 10 seconds or more.

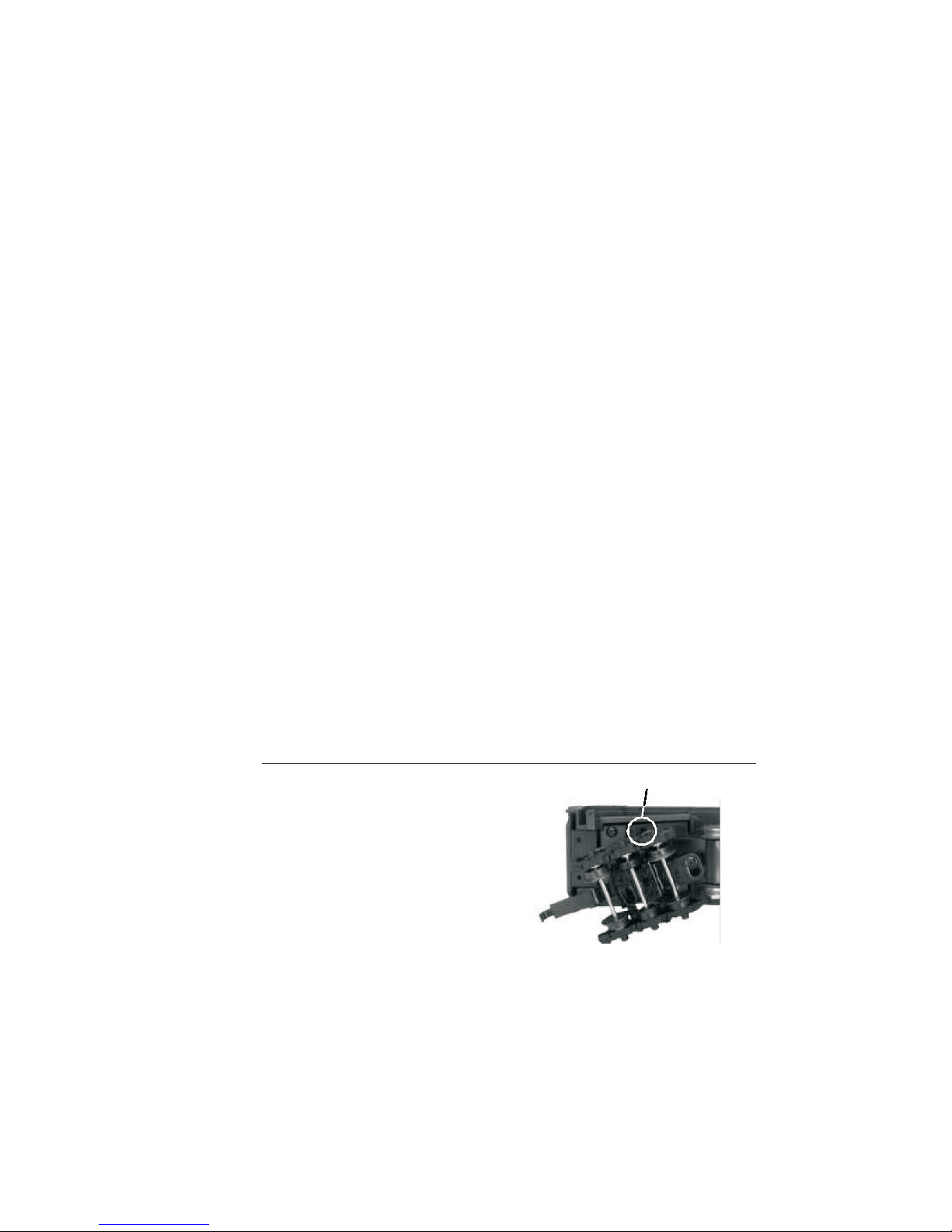

Manual Volume Control –
To adjust the volume of all sounds
made by this engine, turn the
master volume control knob
located under the tender clockwise
to increase the volume and
counter-clockwise to decrease the
volume (see Fig. 1).
Manual Volume Adjustment
Figure 1. Proto-Sound 2.0 Volume Adjustment
Knob

5
RailKing 6-8-6 Bantam Turbine Steam Engine
Proto-Sound 2.0 Operating Instructions
This manual contains the operating instructions for Proto-Sound 2.0 in
conventional mode only. Instructions for accessing DCS command mode
features accompany the DCS Remote Control System equipment.
Because Proto-Sound 2.0 is an all-new system developed by M.T.H.’s own
research and development team, it operates differently from original
Proto-Sound. Most Proto-Sound 2.0 features are automatically enabled, and
the reset state has been eliminated, so there is no need to program features as
with original Proto-Sound. Although the new system is easier to operate than
original Proto-Sound, you should read these instructions thoroughly before
using Proto-Sound 2.0 features in order to prevent harm to yourself or your
equipment.
Activating Proto-Sound 2.0 Conventional Mode Features:
Proto-Sound 2.0 features are activated by sequences of Bell and Whistle
button pushes described below. Please read the full descriptions of each
feature before using it. To use these buttons to activate features rather than to
blow the whistle or ring the bell, you should press the buttons for a shorter
time (½ second); you may need to practice your timing to make this work
smoothly.
Feature to Be Activated Button Code:
Freight Yard or Passenger Station Sounds
Fire the Rear Coupler
Fire the Front Coupler
Speed Control On/Off
Lock into a Direction
Reset to Factory Defaults
1 Bell, 2 Horn/Whistles
1 Bell, 3 Horn/Whistles
1 Bell, 4 Horn/Whistles
1 Horn/Whistle, 2 Bells (from Neutral only)
1 Horn/Whistle, 3 Bells
1 Horn/Whistle, 5 Bells (from Neutral only)

6
RailKing 6-8-6 Bantam Turbine Steam Engine
Freight Yard Sounds (FYS):
Your engine is equipped with a sound package of freight yard sounds that you
can play when you pull into a yard. Each sequence described below will play
as long as it is left on, randomly generating sounds, but be sure to allow
approximately 30 seconds between the button pushes described below to
allow the FYS sufficient time to run through each sequence.
1. To cue the sound system to play the FYS, quickly but firmly press the Bell
button once followed by 2 quick presses of the Whistle button while the engine
is moving.
2. Press the Direction button once to stop the engine. This will trigger the first
sequence of FYS. The reverse unit is temporarily disabled so that the train will
not move as you use the Direction button to trigger the sounds, and Proto-Sound
2.0 has disabled operator control over the Whistle and Bell buttons until the full
FYS sequence is complete.
3. After waiting about 30 seconds for that sequence to run, press the Direction
button again to trigger the second sequence of FYS.
4. After about 30 seconds, press the Direction button again to trigger the third
FYS sequence.
5. Again, after allowing about 30 seconds for that sequence to run, press the
Direction button one more time to trigger the fourth and final FYS sequence.
The FYS will continue, and within a few seconds, the engine will start and
move out on its own at the current throttle setting, in the same direction it was
traveling when you began the sequence. Once the bell turns off, the operator
regains control of the transformer’s bell and whistle buttons and can ring the
bell or blow the whistle as usual.

7
RailKing 6-8-6 Bantam Turbine Steam Engine
Tips on Using FYS
•You can terminate FYS at anytime by turning off power to the
track for 15 seconds.
• You do not have to be in Forward to use FYS. At the conclusion
of the full sequence, the train will pull away from the station in
whatever direction you were going when you activated the feature.
• You can use FYS even if you are double-heading with another
engine. If the second engine is not equipped with FYS at all, you
must remember not to leave the throttle at a high voltage level
once you have stopped the engine to run the FYS. Otherwise, the
engine without FYS will begin vibrating on the track as its motors
strain to move the train, since they cannot be automatically
disabled during the FYS cycle. If the second engine is an original
Proto-Sound engine equipped with FYS, you may choose to
disable it when used in double-heading operations, so you will not
experience competing FYS sounds. To disable FYS in an original
Proto-Sound engine, see the operating instructions for that engine.
• FYS can be triggered from Neutral. It will operate the same as if
triggered while in motion except that, at the conclusion of the
FYS, the engine will depart in the next direction of travel, as
opposed to the direction it was traveling before entering Neutral.

8
RailKing 6-8-6 Bantam Turbine Steam Engine
Proto-Coupler®Operation
This locomotive is equipped with a coil-wound Proto-Coupler for remote
uncoupling action. Because the Proto-Coupler is controlled through the
Proto-Sound 2.0 microprocessor, it does not require an uncoupling track
section or modification to your layout to function. Use the codes listed below
to fire the coupler.
Rear Coupler:
To fire the rear coupler, press the Bell button once followed immediately by
three pushes of the Whistle button. The sound of the liftbar and air line
depletion will play, and the knuckle will be released.
Speed Control:
M.T.H. engines equipped with Proto-Sound 2.0 have speed control
capabilities that allow the engine to maintain a constant speed up and down
grades and around curves, much like an automobile cruise control. You can
add or drop cars on the run, and the engine will maintain the speed you set.
While the engine is programmed to start with the speed control feature
activated, you can opt to turn it off. This means the engine’s speed will fall as
it labors up a hill and increase as it travels downward. It is also affected by
the addition or releasing of cars while on the run. To maintain a constant
speed when speed control is turned off, you need to adjust track voltage
yourself. When speed control is off, the volume will drop to allow for better
low voltage operation. Full volume is restored upon reactivation of speed
control.
To turn speed control on and off, put the engine in neutral, then press the
transformer’s Whistle button one time then immediately press the Bell button
two times. Two whistle blasts will indicate that the engine has made the
change. Repeat the 1 whistle, 2 bells code to return it to the other state. You
will want to do this during the initial neutral upon start-up if you ever
couple this engine to another engine that is not equipped with speed
control to avoid damaging the motors in either engine. Each time you shut
down the engine completely, it will automatically turn speed control on.

9
RailKing 6-8-6 Bantam Turbine Steam Engine
Lock into a Directional State:
You can lock your engine into a directional state (forward, neutral, or reverse)
to prevent it from changing directions. To do this, put the engine into the
direction you want or into neutral, to lock it into neutral, run it at a very slow
speed (< 10 scale mph), and quickly but firmly press your remote’s Whistle
button once followed immediately by three presses of the Bell button. Two
whistle blasts will indicate that the engine has made the change. The engine
will not change direction (including going into neutral) until you repeat the 1
whistle, 3 bells code to return the engine to its normal state, even if the engine
is kept without power for extended periods of time.
Reset to Factory Defaults:
To override the settings you currently have assigned to the engine and reset it
to its factory defaults, while in Neutral press the Whistle button once, followed
immediately by five quick pushes of the Bell button. Two whistle blasts will
indicate that the engine has made the change.
Automatic Sounds:
Certain Proto-Sound 2.0 sound effects automatically play in programmed
conventional mode conditions:
Squealing Brakes play any time the engine’s speed decreases rapidly.
Cab Chatter plays when the engine idles in neutral.
Engine Start-up and Shut-down sounds play when the engine is initially
powered on or is powered off for five seconds or more.

10
RailKing 6-8-6 Bantam Turbine Steam Engine
Maintenance:
Lubrication and Greasing Instructions
The engine should be oiled and greased in order to run properly.
You should regularly lubricate all side rods and linkage components and
pickup rollers to prevent them from squeaking. Use light household oil and
follow the lubrication points marked “L” in Fig. 2. Do not over oil. Use only
a drop or two on each pivot point.
The locomotive’s internal gearing was greased at the factory and should not
need additional grease until after 50 hours of operation or one year, whichever
comes first. To access the gear box, do the following:
1. Unscrew the body mount screws as shown in Fig. 3 and remove the boiler.
Lubricate Pivot Point (L) Lubricate Side Rods (L)
Lubricate Pick Up Rollers (L)
Figure 2. Lubrication Points on the Engine
Body Mount Screws
Body Mount Screws
Figure 3. Greasing Points on the Engine and the Location of Body Mounting Screws

11
RailKing 6-8-6 Bantam Turbine Steam Engine
2. Once the boiler is removed, you need to remove the two screws that screw
the PCB bracket to the gear box cover.
3. Carefully lift out the PCB board to access the gear box cover. Take care not
to rotate or shift the position of the electrical component screwed to the chassis
just below the smoke unit.
4. Open the gear box cover by unscrewing the screw on the plate located in
front of the motor.
5. Use a grease tube dispenser to put a small amount of lithium-based grease
into the gearbox.
Reassemble the engine in reverse order.
Cleaning the Wheels, Tires and Track
Periodically check the locomotive wheels and pickups for dirt and buildup,
which can cause poor electrical contact and traction and prematurely wear out
the neoprene traction tires. Wheels and tires can be cleaned using denatured
alcohol (not rubbing alcohol), which can be found in home improvement
stores, applied with a cotton swab.
Occasional cleaning of the track will also help to ensure good electrical
contact and prolong the life of your engine’s tires. To clean the track, use a
clean rag and denatured alcohol (not rubbing alcohol). Unplug the transformer
and wipe the rails of the track, turning the rag frequently to ensure that you are
using clean cloth on the rails.
Traction Tire Replacement Instructions
Your locomotive is equipped with two neoprene rubber traction tires on the
rear set of flanged drivers. While these tires are extremely durable, you may
need to replace them at some point.
1. Remove the side rods (the rods that connect each drive wheel to the other)
from the wheels in order to slip the new tire over the grooved drive wheel.
This screw can be loosened with a 5mm nutdriver.
2. Make sure the old tire has been completely removed from the groove in the
drive wheel, using a razor blade or small flathead screwdriver to pry away any
remains.

12
RailKing 6-8-6 Bantam Turbine Steam Engine
ProtoSmoke®Unit Operation
This steam locomotive contains a smoke unit
that outputs smoke through the smokestack on
the boiler of the engine. The smoke unit is
essentially a small heating element and wick that
soaks up and then heats a mineral oil-based fluid
that emits a harmless smoke. The smoke is then
forced out of the stack by a small electric fan.
With a few easy maintenance steps, you should
enjoy trouble-free smoke unit operation for
years.
• When preparing to run this engine, add 15-20
drops of smoke fluid through the smokestack
(see Fig. 4). We recommend M.T.H.
ProtoSmoke, Seuthe, LGB, or LVTS fluids (a
small pipette of ProtoSmoke fluid is included).
Do not overfill the unit or the fluid may leak out
and coat the interior engine components.
• If you choose not to add the fluid (or have
already added the fluid but choose to run
smoke-free), turn off the smoke unit switch
located under the engine body (see Fig. 5).
Failure either to add fluid to the unit or to turn it
off may damage the smoke unit heating element
and/or wicking material.
Add Smoke
Figure 4. Add Smoke Fluid
Smoke Unit Control
Figure 5. Smoke Switch
Inspection Screws
Figure 6. Smoke Unit
Inspection Cover
3. Slip the new tire onto the wheel. You may find it useful to use two small
flathead screwdrivers to stretch the tire over the wheel.
4. If you twist the tire while stretching it over the wheel, you will need to
remove and reinstall the tire. Otherwise your engine will wobble while
operating.
5. Make sure the tire is fully seated inside the groove. Use a razor blade to
trim away any excess tire that doesn’t seat itself inside the groove properly.
One set of replacement tires is included with the model. Additional tires are
available directly from the M.T.H. Parts Department (phone: [phone];

13
RailKing 6-8-6 Bantam Turbine Steam Engine
• When the smoke output while running the engine begins to diminish, add
another 10-15 drops of smoke fluid or turn the smoke unit off.
• When storing the unit for long periods of time, you may want to add about 15
drops of fluid to prevent the wick from drying out.
• After removing the engine from storage, add another 25 drops of fluid, letting
the wick soak up the fluid for 15 minutes prior to operation.
If you experience poor or no smoke output when the smoke unit is on and has
fluid, check the wick to see if it has become hard, blackened, and unabsorbent
around the heating element. Remove the smoke unit inspection cover from the
smoke unit’s body (see Fig. 6). After removing the chassis and inspection
cover screws, lift the inspection plate away and inspect the wick. If it is darkly
discolored and hard, it should be replaced.
You can obtain replacement wicks and instructions from the M.T.H. Parts
Department.

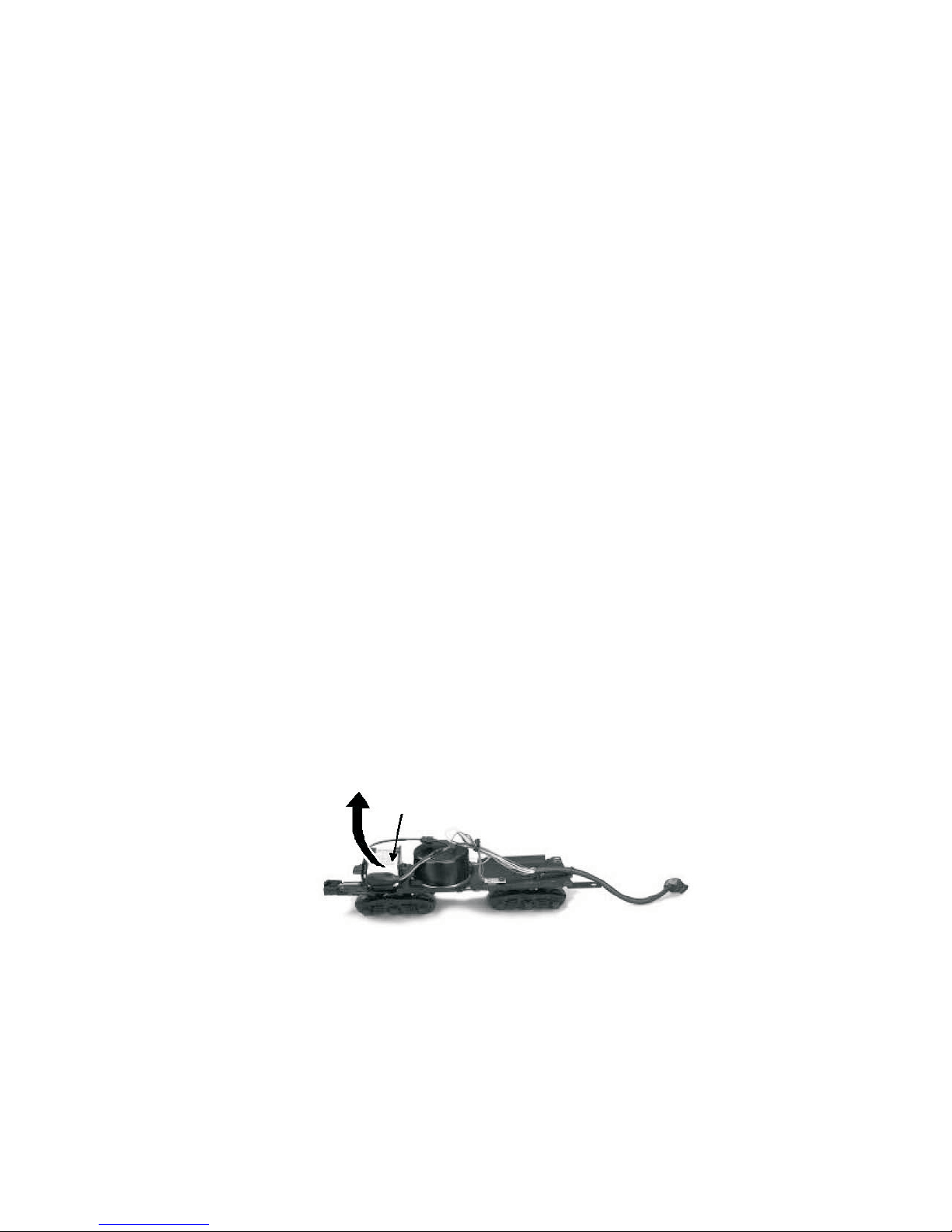

Locomotive Light Bulb Replacement
To replace the light bulb in the locomotive, follow these instructions and see
the diagrams below:
Remove the locomotive boiler from its chassis as shown in Figure 3 on pg. 10.
Once the body has been removed, rotate the headlight bulb counter-clockwise
as seen in Figure 7to remove.
You can obtain replacement bulbs directly from the M.T.H. Parts Department.
h
ea
dli
g
h
t
Figure 7. Replacing the Headlight

14
RailKing 6-8-6 Bantam Turbine Steam Engine
Self-Charging Battery Back-Up
The special NiCad 7-cell 8.4v self-charging battery in this engine improves
performance at any speed. It ensures that power to the sound system will
remain on during directional changes, or when traveling over dirty track or
switches. The self-charging battery system is automatically turned on or off
whenever track power is turned on or off.
Track power (when applied) recharges the battery, which should last for up to
five years, and the special NiCad battery is a dry battery that should not leak or
cause any damage to your engine. However, even this special battery will
eventually wear down and need to be replaced. When you notice that your
engine sounds seem distorted or garbled at low voltages or become silent when
power from the transformer is turned off, test the battery to determine whether
it should be recharged or replaced.
Put the engine in neutral and leave the track voltage at 12 volts for 15 minutes
If the garbled or distorted sounds are reduced, the battery charge has run down
and can be recharged. Do this by leaving the engine in neutral with track
voltage at 12 volts for 6-7 hours so the battery can fully recharge (if your
engine has a smoke unit, be sure it is turned off). Or you can remove the
battery (as shown in figure 8, below) and charge it in any standard slow charge
battery recharger, following the recharger’s directions.
If the sounds are not improved at the end of the 15 minute test charge, the
battery must be replaced (as shown in figure 8, below). Contact the M.T.H.
Parts Department (phone: [phone]; e-mail: [email protected];
mail: 7020 Columbia Gateway Drive, Columbia MD 21046-1532) for a
replacement battery. A standard 9v alkaline battery can be substituted until
your replacement arrives, but since alkaline batteries cannot be recharged, it
will eventually wear down. Do NOT use a 6-cell 7.2v battery like those found
in most convenience stores.
Unhook wire, remove and replace battery
Figure 8. Replacing the Battery

15
RailKing 6-8-6 Bantam Turbine Steam Engine
Troubleshooting Proto-Sound®2.0 Problems
Although Proto-Sound 2.0 has been designed and engineered for ease of use,
you may have some questions during initial operation. The following table
should answer most questions. If your problem cannot be resolved with this
table, contact M.T.H. for assistance (telephone: [phone]; fax:
410-423-0009; [email protected], 7020 Columbia Gateway Drive,
Columbia MD 21046-1532).
Starting Up
Whistle/Horn
Bell
Coupler
Remedy
Remedy
Remedy
Remedy
Remedy
When I first turn the power on, the
engine will not begin to run. I
have to turn the throttle off and
then on again to get the engine to
operate.
When I press the whistle/horn
button, the bell comes on instead.
I can’t get the horn to blow when I
press the whistle button.
I can’t get the bell to ring when I
press the bell button.
The bell won’t work on a separate
bell button.
When I try to fire the coupler, FYS
starts.
The Proto-Coupler won’t let the
engine uncouple on the fly.
The coupler does not fire or stay
coupled.
When I press the whistle button,
the bell sounds.
Reverse the transformer leads.
You may be pressing the button
too quickly. Try pressing the
whistle/horn button more slowly,
taking approximately one full
second to fully depress the button.
You may be pressing the button
too quickly. Try pressing the bell
button more slowly, taking
approximately one full second to
fully depress the button.
Reverse the transformer leads.
Check the wiring of the separate
button.
You are waiting too long between
whistle button presses.
Try lubricating the coupler knuckle
with a dry graphite lubricant. Do
NOT use oil.
The coupler needs to be cleaned.
Wipe with denatured alcohol (not
rubbing alcohol) and let dry.
This is normal behavior. To
prevent accidental high-speed
start-ups, Proto-Sound 2.0 is
programmed to start up in neutral
anytime track power has been
turned off for several seconds.

16
RailKing 6-8-6 Bantam Turbine Steam Engine
Cab Chatter
Lock-out
Volume
Battery
FYS/PSA
Remedy
Remedy
Remedy
Remedy
Remedy
Sometimes the Cab Chatter
sounds don’t play.
I can’t get the engine to run after I
power up the transformer. It sits
The engine won’t lock into
forward, neutral, or reverse.
The sounds seem distorted,
especially when the whistle or bell
is activated.
The engine will not leave the initial
neutral setting.
The FYS/PSA sounds occasionally
repeat themselves.
I get no sounds when the engine
shifts between directions.
After I turn off my transformer, my
engine continues to make sounds
before quitting.
Cab Chatter plays only in neutral
at random intervals.
The engine is locked into the
neutral position. Follow the
procedure in the “Lock into a
Direction” section.
Engine speed must be below 10
scale mph (approx. 10 volts or
less in conventional mode).
Proto-Sound 2.0 volume is set too
high. Turn the volume control knob
on the bottom of the chassis
counter-clockwise to reduce the
volume.
Check to be sure the battery is
installed and fully charged. See
the “Self-Charging Battery Back-
Up” section.
The battery may be dead or need
to be charged. See the “Self-
Charging Battery Back-Up”
section.
Proto-Sound 2.0 is designed to
continue to sound for a few
seconds after power to the track
has been shut off.
Proto-Sound 2.0 has a built-in
random number generator that
randomly selects each sound clip
to play. Because there are a
limited number of sound clips
available in each FYS/PSA
sequence, it is probable that some
of these sound clips will be
repeated from time to time.

17
RailKing 6-8-6 Bantam Turbine Steam Engine
FYS/PSA Remedy
Once in FYS/PSA, the engine
doesn’t go into reverse.
When the FYS/PSA enters its last
sequence the bell automatically
comes on.
When FYS/PSA is enabled,
pressing the whistle and bell
buttons has no effect.
I push the direction button but the
next sound clip in the sequence
does not play or the engine does
not come out of FYS/PSA after
fourth press of the direction
button.
So that FYS/PSA effects can be
as realistic as possible,
Proto-
Sound 2.0 disables the reversing
unit whenever FYS/PSA is
enabled. This way the engine
remains still at its stop as the
operator cycles through the
FYS/PSAsequences.
FYS/PSA is programmed to start
ringing the bell at that point. After
approximately 12 seconds it will
automatically turn off.
Because FYS/PSA must control
various effects in each sequence,
Proto-Sound 2.0 takes control of
these sound effects until you exit
Each FYS/PSA clip must play for
approx. 30 seconds before
FYS/PSA will advance to the next
step in the FYS/PSA cycle. Wait
at least 30 seconds in each
FYS/PSA sound clip before
pressing the direction button.
Compatibility
This engine will operate on any traditional O-31 or larger O Gauge track
system, including M.T.H.’s RealTrax®or ScaleTrax™or traditional tubular
track. It is also compatible with most standard AC transformers. (See page 18
for a complete list of compatible transformers and wiring instructions.)

18
RailKing 6-8-6 Bantam Turbine Steam Engine
Transformer Compatibility and Wiring Chart
Note that many of the operational commands described in these instructions
require a bell button, so if your transformer does not have its own bell button,
you should consider adding one to get the full benefit of the system.
Transformer
Model Center Rail Outside Rail Min/Max. Voltage
Power
Rating
Transformer
Type
Lionel 1032 U A 5-16v 90-Watt Standard
Lionel 1032M U A 5-16v 90-Watt Standard
Lionel 1033 U A 5-16v 90-Watt Standard
Lionel 1043 U A 5-16v 90-Watt Standard
Lionel 1043M U A 5-16v 90-Watt Standard
Lionel 1044 U A 5-16v 90-Watt Standard
Lionel 1053 U A 8-17v 60-Watt Standard
Lionel 1063
Lionel LW
Powermaster
U
A
U
A
U
A
8-17v
8-18v
8-18v
60-Watt
75-Watt
135VA
Standard
Standard
Electronic
All-Trol Left Terminal Right Terminal 0-24v 300-Watt Electronic
Dallee Hostler Left Terminal Right Terminal Electronic
Lionel LW A U 8-18v 75-Watt Standard
Lionel KW A or B U 6-20v 190-Watt Standard
Lionel MW Outside Track
Terminal
Inside Track
Terminal 5-16v 50V.A. Electronic
Lionel RS-1 Red Terminal Black Terminal 0-18v 50V.A. Electronic
Electronic
Lionel RW U A 9-19v 110-Watt Standard
Lionel SW U A Unknown 130-Watt Standard
Lionel TW U A 8-18v 175-Watt Standard
Lionel ZW
Lionel Post-War
Celebration
Series ZW
A,B,C or D
A,B,C or D
U
Common
8-20v
0-20v
275-Watt
135/190 Watt
Standard
MTH Z-500 Red Terminal Black Terminal 0-18v 50-Watt Electronic
MTH Z-750
MTH Z-1000
Red Terminal
Red Terminal
Black Terminal
Black Terminal
0-21v
0-21v
75-Watt
100-Watt
Electronic
Electronic
MTH Z-4000 Red Terminal Black Terminal 0-22v 390-Watt Electronic
* Conventional Mode Onl
y
RECOMMENDED AC TRANSFORMERS

19
RailKing 6-8-6 Bantam Turbine Steam Engine
Additional Features Accessible with the DCS Remote
Control System:
While conventional mode operation of a Proto-Sound 2.0 engine yields
wonderfully realistic sound and several train control features, command mode
operation allows the user to access a world of command functions never before
accessible to O Gauge railroaders. With the addition of the DCS Remote
Control System (including a DCS remote handheld and Track Interface Unit)
users gain many advanced features, including:
• DCS Proto-Speed Control-Establishes desired locomotive speed in scale
miles per hour increments via a thumbwheel control and allows operator to set
maximum speed and acceleration/deceleration rates.
• Locomotive Lighting Control-Independently controls locomotive headlights,
marker and interior lights, and ditch lights.
• Emergency Stop-Single button push stops your trains (but does not turn off
track power).
• One Touch Global Mute/UnMute-Single button mutes or unmutes all
DCS-controlled locomotives’ user-defined actions, including sound, lights, and
smoke.
• Proto-Dispatch Operation-Public Address-like feature allows users to speak
through locomotive speaker during operation.
• Proto-Cast-Allows users to play audio recordings through locomotive speaker
during operation.
• Proto-Doppler Sound Effects Set Up-Users can configure locomotive for
Doppler Operation, including setting distance points for Doppler start, repeat,
and stop modes.
• Independent Volume Control of Engine Sounds, Bell, Horn & Whistle for
each Locomotive.
• Control up to 50 different DCS-equipped locomotives at one time with
multiple TIUs.

20
RailKing 6-8-6 Bantam Turbine Steam Engine
• Proto-Effects™ Set Up-User can select individual Proto-Effects™ operations
to be active or inactive, including cab chatter, train wreck sounds, coupler
sounds, and wheel clickety-clack sounds.
• Direction Control Set Up-User can set initial individual start-up direction
(start in forward or reverse) for double-heading operations.
• Locomotive Consist Set-up-User can determine locomotive values for
consist make-ups, allowing multiple locomotives belonging to a consist to
operate together.
• Query Locomotive Information-User can query locomotive programming to
learn locomotive address and engine data information, including scale miles
traveled.
• User Can Query, Set and Operate Track and Accessory Interface Units for
Programming Digital Command Operations for up to 250 Accessories and 250
Individual Switches.
• User Can Script, Record and Playback Train Routes.
