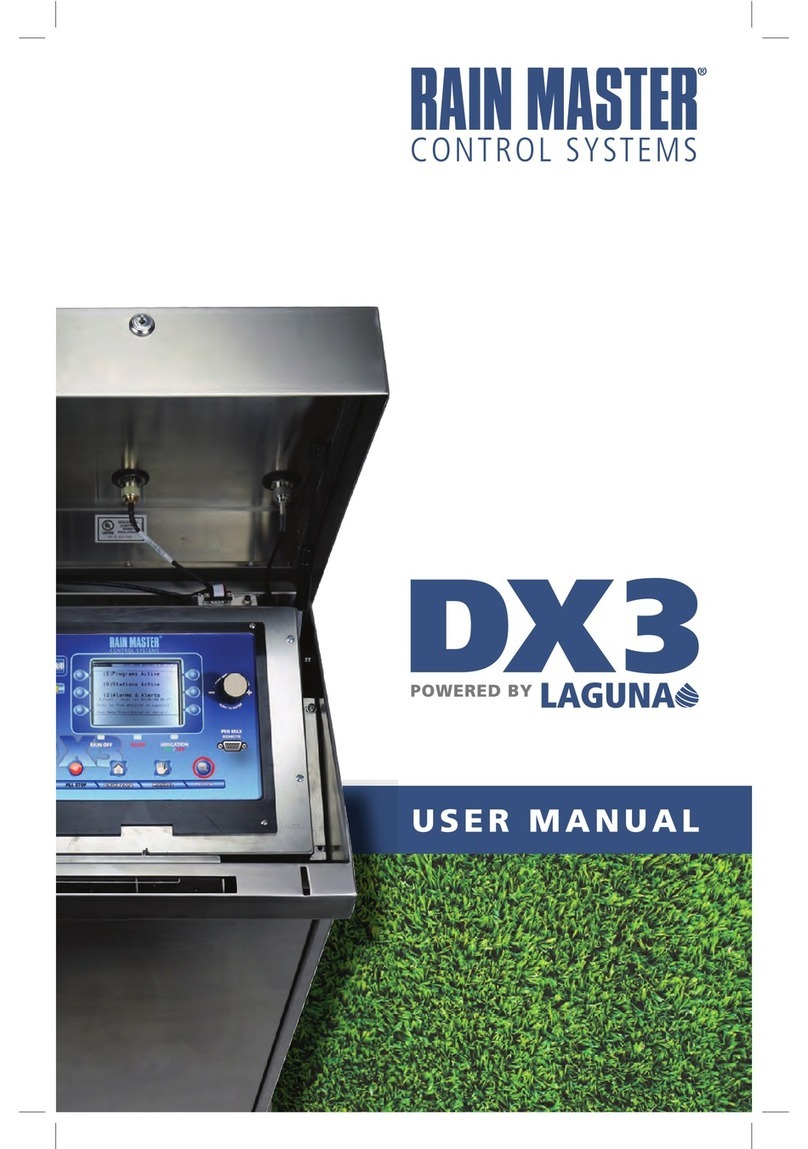

RainMaster DX3 User manual
Quick Start Guide
Introduction
About the Controller 1
Icons Explained 4
Getting Help 4
Overview 5
Faceplate 5
Buttons 6
LEDs 7
Screen 7
Menu Navigation 8
Quick Start 9
Setting the Language 9
Setting Current Date & Time 9
Program Start Time 10
Water Days 11
Station Run Times 12
Program Hold 13
% Adjust 14
Manual Operation 15
Table of Contents
POWERED BY
®
FOR
THE
RAIN MASTER
®DX3 Quick Start Guide
1
Chapter 1: Introduction
RAIN MASTER
®DX3 Quick Start Guide
Chapter 1: Introduction
ank you for supporting Rain Master® and the Laguna™ / DX3™ central con-
trol platform. As the long-awaited successor to the Evolution™ DX2 controller,
we hope the DX3 will exceed your expectations and contribute to Rain Master's
legacy of innovation and service.
About the Controller
Rain Master believes in minimizing waste by maximizing water application e-
ciency. e DX3 provides precise control of irrigation delivery systems through
a exible network that could t almost any application. DX3 will work with
your Rain Master Laguna software to monitor, adjust, and report on irrigation
schedules to your technical comfort level.
Hardware Features
Capacity:
• Up to 96 stations per satellite in conventional congurations, 200 stations
per controller in two-wire (TWICE™) congurations.
• Up to 48 conventional stations + 100 two-wire stations in our hybrid mod-
els (for TWICE two-wire conversion projects.
• ree dedicated master valve (MV) outputs, either normally closed or
normally open.
• Two auxiliary 24VAC relays for pumps, lights, etc.
• Up to Six inputs to connect ow sensors/meters or other pulse-data devices.
Note that these devices would be independent of the optional LAGUNA
wireless weather solutions, which are all wireless.
• ree alarm inputs
2Chapter 1: Introduction
RAIN MASTER
®DX3 Quick Start Guide
• An expansive, 4.4” LCD back-lit display with rapid menu navigation and
“digital ink” for high visibility in the sun.
• Integrated cabinet access lighting or “fridge light” and pivoting brackets for
improved setup and service access (select models)
• Transparent, custom – t plastic covers for all circuit boards for added pro-
tection against the elements and pests (certain models).
• Many system communication options, including 3G cellular, UHF Radio,
Ethernet-to-Radio, Ethernet, Hardwire, WiFi and more!
• Lightning protection up to 18kV
• Integrated amperage meter to enhance internal diagnostics and trouble-
shooting
• Up to nine simultaneous station-related operations (six valve and three MV)
Scheduling and Programming Features
• 16 conventional programs with up to 12 start times per program
• Exclusive DX series Individual Station Control (ISC™): Treat every active
station as an individual program
• Customizable scheduling calendar with up to 48 exclusion days
• Programmable MV and Station Delay
• Global water window (ISC & Manual can override)
• English, Spanish and French language settings
• Imperial (Standard) or Metric standard units of measure
Program Setup Options
Setup Menu Option Default
Time/Date 12:00:00am
Language English / Spanish English
Flow
Omit by Date
Communication
Current Checks
Firmware Update
Learn Flow / Current
About
3
Chapter 1: Introduction
RAIN MASTER
®DX3 Quick Start Guide
Maintenance and Alarm Diagnostic Capabilities
• Flow monitoring. Overow, underow, unscheduled ow, and catastrophic
occurrence monitoring and reporting.
• Electrical alarm with station shutdown and program advance for station/s
over current, shorts, damaged wires, and/or faulty solenoids.
• Power outage restoration alarms.
• LED indication for station outputs.
• Electrical self diagnostic test to verify communication between the timing
mechanism (TM) and all modules.
• Manual test mode that can advance stations while displaying valve electrical
current and station ow data.
Communication Features
e DX3 is capable of communicating with the Central computer over a variety
of communication technologies.
Cellular 3G Optional accessory for Central to sub-master
communication.
WiFi “Short range” standard WiFi to Central, sold as an
optional accessory.
Ethernet Standard on all DX3 systems.
Ethernet-to-Radio Sold as an optional stand-alone accessory.
UHF Radio Sold as an optional stand-alone or embedded
accessory.
Serial cable Serial communication to Central or Diagnostic PC.
4Chapter 1: Introduction
RAIN MASTER
®DX3 Quick Start Guide
Icons Explained
A note to clarify.
!
Important
Warning! Risk of electric shock
Rotate the Control Dial.
Press the Control Dial.
Getting Help
Rain Master strives to build safe, durable, and easy to use product. If, however,
you encounter a problem that referring to this manual cannot resolve, please
contact an authorized Rain Master product expert for assistance via phone or
email.
U.S./Canada:
Phone: 1-800-777-1477 (7:30 am–4 pm, M–F, PT)
E-mail: [email protected]
5
Chapter 2: Overview
RAIN MASTER
®DX3 Quick Start Guide
Chapter 2: Overview
Because not all irrigation applications are identical, the DX3 controller has been
designed to allow users to establish a wide variety of individual programmable
options. ese options include changing conguration of programs, Individual
Station Control (ISC), irrigation stations, the controller, and sensors.
The Faceplate
(0) Active Programs
(0) Active Stations
(2) Alerts
SAT: 239-239 WED 5:43:40 PM
A: Power reset
24 (GPM) Expected 0
6Chapter 2: Overview
RAIN MASTER
®DX3 Quick Start Guide
The Buttons
Button Function
Control Dial
Rotate to switch between elds on a screen and change
values within those elds.
Press to enter a desired eld and to save the value.
Left, Right, and Back buttons
To navigate screen and menu selections.
“A” button
To...
“B” button
To...
Command button
To execute the on-screen command closest to
that particular command button.
All Stop
To stop all current irrigation activity.
Manual
To manually operate the controller.
Dashboard
To return the controller to the “Dashboard” screen.
Review
To review irrigation program settings.
7
Chapter 2: Overview
RAIN MASTER
®DX3 Quick Start Guide
The LEDs
e DX3 has three LEDs beneath the main LCD screen. Each LED illuminates
for a specic reason:
(0) Active Programs
(0) Active Stations
(2) Alerts
SAT: 239-239 WED 5:43:40 PM
A: Power reset
24 (GPM) Expected 0
Rain O
(blue)
Illuminated when the Rain O command is active.
All irrigation activity is suspended when this light is on.
Alert
(red)
Illuminated when a user alert for the operator has been
triggered, such as after a loss of power or loss of pressure.
Alerts must be manually cleared in the Alert submenu.
Irrigation
(green)
Illuminates when irrigation is actively in operation.
If no sprinkler or station is running, the irrigation LED
will
be o.
The Screen
e Liquid Crystal Display (LCD) screen on the DX3 controller is 4.4” QVGA
monochrome display screen capable of 320240 pixels.
The main menu
On both sides of the screen are three command buttons for quick and easy exe-
cution of the button’s assigned command.
Setup Reports &
Diagnostics
Program Alerts
Stations Rain Hold
Main Menu WED 5:43:40 PM
8Chapter 2: Overview
RAIN MASTER
®DX3 Quick Start Guide
Menu Navigation
Navigating menus and executing commands in the DX3 is easy with the various
buttons and the Control Dial.
To navigate the typical DX3 screen, we will use the below as an example.
Navigating and Executing
1. to navigate between adjustable elds.
e “active” eld will have a black box around it.
2. to enter the “active” eld.
3. to adjust the value.
Some elds have preset options like “Custom” vs. “Data Ind”. Other elds
are numeric and are adjusted incrementally.
4. to set desired option.
5. Repeat steps 1 - 4 for all adjustable elds.
Sensor 1 Type Custom
K Factor 003.001
Offset 8.001
Include In Total Flow YES
Setup Flow Sensors WED 5:43:40 PM
|Sensor 1|Sensor 2 | Sensor 3
Press and
to move between the dier-
ent “top” screens.
Some elds have
preset options.
Press to switch
between them.
Number elds must be
adjusted by .
9
Chapter 3: Quick Start
RAIN MASTER
®DX3 Quick Start Guide
Chapter 3: Quick Start
is chapter is a step-by-step tutorial for rapid and basic controller setup. For
the demonstration, we will set up an irrigation schedule with 2 start times:
6:15am and 8pm daily, 1 cycle at 10 minutes per station.
e Quick Start guide does not address advanced features such as
sensors, ow, ET, or FLOWMAX. Please refer to the DX3 User Guide
(373-0920) for complete operating instructions
.
Before we can program an irrigation schedule, we must enter the date and time.
To get to the Setup screen from the Dashboard, press
the Control dial or any one of the Command buttons .
The Setup Screen
Flow Communication
Language Current Checks
Omit by Date Time/Date
Setup WED 5:43:40 PM
|Page 1|Page 2|
10 Chapter 3: Quick Start
RAIN MASTER
®DX3 Quick Start Guide
Setting the Language
1) Setup 2) Language
3) to change language. 4) When done, press .
Setting Current Date and Time
1) Setup 2) Time/Date
3) Switch between the 3 time/date elds.
4) Using the navigation techniques from page 14, adjust elds as necessary.
5) Repeat as necessary for the other elds. When done, press
Creating a New Irrigation Schedule
Now that the language and date and time are set,
we can set up the irrigation schedule.
Language English
Setup Language WED 5:43:40 PM
English
Espanol
Time Format 24-Hour
Time 5:43PM
Date 02/08/17
Setup Time/Date WED 5:43:40 PM
24-Hour
AM/PM
11
Chapter 3: Quick Start
RAIN MASTER
®DX3 Quick Start Guide
Program Start Time
1) Program 2) Program 1
3) Start Times
It is possible to have 12 start times per program.
4) and to adjust the rst start time to 6:15am.
5) and to adjust Start Time 2 to 8:00pm.
Press 'A' to clear start times.
Start times set!
6) When done, press .
Start Times Quick Stns
Water Days Program Hold
Run Times OPT IN’s
Program 1 Menu WED 5:43:40 PM
|Page 1|Page 2|
Start Time 1 Start Time 4
06:15AM --:--AM
Start Time 2 Start Time 5
08:00PM --:--AM
Start Time 3 Start Time 6
--:--AM --:--AM
Program 1 Start Times
WED 5:43:40 PM
|1-6|7-12|
Start Time 1 Start Time 4
--:--AM --:--AM
Start Time 2 Start Time 5
--:--AM --:--AM
Start Time 3 Start Time 6
--:--AM --:--AM
Program 1 Start Times WED 5:43:40 PM
|1-6|7-12|
12 Chapter 3: Quick Start
RAIN MASTER
®DX3 Quick Start Guide
Water Days
1) Water Days
2) Enter Schedule Type eld. 3) Change to desired
schedule. I chose 31-DAY.
4) Set Schedule Type. 5) to Alternate.
6) Set Alternate. 7) When done, press .
Alternate days are active.
Start Times Quick Stns
Water Days Program Hold
Run Times OPT IN’s
Program 1 Menu WED 5:43:40 PM
|Page 1|Page 2|
Schedule Type: 14-DAY
Sun Mon Tue Wed Thu Fri Sat
Apply: Alternate Reverse
Program 1 Watering Days WED 5:43:40 PM
14-DAY
31-DAY
INTERVAL
Schedule Type: 31-DAY
Apply: Alternate Reverse
Program 1 Watering Days WED 5:43:40 PM
□1□2□3□4□5□6□7
□8□9□10 □11 □12 □13 □14
□15 □16 □17 □18 □19 □20 □21
□22 □23 □24 □25 □26 □27 □28
□29 □30 □31
Schedule Type: 31-DAY
Apply: Alternate Reverse
Program 1 Watering Days WED 5:43:40 PM
□1□2□3□4□5□6□7
□8□9□10 □11 □12 □13 □14
□15 □16 □17 □18 □19 □20 □21
□22 □23 □24 □25 □26 □27 □28
□29 □30 □31
13
Chapter 3: Quick Start
RAIN MASTER
®DX3 Quick Start Guide
Station Run Times
1) Run Times
2) Enter Station 1 hours eld. Our run time will only be for ten
minutes, so we can switch to the
minutes eld.
3) Switch to minutes eld. 4) Adjust desired run time in
minutes.
5) Set Station 1 run time. 6) Switch to next Station eld.
7) Repeat steps 2-6 for as necessary for as many stations as desired.
Press 'A' to clear run times.
Stations 1 - 6 set with ten minute run-times.
Start Times Quick Stns
Water Days Program Hold
Run Times OPT IN’s
Program 1 Menu WED 5:43:40 PM
|Page 1|Page 2|
Station 1 Station 4
00:00 00:00
Station 2 Station 5
00:00 00:00
Station 3 Station 6
00:00 00:00
Program 1 Run Times WED 5:43:40 PM
|1-6|7-12|13-18|19-24|25-30|>
Station 1 Station 4
00:10 00:10
Station 2 Station 5
00:10 00:10
Station 3 Station 6
00:10 00:10
Program 1 Run Times WED 5:43:40 PM
|1-6|7-12|13-18|19-24|25-30|>
14 Chapter 3: Quick Start
RAIN MASTER
®DX3 Quick Start Guide
Program Hold
A storm is coming! Irrigation will not be needed for a few days.
Let’s activate a Program Hold on Program 1.
1) Program 2) Program 1
3) Program Hold
4) Enter Set Day(s) eld. 5) Change to desired
days. 4 days to dry out.
6) Set value. 7) When done, press .
Start Times Quick Stns
Water Days Program Hold
Run Times OPT IN’s
Program 1 Menu WED 5:43:40 PM
|Page 1|Page 2|
Hold Duration 04 Day(s)
Cancel Hold
Program 1 Hold WED 5:43:40 PM
15
Chapter 3: Quick Start
RAIN MASTER
®DX3 Quick Start Guide
% Adjust
e weather overall is getting cooler.
Let us decrease the overall amount of irrigation for this program.
1) Program 2) Program 1
3) to get to the Page 2 Program 1 Menu screen.
4) % Adjust
5) Enter % Adjust eld. 6) Change to desired %.
I reduced to 50%.
7) Set value. 8) When done, press .
Above, we set our run times to ten minutes per station.
A 50% runtime would therefore cut that in half, to ve minutes.
Start Times Quick Stns
Water Days Program Hold
Run Times OPT IN’s
Program 1 Menu WED 5:43:40 PM
|Page 1|Page 2|
Erase/Reset % Adjust
Program 1 Menu WED 5:43:40 PM
|Page 1|Page 2|
% Adjust Value 50
Program 1 % Adjust WED 5:43:40 PM
16 Chapter 3: Quick Start
RAIN MASTER
®DX3 Quick Start Guide
Manual Operation
e grass is a little dry. Let us run a manual program operation at 10pm
to help keep that grass green.
1) Press the Manual button.
2) Program
3) Enter Program# eld. 4) Select program to run.
I chose 1.
5) Set Program value. 6) Navigate to Start Time
eld.
7) Enter Start Time eld.
Hours eld will ash.
8) Change hour value to 10.
9) Switch to minute eld. 10) Switch to AM/PM eld.
11) Change to PM. 12) Set value.
13) When done, to the Activate eld and .
e operation will execute this evening and save the grass.
Station Program
Simultaneous
Sequence
Manual WED 5:43:40 PM
Program# 001
Start Time --:--AM
Activate Deactivate
Status: Off
Flow: 100 GPM Cur:1.0
Manual Program WED 5:43:40 PM
17
Notes
RAIN MASTER
®DX3 Quick Start Guide
Notes
RAIN MASTER
®DX3 Quick Start Guide
RAIN MASTER
®DX3 Quick Start Guide
©2017 All rights reserved. Rain Master Control Systems, a division of Irritrol®
P/N: 373-0937 Rev. A
To download the complete DX3 User Guide, please visit our website.
For your free printed and bound copy, simply call or email us today.
We are happy to send one to you. Thank you for your support!
Website: www.rainmaster.com
Phone: 800-777-1477
email: [email protected]
WANT THE WHOLE ENCHILADA?
Other manuals for DX3
1
Table of contents
Other RainMaster Controllers manuals
