RAIS Nexo 100 User manual

BRUGERMANUAL
BEDIENUNGSANLEITUNG
USER MANUAL
MANUEL D’UTILISATEUR
BRUKERVEILEDNING
BRUKSANVISNING
KÄYTTÖOHJE
GEBRUIKERSHANDLEIDING
NEXO
POSITIV
OUTLINE
NEGATIV

2
EN 13240:2001+A2:2004 Raumheizer für feste Brennstoffe
Appliance fired by wood
Poêle pour combustibles solides
Produced at:
RAIS A/S, Industrivej 20, 9900 Frederikshavn, Danmark
VKF-NR:
Typ FC41x FC51x
15a B-VG
EC.NO: 10
AFSTAND TIL BRÆNDBART, BAGVÆG
ABSTAND ZU BRENNBAREN BAUTEILEN, HINTEN
DISTANCE TO COMBUSTIBLE BACK WALL
DIST. ENTRE COMPOSANTS COMBUSTIBLES, ARRIÈRE
AFSTAND TIL BRÆNDBART, SIDEVÆG
ABSTAND ZU BRENNBAREN BAUTEILEN, SEITE
DISTANCE TO COMBUSTIBLE SIDE WALL
DISTANCE ENTRE COMPOSANTS COMBUSTIBLES, COTÉ
AFSTAND TIL BRÆNDBART, MØBLERING
ABSTAND VORNE ZU BRENNBAREN MÖBELN
DISTANCE TO FURNITURE AT THE FRONT
DISTANCE ENTRE COMPOSANTS COMBUSTIBLES, DEVANT
CO EMISSION (REL. 13% O2)
CO EMISSION IN DEN VERBRENNUNGSPRODUKTEN (BEI 13%O2)
EMISSION OF CO IN COMBUSTION PRODUCTS (AT 13%O2)
EMISSION CO DANS LES PRODUITS COMBUSTIBLES (À 13%O2)
NOMINEL EFFEKT / HEIZLEISTUNG /
THERMAL OUTPUT / PUISSANCE CALORIFIQUE:
RØGGASTEMPERATUR / ABGASTEMPERATUR /
FLUE GAS TEMPERATURE / TEMPÉRATURE DES GAZ DE FUMÉE:
VIRKNINGSGRAD / ENERGIEEFFIZIENZ /
ENERGY EFFIENCY /EFFICACITÉ ÉNERGÉTIQUE:
DK: Brug kun anbefalede brændsler. Følg instrukserne i
brugermanualen. Anordningen er egnet til røggassamleledning og intervalfyring.
DE: Lesen und befolgen Sie die Bedienungsanleitung.
Zeitbrandfeuerstätte. Nur empfohlene Brennstoffe einsetzen.
UK: Fuel types (only recommended). Follow the installation and
operating instruction manual. Intermittent operation.
F: Veuillez lire et observer les instructions du mode d'emploi.
Foyer à durèe de combustion limitèe, homologué pour cheminée à
connexions multiples. Utiliser seulement les combustibles recommandés.
Hergestellt für /Produced for:
ATTIKA FEUER AG, Brunnmatt 16, CH-6330 Cham / RAIS A/S, Industrivej 20, DK-9900 Frederikshavn
STØV / STAUB /
DUST / POUSSIÈRES: DK: 4 mg/Nm3 / DE: 4 mg/Nm3 UK: 4 mg/Nm3 / FR: 4 mg/Nm3
DK: 268°C / DE: 268°C
UK: 268°C / FR: 268°C
DK: 5,7 kW / DE: 5,7 kW
UK: 5,0 kW / FR: 5,7 kW
DK: 80% / DE: 80%
UK: 80% / FR: 80%
DK: BRÆNDE
DE: HOLZ
UK: WOOD
FR: BOIS
DK: 100 mm/SE BRUGERVEJLEDNING
DE: 100 mm/SIEHE BEDIENUNGSANLEITUNG
UK: 100 mm/SEE USER MANUAL
FR: 100 mm/CONSULTEZ LE GUIDE DE L'UTILISATEUR
DK: 350 mm/SE BRUGERVEJLEDNING
DE: 350 mm/SIEHE BEDIENUNGSANLEITUNG
UK: 350 mm/SEE USER MANUAL
FR: 350 mm/CONSULTEZ LE GUIDE DE L'UTILISATEUR
DK: 900 mm/SE BRUGERVEJLEDNING
DE: 900 mm/SIEHE BEDIENUNGSANLEITUNG
UK: 900 mm/SEE USER MANUAL
FR: 900 mm/CONSULTEZ LE GUIDE DE L'UTILISATEUR
DK: 0,0906%
DE: 0,0906% / 1,132 mg/Nm3
UK: 0,0906%
FR: 0,0906%
CE Label:
Nexo 1025
Nexo 1235
manuelt og Clever Air spjæld
18
Nexo 1025 – Manual / Nexo 1025 - Clever Air
Nexo 1235 – Manual / Nexo 1235 - Clever Air
Nexo 1025 Classic – Manual / Nexo 1025 Classic - Clever Air
Nexo 1235 Classic – Manual / Nexo 1235 Classic - Clever Air
Nexo 100 - Manual, Nexo 100 - Clever Air,
Nexo 100 Classic - Manual, Nexo 100 Classic - Clever Air
Nexo 120 - Manuel, Nexo 120 - Clever Air
Nexo 120 Classic - Manual, Nexo 120 Classic - Clever Air
Mærkeplade, Merkeplate, Märkplät, Tyyppikilpi
English RAIS/ attika - U ser manual for VIVA L

Nexo 100 Sideglas - Manuel, Nexo 100 Sideglas - Clever Air
Nexo 100 Classic Side glass - Manual, Nexo 100 Classic Side glass - Clever Air
Nexo -120 Sideglas – Manuel, Nexo -120 Sideglas - Clever Air
Nexo 120 Classic Side glass – Manuel, Nexo 120 Classic Side glass - Clever Air
Mærkeplade, Merkeplate, Märkplät, Tyyppikilpi
EN 13240:2001+A2:2004 Raumheizer für feste Brennstoffe
Appliance fired by wood
Poêle pour combustibles solides
Produced at:
RAIS A/S, Industrivej 20, 9900 Frederikshavn, Danmark
VKF-NR:
Typ FC41x FC51x
15a B-VG
EC.NO: 10
AFSTAND TIL BRÆNDBART, BAGVÆG
ABSTAND ZU BRENNBAREN BAUTEILEN, HINTEN
DISTANCE TO COMBUSTIBLE BACK WALL
DIST. ENTRE COMPOSANTS COMBUSTIBLES, ARRIÈRE
AFSTAND TIL BRÆNDBART, SIDEVÆG
ABSTAND ZU BRENNBAREN BAUTEILEN, SEITE
DISTANCE TO COMBUSTIBLE SIDE WALL
DISTANCE ENTRE COMPOSANTS COMBUSTIBLES, COTÉ
AFSTAND TIL BRÆNDBART, MØBLERING
ABSTAND VORNE ZU BRENNBAREN MÖBELN
DISTANCE TO FURNITURE AT THE FRONT
DISTANCE ENTRE COMPOSANTS COMBUSTIBLES, DEVANT
CO EMISSION (REL. 13% O2)
CO EMISSION IN DEN VERBRENNUNGSPRODUKTEN (BEI 13%O2)
EMISSION OF CO IN COMBUSTION PRODUCTS (AT 13%O2)
EMISSION CO DANS LES PRODUITS COMBUSTIBLES (À 13%O2)
NOMINEL EFFEKT / HEIZLEISTUNG /
THERMAL OUTPUT / PUISSANCE CALORIFIQUE:
RØGGASTEMPERATUR / ABGASTEMPERATUR /
FLUE GAS TEMPERATURE / TEMPÉRATURE DES GAZ DE FUMÉE:
VIRKNINGSGRAD / ENERGIEEFFIZIENZ /
ENERGY EFFIENCY /EFFICACITÉ ÉNERGÉTIQUE:
DK: Brug kun anbefalede brændsler. Følg instrukserne i
brugermanualen. Anordningen er egnet til røggassamleledning og intervalfyring.
DE: Lesen und befolgen Sie die Bedienungsanleitung.
Zeitbrandfeuerstätte. Nur empfohlene Brennstoffe einsetzen.
UK: Fuel types (only recommended). Follow the installation and
operating instruction manual. Intermittent operation.
F: Veuillez lire et observer les instructions du mode d'emploi.
Foyer à durèe de combustion limitèe, homologué pour cheminée à
connexions multiples. Utiliser seulement les combustibles recommandés.
Hergestellt für /Produced for:
ATTIKA FEUER AG, Brunnmatt 16, CH-6330 Cham / RAIS A/S, Industrivej 20, DK-9900 Frederikshavn
STØV / STAUB /
DUST / POUSSIÈRES: DK: 4 mg/Nm3 / DE: 4 mg/Nm3 UK: 4 mg/Nm3 / FR: 4 mg/Nm3
DK: 268°C / DE: 268°C
UK: 268°C / FR: 268°C
DK: 5,7 kW / DE: 5,7 kW
UK: 5,0 kW / FR: 5,7 kW
DK: 80% / DE: 80%
UK: 80% / FR: 80%
DK: BRÆNDE
DE: HOLZ
UK: WOOD
FR: BOIS
DK: 100 mm/SE BRUGERVEJLEDNING
DE: 100 mm/SIEHE BEDIENUNGSANLEITUNG
UK: 100 mm/SEE USER MANUAL
FR: 100 mm/CONSULTEZ LE GUIDE DE L'UTILISATEUR
DK: 450 mm/SE BRUGERVEJLEDNING
DE: 450 mm/SIEHE BEDIENUNGSANLEITUNG
UK: 450 mm/SEE USER MANUAL
FR: 450 mm/CONSULTEZ LE GUIDE DE L'UTILISATEUR
DK: 800 mm/SE BRUGERVEJLEDNING
DE: 800 mm/SIEHE BEDIENUNGSANLEITUNG
UK: 800 mm/SEE USER MANUAL
FR: 800 mm/CONSULTEZ LE GUIDE DE L'UTILISATEUR
DK: 0,0906%
DE: 0,0906% / 1,132 mg/Nm3
UK: 0,0906%
FR: 0,0906%
CE Label:
Nexo 1025 Side glass
Nexo 1235 Side glass
manuelt og Clever Air spjæld
18
Nexo 1025 Side glass – Manual / Nexo 1025 Side glass - Clever Air
Nexo 1235 Side glass – Manual / Nexo 1235 Side glass - Clever Air
Nexo 1025 Classic Side glass – Manual / Nexo 1025 Classic Side glass - Clever Air
Nexo 1235 Classic Side glass – Manual / Nexo 1235 Classic Side glass - Clever Air
English RAIS/ attika - U ser manual for VIVA L

4
Indstilling af spjæld Einstellung der Luftklappe
Adjustment of the air damper Réglage du volet d’air
Innstilling av spjeld Indställing af spjället
Pellin säätäminen Instellen van de luchtklep
Position 3 Lukket
Posisjon 3 Lukket
Position 3 Closed
Asento 3 Suljettu
Positie 3 Gesloten
Position 3 Geschlossen
Position 2 Drift indstilling
Posisjon 2 Driftsinnstilling
Position 2 Operating mode
Asento 2 Käyttöasetus
Positie 2 Bedrijfsmodus
Position 2 Betriebs Einstellung
Position 1 Opstarts indstilling
Posisjon 1 Oppstartsinnstilling
Position 1 Kindling position
Asento 1 Sytykkeiden sijoitus
Positie 1 Aangestoken positie
Position 1 Anfeuerungs Einstellung
English RAIS/ attika - U ser manual for VIVA L

5
We cannot be held responsible for any misprints.
RECYCLING:
The oven is wrapped in packaging that is recyclable. This
must be disposed of according to national rules regard-
ing the disposal of waste.
The glass can not be reused.
The glass should be discarded along with the residual
waste from ceramics and porcelain.
Pyrex glass has a higher melting temperature and there-
fore can not be reused.
If discarded you make an important positive contribution
to the environment.
FIRE ENVIRONMENTALLY FRIENDLY!
5 Eco-friendly advices for sensible heating
- common sense both environmentally and economically.
1. Effective lighting. Use small pieces of wood (fir tree) and a suit-
able fire lighter, for example paraffined wood wool/sawdust.
Open the air damper, so plenty of air is fed to the stove and
the gases from the heated wood can burn rapidly.
2. Light the fire with only little wood at a time - this gives the best
combustion. Remember plenty of air for every time new wood
is added.
3. When the flames are diminished, adjust the air damper so that
the air supply is reduced.
4. When only glowing embers remain, air flow can be reduced
further, so heating demand is just covered. With a lower air
supply the charcoal will burn slower and the heat loss through
the chimney is reduced.
5. Use only dry wood - ie. wood with a humidity of 15 to 20%.
English RAIS/ attika – User manual for Nexo

6
4
20-06-2018
10-6510 - NEXO
Revision :
Date :
INTRODUCTION .................................................................................................................. 7
WARRANTY ................................................................................................................................ 8
SPECIFICATIONS.......................................................................................................................... 9
DISTANCE/MEASUREMENT ....................................................................................................... 10
CONVECTION ........................................................................................................................... 11
CHIMNEY ................................................................................................................................. 11

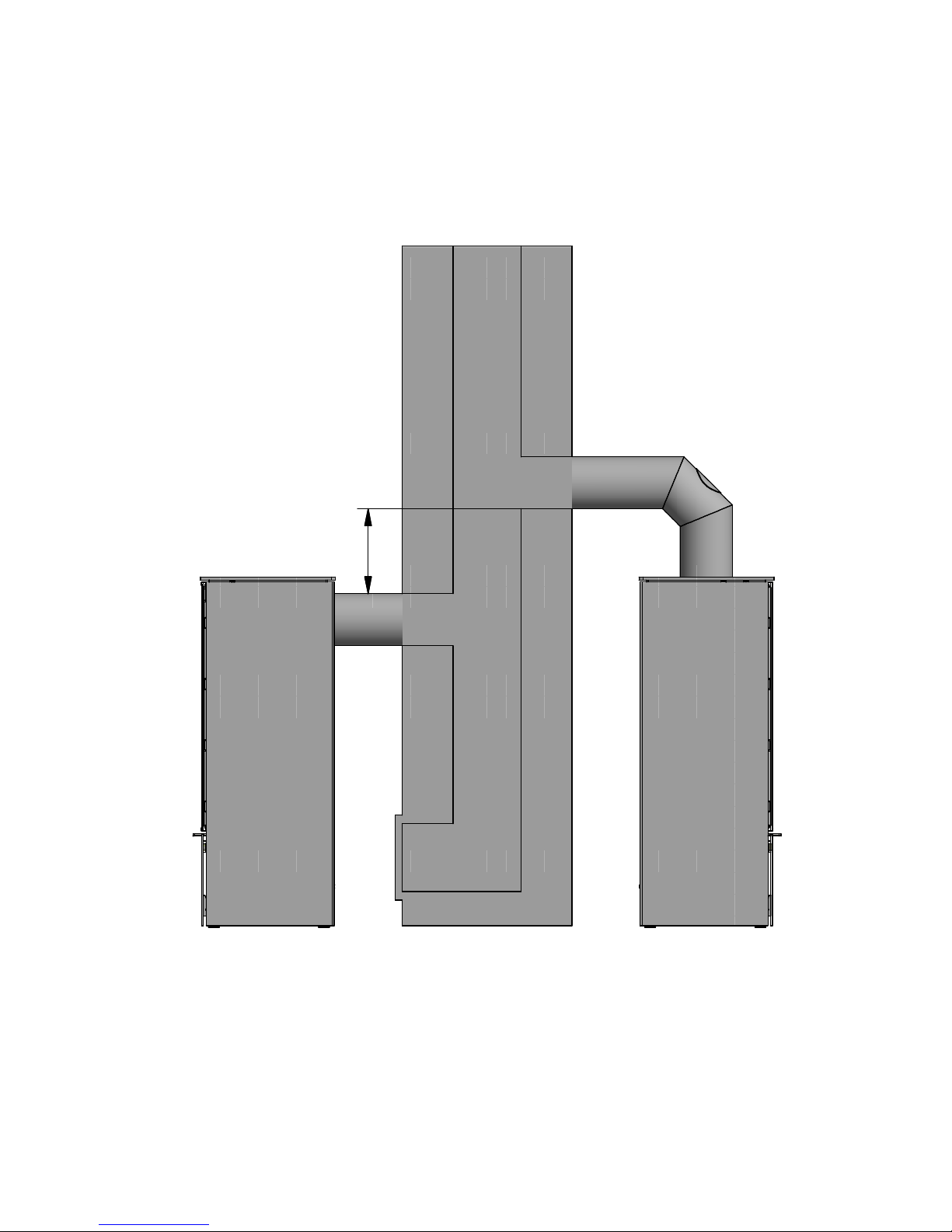

SHARED FLUE ........................................................................................................................... 12
INSTALLATION................................................................................................................... 13
INSTALLATION OF STOVE WITH SWIVEL BASE ........................................................................... 14
CHANGES TO CHIMNEY CONNECTION..................................................................................... 16

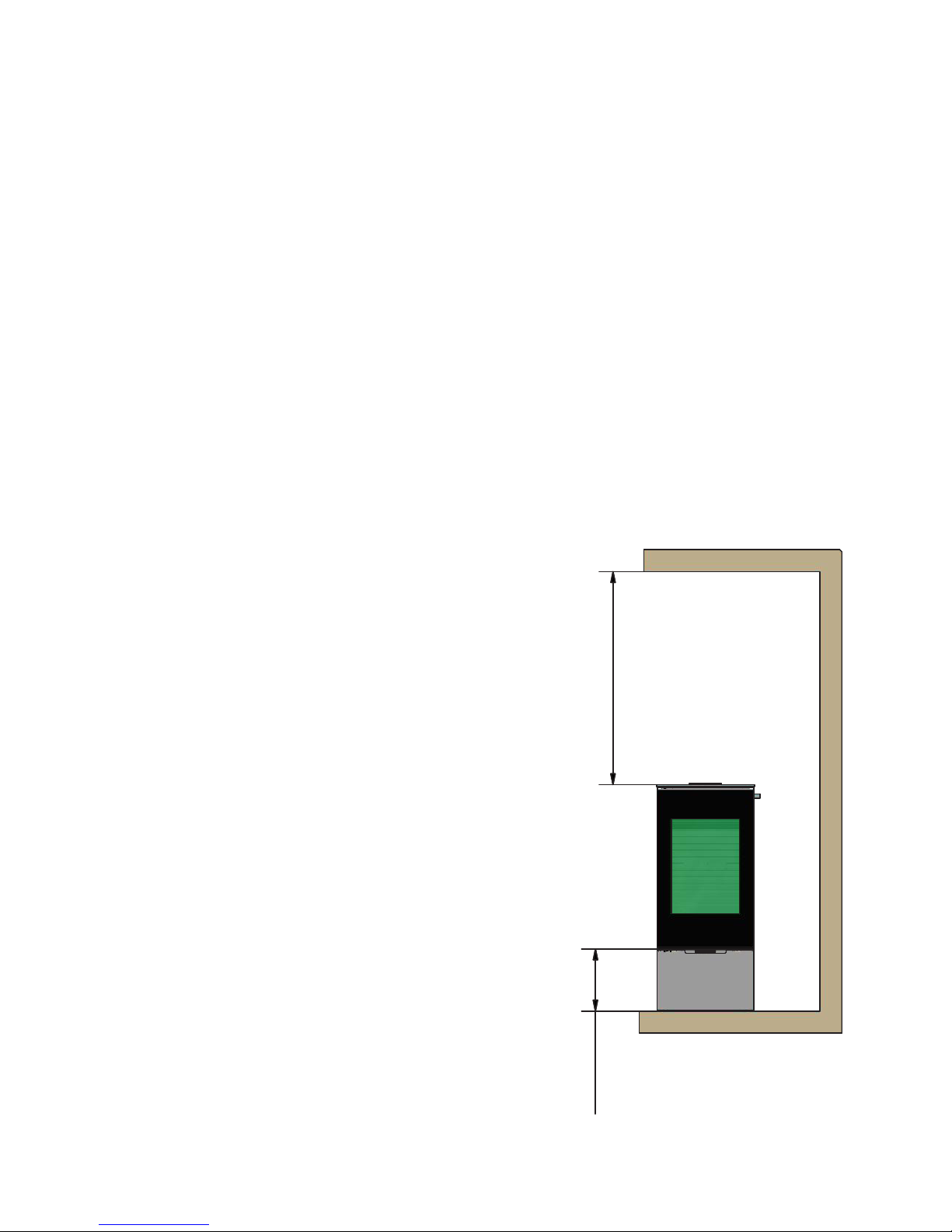

INSTALLATION DISTANCE TO COMBUSTIBLE WALLS........................................ 17
NORMAL INSTALLATION – RIGHT-ANGLED ................................................................................ 17

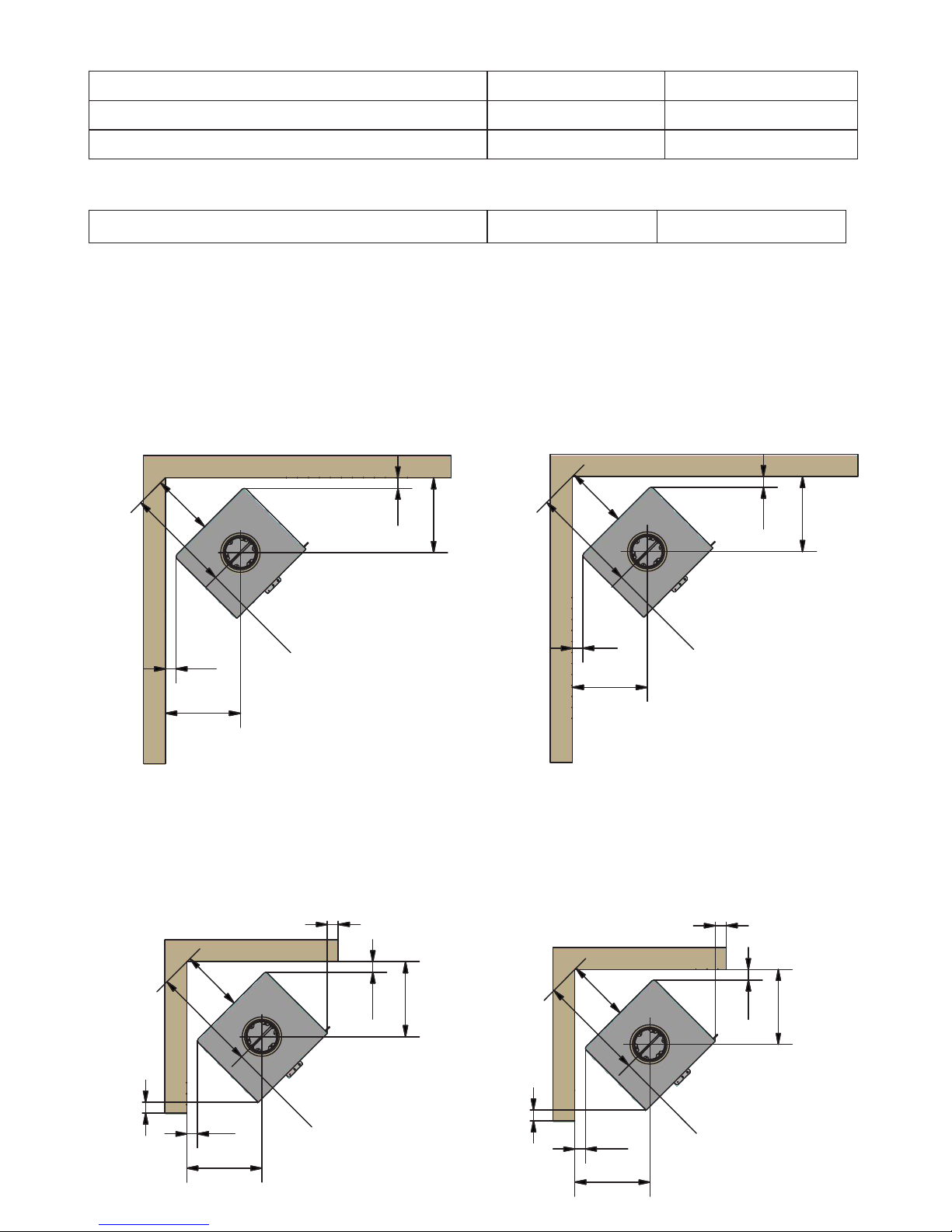

CORNER INSTALLATION 45° ...................................................................................................... 19
360° SWIVEL BASE.................................................................................................................... 21
INSTALLATION DISTANCE TO NON-COMBUSTIBLE WALLS ......................................................... 22
FUEL ......................................................................................................................................... 23
DRYING AND STORAGE............................................................................................................ 24
VENTILATION ............................................................................................................................ 24
USE OF THE WOOD-BURNING STOVE..................................................................... 25
ADJUSTMENT OF COMBUSTION AIR......................................................................................... 25
USING THE STOVE WITH CLEVERAIR™ damper......................................................................... 26

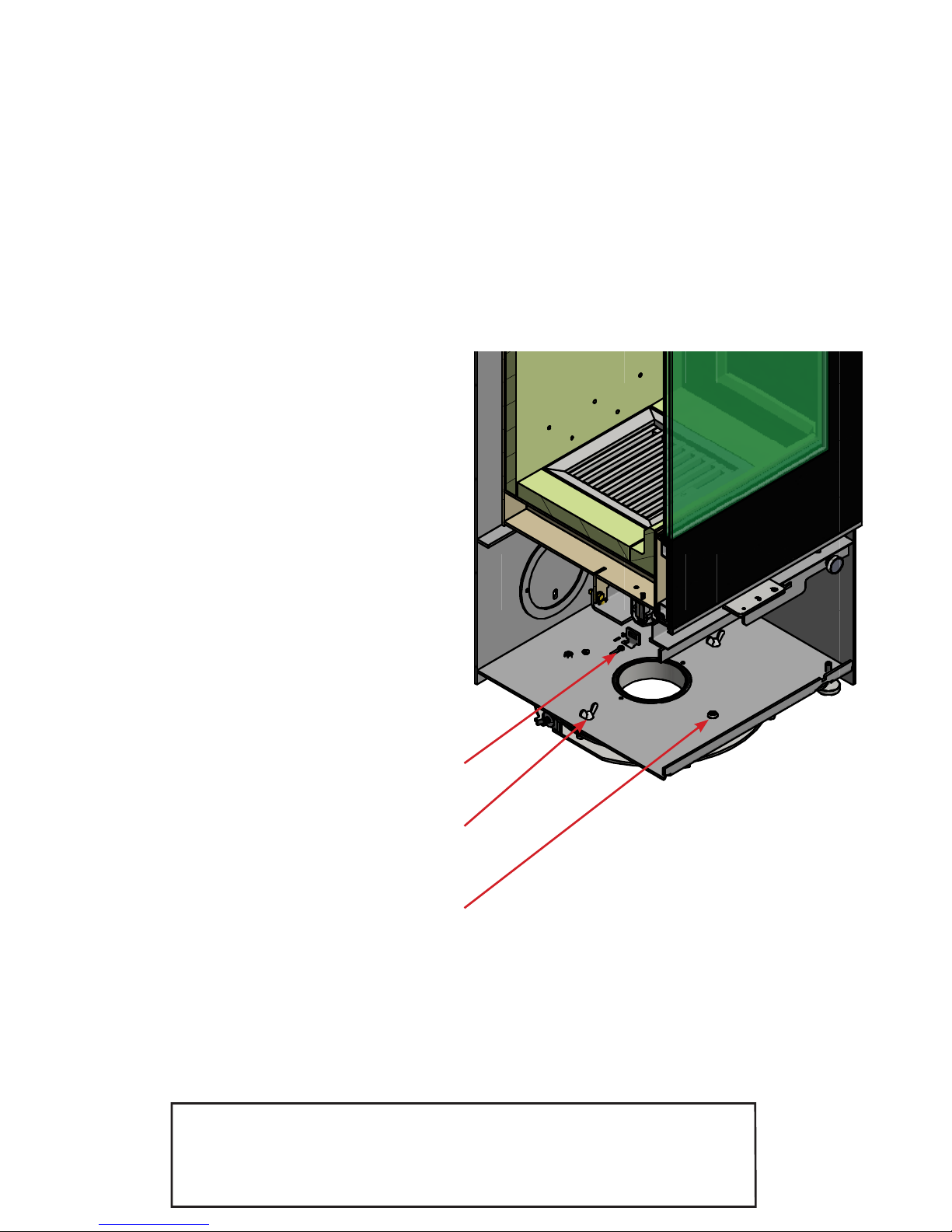

INSTALLATION OF MANUAL DAMPER ....................................................................................... 27
LIGHTING FOR THE FIRST TIME.................................................................................................. 27
LIGHTING AND FILLING............................................................................................................. 28
CONTROL ................................................................................................................................. 28
WARNING............................................................................................................................ 30
RIDDLING GRATE AND ASH PAN ............................................................................................... 31
CLEANING AND CARE .............................................................................................................. 32
CLEANING THE COMBUSTION CHAMBER................................................................................. 32
CLEANING THE FLUE................................................................................................................. 33
MALFUNCTIONS ....................................................................................................................... 33
ACCESSORIES........................................................................................................................... 35
SPARE PARTS LIST .................................................................................................................... 37
TEST CERTIFICATE ..................................................................................................................... 39
DECLARATION OF PERFORMANCE ............................................................................................ 41
We cannot be held responsible for printing errors.
English RAIS/ attika – User manual for Nexo

Introduction
Thank you for purchasing a RAIS/attika wood burning stove. These appliances have
been approved by SCA/HETAS Ltd as intermittent operating appliances for burning
wood logs only.
A RAIS/ attika wood burning stove is more than just a heat source. It also shows that
you care about design and quality in your home.
To make the most of your wood burning stove it is important that you read the manual
thoroughly, before installing and using it.
In the case of warranty coverage, and for general queries regarding your wood burn-
ing stove, it is important that you know the stove’s production number. We therefore
recommend that you note down the number in the table below.
The production number is located on the back of the stove at the bottom.
Date: Distributor:
English RAIS/ attika – User manual for Nexo

8
WARRANTY
RAIS/ attika – wood-burning stoves are tested repeatedly in terms of safety, as well as
material and manufacturing quality. We grant warranty on all models, starting with the
date of installation.
The warranty refers to:
• documented malfunctions due to faulty manufacture
• documented material defects
The warranty does not cover:
• door and glass seals
• ceramic glass
• chamber lining
• appearance of the surface structure or natural stone texture
• appearance or changes of colour of the stainless steel or patina surfaces
• expansion noise
The warranty is invalidated in case of:
• damages, caused by overfiring
• damages, caused by external influence and the use of unsuitable fuels
• non-observance of statutory or recommended installation guidelines, and modifi-
catons to the wood-burning stove
• non-observance of service and care provisions
Please contact your retailer in the event of damage. We determine the way to repair
the damage, in case of warranty claims. In the event of repair, we ensure proper and
professional execution.
Warranty claims submitted for additionally delivered or repaired parts are subject to
national/EU laws and regulations in terms of renewed warranty periods.
Please contact RAIS A/S for the applicable warranty provisions.
English RAIS/ attika – User manual for Nexo

9
English RAIS/ attika – User manual for Nexo
Specifications
DTI Ref.: 300-ELAB-2324-EN
300-ELAB-2324-NS
NEXO 100
NEXO 100 Side glass NEXO 120 NEXO 120 Side glass
Nominal output (kW): 5.7 5.7
Min./Max. output (kW): 5.0–5.7 5.0–5.7
Heating area (m2): 110 110
Stove width/depth/height (mm): 446-398-1025 446-398-1235
Combustion chamber width/height/depth (mm): 344-254-440 344-254-440
Max load limit (mm): 260 260
Min. flue uptake (Pascal): -12 -12
Weight (kg) min., depending on model: approx. 147 approx. 158
Efficiency (%): 80 80
CO emissions attributable at (%) 0.0906 0.0906
NOx emissions attributable at 13% O2(mg/
Nm³): 91 91
Particle emissions according to NS3058/3059 (g/
kg): 2.24 2.24
Dust measured according to Din+ 13% O2 (mg/
Nm³): 4 4
Flue gas mass flow (g/s): 4.9 4.9
Flue gas temperature (°C): 268 268
Calculated flue gas temperature (°C) at flue
collar: 322 322
Recommended amount of wood for filling (kg):
(Split into two pieces of firewood max. 24 cm) 1.4 1.4
Intermittent operation: Filling should occur within 49 minutes
On the basis of the above emissions, we hereby certify that the stove meets the emission require-
ments in Appendix 1 to Danish Statutory Order no. 49 of 16 January 2018 regarding regulation
of air pollution from solid fuel combustion plants under 1 MW.
The stove was tested and approved by:
DTI
Danish Technological Institute
Teknologiparken Kongsvang Allé 29, DK-8000 Aarhus C
Denmark
www.dti.dk
Telephone: [phone]
Fax: [phone]

10
English RAIS/ attika – User manual for Nexo
Distances/dimensions
See dimension drawings at the back of the manual.
I: Distance from floor to flue outlet, top
J: Distance from floor to centre flue outlet, back
K: Distance from back side to air intake, bottom (Air-System)
L: Distance from floor to air intake, back side (Air-System)
M: Distance from centre flue outlet top to rear edge of top plate
N: Distance from side to air intake, bottom (Air-System)

11
English RAIS/ attika – User manual for Nexo
Convection
RAIS/ attika stoves are convection stoves. The means that the external panels of the
stove are not over-heated. Convection means there is air circulation which ensures that
the heat is distributed more evenly through the entire room.
The cold air is sucked in at the base of the stove up through the convection channel,
which runs along the stove’s combustion chamber.
The heated air flows out of the top of the stove, and thus ensures circulation of hot air
in the room.
Note however, that all exterior surfaces become hot during use – therefore, please
exercise extreme care.
Chimney
The chimney is the driving force that allows the wood-burning stove to function. Re-
member that even the best wood-burning stove cannot function optimally if there is no
necessary and correct draught in the chimney.
The chimney height must be sufficient to ensure the correct draught of 12–18 pascal.
If the recommended chimney draught cannot be achieved, problems may occur with
smoke coming out of the door when heating. RAIS recommends that the chimney is
adjusted to the flue collar. The length of the chimney, measured from the top of the
stove, should not be shorter than 3 metres, and reach at least 80 cm above the build-
ing’s roof ridge. If the chimney is located on the side of the building, the top of the
chimney should never be lower than the roof ridge or the highest point of the roof.
Note that there are often national and local provisions for buildings with thatched
roofs.
The stove is suitable for connection to shared flues (although only if the stove is con-
nected to a fresh air supply), but we recommend the inlets are positioned such that
there is a free-height difference between them of at least 250 mm.
The flue collar has a diameter of 150 mm.
If the draft is too high, we recommend equipping the chimney or flue pipe with an
adjusting damper. If this is installed, you must ensure a free flow area of at least 20
cm² with closed adjusting damper. This means that the energy in the fuel is not used
optimally.
If you are in any doubt about the state of the chimney, you should contact a chimney
sweep.
Remember, there must be free access to the cleanout door on the chimney.

12
250
English RAIS/ attika – User manual for Nexo
Chimney
Shared flue.

13
English RAIS/ attika – User manual for Nexo
Installation
It is important that the stove is correctly installed in consideration to both the environ-
ment and safety.
The stove is placed on non-combustible material and is free standing on the floor.
The stove may only be installed by an authorised/qualified RAIS dealer/installer other-
wise the warranty is invalidated.
When installing the stove, all local rules and regulations, including those referring to
national and European standards, must be followed. Local authorities and a master
chimney sweep should be consulted before installation.
No unauthorised modifications may be made to the stove.
NOTE!
Before using the wood-burning stove, the local chimney sweep must be notified of the
installation.
There must be plenty of fresh air in the room where you are installing the stove to en-
sure good combustion – possibly through an airbox connection. Note that any mechan-
ical ventilation, e.g. via an extraction hood, may reduce air supply. Any air grates must
be positioned such that air supply is not blocked.
The stove has an air consumption of at least 14.4m³/hour.
The space below the combustion chamber is NOT suitable for storing combustible
material, unless a reflector panel is installed.
The floor structure must be able to bear the weight of the wood-burning stove and
chimney, where relevant. If the existing structure does not fulfil this condition, suitable
measures must be taken (e.g. installation of a load distribution plate).
Consult a professional building expert.
If the stove is installed on a combustible floor, the national and local provisions must be
followed with consideration to the non-combustible layer covering the floor.
The stove must be placed a safe distance from combustible material.
Ensure that no combustible objects (e.g. furniture) are placed closer than the distance
specified in the following section on installation (fire risk).
When deciding where you want to place your RAIS/ attika wood-burning stove, you
should consider heat distribution to other rooms. This will allow you to get the best
possible enjoyment from your stove.
See the manufacturer’s plate on the wood-burning stove.
Inspect the stove for defects immediately upon receipt.

14
Material:
Remarks:
Bend Tool:
Established:
Designer: Project manager:
Format:
Approved:
Drawing no.:Revision:Project:
Drawing name:
INDUSTRIVEJ 20, 9900 FREDERIKSHAVN, DENMARK
Phone [phone] - Fax [phone]
E-mail: [e-mail] - Homepage: www.rais.dk
Change order
Drawing change: Improvement proposal:
Corrections: D M Y
ksj
06-04-2018 A3
10-0000-8618
`1.8
6-30
0-10
`0.2
`1°
1000-2000
`0.15`0.3
`1.2
`0-5°
> 400
TILLADTE AFVIGELSER FOR VINKELMÅL
50-120 120-400
`0-10°
`0.8
400-1000
`0.5
120-400
`0-20°
`0-30°
`0.3
10-50
30-120
`0.9 `0.6
3-6
TILLADTE AFVIGELSER FOR LINIEÆRE MÅL
AFVIGELSE I MM
`0.1 `0.1
VINKELAFVIGELSE
KORTESTE SIDE
0.5-3
pr. 100 mm
OV UV
English RAIS/ attika – User manual for Nexo
Installation of stove with swivel base
Stoves can be delivered with and without swivel mount.
If the stove is delivered with a swivel mount, the swivel base is mounted below the
stove and fixed with two transport screws (wing screws)
The swivel base can be installed to:
• rotate 90° (45° to each side) – (setting on delivery)
• rotate 360°
NOTE:
The stove may only be installed by an autho-
rised/qualified RAIS dealer/installer.
See www.rais.com for a list of dealers.
Remove the two wing screws. The
stove will now rotate 45° in each direc-
tion.
For setting the swivel base to 360°.
Remove the stop screw. The stove will
now rotate freely.
The swivel base lock (spring) can be
tightened by loosening the screw to
adjust the mounting and move the
mounting towards the plus mark. Re-
member to retighten the screw.
Open the front by pulling out the hatch and lifting it.

15
English RAIS/ attika – User manual for Nexo
Changes to chimney connection
The stove is delivered ready for top outlet, but can be changed to back outlet in the
following way:
Knock out the knock-out plate from the surround.
Remove the top plate, if necessary, smoke deflector
plate and baffle.
Remove the blanking plate (3 x M6 nuts) and seal.
Mount the flue collar on the back side with three
M6x20 cylinder screws and M6 nuts.
Mount the top baffle, smoke deflector plate and top
plate in reverse order.
Sample photos
Fix the blanking plate over the hole in the top – ensure
that the seal is positioned correctly.
Screw everything down with the three M6 nuts.

16
Material:
Remarks:
Bend Tool:
Established:
Designer: Project manager:
Format:
Approved:
Drawing no.:Revision:Project:
Drawing name:
INDUSTRIVEJ 20, 9900 FREDERIKSHAVN, DENMARK
Phone [phone] - Fax [phone]
E-mail: [e-mail] - Homepage: www.rais.dk
Change order
Drawing change: Improvement proposal:
Corrections:
D M Y
ksj
Nexo 1025 Opstilling
26-03-2018 A3
10-6550 Nexo 1025 glasdør afstande
til brændbart UISOLERET røgrør
KSJ
1.8
6-30
0-10
0.2
1°
1000-2000
0.150.3
1.2
0-5°
> 400
TILLADTE AFVIGELSER FOR VINKELMÅL
50-120 120-400
0-10°
0.8
400-1000
0.5
120-400
0-20°
0-30°
0.3
10-50
30-120
0.9 0.6
3-6
TILLADTE AFVIGELSER FOR LINIEÆRE MÅL
AFVIGELSE I MM
0.1 0.1
VINKELAFVIGELSE
KORTESTE SIDE
0.5-3
pr. 100 mm
OV UV
350
100
450
100
50
50
200
200
Nexo 1025 (uden sideglas)
Nexo 1025 (uden sideglas)
Nexo 1025 (med sideglas)
Nexo 1025 (med sideglas)
Nexo 1025/1225 afstande til brændbart UISOLERET røgrør
570
295
670
295
341
341
491
491
287
499
Brændbart loft
210
Min
400
Min
482
694
English RAIS/ attika – User manual for Nexo
Installation distance with non-combustible walls
We recommend a minimum distance to non-combustible material of 50mm (F) with
consideration to cleaning. It must always be possible to access the chimney cleanout
door.
Installation distance with combustible wall
To find out whether the wall where you want to install the wood-burning stove is
combustible, contact the building architect or local building authorities.
If the floor is combustible, the stove must be placed on a non-combustible material,
e.g. steel plate, glass plate, bricks, slate slab.
Ensure that no combustible objects (e.g. furniture) are placed closer than the distance
specified in the following table (fire risk).

17
Material:
Remarks:
Bend Tool:
Established:
Designer: Project manager:
Format:
Approved:
Drawing no.:Revision:Project:
Drawing name:
INDUSTRIVEJ 20, 9900 FREDERIKSHAVN, DENMARK
Phone [phone] - Fax [phone]
E-mail: [e-mail] - Homepage: www.rais.dk
Change order
Drawing change: Improvement proposal:
Corrections:
D M Y
ksj
Nexo 1025 Opstilling
26-03-2018 A3
10-6550 Nexo 1025 glasdør afstande
til brændbart UISOLERET røgrør
KSJ
1.8
6-30
0-10
0.2
1°
1000-2000
0.150.3
1.2
0-5°
> 400
TILLADTE AFVIGELSER FOR VINKELMÅL
50-120 120-400
0-10°
0.8
400-1000
0.5
120-400
0-20°
0-30°
0.3
10-50
30-120
0.9 0.6
3-6
TILLADTE AFVIGELSER FOR LINIEÆRE MÅL
AFVIGELSE I MM
0.1 0.1
VINKELAFVIGELSE
KORTESTE SIDE
0.5-3
pr. 100 mm
OV UV
350
100
450
100
50
50
200
200
Nexo 1025 (uden sideglas)
Nexo 1025 (uden sideglas)
Nexo 1025 (med sideglas)
Nexo 1025 (med sideglas)
Nexo 1025/1225 afstande til brændbart UISOLERET røgrør
570
295
670
295
341
341
491
491
287
499
Brændbart loft
210
Min
400
Min
482
694
Material:
Remarks:
Bend Tool:
Established:
Designer: Project manager:
Format:
Approved:
Drawing no.:Revision:Project:
Drawing name:
INDUSTRIVEJ 20, 9900 FREDERIKSHAVN, DENMARK
Phone [phone] - Fax [phone]
E-mail: [e-mail] - Homepage: www.rais.dk
Change order
Drawing change: Improvement proposal:
Corrections:
D M Y
ksj
Nexo 1025 Opstilling
26-03-2018 A3
10-6551 Nexo 1025 glasdør afstande
til brændbart ISOLERET røgrør
KSJ
1.8
6-30
0-10
0.2
1°
1000-2000
0.150.3
1.2
0-5°
> 400
TILLADTE AFVIGELSER FOR VINKELMÅL
50-120 120-400
0-10°
0.8
400-1000
0.5
120-400
0-20°
0-30°
0.3
10-50
30-120
0.9 0.6
3-6
TILLADTE AFVIGELSER FOR LINIEÆRE MÅL
AFVIGELSE I MM
0.1 0.1
VINKELAFVIGELSE
KORTESTE SIDE
0.5-3
pr. 100 mm
OV UV
Nexo 1025/1225 afstande til brændbart ISOLERET røgrør
Nexo 1025 (uden sideglas) Nexo 1025 (med sideglas)
Nexo 1025 (uden sideglas) Nexo 1025 (med sideglas)
350
50
570
245
450
670
50
245
50
50
341
341
200
200
491
491
287
499
Brændbart loft
210
Min 400
Min
482
694
Material:
Remarks:
Bend Tool:
Established:
Designer: Project manager:
Format:
Approved:
Drawing no.:Revision:Project:
Drawing name:
INDUSTRIVEJ 20, 9900 FREDERIKSHAVN, DENMARK
Phone [phone] - Fax [phone]
E-mail: [e-mail] - Homepage: www.rais.dk
Change order
Drawing change: Improvement proposal:
Corrections:
D M Y
ksj
Nexo 1025 Opstilling
26-03-2018 A3
10-6552 Nexo 1025 glasdør afstande
til brændbart UISOLERET røgrør
NORSK BRANDMUR
KSJ
1.8
6-30
0-10
0.2
1°
1000-2000
0.150.3
1.2
0-5°
> 400
TILLADTE AFVIGELSER FOR VINKELMÅL
50-120 120-400
0-10°
0.8
400-1000
0.5
120-400
0-20°
0-30°
0.3
10-50
30-120
0.9 0.6
3-6
TILLADTE AFVIGELSER FOR LINIEÆRE MÅL
AFVIGELSE I MM
0.1 0.1
VINKELAFVIGELSE
KORTESTE SIDE
0.5-3
pr. 100 mm
OV UV
Nexo 1025/1225 afstande til brændbart UISOLERET røgrør NORSK BRANDMUR
Nexo 1025 (uden sideglas) Nexo 1025 (med sideglas)
Nexo 1025 (uden sideglas) Nexo 1025 (med sideglas)
150
370
50
245
250
470
50
245
50
341
50
341
50
341
50
341
287
287
Brændbart loft
400
Min
210
Min
50
400
450
200
50
50
500
500
482
482
Material:
Remarks:
Bend Tool:
Established:
Designer: Project manager:
Format:
Approved:
Drawing no.:Revision:Project:
Drawing name:
INDUSTRIVEJ 20, 9900 FREDERIKSHAVN, DENMARK
Phone [phone] - Fax [phone]
E-mail: [e-mail] - Homepage: www.rais.dk
Change order
Drawing change: Improvement proposal:
Corrections:
D M Y
ksj
Nexo 1025 Opstilling
26-03-2018 A3
10-6553 Nexo 1025 glasdør afstande
til brændbart ISOLERET røgrør
NORSK BRANDMUR
KSJ
1.8
6-30
0-10
0.2
1°
1000-2000
0.150.3
1.2
0-5°
> 400
TILLADTE AFVIGELSER FOR VINKELMÅL
50-120 120-400
0-10°
0.8
400-1000
0.5
120-400
0-20°
0-30°
0.3
10-50
30-120
0.9 0.6
3-6
TILLADTE AFVIGELSER FOR LINIEÆRE MÅL
AFVIGELSE I MM
0.1 0.1
VINKELAFVIGELSE
KORTESTE SIDE
0.5-3
pr. 100 mm
OV UV
Nexo 1025/1225 afstande til brændbart ISOLERET røgrør NORSK BRANDMUR
Nexo 1025 (uden sideglas)
Nexo 1025 (uden sideglas)
Nexo 1025 (med sideglas)
Nexo 1025 (med sideglas)
150
370
50
245
250
470
50
245
50
50
341
341
50
341
50
341
287
287
Brændbart loft
210
Min
400
Min
50
400
200
450
50
50
500
500
482
482
English RAIS/ attika – User manual for Nexo
Normal installation – right-angled Nexo Nexo
Non-insulated flue insulated flue
Distance to furniture (min.) in mm 900 900
Minimum distance to fire walls.
Section of fire wall to the side 50 50
Section of fire wall in front 400 400
* where dimensions are not specified, follow the national/local provisions.
Without side glass with Non-in-
sulated flue. Minimum distance
to combustible material
Without side glass with insu-
lated flue. Minimum distance
to combustible material
Without side glass with Non-in-
sulated flue. Minimum distance
to fire wall
Without side glass with insu-
lated flue. Minimum distance
to fire wall

18
Material:
Remarks:
Bend Tool:
Established:
Designer: Project manager:
Format:
Approved:
Drawing no.:Revision:Project:
Drawing name:
INDUSTRIVEJ 20, 9900 FREDERIKSHAVN, DENMARK
Phone [phone] - Fax [phone]
E-mail: [e-mail] - Homepage: www.rais.dk
Change order
Drawing change: Improvement proposal:
Corrections:
D M Y
ksj
Nexo 1025 Opstilling
26-03-2018 A3
10-6550 Nexo 1025 glasdør afstande
til brændbart UISOLERET røgrør
KSJ
1.8
6-30
0-10
0.2
1°
1000-2000
0.150.3
1.2
0-5°
> 400
TILLADTE AFVIGELSER FOR VINKELMÅL
50-120 120-400
0-10°
0.8
400-1000
0.5
120-400
0-20°
0-30°
0.3
10-50
30-120
0.9 0.6
3-6
TILLADTE AFVIGELSER FOR LINIEÆRE MÅL
AFVIGELSE I MM
0.1 0.1
VINKELAFVIGELSE
KORTESTE SIDE
0.5-3
pr. 100 mm
OV UV
350
100
450
100
50
50
200
200
Nexo 1025 (uden sideglas)
Nexo 1025 (uden sideglas)
Nexo 1025 (med sideglas)
Nexo 1025 (med sideglas)
Nexo 1025/1225 afstande til brændbart UISOLERET røgrør
570
295
670
295
341
341
491
491
287
499
Brændbart loft
210
Min
400
Min
482
694
Material:
Remarks:
Bend Tool:
Established:
Designer: Project manager:
Format:
Approved:
Drawing no.:Revision:Project:
Drawing name:
INDUSTRIVEJ 20, 9900 FREDERIKSHAVN, DENMARK
Phone [phone] - Fax [phone]
E-mail: [e-mail] - Homepage: www.rais.dk
Change order
Drawing change: Improvement proposal:
Corrections:
D M Y
ksj
Nexo 1025 Opstilling
26-03-2018 A3
10-6551 Nexo 1025 glasdør afstande
til brændbart ISOLERET røgrør
KSJ
1.8
6-30
0-10
0.2
1°
1000-2000
0.150.3
1.2
0-5°
> 400
TILLADTE AFVIGELSER FOR VINKELMÅL
50-120 120-400
0-10°
0.8
400-1000
0.5
120-400
0-20°
0-30°
0.3
10-50
30-120
0.9 0.6
3-6
TILLADTE AFVIGELSER FOR LINIEÆRE MÅL
AFVIGELSE I MM
0.1 0.1
VINKELAFVIGELSE
KORTESTE SIDE
0.5-3
pr. 100 mm
OV UV
Nexo 1025/1225 afstande til brændbart ISOLERET røgrør
Nexo 1025 (uden sideglas) Nexo 1025 (med sideglas)
Nexo 1025 (uden sideglas) Nexo 1025 (med sideglas)
350
50
570
245
450
670
50
245
50
50
341
341
200
200
491
491
287
499
Brændbart loft
210
Min 400
Min
482
694
Material:
Remarks:
Bend Tool:
Established:
Designer: Project manager:
Format:
Approved:
Drawing no.:Revision:Project:
Drawing name:
INDUSTRIVEJ 20, 9900 FREDERIKSHAVN, DENMARK
Phone [phone] - Fax [phone]
E-mail: [e-mail] - Homepage: www.rais.dk
Change order
Drawing change: Improvement proposal:
Corrections:
D M Y
ksj
Nexo 1025 Opstilling
26-03-2018 A3
10-6552 Nexo 1025 glasdør afstande
til brændbart UISOLERET røgrør
NORSK BRANDMUR
KSJ
1.8
6-30
0-10
0.2
1°
1000-2000
0.150.3
1.2
0-5°
> 400
TILLADTE AFVIGELSER FOR VINKELMÅL
50-120 120-400
0-10°
0.8
400-1000
0.5
120-400
0-20°
0-30°
0.3
10-50
30-120
0.9 0.6
3-6
TILLADTE AFVIGELSER FOR LINIEÆRE MÅL
AFVIGELSE I MM
0.1 0.1
VINKELAFVIGELSE
KORTESTE SIDE
0.5-3
pr. 100 mm
OV UV
Nexo 1025/1225 afstande til brændbart UISOLERET røgrør NORSK BRANDMUR
Nexo 1025 (uden sideglas) Nexo 1025 (med sideglas)
Nexo 1025 (uden sideglas) Nexo 1025 (med sideglas)
150
370
50
245
250
470
50
245
50
341
50
341
50
341
50
341
287
287
Brændbart loft
400
Min
210
Min
50
400
450
200
50
50
500
500
482
482
Material:
Remarks:
Bend Tool:
Established:
Designer: Project manager:
Format:
Approved:
Drawing no.:Revision:Project:
Drawing name:
INDUSTRIVEJ 20, 9900 FREDERIKSHAVN, DENMARK
Phone [phone] - Fax [phone]
E-mail: [e-mail] - Homepage: www.rais.dk
Change order
Drawing change: Improvement proposal:
Corrections:
D M Y
ksj
Nexo 1025 Opstilling
26-03-2018 A3
10-6553 Nexo 1025 glasdør afstande
til brændbart ISOLERET røgrør
NORSK BRANDMUR
KSJ
1.8
6-30
0-10
0.2
1°
1000-2000
0.150.3
1.2
0-5°
> 400
TILLADTE AFVIGELSER FOR VINKELMÅL
50-120 120-400
0-10°
0.8
400-1000
0.5
120-400
0-20°
0-30°
0.3
10-50
30-120
0.9 0.6
3-6
TILLADTE AFVIGELSER FOR LINIEÆRE MÅL
AFVIGELSE I MM
0.1 0.1
VINKELAFVIGELSE
KORTESTE SIDE
0.5-3
pr. 100 mm
OV UV
Nexo 1025/1225 afstande til brændbart ISOLERET røgrør NORSK BRANDMUR
Nexo 1025 (uden sideglas)
Nexo 1025 (uden sideglas)
Nexo 1025 (med sideglas)
Nexo 1025 (med sideglas)
150
370
50
245
250
470
50
245
50
50
341
341
50
341
50
341
287
287
Brændbart loft
210
Min
400
Min
50
400
200
450
50
50
500
500
482
482
English RAIS/ attika – User manual for Nexo
Normal installation – right-angled Nexo with side glass Nexo with side glass
Non-insulated flue insulated flue
Distance to furniture (min.) in mm 800 mm 800
Minimum distance to fire wall.
Section of fire wall to the side 450 450
Section of fire wall in front 200 200
* where dimensions are not specified, follow the national/local provisions
With side glass with Non-insu-
lated flue. Minimum distance to
fire wall
With side glass with insulated
flue. Minimum distance to fire
wall
With side glass with Non-insu-
lated flue. Minimum distance to
combustible material
With side glass with insulated
flue. Minimum distance to com-
bustible material

19
Material:
Remarks:
Bend Tool:
Established:
Designer: Project manager:
Format:
Approved:
Drawing no.:Revision:Project:
Drawing name:
INDUSTRIVEJ 20, 9900 FREDERIKSHAVN, DENMARK
Phone [phone] - Fax [phone]
E-mail: [e-mail] - Homepage: www.rais.dk
Change order
Drawing change: Improvement proposal:
Corrections:
D M Y
ksj
Nexo 1025 Opstilling
26-03-2018 A3
10-6550 Nexo 1025 glasdør afstande
til brændbart UISOLERET røgrør
KSJ
1.8
6-30
0-10
0.2
1°
1000-2000
0.150.3
1.2
0-5°
> 400
TILLADTE AFVIGELSER FOR VINKELMÅL
50-120 120-400
0-10°
0.8
400-1000
0.5
120-400
0-20°
0-30°
0.3
10-50
30-120
0.9 0.6
3-6
TILLADTE AFVIGELSER FOR LINIEÆRE MÅL
AFVIGELSE I MM
0.1 0.1
VINKELAFVIGELSE
KORTESTE SIDE
0.5-3
pr. 100 mm
OV UV
350
100
450
100
50
50
200
200
Nexo 1025 (uden sideglas)
Nexo 1025 (uden sideglas)
Nexo 1025 (med sideglas)
Nexo 1025 (med sideglas)
Nexo 1025/1225 afstande til brændbart UISOLERET røgrør
570
295
670
295
341
341
491
491
287
499
Brændbart loft
210
Min
400
Min
482
694
Material:
Remarks:
Bend Tool:
Established:
Designer: Project manager:
Format:
Approved:
Drawing no.:Revision:Project:
Drawing name:
INDUSTRIVEJ 20, 9900 FREDERIKSHAVN, DENMARK
Phone [phone] - Fax [phone]
E-mail: [e-mail] - Homepage: www.rais.dk
Change order
Drawing change: Improvement proposal:
Corrections:
D M Y
ksj
Nexo 1025 Opstilling
26-03-2018 A3
10-6551 Nexo 1025 glasdør afstande
til brændbart ISOLERET røgrør
KSJ
1.8
6-30
0-10
0.2
1°
1000-2000
0.150.3
1.2
0-5°
> 400
TILLADTE AFVIGELSER FOR VINKELMÅL
50-120 120-400
0-10°
0.8
400-1000
0.5
120-400
0-20°
0-30°
0.3
10-50
30-120
0.9 0.6
3-6
TILLADTE AFVIGELSER FOR LINIEÆRE MÅL
AFVIGELSE I MM
0.1 0.1
VINKELAFVIGELSE
KORTESTE SIDE
0.5-3
pr. 100 mm
OV UV
Nexo 1025/1225 afstande til brændbart ISOLERET røgrør
Nexo 1025 (uden sideglas) Nexo 1025 (med sideglas)
Nexo 1025 (uden sideglas) Nexo 1025 (med sideglas)
350
50
570
245
450
670
50
245
50
50
341
341
200
200
491
491
287
499
Brændbart loft
210
Min 400
Min
482
694
Material:
Remarks:
Bend Tool:
Established:
Designer: Project manager:
Format:
Approved:
Drawing no.:Revision:Project:
Drawing name:
INDUSTRIVEJ 20, 9900 FREDERIKSHAVN, DENMARK
Phone [phone] - Fax [phone]
E-mail: [e-mail] - Homepage: www.rais.dk
Change order
Drawing change: Improvement proposal:
Corrections:
D M Y
ksj
Nexo 1025 Opstilling
26-03-2018 A3
10-6552 Nexo 1025 glasdør afstande
til brændbart UISOLERET røgrør
NORSK BRANDMUR
KSJ
1.8
6-30
0-10
0.2
1°
1000-2000
0.150.3
1.2
0-5°
> 400
TILLADTE AFVIGELSER FOR VINKELMÅL
50-120 120-400
0-10°
0.8
400-1000
0.5
120-400
0-20°
0-30°
0.3
10-50
30-120
0.9 0.6
3-6
TILLADTE AFVIGELSER FOR LINIEÆRE MÅL
AFVIGELSE I MM
0.1 0.1
VINKELAFVIGELSE
KORTESTE SIDE
0.5-3
pr. 100 mm
OV UV
Nexo 1025/1225 afstande til brændbart UISOLERET røgrør NORSK BRANDMUR
Nexo 1025 (uden sideglas) Nexo 1025 (med sideglas)
Nexo 1025 (uden sideglas) Nexo 1025 (med sideglas)
150
370
50
245
250
470
50
245
50
341
50
341
50
341
50
341
287
287
Brændbart loft
400
Min
210
Min
50
400
450
200
50
50
500
500
482
482
Material:
Remarks:
Bend Tool:
Established:
Designer: Project manager:
Format:
Approved:
Drawing no.:Revision:Project:
Drawing name:
INDUSTRIVEJ 20, 9900 FREDERIKSHAVN, DENMARK
Phone [phone] - Fax [phone]
E-mail: [e-mail] - Homepage: www.rais.dk
Change order
Drawing change: Improvement proposal:
Corrections:
D M Y
ksj
Nexo 1025 Opstilling
26-03-2018 A3
10-6553 Nexo 1025 glasdør afstande
til brændbart ISOLERET røgrør
NORSK BRANDMUR
KSJ
1.8
6-30
0-10
0.2
1°
1000-2000
0.150.3
1.2
0-5°
> 400
TILLADTE AFVIGELSER FOR VINKELMÅL
50-120 120-400
0-10°
0.8
400-1000
0.5
120-400
0-20°
0-30°
0.3
10-50
30-120
0.9 0.6
3-6
TILLADTE AFVIGELSER FOR LINIEÆRE MÅL
AFVIGELSE I MM
0.1 0.1
VINKELAFVIGELSE
KORTESTE SIDE
0.5-3
pr. 100 mm
OV UV
Nexo 1025/1225 afstande til brændbart ISOLERET røgrør NORSK BRANDMUR
Nexo 1025 (uden sideglas)
Nexo 1025 (uden sideglas)
Nexo 1025 (med sideglas)
Nexo 1025 (med sideglas)
150
370
50
245
250
470
50
245
50
50
341
341
50
341
50
341
287
287
Brændbart loft
210
Min
400
Min
50
400
200
450
50
50
500
500
482
482
Corner installation 45° Nexo Nexo
Non-insulated flue insulated flue
Distance to furniture (min.) in mm 900 900
Minimum distance to fire walls.
Section of fire wall to the side 50 50
* where dimensions are not specified, follow the national/local provisions.
English RAIS/ attika – User manual for Nexo
Without side glass with Non-in-
sulated flue. Minimum distance
to combustible material
Without side glass with insu-
lated flue. Minimum distance
to combustible material
Without side glass with Non-in-
sulated flue. Minimum distance
to fire wall
Without side glass with insu-
lated flue. Minimum distance
to fire wall

20
Material:
Remarks:
Bend Tool:
Established:
Designer: Project manager:
Format:
Approved:
Drawing no.:Revision:Project:
Drawing name:
INDUSTRIVEJ 20, 9900 FREDERIKSHAVN, DENMARK
Phone [phone] - Fax [phone]
E-mail: [e-mail] - Homepage: www.rais.dk
Change order
Drawing change: Improvement proposal:
Corrections:
D M Y
ksj
Nexo 1025 Opstilling
26-03-2018 A3
10-6550 Nexo 1025 glasdør afstande
til brændbart UISOLERET røgrør
KSJ
1.8
6-30
0-10
0.2
1°
1000-2000
0.150.3
1.2
0-5°
> 400
TILLADTE AFVIGELSER FOR VINKELMÅL
50-120 120-400
0-10°
0.8
400-1000
0.5
120-400
0-20°
0-30°
0.3
10-50
30-120
0.9 0.6
3-6
TILLADTE AFVIGELSER FOR LINIEÆRE MÅL
AFVIGELSE I MM
0.1 0.1
VINKELAFVIGELSE
KORTESTE SIDE
0.5-3
pr. 100 mm
OV UV
350
100
450
100
50
50
200
200
Nexo 1025 (uden sideglas)
Nexo 1025 (uden sideglas)
Nexo 1025 (med sideglas)
Nexo 1025 (med sideglas)
Nexo 1025/1225 afstande til brændbart UISOLERET røgrør
570
295
670
295
341
341
491
491
287
499
Brændbart loft
210
Min
400
Min
482
694
Material:
Remarks:
Bend Tool:
Established:
Designer: Project manager:
Format:
Approved:
Drawing no.:Revision:Project:
Drawing name:
INDUSTRIVEJ 20, 9900 FREDERIKSHAVN, DENMARK
Phone [phone] - Fax [phone]
E-mail: [e-mail] - Homepage: www.rais.dk
Change order
Drawing change: Improvement proposal:
Corrections:
D M Y
ksj
Nexo 1025 Opstilling
26-03-2018 A3
10-6551 Nexo 1025 glasdør afstande
til brændbart ISOLERET røgrør
KSJ
1.8
6-30
0-10
0.2
1°
1000-2000
0.150.3
1.2
0-5°
> 400
TILLADTE AFVIGELSER FOR VINKELMÅL
50-120 120-400
0-10°
0.8
400-1000
0.5
120-400
0-20°
0-30°
0.3
10-50
30-120
0.9 0.6
3-6
TILLADTE AFVIGELSER FOR LINIEÆRE MÅL
AFVIGELSE I MM
0.1 0.1
VINKELAFVIGELSE
KORTESTE SIDE
0.5-3
pr. 100 mm
OV UV
Nexo 1025/1225 afstande til brændbart ISOLERET røgrør
Nexo 1025 (uden sideglas) Nexo 1025 (med sideglas)
Nexo 1025 (uden sideglas) Nexo 1025 (med sideglas)
350
50
570
245
450
670
50
245
50
50
341
341
200
200
491
491
287
499
Brændbart loft
210
Min 400
Min
482
694
Material:
Remarks:
Bend Tool:
Established:
Designer: Project manager:
Format:
Approved:
Drawing no.:Revision:Project:
Drawing name:
INDUSTRIVEJ 20, 9900 FREDERIKSHAVN, DENMARK
Phone [phone] - Fax [phone]
E-mail: [e-mail] - Homepage: www.rais.dk
Change order
Drawing change: Improvement proposal:
Corrections:
D M Y
ksj
Nexo 1025 Opstilling
26-03-2018 A3
10-6552 Nexo 1025 glasdør afstande
til brændbart UISOLERET røgrør
NORSK BRANDMUR
KSJ
1.8
6-30
0-10
0.2
1°
1000-2000
0.150.3
1.2
0-5°
> 400
TILLADTE AFVIGELSER FOR VINKELMÅL
50-120 120-400
0-10°
0.8
400-1000
0.5
120-400
0-20°
0-30°
0.3
10-50
30-120
0.9 0.6
3-6
TILLADTE AFVIGELSER FOR LINIEÆRE MÅL
AFVIGELSE I MM
0.1 0.1
VINKELAFVIGELSE
KORTESTE SIDE
0.5-3
pr. 100 mm
OV UV
Nexo 1025/1225 afstande til brændbart UISOLERET røgrør NORSK BRANDMUR
Nexo 1025 (uden sideglas) Nexo 1025 (med sideglas)
Nexo 1025 (uden sideglas) Nexo 1025 (med sideglas)
150
370
50
245
250
470
50
245
50
341
50
341
50
341
50
341
287
287
Brændbart loft
400
Min
210
Min
50
400
450
200
50
50
500
500
482
482
Material:
Remarks:
Bend Tool:
Established:
Designer: Project manager:
Format:
Approved:
Drawing no.:Revision:Project:
Drawing name:
INDUSTRIVEJ 20, 9900 FREDERIKSHAVN, DENMARK
Phone [phone] - Fax [phone]
E-mail: [e-mail] - Homepage: www.rais.dk
Change order
Drawing change: Improvement proposal:
Corrections:
D M Y
ksj
Nexo 1025 Opstilling
26-03-2018 A3
10-6553 Nexo 1025 glasdør afstande
til brændbart ISOLERET røgrør
NORSK BRANDMUR
KSJ
1.8
6-30
0-10
0.2
1°
1000-2000
0.150.3
1.2
0-5°
> 400
TILLADTE AFVIGELSER FOR VINKELMÅL
50-120 120-400
0-10°
0.8
400-1000
0.5
120-400
0-20°
0-30°
0.3
10-50
30-120
0.9 0.6
3-6
TILLADTE AFVIGELSER FOR LINIEÆRE MÅL
AFVIGELSE I MM
0.1 0.1
VINKELAFVIGELSE
KORTESTE SIDE
0.5-3
pr. 100 mm
OV UV
Nexo 1025/1225 afstande til brændbart ISOLERET røgrør NORSK BRANDMUR
Nexo 1025 (uden sideglas)
Nexo 1025 (uden sideglas)
Nexo 1025 (med sideglas)
Nexo 1025 (med sideglas)
150
370
50
245
250
470
50
245
50
50
341
341
50
341
50
341
287
287
Brændbart loft
210
Min
400
Min
50
400
200
450
50
50
500
500
482
482
Corner installation 45° Nexo with side glass Nexo with side glass
Non-insulated flue insulated flue
Distance to furniture (min.) in mm 800 800
Minimum distance to fire walls.
Section of fire wall to the side 500 500
* where dimensions are not specified, follow the national/local provisions.
English RAIS/ attika – User manual for Nexo
With side glass with Non-insu-
lated flue. Minimum distance to
fire wall
With side glass with insulated
flue. Minimum distance to fire
wall
With side glass with Non-insu-
lated flue. Minimum distance to
combustible material
With side glass with insulated
flue. Minimum distance to com-
bustible material
