INSTALLATION MANUAL
CONTENTS
Installation manual 3
In general 3
Chimney 3
Technical data 4
Specifications 4
Dimensional sketches 5
Information plate 7
Installation 9

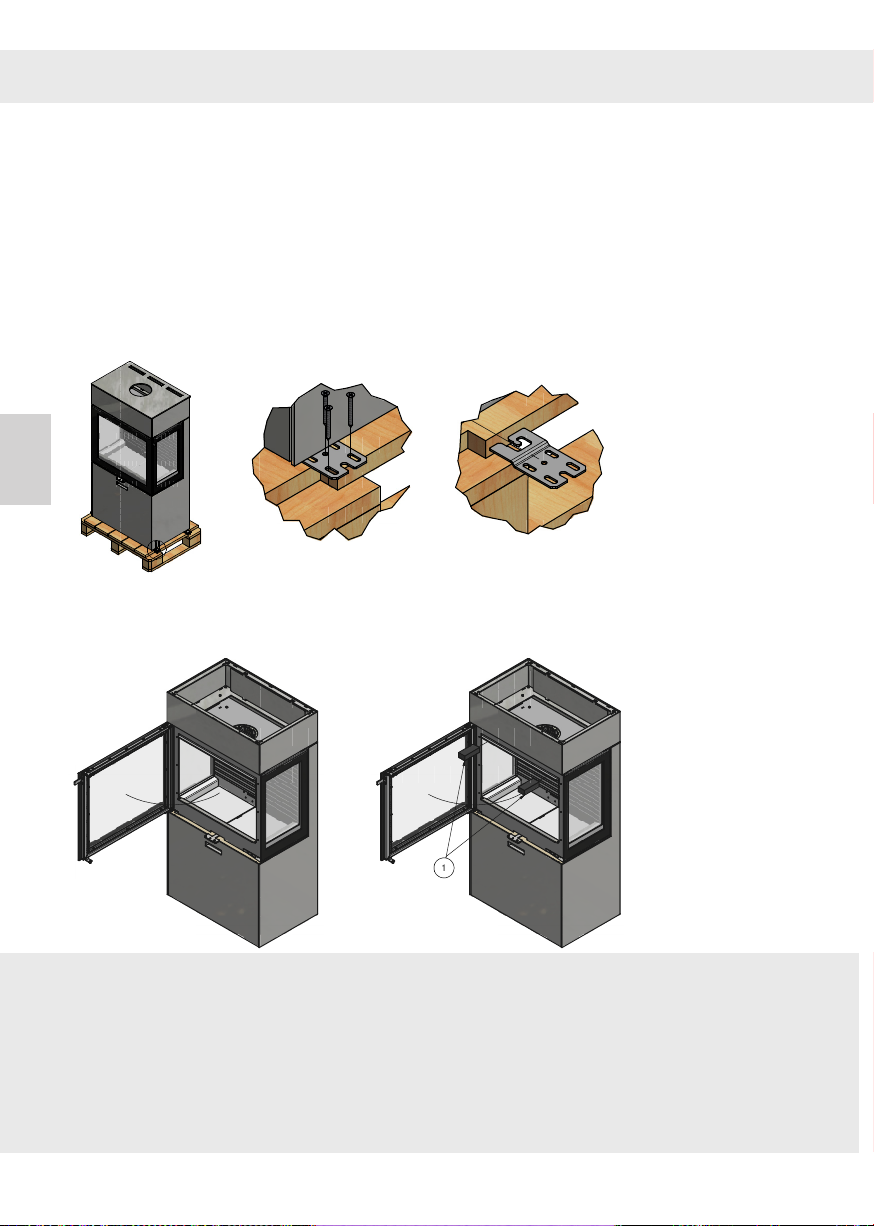

Delivery packaging 9
Disposal of packaging 9

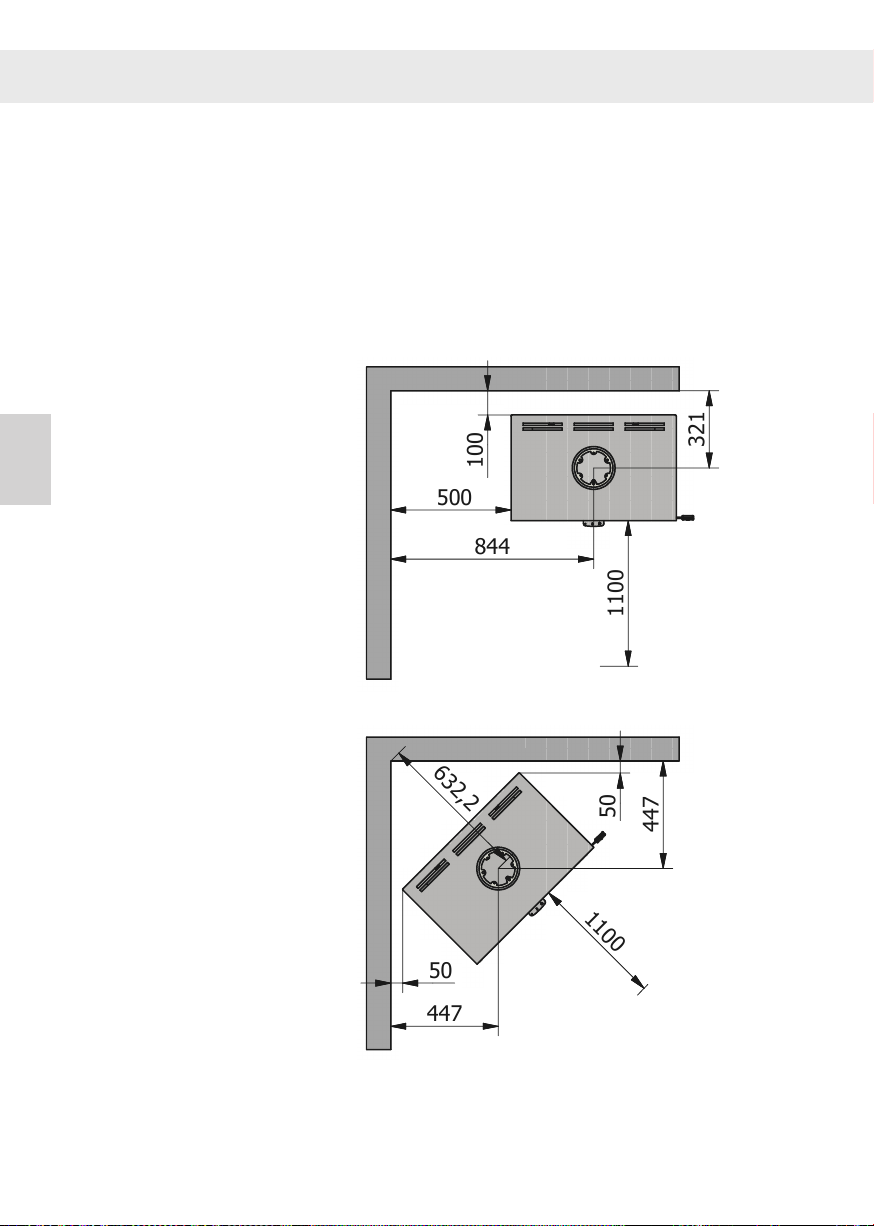

Installation distances 10
Height adjustment 13

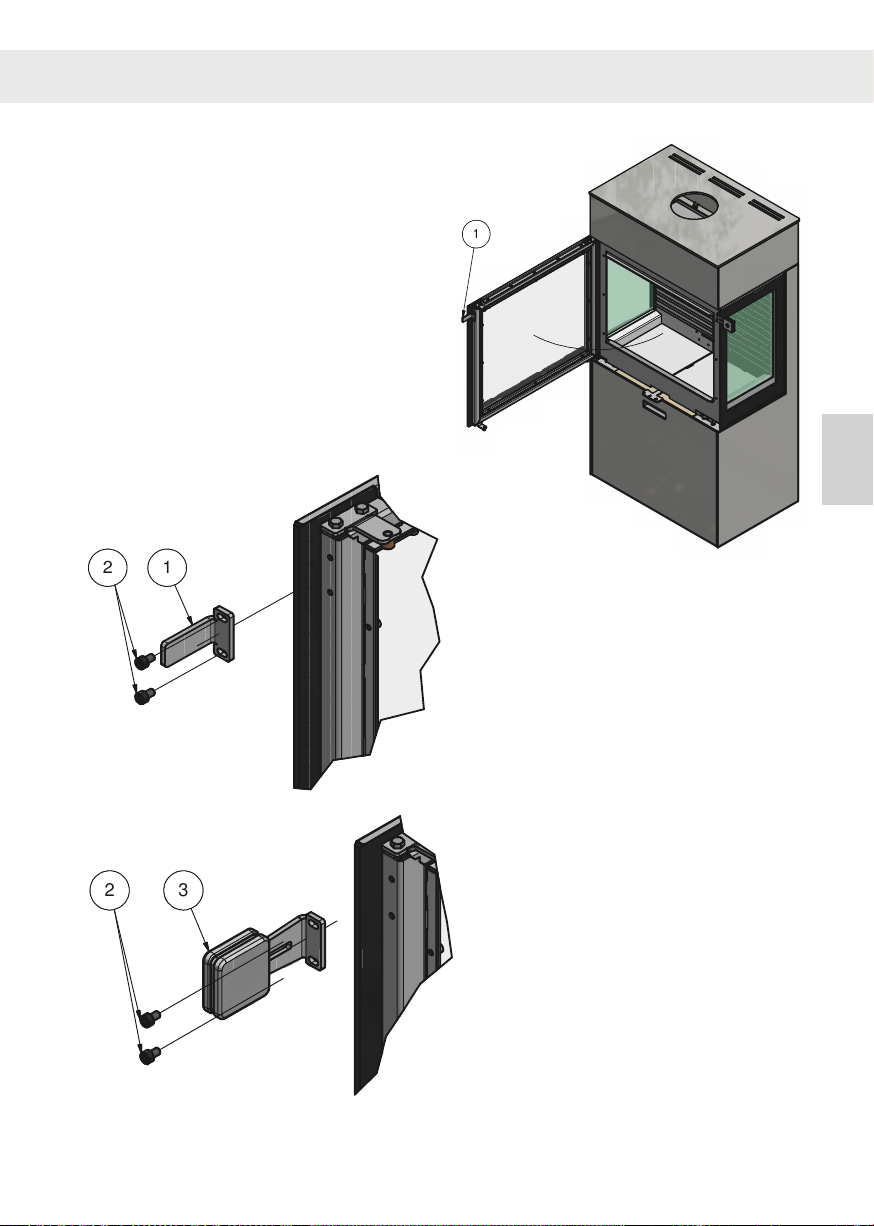

Fitting/changing the handle 14
Removing the combustion chamber lining 15

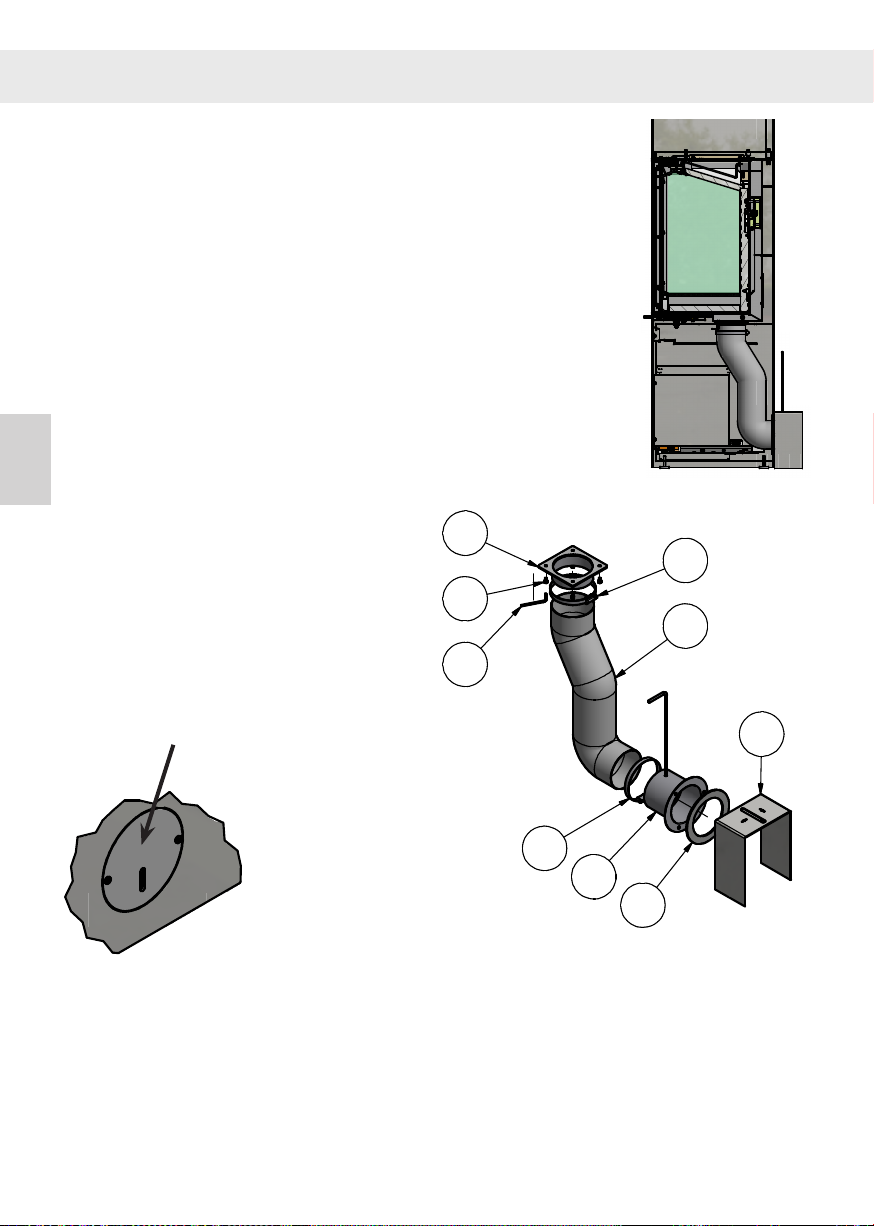

External air connection - Air-System 16
Lubricating hinges 18

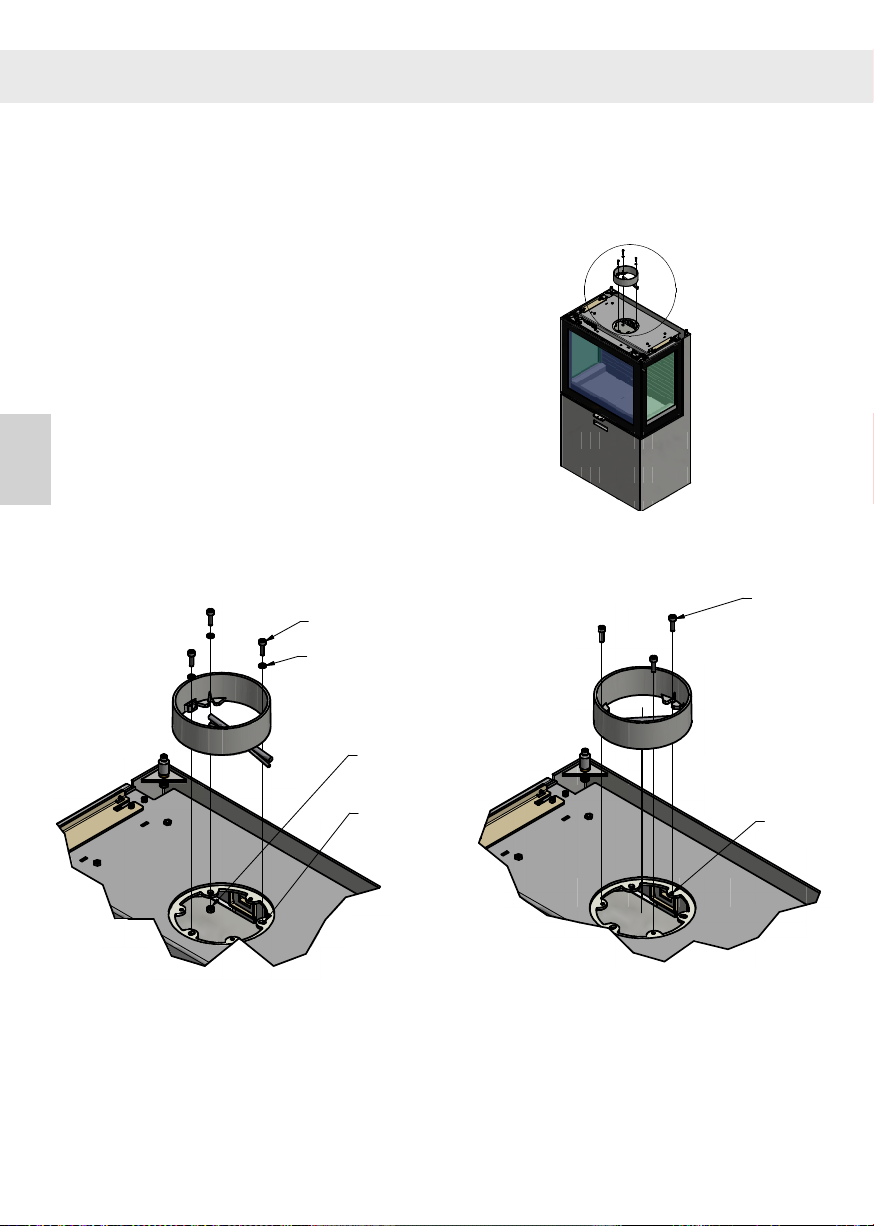

Fitting the smoke outlet spigot 19
Fitting the top box 20
Fitting the top plate 21
Test certificate 22
Assessment of Performance (AOP) 24
This manual applies to the following models:
600 MAX-1 Front
600 MAX-2 Right
600 MAX-3 Left
600 MAX-4 Three-sided
600 MAX/E-1 Front
600 MAX E-2 Right
600 MAX E-3 Left
600 MAX/E-4 Three-sided
We are not responsible for typographical errors.

3
INSTALLATION MANUAL
Thank you for choosing your new RAIS or
ATTIKA product! This installation manu-
al will ensure that your fireplace insert is
installed correctly and that it will provide
you with comfort and pleasure for many
years to come.
IN GENERAL
It is important to correctly install the fire-
place insert out of consideration for both
the environment and personal safety.
The installation of the stove must com-
ply with all local rules and regulations,
including those that refer to national and
European standards. A certified chimney
sweeper should be contacted before the
installation is started.
No unauthorised alterations may be
made to the fireplace insert.
GENERAL INSTALLATION REQUIRE-
MENTS
Before the fireplace insert may be put to
use, the installation must be reported to
your local chimney sweeper.
There must be a plentiful supply of fresh
air in the installation room to ensure
good combustion – if required, through
an Air-System connection. NB: Any me-
chanical air extraction, for example a
cooker hood, can minimise the supply of
air.
The wood-burning stove has an air con-
sumption of at least 18 m3/h.
The floor structure must be able to sup-
port the weight of the wood-burning
stove and a chimney. If the existing floor
structure does not meet this require-
ment, suitable measures must be taken
(e.g. installation of a load distribution
plate). Seek advice from a building ex-
pert.
If the wood-burning stove is to be in-
stalled on a flammable floor, national and
local regulations must be complied with,
including for the size of the non-flamma-
ble plate, which must cover the floor in
front of the wood-burning stove to pro-
tect the floor from any embers that fall
out of the stove.
The fireplace insert must be positioned at
a safe distance from flammable material.
Due to risk of fire, flammable items (e.g.
furniture) may not be positioned closer
to the fireplace insert than the closest
permitted distance stated in the instal-
lation section. When deciding where to
install your RAIS/ATTIKA fireplace insert,
you should think about being able to
heat other rooms in the home, so you
get the most out of your new fireplace
insert.
After receiving your fireplace insert,
please check it for any defects.
CHIMNEY
The chimney must be tall enough to
ensure correct draught conditions,
i.e. -14 to -18 pascal. If the recom-
mended chimney draught cannot
be achieved, problems from smoke
escaping from the door may arise
when lighting the fire. We recommend
adapting the chimney to suit the flue
outlet connector. The flue outlet connec-
tor is 150 mm in diameter.
If the draught is excessive, it is recom-
mended that you equip the chimney
with a regulating damper. If a regulating
damper is fitted, you must ensure that
there is a free flow area of at least 20
cm² at the closed regulating damper.
Remember that there must be unob-
structed access to the access door on the
chimney.
INSTALLATION MANUAL
GB

4
The fireplace insert is tested and approved by:
DTI
Danish Technological Institute
Teknologiparken Kongsvang Allé 29
8000 Aarhus C
Denmark
www.dti.dk
Tel.: [phone]
Fax: [phone]
TECHNICAL DATA
The technical data given below includes specifications, dimensional drawings and the
information plate.
SPECIFICATIONS
Danish Technological Institute ref.: 300-ELAB-2431-EN / 300-ELAB-2515-EN
600 MAX 600 MAX/E
Nominal output (kW) 5.8 7.8
Min./Max. Output (kW): 4–8* 4–10*
Heating area (m2) 50–120 50–150
Fireplace insert width/depth/height
(mm) 688 X 440 X 1305 688 X 440 X 1305
Combustion chamber W x D x H (mm) 544 X 255 X 165** 544 X 255 X 165**
Min. uptake (pascal) -12 -12
Weight (kg) min., depending on the
model: 223 246
Efficiency (%) 76 81
CO emission attributed to 13% O2 (%) 0.0915
(1144 mg/Nm³)
0.0927
(1159 mg/Nm³)
NOx emission attributed to 13% O2
(mg/Nm³) 69 76
Particle emission in accordance with
NS3058/3059 (g/kg) 2.11 2.11
Dust measurement in accordance with
DIN + 13% O2 (mg/Nm³) 15 15
Flue gas flow (g/s) 6.1 6.4
Flue gas temperature (°C) 306 213
Recommended amount of wood (kg)
when stoking the fire (Distributed be-
tween 2 logs, each max. 24 cm)
1.5 1.6
Intermittent operation Stoking should
be done within 50 minutes 45 minutes
*Not verified by test.
**Max. load
GB

A-A
B-B
A A
BB
688
221
n160
438
560 264,5
437
600 MAX-4 Glass 11-0000-6567
341
152
n98,5
1306
1203
115
n
135
n160
79
n
110
682
440
434
1123
DIMENSIONAL SKETCHES
GB

6
A-A
B-B
A A
BB
221
n160
600 MAX-4 Classic 11-0000-6568
688
438
560
437
264,5
n
110
79
1306
115
1203
n160
n
135
440
434682
n
98,5
152
341
1123
DIMENSIONAL SKETCHES
GB

7
Raumheizer für feste Brennstoffe
Appliance fired by wood
Poêle pour combustibles solides
Produced at:
RAIS A/S, Industrivej 20, 9900 Frederikshavn, Danmark
EC.NO: 11
EN 13240:2001+A2:2004
AFSTAND TIL BRÆNDBART, BAGVÆG
ABSTAND ZU BRENNBAREN BAUTEILEN, HINTEN
DISTANCE TO COMBUSTIBLE BACK WALL
DIST. ENTRE COMPOSANTS COMBUSTIBLES, ARRIÈRE
AFSTAND TIL BRÆNDBART, SIDEVÆG
ABSTAND ZU BRENNBAREN BAUTEILEN, SEITE
DISTANCE TO COMBUSTIBLE SIDE WALL
DISTANCE ENTRE COMPOSANTS COMBUSTIBLES, COTÉ
AFSTAND TIL BRÆNDBART, MØBLERING
ABSTAND VORNE ZU BRENNBAREN MÖBELN
DISTANCE TO FURNITURE AT THE FRONT
DISTANCE ENTRE COMPOSANTS COMBUSTIBLES, DEVANT
CO EMISSION (REL. 13% O2)
CO EMISSION IN DEN VERBRENNUNGSPRODUKTEN (BEI 13%O2)
EMISSION OF CO IN COMBUSTION PRODUCTS (AT 13%O2)
EMISSION CO DANS LES PRODUITS COMBUSTIBLES (À 13%O2)
NOMINEL EFFEKT / HEIZLEISTUNG /
THERMAL OUTPUT / PUISSANCE CALORIFIQUE:
RØGGASTEMPERATUR / ABGASTEMPERATUR /
FLUE GAS TEMPERATURE / TEMPÉRATURE DES GAZ DE FUMÉE:
VIRKNINGSGRAD / ENERGIEEFFIZIENZ /
ENERGY EFFIENCY /EFFICACITÉ ÉNERGÉTIQUE:
DK: Brug kun anbefalede brændsler. Følg instrukserne i
brugermanualen. Anordningen er egnet til røggassamleledning og intervalfyring.
DE: Lesen und befolgen Sie die Bedienungsanleitung.
Zeitbrandfeuerstätte. Nur empfohlene Brennstoffe einsetzen.
UK: Fuel types (only recommended). Follow the installation and
operating instruction manual. Intermittent operation.
F: Veuillez lire et observer les instructions du mode d'emploi.
Foyer à durèe de combustion limitèe, homologué pour cheminée à
connexions multiples. Utiliser seulement les combustibles recommandés.
Hergestellt für /Produced for:
ATTIKA FEUER AG, Brunnmatt 16, CH-6330 Cham / RAIS A/S, Industrivej 20, DK-9900 Frederikshavn
STØV / STAUB /
DUST / POUSSIÈRES: 15 mg/Nm³
306 °C
5,8 kW
76 %
DK: BRÆNDE
DE: HOLZ
UK: WOOD
FR: BOIS
DK: 100 mm/SE BRUGERVEJLEDNING
DE: 100 mm/SIEHE BEDIENUNGSANLEITUNG
UK: 100 mm/SEE USER MANUAL
FR: 100 mm/CONSULTEZ LE GUIDE DE L'UTILISATEUR
DK: SE BRUGERVEJLEDNING
DE: SIEHE BEDIENUNGSANLEITUNG
UK: SEE USER MANUAL
FR: CONSULTEZ LE GUIDE DE L'UTILISATEUR
DK: 1100 mm/SE BRUGERVEJLEDNING
DE: 1100 mm/SIEHE BEDIENUNGSANLEITUNG
UK: 1100 mm/SEE USER MANUAL
FR: 1100 mm/CONSULTEZ LE GUIDE DE L'UTILISATEUR
0,0915 % / 1144 mg/Nm³
20-08-2020
CE Label: (Project 11)
600 MAX
20
600 MAX Front, 600 MAX Classic Front
600 MAX Right, 600 MAX Classic Right
600 MAX Left, 600 MAX Classic Left
600 MAX Three-sided, 600 MAX Classic Three-sided
Notified Body: 1235
INFORMATION PLATE
All RAIS/ATTIKA fireplace inserts have an information plate specifying the stove’s distance
from flammable materials, efficiency etc. The information plate is laid loose in the fire-
place insert upon delivery. We recommend that you fit the information plate on the rear
of the wood-burning stove.
The production number is positioned on the rear of the stove.
INFORMATION PLATE
Information plate: 600 MAX
GB

8
Raumheizer für feste Brennstoffe
Appliance fired by wood
Poêle pour combustibles solides
Produced at:
RAIS A/S, Industrivej 20, 9900 Frederikshavn, Danmark
EC.NO: 11
EN 13240:2001+A2:2004
AFSTAND TIL BRÆNDBART, BAGVÆG
ABSTAND ZU BRENNBAREN BAUTEILEN, HINTEN
DISTANCE TO COMBUSTIBLE BACK WALL
DIST. ENTRE COMPOSANTS COMBUSTIBLES, ARRIÈRE
AFSTAND TIL BRÆNDBART, SIDEVÆG
ABSTAND ZU BRENNBAREN BAUTEILEN, SEITE
DISTANCE TO COMBUSTIBLE SIDE WALL
DISTANCE ENTRE COMPOSANTS COMBUSTIBLES, COTÉ
AFSTAND TIL BRÆNDBART, MØBLERING
ABSTAND VORNE ZU BRENNBAREN MÖBELN
DISTANCE TO FURNITURE AT THE FRONT
DISTANCE ENTRE COMPOSANTS COMBUSTIBLES, DEVANT
CO EMISSION (REL. 13% O2)
CO EMISSION IN DEN VERBRENNUNGSPRODUKTEN (BEI 13%O2)
EMISSION OF CO IN COMBUSTION PRODUCTS (AT 13%O2)
EMISSION CO DANS LES PRODUITS COMBUSTIBLES (À 13%O2)
NOMINEL EFFEKT / HEIZLEISTUNG /
THERMAL OUTPUT / PUISSANCE CALORIFIQUE:
RØGGASTEMPERATUR / ABGASTEMPERATUR /
FLUE GAS TEMPERATURE / TEMPÉRATURE DES GAZ DE FUMÉE:
VIRKNINGSGRAD / ENERGIEEFFIZIENZ /
ENERGY EFFIENCY /EFFICACITÉ ÉNERGÉTIQUE:
DK: Brug kun anbefalede brændsler. Følg instrukserne i
brugermanualen. Anordningen er egnet til røggassamleledning og intervalfyring.
DE: Lesen und befolgen Sie die Bedienungsanleitung.
Zeitbrandfeuerstätte. Nur empfohlene Brennstoffe einsetzen.
UK: Fuel types (only recommended). Follow the installation and
operating instruction manual. Intermittent operation.
F: Veuillez lire et observer les instructions du mode d'emploi.
Foyer à durèe de combustion limitèe, homologué pour cheminée à
connexions multiples. Utiliser seulement les combustibles recommandés.
Hergestellt für /Produced for:
ATTIKA FEUER AG, Brunnmatt 16, CH-6330 Cham / RAIS A/S, Industrivej 20, DK-9900 Frederikshavn
STØV / STAUB /
DUST / POUSSIÈRES: 15 mg/Nm³
213 °C
7,8 kW
81 %
DK: BRÆNDE
DE: HOLZ
UK: WOOD
FR: BOIS
DK: 100 mm/SE BRUGERVEJLEDNING
DE: 100 mm/SIEHE BEDIENUNGSANLEITUNG
UK: 100 mm/SEE USER MANUAL
FR: 100 mm/CONSULTEZ LE GUIDE DE L'UTILISATEUR
DK: SE BRUGERVEJLEDNING
DE: SIEHE BEDIENUNGSANLEITUNG
UK: SEE USER MANUAL
FR: CONSULTEZ LE GUIDE DE L'UTILISATEUR
DK: 1100 mm/SE BRUGERVEJLEDNING
DE: 1100 mm/SIEHE BEDIENUNGSANLEITUNG
UK: 1100 mm/SEE USER MANUAL
FR: 1100 mm/CONSULTEZ LE GUIDE DE L'UTILISATEUR
0,0927 % / 1159 mg/Nm³
20-08-2020
CE Label: (Project 11)
600 MAX/E
20
600 MAX/E Front, 600 MAX/E Classic Front
600 MAX/E Right, 600 MAX/E Classic Right
600 MAX/E Left, 600 MAX/E Classic Left
600 MAX/E Three-sided, 600 MAX/E Classic Three-sided
Notified Body: 1235
Information plate: 600 MAX/E
INFORMATION PLATE
GB

9
1
AB
1
A
B
A
B
INSTALLATION
INSTALLATION
The following section explains how to install the fireplace insert and includes information
about the packaging, installation distances etc.
DELIVERY PACKAGING
Upon delivery, the stove is secured to a transport pallet using four transport safety fit-
tings, one in each corner (A).
The safety fittings are secured with screws, which must be unscrewed. The safety fittings
can then be removed (B).
The top of the wood-burning stove has two polystyrene blocks (1), which protect the
combustion chamber lining in transit. These must be removed before starting a fire in
the stove.
The glass is not recyclable.
The glass must be disposed of along with any resid-
ual ceramic or porcelain waste. Heat-resistant glass
has a higher melting point, which is why it is not
recyclable.
By ensuring heat-resistant glass does not end up
alongside recyclable products you are making an
important contribution to the environment.
DISPOSAL OF PACKAGING
RECYCLING
The fireplace insert is delivered in recyclable packaging.
This packaging must be disposed of in accordance with
national regulations relating to the disposal of waste.
GB

10
INSTALLATION DISTANCES.
IMPORTANT:
Please bear in mind that the installation distances on the following pages
only apply to the wood-burning stove.
The final choice of Chimney solution may have a larger safety distance to
the flammable material. The Chimney solution must always be installed
in accordance with current building regulations and in a manner that en-
sures CE-marking compliance.
INSTALLATION DISTANCES
GB

11
100
500
50
50
500
1100
844
321
447
447
1100
770
632,2
100
500
50
50
500
1100
844
321
447
447
1100
770
632,2
INSTALLATION DISTANCES
INSTALLATION DISTANCE TO FLAMMABLE MATERIAL:
600MAX & 600MAX/E Three-sided
The installation distances applicable to the wood-burning stove are shown below. Bear in
mind that the final choice of chimney may have a different safety distance.
If the floor is flammable, we recommend placing the stove on a non-flammable surface.
All dimensions are in mm.
Right-angle installation
Corner installation
GB

12
100
500
50
50
500
1100
844
321
447
447
1100
770
632,2
INSTALLATION DISTANCES
Flammable ceiling
Safety distances to the flammable ceiling and floor are measured from above and below
the door.
GB

13
1
HEIGHT ADJUSTMENT
HEIGHT ADJUSTMENT
The stove is equipped with four adjustment screws (1) under
the stove.
Use the adjustment screws to ensure the wood-burning
stove stands level.
GB

14
1
2 1 32
12 1 32
12 1
32
FITTING/CHANGING THE HANDLE
The wood-burning stove comes with a tem-
porary handle (1). To remove it, undo the
screws (2). The new handle (3) can now be
fitted to the stove using the screws (2).
FITTING THE HANDLE
GB

15
1
5
6
3
2
2 3
4
4
3
3
MAX LOAD
165
1
5
6
3
2
2 3
4
4
3
3
MAX LOAD
165
1
5
6
3
2
2 3
4
4
3
3
MAX LOAD
165
REMOVING THE COMBUSTION CHAMBER LINING
The combustion chamber lining protects the body
of the fireplace insert from the heat of the fire. The
large differences in temperature can lead to cracks in
the combustion chamber lining. This will not affect
the functionality of the fireplace insert. The lining will
only need be replaced after several years of use when
it begins to disintegrate. The liner panels are easy to
place in position in the fireplace insert and can easily
be replaced by you or your dealer.
Procedure for removing the combustion chamber
lining:
1. Remove the flue panel (1) by pushing the front up
and pulling forward, so that the rear end becomes free
of the vertical panels. The flue panel can now be
carefully removed.
2. Remove the base panels (2).
3. Loosen the side panels (3) by
turning the end of the panel in
towards the fireplace’s centre.
Next, carefully remove them.
4. Remove the rear panels (4) by
removing the lock in the top of
the panels. The panels are now
loose and can be removed.
5. Panels (5) and (6) are located un-
der the turbo plate and are not nor-
mally removed.
To re-install the combustion chamber lining sections,
repeat the above procedure in reverse order.
REMOVING THE COMBUSTION CHAMBER LINING
MAX LOAD
The maximum allowable quantity of
wood is marked with a line on the
rear panels. In other words, wood
should not go above this line.
GB

16
1
2
3
4
5
2
6
7
8
1
4
5
3
2
6
7
8
2
1
2
3
4
5
2
6
7
8
1
4
5
3
2
6
7
8
2
1
2
3
4
5
2
6
7
8
1
4
5
3
2
6
7
8
2
Place the foam ring (8) over the hole in the floor and place
the stove on the ring so that the hole in the base plate is
within the diameter of the foam ring.
Secure the flexible hose (3) on the spigot (1) using the
hose clamp (2). Fit the spigot on the stove with the four
M5 screws (4).
Secure the valve (6) on the base plate using the double-
sided adhesive gasket (7) and fit the flexible hose (3) on
the valve (6) with the hose clamp (2).
Air-System
Fresh air supplied through the
floor.
1) Spigot
2) Hose clamp
3) Flexible hose
4) M5 screw
5) 3 mm Unbrako key
6) Valve
7) Double-sided adhesive gasket
GB

17
1
2
3
4
5
2
6
7
8
1
4
5
3
2
6
7
8
2
1
2
3
4
5
2
6
7
8
1
4
5
3
2
6
7
8
2
1
2
3
4
5
2
6
7
8
1
4
5
3
2
6
7
8
2
Fresh air supplied through the wall
1) Spigot
2) Hose clamp
3) Flexible hose
4) M5 screws
5) 3 mm Unbrako key
6) Valve
7) Double-sided adhesive gasket
8) Cover
Air-System
Remove the cover on the rear of the stove and secure the flexible hose (3) on the spigot
(1) using the hose clamp (2). Fit the spigot on the stove with the four M5 screws (4).
Secure the valve (6) on the wall using suitable fixtures with the gasket (7) between the
wall and valve.
Fit the flexible hose (3) on the valve (6) using the hose clamp
(2).
The cover (8) goes over the flexible hose behind the stove.
Cover
GB

18
LUBRICATING THE HINGES
LUBRICATING THE HINGES & LOCK
The fireplace must be lubricated regularly using the four moving parts on the lock and
hinges (see image). Use heat-resistant oil.
GB

19
A
B
AB
1
3
4
6
5
2
A
B
AB
1
3
4
6
5
2
A B
AB
1
3
4
6
5
2
Smoke outlet spigot
MOUNTING OF SMOKE OUTLET SPIGOT
THE SMOKE OUTLET SPIGOT CAN BE TURNED TWO WAYS. YOU CAN CHOOSE EITHER
WAY.
Version Auses the three free holes:
1) Ø8 Slits
2) M6 Nuts
3) M6 Washers
4) M6X20mm cylinder screws
Version B uses the three threaded holes:
5) M6 threaded holes
6) M6X20mm cylinder screws
