Raisecom Gazelle S1000i-LI User manual

Gazelle S1000i-LI (A)
User Manual
(Rel_02)
www.raisecom.com

Raisecom Technology Co., Ltd. provides customers with comprehensive technical support and services. For any
assistance, please contact our local office or company headquarters.
Website: http://www.raisecom.com
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Address: Raisecom Building, No. 11, EastArea, No. 10 Block, East Xibeiwang Road, Haidian District, Beijing,
P.R.China
Postal code: 100094
-----------------------------------------------------------------------------------------------------------------------------------------
Notice
Copyright © 2019
Raisecom
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in Writing from Raisecom
Technology Co., Ltd.
is the trademark of Raisecom Technology Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective holders.
The information in this document is subject to change without notice. Every effort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute the warranty of any kind, express or implied.

Raisecom
Gazelle S1000i-LI (A) User Manual
Preface
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
i
Preface
Objectives
This document describes overview, hardware structure, technical specifications, serial server
features, hardware installation, networking application, and management and maintenance of
the Gazelle S1000i-LI. The appendix lists terms, acronyms, and abbreviations involved in this
document.
Versions
The following table lists the product versions related to this document.
Product name
Product version
Software version
Hardware version
Gazelle S1000i-
2GF-4FE-LI
P100R001
V3.50 or later
A.00 or later
Gazelle S1000i-
2GF-8FE-LI
P100R001
V3.50 or later
A.00 or later
Gazelle S1000i-
2GF-8FE-LI
P100R001
V3.50 or later
H.00 or later
Gazelle S1000i-
4GF-16FE-LI
P100R001
V3.50 or later
A.00 or later
Gazelle S1000i-
4GX-16FE-LI
P100R001
V3.50 or later
A.00 or later
Gazelle S1000i-
2GF-4GE-LI
P100R001
V3.50 or later
A.00 or later
Gazelle S1000i-
2GF-8GE-LI
P100R001
V3.50 or later
A.00 or later
Gazelle S1000i-
2GF-8GE-PWR-
LI
P100R001
V3.50 or later
A.00 or later

Raisecom
Gazelle S1000i-LI (A) User Manual
Preface
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
ii
Conventions
Symbol conventions
The symbols that may be found in this document are defined as below.
Symbol
Description
Indicate a hazard with a medium or low level of risk which, if
not avoided, could result in minor or moderate injury.
Indicate a potentially hazardous situation that, if not avoided,
could cause device damage, data loss, and performance
degradation, or unexpected results.
Provide additional information to emphasize or supplement
important points of the main text.
Indicate a tip that may help you solve a problem or save time.
General conventions
Convention
Description
Times New Roman
Normal paragraphs are in Times New Roman.
Arial
Paragraphs in Warning, Caution, Notes, and Tip are in Arial.
Boldface
Buttons and navigation path are in Boldface.
Italic
Book titles are in italics.
Lucida Console
Terminal display is in Lucida Console.
Book Antiqua
Heading 1, Heading 2, Heading 3, and Block are in Book
Antiqua.
Change history
Updates between document versions are cumulative. Therefore, the latest document version
contains all updates made to previous versions.
Issue 02 (2018-11-15)
Second commercial release
Added the Gazelle S1000i-2GF-4GE-LI, Gazelle S1000i-2GF-8GE-LI, and Gazelle
S1000i-2GF-8GE-PWR-LI-DC.

Raisecom
Gazelle S1000i-LI (A) User Manual
Preface
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
iii
Fixed known bugs.
Issue 01 (2017-10-30)
Initial commercial release

Raisecom
Gazelle S1000i-LI (A) User Manual
Contents
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
iv
Contents
1 Overview.........................................................................................................................................1
1.1 Introduction......................................................................................................................................................1
1.2 Characteristics..................................................................................................................................................2
1.2.1 High reliability........................................................................................................................................2
1.2.2 Various interface types............................................................................................................................2
1.2.3 Powerful PoE power supply....................................................................................................................2
1.2.4 Flexible networking performance ...........................................................................................................3
1.2.5 Complete security guarantee...................................................................................................................3
1.2.6 Comprehensive management modes.......................................................................................................3
1.3 Models..............................................................................................................................................................4
2 Hardware structure .......................................................................................................................5
2.1 Appearance.......................................................................................................................................................5
2.1.1 Front appearance.....................................................................................................................................5
2.1.2 Top appearance .....................................................................................................................................12
2.1.3 Rear appearance....................................................................................................................................15
2.2 Interfaces........................................................................................................................................................16
2.2.1 Service interface....................................................................................................................................16
2.2.2 Management and auxiliary interfaces ...................................................................................................18
2.3 Interface parameters.......................................................................................................................................18
2.3.1 RJ45 Console interface .........................................................................................................................18
2.3.2 Mini-USB Console interface.................................................................................................................18
2.3.3 1000BASE-X SFP optical interface......................................................................................................19
2.3.4 100BASE-FX SFP optical interface......................................................................................................19
2.3.5 10/100/1000BASE-T electrical interface..............................................................................................20
2.3.6 Optical module parameters ...................................................................................................................20
2.4 Button.............................................................................................................................................................22
2.5 LEDs ..............................................................................................................................................................22
2.6 Power supply..................................................................................................................................................24
2.6.1 AC power supply...................................................................................................................................24
2.6.2 DC power supply ..................................................................................................................................25
2.7 Cables.............................................................................................................................................................26
2.7.1 Ground cable.........................................................................................................................................26

Raisecom
Gazelle S1000i-LI (A) User Manual
Contents
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
v
2.7.2 AC power cable.....................................................................................................................................28
2.7.3 DC power cable.....................................................................................................................................30
2.7.4 RJ45 Console cable 1............................................................................................................................31
2.7.5 RJ45 Console cable 2............................................................................................................................32
2.7.6 Mini-USB cable ....................................................................................................................................33
2.7.7 Fiber......................................................................................................................................................34
2.7.8 Ethernet cable........................................................................................................................................36
3 Technical specifications.............................................................................................................40
3.1 Overall parameters .........................................................................................................................................40
3.2 Software features............................................................................................................................................41
3.3 Protocols and standards..................................................................................................................................43
3.3.1 Compliant communication protocols and standard...............................................................................43
3.3.2 Laser safety class ..................................................................................................................................44
3.3.3 Reliability indexes ................................................................................................................................44
3.3.4 Safety standards ....................................................................................................................................44
3.3.5 EMC standards......................................................................................................................................44
3.3.6 Environmental standards.......................................................................................................................45
4 Hardware installation.................................................................................................................46
4.1 Preparing for installation................................................................................................................................46
4.1.1 Enviromental conditions .......................................................................................................................46
4.1.2 Power conditions...................................................................................................................................46
4.1.3 Electrostatic conditions.........................................................................................................................47
4.1.4 Grounding conditions............................................................................................................................47
4.1.5 Other conditions....................................................................................................................................47
4.2 Installing device .............................................................................................................................................47
4.2.1 Installing device on guide rail...............................................................................................................47
4.2.2 Installing device on wall .......................................................................................................................52
4.2.3 Installing device on rack tray................................................................................................................54
4.3 Grounding device...........................................................................................................................................56
4.4 Connecting cables ..........................................................................................................................................57
4.4.1 Connecting LC/PC fiber........................................................................................................................57
4.4.2 Connecting Ethernet cable ....................................................................................................................57
4.4.3 Connecting power cables ......................................................................................................................58
4.5 Checking installation......................................................................................................................................60
4.6 Powering on device........................................................................................................................................60
5 Networking applications...........................................................................................................62
5.1 Rail transportation ISCS.................................................................................................................................62
5.2 Intelligent video monitoring and recording networking for expressway vehicles..........................................63
6 Management and maintenance ................................................................................................65
6.1 Management modes........................................................................................................................................65

Raisecom
Gazelle S1000i-LI (A) User Manual
Contents
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
vi
6.1.1 CLI........................................................................................................................................................65
6.1.2 Web .......................................................................................................................................................66
6.1.3 SNMP....................................................................................................................................................66
6.2 Maintenance methods.....................................................................................................................................66
6.2.1 Ping.......................................................................................................................................................66
6.2.2 Traceroute .............................................................................................................................................67
6.2.3 Enviromental monitoring......................................................................................................................67
6.2.4 RMON management .............................................................................................................................67
6.2.5 System log.............................................................................................................................................67
6.2.6 Watchdog ..............................................................................................................................................67
6.2.7 Port mirroring........................................................................................................................................67
6.3 NView NNM system......................................................................................................................................68
6.3.1 Functions...............................................................................................................................................68
6.3.2 Features.................................................................................................................................................68
7 Appendix ......................................................................................................................................70
7.1 Terms..............................................................................................................................................................70
7.2 Acronyms and abbreviations ..........................................................................................................................75

Raisecom
Gazelle S1000i-LI (A) User Manual
Figures
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
vii
Figures
Figure 1-1 Appearance of the Gazelle S1000i-2GF-8FE-LI ..................................................................................1
Figure 2-1 Front appearance of the Gazelle S1000i-2GF-4FE-LI..........................................................................6
Figure 2-2 Front appearance of the Gazelle S1000i-2GF-8FE-LI..........................................................................7
Figure 2-3 Front appearance of the Gazelle S1000i-4GF-16FE-LI........................................................................8
Figure 2-4 Front appearance of the Gazelle S1000i-4GX-16FE-LI.......................................................................9
Figure 2-5 Front appearance of the Gazelle S1000i-2GF-4GE-LI.......................................................................10
Figure 2-6 Front appearance of the Gazelle S1000i-2GF-8GE-LI....................................................................... 11
Figure 2-7 Front appearance of the Gazelle S1000i-2GF-8GE-PWR-LI.............................................................12
Figure 2-8 Top appearance of the Gazelle S1000i-2GF-4FE-LI and Gazelle S1000i-2GF-4GE-LI....................13

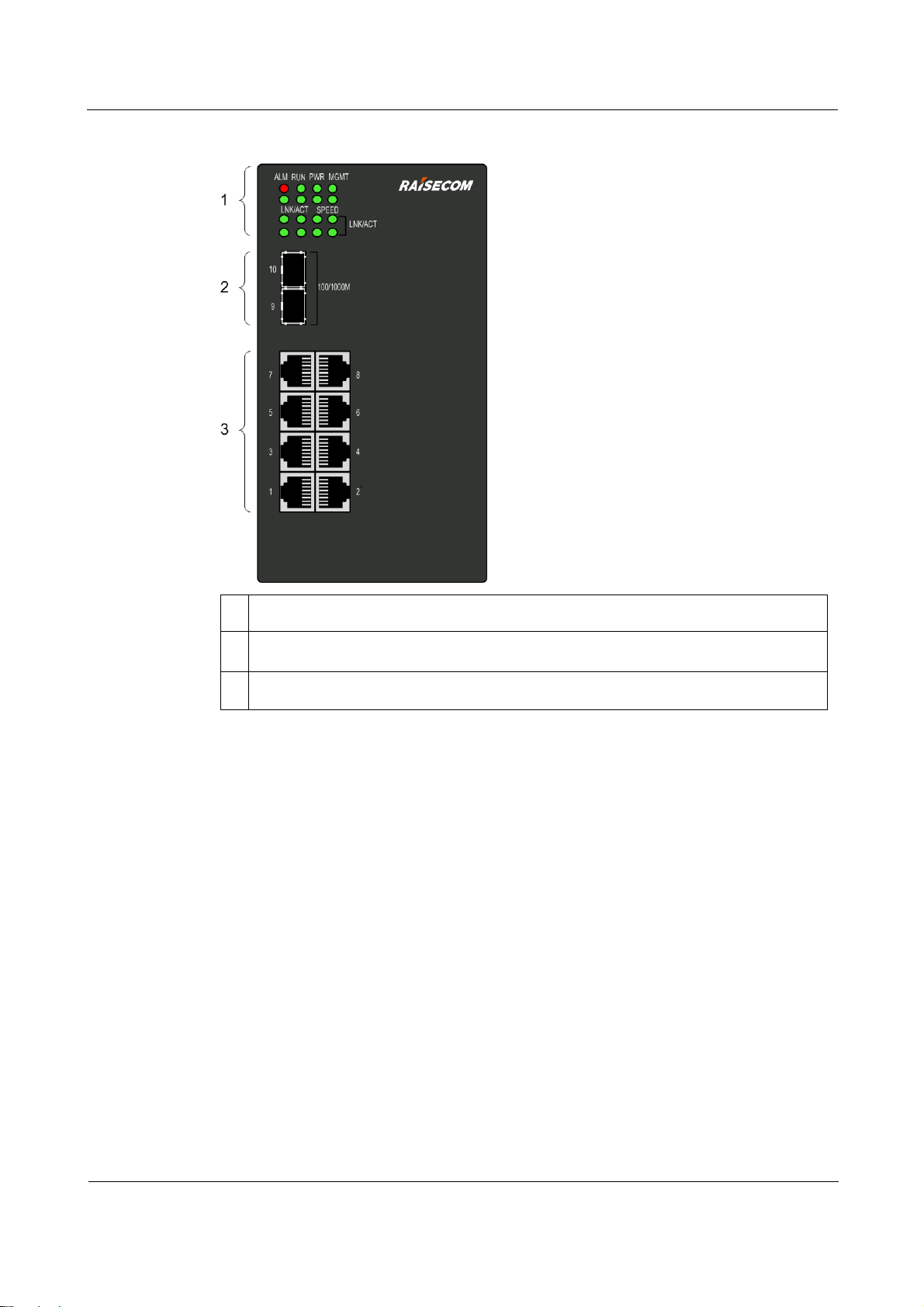

Figure 2-9 Top appearance of the Gazelle S1000i-2GF-8FE-LI (A), Gazelle S1000i-2GF-8GE-LI, Gazelle
S1000i-4GF-16FE-LI, and Gazelle S1000i-4GX-16FE-LI..................................................................................13
Figure 2-10 Top appearance of the Gazelle S1000i-2GF-8FE-LI (H)..................................................................14
Figure 2-11 Top appearance of the Gazelle S1000i-2GF-8GE-PWR-LI..............................................................15
Figure 2-12 Rear appearance of the Gazelle S1000i............................................................................................15
Figure 2-13 Rear appearance of the Gazelle S1000i............................................................................................16
Figure 2-14 Appearance of the AC power interface.............................................................................................24
Figure 2-15 DC power interface...........................................................................................................................25
Figure 2-16 Ground cable ....................................................................................................................................27
Figure 2-17 OT terminal ......................................................................................................................................27
Figure 2-18 European AC power cable................................................................................................................29
Figure 2-19 American AC power cable................................................................................................................29
Figure 2-20 DC power cable ................................................................................................................................30
Figure 2-21 Console cable....................................................................................................................................31
Figure 2-22 Wiring between DB9 female interface connector and RJ45 Console interface ................................31
Figure 2-23 RJ45 Console cable ..........................................................................................................................32
Figure 2-24 Wiring between DB9 female connector and RJ45 Console interface...............................................33
Figure 2-1 Mini-USB Console cable....................................................................................................................34

Raisecom
Gazelle S1000i-LI (A) User Manual
Figures
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
viii
Figure 2-2 Wiring of the Mini-USB Console cable..............................................................................................34
Figure 2-3 LC/PC fiber connector........................................................................................................................35
Figure 2-4 Ethernet cable.....................................................................................................................................36
Figure 2-5 Wiring of the straight-through cable...................................................................................................38
Figure 2-6 Wiring of the 100 Mbit/s crossover cable...........................................................................................38
Figure 2-7 Wiring of the 1000 Mbit/s crossover cable.........................................................................................39
Figure 4-1 Connecting the rail clip to the guide rail.............................................................................................48
Figure 4-2 Installing the rail clip to the guide rail................................................................................................48
Figure 4-3 Installing the device on the guide rail.................................................................................................49
Figure 4-4 Connecting the rail clip to the guide rail.............................................................................................49
Figure 4-5 Installing the device on the guide rail.................................................................................................50
Figure 4-6 Pulling downward the device .............................................................................................................50
Figure 4-7 Removing the rail clip bottom from the guide rail .............................................................................51
Figure 4-8 Removing the device from the guide rail............................................................................................51
Figure 4-9 Removing the sliding connector bottom from the guide rail ..............................................................52
Figure 4-10 Removing the device from the guide rail..........................................................................................52
Figure 4-11 Removing the rail clip ......................................................................................................................53
Figure 4-12 Removing the rail clip ......................................................................................................................53
Figure 4-13 Installing the wall-mount plate to the rear panel ..............................................................................54
Figure 4-14 Installing the wall-mount plate on the wall ......................................................................................54
Figure 4-15 Laying the device on the tray............................................................................................................55
Figure 4-16 Fastening the device to the tray........................................................................................................55
Figure 4-17 Installing the tray in the rack ............................................................................................................55
Figure 4-18 Unfastening the screw of the ground terminal..................................................................................56
Figure 4-19 Connecting the ground cable ............................................................................................................56
Figure 4-20 Connecting the Ethernet cable..........................................................................................................57
Figure 4-21 Connecting the connector of the AC power cable ............................................................................58
Figure 4-22 Fastening screws of the AC power cable..........................................................................................59
Figure 4-23 Connecting the connector of the DC power cable ............................................................................59
Figure 5-1 Networking application of rail transportation ISCS ...........................................................................63
Figure 5-2 Intelligent video monitoring and recording system for expressway vehicles.....................................64
Figure 6-1 Orientation of the NView NNM system.............................................................................................69

Raisecom
Gazelle S1000i-LI (A) User Manual
Tables
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
ix
Tables
Table 1-1 Models....................................................................................................................................................4
Table 2-1 Interfaces..............................................................................................................................................16
Table 2-2 Management and auxiliary interfaces...................................................................................................18
Table 2-3 Parameters of the RJ45 Console interface............................................................................................18
Table 2-4 Parameters of the Mini-USB Console interface...................................................................................19
Table 2-5 Parameters of the 1000BASE-X SFP optical interface ........................................................................19
Table 2-6 Parameters of the 100BASE-FX SFP optical interface........................................................................19
Table 2-7 Parameters of the 10/100/1000BASE-T electrical interface ................................................................20
Table 2-8 Parameters of GE (1250 Mbit/s) dual-fiber bidirectional optical modules ..........................................20
Table 2-9 Parameters of GE (1250 Mbit/s) single-fiber bidirectional optical modules........................................21
Table 2-10 Parameters of FE (155 Mbit/s) dual-fiber bidirectional optical modules ...........................................21
Table 2-11 Parameters of FE (155 Mbit/s) single-fiber bidirectional optical modules.........................................21
Table 2-12 Button.................................................................................................................................................22
Table 2-13 LEDs ..................................................................................................................................................23
Table 2-14 AC power supply................................................................................................................................25
Table 2-15 Specifications of the AC power supply..............................................................................................25
Table 2-16 Interface terminals on the DC power supply......................................................................................26
Table 2-17 Specifications of the DC power supply..............................................................................................26
Table 2-18 Technical specifications of the ground cable......................................................................................27
Table 2-19 Technical specifications of the OT terminal.......................................................................................28
Table 2-20 AC power cables ................................................................................................................................28
Table 2-21 Specifications of the European AC power cable ................................................................................29
Table 2-22 Specifications of the American AC power cable................................................................................30
Table 2-23 Technical specifications of the DC power cable.................................................................................30
Table 2-24 Technical specifications of the RJ45 Console cable...........................................................................32
Table 2-25 Technical specifications of RJ45 Console cable.................................................................................33

Raisecom
Gazelle S1000i-LI (A) User Manual
Tables
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
x
Table 2-26 Technical specifications of the Mini-USB Console cable..................................................................34
Table 2-27 Type and usage of the fiber ................................................................................................................35
Table 2-28 Wiring of the fiber..............................................................................................................................36
Table 2-29 Wiring of EIA/TIA 568A and EIA/TIA 568B standards ....................................................................37
Table 2-30 Technical specifications of the Ethernet cable ...................................................................................37
Table 3-1 Overall parameters ...............................................................................................................................40
Table 3-2 Software features..................................................................................................................................42
Table 3-3 Reliability indexes................................................................................................................................44
Table 3-4 Environmental requirements ................................................................................................................45
Table 4-1 Power conditions of the Gazelle S1000i-LI .........................................................................................46
Table 4-2 Items to be checked after installation...................................................................................................60

Raisecom
Gazelle S1000i-LI (A) User Manual
1 Overview
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
1
1 Overview
This chapter is an overview of the Gazelle S1000i-LI, including the following sections:
Introduction
Characteristics
Models
1.1 Introduction
The 1000 Mbit/s industrial Ethernet switch Gazelle S1000i-LI (hereinafter referred to as the
Gazelle S1000i-LI) adopts all-1000 Mbit/s interfaces, guide-rail chassis, all-metal shell, and
fanless design, and features good heat dissipation, small size, low power consumption, and
easy installation. The Gazelle S1000i-LI can meet requirements in security protection fields,
such as intelligent transportation and peaceful city, and can be applied to various fields, such
as the industrial TV, underground pipeline corridor, energy, and petrochemical industries.
The Gazelle S1000i-LI supports complete Layer 2 features and network management
performance, and provides multiple interface types, including electrical interface and optical
interface.

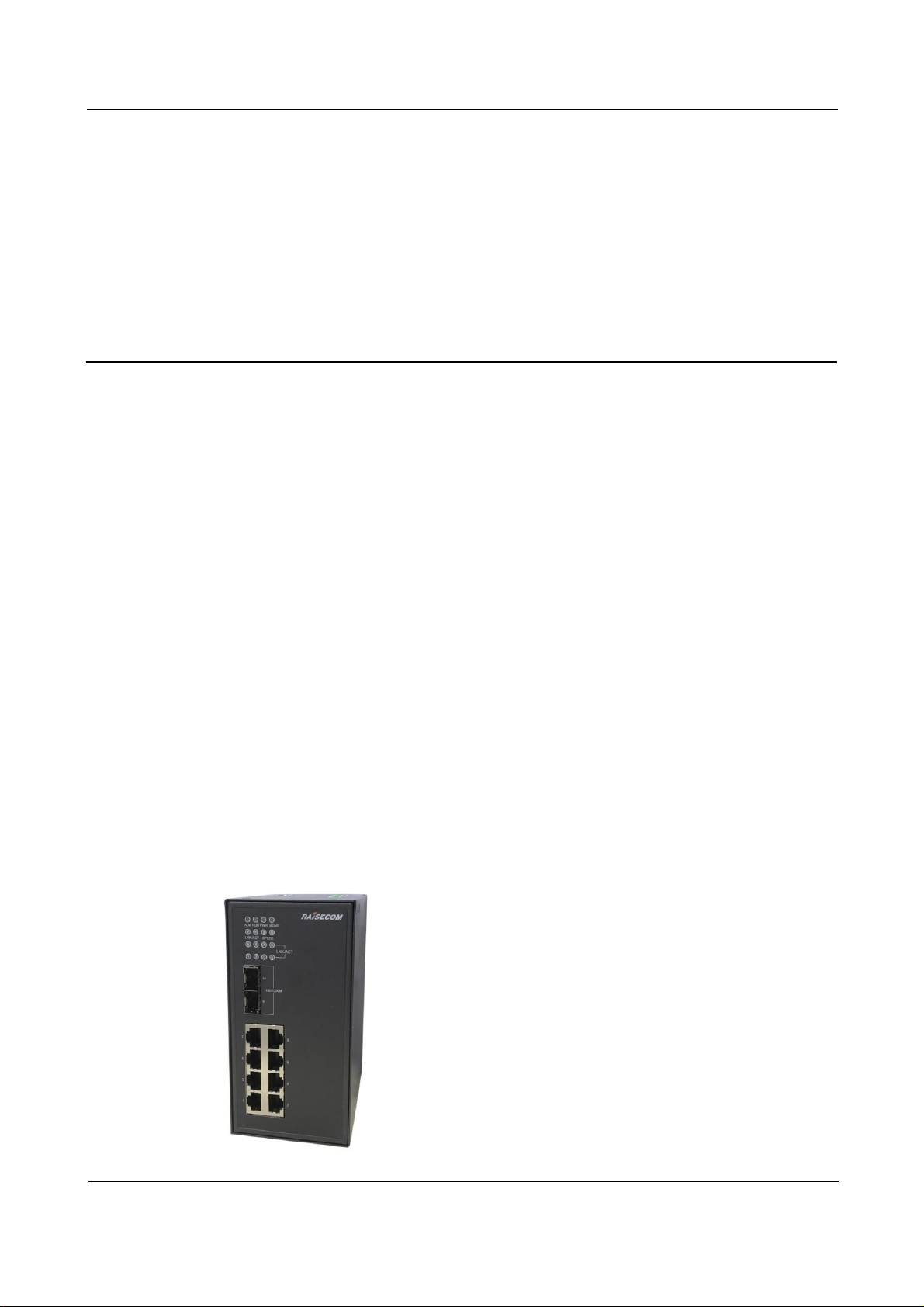

Figure 1-1 shows appearance of the Gazelle S1000i-2GF-8FE-LI
Figure 1-1 Appearance of the Gazelle S1000i-2GF-8FE-LI

Raisecom
Gazelle S1000i-LI (A) User Manual
1 Overview
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
2
1.2 Characteristics
1.2.1 High reliability
The Gazelle S1000i-LI is characterized by high reliability:
Adopt an industrial chip and power supply, and is designed with lower power
consumption.
Possess a guide-rail chassis, all-metal shell, and fanless heat dissipation design.
Support IP40 protection grade.
Support wide-temperature working environment with the operating temperature (altitude:
0–1800 m) in the range of -40 to +75°C and storage temperature in the range of -40 to
+85°C.
Be dampproof and corrosion-resisting, and works at 5%–95% relative humidity (non-
condensing).
Pass IEC 61000-4 industrial-grade electromagnetic compatibility test with good anti-
electromagnetic interference performance.
Mean Time Between Failure (MTBF) is 35 years.
When the altitude increases by 220 m between 1800 and 5000 m, the highest
operating temperature of the iTN8605-NO2D decreases by 1°C .
1.2.2 Various interface types
The Gazelle S1000i-LI meets special on-site environment requirements with various
interfaces, including:
Provide various interfaces. The uplink interface supports the SFP optical interface and
the downlink interface supports the RJ45 electrical interface.
Provide the RJ45 Console interface. However, the Gazelle S1000i-2GF-8FE-LI (H)
supports the Mini-USB Console interface.
Provide the alarm output interface with Phoenix connector.
Provide the RST button to restart the entire device or restore factory settings.
Provide 110/220 VAC power supply input.
1.2.3 Powerful PoE power supply
The Gazelle S1000i-LI PoE model supports PoE, with the following characteristics:
Support Endpoint PSE (PoE integrated in the Gazelle S1000i-LI).
Comply with IEEE 802.3 af (PoE).
Comply with IEEE 802.3 at (PoE+).
Support standard PDs and non-standard PDs.
Provide 8 RJ45 interfaces for PoE power supply, and meet power supply requirements of
15 W and 30 W. When all these PoE interfaces supply power, the maximum supplied
power is 240 W.
Support enabling/disabling PoE and configuring the maximum output power, power
supply mode, and power supply priority of PoE interfaces through software.

Raisecom
Gazelle S1000i-LI (A) User Manual
1 Overview
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
3
Support overtemperature protection.
1.2.4 Flexible networking performance
The Gazelle S1000i-LI possesses flexible networking performance:
Support multiple networking schemes, such as the chain, star, double-star, single ring,
intersecting ring, and tangent ring.
Support Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), and
Multiple Spanning Tree Protocol (MSTP), which enhance the link redundant backup and
fault-tolerant performance to ensure stable operation of the network.
Support G.8032 Ethernet Ring Protection Switching (ERPS) and support protection
switching time to be less than 50ms. This solves multi-ring protection, arbitrary topology,
multi-domain protection, and multi-protocol interoperability.
1.2.5 Complete security guarantee
The Gazelle S1000i-LI provides complete security guarantee:
Support user management at different levels and password protection to avoid
unauthorized access.
Support Remote Authentication Dial In User Service (RADIUS) authentication and
Terminal Access ControllerAccess Control System (TACACS+) authentication, and
provide integrated password management.
Support static Address Resolution Protocol (ARP); namely, bind the MAC address with
the interface to protect the network fromARP attacks.
Support storm control (including broadcast, unknown multicast, and unknown unicast
packets), which effectively ensures the Gazelle S1000i-LI to work normally under bad
network conditions.
Support VLAN partition based on the IEEE 802.1Q to isolate physical interfaces.
Support interface protection to implement data isolation in the interface protection group
and further perfect the protection mechanism of the user data.
Support encrypted authentication and access security provided by SNMPv3.
1.2.6 Comprehensive management modes
The Gazelle S1000i-LI supports the following management modes:
Web mode: it employs the graphic management interface, which reduces the difficulty of
Human-Computer Interaction (HCI) and facilitates management and maintenance of the
device.
SNMP/RMON mode: the Gazelle S1000i-LI can be managed through the NView NNM
system, which can implement alarm management of a single device or multiple devices
to achieve the goal of managing all devices comprehensively.
Support Telnet and SSH remote login to implement remote management and
maintenance.
Support multiple software upgrading modes, such as, TFTP, FTP, SFTP, Network
Management System (NMS), and Web.

Raisecom
Gazelle S1000i-LI (A) User Manual
1 Overview
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
4
1.3 Models
Table 1-1 lists the models of the Gazelle S1000i-LI.
Table 1-1 Models
Model
Description
Gazelle S1000i-
2GF-4FE-LI
Provide two 100/1000 auto-negotiation SFP optical interfaces.
Provide four 10/100BASE-TX auto-negotiation electrical
interfaces.
Support 110/220 VAC power supply with voltage range of 100 to
240 VAC.
Gazelle S1000i-
2GF-8FE-LI (A)
Provide two 100/1000 auto-negotiation SFP optical interfaces.
Provide eight 10/100BASE-TX auto-negotiation electrical
interfaces.
Support 110/220 VAC power supply with voltage range of 100 to
240 VAC.
Gazelle S1000i-
2GF-8FE-LI (H)
Provide two 100/1000 auto-negotiation SFP optical interfaces.
Provide eight 10/100BASE-TX auto-negotiation electrical
interfaces.
Provide one Mini-USB Console interface.
Support 110/220 VAC power supply with voltage range of 100 to
240 VAC.
Gazelle S1000i-
4GF-16FE-LI
Provide four 100/1000 auto-negotiation SFP optical interfaces.
Provide sixteen 10/100BASE-TX auto-negotiation electrical
interfaces.
Support 110/220 VAC power supply with voltage range of 100 to
240 VAC.
Gazelle S1000i-
4GX-16FE-LI
Provide four 1000 Mbit/s Combo interfaces.
Provide sixteen 10/100BASE-TX auto-negotiation electrical
interfaces.
Support 110/220 VAC power supply with voltage range of 100 to
240 VAC.
Gazelle S1000i-
2GF-4GE-LI
Provide two 100/1000 Mbit/s auto-negotiation SFP optical
interfaces.
Provide four 10/100/1000 Mbit/s Ethernet electrical interfaces.
Support 110/220 VAC power supply with voltage range of 100 to
240 VAC.
Gazelle S1000i-
2GF-8GE-LI
Provide two 100/1000 Mbit/s auto-negotiation SFP optical
interfaces.
Provide eight 10/100/1000 Mbit/s Ethernet electrical interfaces.
Support 110/220 VAC power supply with voltage range of 100 to
240 VAC.
Gazelle S1000i-
2GF-8GE-PWR-LI
Provide two 100/1000 Mbit/s auto-negotiation SFP optical
interfaces.
Provide eight 100/1000 Mbit/s Ethernet electrical interfaces,
which can work as 8 IEEE 802.3af or IEEE 802.3at PoE
interfaces. The PoE interface supports non-standard PDs and can
supply 15/30 W power. The maximum PoE supplied power of the
entire device is 240 W.
Support -48 VDC power supply with voltage range of 36 to 60
VDC.

Raisecom
Gazelle S1000i-LI (A) User Manual
2 Hardware structure
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
5
2 Hardware structure
This chapter describes the hardware structure of the Gazelle S1000i-LI, including the
following sections:
Appearance
Interfaces
Interface parameters
Button
LEDs
Power supply
Cables
2.1 Appearance
2.1.1 Front appearance
Gazelle S1000i-2GF-4FE-LI
Figure 2-1 shows the front appearance of the Gazelle S1000i-2GF-4FE-LI.

Raisecom
Gazelle S1000i-LI (A) User Manual
2 Hardware structure
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
6
Figure 2-1 Front appearance of the Gazelle S1000i-2GF-4FE-LI
1
LEDs (ALM, RUN, PWR, MGMT, SPEED, and LNK/ACT)
2
Service interfaces 5–6 (SFP optical interfaces)
3
Service interfaces 1–4 (RJ45 electrical interfaces) and LEDs (LNK/ACT and SPEED)
Gazelle S1000i-2GF-8FE-LI
Figure 2-2 shows the front appearance of the Gazelle S1000i-2GF-8FE-LI (A) and Gazelle
S1000i-2GF-8FE-LI (H).

Raisecom
Gazelle S1000i-LI (A) User Manual
2 Hardware structure
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
7
Figure 2-2 Front appearance of the Gazelle S1000i-2GF-8FE-LI
1
LEDs (ALM, RUN, PWR, MGMT, SPEED, and LNK/ACT)
2
Service interfaces 9–10 (SFP optical interfaces)
3
Service interfaces 1–8 (RJ45 electrical interfaces)
Gazelle S1000i-4GF-16FE-LI
Figure 2-3 shows the front appearance of the Gazelle S1000i-4GF-16FE-LI.

Raisecom
Gazelle S1000i-LI (A) User Manual
2 Hardware structure
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
8
Figure 2-3 Front appearance of the Gazelle S1000i-4GF-16FE-LI
1
LEDs (ALM, RUN, PWR, MGMT, SPEED, and LNK/ACT)
2
Service interfaces 17–20 (SFP optical interfaces)
3
Service interfaces 1–16 (RJ45 electrical interfaces)
Gazelle S1000i-4GX-16FE-LI
Figure 2-4 shows the front appearance of the Gazelle S1000i-4GX-16FE-LI.
