REPAIR PARTS MANUAL
MODEL NO. RE115T96B
Lawn Tractor
532 19 07-00 12.16.03 MH
PRINTED IN U.S.A.
www.ersatzteil-service.de
Der Ersatzteilspezialist im Internet.

2
HOW TO USE THIS MANUAL
This manual is designed to provide the customer with a means to identify the parts on his/her tractor
when ordering repair parts. The illustrations may or may not represent the actual assemblies; therefore,
it is not recommended to use this manual as a guide to assemble or disassemble the tractor. Some
hardware and parts are drawn larger in order to more readily identify them.
Each tractor has its own model number.
The model number for your tractor can be found on the fender under the seat.
When ordering parts, always give the following information:
• Product - “Tractor”
• Model Number - RE
115T96B
• Part Number
• Part Description
TABLE OF CONTENTS
SCHEMATIC ................................................................................................................ 3
ELECTRICAL............................................................................................................4-5
CHASSIS...................................................................................................................6-7
DRIVE........................................................................................................................8-9
STEERING ............................................................................................................10-11
ENGINE.................................................................................................................12-13
SEAT .......................................................................................................................... 14
DECALS..................................................................................................................... 15
MOWER DECK .....................................................................................................16-17
MOWER LIFT.............................................................................................................18
www.ersatzteil-service.de
Der Ersatzteilspezialist im Internet.

3
TRACTOR - - MODEL NUMBER RE115T96B, PRODUCT NO. 954 12 00-70

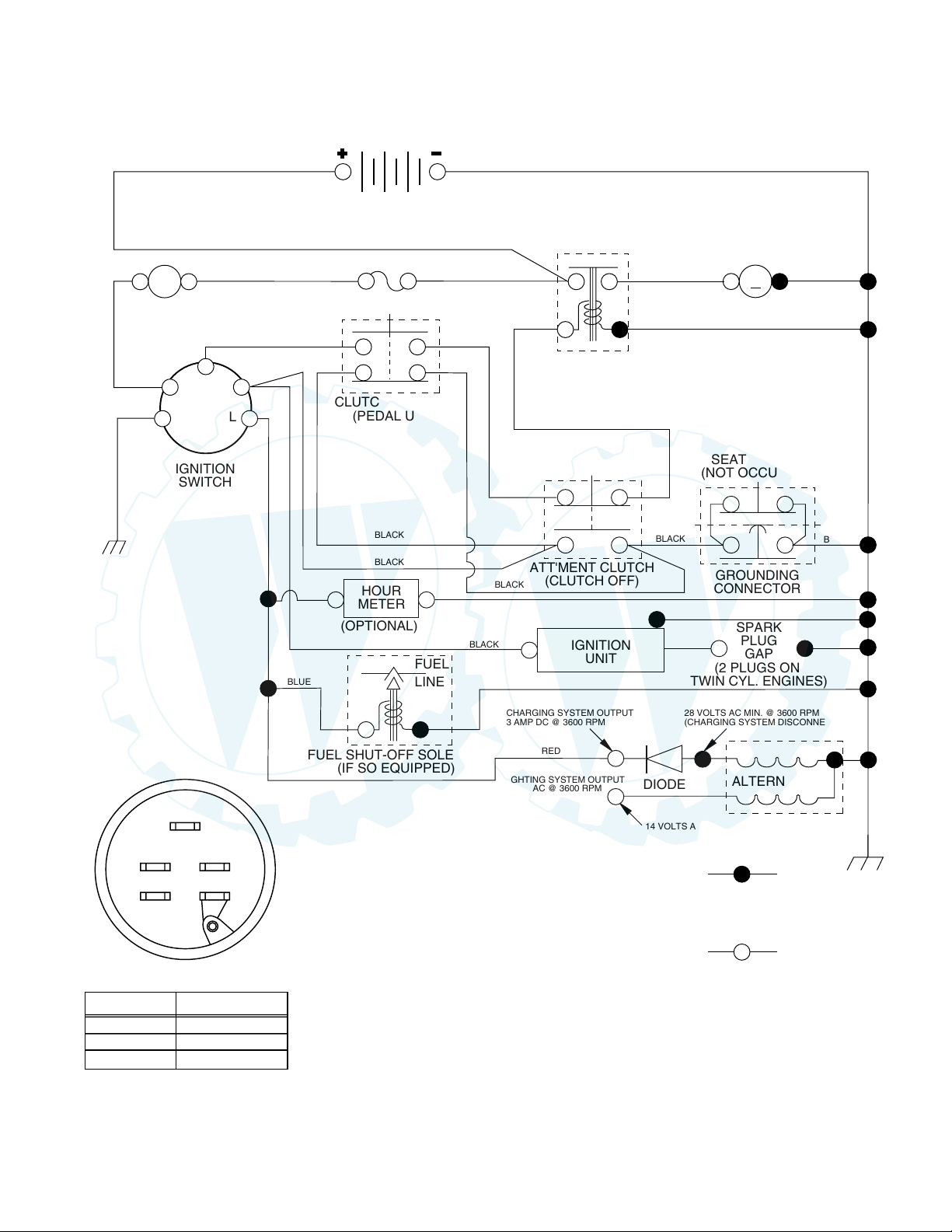

SCHEMATIC
BATTERY
FUSE
IGNITION
SWITCH
RED RED
RED BLACK
IGNITION
UNIT
REMOVABLE
CONNECTIONS
BLACK
BLACK BLACK
WHITE
WHITE
WHITE
RED
BLACK
BLACK
BLACK
BLACK
STARTER
M
SEAT SWITCH
(NOT OCCUPIED)
GROUNDING
CONNECTOR
ATT'MENT CLUTCH
(CLUTCH OFF)
CLUTCH / BRAKE
(PEDAL UP)
SOLENOID
BLACK
LIGHTING SYSTEM OUTPUT
5 AMP AC @ 3600 RPM
ALTERNATOR
14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)
DIODE
28 VOLTS AC MIN. @ 3600 RPM
(CHARGING SYSTEM DISCONNECTED)
CHARGING SYSTEM OUTPUT
3 AMP DC @ 3600 RPM
NOTE: IF WIRING INSULATED CLIPS
WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
A
AMMETER
RED
G
BSM
L
HOUR
METER
(OPTIONAL)
(OPTIONAL)
SPARK
PLUG
GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
(IF SO EQUIPPED)
NON-REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
IGNITION SWITCH
CIRCUITPOSITION
OFF
B + LON
B + S + LSTART
M + G
S
B
G
M
L
BLUE
FUEL SHUT-OFF SOLENOID
FUEL
LINE
www.ersatzteil-service.de
Der Ersatzteilspezialist im Internet.

4
REPAIR PARTS
TRACTOR - - MODEL NUMBER RE115T96B, PRODUCT NO. 954 12 00-70

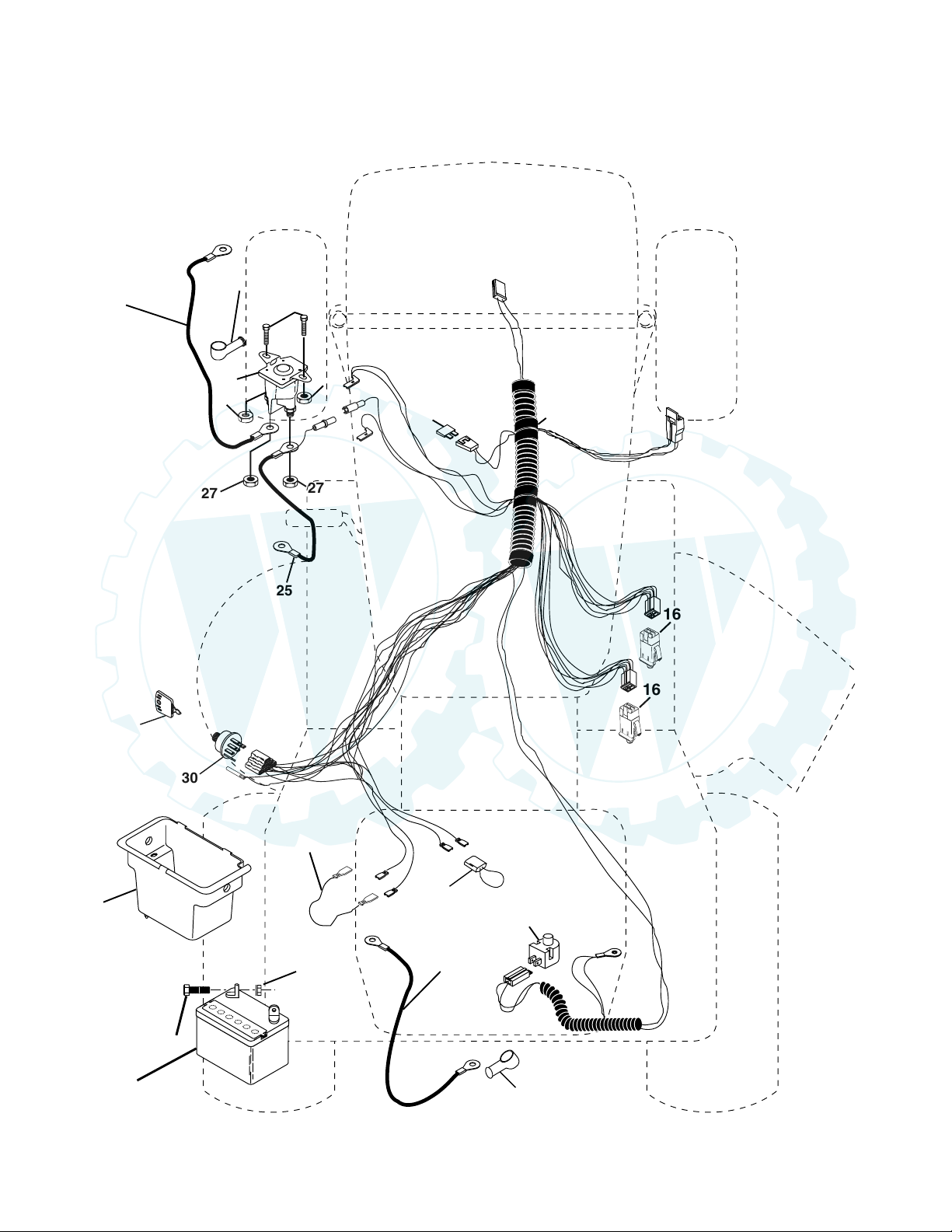

ELECTRICAL
28
29
26
24
42
43
27
27
25
41
27
27
40
33
90
30
8
2
1
27
48
16
52
16
www.ersatzteil-service.de
Der Ersatzteilspezialist im Internet.

5
REPAIR PARTS
TRACTOR - - MODEL NUMBER RE115T96B, PRODUCT NO. 954 12 00-70
ELECTRICAL
1 532 16 34-65 Battery 12 Volt 25 Amp
2 874 76 04-12 Bolt Hex Hd 1/4-20 unc x 3/4
8 532 17 66-89 Battery Box
16 532 17 61-38 Switch Interlock Push-In
24 532 12 47-80 Cable Battery 6 Ga. 11"red
25 532 14 61-47 Cable Battery
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 unc
28 532 12 47-73 Cable Ground 6 Ga. 12" black
29 532 12 13-05 Switch Plunger Nc Gray
30 532 17 55-67 Switch Ign
33 532 14 04-01 Key Ign
40 532 17 97-30 Harness Ign
41 871 11 04-08 Bolt Blk Fin Hex 1/4-20
42 532 13 15-63 Cover Terminal Red
43 532 17 88-61 Solenoid
48 532 14 08-44 Adapter Ammeter
52 532 14 19-40 Protection Wire Loop
90 532 18 04-49 Cover Terminal Battery
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U. S.
inches 1 inch = 25.4 mm.
www.ersatzteil-service.de
Der Ersatzteilspezialist im Internet.

6
REPAIR PARTS
TRACTOR - - MODEL NUMBER RE115T96B, PRODUCT NO. 954 12 00-70

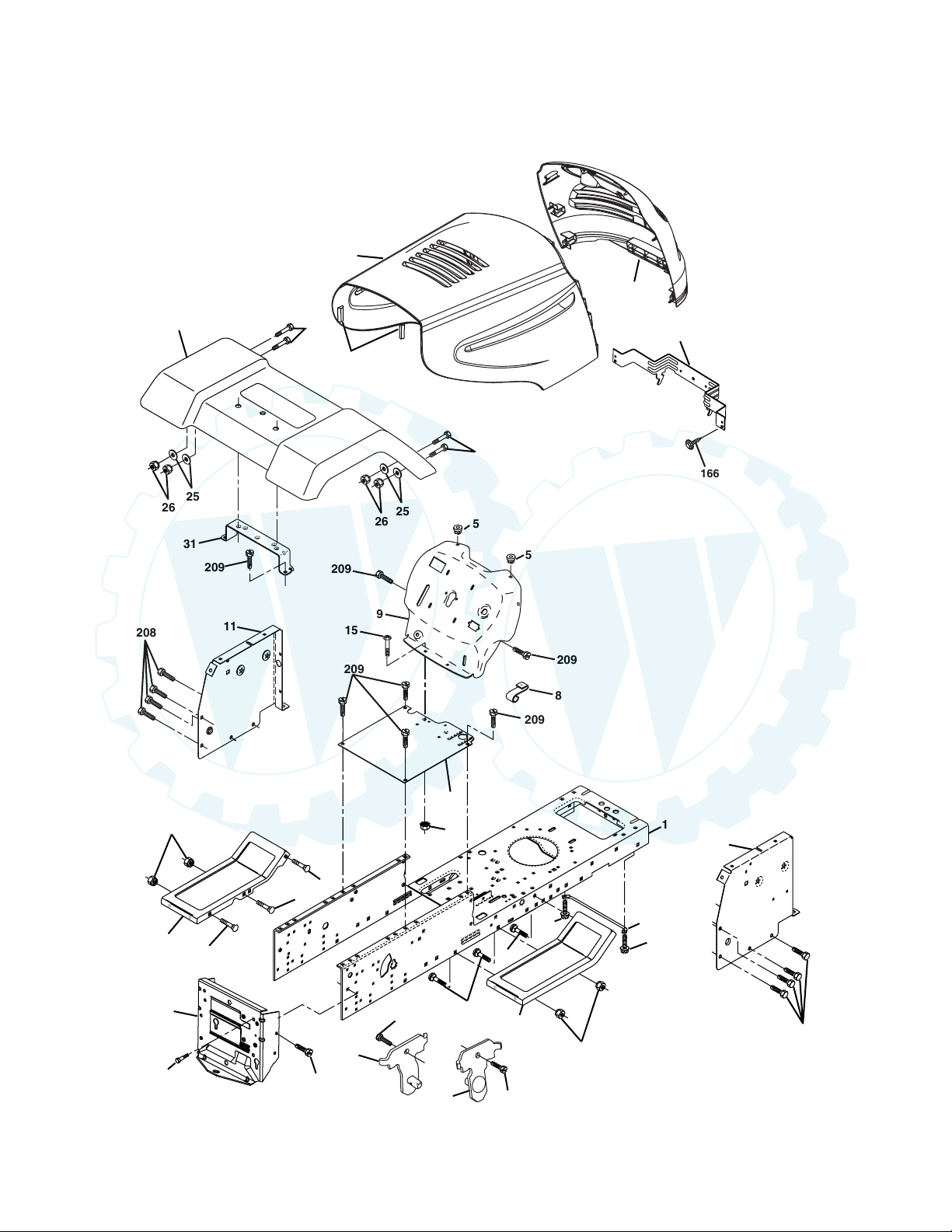

CHASSIS AND ENCLOSURES
209
235
209
26
35
209
26
33
10
34
1
208 11
208
13
24
26
25
26
25
209
31
24
30
209
8
209
6
16
9
15
209
209
5
5
145
37
37
18
206
205
205
38
38
17
28
166
39
Chassis-Elite_Basic_LT_4
www.ersatzteil-service.de
Der Ersatzteilspezialist im Internet.

7
REPAIR PARTS
TRACTOR - - MODEL NUMBER RE115T96B, PRODUCT NO. 954 12 00-70
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm.
1 532 17 46-20 Chassis
2 532 17 65-54 Drawbar
5 532 15 52-72 Bumper, Hood/Dash
6 532 18 12-71 Saddle
8 532 15 51-38 Clip Retainer Slide-On
9 532 18 54-80 Dash
10 872 14 06-08 Bolt, Carriage 3/8-16 x 1
11 532 17 49-96 Panel Dash LH
13 532 18 69-52 Panel Slkscr Dash RH
15 874 18 05-12 Screw Mach TRHD 5/16-18 unc x 3/4
16 873 51 05-00 Nut Keps 5/16-18 Unc
17 532 18 67-07 Hood
18 532 12 69-38 Bumper Hood
24 874 78 06-16 Bolt Fin Hex 3/8-16 unc x 1 Gr. 5
25 819 13 13-12 Washer 13/32 x 13/16 x 12 Ga.
26 873 80 06-00 Nut Lock Hex w/Ins 3/8-16 unc
28 532 18 67-18 Grille/Lens Asm.
30 532 18 25-35 Fender
31 532 13 66-19 Bracket Fender Repl 109873x
33 532 18 11-93 Footrest Pnt LH
34 532 18 11-94 Footrest Pnt RH
35 872 11 06-06 Bolt Rdhd Sht Sqnk 3/8-16 x 3/4
37 817 49 05-08 Screw Thdrol 5/16-18 x 1/2 TYT
38 532 17 57-10 Bracket Asm. Pivot Mower Rear
39 532 17 47-14 Bracket Pivot Laser
145 532 15 65-24 Rod Pivot Chassis/Hood
166 532 17 18-75 Screw HwHd Hi-Lo # 13-16 x 5/8
205 817 49 06-08 Screw Thdrol 3/8-16 x 1/2
206 532 17 01-65 Bolt Shoulder 5/16-18
208 817 67 06-08 Screw Thdrol 3/8-16 x 1/2
209 817 00 06-12 Screw Hex Wsh Thdrol 3/8-16
- - - 532 00 54-79 Plug Button Blk 359 Dia Choke
www.ersatzteil-service.de
Der Ersatzteilspezialist im Internet.

8
REPAIR PARTS
TRACTOR - - MODEL NUMBER RE115T96B, PRODUCT NO. 954 12 00-70
DRIVE
29
28
112
14
41
38
39
57 120
74
75
7876
77
25
26
19
24
253
35
34
37
36 35
62
36
64
65
59
56
212
55
63
116
70
77
61
22 27
26
6
113
18
51 5
18
6
52 30
32
32
30
52
11
21
4
3
13
10
8
12
12
7
263
263
1
15
96
26
79
16
66
27 51
48
151
202
49
47
50
120
150
6
170
drive-saddle_33
www.ersatzteil-service.de
Der Ersatzteilspezialist im Internet.

9
REPAIR PARTS
TRACTOR - - MODEL NUMBER RE115T96B, PRODUCT NO. 954 12 00-70
DRIVE
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - - - - Transaxle, Peerless 204-506B
(Order parts from transaxle manu-
facturer)
2 532 14 66-82 Spring Return Brake T/a Zinc
3 532 12 36-66 Pulley Transaxle 18" tires
4 812 00 00-28 Ring Retainer # 5100-62
5 532 12 15-20 Strap Torque 30 Degrees
6 817 00 05-12 Screw 5/16-18 x 3/4
7 532 16 22-40 Bracket T/A Saddle Shift
8 532 13 16-79 Rod Shifter
10 876 02 04-16 Pin Cotter 1/8 x 1 Cad
11 532 10 57-01 Washer Plate Shf 388 Sq Hole
12 819 15 12-16 Washer 15/32 x 3/4 x 16
13 874 55 04-12 Bolt 1/4-28 Unf Gr. 8 W/Patch
14 810 04 04-00 Washer Lock Hvy Helical 1/4
15 874 49 05-44 Bolt Hex Flghd 5/16-18 Gr. 5
16 873 80 05-00 Nut Lock Hx W/Ins 5/16-18 unc
18 874 78 06-16 Bolt, Fin Hex 3/8-16 unc x 1 Gr. 5
19 873 80 06-00 Nut Lock 3/8-16 unc
21 532 10 69-33 Knob
22 532 13 08-04 Rod Brake Blk Zinc 26 840
24 873 35 06-00 Nut Hex Jam 3/8-16 unc
25 532 10 68-88 Spring Rod Brake 2 00 Zinc
26 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
27 876 02 04-12 Pin Cotter 1/8 x 3/4 Cad
28 532 17 57-65 Rod Brake Parking
29 532 07 16-73 Cap Brake Parking
30 532 17 49-73 Bracket Mtg Transaxle
32 874 76 05-12 Bolt Hex Hd 5/16-18 unc x 3/4
34 532 17 55-78 Shaft Asm Pedal Foot
35 532 12 01-83 Bearing Nylon Blk 629 Id
36 819 21 16-16 Washer 21/32 x 1 x 16 Ga.
37 532 12 49-63 Pin Roll 3/16 x 1"
38 532 17 91-14 Pulley Idler Composite
39 872 11 06-22 Bolt Rdhd 3/8-16 unc x 2-3/4 Gr. 5
41 532 17 55-56 Keeper Belt Retainer Idler
47 532 12 77-83 Pulley Idler V Groove Plastic
48 532 15 44-07 Bellcrank Asm
49 532 12 32-05 Retainer Belt Style Spring
50 872 11 06-12 Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5
51 873 68 06-00 Nut Crownlock 3/8-16 unc
52 873 68 05-00 Nut Crownlock 5/16-18 unc
53 532 10 57-10 Link Clutch
55 532 10 57-09 Spring Return Clutch 6 75
56 817 06 06-20 Screw 3/8-16 x 1-1/4
57 532 13 08-01 V-Belt Ground Drive
59 532 16 96-91 Keeper Belt Span Ctr
61 817 12 06-14 Screw 3/8-16 x .875
62 532 12 48-72 Cover Pedal Blk Round
63 532 18 02-19 Engine Pulley
64 532 17 39-37 Bolt Hex
65 810 04 07-00 Washer Lock Hvy Hlcl Spr 7/16
66 532 15 47-78 Keeper Belt Engine Foolproof
70 532 18 02-18 Guide Belt Mower Drive RH
74 532 13 70-57 Spacer Axle
75 532 12 17-49 Washer 25/32 x 1 1/4 x 16 Ga.
76 812 00 00-01 E-ring #5133-75
77 532 12 35-83 Key Square 2 0 x 1845/ 1865
78 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
79 532 12 50-96 Key Woodruff
96 532 12 47-88 Retainer Spring 1"
112 819 09 12-10 Washer 9/32 x 3/4 x 10 Ga.
113 532 12 72-85 Strap Torque Lh
116 872 14 06-08 Bolt Rdhd Sq Neck 3/8-16 x 1.00
120 873 90 06-00 Nut Lock Flg 3/8-16
150 532 17 54-56 Spacer Retainer
151 819 13 32-10 Washer 13/32 x 2 x 10
170 532 18 74-14 Keeper Belt T/A
202 872 11 06-14 Bolt, 3/8 - 16 x 1-3/4 Gr. 5
212 532 14 52-12 Nut Flange Hex Lock
263 817 00 06-12 Screw 3/8-16 x 3/4
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
www.ersatzteil-service.de
Der Ersatzteilspezialist im Internet.

10
REPAIR PARTS
TRACTOR - - MODEL NUMBER RE115T96B, PRODUCT NO. 954 12 00-70
STEERING
44
51
54
5
9
5
7
7
9
4
332
43
95
43
8
10
40
11
8
6
9
46
46
8
6
9
2
47
47
26
30
28
1
41
42
37
36
37
38
12
39
68 67
67
67
13
65
68
15
15
15
29
29 82
88
71
17
29
43
91
steering_pl.lt_46
www.ersatzteil-service.de
Der Ersatzteilspezialist im Internet.

11
REPAIR PARTS
TRACTOR - - MODEL NUMBER RE115T96B, PRODUCT NO. 954 12 00-70
STEERING
1 532 17 71-82 Wheel Steering
2 532 17 51-31 Axle Asm
3 532 16 98-40 Spindle Asm LH
4 532 16 98-39 Spindle Asm RH
5 532 12 49-31 Bearing Race Thrust Harden
6 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
7 819 27 20-16 Washer 27/32 x 1-1/4 x 16 Ga.
8 812 00 00-29 Ring Klip #t5304-75
9 532 12 49-37 Bearing Col Strg Blk
10 532 17 51-21 Link Drag
11 810 04 06-00 Washer Lock Hvy Hlcl Spr 3/8
12 873 94 08-00 Nut Hex Jam Toplock 1/2-20
13 532 13 65-18 Spacer earing Axle Front
15 532 14 52-12 Hexflange Lock
17 532 18 06-41 Shaft Asm Strg
26 532 12 68-47 Bushing Link Drag Blk LR
28 819 13 14-16 Washer 13/32 x 7/8 x 16 Ga.
29 817 00 06-12 Screw 3/8-16 x 3/4
30 876 02 04-12 Pin Cotter 1/8 x 3/4 Cad
32 532 13 04-65 Rod Tie Wire Form 19 75 Mech
36 532 15 50-99 Bushing Strg 5/8 Id Dash
37 532 15 29-27 Screw
38 532 17 71-83 Cap Wheel Steer
39 819 18 38-12 Washer 9/16 ID x 2-3/8 OD 12 Ga.
40 873 54 06-00 Nut Crownlock 3/8-24
41 532 18 67-37 Adaptor Wheel Strg
42 532 16 96-33 Boot Steering
43 532 12 17-49 Washer 25/32 x 1 1/4 x 16 Ga.
44 532 18 06-40 Extension Steering
46 532 12 12-32 Cap Spindle Fr Top Blk
47 532 18 32-26 Fitting Grease
51 873 54 04-00 Nut Crownlock 1/4-28
54 871 13 04-20 Bolt Hex 1/4-28unf x 1-1/4 Gr. 8
65 532 16 03-67 Spacer Brace Axle
67 872 11 06-18 Bolt RdHd Sqnk 3/8-16 x 2-1/4
68 532 16 98-27 Brace Axle
71 532 17 51-46 Steering Asm
82 532 16 98-35 Bracket Susp Chassis Front
88 532 17 51-18 Bolt shoulder 7/16-20
91 532 17 55-53 Clip Steering
95 532 18 89-67 Washer Hardened
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm.
www.ersatzteil-service.de
Der Ersatzteilspezialist im Internet.

12
REPAIR PARTS
TRACTOR - - MODEL NUMBER RE115T96B, PRODUCT NO. 954 12 00-70
ENGINE
2
1
OPTIONAL EQUIPMENT
Spark Arrester
29
44
46
32
31
33
37
33
40
62
13
4
85
78
78
81
3
23
45
14
38
engine-tecumseh_2
www.ersatzteil-service.de
Der Ersatzteilspezialist im Internet.

13
REPAIR PARTS
TRACTOR - - MODEL NUMBER RE115T96B, PRODUCT NO. 954 12 00-70
ENGINE
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 532 17 08-64 Control Throttle/Choke
2 817 72 04-08 Screw Hex Thd Cut 1/4-20 x 5/8 T
3 - - - - - - - - Engine Tec Model OV358EA
(Order Parts from Engine Manufacturer)
4 532 15 67-00 Muffler Exhaust
13 - - - - - - - - - Gasket (Order from Engine Mfg.)
14 532 14 84-56 Tube Drain Oil Easy
23 532 16 98-37 Shield Browning/Debris Guard
29 532 13 71-80 Arrestor Spark
31 532 18 49-00 Tank Fuel
32 532 14 05-27 Cap Asm Fule Top Vent N/Lany
33 532 12 34-87 Clamp Hose Blk
37 532 13 70-40 Line Fuel 20"
38 532 18 16-54 Plug Drain Oil Easy
40 532 12 40-28 Bushing Snap
44 817 67 04-12 Screw Hexwsh Thdrol 3/8-16 x 3/4
45 817 00 06-12 Screw 3/8-16 x 3/4
46 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.
62 810 04 05-00 Washer Lock Hvy HLCL Spr 5/16
78 817 06 06-20 Screw 3/8-16 x 1-1/4
81 873 51 04-00 Nut Keps Hex 1/4-20 unc
85 871 07 05-12 Screw 5/16-18 x 3/4
www.ersatzteil-service.de
Der Ersatzteilspezialist im Internet.

14
REPAIR PARTS
TRACTOR - - MODEL NUMBER RE115T96B, PRODUCT NO. 954 12 00-70

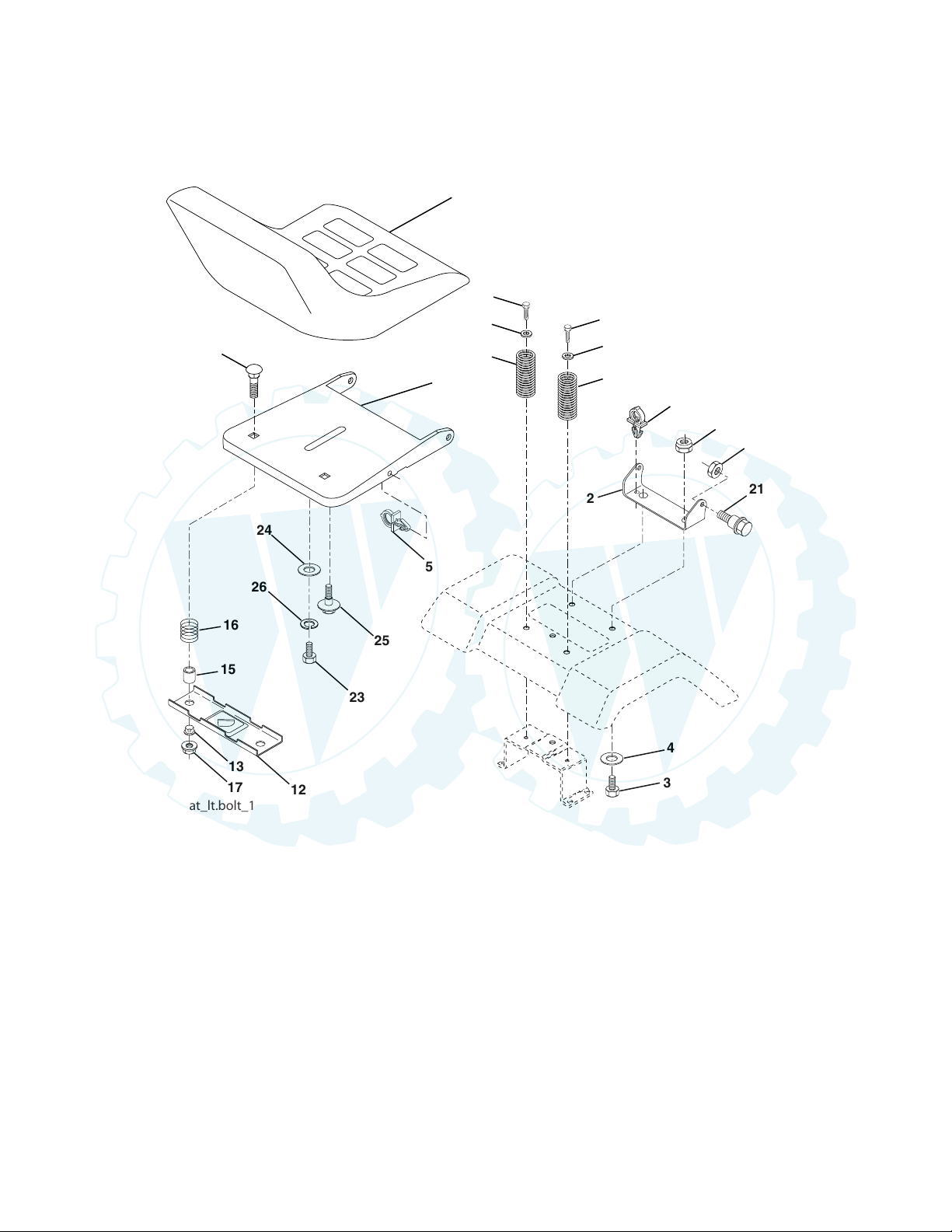

SEAT
KEY PART
NO. NO. DESCRIPTION
1 532 17 53-89 Seat
2 532 14 05-51 Bracket Seat Pivot
3 871 11 06-16 Bolt Hex 3/8 - 16 x 1
4 819 13 16-10 Washer 13/32 x 1 x 10 Ga.
5 532 14 50-06 Clip Push-In Hinged
6 873 80 06-00 Nut Lock Hex w/Ins 3/8 - 16
7 532 12 41-81 Spring Seat Cprsn 2 250 Blk Zi
8 817 00 06-16 Screw 3/8-16 x 1.5
9 819 13 16-14 Washer 13/32 x 1 x 14 Ga.
10 532 18 24-93 Pan Pnt Seat (Blk)
12 532 12 12-46 Bracket Pnt Mounting Switch
13 532 12 12-48 Bushing Snap Blk Nyl
KEY PART
NO. NO. DESCRIPTION
14 872 05 04-12 Bolt Rdhd Sht Nk 1/4 - 20 x 1 -1/2
15 532 13 43-00 Spacer Split .28 x .96
16 532 12 12-50 Spring Cprsn
17 532 12 39-76 Nut Lock 1/4 Lge Flg
21 532 17 18-52 Bolt Shoulder 5/16-18 unc-2A
22 873 80 05-00 Nut Lock Hex w/Ins 5/16 - 18
23 871 11 08-14 Bolt Hex Black
24 819 17 19-12 Washer 17/32 x 1-3/16 x 12 Ga.
25 532 12 70-18 Bolt Shoulder 5/16-18 x .62
26 810 04 08-00 Washer Lock Hvy Hlcl Spr 1/2
26
23
1
24
16
15
12
13
17
25
4
3
8
9
7
8
9
7
2
6
22
21
5
10
5
14
seat_lt.bolt_1
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm.
www.ersatzteil-service.de
Der Ersatzteilspezialist im Internet.

15
REPAIR PARTS
TRACTOR - - MODEL NUMBER RE115T96B, PRODUCT NO. 954 12 00-70
DECALS
12
8
6
15
3
KEY PART
NO. NO. DESCRIPTION
1 532 18 76-21 Decal, Hood LH
2 532 12 70-75 Decal, Steering Wheel
3 532 15 97-37 Decal, Brake/Clutch
4 532 15 97-36 Decal, Hot Muffler
5 532 18 11-46 Decal, Fender
6 532 18 04-32 Decal, DB/CE
7 532 14 54-98 Decal, Read Owner's Manual
8 532 13 68-32 Decal, V-Belt Sch.
9 532 14 08-37 Decal, Parking Brake
10 532 18 21-66 Decal, Cut Finger
11 532 18 98-86 Decal, Engine
12 532 18 76-20 Decal, Hood RH
13 532 18 69-06 Decal, Warranty
14 532 13 49-99 Decal, Deck Enviro
15 532 14 50-05 Decal, Caution, Battery
16 532 19 08-27 Decal, Warranty
- - 532 16 25-98 Decal, Drawbar
- - 532 13 83-11 Decal, Handle Lft Height Adj.
- - 532 18 51-49 Manual, Operator's, Euro
- - 532 19 07-00 Manual Parts
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap, Tire valve
2 532 06 51-39 Stem, Valve
3 532 12 41-57 Tire, Front
4 532 05 99-04 Tube, Front (Service item only)
5 532 18 33-37 Rim assembly, 6" front
6 532 12 49-57 Fitting, Grease (Front wheel only)
7 532 12 49-59 Bearing, Flange (Front wheel only)
8 532 18 33-38 Rim assembly, 8" rear
9 532 12 39-69 Tire, Rear
10 532 12 49-26 Tube, Rear (Service item only)
11 532 17 50-39 Cap, Hub Axle
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
6
2
1
5,8
4,10
3,9
11
7
wheel_1
KEY PART
NO. NO. DESCRIPTION
WHEELS & TIRES
4
2
7
11
5
1
4
10
13
9
14
16
www.ersatzteil-service.de
Der Ersatzteilspezialist im Internet.

16
REPAIR PARTS
TRACTOR - - MODEL NUMBER RE115T96B, PRODUCT NO. 954 12 00-70

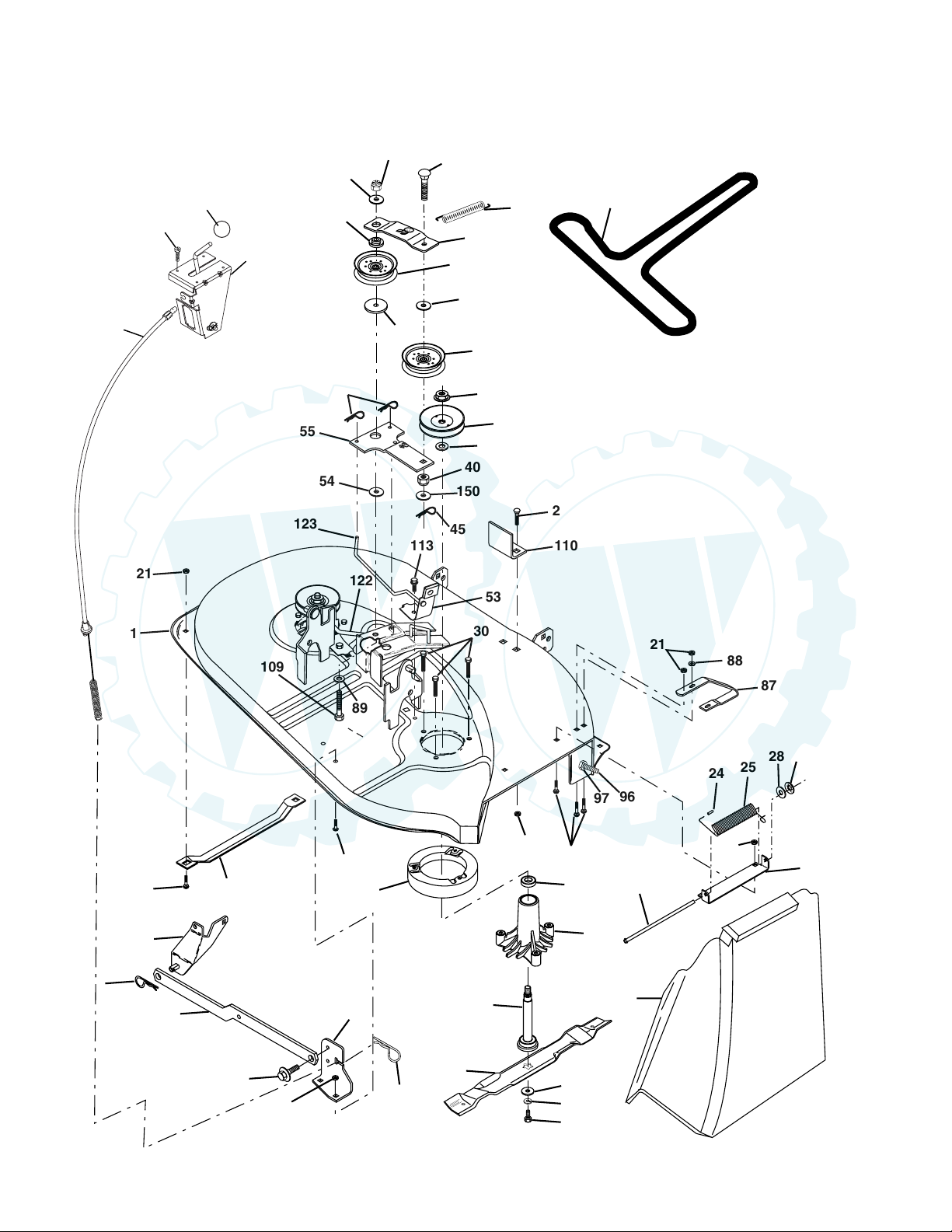

MOWER DECK
19
86
38
42
215
14
13
11
10
9
8
1
21
2
96
97
29
27
23
26
28
25
24
21
87
88
21
146
31
40
150
45
32
33
45
55
56
36
36
89
123
113
53
30
109
89
122
40
89
108
107
68
4
3
5
6
2
21
149
16
21
2
110
54
148
38_deck-manual_2
185
67
158
42_clutch_mod_7
152
www.ersatzteil-service.de
Der Ersatzteilspezialist im Internet.

17
REPAIR PARTS
TRACTOR - - MODEL NUMBER RE115T96B, PRODUCT NO. 954 12 00-70
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
1 532 17 02-80 Mower Housing Assembly
2 872 14 05-06 Bolt Carriage 5/16-18 x 3/4
3 532 13 80-17 Bracket Asm Fr. Sway Bar
4 532 16 99-70 Bracket Deck Sway Bar 38"/42"
5 532 12 46-70 Retainer Spring
6 532 17 80-24 Sway Bar Deck
8 532 85 08-57 Bolt 3/8-24 x 1.25 Gr. 8
9 810 03 06-00 Washer, Lock 3/8
10 532 14 02-96 Washer, Hardened
11 532 13 84-97 Blade Mower
13 532 13 76-45 Shaft Assembly, Mandrel, Vented
(Includes Key Number 6)
14 532 12 87-74 Housing, Mandrel, Vented
15 532 11 04-85 Bearing, Ball, Mandrel
16 532 17 44-93 Stripper, Mower Deck
19 532 13 28-27 Bolt, Shoulder
21 873 68 05-00 Nut
23 532 13 76-07 Bracket, Mower Deflector
24 532 10 53-04 Cap, Sleeve
25 532 12 37-13 Spring, Torsion, Deflector
26 532 11 04-52 Nut, Push
27 532 17 59-43 Shield, Deflector
28 819 11 10-16 Washer 11/32 x 5/8 x 16 Ga.
29 532 10 67-35 Rod, Hinge
30 532 17 39-84 Screw Thdrol. Hex
31 532 18 76-90 Washer, Spacer
32 532 15 35-32 Pulley, Mandrel
33 532 17 83-42 Nut, Toplock
36 532 13 14-94 Pulley, Idler, Flat
40 873 68 06-00 Nut, Crownlock 3/8-16 unc
45 532 12 47-88 Retainer
53 532 13 08-40 Brake Assembly
54 532 17 85-15 Washer, Hardened
55 532 13 38-40 Idler Arm Assembly
56 532 16 57-23 Spacer, Retainer
67 532 10 69-32 Knob
68 532 18 02-14 V-Belt
86 532 12 50-74 Runner, LH
87 532 12 87-72 Runner, RH
88 819 11 12-16 Washer 11/32 x 3/4 x 16 Ga.
89 819 13 13-11 Washer 13/32 x 13/16 x 11 Ga.
96 874 93 06-20 Bolt 3/8-16 x 1-1/4
97 873 93 06-00 Nut Centerlock 3/8-16 unc
107 532 13 35-02 Spacer Retainer
108 532 13 35-03 Stiffener, Idler Arm
109 874 76 06-40 Bolt, Hex Hd 3/8-16 x 2-1/2
110 532 14 25-87 Upstop Deck Front 38"
113 817 06 05-12 Screw 5/16-1/ x 3/4
122 532 13 12-89 Rod, Brake LH
123 532 16 99-71 Rod, Brake RH
146 532 16 58-91 Bolt Carriage Idler
148 532 16 90-22 Spring Return Idler
149 532 16 58-98 Retainer Spring Yellow
150 819 09 12-10 Washer 9/32 x 3/4 x 10 Ga.
152 532 17 27-58 Clutch Cable 38"/46"
158 817 72 04-08 Screw Hex Thd Cut 1/4-20 x 5/8
185 532 18 82-34 Head Asm. Cable Clutch
- - 532 13 07-94 Mandrel Assembly (Includes Hous-
ing, Shaft, and Shaft Hardware Only
- Pulley Not Included)
- - 532 18 13-80 Mower Replacement, Complete
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
www.ersatzteil-service.de
Der Ersatzteilspezialist im Internet.

18
REPAIR PARTS
TRACTOR - - MODEL NUMBER RE115T96B, PRODUCT NO. 954 12 00-70

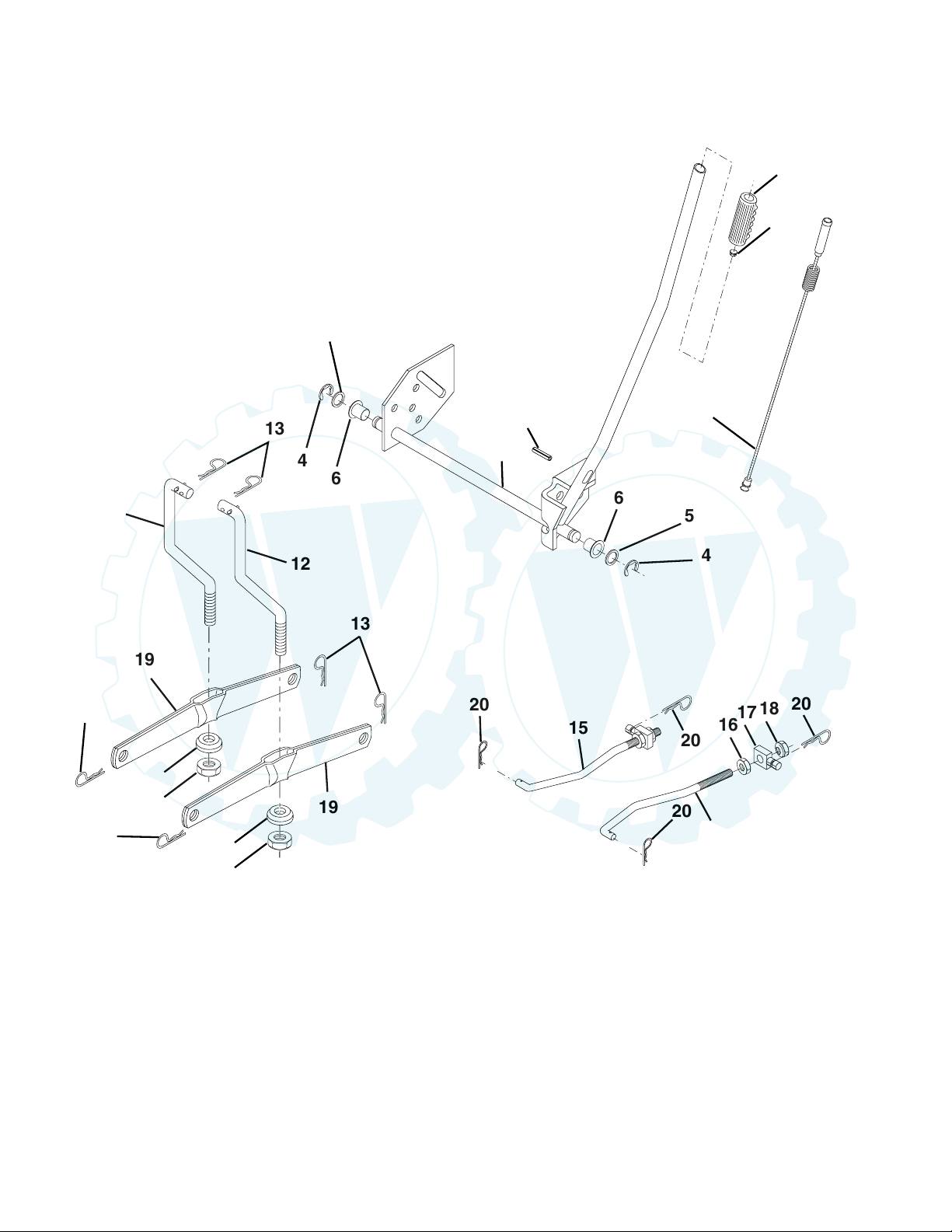

MOWER LIFT
1 532 15 94-61 Wire Asm Inner/Sprg w/plunger
2 532 15 94-76 Shaft Asm Lift RH
3 532 17 89-81 Pin Groove
4 812 00 00-02 E Ring #5133-62
5 819 21 16-21 Washer 21/32 x 1 x 21 Ga.
6 532 12 01-83 Bearing Nylon Blk 629 Id
7 532 10 94-13 Grip Handle Bicycle Matte Blk
8 532 12 45-26 Button Plunger Black
11 532 13 98-65 Link Lift LH Fixed Length
12 532 13 98-66 Link Lift RH Fixed Length
13 532 12 46-70 Retainer Spring
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm.
15
20
1617 18 20
20
15
20
4
5
6
2
31
6
5
4
7
8
12
11
31
32
31
32
19
19
13
13
13
13
lift-rh.1piece_3
15 532 17 32-88 Link Front
16 873 35 08-00 Nut Jam Hex 1/2-13 unc
17 532 17 56-89 Trunnion
18 873 80 08-00 Nut Lockw/Wsh 1/2-13 unc
19 532 13 98-68 Arm Suspension Rear
20 532 16 35-52 Retainer, Spring
31 532 16 98-65 Bearing Pvt Lift
32 873 54 06-00 Nut Crownlock 3/8-24
KEY PART
NO. NO. DESCRIPTION
www.ersatzteil-service.de
Der Ersatzteilspezialist im Internet.

19
T
E
C
U
M
S
E
H
®
Issued January 1980
Revised January 1991
T
E
C
U
M
S
E
H
®
SERVICE
POLICY
WARRANTY
LIMITED WARRANTIES
FOR
NEW PEERLESS GEAR POWER TRAIN COMPONENTS
A. Products Warranted
Peerless Gear and Machine Division of Tecumseh Products Company (“Tecumseh”), subject to the limitations contained below,
will, at its option, repair or replace, without charge for parts or labor only, any part of a new Power Train Component (which as used
herein means and includes the transaxle, gear box, transmission, differential and right angle drives, and any part of the Power Train
Component), EXCEPT any new Power Train Component incorporated in equipment used for commercial or rental purposes, which is
found upon examination by any Tecumseh Authorized Service Outlet or by Tecumseh’s factory in Grafton, Wisconsin, to be DEFECTIVE
IN MATERIAL AND/OR WORKMANSHIP if received by Tecumseh or a Tecumseh Authorized Service Outlet for such examination within
TWO YEARS from the date of sale to the original consumer purchaser of Peerless Series 820, 900, 910, 915, 920, 930 transaxles and
Series 1100 angle drive and ONEYEAR for all other Peerless products. New Power Train Components incorporated in equipment used for
commercial purposes are warranted in the same manner and to the same extent EXCEPT such Power Train Components are warranted
for NINETY (90) DAYS ONLY, and must be received by Tecumseh or by a Tecumseh Authorized Service Outlet for such examination
within 90 days from the date of sale to the original purchaser. New Power Train Components Incorporated in equipment used for rental
purposes are warranted in the same manner and to the same extent EXCEPT such Power Train Components are warranted for THIRTY
(30) DAYS ONLY, and must be received by Tecumseh or a Tecumseh Authorized Service Outlet within 30 days from the date of sale to
the original purchaser.
B. Products And Items Not Warranted
1. Alterations or Modifications of Power Train Components.
2. Accidents, Normal Maintenance, Failure to follow the Original Equipment Manufacturer’s Manual.
This warranty covers only parts of new Power Train Components which are found upon examination to be defective in material
or workmanship as delivered to the original purchaser. This warranty does not cover defects caused by depreciation or damage caused
by normal wear, accidents, improper maintenance, improper use or abuse of the product, failure to follow the instructions contained in
an Instruction Manual for the operation of the Power Train Component and parts. The cost of normal maintenance and replacement of
service items which are not defective shall be paid for by the original purchaser.
C. Securing Warranty Service
Warranty service can be arranged for by contacting either a Tecumseh Authorized Service Outlet (any Tecumseh Registered
Service Dealer, Tecumseh Authorized Service Distributor, or Tecumseh Central Warehouse Distributor) or by contacting Tecumseh, c/o
Service Manager, Engine and Transmission Group Service Division, 900 North Street, Grafton, Wisconsin 53024. Warranty service
can only be performed by a Tecumseh Authorized Service Outlet or by Tecumseh at its factory in Grafton, Wisconsin. At the time of
requesting warranty service, evidence must be presented of the date of sale to the original purchaser. The purchaser shall pay any
charges for making service calls and/or for transporting the product to and from the place where the inspection and/or warranty work
is performed. The purchaser shall be responsible for any damage or loss incurred in connection with the transportation of Power Train
Components and/or part(s) of the Power Train Components submitted for inspection and/or warranty work.
D. Limitation of Damages and Implied Warranties
The foregoing EXPRESSED WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. Neither Tecumseh nor any
of its affiliates makes any warranties, representations or promises, written or oral, as to the quality of the Power Train Component or any
of its parts, other than as set forth herein.
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, TO THE EXTENT THAT
EITHER MAY APPLY TO ANY PART(S) OF POWER TRAIN COMPONENTS, SHALL BE LIMITED IN DURATION TO THE PERIODS
OF THE EXPRESSED WARRANTIES DEFINED IN PARAGRAPH A HEREOF. IN NO EVENT WILL TECUMSEH BE LIABLE FOR ANY
INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES AND/OR EXPENSES. Some states do not allow limitations on how long
an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitation(s) or exclusion(s)
may not apply to you. This warranty gives you specific legal rights and you may also have other legal rights which vary from state to
state.
E. No Dealer Warranty
Tecumseh neither assumes nor authorizes any other person, natural or corporate, to assume for Tecumseh any other obligations
or liabilities in connection with or with respect to any part(s) of a Power Train Component. The seller or dealer of part(s) of a Power Train
Component has no authority, whatsoever, to make any representations or promises on behalf of Tecumseh or to modify the terms or
limitations of Tecumseh’s warranty in any way.
www.ersatzteil-service.de
Der Ersatzteilspezialist im Internet.
