Rampage ACD-83 User manual

128-6003A
1 of 20
Released 1-24-01.
Revision A: 5-22-02 Added CD-R and CD-RW specification notice
and updated panel markings and functions.
ACD-83ACD-83
ACD-83ACD-83
ACD-83
AM/FM/MPX RADIO WITH
FOLD-DOWN DETACHABLE FRONT PANEL,
COMPACT DISC PLAYER,
CD CHANGER CONTROLS,
WIRELESS REMOTE CONTROL
AND QUARTZ CLOCK
OWNER'S MANUAL
T/F
EQ
LOCSCANMUTE
SEL 1
OPEN
JAZZ
MONO
ST
LOC
REG
LOUD
POP
CLAS
CD-R/RW PLAYBACK
POWER LEVEL METER
2PAU SCN RPT3 SHF4 5D.DN D.UP6 MODE
P-950W
ME/CR
TP
AF TA EON
PTY
Sub. W
/Seek
/Track
Tune
ILL
PWR
MONO
BAND
AS/PS
LOUD
MULTI-COLOR FLOURESCENT DISPLAY
ACD-83

128-6003A
2 of 20
INSTINST INSTINST
INSTALLALL
ALLALL
ALLAA
AA
ATT
TT
TION INSTRUCION INSTRUC
ION INSTRUCION INSTRUC
ION INSTRUCTT
TT
TIONSIONS
IONSIONS
IONS
11
11
1
INSTALLATION INSTRUCTIONSINSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONSINSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
This unit is designed for installation in cars, trucks, and vans with an existing radio opening. In many cases, a
specialinstallationkitwillberequiredtomounttheradiotothedashboard. Thesekitsareavailableatelectronics
supply stores and car stereo specialist shops. Always check the kit application before purchasing to make sure the
kitworks with yourvehicle. If youneed a kitbut cannot findit available, callour toll-free “HELP”line at 1-800-645-4994.
UNIVERSAL INSTALLATION PROCEDURE USING MOUNTING SLEEVE
1. Open, fold down and remove the detachable front panel, if it is attached to the chassis, by grasping the
groovedcenterportion andpullingthepanelassemblystraightout.Slidethemountingsleeveoffof thechassis.
If it is locked into position, use the removal tools (supplied) to disengage it.
2. Checkthedashboardopeningsizebyslidingthemountingsleeveintoit. Iftheopeningisnotlargeenough,carefully
cut or file as necessary until the sleeve easily slides into the opening. Do not force the sleeve into the opening or
cause it to bend or bow. Check that there will be sufficient space behind the dashboard for the radio chassis.
3. Locate theseries of bendtabs alongthe top,bottom, and sidesof themounting sleeve. Withthe sleevefully
inserted into the dashboard opening, bend as many of the tabs outward as necessary so that the sleeve is
firmly secured to the dashboard.
4. Place the radio in front of the dashboard opening so that the wiring can be brought through the mounting
sleeve. Follow thewiringdiagramcarefullyandmakecertainallconnectionsofthewiringharnessaresecure
and insulated with wire nuts or electrical tape to insure proper operation of the unit. After completing the
wiring connections, attach the front panel and turn the unit on to confirm operation (ignition switch must be
“on”). If unit does not operate, re-check all wiring until problem is corrected. Once proper operation is
achieved, turn off the ignition switch and proceed with final mounting of the chassis.
5. Carefully slide the radio into the mounting sleeve making sure it is right-side-up until it is fully seated
and the spring clips lock it into place.
6. Attachone endofthe perforated supportstrap (supplied) tothe screw studonthe rearofthe chassisusing
thehex nutprovided. Fasten the other end of the perforated strap toa securepart ofthe dashboardeither
aboveor below theradio using thescrewand hexnutprovided. Bend thestrapto positionitas necessary.
CAUTION: The rear of the radio must be supported with the strap to prevent damage to the dashboard
from the weight of the radio or improper operation due to vibration.
7. Re-attachthe frontpanel tothe chassis andtest radiooperation byreferringto theOperating Instructionsfor the unit.
INSTALLATION USING KITS
1. If your vehicle requires the use of an installation kit to mount this radio, follow the instructions included
with the installation kit to attach the radio to the mounting plate supplied with the kit.
2. Wire and test the radio as described in Step 4 above.
3. Install the radio/mounting plate assembly to the sub-dashboard according to the instructions of the installation kit.
4. Attach the support strap to the radio and dashboard as described in Step 6 above.
5. Replace the dashboard trim panel.
ISO INSTALLATION PROCEDURE
This unit has threaded holes in the chassis side panels which may be used with the original factory mounting
brackets of some Toyota, Nissan, Mitsubishi, Isuzu, Hyundai and Honda vehicles to mount the radio to the
dashboard. Pleaseconsult with your local car stereo specialistshop forassistance onthis typeof installation.
1. Remove the existing factory radio from its dashboard or center console mounting. Save all hardware and
brackets as they will be used to mount the new radio.
2. Carefullyun-snaptheplasticframefromthefrontofthenewradiochassis. Removeanddiscardtheframe.
3. Removethefactory mounting bracketsandhardwarefromtheexistingradioand attachthemtothenewradio.
CAUTION: DONOTEXCEEDM5X8MMMAXIMUMSCREWSIZE. LONGERSCREWSMAYTOUCHAND
DAMAGECOMPONENTSINSIDETHECHASSIS.
4. Wire the new radio to the vehicle as per step 4 above.
5. Mount the new radio assembly to the dashboard or center console using the reverse procedure of step 1.
INSTINST INSTINST
INSTALLALL
ALLALL
ALLAA
AA
ATT
TT
TION INSTRUCION INSTRUC
ION INSTRUCION INSTRUC
ION INSTRUCTT
TT
TIONSIONS
IONSIONS
IONS

128-6003A
3 of 20
INSTINST
INSTINST
INSTALLALL
ALLALL
ALLAA
AA
ATT
TT
TION INSTRUCION INSTRUC
ION INSTRUCION INSTRUC
ION INSTRUCTT
TT
TIONSIONS
IONSIONS
IONS
8:30AM - 7PM
9AM - 5PM
CENTRAL EASTERN
6:30AM - 5PM
7AM - 3PM
MOUNTAIN
5:30AM - 4PM
6AM - 2PM
PACIFIC
MON. - FRI.
SATURDAY
DAY TIME ZONE
TOLL-FREE INSTALLATION ASSISTANCETOLL-FREE INSTALLATION ASSISTANCE
TOLL-FREE INSTALLATION ASSISTANCETOLL-FREE INSTALLATION ASSISTANCE
TOLL-FREE INSTALLATION ASSISTANCE
The installation and wiring connections for this unit are so simple, we doubt you'll need our help, but, if you do,
we're here to help you. Just call our toll-free telephone assistance line at 1-800-645-4994 during the days and
hours shown (U.S.A. and Canada only).
7:30AM - 6PM
8AM - 4PM
FASTEN THIS END TO SCREW
STUD ON REAR OF CHASSIS
NUT (5MM)
FASTEN THIS END TO SECURE PART OF DASHBOARD.
DRILL HOLE IF NECESSARY.
SCREW
(5MM)
FOLD-DOWN
DETACHABLE
FRONT PANEL
EXISTINGDASH OPENING
FILE EDGES TO FIT IF NECESSARY - DO NOT OVERFILE
NOTE:IFDASHISSOLID,USEREARSIDE(WITHOUTTHELIP)OF
MOUNTINGSLEEVE AS A TEMPLATE &CUTOPENING

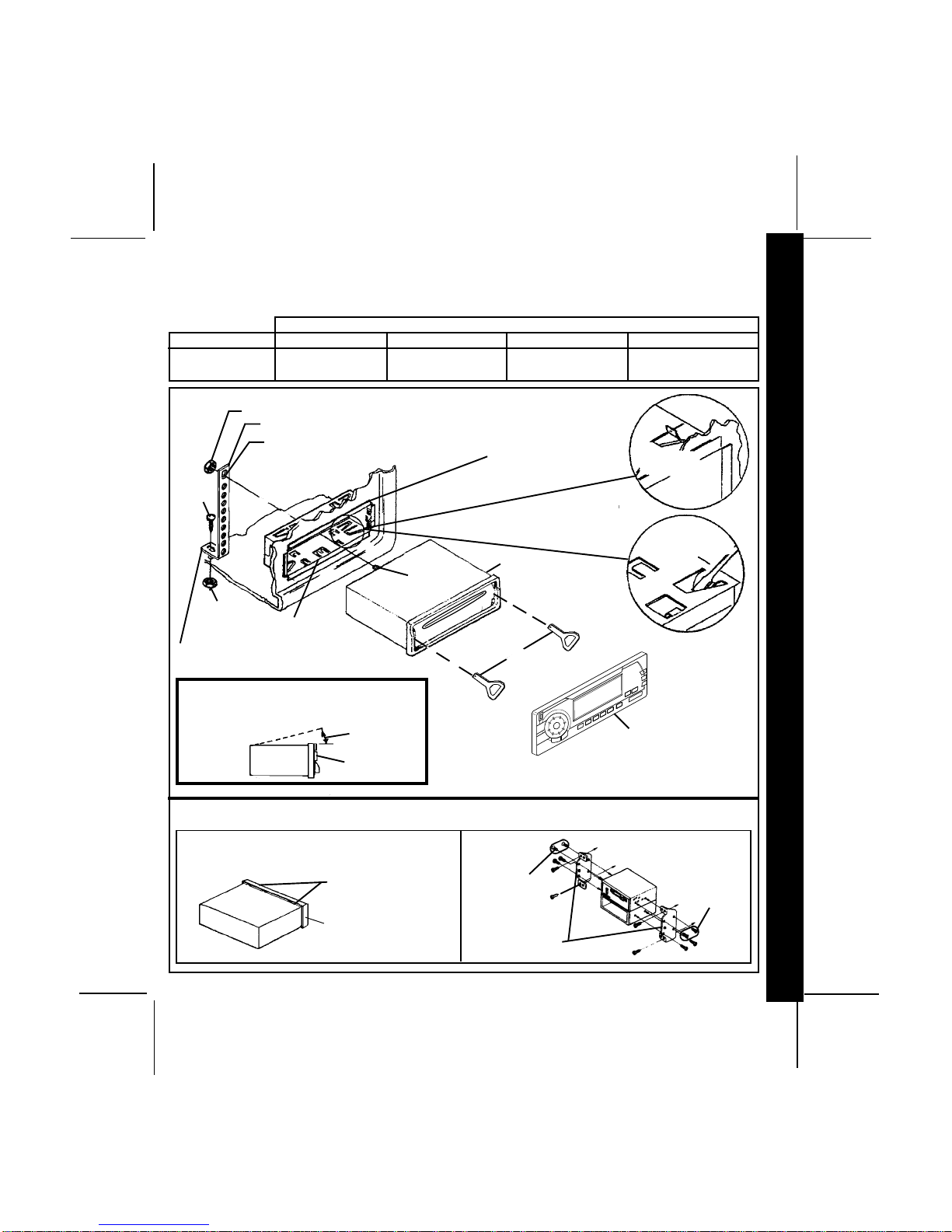

UNIVERSAL INSTALLATION USING MOUNTING SLEEVEUNIVERSAL INSTALLATION USING MOUNTING SLEEVE
UNIVERSAL INSTALLATION USING MOUNTING SLEEVEUNIVERSAL INSTALLATION USING MOUNTING SLEEVE
UNIVERSAL INSTALLATION USING MOUNTING SLEEVE
NUT (5MM)
REMOVE THE PLASTIC FRAME FROM THE FRONT OF
THE CHASSIS BY CAREFULLY UN-SNAPPING IT.
ISO INSTALLATIONISO INSTALLATION
ISO INSTALLATIONISO INSTALLATION
ISO INSTALLATION
20° MAX.
FRONT PANEL
CAUTION:
FOR PROPER OPERATION OF THE CD PLAYER, THE CHASSIS
MUST BE MOUNTED WITHIN 20° OF HORIZONTAL. MAKE SURE
THE UNIT IS MOUNTED WITHIN THIS LIMITATION.
SIDEVIEW
OF
CHASSIS
22
22
2
UN-SNAP AT 2 PLACES
EACH ON TOP AND BOTTOM
MAXIMUM
SCREWSIZE
M5 x 8
MAXIMUM
SCREWSIZE
M5 x 8
PERFORATED STRAP
RADIO
SCREW STUD
MOUNTINGSLEEVE
PLASTICFRAME
FACTORY MOUNTING
BRACKETS
REMOVALTOOLS
BEND BOTTOM
TABS DOWNWARD
BEND TOP
TABS UPWARD
TYPICAL INSTALLATION

128-6003A
4 of 20
RR RR
RAA
AA
ADIO WIRINGDIO WIRING
DIO WIRINGDIO WIRING
DIO WIRING
33
33
3
RADIO WIRINGRADIO WIRING
RADIO WIRINGRADIO WIRING
RADIO WIRING
REFER TO PAGE 5 FOR SPEAKER WIRING
SPESPE
SPESPE
SPEAA
AA
AKK
KK
KER WIRINGER WIRING
ER WIRINGER WIRING
ER WIRING
RR RR
RAA
AA
ADIO WIRINGDIO WIRING
DIO WIRINGDIO WIRING
DIO WIRING
IMPORTANT
THE BLUE WIRE CAN BE USED TO
REMOTELYACTIVATEANAUTOMATIC
ANTENNAORANEXTERNALAMPLIFIER
(SEE ANTENNAORAMPLIFIERMANUAL)
ANTENNALEAD
ONREAROFRADIO
9PINPLUG
(SEEPAGE5FORSPEAKERWIRING)
POSITIVE(+)TERMINAL
12VOLT BATTERY
METALPARTOFDASH
(DRILLHOLEIFNECESSARY)
SCREW
BLACK
RED
EXISTING
ANTENNA
CABLE
BLUE
ANTENNA AUTOMATIC
ANTENNA
FUSEBLOCK
IMPORTANT
YELLOW WIRE MUST BE
CONNECTEDASSHOWNOR
RADIOWILLNOTOPERATE
PROPERLY
4-PINPLUGS
YELLOW
CARBATTERY
“RADIO”FUSE
+12VACCESSORY
EXTERNALINVERTERFOR
VFDDISPLAYBACKLIGHTING
0.5AMPFUSE
15AMPFUSE

128-6003A
5 of 20
44
44
4
SPESPE
SPESPE
SPEAA
AA
AKK
KK
KER WIRINGER WIRING
ER WIRINGER WIRING
ER WIRING
SPEAKER WIRINGSPEAKER WIRING
SPEAKER WIRINGSPEAKER WIRING
SPEAKER WIRING
REFER TO PAGE 4
FOR RADIO WIRING
WARNING!
lTHE AMPLIFIERS IN THIS RADIO ARE ONLY DESIGNED FOR USE WITH 4 SPEAKERS.
lNEVER COMBINE (BRIDGE) OUTPUTS FOR USE WITH 2 SPEAKERS.
lNEVER GROUND NEGATIVE SPEAKER LEADS TO CHASSIS GROUND.
lFAILURE TO WIRE EXACTLY AS SHOWN BELOW MAY CAUSE ELECTRICAL
OPTIONALCDCHANGER
WHITEw/BLACKSTRIPE
WHITE
LEFTFRONTSPEAKER RIGHTFRONTSPEAKER
LEFTREARSPEAKER RIGHTREARSPEAKER
GREEN
GRAYw/BLACKSTRIPE
9-PINPLUGS
GREENw/BLACKSTRIPE VIOLETw/BLACKSTRIPE
RADIO
8:30am - 7:00pm Eastern
9:00am - 5:00pm Eastern
Monday - Friday
Saturday
1-800-645-49941-800-645-4994
1-800-645-49941-800-645-4994
1-800-645-4994
HELP!
GRAY
VIOLET
4-PINPLUGS
SEEPAGE4FOR
RADIOWIRING
8-PIN DIN SOCKET FOR CONNECTION TO
OPTIONAL CD CHANGER
6
COMP AC T
DINCABLE(SUPPLIED
WITHCDCHANGER).
NOTE:
THIS RADIO WILL CONTROL RAMPAGE CD
CHANGERMODEL. CHECKWITHYOURRAMPAGE
AUDIOVOXCARSTEREOSPECIALISTORCALL
1-800-645-4994 FOR RECOMMENDATIONS OF
OTHER MODELS THAT WILL WORK WITH YOUR
RADIO.
RCALINEOUT
JACKS
FORUSEWITH
OPTIONAL
EXTERNAL
AMPLIFIERS
RCALINEIN
(AUX)JACKS
FORUSEWITH
EXTERNALCD
PLAYER,ETC
WHITE= LEFT
RED=RIGHT
GREY
BLK

128-6003A
6 of 20
1POWER/ILL BUTTON ( PWR )
Press this button to turn the unit on or off. If
the ignition switch is “on”, the unit will also
turn on automatically when a compact disc is
inserted, or if any other button is pressed.
When the radio is on, each time the button
is momentarily pressed and released, the
VFD display panel back-lighting intensity
will change from low-to-medium-to-high,and
then back to low, thereby providing three dif-
ferent intensity settings.
2AUDIO CONTROL ( / ) SELECT
To increase the volume level, press the
button.The volume willincreaseand the level
will shown on the display panel from a mini-
mum of VOL 00 to a maximum of VOL
100. To decrease the volume level, press
the button. The display will automati-
cally return to the normal indication 5 sec-
onds after the last volume adjustment or
when another function is activated. These
control buttons are also used in conjunction
with the Select (SEL) button 3to adjust
the bass, treble, balance and fader levels
as described in 4, 5, 6and 7.
3PUSH SELECT CONTROL (SEL)
This button is used to select the audio
function (volume, bass, treble, balance, or
fade) whose setting is adjusted using the
AUDIO CONTROL buttons 2. Pressing the
SEL button once will set the unit for volume
adjustment (VOL on the display). Additional
presses will set the unit for bass adjustment
(BASonthe display panel),trebleadjustment
(TRBonthe display), balance(BAL), orfader
(FAD). The display will automatically return
to the normal indication 5 seconds after the
last adjustment or when another function is
activated.
NOTE: If the BAS or TRE functions are set
while the Equalizer function cu is
active, the Equalizer function will
automatically revert to the FLAT
setting.
4 BASS CONTROL
To adjust the bass level, first select the Bass
mode by pressing the SEL button 3so the
BASindicationappears onthe display panel.
Within 5 seconds of choosing the Bass
mode, press the AUDIO CONTROL 2
55
55
5
OPEROPER OPEROPER
OPERAA
AA
ATT
TT
TING INSTRUCING INSTRUC
ING INSTRUCING INSTRUC
ING INSTRUCTT
TT
TIONSIONS
IONSIONS
IONS
3, 4, 5, 6, 7 15
928 18
34 8,10
12 26
35
22 23
38 25 40
24
39
14
13
1
2
32 16,17,33 19, 27, 30, 31
11, 20, 21, 36, 37
28
29
(BEHINDPANEL)
T/F
EQ
LOCSCANMUTE
SEL 1
OPEN
JAZZ
MONO
ST
LOC
REG
LOUD
POP
CLAS
CD-R/RW PLAYBACK
POWER LEVEL METER
2PAU SCN RPT3 SHF4 5D.DN D.UP6 MODE
P-950W
ME/CR
TP
AF TA EON
PTY
Sub. W
/Seek
/Track
Tune
ILL
PWR
MONO
BAND
AS/PS
LOUD
MULTI-COLOR FLOURESCENT DISPLAY
ACD-83

128-6003A
7 of 20
button to decrease the bass response, or
the AUDIO CONTROL button to increase
it as desired. The level will be shown on the
display panel from a minimum BAS --10 to
a maximum of BAS 10 (BAS 00 indicates
flat response). The display will automatically
return to the normal indication 5 seconds
after the last adjustment or when another
function is activated.
5TREBLE CONTROL
Toadjustthe treble levelfirstselect the Treble
mode by pressing the SEL button 3so the
TRB indicationappears onthe display panel.
Within 5 seconds of choosing the Treble
mode,press the AUDIOCONTROL button
2to decrease the treble response or the
AUDIO CONTROL button to increase it
as desired. The level will be shown on the
display panel from a minimum TRB --10 to a
maximum of TRB 10 (TRB 00 indicates flat
response). The display will automatically
return to the normal indication 5 seconds
after the last adjustment or when another
function is activated.
6LEFT/RIGHT BALANCE CONTROL
To adjust the left-right speaker balance, first
select the Balance mode by pressing the
SEL button3sotheBAL indication appears
on the display panel. Within 5 seconds of
choosing the Balance mode, press the
AUDIO CONTROL button 2to adjust the
stereo balance to the left channel speakers
or the AUDIO CONTROL button to adjust
it to the right channel speakers. The balance
position will be shown on the display panel
fromBAL 10L (full left)toBAL 10R (fullright).
When the volume level between the left and
right speakers is equal, BAL L=R will be
shown on the display panel. The display will
automatically return to the normal
indication 5 seconds after the last
adjustment or when another function is
activated.
7FRONT/REAR FADER CONTROL
Toadjust thefront-rear speakerbalance, first
select the Fader mode by pressing the SEL
button 3so the FAD indication appears on
the display panel. Within 5 seconds of
choosing the Fader mode, press the
AUDIO CONTROL button 2to adjust the
front-rear speaker balance to the front
speakersor the AUDIOCONTROL button
to adjust it to the rear speakers. The fader
position will be shown on the display panel
from FAD 10R (full rear) to FAD 10F (full
front). When the level between the front and
rear speakers is equal, FAD F=R will be
shown on the display panel. The display will
automatically return to the normal indication
5 seconds after the last adjustment or when
another function is activated.
8LOUDNESS CONTOUR (LOUD)
When listening to music at low volume
levels, this feature will boost the bass and
treble ranges to compensate for the
characteristics of human hearing. Press and
hold the BAND/LOUD button for more than
2 seconds to activate this feature; the LOUD
ON indicationwillappear onthedisplaypanel
for 5 seconds, and LOUD will also appear
and remain. Pressing the button again for
more than 2 seconds will deactivate the
feature (LOUD OFF indication will appear
on the display panel for 5 seconds, and
LOUD will also disappear).
9AUDIO MUTE SELECTOR (MUTE)
Press this button momentarily to mute the
volume from the system ( MUTE will appear
blinking on the display panel). Pressing the
66
66
6
OPEROPER
OPEROPER
OPERAA
AA
ATT
TT
TING INSTRUCING INSTRUC
ING INSTRUCING INSTRUC
ING INSTRUCTT
TT
TIONSIONS
IONSIONS
IONS

128-6003A
8 of 20
button again or adjusting the AUDIO
CONTROL2level willreturn to thevolume
levelsetting in usebefore theMutefunction
wasactivated.
During disc play, pressing this button will
mute disc audio and disc play will be paused.
During this time, the indication will remain
on the display panel to show that a disc is
still loaded in the unit.
bl AM/FM BAND SELECTOR (BAND)
Each time this button is pressed, the radio
band is changed. The indication AM, F1, F2
or F3 will appear on the display panel
according to your selection.
bm UP/DOWN TUNE/SEEK/TRACK
( / ) BUTTONS
To manually select a radio station,
momentarily press the Up Tuning ( )
button to tune the unit higher, or the Down
Tuning ( ) button to tune lower within the
selected band. The radio will automatically
tune to the next strong station and stop on
thisfrequency.If theLOCAL mode isin effect,
the radio will seek the next local station and
stop at that frequency.
Pressing either button for longer than 2
seconds will cause MANUAL to appear on
the display, accompanied by a beep tone,
thereby entering the seek mode. Pressing a
button in this mode will cause the radio to
rapidly tune in the up or down direction and
stop when the button is released. The radio
will then remain at that frequency. Five
seconds after Manual tune is inactive, AUTO
will momentarily appear for 2 seconds,
thereby reverting to the normal tuning mode.
bn LOCAL BUTTON
This feature is used to select the strength of
the signals at which the radio will stop during
Manual Seek Tuning. Pressing and holding
the button will select the Local setting
(LOCAL will appear on the display panel for
5 seconds and LOC will remain in the lower
left corner) and only strong (local) stations
will be received. Pressing and holding the
button again will select the Distant setting
(Dx will appear on the display panel for 5
seconds) and the radio will stop at a wider
range of signals, including weaker (more
distant) stations.
bo FM MONO/STEREO BUTTON (MONO)
During FM radio operation, this button is
used to select monaural or stereo reception
of the broadcast signal. Under normal
reception conditions, the unit should be left
in the stereo mode as indicated by the ST
indication on the display panel when tuned
to an FM stereo signal. If the stereo signal
is too noisy for comfortable listening, press
the MONO button to switch to monaural
reception (the ST indication will disappear
from the display panel and MONO will
appear). To return to stereo reception mode,
press the button again so that the ST
indication appears on the display panel.
bp PRE-SET SCAN (PS)
AUTO-STORE TUNING (AS)
Press this button momentarily to scan the
stations pre-set into the six memories of the
current band in use. The unit will stop at each
pre-set station for 5 seconds before
continuing to the next pre-set station (the
pre-set frequency on the display panel will
flash during Pre-Set Scan operation). Press
the button again momentarily to stop Pre-
Set Scan operation and remain on the
77
77
7
OPEROPER OPEROPER
OPERAA
AA
ATT
TT
TING INSTRUCING INSTRUC
ING INSTRUCING INSTRUC
ING INSTRUCTT
TT
TIONSIONS
IONSIONS
IONS

128-6003A
9 of 20
selectedfrequency. Ifnobuttons are pressed
during the scan, the unit will return to the
original station before the scan started.
Pressing and holding the button for longer
than 2 seconds will activate the Auto-Store
Tuning feature which will automatically scan
and enter up to 6 stations into the pre-set
memories on each FM band. If you have
already set the pre-set memories to your
favorite stations, activating the Auto-Store
Tuning feature will erase those stations and
enter the new ones. This feature is most
useful when traveling in a new area where
you are not familiar with the local stations.
bq STATION PRE-SET MEMORIES
To set any of the 6 pre-set memories in each
band, use the following procedure:
1. Turnthe radioonand selectthedesired
band.
2. Select the first station to be pre-set
using the TUNE/SEEK/TRACK
Controls bm.
3. Press the pre-set button to be set and
continue to hold it in for
approximately 2 seconds. The pre-
set numberwill appear on the display
panel (accompanied by a beep)
indicating that the station is now set
into that pre-set memory position. The
station can now be recalled at any time
by pressing that button.
4. Repeat the above procedure for the
remaining 5 pre-sets on that band and
for the other 3 bands on the unit.
br VACUUM FLOURESCENT DISPLAY
(VFD)
The Vacuum Fluorescent Display (VFD)
panel displays the frequency, time, and
activated functions using one of three
illumination levels as selected by the
PWR/ILL button 1.
bs POWER LEVEL METER DISPLAY
This display consists of a left and right six-
bar graph which provides a visual
representation of the audio signal level
applied to the left and right channels. The
illuminated segments of the left and right
channel bar graphs increase and decrease
as a function of the audio signal strength
applied to the left and right channels. As the
signal increases, the number of illuminated
segments will increase and vice-versa.
bt MODE SELECTOR (MODE)
This button is used to select the radio, CD
player, CD changer (if installed) or auxiliary
(AUX) input playback mode. Each press of
the button will select a different mode as
indicated on the display panel.
During CD player operation, this button may
be used to change to radio, AUX input (MP3
or external CD player) or CD changer mode
without ejecting the disc.The indication
will remain on the display panel to show that
the CD player or changer is operating. Press
the button again to return to CD player mode
and resume play of the disc from the
beginning of the current track.
bu DISC SLOT
Withthe frontpanel in thefold-down position,
gently insert the disc into the slot (label
surface facing up) until the soft-loading
mechanism engages and pulls the disc in.
The S--CDP indication will appear on the
display panel for 5 seconds. The ( )
indication illuminates and becomes
animated, the symbol lights, and the track
number and elapsed time will appear on the
display panel.
88
88
8
OPEROPER
OPEROPER
OPERAA
AA
ATT
TT
TING INSTRUCING INSTRUC
ING INSTRUCING INSTRUC
ING INSTRUCTT
TT
TIONSIONS
IONSIONS
IONS

128-6003A
10 of 20
CAUTION: This unit is designed for play of
standard 5" (12cm) compact
discs ONLY. Do not attempt to
use 3" (8cm) CD-Singles in this
unit, either with or without an
adapter,as damageto the player
and/or disc can occur. Such
damage will not be covered by
the Warranty on this product.
cl TRACK SELECT ( / )
The Track Select function of the TUNE/
SEEK/TRACK buttons are used to quickly
access the beginning of a particular track
when a disc is in play. Each time the Forward
TRACK Select ( ) side of the button is
pressed, the next higher track number will
be selected as shown on the display panel.
Similarly, each time the Backward TRACK
Select ( ) side of the button is pressed,
the next lower track number will be selected
as shown on the display panel.
cm CUE/REVIEW FUNCTIONS
( / )
High-speed audible search to any section
of the disc can be made by the Cue and
Review functions. Press and hold the Cue
( ) button to advance rapidly in the
forward direction (the advancing disc playing
time will be shown on the display panel),or
the Review ( ) button to advance rapidly
in the backward direction (the decreasing
disc playing time will be shown on the
display panel). During either function, the
elapsed time within each track will
automaticallybe shownon thedisplay panel.
cn DISC PAUSE (PAU)
The Pause function is used to pause disc
play,whetheritbetheCDPlayerortheoptional
CD Changer; S--PAUSE will appear on the
display. When pressed again, disc play will
99
99
9
OPEROPER OPEROPER
OPERAA
AA
ATT
TT
TING INSTRUCING INSTRUC
ING INSTRUCING INSTRUC
ING INSTRUCTT
TT
TIONSIONS
IONSIONS
IONS
resume from the point it was stopped and
S--PAUSE will disappear.
co TRACK SCAN SELECTOR (SCN)
During disc play, press this button to play
the first 10 seconds of each track on the
disc (S--SCAN) will appear on the display
panel). When a desired track is reached,
press the SCN button again to cancel the
function (S--SCAN will disappear from the
display panel) and play of the selected track
will continue. Scan mode will also be
canceled by activating the Repeat Play cp,
or Shuffle Play cq functions.
cp REPEAT PLAY SELECTOR (RPT)
During disc play, press this button to repeat
the play of the selected track (S--RPT will
appear on the display panel). Play of the
track will continue to repeat until the button
is pressed again and the S--RPT indication
disappears from the display panel. Repeat
Play mode will also be canceled by activating
the Track Scan co or Shuffle Play cq
functions.
cq SHUFFLE PLAY SELECTOR (SHF)
During disc play, press this button to play the
tracks on the disc in a random shuffled order
(S--SHF will appear on the display panel). In
Shuffle Play mode, the TRACK Select function
willalsoselecttracks intherandomorderinstead
ofthenormalprogression.TheShufflePlaymode
can be canceled by pressing the button again
(S--SHF indicationwilldisappearfromthedisplay
panel) or by activating the Repeat Play cp or
Track Scan co functions.
cr DISC SELECT UP/DOWN
(D.UP/D.DN)
These buttons are used to select the desired
disc for play during optional CD changer opera-
tion. To advance to a higher number disc, press

128-6003A
11 of 20
1010
1010
10
OPEROPER
OPEROPER
OPERAA
AA
ATT
TT
TING INSTRUCING INSTRUC
ING INSTRUCING INSTRUC
ING INSTRUCTT
TT
TIONSIONS
IONSIONS
IONS
the D.UP button, and to return to a lower num-
ber disc, press the D.DN button. The number of
thedisc in play will be shown on the display
panel.
cs DISC EJECT ( )
Disc play is stopped and the disc is ejected
when the front panel is folded down and this
button on the rear of the panel is pressed.
Radio operation will automatically resume. If
the disc is not removed from the unit within
15 seconds of being ejected, it will
automatically be re-loaded into the unit to
prevent it from being accidentally damaged
(will appear on the display panel to
indicate that a disc is loaded in the player).
Play of the disc can be resumed by using
theMODE buttonbt tochoosethe CD player
function.
ct TIME/FREQUENCY SELECTOR (T/F)
During radio, CD Player or optional CD
Changer operation, press this button to call
the time display on the incorporated quartz
clock. The current time will appear together
with an Aor Pindication. The display will
return to the radio frequency indication after
5 seconds.
cu EQUALIZER BUTTON (EQ)
The EQ button applies preset sound effects
to the unit’s audio output signal.The EQ
button, when pressed, will activate one of
five operating modes (CLASSICS, POP,
JAZZ, DSP OFF or FLAT). Even though the
Equalizer function is active, as displayed
on the panel, if the bass and/or treble level
is set, the Equalizer function automatically
returnsto theFLAT mode. Conversely, when
the Equalizer function is not active, the unit
returnsto theuserset bassand treble levels.
dl THEFT-DETERRENT LED
Located on the chassis behind the front
panel, a light-emitting diode (LED) will flash
when the panel is physically removed. The
flashing light serves as a visual warning to
the would-be thief that the unit has been
disabled by removal of the front panel.
dm RESET BUTTON
The RESET button is located above and to
the right of the theft deterrent LED. The reset
circuitry should only be activated under the
following circumstances as it will erase the
time and pre-set memories:
1.Upon initial installation after all wiring is
completed.
2.If there is a malfunction of any of the
switcheson theunit, pressing the RESET
button may clear the system and return
to normal operation.
dn FRONT PANEL RELEASE BUTTON
(OPEN)
This button is used to release the
mechanism that holds the front panel to the
chassis. To detach the front panel, press
the button so that the panel drops to the
lowered position. Grasp the panel at the
middle and pull it off of the chassis mounting
plate. To re-attach the panel, press it straight
onto the chassis mounting plate until the
mechanism locks it into place.
do REMOTE SENSOR
Thesensortodetect theinfraredsignalfrom
thewirelessremotecontrolislocated behind
theVFDdisplaylens.Foroptimumoperation
oftheremotecontrol,alwaysaimthecontrol
at the VFD display.

128-6003A
12 of 20
1111
1111
11
OPEROPER OPEROPER
OPERAA
AA
ATT
TT
TING INSTRUCING INSTRUC
ING INSTRUCING INSTRUC
ING INSTRUCTT
TT
TIONS / SETIONS / SET
IONS / SETIONS / SET
IONS / SETTT
TT
TING THE CLOCK / ERRING THE CLOCK / ERR
ING THE CLOCK / ERRING THE CLOCK / ERR
ING THE CLOCK / ERROR CODESOR CODES
OR CODESOR CODES
OR CODES
NOTESONUSEOF FRONTPANEL:
1.Make sure the front panel is positioned
correctly when attaching it to the chassis
as it cannot be attached when up-side
down. Use modeate pressure to fully seat
the panel into position.
2.To verify correct panel installation, swing the
panel assembly up into position until it locks
easily into place. If any resistance is
encountered, re-check panel opientation in
chassis mounting plate.
3.When taking the front panel with you,
please use the supplied carrying case to
protect the panel from dirt and damage.
Make sure there is no dust or dirt on the
electrical terminals on the back of the
panel as this could cause intermittent
operation or other malfunctions.

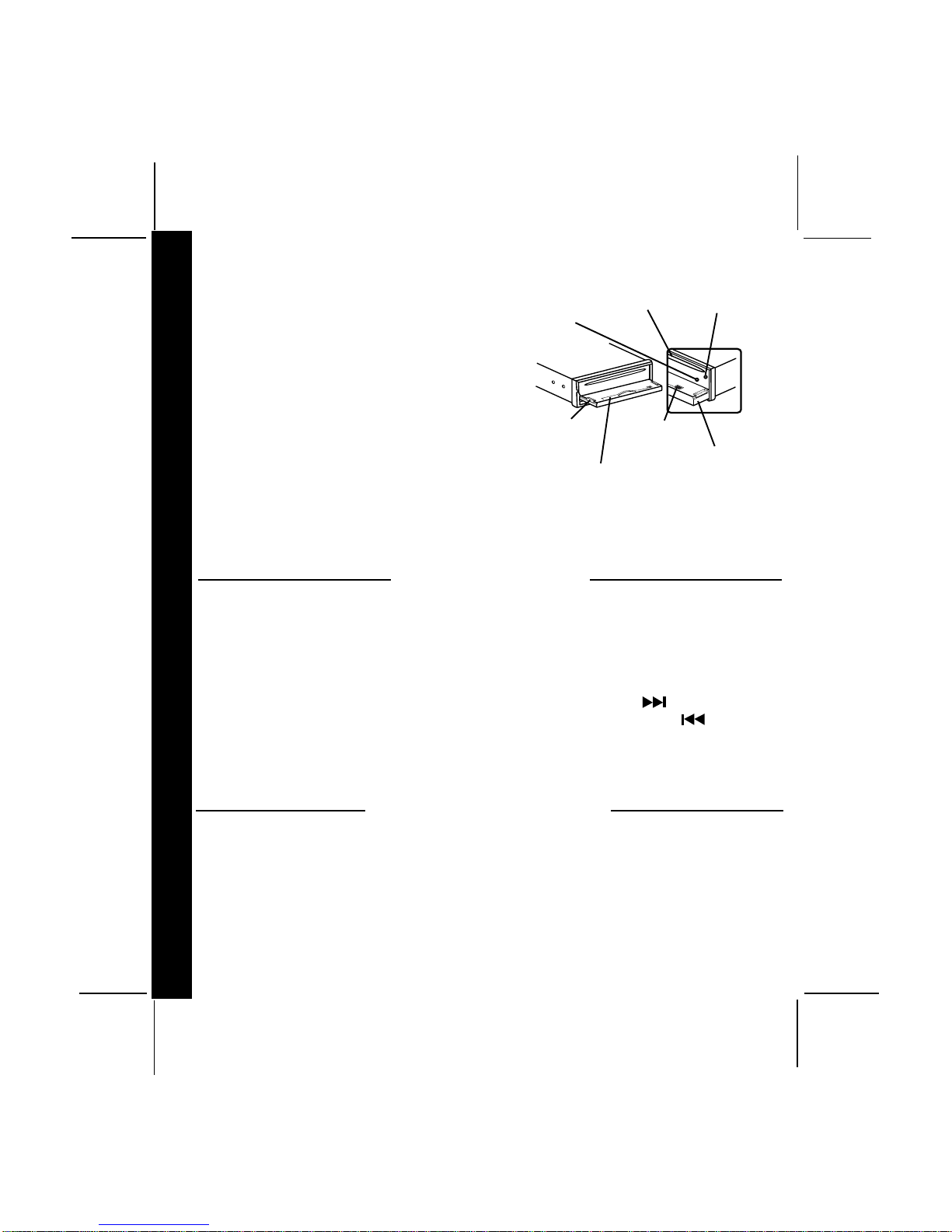

FRONTPANEL
MOUNTINGPLATE
GUIDE (2 PLACES)
PANEL
MOUNTING
PLATE
RESETBUTTON
(31)
THEFTDETERRENT
LED (30)
DISC SLOT
(19)
CD EJECT
BUTTON (27)
1. Switchthe vehicle ignitionand radio“on”.
2. Press the Time/Frequency (T/F) button to call the time display.
3. Within 10 seconds, press and hold the T/F buttonuntil asingle beepsounds and the
time display flashes.
4. With the display flashing, press the Up TUNE/SEEK/TRACK ( ) button to adjust
the hours and A/P indication, or the Down TUNE/SEEK/TRACK ( ) button to
adjust the minutes to the correct time.
5. Five seconds after the last hour or minute adjustment is made, the time will be set in
the unit and the display will return to the normal indication.
SETSET
SETSET
SETTT
TT
TING THE CLOCKING THE CLOCK
ING THE CLOCKING THE CLOCK
ING THE CLOCK
If a problem should develop while operating the CD player, an error code (ER-1, ER-2,
ER-3, etc.) may appear on the display panel. This can indicate a number of problems
withthe unit,including amechanical errororanerrorinthemicroprocessor controlof the
player. Ifanerrorcode shouldappear,tryejectingandre-loadingthe discinto theplayer.
Whilethedisc isoutof the unit,make sure itis clean, undamaged,and loaded correctly
(labelsurfaceup). Youmay also tryactivating the RESETbutton dm on theunit, but this
will also erase the time and pre-set memories.
If the suggested measures do not solve the problem, contact an approved warranty
station near you forfurtherassistance.
CD PLCD PL
CD PLCD PL
CD PLAA
AA
AYER ERRYER ERR
YER ERRYER ERR
YER ERROR CODESOR CODES
OR CODESOR CODES
OR CODES

128-6003A
13 of 20
1212
1212
12
SPECIFICASPECIFICA
SPECIFICASPECIFICA
SPECIFICATT
TT
TIONSIONS
IONSIONS
IONS
Size: 7" W x 2" H x 6-5/16" D
178 mm x 50 mm x 160 mm
Operating Voltage: 12 volts DC, negative ground
Fuse Ratings: Constant (Yellow wire): 15 AMP.
Switched (Red wire): 0.5 AMP.
Output Power: 160watts maximum
(40 watts x 4 channels)
Output Wiring: Floating-ground type designed for 4 speaker use.
Front and rear channels CANNOT be combined
(bridged) for use with 2 speakers.
RCA low-level outputs (front and rear channels).
Output Impedance: Compatible with 4 – 8 ohm speakers.
Low-Level Output: 500 mv.
Tuning Range: AM: 530 – 1,720 kHz. (10 kHz. step)
FM: 87.5 – 107.9 MHz. (200 kHz. step)
Sensitivity: AM: 20 uv.
FM: 1.5 uv.
FM Stereo Separation: >20 dB
CD Frequency Response: 17 – 20 kHz. +0/-3 dB
CD Signal/Noise Ratio: >65 dB
CD Channel Separation: >60 dB
CD Distortion: 0.2%
*Specifications are subject to change without notice.
SPECIFICATIONSSPECIFICATIONS
SPECIFICATIONSSPECIFICATIONS
SPECIFICATIONS
CD-R AND CD-RW PLAYBACK CAPABILITY
This model can play most CD-R and CD-RW media that contains audio programs.
Playback of both CD-R and CD-RW depends on the conditions of the recording equip-
ment and the CD-R or CD-RW disc quality. In some cases, a CD-R or CD-RW disc
cannot be played on this unit.

128-6003A
14 of 20
1313
1313
13
CD CHCD CH CD CHCD CH
CD CHAA
AA
ANGER CONTRNGER CONTR
NGER CONTRNGER CONTR
NGER CONTROLOL
OLOL
OLSS
SS
S
Built into this radio are controls to operate
anoptionalCD changer. Pleasecheck with
your Rampage/Audiovox car stereo
specialist or call 1-800-645-4994 for
recommendations of the models that will
work with this radio.
Adjustmentof the audiofunctions (volume,
tone,balance,andfader)fortheCDchanger
operate in the same manner as they do for
radioplay. Thefollowingcontrolswilloperate
the CD changer when it is installed and
connectedtothisradio. Referto theowner’s
manual included with the CD changer for
instructions on the installation and correct
loadingand use ofthe CDmagazine.
dp CD CHANGER MODE SELECTOR
(MODE)
During radio or CD play, press this button
to select operation of the CD changer as
shown by CDC on the display panel. Disc
play will begin and the disc and track
numberwill beshownon thedisplay panel.
When the magazine is loaded into the
changer, play will begin from the first track
of the first disc in the magazine.
dq DISC SELECT (D.UP/D.DN)
Thesebuttonsareusedtoselectthedesired
discforplay. Toadvancetoahigher number
disc, press the D.UP button. To return to a
lower number disc, press the D.DN button.
Thenumberof thediscin playwillbe shown
on the display panel.
dr TRACK SELECT ( / )
The Track Select functions are used to
quicklyaccess thebeginning ofaparticular
track. Each time the Forward Track Select
()side ofthebuttonispressed, thenext
higher track number will be selected as
shownon thedisplay panel. Similarly,each
time the Backward Track Select ( )
button is pressed, the next lower track
number will be selected as shown on the
displaypanel.
ds CUE/REVIEW FUNCTIONS( / )
High-speedaudiblesearchtoany sectionof
thedisccanbemadebytheCueandReview
functions.Pressandholdthe Cue( ) side
ofthebuttontoadvancerapidlyintheforward
direction (disc play symbol rotation on the
display panel will increase) or the Review
() side of the button to advance rapidly
inthe backward direction.
dt TRACK/DISC SCAN SELECTOR
(SCN)
When the SCN button is pressed, the SCN
indication will appear on the display panel,
and the first 10 seconds of each track on
the disc will be played in order. When a
desired track is reached, press the SCN
button again and play of the selected track
will continue (SCN will disappear from the
display panel). The Track Scan mode will
also be canceled by activating the Repeat
orShuffle Playfunction.
When the Scan button is pressed and
held for more than 2 seconds, the DSN
indication will appear on the display panel
withthediscnumber,andthefirst10seconds
ofthefirsttrackon eachdiscinthemagazine
willbe played. Whenadesired disctrack is
reached, press the SCN button again and
playof the selecteddisc will continue(DSN
will disappear from the display panel, and
be replaced by CDC and the disc/track
number). The Disc Scan mode will also be
canceledby activatingtheRepeatorShuffle
Playfunction.
CD CHCD CH
CD CHCD CH
CD CHAA
AA
ANGER CONTRNGER CONTR
NGER CONTRNGER CONTR
NGER CONTROLOL
OLOL
OLSS
SS
S

128-6003A
15 of 20
CD CHCD CH CD CHCD CH
CD CHAA
AA
ANGER CONTRNGER CONTR
NGER CONTRNGER CONTR
NGER CONTROLOL
OLOL
OLS / CD CHS / CD CH
S / CD CHS / CD CH
S / CD CHAA
AA
ANGER ERRNGER ERR
NGER ERRNGER ERR
NGER ERROR CODESOR CODES
OR CODESOR CODES
OR CODES
1414
1414
14
du DISC/TRACK REPEAT PLAY (RPT)
When the RPT button is pressed, the RPT
indication will appear on the display panel
and play of the selected track will be
continuallyrepeated untiltheTrack Repeat
mode is canceled by pressing the RPT
button again or by activating the Scan or
ShufflePlay functions.
When the RPT button is pressed and held
formorethan2 seconds, theDRTindication
willappear on thedisplay panel andplay of
theselecteddisc willbecontinuallyrepeated
until the Disc Repeat mode is canceled by
pressing the RPT button again or by
activating the Scan or Shuffle Play
functions.
el DISC/TRACK SHUFFLE PLAY (SHF)
When the SHF button is pressed, the SHF
indication will appear on the display panel
and the tracks on the disc will be played in
arandom, shuffledorder. The Track Select
button willalso select tracksin theshuffled
orderinsteadofthenormalprogression. The
Shuffle Track mode can be canceled by
pressing the SHF button again or by
activating the Scan or Repeat Play
functions.
When the SHF button is pressed and held
for at least 2 seconds, the DSF indication
willappearonthedisplaypanelandthediscs
inthe magazine willbe playedin a random,
shuffledorder,aswellas thetracks oneach
disc.Afterplaying thetracksat randomfrom
a disc in the magazine, the unit will select
another disc at random and play all the
trackson it ina randomshuffledorder. This
will continue from disc-to-disc until the
Shuffle Disc mode is canceled by pressing
the SHF button again or by activating the
Scan or Repeat Play functions.
Ifaproblem shoulddevelopwhileoperating theCDchanger, thefollowingerrorcodes may
appearon the displaypanel.
ER-1: Indicatesthat there isno magazine loadedin theCDchanger.
ER-2: Indicatesa problem withthe magazineejectfunction.
ER-3: Indicatesan error inthe discloading function.
ER-4:Indicates anerror inthe discun-loadingfunction.
ER-5: Indicatesan errorinthe magazineposition.
ER-6: Indicatesan error inthe laser pick-upposition.
ER-7: Indicates an error in the laser focus on the disc.
Inany of theabove situations, tryejecting the CDmagazinefrom thechangerand make
surethe discs areclean, undamaged,andloaded correctly(refer to theOwner’s Manual
ofthe CDchanger). Re-loadthemagazineand checkfor properoperation. Youmay also
tryactivating theRESET buttondm ontheunit,but thiswill alsoerase thetime andpre-set
memories.
Ifthe suggestedmeasures donotsolvetheproblem, contactan approvedwarranty station
nearyoufor furtherassistance.
CD CHCD CH
CD CHCD CH
CD CHAA
AA
ANGER ERRNGER ERR
NGER ERRNGER ERR
NGER ERROR CODESOR CODES
OR CODESOR CODES
OR CODES

128-6003A
16 of 20
REMOREMO REMOREMO
REMOTE CONTRTE CONTR
TE CONTRTE CONTR
TE CONTROL OPEROL OPER
OL OPEROL OPER
OL OPERAA
AA
ATT
TT
TIONION
IONION
ION
Thewirelessremotecontrolsuppliedwiththis
model is capable of operating most of the
features of the unit from a remote location.
Eachbutton onthe remotecontrol functions
inthesamewayasthereferencedbuttonon
the main unit. For optimal operation of the
remotecontrol, alwaysaim ittowardtheRe-
mote Sensor do on the front panel of the
main unit.
1PWR ON/OFF - See Main Unit 1.
2INFRARED SENDER - Emits infrared
signaltoradio whichis detected bythe
sensordo.
3MODE SELECTOR (MODE) - See
Main Unit bt and dp.
4TIME/FREQUENCY (T/F) SET – See
MainUnit ct.
5AM/FM BAND SELECTOR (BAND)
–See Main Unit bl.
6UP/DOWN TUNING – See Main Unit
bm.
AUTOMATIC SEEK TUNING – See
Main Unit bm.
CD TRACK SELECT – See Main Unit
cl and dr.
CD CUE/REVIEW – See Main Unit
cm and ds.
7TRACK/DISC SCAN (SCN) - See
Main Unit co and dt.
1515
1515
15
WIRELESS REMOTE
CONTROLOPERATION
8TRACK/DISC REPEAT (RPT) - See
Main Unit cp and du.
9RADIO PRE-SET MEMORY 1-6 - See
Main Unit bq
bl DISC UP SELECT (D.UP) - See
Main Unit cr.
CONTROLLER
INFRARED REMOTE
PAU
SEL
AS/PS
RPTSCN
SD
BN
OWER MODE
D.DNSHF
213
456
T/F
D.UP
A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

128-6003A
17 of 20
The radio section of your new sound system does not require any maintenance. We
recommendyoukeepthismanualforreferenceonthemanyfeaturesfoundinthisunitas
well as how to set the clock.
The compact disc player section also requires no routine maintenance, but proper
understanding of its use and handling will help you obtain maximum enjoyment of its
capabilities. Thefollowingpointsshouldbeobserved:
lWhencleaningtheinteriorofthevehicle,donotgetwaterorcleaningfluidsontheunit.
lTheCDplayerisaprecisioninstrumentandwillnotoperateproperly inextremehotor
cold. Incaseofsuchconditions,waituntiltheinteriortemperatureofthevehiclereaches
anormaltemperaturebeforeusingtheplayer.
lIfthetemperatureinsidetheplayergetstoohot,aprotectivecircuitwillautomaticallystop
playofthedisc. Inthiscase,allowtheunittocooloffbeforeoperatingtheplayeragain.
lNever insert anything other than a 5" (12 cm) compact disc into the player as the
mechanismcan bedamaged byforeign objects.
lDo not attempt to use 3" (8 cm) CD-Single discs in this unit, either with or without an
adaptor, as damage to the player and/or disc may occur. Such damage will not be
covered by the Warranty on this product.
lWhen not using the disc player, always remove the compact disc.
REMOREMO REMOREMO
REMOTE CONTRTE CONTR
TE CONTRTE CONTR
TE CONTROL OPEROL OPER
OL OPEROL OPER
OL OPERAA
AA
ATT
TT
TION / CAION / CA
ION / CAION / CA
ION / CARE ARE A
RE ARE A
RE AND MAND MA
ND MAND MA
ND MAINTENAINTENA
INTENAINTENA
INTENANCENCE
NCENCE
NCE
1616
1616
16
bm BATTERY COMPARTMENT - Holds
two AAA batteries for remote wire-
lesscontrol operation.
bn DISC DOWN SELECT (D.DN) -
See Main Unit cr.
bo TRACK/DISC SHUFFLE (SHF) - See
Main Unit cq and el.
bp PAUSE (PAU) - See Main Unit cn.
bq AUTO STORE/PRESET SCAN
(AS/PS)- See Main Unit bp.
br AUDIOCONTROL-SeeMainUnit2,
34, 5, 6, and 7except press
VOL + to increase level, and press
VOL - to decrease level.
bs SELECTBUTTON(SEL)-SeeMain
Unit 3, 4, 5, 6, and 7.
CAREANDMAINTENANCE

128-6003A
18 of 20
lWhenthevehiclewarmsupduringcoldweatherorunderdampconditions,moisturemay
condense on the lens of the disc player. Should this occur, the player will not operate
properlyuntilthemoisturehasevaporated.
lTheunitisdesignedwithavibrationdampeningCDmechanismtominimizeinterruptionof
discplayduetonormalvibrationinamovingvehicle. Whendrivingonveryroughroads,
however, occasional sound skips may occur. This will not scratch or damage the disc
andnormal play willresume when therough conditions cease.
HANDLING COMPACT DISCS
Dirt, dust, scratches, and warpage can cause skips in the playback and deterioration of
sound quality. Please follow these guidelines to take care of your compact discs:
lUse only compact discs with the mark:
lFingerprints,dust,anddirtshouldbecarefullywipedoffthedisc’splayingsurface(shiny
side)withasoftcloth. Wipeinastraightmotionfromtheinsidetotheoutsideofthedisc.
lNever use chemicals such as record sprays, household cleaners or thinner to clean
compact discs. Such chemicals can irreparably damage the disc’s surface.
lDiscs should be kept in their storage cases when not in use.
lDonotexposediscstodirectsunlight,hightemperaturesorhighhumidityforextended
periods.
lDonotstick paper,tape,or labelsonthe disc surfacesnor write onthem with anytype
ofmarker.
CACA CACA
CARE ARE A
RE ARE A
RE AND MAND MA
ND MAND MA
ND MAINTENAINTENA
INTENAINTENA
INTENANCENCE
NCENCE
NCE
1717
1717
17

128-6003A
19 of 20
U.S.A.: AUDIOVOX CORPORATION, 150 MARCUS BLVD., HAUPPAUGE, NY 11788 l1-800-645-4994
WW
WW
WAA
AA
ARRRR
RRRR
RRAA
AA
ANTNT
NTNT
NTYY
YY
Y
1818
1818
18
CANADA: CALL 1-800-645-4994 FOR LOCATION OF WARRANTY STATION SERVING YOUR AREA
12 MONTH LIMITED WARRANTY
AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of
thisproduct that should this product oranypart thereof, under normal use andconditions,
be proven defective in material or workmanship within 12 months from the date of original
purchase, such defect(s) will be repaired or replaced with new or reconditioned product
(at the Company's option) without charge for parts and repair labor.
To obtain repair or replacement within the terms of this Warranty, the product is to be
delivered with proof of warranty coverage (e.g. dated bill of sale), specification of
defect(s), transportation prepaid, to the warranty center at the address shown below.
This Warranty does not extend to the elimination of car static or motor noise, to correction
of antenna problems, to costs incurred for installation, removal, or reinstallation of the
product, or damage to tapes, compact discs, speakers, accessories, or vehicle electrical
systems.
This Warranty does not apply to any product or part thereof which, in the opinion of the
Company, has suffered or been damaged through alteration, improper installation,
mishandling, misuse, neglect, accident, or by removal or defacement of the factory serial
number/barcodelabel(s). THE EXTENTOFTHE COMPANY'SLIABILITYUNDERTHIS
WARRANTYISLIMITEDTOTHEREPAIRORREPLACEMENTPROVIDEDABOVEAND,
INNOEVENT,SHALLTHECOMPANY'SLIABILITYEXCEEDTHEPURCHASEPRICE
PAID BY PURCHASER FOR THE PRODUCT.
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED
WARRANTIES,INCLUDINGANYIMPLIEDWARRANTYOFMERCHANTABILITY,SHALL
BELIMITED TO THE DURATIONOFTHIS WRITTEN WARRANTY. ANY ACTIONFOR
BREACHOFANYWARRANTYHEREUNDERINCLUDINGANYIMPLIEDWARRANTYOF
MERCHANTABILITY MUST BE BROUGHT WITHIN A PERIOD OF 30 MONTHS FROM
DATEOFORIGINALPURCHASE. INNOCASESHALLTHECOMPANYBELIABLEFOR
ANYCONSEQUENTIALORINCIDENTALDAMAGESFORBREACHOFTHISORANY
OTHERWARRANTY,EXPRESSORIMPLIED,WHATSOEVER. Nopersonorrepresentative
is authorized to assume for the Company any liability other than expressed herein in
connection with the sale of this product.
Some states do not allow limitations on how long an implied warranty lasts or the
exclusion or limitation of incidental or consequential damage so the above limitations
or exclusions may not apply to you. This Warranty gives you specific legal rights and you
may also have other rights which vary from state to state.
128-4270E

128-6003A
20 of 20
©2001AudiovoxElectronicsCorp.,Hauppauge,NY11788 PrintedinChina
128-6003A
