Randell RR27RE-S1 User manual

OPERATOR MANUAL
IMPORTANT INFORMATION, KEEP FOR OPERATOR
PART NUMBER PP MNL2208, REV. A (01/23)
This manual provides information for:
RR REACH-INS
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ,
UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS
CONTAINED IN THIS MANUAL.
FOR YOUR SAFETY Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
NOTIFY CARRIER OF DAMAGE AT ONCE It is the responsibility of the
consignee to inspect the container upon receipt of same and to determine
the possibility of any damage, including concealed damage. Unified
Brands suggests that if you are suspicious of damage to make a notation
on the delivery receipt. It will be the responsibility of the consignee to file
a claim with the carrier. We recommend that you do so at once.
Manufacture Service/Questions 888-994-7636.
RETAIN THIS MANUAL FOR FUTURE REFERENCE
NOTICE: Due to a continuous program of product improvement, Unified Brands
reserves the right to make changes in design and specifications without prior notice.
NOTICE: Please read the entire manual carefully before installation. If certain
recommended procedures are not followed, warranty claims will be denied.
MODEL NUMBER _______________ SERIAL NUMBER _________________
INSTALLATION DATE ______________________
The serial number of all self-contained refrigerators and freezers is located inside
the unit on the left hand side near the top on the wall. Always have the serial number
of your unit available when calling for parts or service. This manual covers standard
units only.
888-994-7636, fax [phone]
unifiedbrands.net
Information contained in this document is known to be current and accurate at the time of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications. © 2023 Unified Brands. All Rights Reserved.
RECEIVING & INSPECTING THE EQUIPMENT
Even though most equipment is shipped crated, care should be taken during
unloading so the equipment is not damaged while being moved into the building.
1. Visually inspect the exterior of the package and skid or container. Any
damage should be noted and reported to the delivering carrier immediately.
2. If damaged, open and inspect the contents with the carrier.
3. In the event that the exterior is not damaged, yet upon opening, there is
concealed damage to the equipment, notify the carrier. Notification should
be made verbally as well as in written form.
EQUIPMENT DESCRIPTION
Model No. Solid Door Body
Style
V/Hz/Ph AMPS Storage Capacity
(Cubic Ft.)
HP NEMA Approx. Ship Weight
(LBS)
RR27RE-S1 Refrigerator 115/60/1 3.0 17.84 1/6 5-15P 306
RR54RE-S2 Refrigerator 115/60/1 4.5 35.68 1/4 5-15P 534
RR27FZ-S1 Freezer 115/60/1 8.0 17.84 1/2 5-15P 328
RR54FZ-S2 Freezer 115/60/1 9.0 35.68 15-15P 545
4. Request an inspection by the shipping company of the damaged equipment.
This should be done within 10 days from receipt of the equipment.
5. Be certain to check the compressor compartment housing and visually
inspect the refrigeration package. Be sure lines are secure and base is still
intact.
6. Freight carriers can supply the necessary damage forms upon request.
7. Retain all crating material until an inspection has been made or waived.

2 OM-RR REACH-INS
INSTALLATION
NOTE: UNIT REPAIRS WILL NOT BE SUBJECT TO STANDARD UNIT
WARRANTIES IF DUE TO IMPROPER INSTALLATION PROCEDURES.
DANGER: THE UNIT MUST BE TURNED OFF AND DISCONNECTED FROM
THE POWER SOURCE WHENEVER PERFORMING SERVICE, MAINTENANCE
FUNCTIONS OR CLEANING THE REFRIGERATED AREA.
SELECTING A LOCATION FOR YOUR NEW UNIT
Units represented in this manual are intended for indoor use only. Be sure the
location chosen has a floor strong enough to support the total weight of the
cabinet and contents. A fully loaded unit can weigh as much as 1500 pounds.
Reinforce the floor as necessary to provide for maximum loading. For the most
efficient refrigeration, be sure to provide good air circulation inside and out.
INSIDE CABINET
Do not pack the units so full that air cannot circulate. The refrigerated air is
discharged at the top rear of the unit. It is important to allow for proper air flow
from the top rear to the bottom of the unit. Obstructions to this air flow can cause
evaporator coil freeze ups and loss of temperature or overflow of water from the
evaporator drain pan. The shelves have a rear turn up on them to prevent this.
However, bags and other items can still be located to the far rear of the cabinet.
Air is brought into the evaporator coil with fans mounted to the front of the coil.
OUTSIDE CABINET
Be sure that the unit has access to ample air. Avoid hot corners and locations
near stoves and ovens. It is recommended that the unit be installed no closer
than 2” from any wall with at least 12” of clear space above the unit.
LEVELING
A level cabinet looks better and will perform better because the doors will line
up with the frames properly. Use a level to make sure the unit is level from front
to back and side to side. Units supplied with legs will have adjustable bullet
feet to make the necessary adjustments. If the unit is supplied with casters,
no adjustments are available. Ensure the floor where the unit is to be located
is level.
STABILIZING
All models are supplied with casters for your convenience. It is very important,
however, that the cabinet be installed in a stable condition with the front wheels
locked while in use. Should it become necessary to lay the unit on its side or back
for any reason, allow at least 24 hours before start-up to allow compressor oil
to flow back into place. Failure to meet this requirement can cause compressor
failure and unit damage.
ELECTRICAL CONNECTION
Refer to the amperage data on page 1, the serial tag, your local code or the
National Electrical Code to be sure the unit is connected to the proper power
source.
IMPORTANT - READ FIRST - IMPORTANT
YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT.
WE HAVE PROVIDED MANY IMPORTANT SAFETY MESSAGES IN THIS MANUAL AND ON YOUR
APPLIANCE. ALWAYS READ AND OBEY ALL SAFETY MESSAGES.
THESE ARE THE SAFETY ALERT SYMBOLS. THESE SYMBOL ALERT YOU TO
POTENTIAL HAZARDS THAT CAN KILL OR INJURE YOU AND OTHERS. ALL SAFETY
MESSAGES WILL FOLLOW THE SAFETY ALERT SYMBOLS AND EITHER THE
WORDS “DANGER”, “WARNING” OR “CAUTION”.
DANGER MEANS THAT FAILURE TO HEED THIS SAFETY STATEMENT MAY RESULT
IN SEVERE PERSONAL INJURY OR DEATH.
WARNING MEANS THAT FAILURE TO HEED THIS SAFETY STATEMENT MAY
RESULT IN EXTENSIVE PRODUCT DAMAGE, SERIOUS PERSONAL INJURY, OR
DEATH.
CAUTION MEANS THAT FAILURE TO HEED THIS SAFETY STATEMENT MAY RESULT
IN MINOR OR MODERATE PERSONAL INJURY, OR PROPERTY OR EQUIPMENT
DAMAGE.
ALL SAFETY MESSAGES WILL ALERT YOU TO WHAT THE POTENTIAL HAZARD IS, TELL YOU
HOW TO REDUCE THE CHANCE OF INJURY, AND LET YOU KNOW WHAT CAN HAPPEN IF THE
INSTRUCTIONS ARE NOT FOLLOWED.
IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER, ITS
SERVICE AGENT OR SIMILARLY QUALIFIED PERSONS IN ORDER TO AVOID A HAZARD.
THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH
REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND
KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING
USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY.
CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH THE
APPLIANCE.
THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8 YEARS AND ABOVE AND PERSONS
WITH REDUCED PHYSICAL SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND
KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE
OF THE APPLIANCE IN A SAFE WAY AND UNDERSTAND THE HAZARDS INVOLVED. CHILDREN
SHALL NOT PLAY WITH THE APPLIANCE. CLEANING AND USER MAINTENANCE SHALL NOT BE
MADE BY CHILDREN WITHOUT SUPERVISION.
KEEP THE APPLIANCE AND ITS CORD OUT OF REACH OF CHILDREN LESS THAN 8 YEARS.
DO NOT STORE EXPLOSIVE SUBSTANCES SUCH AS AEROSOL CANS WITH A FLAMMABLE
PROPELLANT IN THIS APPLIANCE.
THE APPLIANCE USE FLAMMABLE INSULATION BLOWING GAS C5H10, DISPOSAL OF THE
APPLIANCE SHALL IN ACCORDANCE WITH THE REGULATIONS OF LOCAL AUTHORITIES.
THE KEY FOR APPLIANCE ELECTRIC BOX SHOULD BE SAFE KEPT BY QUALIFIED PERSONS IN
ORDER TO AVOID A HAZARD.
WARNING: KEEP VENTILATION OPENINGS, IN THE APPLIANCE ENCLOSURE OR IN THE BUILT-IN
STRUCTURE, CLEAR OF OBSTRUCTION.
WARNING: DO NOT USE MECHANICAL DEVICES OR OTHER MEANS TO ACCELERATE
THE DEFROSTING PROCESS, OTHER THAN THOSE RECOMMENDED BY THE
MANUFACTURER.
WARNING: DO NOT DAMAGE THE REFRIGERANT CIRCUIT.
WARNING: DO NOT USE ELECTRICAL APPLIANCES INSIDE THE FOOD STORAGE COMPARTMENTS
OF THE APPLIANCE, UNLESS THEY ARE OF THE TYPE RECOMMENDED BY THE
MANUFACTURER.
WARNING: HANDLING, MOVING, AND USE OF THE REFRIGERATOR OR FREEZER TO AVOID
EITHER DAMAGING THE REFRIGERANT TUBING, OR INCREASING THE RISK OF A
LEAK.
CAUTION: RISK OF FIRE OR EXPLOSION DUE TO FLAMMABLE REFRIGERANT USED. FOLLOW
HANDLING INSTRUCTIONS CAREFULLY IN COMPLIANCE WITH U.S. GOVERNMENT
REGULATIONS.
CAUTION: COMPONENT PARTS SHALL BE REPLACED WITH LIKE COMPONENTS AND THAT
SERVICING SHALL BE DONE BY FACTORY AUTHORIZED SERVICE PERSONNEL, SO
AS TO MINIMIZE THE RISK OF POSSIBLE IGNITION DUE TO INCORRECT PARTS OR
IMPROPER SERVICE.
CAUTION: RISK OF FIRE OR EXPLOSION DUE TO PUNCTURE OF REFRIGERANT TUBING; FOLLOW
HANDLING INSTRUCTIONS CAREFULLY. FLAMMABLE REFRIGERANT USED.
DANGER: RISK OF CHILD ENTRAPMENT. BEFORE YOU THROW AWAY YOUR OLD REFRIGERATOR
OR FREEZER: TAKE OFF THE DOORS. LEAVE THE SHELVES IN PLACE SO THAT
CHILDREN MAY NOT EASILY CLIMB INSIDE.

3 OM-RR REACH-INS
OPERATION
CAUTION: DO NOT THROW ITEMS INTO THE STORAGE AREA. FAILURE TO
HEED THESE RECOMMENDATIONS COULD RESULT IN DAMAGE TO THE
INTERIOR OF THE CABINET.
REFRIGERATED CYCLE
Refrigerators
During the refrigeration cycle, the evaporator fans will run continuously even when
one or more doors are open. The door switch will activate the lights when opened.
1. Every 6 hours, the refrigeration system will turn off to allow the evaporator coil to
defrost. The controller now displays defrost symbol. When the coil temperature
reaches 41°F or after 20 minutes of defrost, the unit will turn on again.
2. Anti-condensation heaters on door frames work in conjunction with the
compressor.
3. The factory setting for the temperature range is 34°F to 38°F.
Freezers
During the refrigeration cycle, the controller supplies power to the condensing unit
and evaporator fan motors. The evaporator fans will run at any time when the
evaporator coil temperature is below 54°F. They will also keep running when door
is open but cycle off during a defrost period. The door switch will activate the lights
when opened.
1. Every 6 hours, the refrigeration system will turn off and electric heater will
turn on to defrost the evaporator coil. The controller now displays the defrost
symbol. When the coil temperature reaches 45°F or after 20 minutes of
defrost, the unit will turn on again.
2. Anti-condensation heaters on door frames work in conjunction with the
compressor.
3. The factory setting for temperature range is -7 to -3°F.

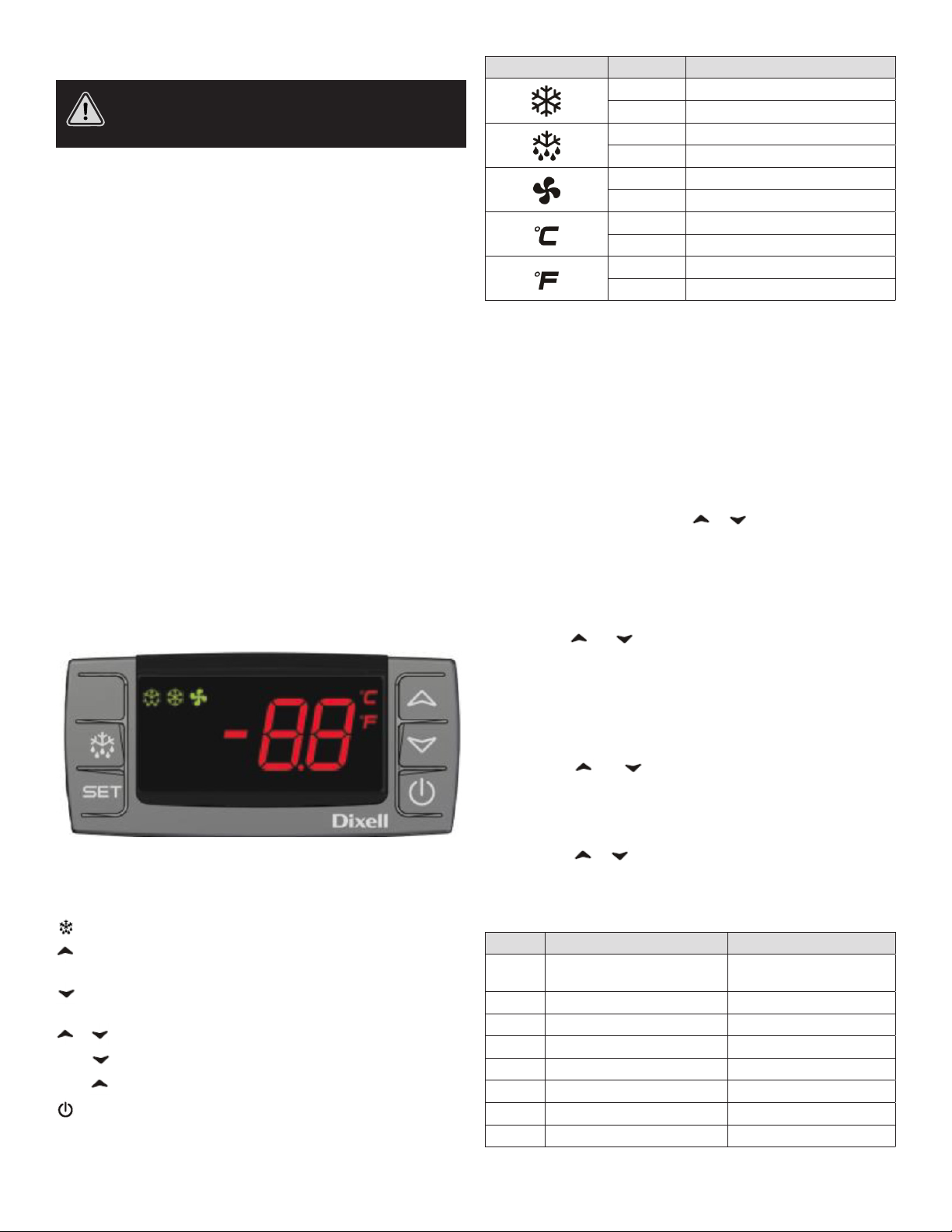

SOLID-STATE THERMOSTAT DESCRIPTIONS
Front Panel Commands
SET: To display target set point; in programming mode it selects a
parameter or confirm an operation.
(DEF): To start a manual defrost.
(UP): To view the last alarm occurrence; in programming mode it browses
the parameter codes or increases the display value.
(DOWN): To view the last alarm occurrence; in programming mode it browses
the parameter codes or decreases the display value.
+ :To lock and unlock the keyboard.
SET + :To enter in programming mode.
SET + :To return to the room temperature display.
:To switch the instrument off.
LED MODE DEFINITION
ON Compressor enabled
FLASHING Anti-short cycle delay enabled (AC parameter)
ON Defrost in progress
FLASHING Dripping in progress
ON Fans output enabled
FLASHING Fans delay after defrost
ON Measurement unit
FLASHING Programming mode
ON Measurement unit
FLASHING Programming mode
Main Functions
1. HOW TO SEE THE SET POINT
a. Push and immediately release the SET key: the display will show the set
point value.
b. Push and immediately release the SET key or wait for 5 seconds to display
the sensor value again.
2. HOW TO CHANGE THE SET POINT
a. Hold the SET key for more than 2 seconds to change the set point value.
b. The value of the set point will be displayed and the LED starts blinking.
c. To change the set value, push the or key within 10s.
d. To set new point value, push the SET key again or wait 10s.
3. HOW TO START A MANUAL DEFROST
a. Hold the key for more than 2 seconds and a manual defrost will start
4. HOW TO LOCK THE KEYBOARD
a. Hold the and keys together for more than 3s.
b. The “POF” message will be displayed and the keyboard will be locked. At
this point, it will be possible only to see the set point or the MAX or Min
temperature stored.
c. If a key is pressed more than 3s the ”POF” message will be displayed.
5. HOW TO UNLOCK THE KEYBOARD
a. Hold the and keys together for more than 3s until the “POF”
message is displayed.
Alarm Signals
1. HOW TO SEE THE ALARM AND RESET THE RECORDED ALARM
a. Push the or key to display the alarm signals.
b. When the signal is displayed, hold the SET key until the “rst” message is
displayed, and push the SET key again. The “rst” message starts blinking
and the normal temperature will be displayed.
MESSAGE CAUSE OUTPUTS
“P1” Room probe failure Compressor output according to par
“Con” and “COF”
“P2” Evaporator probe failure Defrost end is timed
“HA” Maximum temperature alarm Outputs unchanged
“LA” Minimum temperature alarm Outputs unchanged
“dA” Door open Compressor and fans restart
“EA” External alarm Output unchanged
“CA” Serious external alarm (i1F=bAL) All outputs OFF
“CA” Pressure switch alarm (i1F=PAL) All outputs OFF

4 OM-RR REACH-INS
MAINTENANCE
DANGER: THE UNIT MUST BE TURNED OFF AND DISCONNECTED FROM
THE POWER SOURCE WHENEVER PERFORMING SERVICE, MAINTENANCE
FUNCTIONS OR CLEANING THE REFRIGERATED AREA.
DANGER: NEVER USE A HIGH PRESSURE WATER WASH FOR THIS CLEANING
PROCEDURE AS WATER CAN DAMAGE THE ELECTRICAL COMPONENTS
LOCATED NEAR OR AT THE CONDENSER COIL.
DANGER: NEVER USE STEEL PADS, WIRE BRUSHES OR SCRAPERS!
CAUTION: NEVER USE AN ACID BASED CLEANING SOLUTION！MANY FOOD
PRODUCTS HAVE AN ACIDIC CONTENT WHICH CAN DETERIORATE THE
FINISH. BE SURE TO CLEAN THE STAINLESS STEEL SURFACES OF ALL FOOD
PRODUCTS.
REFRIGERATORS AND FREEZERS
The interior and exterior can be cleaned using soap and warm water. If this isn’t
sufficient, try ammonia and water or a nonabrasive liquid cleaner. When cleaning
the exterior, always rub with the “grain” of the stainless steel to avoid marring the
finish.
Do not use an abrasive cleaner because it will scratch the stainless steel and
plastic and can damage the breaker strips and gaskets.
CLEANING THE CONDENSER COIL
The condenser coil requires regular cleaning and it is recommended every 90
days. In some instances, you may find that there is a large amount of debris and
dust or grease accumulated prior to the 90 day time frame. In these cases the
condenser coil should be cleaned every 30 days.
If the build up on the coil consists of only light dust and debris, the condenser coil
can be cleaned with a simple brush. Heavier dust build-up may require a vacuum
or even compressed air to blow through the condenser coil.
If heavy grease is present, there are de-greasing agents available for refrigeration
use and specifically for the condenser coils. The condenser coil may require
cleaning with the de-greasing agent and then blown through with compressed air.
Failure to maintain a clean condenser coil can initially cause high temperatures
and excessive run times. Continuous operation with dirty or clogged condenser
coils can result in compressor failures. Neglecting the condenser coil cleaning
procedures will void any warranties associated with the compressor or cost to
replace the compressor.
STAINLESS STEEL CARE AND CLEANING
To prevent discoloration of rust on stainless steel several important steps need to
be taken. First, we need to understand the properties of stainless steel. Stainless
steel contains 70-80% iron which will rust. It also contains 12-30% chromium
which forms an invisible passive film over the steels surface which acts as a
shield against corrosion. As long as the protective layer is intact, the metal is still
stainless. If the film is broken or contaminated, outside elements can begin to
breakdown the steel and begin to form rust of discoloration. Proper cleaning of
stainless steel requires soft cloths or plastic scouring pads.
Cleaning solutions need to be alkaline based or non-chloride based. Any cleaner
containing chlorides will damage the protective film of the stainless steel. Chlorides
are commonly found in hard water, salts, and household and industrial cleaners. If
cleaners containing chlorides are used, be sure to rinse and dry thoroughly.
Routine cleaning of stainless steel can be done with soap and water. Extreme
stains or grease should be cleaned with a non-abrasive cleaner and plastic scrub
pad. It is always good to rub with the grain of the steel. There are also stainless
steel cleaners available which can restore and preserve the finish of the steel’s
protective layer.
Early signs of stainless steel breakdown can consist of small pits and cracks. If this
has begun, clean thoroughly and start to apply stainless steel cleaners in attempt
to restore the passivity of the steel.
GASKET MAINTENANCE
Gaskets require regular cleaning to prevent mold and mildew build up and also
to keep the elasticity of the gasket. Gasket cleaning can be done with the use of
warm soapy water. Avoid full strength cleaning products on gaskets as this can
cause them to become brittle and prevent proper seals. Do not use sharp tools or
knives to scrape or clean the gasket which could possibly tear the gasket and rip
the bellows.
Gaskets can easily be replaced and don’t require the use of tools or authorized
service technicians. The gaskets are “Dart” style and can be pulled out of the grove
in the door and replaced by pressing the new one back into place.
DOORS/HINGES
Over time and with heavy use, door hinges may become loose. If the door is
beginning to sag, tighten the screws that mount the hinge brackets to the frame
of the unit. If the doors are loose or sagging, this can cause the hinge to pull out of
the frame which may damage both the doors and the door hinges.
DRAIN MAINTENANCE
Each unit has a drain located inside the unit which removes the condensation
from the evaporator coil and drains it into an external condensate evaporator
pan. Drain line can become loose or disconnected from moving or bumping the
drain tube. If you notice excessive water accumulation on the inside of the unit, be
sure the drain tube is connected from the evaporator housing to the condensate
evaporator drain pan. If water starts to collect underneath the unit, you may want
to check the condensate evaporator drain tube to be sure it is still located inside
the drain pan. The leveling of the unit is important as the units are designed to
drain properly when on a level surface, if your floor is not level, this can also cause
drain problems. Be sure all drain lines are free of obstructions because this may
cause water to back up and overflow the drain pans.
REPLACEMENT PARTS
To order parts, contact your Authorized Service Agent. Supply the model
designation, serial number, part description, part number, quantity, and when
applicable, voltage and phase.
CONTACT US
If you have questions pertaining to the content in this manual, contact Unified
Brands at 888-994-7636.

5 OM-RR REACH-INS
WARRANTY
Congratulations on the purchase of your new Unified Brands equipment. We hope you
enjoy many years of reliable service in connection with the same. Please review all of
the important safety and operational information contained in the Operator’s Manual
for this equipment before it is placed in service. If you have any questions related to
equipment set up, operations, or service, please call 888-994-7636.
In addition, please review the sales terms and conditions set forth below.
*****IMPORTANT NOTICE*****
WARRANTIES, LIMITATIONS ON WARRANTIES, AND LIMITATION OF REMEDIES
The following Warranties, Limitation on Warranties, and Limitation of Remedies are
included in the terms of sale for this product. Please read this entire warranty and all
warranty modifications, disclaimers, and limitations of remedies set forth herein before
accepting or using this equipment or product. Customer acknowledges and accepts
the provisions of this notice by Customer’s acceptance and use of the product. If these
provisions are not acceptable and agreed to by Customer, then please return this
product in its unused condition to Unified Brands or a Unified Brands authorized dealer.
UNIFIED BRANDS warrants this product against defects in material and workmanship
under normal use and services for which this product was designed. This warranty
runs only to the original end user and is in lieu of any other liability for defects.
THE WARRANTIES EXPRESSED IN THESE TERMS AND CONDITIONS ARE IN PLACE
OF ANY AND ALL OTHER EXPRESS WARRANTIES (UNLESS SEPARATELY STATED IN
PRINTED MATERIAL PREPARED BY US DESCRIBING OUR EQUIPMENT) AND EXCLUDE
ALL IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE; NOR ARE THERE
ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, BY OPERATION OF LAW OR
OTHERWISE. In no event shall UNIFIED BRANDS be liable for damages or delay or
for any consequential, special or contingent damages arising out of any breach of
our warranty, whether or not we have knowledge of specific needs or our employees
or agents have given any specific assurances. Anyone claiming that there has been
a breach of warranty by UNIFIED BRANDS must give us written notice within THIRTY
(30) days after discovery of the relevant defect or the right to assert such claim will
have been waived conclusively and provided further that any such claim must also be
asserted within the general warranty period for such equipment and/or parts.
UNIFIED BRANDS will not be liable for any expense incurred without our prior written
authorization for alterations made outside of our factory or for repairs which are
not performed by UNIFIED BRANDS authorized service departments using UNIFIED
BRANDS factory parts. Nor shall we be responsible for the performance of equipment
as to which any repairs, revisions or alterations have been made by others.
THE EXCLUSIVE REMEDY OF THE USER OR BUYER AND THE EXCLUSIVE LIABILITY OF
UNIFIED BRANDS OR ANY SELLER OF UNIFIED BRANDS PRODUCTS, FOR ANY AND ALL
CLAIMS, LOSSES, INJURIES, OR DAMAGES (INCLUDING CLAIMS BASED ON BREACH
OF WARRANTY, CONTRACT, NEGLIGENCE, TORT, STRICT LIABILITY, OR OTHERWISE)
RESULTING FROM OR ARISING OUT OF THE USE OF HANDLING OF THIS PRODUCT,
SHALL BE THE RETURN OF THE PURCHASE PRICE OR AN AMOUNT NOT TO EXCEED
THE ORIGINAL PURCHASE PRICE OF THE PRODUCT OR, AT THE ELECTION OF UNIFIED
BRANDS OR THE SELLER, THE REPLACEMENT OF THE PRODUCT.
https://unifiedbrands.net/
Randell-Warranty-Information

6 OM-RR REACH-INS
Wiring Diagram
RR27RE-S1
CALL FACTORY FOR REPLACEMENT PARTS:
888-994-7636 Wiring Diagram
RR27RE-S1
CALL FACTORY FOR REPLACEMENT PARTS:
888-994-7636
CONDENSER
FAN
EVAPORATOR
FAN
GROUND

7 OM-RR REACH-INS
Wiring Diagram
RR54RE-S2
CALL FACTORY FOR REPLACEMENT PARTS:
888-994-7636
CONDENSER
FAN
EVAPORATOR
FAN
GROUND

8 OM-RR REACH-INS
Wiring Diagram
RR27RE-S1
CALL FACTORY FOR REPLACEMENT PARTS:
888-994-7636 Wiring Diagram
RR27FZ-S1
CALL FACTORY FOR REPLACEMENT PARTS:
888-994-7636
CONDENSER FAN
EVAPORATOR
FAN
GROUND
DRAIN LINE HEATER

9 OM-RR REACH-INS
Wiring Diagram
RR54FZ-S2
CALL FACTORY FOR REPLACEMENT PARTS:
888-994-7636
CONDENSER FAN
EVAPORATOR
FAN
GROUND
DRAIN LINE HEATER

10 OM-RR REACH-INS
Service Log
Model No: Purchased From:
Serial No: Location:
Date Purchased: Date Installed:
Purchase Order No: For Service Call:
Date Maintenance Performed Performed By
