Randell 14G SCA-2 User manual

1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, unifiedbrands.net
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.

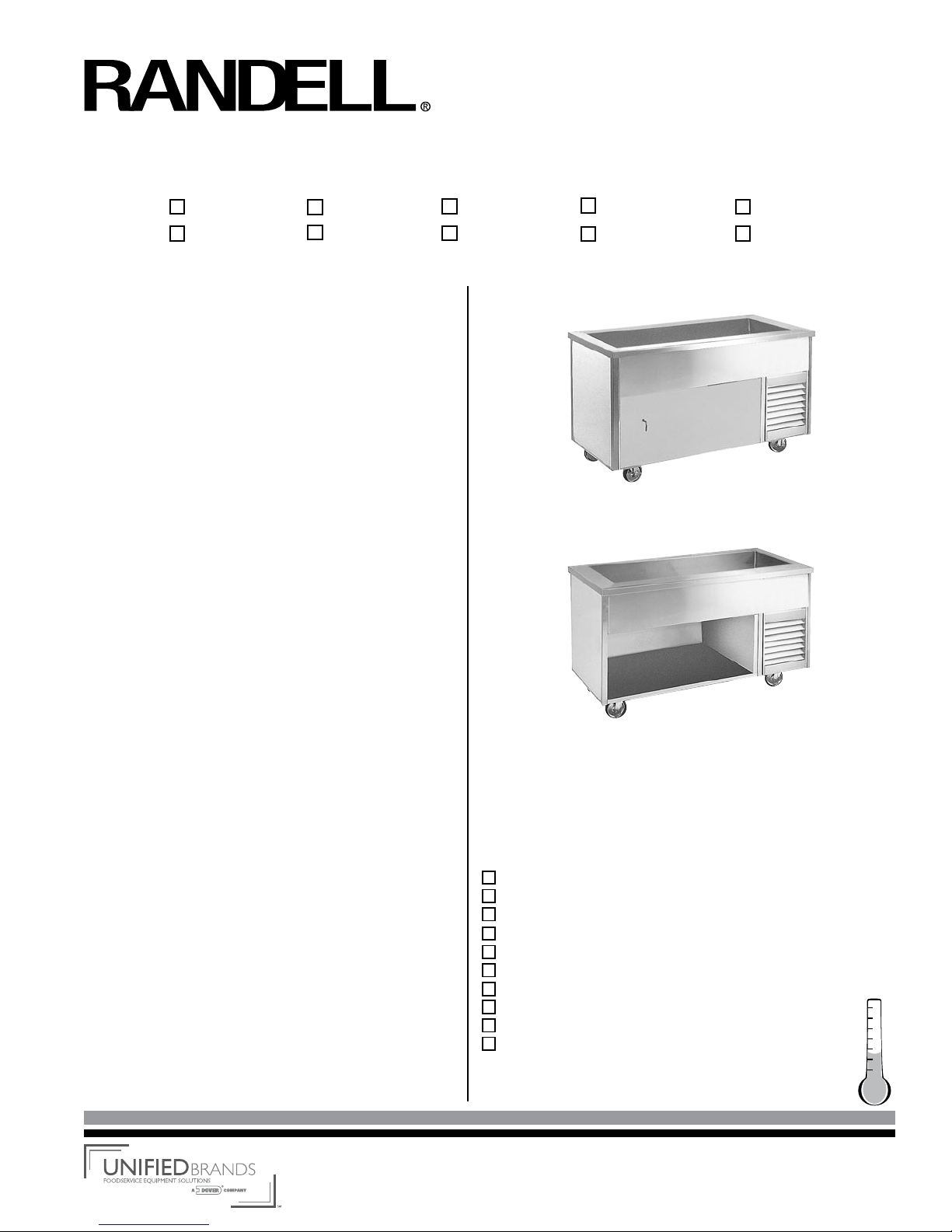

RanServe Stainless Steel Refrigerated Cold Pan models SCA
model 14G SCA-3 Enclosed Base shown
Standard Features:
• Stainless steel self-contained cold pan with expansion
valve, temperature control and one piece interior
• HFC-404a refrigerant, “CFC free”
• Foamed in place (CFC free) high density polyurethane
insulation. Interchangeable body panels.
• Concealed locking mechanism with easy to use
spring-activated catch
Description:
Portable, stainless steel self-contained cold pan serving station.
1" drain provided. Available with enclosed base or open storage.
Foamed in place (CFC free) insulation. Interchangeable stainless
steel, or laminate body panels, snap together locking device
designed to work with all other RanServe equipment. (4) swivel
casters provided. R-404a wrapped refrigeration system is “CFC
free”, and meets NSF standard #7.
Specifications:
UNIT TOP: Top to be one piece of die-formed 14 gauge stainless steel
with 1 1/2", 90˚ nosing on all sides. Unit fitted with 9 1/2" deep self-
contained display cold pan. Interior of pan to be one piece, continuously
welded construction of 18 gauge stainless steel. Interior fitted with
1" drain at one end. Drain nipple supplied with ball valve and lever
extension to cabinet exterior on enclosed base units - drain lines run to
accessible area.
UNIT BODY: Body frame to be all welded construction of steel with
exposed corners to be 1 1/2" stainless steel. All corners welded and
polished. Body ends and panels to be plastic laminate with galvanized
steel backing (specify laminate color). Body ends and panels to
be removable to allow the changing of colors. Cold pan wrapped
with refrigeration lines and insulated with high density (CFC free)
polyurethane, foamed in place. Unit to be equipped with 4 swivel
casters, (2) locking, that are recessed inside of toe area.
REFRIGERATION: CFC free, R-404a refrigeration system to be wrapped
refrigeration construction. Expansion valve, and thermostatic control for
operator adjustability mounted in compressor housing. 8' cordset (NEMA
5-15P) supplied for 115V operation.
“S” series (Cafeteria style with open base) Same spec as SCA series
only “S” series units to have partial stainless steel panel on one side
with undershelf. Undershelf to be 22 gauge stainless steel with integrally
welded steel under-bracing. Self-contained display pan to have ball
valve, accessible thru storage area.
model 14G SCA-2 14G SCA-3 14G SCA-4 14G SCA-5 14G SCA-6
14G SCA-2S 14G SCA-3S 14G SCA-4S 14G SCA-5S 14G SCA-6S
model 14G SCA-3S Open Base shown
Randell RanServe, Page 2
Revised 08/05
Standard Features Cont’d:
• 1" drain, drain nipple and ball valve
• Swivel casters - (2) locking
• Meets NSF standard #7
Options & Accessories:
Corian top
Granite top
Laminates
Graphics
Sneeze Guards
Elementary School Height
Electrical Distribution System
Canopy
Overshelves
Trayslides
33°F to 40°F 18°F to 22°F33°F to 41°F

Randell, Unified Brands 888-994-7636, unifiedbrands.net
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
Models SCA
Enclosed Base 12" x 20" Pan Coldpan
Model L D H Capacity Interior Dimensions HP Volts Amps NEMA Ship Wt.
14G SCA-2 36" 30" 35" 2 26 1/4" x 21" x 8 3/4" 1/4 115/60/1 5 5-15P 250
14G SCA-3 48" 30" 35" 3 39 1/8" x 21" x 8 3/4" 1/4 115/60/1 5 5-15P 300
14G SCA-4 60" 30" 35" 4 52 1/16" x 21" x 8 3/4" 1/4 115/60/1 5 5-15P 350
14G SCA-5 72" 30" 35" 5 64 15/16" x 21" x 8 3/4" 1/4 115/60/1 5 5-15P 400
14G SCA-6 86" 30" 35" 6 77 7/8" x 21" x 8 3/4" 1/4 115/60/1 5 5-15P 450
Open Base
14G SCA-2S 36" 30" 35" 2 28 1/8" x 21" x 8 3/4" 1/4 115/60/1 5 5-15P 275
14G SCA-3S 48" 30" 35" 3 39 1/8" x 21" x 8 3/4" 1/4 115/60/1 5 5-15P 325
14G SCA-4S 60" 30" 35" 4 52 1/16" x 21" x 8 3/4" 1/4 115/60/1 5 5-15P 375
14G SCA-5S 72" 30" 35" 5 64 15/16" x 21" x 8 3/4" 1/4 115/60/1 5 5-15P 425
14G SCA-6S 86" 30" 35" 6 77 7/8" x 21" x 8 3/4" 1/4 115/60/1 5 5-15P 475
RAN SCA
ABOVE FIXED FLOOR
LEGEND FOR
AFF =
J
HP
9' CORD NEMA#5-15P
115V/60Hz/1PH
J-BOX - 18" AFF
BELOW BOTTOM OF
LINE EXTENDS TO 1"
1" DIA PVC DRAIN
HP COMPRESSOR
UNIT
J
HP
DRAIN
HANDLE
36"
S/S
PANEL
ROCKER
SWITCH
PANEL
DRAIN LINE
2.5"
16"
COMPR. HSG.
2.5"
DRAIN
HANDLE
PANEL
60"
ROCKER
SWITCH
S/S
PANEL
86"
ROCKER
SWITCH
DRAIN
HANDLE
S/S
PANEL
PANEL 30"
PANEL
35"
ROCKER
SWITCH
48"
DRAIN
HANDLE
PANEL
S/S
PANEL
PANEL
78"
ROCKER
SWITCH
S/S
PANEL
DRAIN
HANDLE
ROCKER
SWITCH
36"
S/S
PANEL
STORAGE
OPEN
"S" Model
14G SCA DRAWINGS SHOWN, 14G SCA-S FRONT VIEW SHOWN AS REPRESENTATION OF “S” MODELS
Drawings are to be viewed in the same order as the chart
