  9. Randell RANFG HTD-2 User manual

Randell RANFG HTD-2 User manual

1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, fax 888-266-5244
Specifications subject to change without notice.
For the most current specs, visit unifiedbrands.net.

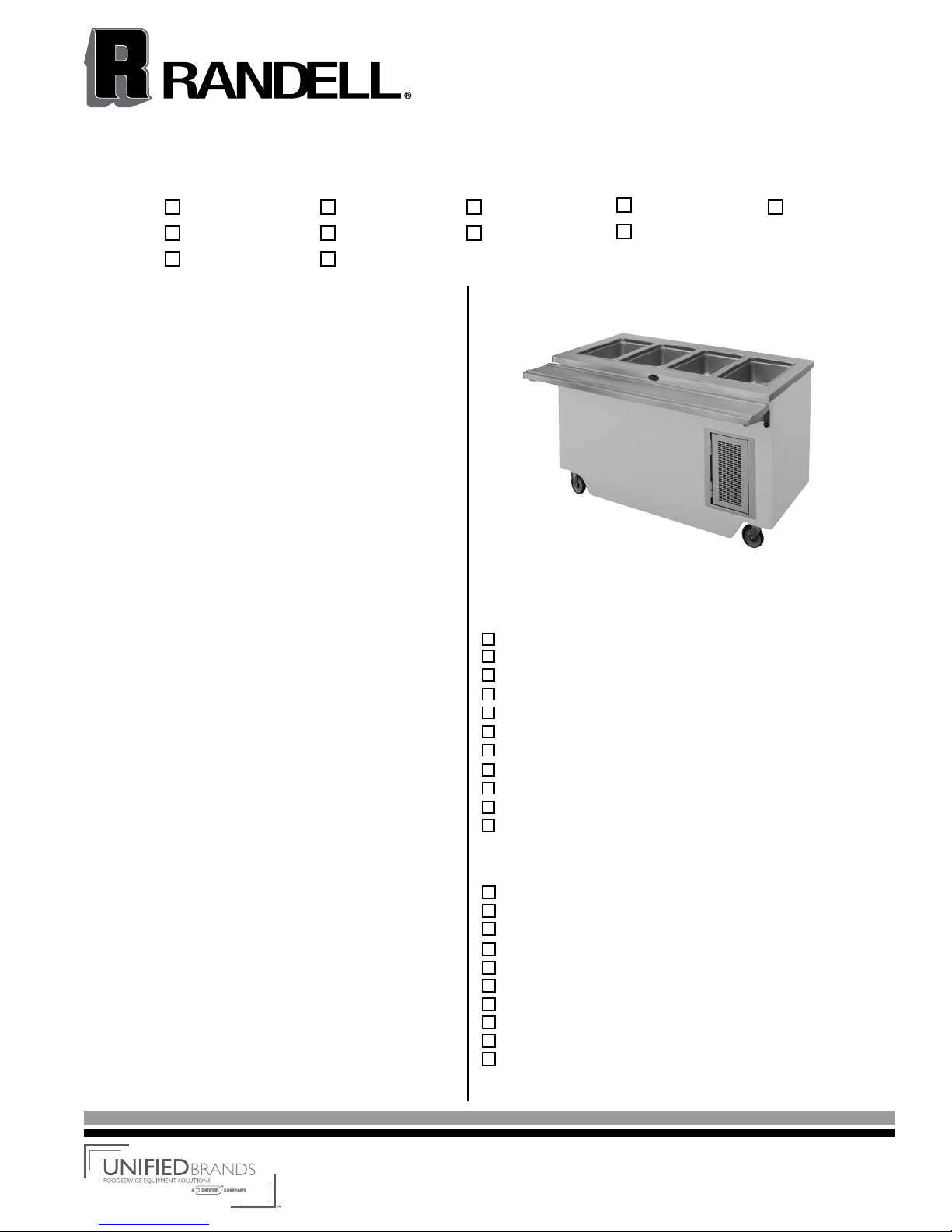

RanServe Fiberglass Electric Heated Well models HTD
model RANFG HTD-4S shown
Standard Features:
• Easy access to drain and controls
• Unique integral toe-kick provides neater finish
• Easy access to service electrical components
• Concealed locking mechanism with easy to use
spring-activated catch
Additional Available Configurations:
•RANFG HTD “S” Series
Same basic construction of standard enclosed base
series with an optional open shelf storage compartment.
Available in the 3, 4, 5 & 6 well models to offer most
efficient space capacity.
•RANFG HTD “B” Series
Same basic construction of standard enclosed base
series with an optional heated storage compartment.
Available in the 4 & 6 well models due to space constraints.
Description:
Randell’s RANFG HTD Series Electric Heated Well Units designed
for virtually any hot food serving application, the RANFG HTD
series is enclosed in a brilliant one-piece fiberglass body and 16
gauge stainless steel top.
Specifications:
CABINET CONSTRUCTION: One-piece molded fiberglass body for
smooth exterior finish. All corners and areas where accessories
are mounted are reinforced internally with metal backers. Unit
to be provided with integral toe-kick.
TOP CONSTRUCTION: Exterior top is standard in reinforced 16
gauge 300 series stainless steel with #4 finish. Optional 14 gauge
tops available at a minimal upgrade.
HOT WELL CONSTRUCTION: The hot wells are constructed of die
stamped and annealed stainless steel and are provided with indi-
vidual drains manifolded to a common gate valve. The gate valve
is accessed through an enclosed housing with louvered access
door. Two types of fittings are provided to offer flexibility in type
of drain hose the operator wishes to attach (hose not included).
Only available in single phase.
model RANFG HTD-2 RANFG HTD-3 RANFG HTD-4 RANFG HTD-5 RANFG HTD-6
RANFG HTD-3S RANFG HTD-4S RANFG HTD-5S RANFG HTD-6S
RANFG HTD-4B RANFG HTD-6B
Randell RanServe, Page 25
Revised 09/04
Available Fiberglass Colors:
Pitch Black
Dark-Bark Brown
Cabernet Wine
British Racing Green
Tin Man Gray
True Blue
Light Sky Blue
Candy Apple Red
Tiger Lilly Orange
Canary Yellow
White
Options & Accessories:
Corian top
Granite top
No kick-plate
Graphics
Sneeze Guards
Elementary School Height
Electrical Distribution System
Canopy
Overshelves
Trayslides
Randell, Unified Brands
888-994-7636, fax 888-266-5244
Specifications subject to change without notice. For the most current specs, visit unifiedbrands.net.
Models HTD
COMMON DATA FOR HTD SERIES (INCLUDES THE STANDARD HTD SERIES AND THE ”S” STORAGE BASE SERIES)
Model
L Top Work No. of 120 Volt Operation 208 Volt Operation 240 Volt Operation
(A) Depth Height 12x20 wells
KW/well
Amps* NEMA*
KW/well
Amps* NEMA*
KW/well
Amps* NEMA* Ship Wt.
RANFG HTD-2 30" 30" 35" 2 2.2 18.4 5-30P 2.2 10.6 6-15P 2.2 9.2 6-15P 175
RANFG HTD-3(S) 48" 30" 35" 3 3.3 27.6 5-50P 3.3 15.9 6-20P 3.3 13.8 6-20P 225
RANFG HTD-4(S) 60" 30" 35" 4 4.4 36.8 5-50P 4.4 21.2 6-30P 4.4 18.4 6-30P 275
RANFG HTD-5(S) 72" 30" 35" 5 Not Available 5.5 27.4 6-50P 5.5 23 6-30P 325
RANFG HTD-6(S) 86" 30" 35" 6 Not Available 6.6 31.7 6-50P 6.6 27.5 6-50P 375
STORAGE SHELF INFORMATION FOR HTD “S” SERIES
2-well not available with storage shelf (too small)
Model L(A) W(B) H( C ) Ship Wt
RANFG HTD-3S 48" 23" 14.5" 250
RANFG HTD-4S 60" 35" 14.5" 300
RANFG HTD-5S 72" 47" 14.5" 350
RANFG HTD-6S 86" 61" 14.5" 400
HTD “B” HEATED BASE SERIES
Model
L Top Work No. of No. of No. of 120 Volt 208 Volt 240 Volt
(A) Depth Height 12x20 12x20 18x26 Operation Operation Operation
wells-top wells-base wells-base KW/unit
Amps* NEMA*
KW/unit
Amps* NEMA* Ship Wt
RANFG HTD-4B 60" 30" 35" 4 4 3 not 5.225 25.4 6-50P 5.5 23 6-30P 400
RANFG HTD-6B 86" 30" 35" 6 8 6 Available
7.425 36 6-50P 7.7 32 6-50P 500
* Amp loads for base unit with light option-adding any Heat lamps or incandescent light options will change total load and/or
number of electrical cords/connections (consult factory for clarification).
DRAIN LINE EXTENDS
TO LOUVER
1/2" DIA COPPER
LEGEND FOR
RANFG HTD
ABOVE FIXED FLOOR
AFF =
J-BOX = 14" AFF
30"
35"
86"
48"
86"
72"
60"
48"
J
BOTTOM OF UNIT
EXTENDIND FROM
9' CORD & PLUG
30"
"S" Model "B" Model
RANFG-HTD DRAWINGS SHOWN, RANFG HTD-S & RANFG HTD-B FRONT VIEW SHOWN AS REPRESENTATION OF “S” & “B” MODELS
Drawings are to be viewed in the same order as the chart
