Rapid RH25L User manual

EN CZ DE
(RH25L –RX80Ls)
Swimming Pool Heat Pump
Thank you for choosing our product and trusting our company.
This manual is to provide you with necessary information for optimal
use and maintenance, please read it carefully and keep it for subsequent
use.
INSTALLATION AND USER MANUAL
Swimming Pool Heat Pump
RAPID Series

Content
Ⅰ . Introduction ................................................................................. 1
Safety precaution........................................................................................ 1
Important features of this product.............................................................. 1
Parameters of product range ..................................................................... 3
Ⅱ . Installation Guide ........................................................................ 4
Transport it in proper manner.................................................................... 5
Determining Optimum installation position............................................... 5
Water pipe connection................................................................................ 7
Electric connection .................................................................................... 8
Trial after first installation......................................................................... 9
Heating priority ....................................................................................... 10
Ⅲ . Operation guide.......................................................................... 11
LED controller ......................................................................................... 11
Permanent Display................................................................................... 12
Common setting ....................................................................................... 12
IV Maintenance ............................................................................... 12
V. Trouble shooting .......................................................................... 13
Common faults ......................................................................................... 13
Failure code ............................................................................................. 14
VI. Declaration of TÜV Conformity ............................................. 15
Certificates............................................................................................... 58

1
Ⅰ . Introduction
Safety precaution
-The swimming pool heat pump must be installed by a qualified electrician.
-Always install a differential protective device with a sensitivity of 30 mA on the
distribution unit before the electrical box.
-Always fit a circuit breaker for all active conductors on the power supply of the box.
-In the event of abnormal behavior (noise, smell, smoke), cut off the power supply
immediately and contact you reseller. Do not attempt to repair the system yourself.
-Keep the main power supply switch far from children.
-Rotating parts: Never remove the grid from the fan. Never place your hand or any other
object in the air inlet or outlet of the heat pump.
Important features of this product
Water Flow Switch
The water flow switch contacts close when pressure is applied as pool water flows through
the titanium heat exchanger. Low flow rates as well as no flow will let these contacts open
and this will cause the unit to shut down. The LED display will read “EE3” if the water
pressure is not sufficient.
Always switch off power supply
before working on the heat pump
and stop the hydraulic circuit.
This swimming pool heat pump is equipped with safeguards that will stop
operation to protect your unit automatically and display error code on the
LED controller in case of some events as following:
Caution: Danger of electric shock

2
High / Low Refrigerant Pressure Switches
•The high-pressure switch senses the refrigerant pressure in the sealed refrigeration system
and shuts the heat pump down in the event unsafe operating pressures are reached. The heat
pump will automatically reset after the system pressure drops back to normal operating
pressures. When this switch is tripped, digital displays will read “EE1”
•The low-pressure switch senses the refrigerant pressure in the sealed refrigeration system
to protect against certain conditions that could be detrimental to compressor life. The switch
shuts the unit down in the event of loss of refrigerant or not enough refrigerants. The switch
automatically resets when the pressure rises to normal operating pressures. The display will
show “EE2” if this switch is tripped.
Low Ambient Temperature
If the air outside the heat pump is not warm enough to produce heat, the system will shut
down. The actual point at which your unit will shut down due to low temperature varies
depending on current weather conditions, the amount of sunlight reaching the heat pump.
The shutdown can occur anywhere within a wide range of temperatures, usually below 0
degrees. A shutdown occurs because low temperatures will activate the systems
low-pressure safeguard switch (digital controller will display a code “PP7”.) The unit will
start up again when the temperature has raised enough to reset this switch.
Time Delay
All models use a 3-minute time delay to prevent repeated tripping of the compressor thermal
overload, which is caused by attempting startup before system pressures are equalized. Any
interruptions, outside of power loss, will result in a 3-minute time delay.

3
Parameters of product range
Specification
Series / Model
PH /
RH(C)25L
PH /
RH(C)35L
PH /
RH(C)50L
PH /
RX(C)60Ls
PH /
RX(C)65Ls
PH /
RX(C)80Ls
Function
Heating capacity
kW(air 26℃, water 26℃)
10
13.5
17.5
25
28
33
C.O.P. (air26℃,water26℃)
6.6
7
6.7
6.92
6.8
6.8
Heating capacity kW
(air 15℃,water 26℃)
6.6
9.9
11.4
15.9
16.3
22.2
C.O.P. (air 15℃,water26℃)
4.64
4.78
4.68
4.71
4.94
5.16
Cooling capacity kW
(air 35℃,water 28℃)
6
8
10
15
16
20
C.O.P. (air35℃,water28℃)
4
4
3.8
4.2
4.2
4
Power supply
230-240V/1Ph/50Hz
380-415V/3Ph/50Hz
Rated Input power kW
1.4
2.1
2.4
3.4
3.3
4.3
Rated Input current A
6.5
9.5
11.4
5.5
7.3
9.2
Advised water flux m³/h
4-6
5-7
6.5-8.5
7-9
8-10
10-12
Water pipe in-out spec mm
50
50
50
50
50
50
Net weight / Gross weight Kg
60/69
70/79
73/82
105/117
121/136
123/138
*C.O.P: Coefficient of performance
Note:
1. Mode RH/RX~ is heating only, RHC/RXC is heating and cooling optional. For heating only, please ignore the
parameters of cooling capacity and cooling C.O.P, other parameters are the same with the heating and cooling type
2. This product can work well under air temp +0 ℃ ~43℃. Performance cannot be guaranteed outside the
operating ranges and must take account the exterior conditions of use identified to select suitable mode
(such as location, volume of swimming pool, and numbers of swimmer.)
3. Above parameters are subjected to adjustment periodically for technical improvement with further notice.
Please refer to nameplate on each machine for accurate information.

4
Dimension:
Ⅱ . Installation Guide
A
B
C
D
E
F
G
H
RH(C)25L
392
590
382
420
961
280
74
658
RH(C)35L
392
590
382
420
961
310
74
658
RH(C)50L
392
590
382
420
961
310
74
658
RX(C)60Ls
380
719
391
420
1092
600
74
958
RX(C)65Ls
507
790
492
530
1160
620
84
958
RX(C)80Ls
507
790
492
530
1160
620
84
958
This swimming pool heat pump must be installed by a skilled team.
Attention!
Name
Size(mm)
Model
BE机

5
Transport it in proper manner
1. Transport it in original package.
2. When moving the machine, do not lift the water nozzle since the titanium heat exchanger
inside the machine will be damaged. Please refer to the following wrong operation
picture:
Determining Optimum installation position
The location of the swimming pool heat pump is very important for efficient operation,
think about the following factors when choose the proper place:
Avoidance of air recirculation
Easy for wire and pipe connection and Water pipe line of long water lines (not
longer than 10m.) from heater to pool.
Easy for maintenance.
Drainage of condensation.
Pay attention to the following points:
1．The heat pump must be installed OUTSIDE in a well ventilated place to avoid air
recirculation or in a place with adequate room area both for installation and
maintenance. Please refer to the following illustration:
A minimum of 300mm of clearance from walls, shrubbery, equipment, etc. is required around the entire
pump circumference. This allows for ample air intake. No less than 800mm clearance on the air outlet is
required to prevent re-circulation of air. We recommend not placing the unit underneath eaves, decks, or
porches, as this causes recirculation of discharged air, or the efficiency of the heater will be reduced or
even stopped.
The manufacturer cannot accept responsibility for damage incurred or repairs
necessitated due to improper handling of our equipment.
!!Warning:
Because the machine is very heavy, the
water nozzle can not bear to be lifted during
transit or installation

6
2．The heater should be located on a solid, level and non-corrodible structure that is
capable of supporting the weight of the heat pump. It must be fixed by bolts (M10) to
concrete foundation.
3．The heat pump should be far from any source of combustibles and corrosive material to
Wrong installation
!!Warning:
Don’t install the heat pump close to
a wall or plants. And Never inside a
closed building!
!!Warning:
The machine must not be hung onto the
wall with soft pipe since the inlet/outlet
union on the machine can’t hold weight.
The machine must always be connected
with hard pipe!

7
avoid any damage to this unit.
Never place heat pump near sprinkler systems, evaporation of acid or alkaline gas. If you live in an
oceanfront area, the heat pump should be placed out of direct spray of sand and salt, since this will also
clog, damage, and corrode the unit. You may consider protecting your heat pump by planting shrubbery
or a privacy fence between the unit and the prevailing beachfront wind.
4．When the machine is running, there will be condensation water discharged from the
bottom. Make sure there is enough space for water drainage.
Water pipe connection
-The water flow through this machine needs to be driven by an appended water pump
(Prepared by the user). The recommended pump specification-flux is shown on the
product specification and Max. lift ≥10m;
-Pipe length between heat pump and swimming pool should not be longer than 10m.

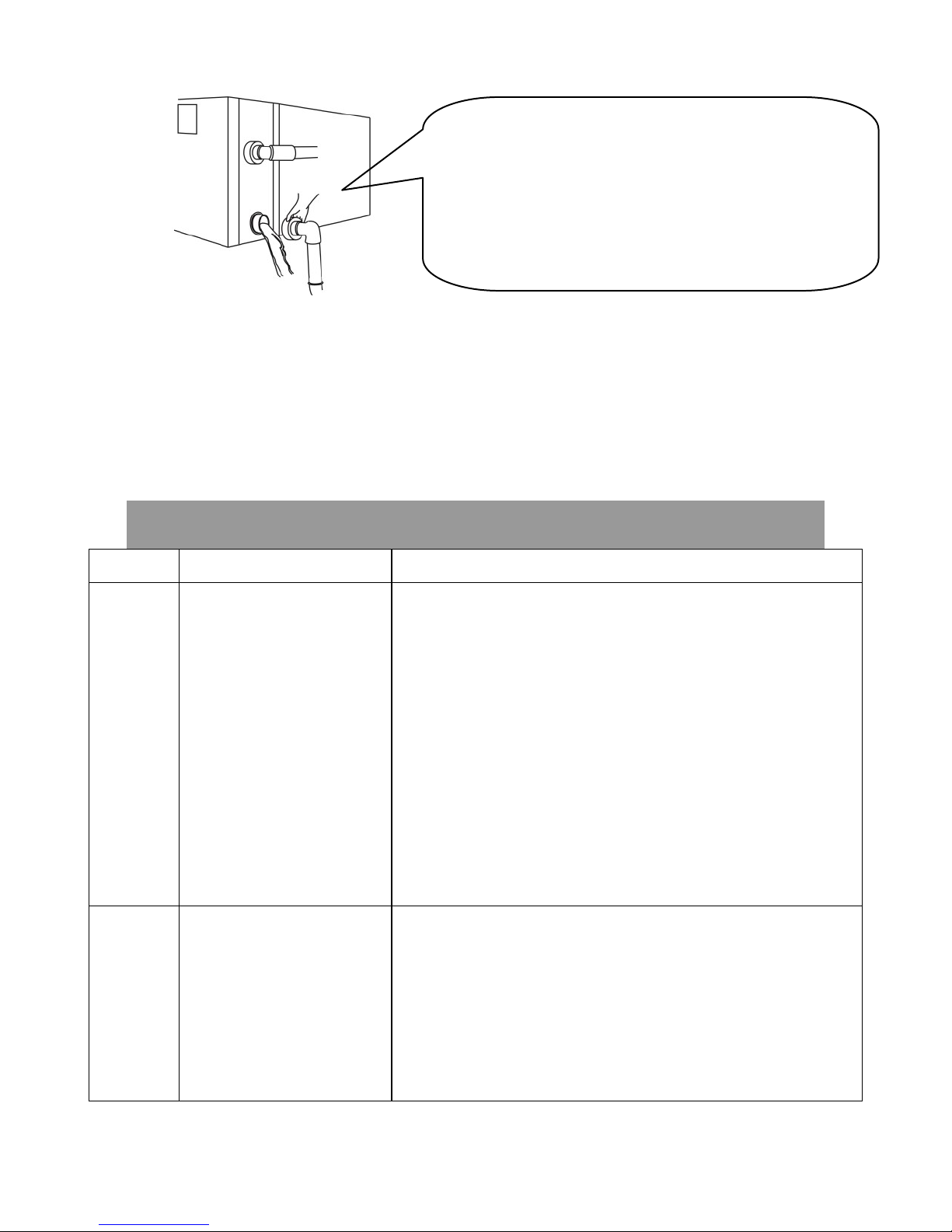

TIPS: HEAT PUMPS GENERATE WATER CONDENSATION DURING NORMAL
OPERATION.THISSHOULDNOTBEMISTAKENFORALEAKINTHE UNIT.
Noted: The drawing is just for demonstration, and layout of the pipes for reference.

8
Electric connection

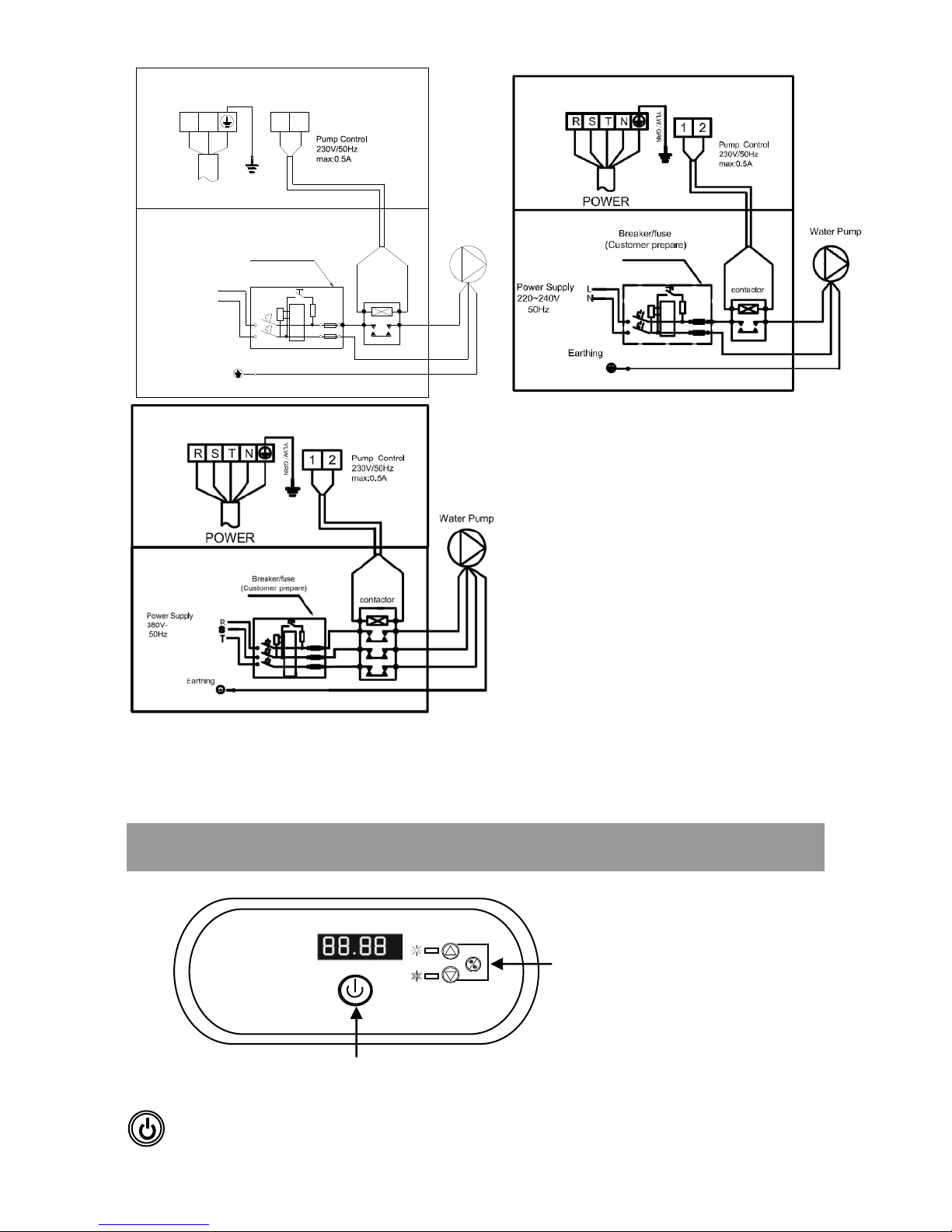

-Wiring must be handled by a professional technician according to the circuit diagram as
following.
-Connect the heat pump to appropriate power supply and the voltage should comply with
the rated voltage of each model stated on the specification.
-Make sure the machine is ground well.
-Always put leakage protector according to the local code for wiring (leakage operating
current ≤30mA).
-Protect the circuit with a suitable circuit breaker or fuse (as it is shown in table on page 9)
Attention: The swimming pool heater must be earthed well.

9
Recommendation for protecting devices and cable specification
※Above data is subject to modification without notice.
Note: The above data is adapted to power cord ≤ 10 m .If power cord is ＞10 m, wire
diameter must be increased. The signal cable can be extended to 50 m at most.
Trial after first installation
Inspection before connecting power supply
-Check the installation of the whole machine and the pipe connections according to the
pipe connecting drawing.
-Check the electric wiring according to the electric wiring diagram, and ground well.
-Make sure no blockage on the air inlet and outlet, or the efficiency of the heater will be
reduced or cause machine to stop operation.
Trial after connecting power supply
-Connect the machine with electric power supply, then relative information will display on
the LED controller.
(For Detail operation of LED controller, please refer to Chapter “Operation guide”.)
-Start the water pump before turning on the Machine to avoid any damage.
-Press power on/off on LED controller to turn on/off machine.
-During the first start of machine, please check if there is any water leakage in the piping
connection system. Then set suitable temperature.
MODEL
RH(C)25L
RH(C)35L
RH(C)50L
RX(C)60Ls
RX(C)65Ls
RX(C)80Ls
Breaker
Rated
Current (A)
15
20
25
15
15
20
Rated
Residual
Action
Current
(mA)
30
30
30
30
30
30
Fuse char. D (A)
15
20
25
15
16
32
Power Cord（mm2）
3×2.5
3×2.5
3×4
5×2.5
5×2.5
5×4
Signal cable （mm2）
3×0.5
3×0.5
3×0.5
3×0.5
3×0.5
3×0.5
Always Start the water pump before turning on this machine
Turn off this machine before turning off the water pump.
Attention:

10
-After the swimming pool heater runs, check if there is any abnormal noise or smell.
-
Special cases:
-In the event of an unexpected power cut, the heat pump will automatically restart. Check
the setting and adjust if necessary.
-In the event of an expected power cut, switch off the heat pump. When power is restored,
switch on the pump, check the settings and adjust if necessary.
-Always switch off the machine in stormy weather.
Heating priority
In any abnormal situation, such as serious noise, smell or smoking please cut the
power supply immediately and inform resellers, never try to repair it by yourself.

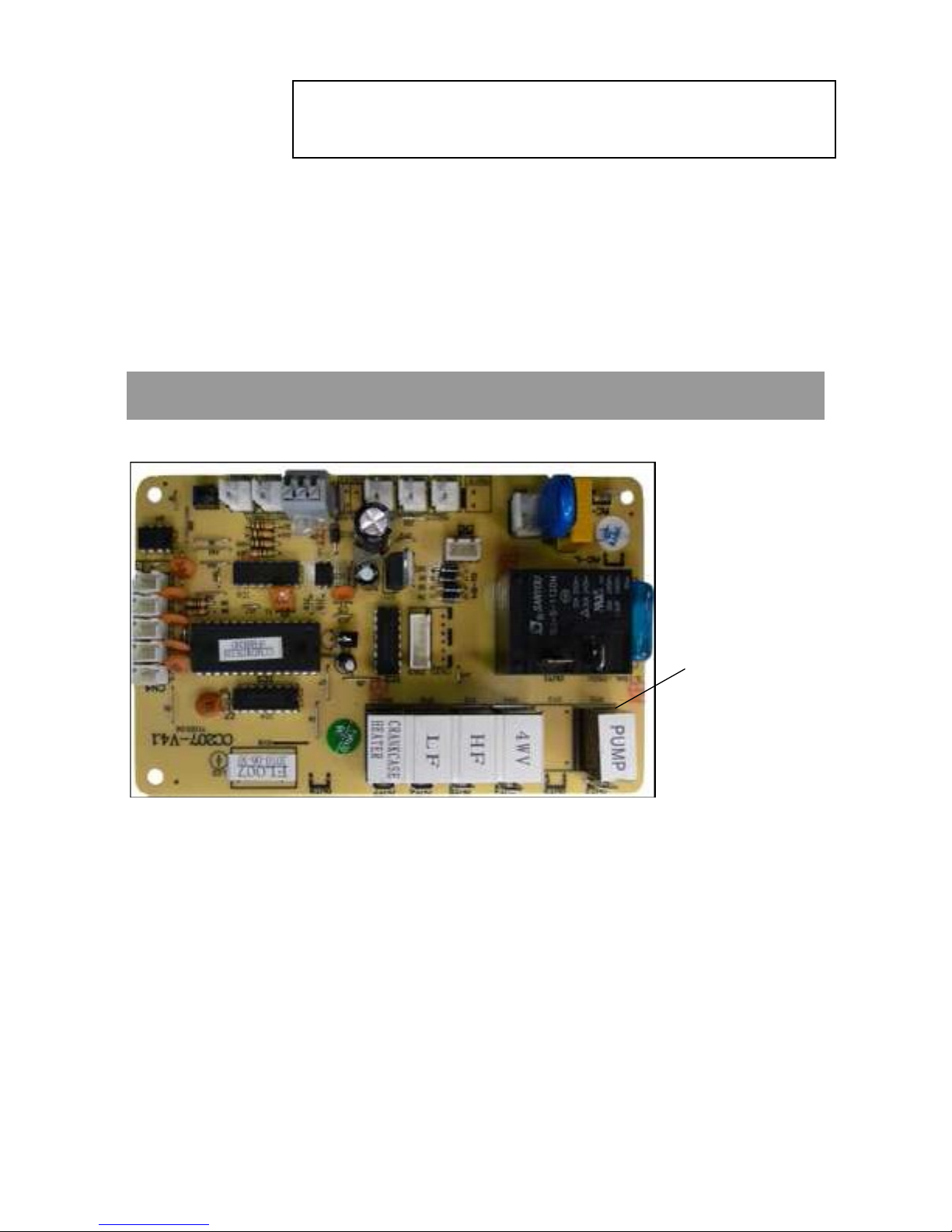

Induction coil of filter pump -
Phase for control
of the contactor

11
L N
/
YLW GRN
POWER
1 2
Earthing
Power Supply
220~240V
50Hz
L
N
Breaker/fuse
(Customer prepare)
contactor
Water Pump
Ⅲ . Operation guide
LED controller
Power on/off
Water Temp Setting
And Heat/Cool Transfer
Power On/
Off

12
Heat/Cool Mode Press the Mode button to switch from one mode to another.
( Available only in heat and cool machine. )
Permanent Display
The LED screen will always display Water temperature in swimming pool
Common setting
1．Heat/Cool Mode
Press the Mode button to switch from one mode to another.
（ Available only in heat and cool machine. ）
2．Required pool water temperature
It can be adjusted both when the machine is on or off.
A. Press UP-ALLOW key or DOWN-ALLOW key to set to your required pool
water temperature.
B. The numbers in the LED screen will flash during your operation.
C. After five seconds, it will stop flashing and be saved, the LED screen will return
to the permanent display. (it shows temperature of water)
D. When you want to check the temperature, press UP-ALLOW key or
DOWN-ALLOW key to see the current setting.
IV Maintenance
A．In winter season when you don’t swim:
1. Cut off power supply to prevent any machine damage
“Cut off”power supply of the heater before
cleaning, examination and repairing
Caution: Danger of electric shock
Down-ALLOW Set required temperature
UP-ALLOW Set required temperature
LED screen Display temperature and machine failure code.

13
2. Drain water clear of the machine.
3. cover the machine body when not in use.
B．Please clean this machine with household detergents or clean water, NEVER use
gasoline, thinners or any similar fuel.
C．Check bolts, cables and connections regularly.
Ⅴ . Trouble shooting
Common faults
Phenomenon
Possible reason
Not
failure
A.NoticeableWhitevaporous
cold airor water.
B. Plopping sound
A. The fan motor stops automatically for defrost.
B. There will be sound from the solenoid valve when
machine starts or ends to defrost.
C. During machine working or just stopping, a sound like
water flow, in 2~3 minutes of starting the machine. This
Sound comes from refrigerant flowing or water drainage
during dehumidification.
D. The plopping sound during the operation is caused by
expand on heating and contract on cooling of the heat
exchanger when temperature varies.
Recheck
Heat pump does not run
A. Power supply failure
B. Check manual power supply switch to make sure it is on.
C. Fuse burned.
D. If machine auto- protector has started (check failure
code display on controller).
E. Check whether machine automatic on or off was set.
!!Important:
Unscrew the water nozzle of inlet pipe to let the water
flow out.
When the water in machine freezes in winter
season,the titanium heat exchanger may be damaged.

14
Running but not heating or
cooling
Check if there is blockage on air inlet and outlet of the unit.
Note: If the following conditions happen, please stop the machine and cut off the power
supply immediately, then contact your dealer:
The fuse is frequently broken or leakage circuit breaker jumped.
Failure code
NO.
Failure
code
Failure description
Action

15
1
EE 1
High pressure protection of refrigerant
Contact your dealer.
2
EE 2
Low pressure protection of refrigerant
Contact your dealer.
3
EE 3
Low water pressure protection
1. Check if there is no water
through the machine; make
sure the pump is on.
2. Or contact your dealer.
4
EE 4
A.Single phase machine : failure
connection due to loose wire terminal of
PROT2 on the PC board
B.Three phase machine : 3 phase
sequence protection
Contact your dealer.
5
PP 1
Pool water temp sensor failure
Contact your dealer.
6
PP 2
a. Heat only type : Exhaust temp sensor
failure
b. Heat and cool type: Cooling coil pipe
temp sensor failure
Contact your dealer.
7
PP 3
Heating coil pipe temp sensor failure
Contact your dealer.
8
PP 4
Gas return temp sensor
Contact your dealer.
9
PP 5
Air temp sensor
Contact your dealer.
10
PP 6
Compressor exhaust overload protection
Contact your dealer.
11
PP 7
When the temperature ＜0℃,auto stop
for protection (Not Failure )
Machine Auto-protection
12
EE8/888
/Messy
Code
Communication Failures
Contact your dealer.

16
VI. Declaration of TÜV Conformity
We, FAIRLAND ELECTRIC (CHINA) LIMITED, hereby declare
that our products delivered to Vagnerpool s.r.o indicated below are
equivalent models with Fairland models below. The heating capacity
& C.O.P of bellowed models at air 15 °C and water 26 °C are all
tested and certified by TÜV Rheinland.
Product: Swimming Pool Heat pump
Vagnerpool reference
Fairland reference
TÜV Test report
NO
RH(C)25L
PH(C)25L
16038689 002
RH(C)35L
PH(C)35L
16038689 003
RH(C)50L
PH(C)50L
16038689 004
RX(C)60Ls
PH(C)60Ls
16038689 013
RX(C)65Ls
PH(C)65Ls
16038689 006
RX(C)80Ls
PH(C)80Ls
16038689 007
Date: Dec 3, 2013 Director:
Place: Guangdong, China Signature:

17
Notes:

18
