Rata 3PLDH2 User manual
NZ: 0800 802 478 AU: 1800 962 022
CATEGORY 2 3PL
DRAWBAR HITCH
3PLDH2 & 3PLDH2-38
DRAWBAR HITCH
USER MANUAL
NZ: 0800 802 478 AU: 1800 962 022
NZ: 0800 802 478 AU: 1800 962 022
2 3
CONTENTS:
3 Acquistion
4 Warranty
5 Maintenance & Safety
6 Safety Instructions
7 Safety Precautions
8 Setting up the Machine
10 Parts Diagram
Warranty Registration:
Scan this QR code to ll out the Warranty Registration Form:
Or type this URL into your browser: hubs.la/Q012gg540
Delivery
Upon delivery of the machine, carefully check for transit damage and report
any defects to both the transport company & Rata immediately. Immediately
reporting transport damage is essential in getting remediation from the freight
provider.
Take the time to go over your new machine and ensure that all nuts & bolts are
appropriately tightened before using. Damage caused by xtures or fasteners
loosened in transit is not covered by warranty.
Please then visit our website and complete the warranty registration form
above. The commencement of warranty is based on the purchase date of your
machine, provided the product register form is received at Rata Equipment
within 14 days of the purchase date. Warranty claims will only be processed
upon receipt of proof of purchase and submission of the warranty registration
form within 14 days of purchase.
Welcome
Rata Equipment would like to take this opportunity to welcome you as the new
owner of a Rata machine. We want your investment to be the most efcient and
reliable piece of equipment it can be. This manual has been produced to assist
in the correct operation, maintenance and care of your machine.
The safe operation and maintenance of your machine is very important
to prevent any personal injury and/or damage. Read and fully understand
the following instructions before using your machine or carrying out any
maintenance.
Machine Identication
The machine serial number is stamped on the top section of the frame, or
engraved into an information plate. Please record the machine serial number in
the warranty registration form on the Rata website.
Ensure you have the machine serial number to hand when contacting us about
your machine for any reason, or ordering parts.
ACQUISITION
NZ: 0800 802 478 AU: 1800 962 022
NZ: 0800 802 478 AU: 1800 962 022
4 5
WARRANTY MAINTANCE & SAFTEY
Rata Equipment warrants new products sold by it, to be free from defects in
material and workmanship for a period of 12 months after the date of purchase
to the initial user. This warranty is for the replacement or repair of any part
found to be defective during the warranty period. This warranty only applies to
new Rata products.
Should the product fail as a result of a fault in material or sub-standard
workmanship by the manufacturer within the warranty period then Rata
Equipment will agree to repair this product subject to the conditions of this
warranty.
This warranty excludes any transport costs or damage and excludes all normal
maintenance costs.
Rata Equipment will not pay for mileage, freight, courier costs, oil, grease or
any other expendable materials.
As the use of the Rata product is outside our control, Rata Equipment accepts
no liability for lost earnings or down time directly or indirectly caused by the
machines performance.
Replacement parts provided under the terms of this warranty are covered for
the remainder of the warranty period applicable to the product in which they
were installed as if such parts were original components of that product.
No warranty work is to be started without rst getting approval and following
the correct warranty procedures as set out by Rata Equipment. Rata Equipment
will not under any circumstances pay for or repair any damage caused by
misuse or neglect of any machine.
All warranty issues and claims are totally at the discretion of Rata Equipment.
Warranty Exclusions: loose bolts and screws including worn holes for the same,
belts, tyres, blades, tines, PTO shafts, disc bearings and hydraulic hoses, these
parts are generally not covered by this warranty.
Delivery
The machine is delivered fully assembled, however, before use carefully check
the entire machine for transit damage and report any problems immediately.
Maintance and Lubrication
Take care to keep the oor area clean when performing maintenance
to the machine. Help protect our environment and prevent injuries
from falls by cleaning up any spilled or leaking uids with absorbent
products. Take care to dispose of contaminated rags or absorbents
in accordance with your local environmental regulations. Put away
tools and roll up any air lines or electrical cords that were used when
making repairs to the equipment and dispose of scrap materials or
worn out parts in an appropriate manner.
Never crawl under the machine to make repairs or adjustments or
replace parts, unless you have properly blocked and supported the
frame. The frame must be secured in a xed position in order to
prevent it from moving or falling before making any attempt to work
underneath. Use suitable shop stands or lifting devices that can
support the entire weight of the machine. Never use cement blocks,
bricks, hollow tiles or other props that may crumble or collapse
under continuous load.
Wear gloves when changing points and/or tines as the edges can
become extremely sharp when worn.
Regularly check all nuts and bolts for tightness and secure if loose.
Replace worn out or damaged machine components.
Establish a good routine for regular inspection, lubrication and
maintenance in order to keep the machine in good operating
condition.
NZ: 0800 802 478 AU: 1800 962 022
NZ: 0800 802 478 AU: 1800 962 022
6 7
SAFTEY INSTRUCTIONS SAFETY PRECAUTIONS
WARNINGS
1. Rata Industries Group Ltd takes no responsibility for damage/s to people
or property caused by the inappropriate or abnormal use of any of its
products.
2. Carefully read and take note of the following warnings before attempting
to operate the Equipment.
Warning: Ensure the implement is securely connected to the loader or
Telehandler.
Warning: Check that all moving parts are in good repair and that all the
fasteners are correctly tightened.
Warning: Never allow any person to ride on the Implement.
Warning: Do not exceed the maximum weight/capacity specied by the
manufacturer of the implement.
Warning: Before using the implement the operator should ensure that this
manual is read and fully understood.
Warning: Obey all road rules and regulations while using the implement on
the road.
Warning: The implement may fall rapidly causing injury. Always stay clear of
implement when being lowered or raised.
Product Safety Precautions
Make certain all safety decals and reectors are applied to your machine.
Refer to your local governmental regulations for more information on proper
procedures and markings for safe road transport in your area.
Do not travel over 40 km/h. Reduce speed in adverse weather, when turning or
travelling on inclines or uneven ground. Always start and stop slowly.
DANGER! Watch for wires.
Take care when transporting equipment around power lines. Serious injury or
death to the operator or bystanders will result through direct or indirect contact
with power lines.
The operator is responsible at all times to comply with the local government
regulations and insure the safe transport of the implement when transporting
large or oversized implements on public or private roadways. Careful
consideration must be given in order to prevent accidents with other vehicles
and avoid coming in contact with obstacles such as: bridges, tunnels,
overpasses, guard rails, road signs, trafc lights, power lines, public utilities,
and other structures that may be encountered along the chosen route. In some
jurisdictions the operator may be required to obtain special permits or arrange
for escorts before transporting oversized equipment. Rata Equipment is not
liable for personal or property damage caused by inappropriate, unauthorized
or unsafe transport or operation of equipment.
Be alert when walking around the machinery to avoid tripping over or colliding
with the tow hitch. Severe head or body injury could result.
Be certain all persons are clear of working area in and around the machine
whenever raising or lowering the machinery.
Make sure that the tractor is shifted into park before getting out to remove lock
pins. Never remove lock pins when the implement is sitting on uneven ground
where tipping could occur.
Thank you for taking the time to read this.
NZ: 0800 802 478 AU: 1800 962 022
NZ: 0800 802 478 AU: 1800 962 022
8 9
PRELIMINARY STEPS:
1. Use the parts diagram to ensure that all components of the machine are
present and correct.
2. Inspect for freight damages and factory defects. If the product passes
inspection, proceed with using the attachment. If it does not pass, contact
the place of purchase or Rata Equipment directly to resolve the issue.

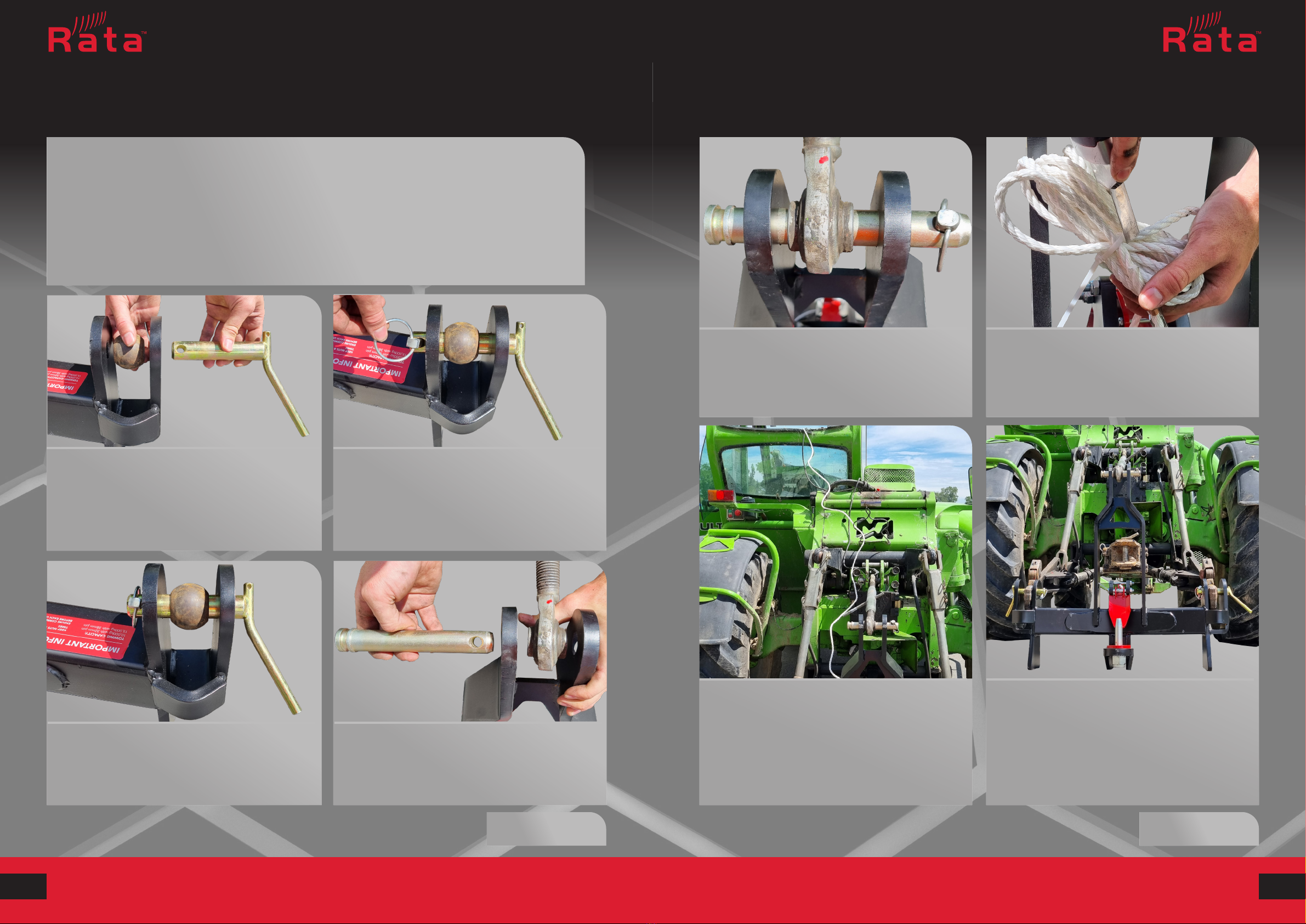

SETTING UP THE MACHINE
1.
Insert pin through the outer plate of the
clevis, then through the three point
linkage ball*, then through the inner
clevis plate.
2.
Use linch pin to secure in place.
3.
Repeat process for the other side clevis. 4.
Insert top link pin through clevis and
top link*.
*Not supplied
5.
Secure top link pin with a lynch pin.
Above is an example of step 4 & 5 done
correctly.
6.
Unravel rope.
*Not supplied
7.
Run rope to vehicle cab. You are now
ready to use your
Drawbar Hitch.
NZ: 0800 802 478 AU: 1800 962 022
NZ: 0800 802 478 AU: 1800 962 022
10 11

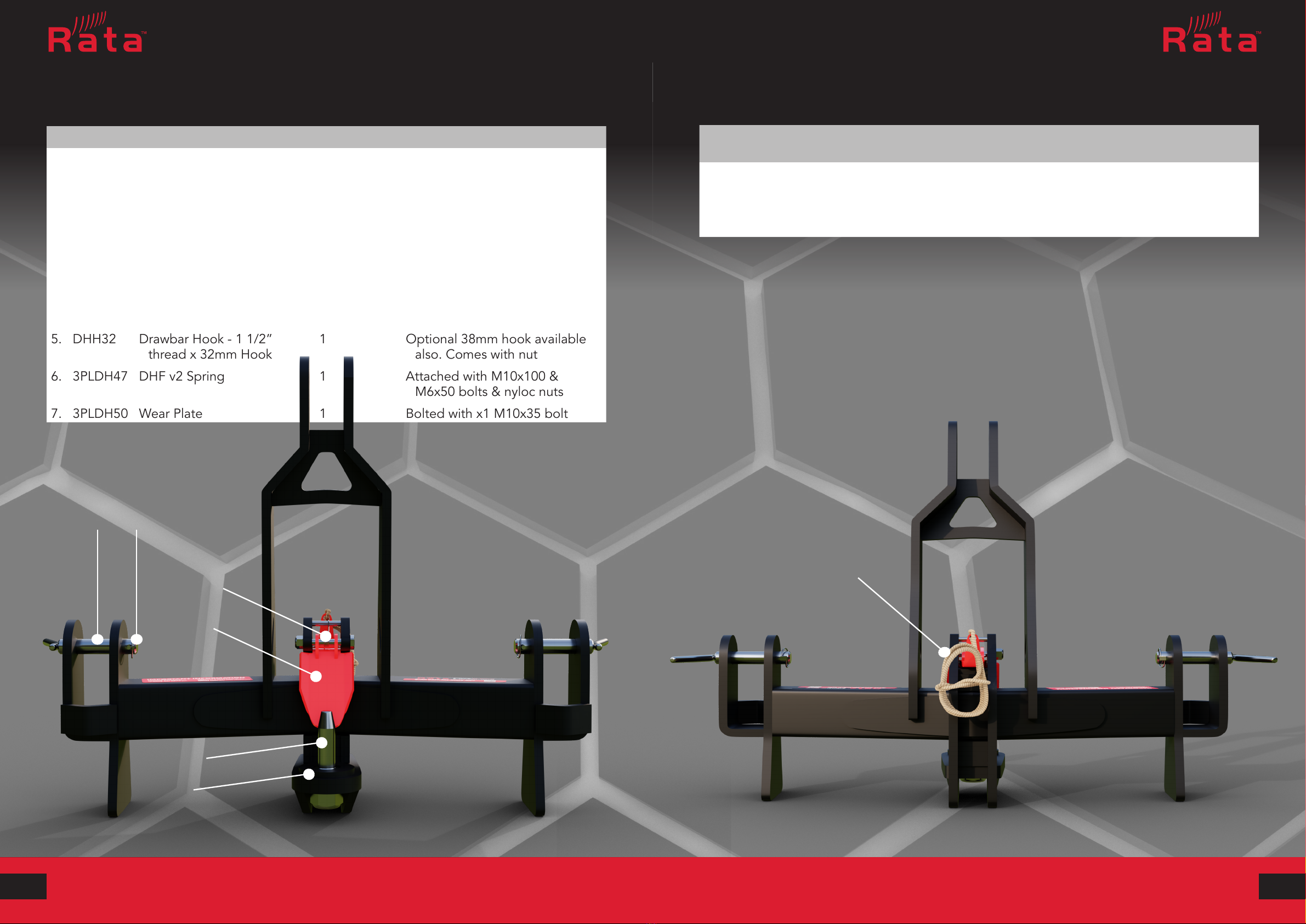

PARTS DIAGRAM
Below is a detailed parts diagram for your reference when purchasing spare parts.
CODE DESCRIPTION QUANTITY NOTES
1. 1092 Lynch Pin 11mm B6 2
2. S8861 Lower Link Pin Double Shear
- Cat 2
2
3. 2821 Rope 8mm Nylon 2.4m
4. DHF-2 Drawbar Hitch Flap v2 1Pivots on x1 M12x110 bolt &
nyloc nut
2823 8mm Copper Rope Ferrule 1
2824 8mm 304 Stainless Rope
Thimble
1
5. DHH32 Drawbar Hook - 1 1/2”
thread x 32mm Hook
1Optional 38mm hook available
also. Comes with nut
6. 3PLDH47 DHF v2 Spring 1Attached with M10x100 &
M6x50 bolts & nyloc nuts
7. 3PLDH50 Wear Plate 1Bolted with x1 M10x35 bolt
3.
1. 2.
4.
6.
5.
7.
MODEL DESCRIPTION MAX TOWING
CAPACITY
MAX VERTICAL
TOUGUE WEIGHT
3PLDH2 Category 2 Draw Bar Hitch -
32mm Pin
10,000kg 6 ton
3PLDH2 - 38 Category 2 Draw Bar Hitch -
38mm Pin
15,000kg 6 ton
SPECIFICATIONS
Your Accredited Dealer is:
NZ: 0800 802 478 AU: 1800 962 022
3PLDH2 User Manual 2022
This manual suits for next models
1
Other Rata Farm Equipment manuals
