2.4M WIDE
AUGER BUCKET
AUGER BUCKET
AB240.3
USER MANUAL

NZ: 0800 802 478 AU: 1800 962 022
E: [email protected] W: www.rataequipment.com
2
CONTENTS:
3 Acquistion
4 Warranty
5 Maintenance & Safety
6 Safety Instructions
7 Safety Precautions
8 Setting up the Machine
10 Parts Diagram

NZ: 0800 802 478 AU: 1800 962 022
E: [email protected] W: www.rataequipment.com 3
Warranty Registration:
Scan this QR code to ll out the Warranty Registration Form:
Or type this URL into your browser: hubs.la/Q012gg540
Delivery
Upon delivery of the machine, carefully check for transit damage and report
any defects to both the transport company & Rata immediately. Immediately
reporting transport damage is essential in getting remediation from the freight
provider.
Take the time to go over your new machine and ensure that all nuts & bolts are
appropriately tightened before using. Damage caused by xtures or fasteners
loosened in transit is not covered by warranty.
Please then visit our website and complete the warranty registration form
above. The commencement of warranty is based on the purchase date of your
machine, provided the product register form is received at Rata Equipment
within 14 days of the purchase date. Warranty claims will only be processed
upon receipt of proof of purchase and submission of the warranty registration
form within 14 days of purchase.
Welcome
Rata Equipment would like to take this opportunity to welcome you as the new
owner of a Rata machine. We want your investment to be the most efcient and
reliable piece of equipment it can be. This manual has been produced to assist
in the correct operation, maintenance and care of your machine.
The safe operation and maintenance of your machine is very important
to prevent any personal injury and/or damage. Read and fully understand
the following instructions before using your machine or carrying out any
maintenance.
Machine Identication
The machine serial number is engraved into an information plate. Please
record the machine serial number in the warranty registration form on the Rata
website.
Ensure you have the machine serial number to hand when contacting us about
your machine for any reason, or ordering parts.
ACQUISITION

NZ: 0800 802 478 AU: 1800 962 022
E: [email protected] W: www.rataequipment.com
4
WARRANTY
Rata Equipment warrants new products sold by it, to be free from defects in
material and workmanship for a period of 12 months after the date of purchase
to the initial user. This warranty is for the replacement or repair of any part
found to be defective during the warranty period. This warranty only applies to
new Rata products.
Should the product fail as a result of a fault in material or sub-standard
workmanship by the manufacturer within the warranty period then Rata
Equipment will agree to repair this product subject to the conditions of this
warranty.
This warranty excludes any transport costs or damage and excludes all normal
maintenance costs.
Rata Equipment will not pay for mileage, freight, courier costs, oil, grease or
any other expendable materials.
As the use of the Rata product is outside our control, Rata Equipment accepts
no liability for lost earnings or down time directly or indirectly caused by the
machines performance.
Replacement parts provided under the terms of this warranty are covered for
the remainder of the warranty period applicable to the product in which they
were installed as if such parts were original components of that product.
No warranty work is to be started without rst getting approval and following
the correct warranty procedures as set out by Rata Equipment. Rata Equipment
will not under any circumstances pay for or repair any damage caused by
misuse or neglect of any machine.
All warranty issues and claims are totally at the discretion of Rata Equipment.
Warranty Exclusions: loose bolts and screws including worn holes for the same,
belts, tyres, blades, tines, PTO shafts, disc bearings and hydraulic hoses, these
parts are generally not covered by this warranty.
Delivery
The machine is delivered fully assembled, however, before use carefully check
the entire machine for transit damage and report any problems immediately.

NZ: 0800 802 478 AU: 1800 962 022
E: [email protected] W: www.rataequipment.com 5
MAINTANCE & SAFTEY
Maintance and Lubrication
Use extreme caution around suspected hydraulic leaks or damaged
hose lines. Hydraulic uid under pressure can be extremely
dangerous. Always wear hand and eye protection. Always release
hydraulic pressure before performing maintenance to the hydraulic
system.
Take care to keep the oor area clean when performing
maintenance to the attachment. Help protect our environment and
prevent injuries from falls by cleaning up any spilled or leaking uids
with absorbent products. Take care to dispose of contaminated
rags or absorbents in accordance with your local environmental
regulations. Put away tools and roll up any air lines or electrical
cords that were used when making repairs to the equipment and
dispose of scrap materials or worn out parts in an appropriate
manner.
Never crawl under the machine to make repairs or adjustments
or replace parts. The bucket must be secured in a xed position
in order to prevent it from moving or falling before making any
attempt to work on the bucket. Use suitable lifting devices that can
support the entire weight of the machine. Never use cement blocks,
bricks, hollow tiles or other props that may crumble or collapse
under continuous load.
Wear gloves when changing points and/or tines as the edges can
become extremely sharp when worn.
Regularly check all nuts and bolts for tightness and secure if loose.
Replace worn out or damaged implement components.
Establish a good routine for regular inspection, lubrication and
maintenance in order to keep the auger bucket in good operating
condition.

NZ: 0800 802 478 AU: 1800 962 022
E: [email protected] W: www.rataequipment.com
6
SAFTEY INSTRUCTIONS
WARNINGS AND CAUTIONS
1. Rata Industries Group Ltd takes no responsibility for damage/s to people
or property caused by the inappropriate or abnormal use of any of its
products.
2. Carefully read and take note of the following warnings before attempting
to operate the Equipment.
Warning: Ensure the implement is securely connected to the loader or
Telehandler.
Warning: Check that all moving parts are in good repair and that all the
fasteners are correctly tightened.
Warning: Never allow any person to ride on/in the Implement.
Warning: Do not exceed the maximum weight/capacity specied by the
manufacturer of the implement.
Warning: Foreign objects can cause extensive damage to the machine and
result in injury to the operator. Make sure there are no foreign
objects in your path of work.
Warning: Before using the implement the operator should ensure that this
manual is read and fully understood.
Warning: Obey all road rules and regulations while using the implement on
the road.
Warning: The implement may fall rapidly causing injury. Always stay clear of
implement when being lowered or raised.
Warning: Never touch hydraulic hoses without protective clothing. An
almost in visible leak can penetrate the skin.

NZ: 0800 802 478 AU: 1800 962 022
E: [email protected] W: www.rataequipment.com 7
SAFETY PRECAUTIONS
Product Safety Precautions
Make certain all safety decals and reectors are applied to your machine.
Refer to your local governmental regulations for more information on proper
procedures and markings for safe road transport in your area.
Do not travel over 40 km/h. Reduce speed in adverse weather, when turning or
travelling on inclines or uneven ground. Always start and stop slowly.
DANGER! watch for wires.
Take care when transporting, raising or lowering the implement around power
lines. Serious injury or death to the operator or bystanders will result through
direct or indirect contact with power lines.
The operator is responsible at all times to comply with the local government
regulations and ensure the safe transport of the implement when transporting
large or oversized implements on public or private roadways. Careful
consideration must be given in order to prevent accidents with other vehicles
and avoid coming in contact with obstacles such as: bridges, tunnels,
overpasses, guard rails, road signs, trafc lights, power lines, public utilities,
and other structures that may be encountered along the chosen route. In some
jurisdictions the operator may be required to obtain special permits or arrange
for escorts before transporting oversized equipment. Rata Equipment is not
liable for personal or property damage caused by inappropriate, unauthorized
or unsafe transport or operation of equipment.
Never raise bucket when there are bystanders in the area of the implement
movement zone. Be certain all persons are clear of working area in and around
the bucket whenever raising or lowering or extending auger chute.
Make sure that the tractor is shifted into park before getting out to remove lock
pins. Never remove lock pins when the implement is sitting on uneven ground
where tipping could occur.
Never extend the auger chute by any mechanical method. Always charge the
hydraulic system rst and use it to extend and retract the chute.
Thank you for taking the time to read this.

NZ: 0800 802 478 AU: 1800 962 022
E: [email protected] W: www.rataequipment.com
8
SETTING UP THE MACHINE
PRELIMINARY STEPS:
1. Use the parts diagram to ensure that all components of the machine are
present and correct.
2. Inspect for freight damages and factory defects. If the product passes
inspection, proceed with using the attachment. If it does not pass, contact
the place of purchase or Rata Equipment directly to resolve the issue.
1.
Line up implement with the hitch on
your machine.
2.
Ensure hooks are completely attached
to the machine hitch.
2.
And/or ensure pins are lined up. 3. Ensure levers for pins are pushed over
all the way so that the pins are fully
engaged, if applicable.


NZ: 0800 802 478 AU: 1800 962 022
E: [email protected] W: www.rataequipment.com 9


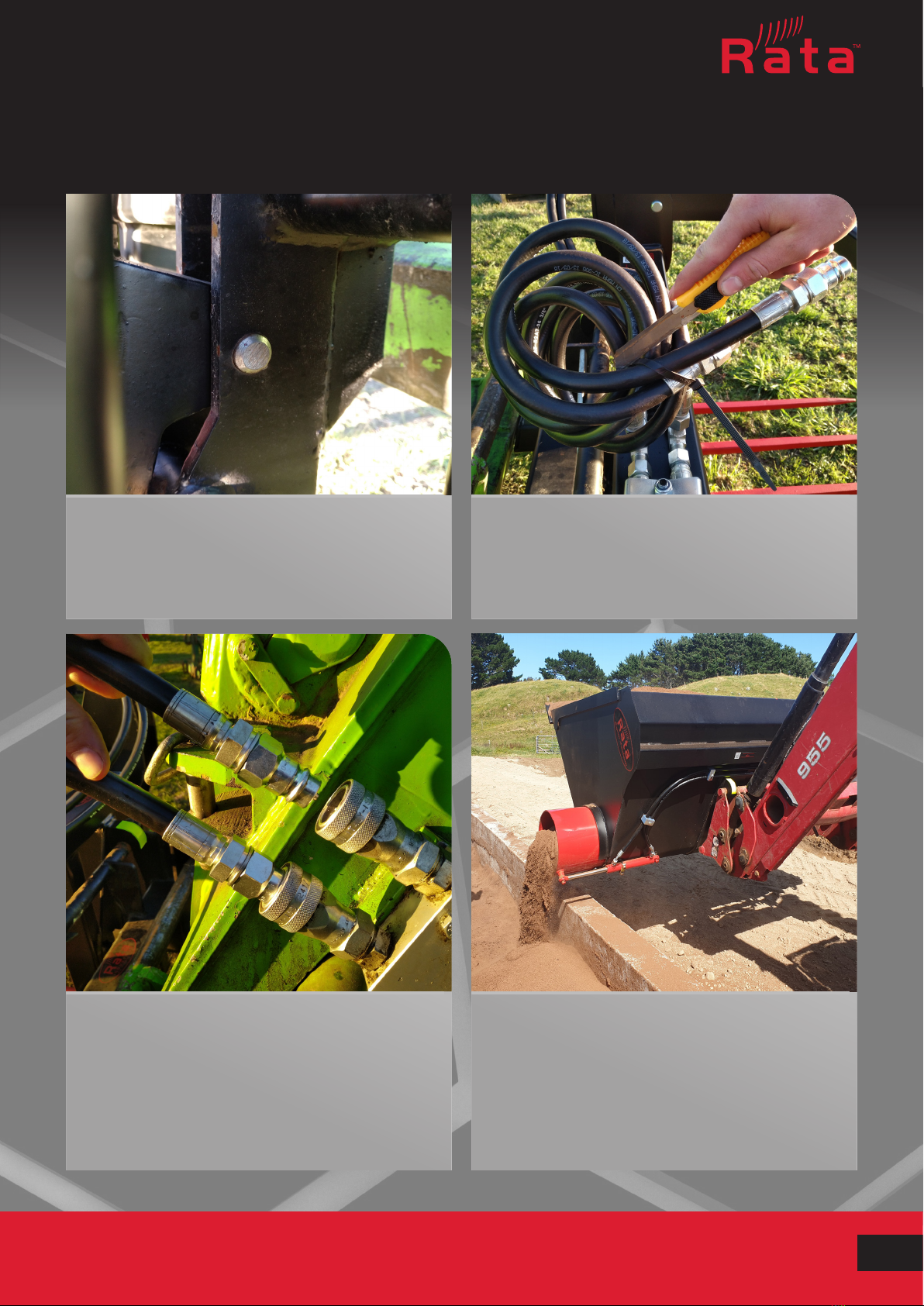

3. 4.
Cut cable tie holding the hydraulic
hoses, taking care not to cut the hoses
themselves.
5.
Connect hydraulic hose couplings from
the implement to the corresponding
couplings on your machine.
You are now
ready to use your
Auger Bucket.

NZ: 0800 802 478 AU: 1800 962 022
E: [email protected] W: www.rataequipment.com
10
PARTS DIAGRAM
Below is a detailed parts diagram for your reference when purchasing spare parts.
CODE DESCRIPTION QUANTITY REQUIRED NOTES
1. ABMS-1 Auger Bucket Mixing Star 2
2. 5137 Roll Pin 10x50 Zinc 2For Mixing Stars
3. 200.029 R Bush Machined 4For Mixing Stars
4. AB013-2.4M Auger Bucket Auger - 2.4m, 300mm diameter 1
5. AB018 Auger Bucket Chute - 300mm diameter 1
1.
2/3.
5.
4.

NZ: 0800 802 478 AU: 1800 962 022
E: [email protected] W: www.rataequipment.com 11

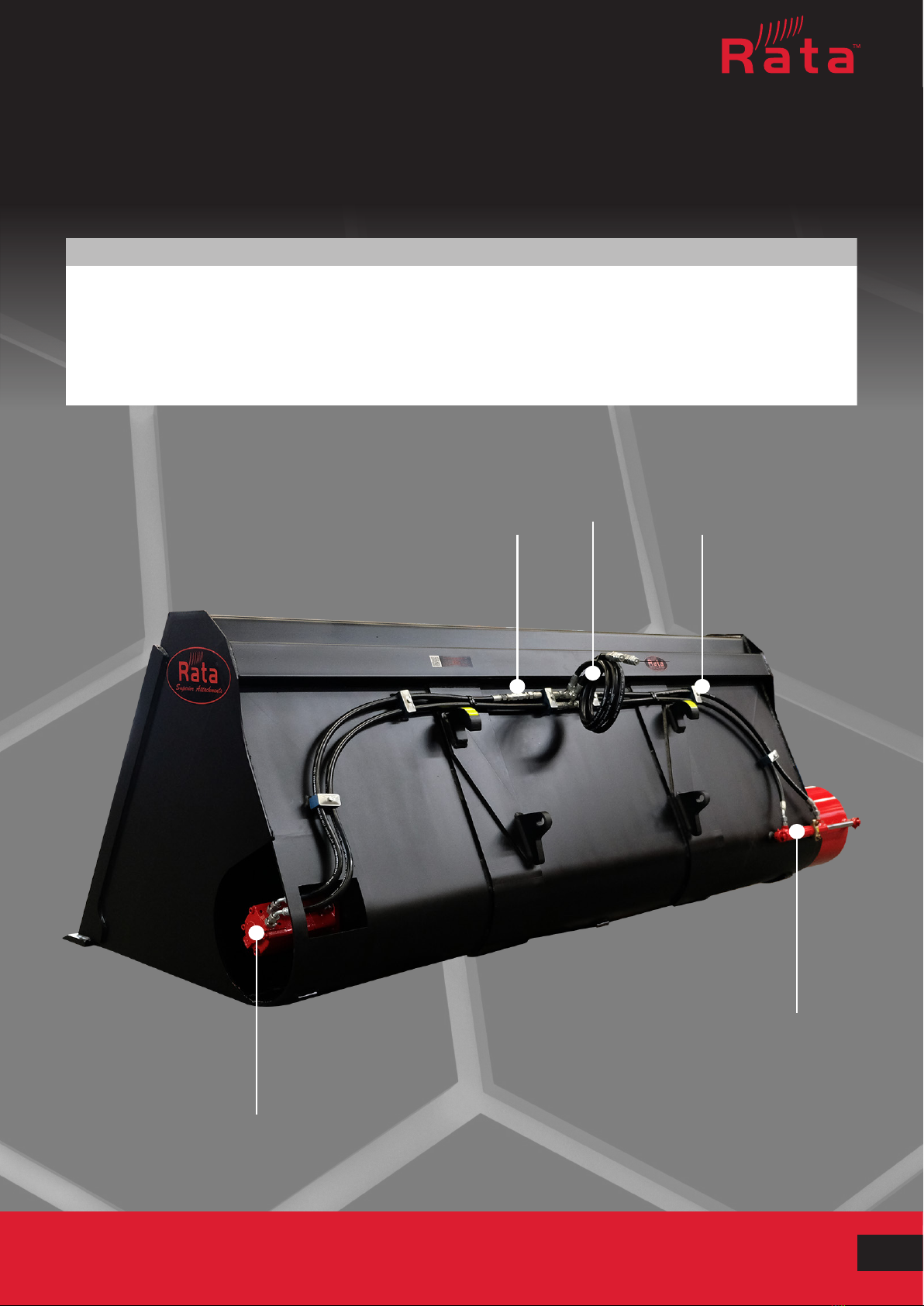

CODE DESCRIPTION QUANTITY REQUIRED NOTES
6. MSUY315 Auger Bucket hydraulic motor 1
7. 5153 Check valve 3/8 11 way valve
8. R2AT-06 Hyd. Hose 3/8 ID. (100m coil) 8.8m For Mixing Stars
9. 5121 Tube Clamp Twin 19mm 4
10. 28432 Ram 1
6.
7. 9.
8.
10.

Your Accredited Dealer is:
NZ: 0800 802 478 AU: 1800 962 022
E: [email protected] W: www.rataequipment.com
Auger Bucket User Manual 2022
