  9. Rath SmartPhone VI User manual

Rath SmartPhone VI User manual

Keypad Programming Remote Programming (Recommend using a Landline phone)
N56 W24720 N. Corporate Circle Sussex, WI 53089
800-451-1460 262-246-4828 (fax) www.rathmicrotech.com 06/15
Made in the USA
3 Year Warranty
RP8200910
Revision 6
Step 1. Begin Program Mode
A. Press Enter
Step 2. Program Emergency Numbers
A. Press 1, Enter, (Phone Number), Stop
To Program numbers 2-5, repeat Step 2 a.
Step 3
. Program Location Message
A. To Turn On Message Press 1, 3, Enter, 2
B. Press 6, Record, (Wait for the Beep, Speak Your
Message), Stop
(To Replay Message Press 6, Play/Pause )
C. Program Frequency of Message Press 1, 3, Enter, _
0= Turn Message Off
1= Plays Message (1) Time
2= Plays Message (2) Times (Default)
3=Plays Message Until Receiving Party Presses * On Their Phone
Step 1. Begin Program Mode
A. Call Into Phone
B.
After 1st Simulated Ring Press #, #
C.
Keyin Security Code (Default is 1111)
Step 2. Program Emergency Numbers
A. Press 1, * (Phone Number), *, #
Step 3
. Program Location Message
Program Talk Timer (Default is 5 minutes, ring down is 3 minutes)
Keypad: Press 8, Enter, (3 Digit Number in Minutes)
Ex: 2 Minutes = 002
Note: After Talk Timer Expires, Phone Will Prompt Called
Party to Extend Call for 3 Minutes
Step 4. To Exit Program Mode
A. Press *, #, 0 (You Will Hear Beep, Beep) *, #
(Detailed Programming Instructions)
Standard Operations
SmartPhone VI
Phone Line Check (Default is 10 minutes)
Keypad: Press 3, 4, Enter, (4 Digit Number in HH:MM)
Ex: 20 Minutes = 0020; 10 Hours = 1000
SmartPhone VI Consolidator Feature (Capability of 10 Phones/One Line)
A. Press 7, Enter
B. Press *, 1-5 For Corresponding Elevator (1-5)
Step 1. Begin Program Mode
A. Press Enter
Step 3.
Program ID Numbers for Phones 6-10
A. Press 7, Enter
B. Press #, 1-5 For Corresponding Elevator (6-10)
Step 2. Program ID Numbers for Phones 1-5
Step 5. Confirm Consolidator Operation
A. Dial Phone Number SmartPhones connected to:
All Phones Will Answer
B. To Select Individual Phone
Step 4. Program Emergency Numbers
A.
Press Stop For 3 Seconds
Press *1 (Phone #1) Press #1 (Phone #6)
Press *2 (Phone #2) Press #2 (Phone #7)
Press *3 (Phone #3) Press #3 (Phone #8)
Press *4 (Phone #4) Press #4 (Phone #9)
Press *5 (Phone #5) Press #5 (Phone #10)
Press *0 (All Phones)
A. To Turn On Message Press 1, 3, *, 2
B. Press 6, *, (Wait for the Beep, Speak Your Message), #
(To Replay Message Press 6, # )
C. Program Frequency of Message Press 1, 3, *, _
0= Turn Message Off
1= Plays Message (1) Time
2= Plays Message (2) Times (Default)
3=Plays Message Until Receiving Party Presses * On Their Phone
Remote: 3, 4, *, (4 Digit Number in HH:MM)
Step 4. To Exit Program Mode
A. Press Stop For 3 Seconds
Note: Consolidator mode allows you to have up to (10) SmartPhones on a single telephone line and toggle between
them from an outside call.
Example: To Program Emergency Number 2,
Press 2, Enter, (Phone Number), Stop
Note: If installed on a ring down line (no dial tone) do not
program a phone number. Press the following 1, 9, Enter, 2
(automatically sets the timer for 3 minutes)
To turn off press: 2 3 Enter 3 2 3 Enter 7284 1 1 Enter 2
To Program numbers 2-5, repeat Step 2 a.
Example: To Program Emergency Number 2,
Press 2, * ,(Phone Number), *, #
Note: If installed on a ring down line (no dial tone) do not
program a phone number. Press the following 1, 9, * , 2
(automatically sets the timer for 3 minutes)
To turn off press 2 3 * 3 2 3 * 7 2 8 4 1 1 * 2
For a Pause press “ # , ”
*
Optional Programming Features
Remote: 8, * , (3 Digit Number in Minutes)
Press
Press
Note: Called party can replay message by pressing * , *
N56 W24720 N. Corporate Circle Sussex, WI 53089
800-451-1460 262-246-4828 (fax) www.rathmicrotech.com 06/15
Made in the USA
3 Year Warranty
RP8200950
Revision 7
Troubleshooting & Diagrams
SmartPhone VI

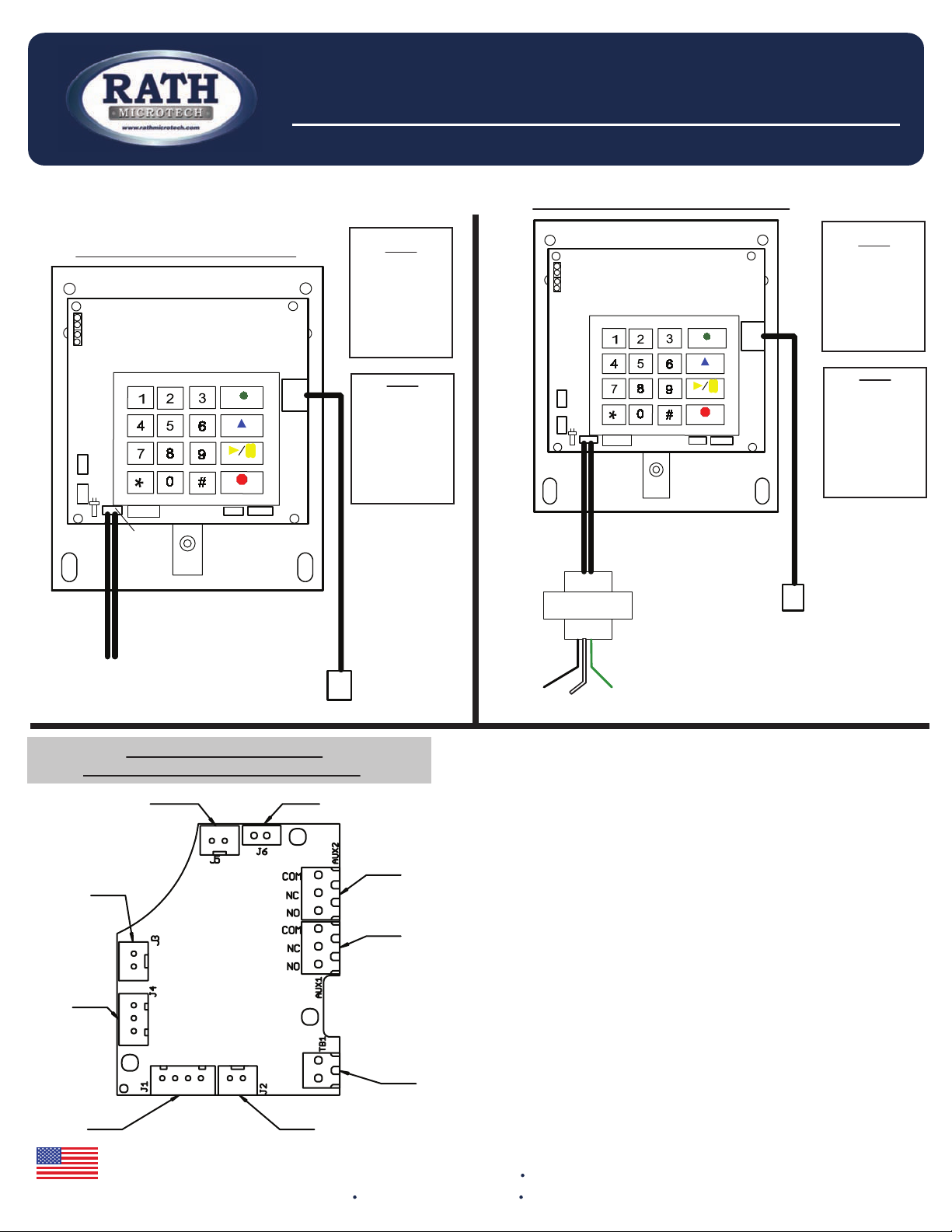

Wiring Diagrams: 24V Models
24+ 24-
To 24 Volt Power
Supply
Enter
Record
Play/Pause
Stop
Bat
11JR
11JR
mralAyaleR
hctiwSDEL
To Phone Line
Requires a
Twisted, Shielded
Pair
MIC Speaker
+ -
24v
AC/DC
Direct 24VAC/DC Powered Note: Note:
120VAC to 24VAC/DC Powered
To Phone Line
Requires a
Twisted, Shielded
Pair
Enter
Record
Play/Pause
Stop
RP7300144-24/5VA
Black
Hot Green
Ground
White
Neutral
120 VAC
Bat
mralAyaleR
hctiwSDEL
MIC Speaker
+ -
11JR
11JR
To SmartRescue
Requires Two
Twisted, Shielded
Pairs
To SmartRescue
Requires Two
Twisted, Shielded
Pairs
Note:
If utilizing our
Phone Line
Detection
feature,
connect to our
“Alarm
Connection”
Note:
If utilizing our
Phone Line
Detection
feature,
connect to our
“Alarm
Connection”
1. Connect your annunciator’s audio output to the TB1 connection on
this board
2. When utilizing this board to drive a 24V LED you must apply power
to the wire leads at the J6 connection. You may tap into a direct
24vdc supply that has battery back up. Connect the wire leads at
the J5 connection to your LED.
3. If you are not utilizing this board to drive a 24V LED then you need
to disconnect the LED harness from the SmartPhone board, then
disconnect the LED harness from this board, connect it to the
SmartPhone board and then wire to your standard LED.
4. If you want to activate Relay 2 in unison with the Alarm Relay on the
SmartPhone board please follow these programming steps
(default activates upon call out):
To Speaker
Relay 1
Relay 2
To H1 on SP VI To Speaker connection
on SP VI Circuit Board
To Audio output
of Annunciator
To LED on SPVI
24V LED 24vdc Power for LED
Annunciator Interface,
Auxiliary Relay & 24v LED Board
- + - +
- +
a. Press ENTER
b. Press 3, 0, ENTER, 4
c. Press STOP for 3 Seconds
If you require
a relay
contact,
connect to
our “Relay
Connection”
If you require
a relay
contact,
connect to
our “Relay
Connection”
Diagnostic Test: Press Enter 2 6 Play/Pause phone will play back (5) Beeps (1st Beep=External Power
Supply; 2nd Beep=LED; 3rd Beep=Microphone; 4th Beep=Speaker; 5th Beep=Back-Up Battery). If any item fails
during test you will hear a Blat not a Beep. If you hear a Blat, contact the Rath Microtech Technical Dept.
Connect to standard RJ11 phone jack. If splicing connection, only hook up Red and Green Wires from the phone cable.
If connecting to a SmartRescue unit, you must connect all four wires. (Check for 24vdc or 48vdc supply at the splice)
Initial Set-Up:
If the phone does not respond, make sure the green LED (D1) on the circuit board is lit. If not, check to be sure the power is
properly connected.
3.
If the phone dials only one digit and hangs-up, there is another Auto-Dialer on the line. You need to re-wire the system so
that our unit is either in parallel or ahead of it.
1.
2. If the phone dials a couple of digits and gets a busy signal, the unit is installed on a switchboard line and needs to be
programmed to dial the appropriate access code to get an outside line. (Usually an 8 or 9)
Troubleshooting:
N56 W24720 N. Corporate Circle Sussex, WI 53089
800-451-1460 262-246-4828 (fax) www.rathmicrotech.com 06/15
Made in the USA
3 Year Warranty
RP8200950
Revision 7
Troubleshooting & Diagrams
SmartPhone VI
1.
2.

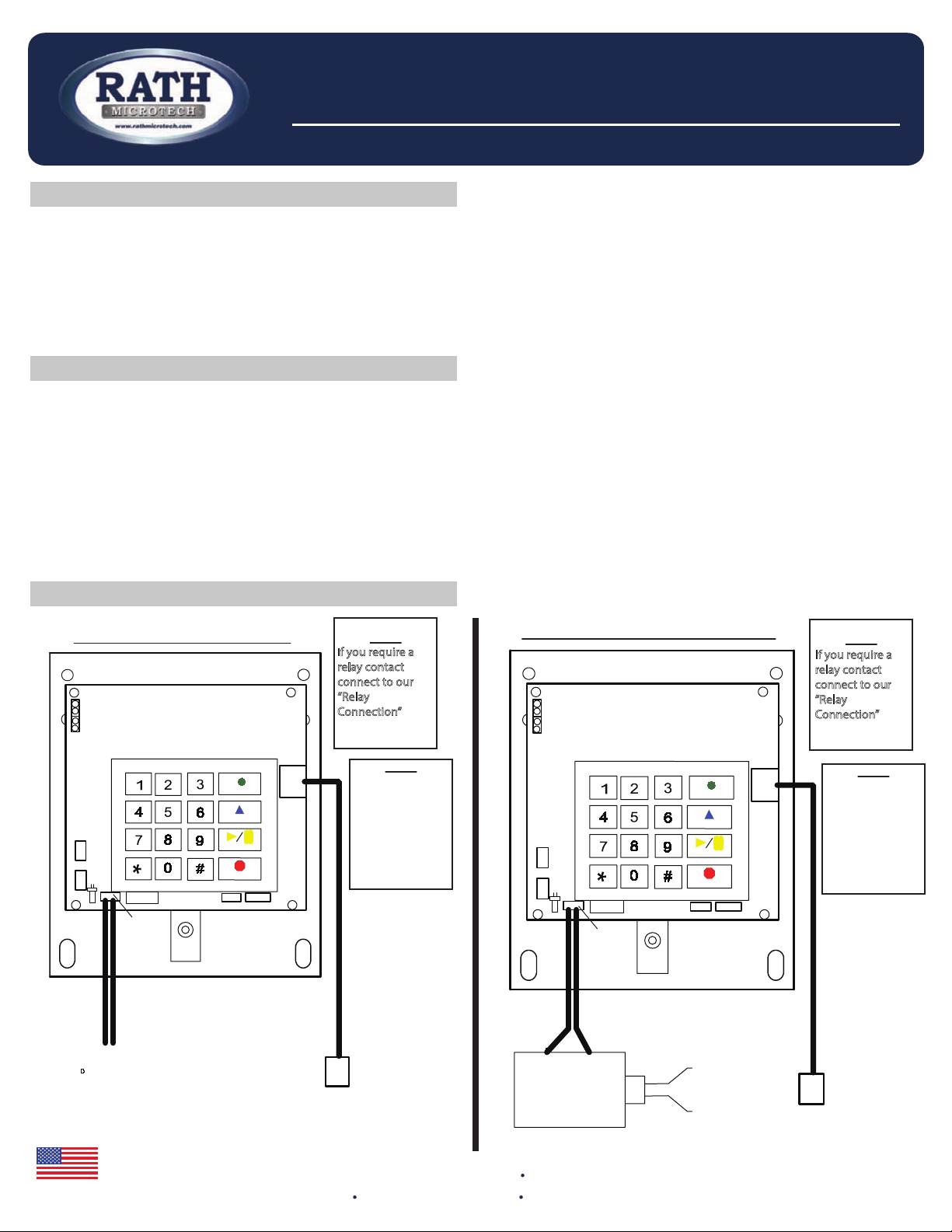

Wiring Diagrams: 12v Models
Transf-12v To 120 vac
Black/Hot
12+ 12-
To 12 Volt Power
Supply
Enter
Record
Play/Pause
Stop
Bat
1 1JR
1 1JR
mralAyaleR
h c t i wSDE L
MIC Speaker
+ -
1 1JR
1 1JR
White/Neutral
12v
AC/DC
Direct 12 vac/dc Powered Note: Note:
120 vac to 12 vac/dc Powered
Enter
Record
Play/Pause
Stop
Bat
mralAyaleR
h c t i wS
DEL
MIC Speaker
+ -
12v
AC/DC
Note:
If utilizing our
Phone Line
Detection
feature,
connect to our
“Alarm
Connection”
Note:
If utilizing our
Phone Line
Detection
feature,
connect to our
“Alarm
Connection”
To Phone Line
Requires a
Twisted, Shielded
Pair
To Phone Line
Requires a
Twisted, Shielded
Pair
To SmartRescue
Requires Two
Twisted, Shielded
Pairs
To SmartRescue
Requires Two
Twisted, Shielded
Pairs
Note: If you receive a Blat for the LED, check the LED operation to be sure if is not working, before contacting
Rath Microtech Technical Department.
If you require a
relay contact
connect to our
“Relay
Connection”
If you require a
relay contact
connect to our
“Relay
Connection”
If the phone is making phantom calls it is installed on a Ring Down Line, you must turn off the “Telephone Line Check”
feature (See Optional Programming Instructions).
4.
