Ravas ERGO User manual


E
RGO TRUCK



ERGO TRUCK











































Foreword
The present operation manual are designed to provide sufficient instruction for the safe operation
of the industrial truck. The information is provided clearly and concisely.
Our trucks are subject to ongoing development. No guarantee of particular features of the truck
should therefore be assumed from the present operation manual.
Safety notices and text markups
Safety instructions and important explanations are indicated by the following graphics:
Please strictly adhere to these safety instructions to avoid personal injury or major damage to
equipment.
Please pay attention to the important safety instructions.
Pay attention to Instructions.
ALL RIGHTS RESERVED
2020.7 15
st
EDITION
i

Table of contents
Pg.
A Application ...........................................................................................................................A1
B Truck Description.................................................................................................................B1
1.1 Application..........................................................................................................................B1
1.2 Truck assemblies ...............................................................................................................B2
1.2.1 Control handle.................................................................................................................B3
1.2.2 Key switch.......................................................................................................................B4
1.2.3 Charging indicator...........................................................................................................B4
1.2.4 Emergency reverse button ..............................................................................................B5
1.3 Standard version specifications .........................................................................................B8
1.3.1Performance data for standard trucks..............................................................................B8
1.3.2 Dimensions .....................................................................................................................B9
C Safety ..................................................................................................................................C1
1.1 Before operation ................................................................................................................C1
1.2 Operating position..............................................................................................................C1
1.3 Travel .................................................................................................................................C2
1.4 Battery safety .....................................................................................................................C3
1.5 EMC-Electromagnetic compatibility ...................................................................................C4
D Transport And Commissioning ............................................................................................D1
1.1 Using the truck for the first time .........................................................................................D2
1.2 Break-in period precautions ...............................................................................................D2
E Operation.............................................................................................................................E1
1.1 Safety regulations for the operation of pallet trucks ...........................................................E1
1.2 Operate and run the truck ..................................................................................................E1
1.2.1 Turning the truck on and off ............................................................................................E1
1.2.2 Driving, steering, braking ................................................................................................E2
1.2.3 Loading ...........................................................................................................................E3
1.3 Raising and lowering the forks ...........................................................................................E5
1.4 Parking the truck securely..................................................................................................E5
1.5 Using the truck on a slope..................................................................................................E6
1.5.1 Starting on a slope ..........................................................................................................E6
1.6 Hoisting the truck(See 1.3 dentification points and data plates).........................................E7
F Battery Maintenance & Charging .........................................................................................F1
1.1 Safety regulations for handling acid batteries ....................................................................F1
1.2 Battery type & dimension ...................................................................................................F1
1.3 Charging the battery...........................................................................................................F1
1.4 Battery removal and installation .........................................................................................F2
1.5 Daily maintenance .............................................................................................................F3
1.6 Storage ..............................................................................................................................F3
1.7 Transportation....................................................................................................................F4

Pg.
G Pallet Truck Maintenance ................................................................................................... G1
1.1 Operational safety and environmental protection .............................................................. G1
1.2 Maintenance safety regulations......................................................................................... G1

A Application
The truck described in these operation manual is designed for transporting loads. It must be used,
operated and maintained according to the information presented in this operation manual. Any
other uses exceed the design scope and can lead to injury to persons or damage to equipment
and property. Above all, overloading caused by excessively heavy or unbalanced loads must be
avoided. The max. permissible load to be picked up is indicated on the nameplate or load curve
label shown on the truck. The truck must not be operated in spaces subject to fire or explosion
hazards, or in spaces where corrosive or very dusty atmospheres prevail.
Duties of the user: A “user” within the meaning of these operation manual is defined as any
natural or legal person who either uses the truck himself, or on whose behalf it is used. In special
cases (e.g. leasing or renting), the user is considered the person, who, in accordance with
existing contractual agreements between the owner and the user of the truck, is charged with the
observance of the operating duties.
The user must ensure that the truck is not abused and only used within its design scope and that
all danger to the operator, or third parties, is avoided. In addition to this, it must be ensured that
the relevant accident prevention regulations and other safety related provisions, as well as the
operating, servicing and maintenance guidelines, are observed. The user must also ensure that
all persons operating the truck have read and understood this operation manual.
If this operation manual is not observed, the warranty becomes void. The same applies if
improper works are carried out on the device by the customers and/or third parties without
permission of our customer service.
Adding attachments: Adding or fitting any attachments which will interfere with, or supplement,
the functions of the truck is permitted only after written approval by the manufacturer has been
obtained. If necessary, the approval of local authorities has to be obtained. Any approval obtained
from local authorities does not, however, make the approval by the manufacturer unnecessary.
Modification: If you want to use the truck for purposes that are not mentioned in the user manual,
please contact dealers accredited by EP. Any modification to your truck, in particular fitting of
equipment or conversion to the truck, is prohibited without the permission of themanufacturer.
REV. 07/2020
A1

Intended use
The truck is designed for transporting and stacking the loads indicated in the load capacity
diagram. Especially:
• In accordance with the safety rules of your industry association
• Other local regulations
In all cases, the people in charge, particularly operators and service personnel, must comply with
the specific approved rules for the use of industrial trucks.
The user, and not the manufacturer EP, is liable for any hazards caused by any application not
authorised by the truck manufacturer.
Please contact your authorised dealer if you want to use the truck for an application that is not
specified in this manual.
The truck must not be altered, especially by making modifications or installing attachments,
without the manufacturer's approval.
Improper use
The operating company or driver, and not the manufacturer, is liable if the truck is used in a manner
that is not permitted.One of the main causes of accidents is the driver ignoring or being unaware
of the basic safe operating practices of the truck.
The following basic safe operating practices must be observed to ensure the safety of operators
and others.Never operate the truck in environments with s potentially explosive atmosphere.
• Never carry passengers.
• Do not overload the truck. (by exceeding the rated load indicated on the load designation plate)
• Overloading can affect braking distances, truck stability and the strength of the lift mast.
• Do not pick up an off-centre load.
• Do not stack loads or turn when driving on a ramp.
• Do not operate the truck on loose or greasy surfaces.
• Do not drive on uneven or obstructed surfaces. Never park the truck in a place that may obstruct
fire extinguishers, fire escapes or aisles.
• Do not dismount from the truck while it is moving.
• Do not leave the truck unattended when the load is raised.
• Never leave the vehicle unattended on a ramp. When driving, do not place any part of your body
outside the confines of the truck, lean on the edge of the truck or attempt to jump onto another
truck or object.
• Do not use the forks or any other part of the truck to push, pull or support items, unless the design
permits this.
REV. 07/2020 A2

1.1 Application
B Truck Description
The truck is intended for transporting goods on a level floor. It can pick up pallets that are open
to the ground or trolleys.
Permissible application temperature range of truck -10°C to 40°C. Lithium-ion battery operation
application 0°C to 40°C.
NOTE
The truck may only be operated in cold stores temporarily. If the truck remains too long in a
cold store,we recommend coid store equipment for the truck.
Only use the truck at altitudes not exceeding 2000 meters.
The walking, lifting and lowering devices, harnesses and components are IP55 dust and water-
resistant.
Trucks can only be operated in adequately illuminated working areas to avoid injuries. In case
of insufficient light, an additional lighting equipment is needed to ensure that the driver can see
properly.
If you must travel on an incline, the gradients should be below A% at full load, or below B%
without a load.(For the value of A and B, refer to the Gradability in Performance Data Sheet)
There should be no risks of fire, explosion or corrosion in the working area, or too much dust.
Forks can only be operated in adequately illuminated working areas to avoid injuries or injuries.
In case of insufficient light, an additional equipment is needed to run the fork lift truck.
REV. 07/2020
B1
i

1.2 Truck assemblies
1 Control handle 6 Forks
2 Control lever 7 Emergency stop switch
3 Lift cylinder 8 Lowering lever
4 Driving wheel 9 Load wheels
5 Battery Box
REV. 05/2020 B 2

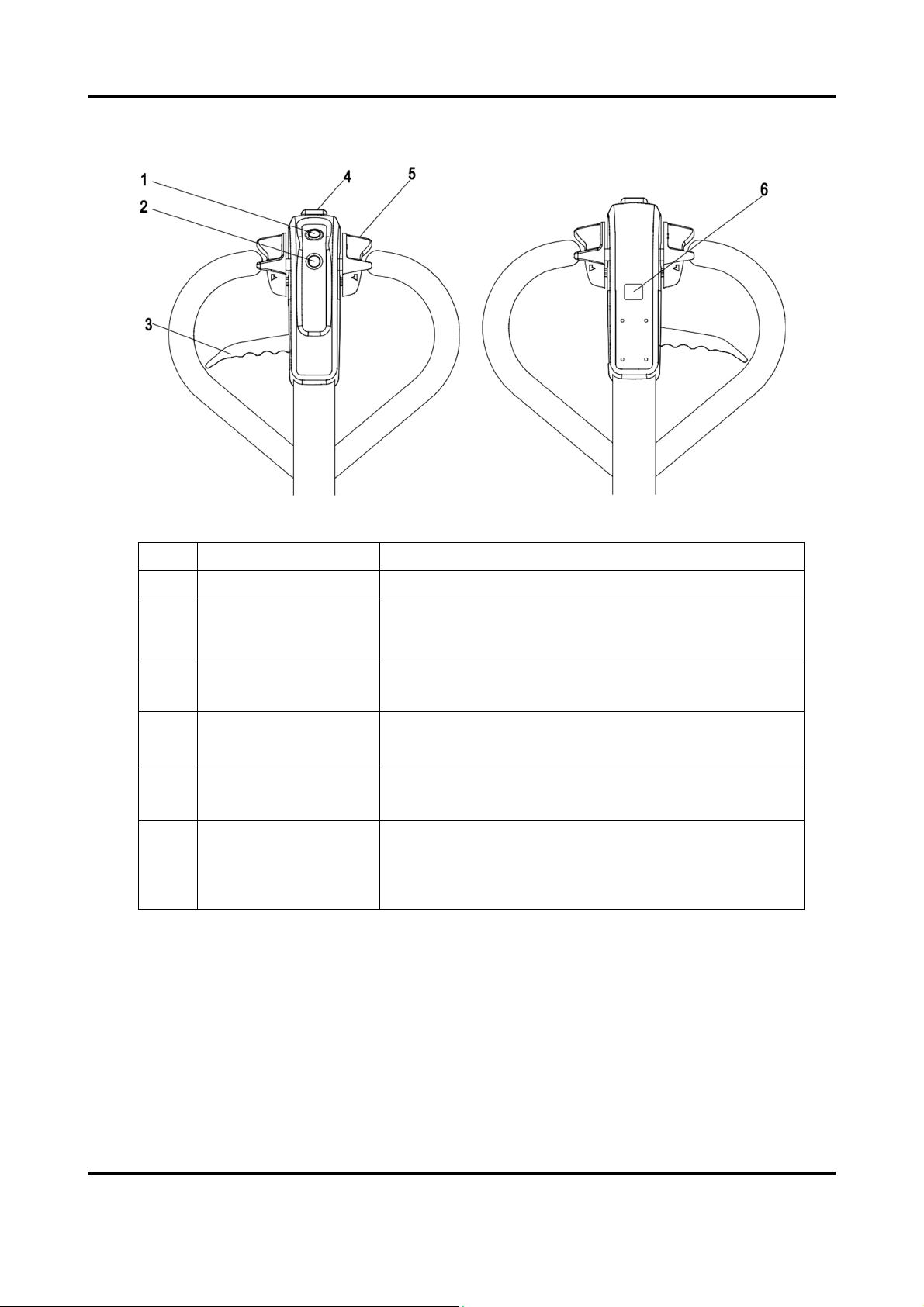

1.2.1 Control handle
Fig1113-00006OM Fig1113-00006OM
Item Control / Display Function
1 "Horn" button Activates the horn.
2 "Lifting" button Press the lift button and hold. The forks will be lifted
to its maximum height and stop on its own.
3
Lowering lever Pull the lowering lever and hold. The forks will be
lowered to its minimum height and stop on its own.
4 Emergency reverse
switch
By pressing this switch, the vehicle starts to travel in
the opposite direction.
5 Drive switch Select the required driving direction and speed.
6 Creep speed switch
Keep the handle in the vertical state, and press creep
speed switch and drive switch at the same time, then
the vehicle will move at a low speed.
REV. 07/2020
B3

1.2.2 Key switch
Connect and interrupt the control
current.
• When pulling out the key switch, the
control current of the truck will be
interrupted;
• When inserting the key switch, the
control current of the truck will be
connected.
Key switch
Pulling out the key switch of a truck
before leaving can prevent the truck
from starting accidentally.
1.2.3 Charging indicator
The LED (1) remain green light lit under
normal, flashing show the failure state of truck.
(See section H Controller Error Message)
The LED display (2) show battery residual
capacity.
The color of the LED (2) represent the
following conditions:
2
If the controller detects a battery failure,
flashes of LED（2）represent battery failure
information until the failure is remedied.
Details of failure information are shown as
below:
REV. 05/2020 B 4
Component LED color Residual
capacit
y
Green 30-100%
Continuous 15-30%
yellow
Standard
battery
residual
capacity
Slow flashing
red light
(Flashing
period 2s)
7-15%
Quick flashing
red light
(Flashing 0-7%
period 1s)
