Ravel RE-2504 Guide

RE – 2504
RE – 2508
Automatic Fire Alarm Control Panel
(Protective premises Unit)
Installation, Commissioning & Operating
User Manual

RE / DD / UM / 2508 V1.2- 01
1
Fire Alarm System Limitations
An automatic fire alarm system–typically made up of smoke detectors,
heat detectors, manual Call Points, audible warning devices, and a fire
alarm control with remote notification capability–can provide early
warning of a developing fire. Such a system, however, does not assure
protection against property damage or loss of life resulting from a fire.
The Manufacturer recommends that smoke and/or heat detectors be
located throughout a protected premise following the
recommendations of the current edition of the National Fire Protection
Association Standard 72 (NFPA 72), manufacturer's recommendations,
State and local codes, and the recommendations contained in the
Guide for Proper Use
of System Smoke Detectors, which is made available at no charge to
all installing dealers. A study by the Federal Emergency Management
Agency (an agency of the United States government) indicated that
smoke detectors may not go off in as many as 35% of all fires. While fire
alarm systems are designed to provide early warning against fire, they
do not guarantee warning or protection against fire. A fire alarm system
may not provide timely or adequate warning, or simply may not
function, for a variety of reasons:
Smoke detectors may not sense fire where smoke cannot
reach the detectors such as in chimneys, in or behind walls, on roofs, or
on the other side of closed doors. Smoke detectors also may not sense
a fire on another level or floor of a building. A second-floor detector, for
example, may not sense a first-floor or basement fire.
Particles of combustion or "smoke" from a developing fire
may not reach the sensing chambers of smoke detectors because:
• Barriers such as closed or partially closed doors, walls,
or chimneys may inhibit particle or smoke flow.
• Smoke particles may become "cold," stratify, and not
reach the ceiling or upper walls where detectors are
located.
• Smoke particles may be blown away from detectors by
air outlets.
• Smoke particles may be drawn into air returns before
reaching the detector.

RE / DD / UM / 2508 V1.2- 01
2
The amount of "smoke" present may be insufficient to alarm smoke
detectors. Smoke detectors are designed to alarm at various levels of
smoke density. If such density levels are not created by a developing
fire at the location of detectors, the detectors will not go into alarm.
Smoke detectors, even when working properly, have sensing limitations.
Detectors that have photoelectronic sensing chambers tend to detect
smoldering fires better than flaming fires, which have little visible smoke.
Detectors that have ionizing-type sensing chambers tend to detect
fast-flaming fires better than smoldering fires. Because fires develop in
different ways and are often unpredictable in their growth, neither type
of detector is necessarily best and a given type of detector may not
provide adequate warning of a fire.
Smoke detectors cannot be expected to provide adequate warning of
fires caused by arson, children playing with matches (especially in
bedrooms), smoking in bed, and violent explosions (caused by
escaping gas, improper storage of flammable materials, etc.).
While a fire alarm system may lower insurance rates, it is not a
substitute for fire insurance!
Heat detectors do not sense particles of combustion and alarm only
when heat on their sensors increases at a predetermined rate or
reaches a predetermined level. Rate-of-rise heat detectors may be
subject to reduced sensitivity over time. For this reason, the rate-of-rise
feature of each detector should be tested at least once per year by a
qualified fire protection specialist. Heat detectors are designed to
protect property, not life.
IMPORTANT! Smoke detectors must be installed in the same room as the
control panel and in rooms used by the system for the connection of
alarm transmission wiring, communications, signaling, and/or power. If
detectors are not so located, a developing fire may damage the alarm
system, crippling its ability to report a fire.
Audible warning devices such as bells may not alert people if these
devices are located on the other side of closed or partly open doors or
are located on another floor of a building. Any warning device may fail
to alert people with a disability or those who have recently consumed
drugs, alcohol or medication.

RE / DD / UM / 2508 V1.2- 01
3
Please note that:
• Strobes can, under certain circumstances, cause seizures in people
with conditions such as epilepsy.
• Studies have shown that certain people, even when they hear a fire
alarm signal, do not respond or comprehend the meaning of the
signal. It is the property owner's responsibility to conduct fire drills and
other training exercise to make people aware of fire alarm signals and
instruct them on the proper reaction to alarm signals.
• In rare instances, the sounding of a warning device can cause
temporary or permanent hearing loss.
A fire alarm system will not operate without any electrical
power. If AC power fails, the system will operate from standby batteries
only for a specified time and only if the batteries have been properly
maintained and replaced regularly.
Equipment used in the system may not be technically compatible with
the control. It is essential to use only equipment listed for service with
your control panel.
The most common cause of fire alarm malfunction is inadequate
maintenance. To keep the entire fire alarm system in excellent working
order, ongoing maintenance is required per the manufacturer's
recommendations, and UL and NFPA standards. At a minimum, the
requirements of NFPA 72 shall be followed. Environments with large
amounts of dust, dirt or high air velocity require more frequent
maintenance. A maintenance agreement should be arranged through
the local manufacturer's representative. Maintenance should be
scheduled monthly or as required by National and/or local fire codes
and should be performed by authorized professional fire alarm installers
only. Adequate written records of all inspections should be kept.

RE / DD / UM / 2508 V1.2- 01
4
NOTES:

RE / DD / UM / 2508 V1.2- 01
5

RE / DD / UM / 2508 V1.2- 01
6
It is imperative that the installer understands the requirements of the
Authority Having Jurisdiction (AHJ) and be familiar with the standards
set forth by the following regulatory agencies:
• Underwriters Laboratories Standards
• NFPA 72 National Fire Alarm Code
NFPA Standards
This Fire Alarm Control Panel complies with the following NFPA
Standards:
NFPA 72 National Fire Alarm Code for Local Fire Alarm Systems.
Underwriters Laboratories Documents for Reference:
UL 38 Manually Actuated Signaling Boxes
UL 217 Smoke Detectors, Single and Multiple Station
UL 228 Door Closers–Holders for Fire Protective Signaling Systems
UL 268 Smoke Detectors for Fire Protective Signaling Systems
UL 268A Smoke Detectors for Duct Applications
UL 346 Waterflow Indicators for Fire Protective Signaling Systems
UL 464 Audible Signaling Appliances
UL 521 Heat Detectors for Fire Protective Signaling Systems
UL 864 Standard for Control Units for Fire Protective Signaling Systems
UL 1481 Power Supplies for Fire Protective Signaling Systems
UL 1638 Visual Signaling Appliances
UL 1971 Signaling Devices for Hearing Impaired

RE / DD / UM / 2508 V1.2- 01
7
Table of Contents
CHAPTER 1: Introduction ………….......................……......................9
1.1: System Design & Planning.............................................9
1.2: General .………..............................................................9
1.3: Fire Alarm Procedure …...............................................10
1.4: User Responsibility…....................................................10
1.5: Routine test............…....................................………….11
CHAPTER 2: Product Description ...........................…….................12
2.1: Product Features .........................................................13
2.2: Specifications .........................................................…..15
2.3: Controls and Indicators ................................................16
2.3.1: Controls........………..................................…………...16
2.3.2: Indication …………………….…..….…………………..17
2.3.2.1 LED Indication………………………………………….17
2.3.2.2.: LCD Indication ……………………………………….18
2.3.2.3: Local Buzzer ………………………………………….18
2.4: Mechanical Construction…………………………………18
2.5: Internal Arrangement…………………………….……….19
2.6: Components…………………………………………….....20
CHAPTER 3: Installation .............................................……..........….22
3.1: Installation Precaution………………………….…………22
3.2: Mounting Details ..................................................….…24
3.3: Panel Wiring…………………………………………….….25
3.4: Initiating Device Circuits............................................….30
3.5: Output Circuits ..........................................................….31
3.5.1: Notification Appliance Circuit ………………………….31
3.5.2: Resttable Power …………………………………………32
3.6: Standard Relay Output …………………………………....33
CHAPTER 4: Programming Instructions ......................……........…34
4.1: Menu Key Flow Diagram...........................................…34
4.2: Programming…………………………….........................35
4.2.1. Program …………………………………………………35
4.2.2. Suppressed Events.…………………………………....48
4.2.3. History……………………………………………………50
4.2.4. About……………………………………………………..50

RE / DD / UM / 2508 V1.2- 01
8
CHAPTER 5: Operating Instructions...….............……………..….....51
5.1: Switch Functions …………………….............................51
5.2: Indications ....................................….........................…53
5.3: Operation..................................................................….55
5.3.1: Normal Monitoring Mode……………………………….55
5.3.2: Fire Alarm Condition.............................................….. 55
5.3.3: Supervisory………..…………………………............... 57
5.3.4: Fault………………………….……………………………58
5.3.5. Disable / W.T……………………………………………..59
5.3.6: Alarm Verification ………………………………………..61
CHAPTER 6: Servicing……………………………..…………………….62
6.1: Installation / Replacement of PCB……………………..…62
6.2: Lamp Test…………………………………………………...64
6.3: Walk test…………………………………………………….64
6.4: System Power / Size …………………………………..….65
6.5: Trouble Shooting …………………………………………..66
CHAPTER 7: Calculation of Battery Size ….……….………….…67
CHAPTER 8: wire Requirement………………..………………………...68
CHAPTER 9: Compatible Devices ……….………….………………….69
CHAPTER 10: Abbreviation……..….…………………..………………..70

RE / DD / UM / 2508 V1.2- 01
9
Chapter 1: Introduction
This manual is intended as a complete guide to the 4/8 Zone
Conventional Fire Alarm Control Panels. This manual provides complete
information on installation, commissioning, Operating Instructions,
programming guide, service, and maintenance procedures with full
technical details.
1.1 System Design and Planning
It is assumed that the system, of which this control panel is a part,
has been designed by a competent fire alarm system designer in
accordance with the requirements of NFPA – 72 and any other local
codes of practice that are applicable. The design drawings should
clearly show the positions of the field devices and the control
equipment.
1.2 General
The panel is self-contained with integral power supply and space
provision for two sealed lead-acid standby batteries and comply with
the requirements of NFPA – 72. The panel’s functions are
microprocessor controlled and test and isolate functions are included.
Provision is made for a repeater function of panel status output. The
panel can accept, per zone, automatic detectors with a total
maximum loading of 2mA quiescent current rating (refer to chapter
2.2), and an unlimited number of manual call points.
Installation
The panel is easy to install and operate. Control functions Programming
functions are enabled by using password. The panel fascia is retained
by tamper-proof screws.

RE / DD / UM / 2508 V1.2- 01
10
1.3 Fire Alarm Procedures
In accordance with NFPA – 72, written procedures should be laid down
for dealing with alarms of fire, fault warnings, and the isolation of any
part of the system. The responsible person should ensure that users of
the system are instructed in its proper use and are familiar with the
procedures.
On hearing the fire alarm:
CARRY OUT THE PRESCRIBED PROCEDURE Subsequent actions will
depend on the circumstances, and may include silencing the audible
alarms and resetting the system, as described later.
To Evacuate the premises:
Press the Evacuate key and enter the password to OPERATE NAC’s
(Sounders).
Fault Indication:
If the control panel indicates a Fault condition, make a note of all
illuminated indicators and proceed as described in chapter 6 (Section
6.4) or call service engineer.
1.4 User Responsibility
In addition to the routine testing described on routine test, the user has
a responsibility for ensuring certain actions are taken following a fire or
fault, and for implementing remedial action following a specified
incidence of false alarms. As a minimum, the user shall record any
incident and inform the service organization, who may be required to
retest the system.

RE / DD / UM / 2508 V1.2- 01
11
1.5 Routine Testing
In order to ensure that the system is fully operational, and to comply
with the requirements of UL864 Standard & NFPA – 72, the following
routine attention is recommended:
Daily - Check the panel to ascertain that it indicates normal operation.
If any fault is indicated check that it has been recorded and the
appropriate actions have been taken e.g. informing to the maintaining
company.
Weekly - Test at least one detector or call point to confirm the
operation of the panel and the audible alarms. Test a different zone
each week and, if possible, a different device. Keep a record of the
device and zone tested each week. Record and report any
malfunction.
Quarterly - The responsible person should ensure that every three
months the system is checked by a competent person. Check the
standby batteries and the charger voltage Test at least one device in
each zone to check the panel functions. Check the operation of the
audible alarms and any link to a remote manned centre, Central
Station, etc. Carry out a visual inspection of the installation to check for
alterations or obstructions and issue a certificate of testing.
Annually - The responsible person should ensure that, in addition to the
quarterly checks, each device on the system is tested and that a visual
inspection is made of the cable fittings and equipment.
Note: The control panel cabinet should be cleaned periodically by
wiping with a soft, damp cloth. Do not use any solvents.

RE / DD / UM / 2508 V1.2- 01
12
Chapter 2: Product Description
The RE – 2504 & RE – 2508 is a 4 & 8zone microprocessor based
conventional Fire Alarm Control Panel. The Panel accepts water flow
devices, conventional input devices like 2 wire and 4 wire smoke
detectors, Manual Call Points and other normally open contact
devices. The Outputs include two notification appliance circuits
(NACs), Resettable 24v D.C. output, Three Form –C relays for alarm,
fault and supervisory. This panel is field programmable via the front
panel keypad. It supervises all wiring, AC voltage and Battery level.

RE / DD / UM / 2508 V1.2- 01
13
2.1 Product Feature
¾4/8 Class B initiating device circuit (IDC).
All zones accept smoke detectors and any normally open
contact device.
Any Zone can be configured as Alarm or supervisory Zone.
¾2 Class B Notification Appliance Circuits (NAC).
¾Fully complies with UL -864 and NFPA-72.
¾Rugged CRCA sheet with powder coated finish.
¾Operates on 220v 50Hz, AC Mains power supply.
¾Standby (battery) backup 24v DC power supply with built in
charger
¾20x4 Dot Matrix LCD Display.
¾Error free Fire / Fault status in unambiguous colored LED indication.
¾System ON indication.
¾Main, Standby status audible and visual indication.
¾Battery Low visual warning with audible tone.
¾Form–C relays for fire, fault and supervisory.
¾Resettable 24v D.C. Outputs.
¾Lamp Test facility.
¾Walk Test facility.
¾Zone Isolation facility with loop voltage cut off.
¾Earth fault annunciation facility at 0 ohms.
¾All field wiring circuits are Power limited except 220v AC and
Battery.
¾All field wiring circuits are supervised.
¾AC Low voltage cutoff.
¾Programmable NAC’s.
¾Programmable IDC’s.
¾Programmable Supervisory Mode.
¾Programmable AC loss delay.
¾Alarm verification facility.
¾Programmable Trouble reminder facility.
¾Events history with RTC.

RE / DD / UM / 2508 V1.2- 01
14
Figure – 1

RE / DD / UM / 2508 V1.2- 01
15
2.2 Specification
Primary Power – CN1 (RE-SMPS-4A-R1)
220VAC ± 10%, 50 Hz, 2.5Amps.
Standby Power – CN10
24v D.C (2 Nos of 12v, 12Ah Sealed Lead acid battery).
Operating Condition
Operating Temperature – 15 - 25° C/60-77° F.
Relative Humidity – 93 ± 2% RH (non-condensing) at 25 ±2° C/77 ±3° F.
Charging Circuit
Charging Voltage – 28.4V, ±0.2V
Charging Current – 800mA (Max.).
Initiating Device Circuits – CN 8
All zones are Class B Style B/C operation (Programmable).
Normal Operating Voltage: 14 - 21 VDC.
Alarm Current: 15 – 30mA.
Short Circuit Current: 45mA Maximum.
Loop resistance: 100 ohms Maximum.
End-Of-Line Resistor: 3K9, 1/2watt
Standby Current: 7mA (2mA for Detectors)
Notification Appliance Circuits – CN5 and CN6
Class – B Style - Y wiring
Operating Nominal Voltage: 24VDC – Special Application
Current for all NACs: 1.2Amps (0.6A per circuit)
Current Limit: CN5 and CN6 via Thermal Fuse
Line Drop: 1.8V
End-Of-Line Resistor: 3K9, 1/2watt
Note:
For compatible devices refer Chapter 9(CD 01).
Resettable D.C. Power – CN7
Operating Voltage: Supervised 24VDC regulated, 300mA Max. (for 4
wire smoke detector)

RE / DD / UM / 2508 V1.2- 01
16
Common Three Form – C Relays – CN2, CN3, CN4
Relay Contact Rating: 2Amps @ 30 VDC, 2Amps @ 30VAC.
Power Factor: 0.6
2.3 Control and Indication

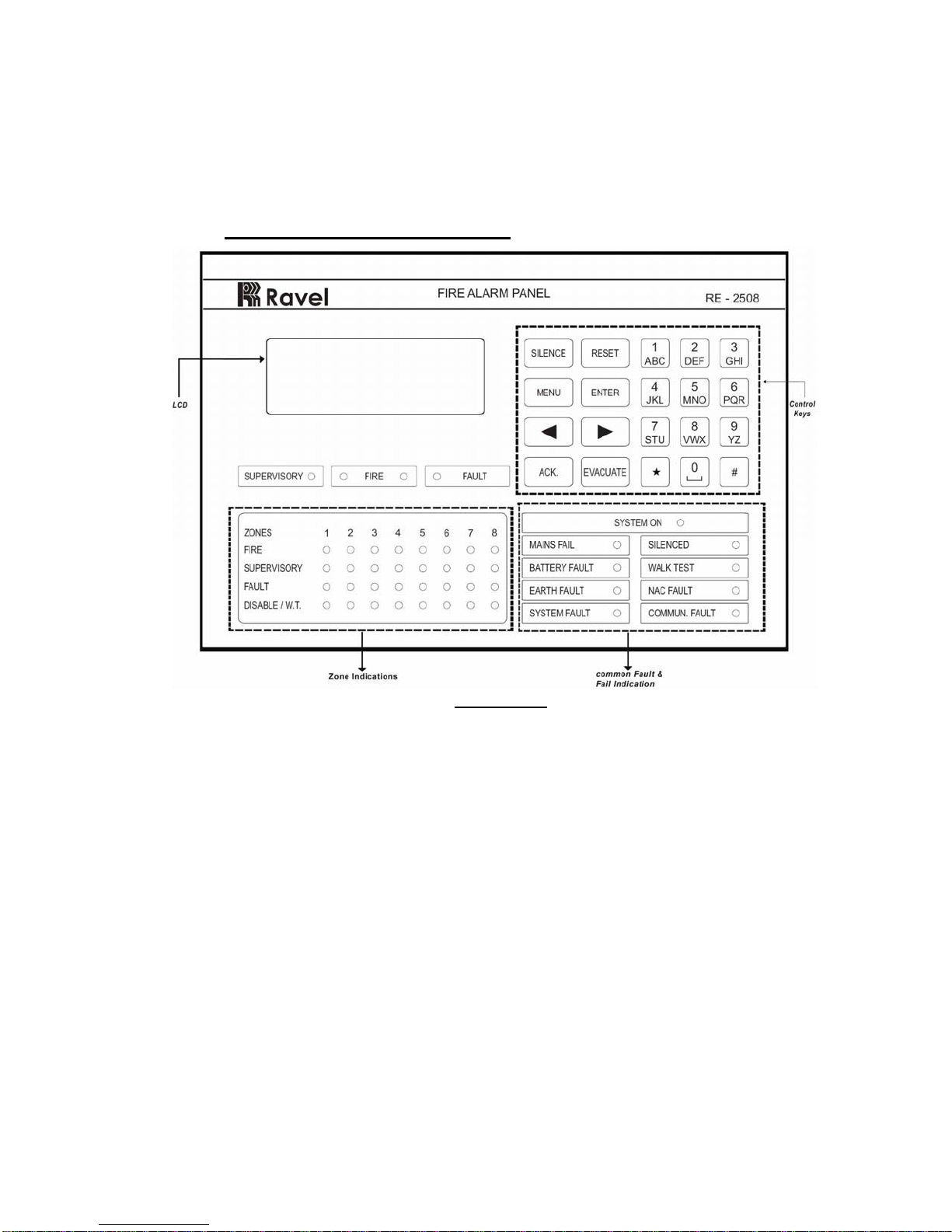

Figure – 2
2.3.1. Controls:
ACK. Key:
9To mute local buzzer in alarm condition.
9To mute local buzzer in Supervisory or fault condition.
9User or Admin password protected.
SILENCE Key:
9To silence the external NACs in Fire Condition.
9User or Admin password protected.
RESET Key:
9To reset the particular zones in Fire alarm or Latched Supervisory
condition.
9User or Admin password protected.
9Possible to access only after silence in alarm condition.

RE / DD / UM / 2508 V1.2- 01
17
EVACUATE:
9To activate External NACs Manually.
9User or Admin password protected.
CURSOR KEYS:
9To move the curse point in the LCD as required.
ENTER Key:
9To accept the programmed or edited menu, mode or value in the
LCD.
MENU Key:
9To enter into the Main Menu in the LCD.
ALPHANUMERIC KEYS:
9These keys are used for entering the names etc. and numbers.
9‘*’ Key is used to go back the previous screen in programming
mode.
9‘#’ key is used to change the status of modes.
9“0” is used for the Lamp test in system healthy condition.
2.3.2. Indications:
2.3.2.1 LED indication
System On – Green
Fire – Red
Fault – Yellow
Supervisory – Yellow
Mains Fail – Yellow
Battery Fault – Yellow
Earth Fault – Yellow
System Fault – Yellow
Silenced – Yellow
NAC Fault – Yellow
Walk Test – Yellow
Commun. Fault - Yellow
Zone Fire – Red
Zone Supervisory – Yellow
Zone Fault – Yellow
Zone Disable/W.T – Yellow

RE / DD / UM / 2508 V1.2- 01
18
2.3.2.2 LCD Indication
The LCD is mainly used for the programming of the panel. It also
indicates all events along with the LED indications except system on
and system fault. Programmed zone wise location details can be
viewed.
2.3.2.3 Local Buzzer
A piezo buzzer provides separate and distinct sounds for alarm,
trouble and supervisory conditions:
Alarm – Continuous
Fault – pulse 0.5sec ON and 5sec OFF
Supervisory – pulse 0.25sec ON and 0.25sec OFF
2.4 Mechanical Construction
The enclosure of the Panel is constructed by 18 gauge (1.22mm)
CRCA sheet with powder-coated finish. The ∅22.25mm (∅19mm [11No’s]
for Indian Std.) 10no’s of knockouts are given for cable entry at the top
of the cabinet. The lockable hinged door is provided to access the
inside the cabinet. The panel also has sufficient space to
accommodate 2 Nos. of 12v, 7Ah batteries.

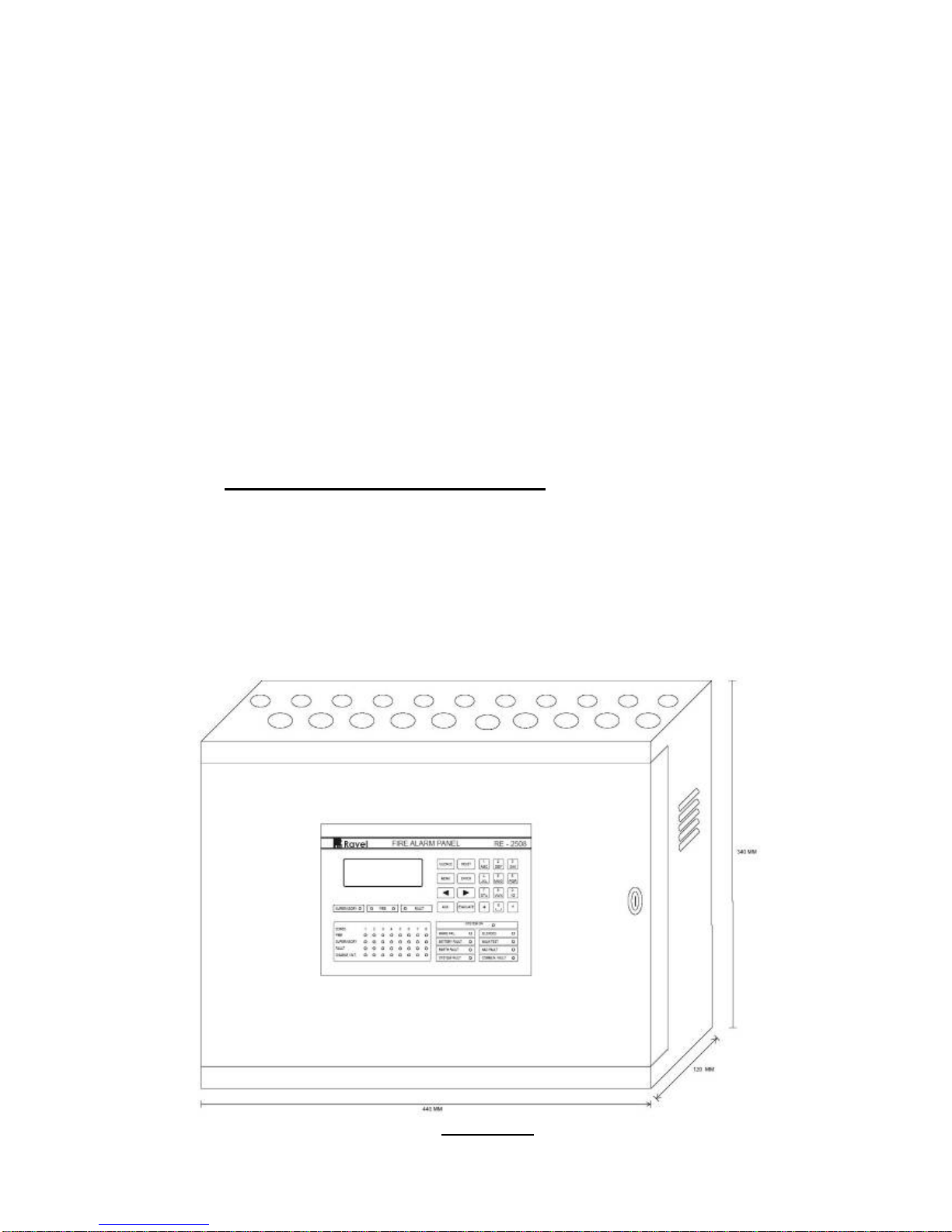

Figure – 3

RE / DD / UM / 2508 V1.2- 01
19
Figure – 4
2.5 Internal Arrangement
2.6
Figure – 5
