Ravel RE-900 Guide

RE-900
Fire Alarm Control Panel
Installation, Commissioning & Operating
user Manual

1 RE / DD / UM / RE-900 1.0-0
Fire Alarm System Limitations
An automatic fire alarm system–typically made up of smoke detectors,
heat detectors, manual Call Points, audible warning devices, and a fire
alarm control with remote notification capability–can provide early
warning of a developing fire. Such a system, however, does not assure
protection against property damage or loss of life resulting from a fire.
The Manufacturer recommends that smoke and or heat detectors be
located throughout a protected premise following the
recommendations of the current edition of the National Fire Protection
Association Standard 72 (NFPA 72), manufacturer's recommendations,
State and local codes, and the recommendations contained in the
Guide for Proper Use
of System Smoke Detectors, which is made available at no charge to
all installing dealers. A study by the Federal Emergency Management
Agency (an agency of the United States government) indicated that
smoke detectors may not go off in as many as 35% of all fires. While fire
alarm systems are designed to provide early warning against fire, they
do not guarantee warning or protection against fire. A fire alarm system
may not provide timely or adequate warning, or simply may not
function, for a variety of reasons:
Smoke detectors may not sense fire where smoke cannot
reach the detectors such as in chimneys, in or behind walls, on roofs, or
on the other side of closed doors. Smoke detectors also may not sense
a fire on another level or floor of a building. A second-floor detector, for
example, may not sense a first-floor or basement fire.
Particles of combustion or "smoke" from a developing fire
may not reach the sensing chambers of smoke detectors because:
• Barriers such as closed or partially closed doors, walls,
or chimneys may inhibit particle or smoke flow.
• Smoke particles may become "cold," stratify, and not
reach the ceiling or upper walls where detectors are
located.
• Smoke particles may be blown away from detectors by
air outlets.
• Smoke particles may be drawn into air returns before
reaching the detector.

2 RE / DD / UM / RE-900 1.0-0
The amount of "smoke" present may be insufficient to alarm smoke
detectors. Smoke detectors are designed to alarm at various levels of
smoke density. If such density levels are not created by a developing
fire at the location of detectors, the detectors will not go into alarm.
Smoke detectors, even when working properly, have sensing limitations.
Detectors that have photoelectronic sensing chambers tend to detect
smoldering fires better than flaming fires, which have little visible smoke.
Detectors that have ionizing-type sensing chambers tend to detect
fast-flaming fires better than smoldering fires. Because fires develop in
different ways and are often unpredictable in their growth, neither type
of detector is necessarily best and a given type of detector may not
provide adequate warning of a fire.
Smoke detectors cannot be expected to provide adequate warning of
fires caused by arson, children playing with matches (especially in
bedrooms), smoking in bed, and violent explosions (caused by
escaping gas, improper storage of flammable materials, etc.).
While a fire alarm system may lower insurance rates, it is not a
substitute for fire insurance!
Heat detectors do not sense particles of combustion and alarm only
when heat on their sensors increases at a predetermined rate or
reaches a predetermined level. Rate-of-rise heat detectors may be
subject to reduced sensitivity over time. For this reason, the rate-of-rise
feature of each detector should be tested at least once per year by a
qualified fire protection specialist. Heat detectors are designed to
protect property, not life.
IMPORTANT! Smoke detectors must be installed in the same room as the
control panel and in rooms used by the system for the connection of
alarm transmission wiring, communications, signaling, and/or power. If
detectors are not so located, a developing fire may damage the alarm
system, crippling its ability to report a fire.
Audible warning de ices such as bells may not alert people if these
devices are located on the other side of closed or partly open doors or
are located on another floor of a building. Any warning device may fail
to alert people with a disability or those who have recently consumed
drugs, alcohol or medication.

3 RE / DD / UM / RE-900 1.0-0
Please note that:
oStrobes can, under certain circumstances, cause seizures in people
with conditions such as epilepsy.
oStudies have shown that certain people, even when they hear a fire
alarm signal, do not respond or comprehend the meaning of the
signal. It is the property owner's responsibility to conduct fire drills and
other training exercise to make people aware of fire alarm signals
and instruct them on the proper reaction to alarm
signals.
oIn rare instances, the sounding of a warning device can cause
temporary or permanent hearing loss.
A fire alarm system will not operate without any electrical
power. If AC power fails, the system will operate from standby batteries
only for a specified time and only if the batteries have been properly
maintained and replaced regularly.
Equipment used in the system may not be technically compatible with
the control. It is essential to use only equipment listed for service with
your control panel.
Telephone lines needed to transmit alarm signals from a
premise to a central monitoring station may be out of service or
temporarily disabled. For added protection against telephone line
failure, backup radio transmission systems are recommended.
The most common cause of fire alarm malfunction is inadequate
maintenance. To keep the entire fire alarm system in excellent working
order, ongoing maintenance is required per the manufacturer's
recommendations, and UL and NFPA standards. At a minimum, the
requirements of NFPA 72 shall be followed. Environments with large
amounts of dust, dirt or high air velocity require more frequent
maintenance. A maintenance agreement should be arranged through
the local manufacturer's representative. Maintenance should be
scheduled monthly or as required by National and or local fire codes
and should be performed by authorized professional fire alarm installers
only. Adequate written records of all inspections should be kept.

4 RE / DD / UM / RE-900 1.0-0
NOTES:

5 RE / DD / UM / RE-900 1.0-0
Table of Contents
F IRE A LARM C ONTROL P ANEL ...........................................................................................................................................0
FIRE ALARM SYSTEM LIMITATIONS ............................................................................................................................... 1
NOTES: ......................................................................................................................................................................... 4
C HAPTER 1: I NTRODUCTION .............................................................................................................................................6
1.1 SYSTEM DESIGN AND PLANNING ............................................................................................................................ 6
1.2 GENERAL ................................................................................................................................................................. 6
1.3 FIRE ALARM PROCEDURES ...................................................................................................................................... 7
1.4 USER RESPONSIBILITY ............................................................................................................................................. 7
1.5 ROUTINE TESTING ................................................................................................................................................... 8
C HAPTER 2: P RODUCT D ESCRIPTION ................................................................................................................................11
2.1 PRODUCT FEATURES: ......................................................................................................................................... 12
2.2 SPECIFICATION ...................................................................................................................................................... 14
2.3CONTROL AND INDICATIONS ................................................................................................................................. 16
2.3.1 CONTROLS .......................................................................................................................................................... 16
2.3.2 INDICATIONS ...................................................................................................................................................... 17
2.3.2.1 LED INDICATIONS ............................................................................................................................................ 17
2.4 MECHANICAL CONSTRUCTION .............................................................................................................................. 18
C HAPTER 3: I NSTALLATION .............................................................................................................................................22
3.1INSTALLATION PRECAUTION .................................................................................................................................. 22
INSTALLATION PRECAUTIONS ..................................................................................................................................... 22
CHAPTER 4: P ROGRAMMING I NSTRUCTIONS ..........................................................................................................................27
4.1MENU KEY FLO DIAGRAM .................................................................................................................................. 27
4.2 PROGRAMMING: ............................................................................................................................................... 31
CHAPTER 5: O PERATING I NSTRUCTIONS ................................................................................................................................42
5.1 S ITCH FUNCTIONS .......................................................................................................................................... 42
5.2 INDICATIONS ........................................................................................................................................................ 43
5.3 OPERATION ................................................................................................................................................... 45
5.3.1 ZONE FAULT: ................................................................................................................................................. 45
5.3.2 ZONE FIRE: .................................................................................................................................................... 45
5.3.3 ZONE DISABLE/ .T: ...................................................................................................................................... 46
C HAPTER 6: S ERVICING : .......................................................................................................................................................48
6.1 INSTALLATION/REPLACEMENT OF PCB: ........................................................................................................ 48
C HAPTER 7: T ROUBLE S HOOTING ...........................................................................................................................................50
C HAPTER 8: A BBREVATION ...................................................................................................................................................51

6 RE / DD / UM / RE-900 1.0-0
Chapter 1: Introduction
This manual is intended as a complete guide to the 1 Zone
Conventional Fire Control Panel. User operating Instructions are
provided in the first part of this manual. This is followed with sections
describing installation and commissioning procedures and full technical
details are provided.
1.1 System Design and Planning
It is assumed that the system, of which this control panel is a part,
has been designed by a competent fire alarm system designer in
accordance with the requirements of IS 2189: 1988 and any other local
codes of practice that are applicable. The design drawings should
clearly show the positions of the field devices and the control
equipment.
1.2 General
The panel is self-contained with integral power supply and space
provision for two sealed lead-acid standby batteries and comply with
the requirements of IS 2189: 1988. The panel functions are
microprocessor controlled and test and isolate functions are included.
Provision is made for a repeater function of panel status output. The
panel can accept, per zone, automatic detectors with a total
maximum loading of 2.4mA quiescent current rating (refer to chapter
2.2), and an unlimited number of manual call points.
End of Line (EOL) de ices
The panels can continue to monitor manual call points with
detectors removed, providing the detectors are fitted with a Schottky
diode and an a EOL device is used.
Installation
The panel is easy to install and operate. Control functions Programming
functions are enabled by using password. The panel fascias are
retained by tamper-proof screws.

7 RE / DD / UM / RE-900 1.0-0
1.3 Fire Alarm Procedures
In accordance with IS 2189: 1988, written procedures should be laid
down for dealing with alarms of fire, fault warnings, and the isolation of
any part of the system. The responsible person should ensure that users
of the system are instructed in its proper use and are familiar with the
procedures.
On hearing the fire alarm:
CARRY OUT THE PRESCRIBED PROCEDURE Subsequent actions will
depend on the circumstances, and may include silencing the audible
alarms and resetting the system, as described later.
To E acuate the premises:
Press the Evacuate key and enter the password to OPERATE SOUNDERS.
Fault Indication:
If the control panel indicates a Fault condition, make a note of all
illuminated indicators, refer to the chart on page 36, and call the
engineer.
1.4 User Responsibility
In addition to the routine testing described on routine test, the user has
a responsibility for ensuring certain actions are taken following a fire or
fault, and for implementing remedial action following a specified
incidence of false alarms. As a minimum, the user shall record any
incident and inform the service organization, who may be required to
retest the system. The user's responsibilities are described fully in IS 2189:
1988.

8 RE / DD / UM / RE-900 1.0-0
1.5 Routine Testing
In order to ensure that the system is fully operational, and to comply
with the requirements of IS 2189: 1988, the following routine attention is
recommended:
Daily - Check the panel to ascertain that it indicates normal operation.
If any fault is indicated check that it has been recorded and that the
appropriate actions have been taken, e.g. informing the maintaining
company.
Weekly - Test at least one detector or call point to confirm the
operation of the panel and the audible alarms. Test a different zone
each week and, if possible, a different device. Keep a record of the
device and zone tested each week. Record and report any
malfunction.
Quarterly - The responsible person should ensure that every three
months the system is checked by a competent person. Check the
standby batteries and the charger voltage Test at least one device in
each zone to check the panel functions. Check the operation of the
audible alarms and any link to a remote manned centre, Central
Station, etc. Carry out a visual inspection of the installation to check for
alterations or obstructions and issue a certificate of testing.
Annually - The responsible person should ensure that, in addition to the
quarterly checks, each device on the system is tested and that a visual
inspection is made of the cable fittings and equipment.
Note: The control panel case should be cleaned periodically by wiping
with a soft, damp cloth. Do not use any solvents.

9 RE / DD / UM / RE-900 1.0-0
Mother Board Terminals and connectors
Power Supply Board Terminals and connectors

10 RE / DD / UM / RE-900 1.0-0

11 RE / DD / UM / RE-900 1.0-0
Chapter 2: Product Description
The RE – 900 is a 12 – 128 zone microprocessor based conventional
Fire Alarm Control Panel. The Panel accepts water flow devices,
conventional input devices like 2 wire smoke detectors, pull stations
and other normally open contact devices. The Outputs include
notification appliance circuits (NACs sounders), Two Form –C relays
for Fire and one relay for fault. And also communication port RS485 to
interface with remote annunciator. This panel is field programmable
via the front panel keypad. It supervises all wiring, AC voltage and
Battery level.

12 RE / DD / UM / RE-900 1.0-0
2.1 Product Features:
Touch Keypad for user friendly operation.
Complies with UL -864 and NFPA-72.
Epoxy powder coated finish.
Operates on 120 - 220v 60 50 Hz, AC Mains power supply.
12 -128 Class B Style ‘B ‘or Style ’C’ initiating device circuit (IDC).
All zones accept smoke detectors and any normally open
contact device.
Class B Notification Appliance Circuits (NAC).
NAC shall be programmed as auto silence Silence Inhibit.
Standby (battery) backup 24v DC power supply with builtin
charger.
Error free Fire Fault status in unambiguous colored LED indication.
1000 Event storage with RTC.
Main, Standby status with audible and visual indication.
Two FormC relays for fire and fault.
Resettable Steady 24V D.C. Output.
RS 485 Communication facility (Optional).
TCP IP (Optional) facility.
Walk Test facility.
Zone Wise Sounder Contact via RS 485.
All field wiring circuits are Power limited except 110 - 220v AC
and Battery.

13 RE / DD / UM / RE-900 1.0-0
All field wiring circuits are supervised.
Zone Isolation facility with loop voltage cut off.
Earth fault annunciation facility at 0 ohms.
Programmable AC loss delay.
Programmable Trouble reminder.
Peer to Peer Networkable
Repeater connectivity via Rs485.

14 RE / DD / UM / RE-900 1.0-0
2.2 Specification
AC Power
110 - 220 VAC, 50 Hz, +10%, -15%.
Wire size: 1.5 Sq. mm with 600 V insulation
Standby power
24VDC as required
Operating Condition:
Operating Temperature 0 - 49° C 32-120° F.
Relative Humidity 93 ± 2% RH (noncondensing)
at 32 ±2° C 90 ±3° F.
Battery (Lead Acid only)
Constant Voltage – 28.0v± 0.5V
Charging Current as required
Charging Capacity: 7 Amp Hour Battery (Higher size are request) .
System Quiescent Current: 50mA + (4.4 – 6.8mA per zone)
D.C. output
Operating Voltage: 24VDC(Resettable Steady), 500mA Max.
Initiating De ice Circuits (Zone Circuit)
All zones are Class B, Style B C operation
Normal Operating Voltage: 14 - 24 VDC
Alarm Current: 15 – 35mA threshold
Short Circuit Current: 45mA Maximum
Loop resistance: 100 ohms Maximum
End-Of-Line Resistor: 4K7, 1 2 watt
Standby Current: 7 mA (2.5 mA for Detectors)

15 RE / DD / UM / RE-900 1.0-0
Notification Appliance Circuits (Sounder Circuit)
Class – B, Style – Y wiring
Operating Nominal Voltage: 24 VDC Special Application
Current for all NACs: 2A (1 A per Circuit)
Line Drop: 1.8V
End-Of-Line Resistor: 4K7, 1 2 watt
Common Relays:
Type : Form C
No of Relays : 2
Relay Contact Rating : 2Amps @ 30VDC
0.5Amps @ 125VAC
Power factor : 1.0
RS485 Communication Port
Max. Distance: 1.5Km Max.

16 RE / DD / UM / RE-900 1.0-0

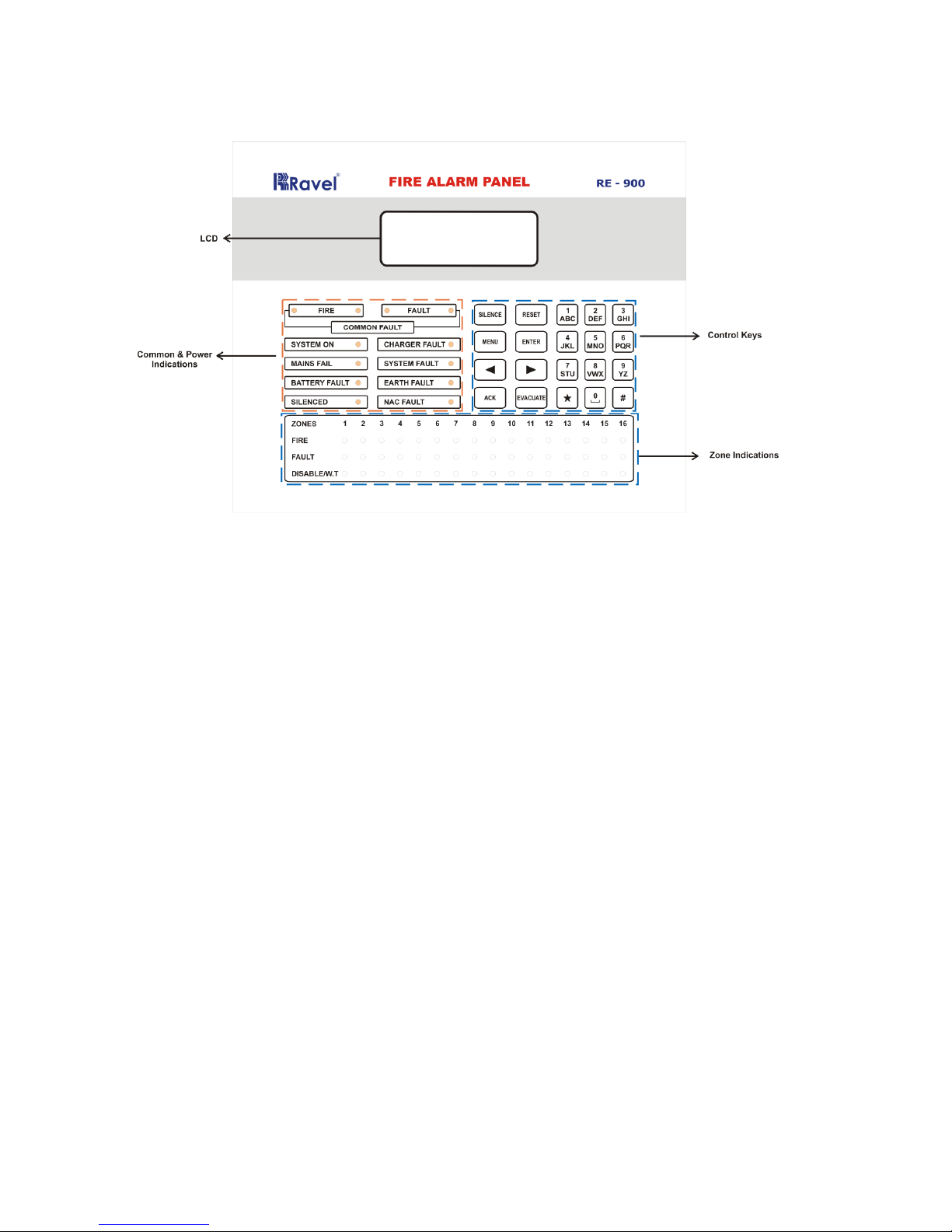

2.3Control and Indications
2.3.1 Controls
ACK. Key:
To mute local buzzer in alarm condition.
To mute local buzzer in Supervisory or fault condition.
User or Admin password protected.
SILENCE Key:
To silence the external NACs in Fire Condition.
User or Admin password protected.
RESET Key:
To reset the particular zones in Fire alarm or Latched Supervisory
condition.
User or Admin password protected.
Possible to access only after silence in alarm condition.
EVACUATE:
To activate External NACs Manually.
User or Admin password protected.

17 RE / DD / UM / RE-900 1.0-0
CURSOR KEYS :
To move the cursor point in the LCD as required.
ENTER Key:
To accept the programmed or edited menu, mode or value in the
LCD.
MENU Key:
To enter into the Main Menu in the LCD.
2.3.2 Indications
2.3.2.1 LED Indications
Fire - Red
Fault-Yellow
System On – Green
Charger Fault - Yellow
Mains Fail-Yellow
System Fault-Yellow
Battery Fault-Yellow
Earth Fault-Yellow
Silenced-Yellow
NAC Fault-Yellow
Zone Disable W.T – Yellow
2.3.2.1 LCD Indication
The LCD is mainly used for the programming of the panel. It also
indicates all events along with the LED indications except system on
and system fault.
2.3.2.2 Local Buzzer
A piezo buzzer provides separate and distinct sounds for alarm,
trouble and supervisory conditions:
Alarm – Continuous
Fault – pulse 0.5sec ON and 5sec OFF

18 RE / DD / UM / RE-900 1.0-0
2.4 Mechanical Construction
The enclosure of the Panel is constructed by 18 gauge (1.22mm)
CRCA sheet with powder-coated finish. The 19 mm [20No’s] for Indian
Std.) 20no’s of knockouts are given for cable entry at the top of the
cabinet. The lockable hinged door is provided to access the inside the
cabinet. The panel also has sufficient space to accommodate 2 Nos. of
12v, 7Ah batteries.

19 RE / DD / UM / RE-900 1.0-0
2.6 Internal Arrangement
