Raven SC1™/TC1™
Calibration & Operation
Manual for Tractors and
Sprayers
016-4010-005 Rev. G 10/2022 E43551

016-0171-686 Rev. A8/18 E31924
We Solve Great Challenges.
DISCLAIMER
While every effort has been made to ensure the accuracy of this document, Raven Industries assumes no
responsibility for omissions and errors. Nor is any liability assumed for damages resulting from the use of
information contained herein.
Raven Industries shall not be responsible or liable for incidental or consequential damages or a loss of anticipated
benefits or profits, work stoppage or loss, or impairment of data arising out of the use, or inability to use, this
system or any of its components. Raven Industries shall not be held responsible for any modifications or repairs
made outside our facilities, nor damages resulting from inadequate maintenance of this system.
As with all wireless and satellite signals, several factors may affect the availability and accuracy of wireless and
satellite navigation and correction services (e.g. GPS, GNSS, SBAS, etc.). Therefore, Raven Industries cannot
guarantee the accuracy, integrity, continuity, or availability of these services and cannot guarantee the ability to
use Raven systems, or products used as components of systems, which rely upon the reception of these signals or
availability of these services. Raven Industries accepts no responsibility for the use of any of these signals or
services for other than the stated purpose.

Table of Contents
016-4010-005 Rev. F i
Chapter 1 Important Information.......................................................................................... 1
Safety ...............................................................................................................................................................................1
Electrical Safety ....................................................................................................................................................................... 1
Recommendations and Best Practices ................................................................................................................2
Aerials and Signal Interference ......................................................................................................................................... 2
Harness Routing ...................................................................................................................................................................... 3
Chapter 2 Introduction............................................................................................................. 5
System Specifications ................................................................................................................................................5
SC1/TC1 Electrical Rating .................................................................................................................................................... 5
Installation ......................................................................................................................................................................6
Recommendations ................................................................................................................................................................. 6
Updates ...........................................................................................................................................................................6
Chapter 3 Initial Machine Calibration................................................................................... 7
Calibration Overview ..................................................................................................................................................8
Preparation and Best Practices ......................................................................................................................................... 8
Initial Machine Calibration .......................................................................................................................................8
GPS Setup .................................................................................................................................................................................. 9

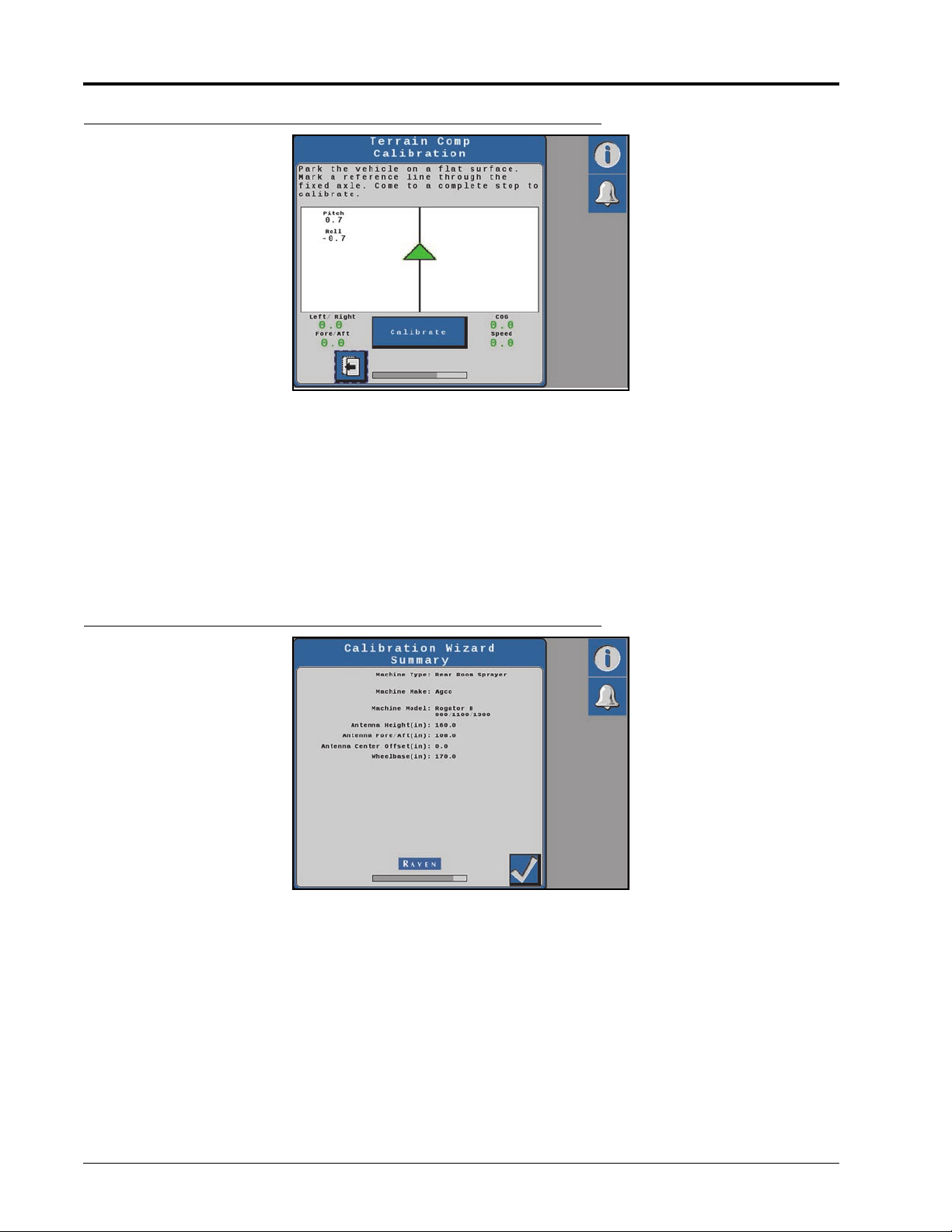

Terrain Compensation Calibration .................................................................................................................................14
Auto-Steering Calibration .................................................................................................................................................16
Chapter 4 Routine Machine Operation .............................................................................. 25
Operator Liability ...................................................................................................................................................... 25
Home Page ................................................................................................................................................................. 26
Steering Status Indicator ...................................................................................................................................................26
Off-Line Indicator .................................................................................................................................................................27
GPS Status Indicator ............................................................................................................................................................27
Tuning Settings .....................................................................................................................................................................27
Steering Status Page ............................................................................................................................................... 28
Status Displays .......................................................................................................................................................................29
GPS Status Page ........................................................................................................................................................ 32
CRX Features and Operation ............................................................................................................................... 33
CRX Widget Definitions .....................................................................................................................................................33
Engaging SC1/TC1 ...............................................................................................................................................................34
Chapter 5 Machine Settings and Tuning............................................................................ 35
Machine Settings Tab .............................................................................................................................................. 35
Machine Configuration ......................................................................................................................................................35
Antenna Offsets Settings ...................................................................................................................................................36
Aux Input Options ................................................................................................................................................................37
Change Profile .......................................................................................................................................................................37
Node Orientation .................................................................................................................................................................38
Steering Setup Tab ................................................................................................................................................... 38
Advanced Tuning .................................................................................................................................................................39
Wheel Control Settings ......................................................................................................................................................41

Table of Contents
ii Raven SC1™/TC1™ (software version 1.5) Calibration & Operation Manual for Tractors and Sprayers
Wheel Control Calibration ................................................................................................................................................42
Guidance Setup Menu .......................................................................................................................................................43
Wheel Angle Sensor Settings ..........................................................................................................................................46
Resume/Disengage Settings ............................................................................................................................................47
Reset Calibrated Gains .......................................................................................................................................................48
Operator Presence Sensor ................................................................................................................................................48
Chapter 6 GPS Settings.......................................................................................................... 51
Configure GPS in the Viper 4/Viper 4+ ............................................................................................................51
GPS Receiver Configuration ..................................................................................................................................52
Configure GPS in the SC1/TC1 .............................................................................................................................53
Position accuracy Setup .....................................................................................................................................................53
Terrain Compensation Setup ...........................................................................................................................................54
Serial Output Configuration ............................................................................................................................................54
GPS Receiver Setup .............................................................................................................................................................59

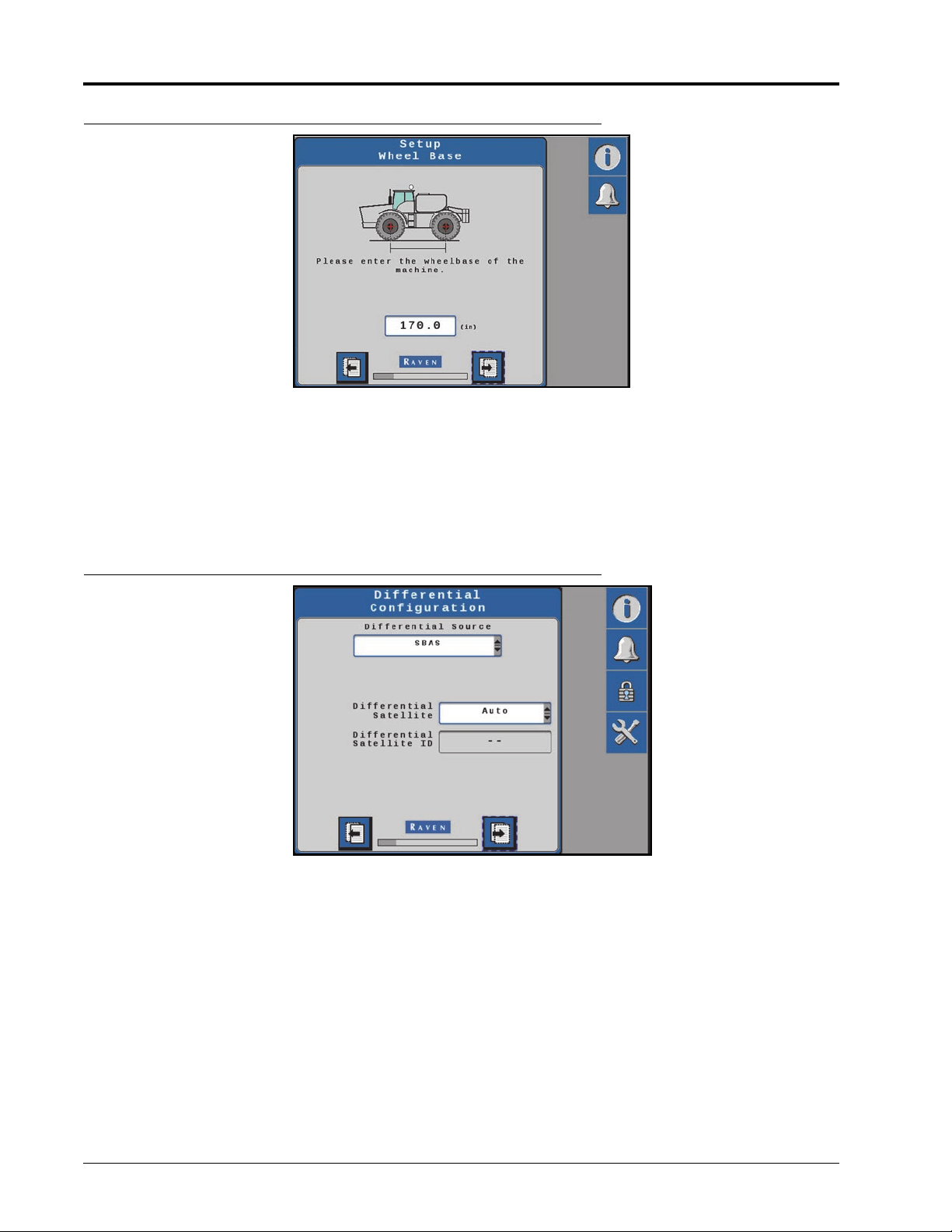

Differential Configuration Page ......................................................................................................................................59
GPS Information ...................................................................................................................................................................60
Chapter 7 Feature Unlock Codes......................................................................................... 63
Chapter 8 Aux Input Setup and Operation....................................................................... 65
ID Function 1-10 Definitions ............................................................................................................................................65
ID Function 11 Definitions ................................................................................................................................................66
Chapter 9 Diagnostics and Troubleshooting.................................................................... 67
Diagnostic Trouble Codes (DTC) ..........................................................................................................................67
Diagnostic Trouble Code (DTC) List ....................................................................................................................69
System Health Tests ..................................................................................................................................................84
Step Response Test ..............................................................................................................................................................84
Machine Test ..........................................................................................................................................................................86
System Information ..................................................................................................................................................89
Performance Monitor ..............................................................................................................................................92
Chapter 10 Trimble 372 Configuration using AgRemote ................................................ 95
GPS Configuration ...............................................................................................................................................................95
Radio Mode Configuration ..............................................................................................................................................96
Port A Configuration ...........................................................................................................................................................96
Port B Configuration ...........................................................................................................................................................98
Chapter 11 Roadway Homologation .................................................................................. 101
Certification ..............................................................................................................................................................102
Safety Notes ........................................................................................................................................................................ 102

CHAPTER
1
Important Information: Safety 1
CHAPTER 1 IMPORTANT INFORMATION
SAFETY
Follow the operation and safety instructions included with the implement and/or controller and read this manual
carefully before installing or operating this Raven system.
• Follow all safety information presented within this manual. Review implement operation with your local dealer.
• Contact a local Raven dealer for assistance with any portion of the installation, service, or operation of Raven
equipment.
• Follow all safety labels affixed to system components. Be sure to keep safety labels in good condition and
replace any missing or damaged labels. Contact a local Raven dealer to obtain replacements for safety labels.
Observe the following safety measures when operating the implement after installing this Raven system:
• Do not operate this Raven system or any agricultural equipment while under the influence of alcohol or an
illegal substance.
• Be alert and aware of surroundings and remain in the operator seat at all times when operating this Raven
system.
•Do not operate the implement on any public road with this Raven system enabled.
•Disable this Raven system before exiting the operator seat.
•Determine and remain a safe working distance from obstacles and bystanders. The operator is
responsible for disabling the system when a safe working distance has diminished.
•Disable this Raven system prior to starting any maintenance work on the implement or components
of this Raven system.
• Do not attempt to modify or lengthen any of the system control cables. Extension cables are available from a
local Raven dealer.
ELECTRICAL SAFETY
• Always verify that power leads are connected to the correct polarity as marked. Reversing the power leads
could cause severe damage to the Raven system or other components.
• To prevent personal injury or fire, replace defective or blown fuses with only fuses of the same type and
amperage.
• Do not connect the power leads to the battery until all system components are mounted and all electrical
connections are completed.
NOTICE
CAUTION

CHAPTER 1
2 Raven SC1™/TC1™ Calibration & Operation Manual for Tractors and Sprayers
• Always start the machine before initializing this Raven system to prevent power surges or peak voltage.
• To avoid tripping and entanglement hazards, route cables and harnesses away from walkways, steps, grab bars,
and other areas used by the operator or service personnel when operating or servicing the equipment.
RECOMMENDATIONS AND BEST PRACTICES
AERIALS AND SIGNAL INTERFERENCE
Due to the relatively low broadcast power from satellites, all GNSS receivers and aerials tend to be susceptible to
sources of signal noise and interference as compared to terrestrial signals (i.e. radio or cellular).
NOTE: Poor GNSS signal reception may cause other systems which rely on GNSS solutions (e.g. auto-steer
systems, rate control systems, etc.) to disengage or may cause undesired operation or results.
The following recommendations are intended to provide an optimal environment for GNSS systems and provide
the best up-time results, even as sources of interference may spike throughout the day.
• Mount GNSS antennas with a clear, unobstructed view of the sky.
•A minimum clearance of 1 m [39 in] is recommended around the GNSS antenna to help avoid
common issues with signal interference. Do not mount cellular, radio, or other GNSS antennas
within this area.
•Mount the GNSS antenna to the tallest point of the machine. Avoid mounting the antenna in a
location where obstructions (e.g. bins/hoppers, cab roof lines, equipment frame or structural
elements, etc.) may rise into the antenna view.
NOTE: The antenna view typically starts 5° to 10° above horizontal from the base of the antenna and extends
over the skyward face of the receiver/antenna.
• GNSS is a line-of-sight system. A clear path must exist between the satellite and the GNSS antenna.
•Obstructions such as buildings, tree branches and limbs, as well as components of the vehicle such
as a fiberglass or metal roof, and etc. may cause signal multi-path or completely block the GNSS
receiver.
• Electrical and magnetic fields can interfere with GNSS or L-Band signals.
•Avoid mounting GNSS receivers or antennas near components such as radio or cellular antennas,
electrical motors, generators, alternators, strobe lights, radio transmitters, radio or cellular
antennas, etc.
•Over-head power lines, microwave dishes, radar, other active antennas, etc. can interfere with GNSS
signal.
• Mount the Field Hub cellular and diversity antennas at least 1 m [39 in] apart. Avoid mounting other cellular,
radio, or GNSS aerials within this area.

Important Information: Recommendations and Best Practices 3
IMPORTANT INFORMATION
HARNESS ROUTING
The word “harness” is used to describe any electrical cables and leads, both bundled and unbundled. Use the
following guidelines and recommendations when connecting and routing harnesses while installing or
maintaining this Raven system:
• Leave protective caps/covers over harness connectors until needed to avoid dirt and moisture from
contaminating electrical circuits.
• Secure the harness to the frame or solid structural members at least every 12 in [30 cm].
• Follow existing harness runs already routed on the implement as much as possible. Proper harness routing
should:
•Secure harnessing and prevent the harness from hanging below the implement.
•Provide sufficient clearance from moving components and operational zones around shafts;
universal joints and suspension components; pulleys, gears, belts, and chains; moving linkages,
cylinders, articulation joints, etc.
•Protect harnessing from field debris and surrounding hazards (e.g. tree limbs, fence posts, crop
stubble, dirt clumps or rocks that may fall or be thrown by the implement).
•Protect harnessing from sharp bends, twisting, or flexing over short distances and normal
implement operation.
•Connectors and splices should not be located at bending points or in harness sections that move.
•Ensure sufficient length for free movement of the implement during normal operation and prevent
pulling, pinching, catching, or rubbing, especially in articulation and pivot points. Clamp harnessing
securely to force controlled movement of the harness.
•Avoid abrasive surfaces and sharp edges such as sheared or flame cut corners, fastener threads or
cap screw heads, hose clamp ends, etc.
• Do not connect, affix, or allow harnessing to come into contact with components with high vibration forces, hot
surfaces, or components carrying hot fluids beyond the temperature rating of harness components.
•Harnessing should be protected or shielded if routing requires the hose to be exposed to
conditions beyond harnessing component specifications.
• Avoid routing harnesses in areas where damage may occur due to build up of material (e.g. dirt, mud, snow,
ice, etc.).
• Avoid routing harnesses in areas where the operator or service personnel might step or use as a grab bar.
IMPORTANT: Avoid applying direct spray or pressure washing of electrical components and connections. High pressure
streams and sprays can penetrate seals, cause corrosion, or otherwise damage electrical components.
When performing maintenance:
• Inspect electrical components and connectors for corrosion, damaged pins or housings, etc. Repair or replace
components or harnessing as necessary.
• Ensure connectors are kept clean and dry. Apply dielectric grease to the sealing surfaces of all connections
exposed to moisture, dirt, debris, and other contaminates. Repair or replace harnessing as necessary.
• Clean electrical components with pressurized air, aerosol electrical cleaning agent, or low pressure rinse.
• Remove visible surface water from electrical components and connections using pressurized air or an aerosol
cleaning agent. Allow components to dry thoroughly before reconnecting cables.

CHAPTER 1
4 Raven SC1™/TC1™ Calibration & Operation Manual for Tractors and Sprayers

CHAPTER
2
Introduction: System Specifications 5
CHAPTER 2 INTRODUCTION
When coupled with a Raven field computer and a GPS solution of your choice, SC1/TC1™ is designed to offer
hands-free steering of agricultural equipment including sprayers, spreaders, and tractors. When coupled with an
implement steering system, SC1/TC1 is capable of keeping both your tractor and a towed implement on track.
The chapters in this manual are intended to assist with the proper calibration and operation of the SC1/TC1 system.
FIGURE 1. SC1/TC1 Home Page
SYSTEM SPECIFICATIONS
SC1/TC1 ELECTRICAL RATING
The specifications below are specific to the SC1/TC1 system:
Current Rating Voltage Range
60 mA 8 - 36 Volts

CHAPTER 2
6 Raven SC1™/TC1™ Calibration & Operation Manual for Towed Implements
INSTALLATION
RECOMMENDATIONS
Raven Industries recommends the following best practices when installing or operating the SC1/TC1 system for the
first time, at the start of the season, or when moving the SC1/TC1 system to another machine:
• Verify that the machine hydraulic system is using fresh oil and that the filters have been recently changed.
• Ensure there are no issues with the machine hydraulic system (e.g., pump issues, faulty hydraulic motors, fine
metal deposits in the hydraulic hoses, etc.).
UPDATES
Software and manual updates are available on the Raven Applied Technology website.
https://portal.ravenprecision.com/
Refer to the Viper 4 Installation & Operation Manual (P/N 016-0171-539) or CRX Operation Manual (P/N 016-0171-
664) for instructions on updating the SC1/TC1 node software.
Sign up for email alerts, and you will be automatically notified when updates for your Raven products are available
on the website!
WARNING
Carefully read and follow all safety requirements
and precautions contained in this manual and the
machine-specific or implement Installation
Manual. Failure to follow safety instructions may
lead to equipment damage, personal injury, or
death.
At Raven Industries, we strive to make your experience with our products as rewarding as
possible. One way to improve this experience is to provide us with feedback on this manual.
Your feedback will help shape the future of our product documentation and the overall service we
provide. We appreciate the opportunity to see ourselves as our customers see us and are eager
to gather ideas on how we have been helping or how we can do better.
To serve you best, please send an email with the following information to
[e-mail]
-Raven SC1™/TC1™ Calibration & Operation Manual for Towed Implements
-016-4010-008 Rev. D
-Any comments or feedback (include chapter or page numbers if applicable).
-Let us know how long have you been using this or other Raven products.
We will not share your email or any information you provide with anyone else. Your feedback is
valued and extremely important to us.
Thank you for your time.

CHAPTER
3
Initial Machine Calibration: 7
CHAPTER 3 INITIAL MACHINE CALIBRATION
WARNING
The machine will steer automatically. While
calibrating or operating the SC1/TC1 system, be
sure the area around the vehicle is clear of
people and obstacles before engaging the
steering system.
To disengage auto-steering at any time, turn the
steering wheel or select the on-screen Stop
button.
WARNING
During the auto-steering calibration, the machine
will make several hard left and right turns. Adjust
the vehicle speed and location as necessary.
NOTICE
Calibration of the machine steering system
should be performed in a field or other large,
open space and with conditions similar to normal
vehicle operation.
If the ground or surface is slippery, muddy, or
freshly tilled, the SC1/TC1 system may learn
incorrect steering responses for normal
operating conditions.
Ensure the machine hydraulics are operating
properly and there are no other mechanical
issues that may affect the performance of the
SC1/TC1 system.

CHAPTER 3
8 Raven SC1™/TC1™ (software version 1.5) Calibration & Operation Manual for Tractors and Sprayers
CALIBRATION OVERVIEW
IMPORTANT: Installation of the SC1/TC1 system must be completed before calibrating the system. Refer to the machine-
specific SC1/TC1 installation manual or contact your local Raven dealer for assistance with installing the
SC1/TC1 system.
PREPARATION AND BEST PRACTICES
• For best performance, the SC1/TC1 guidance and steering system must be calibrated specifically for each
machine configuration (e.g. tractor and implement combination).
• Start the calibration process with the machine parked on a level surface with several acres of smooth ground
available.
• Ensure that the engine and hydraulic systems are at normal operating temperature and perform all calibration
procedures at typical operating RPM.
• It is recommended to calibrate in conditions as close to actual field operations as possible. Before starting the
calibration process:
•Fold and rack booms on self-propelled applicators.
•Disconnect any implements from the tractor hitch. Best results are obtained by completing the
machine calibration without any towed implements. Refer to Chapter 3, Initial Implement
Calibration, for assistance with calibrating the SC1/TC1 implement guidance features.
•Verify machine measurements are correctly entered into the UT.
• During the auto-steering calibration, the machine will make several hard left and right turns. Adjust the vehicle
speed and location as necessary.
•To pause the calibration at any time, turn the steering wheel or press the Stop button on the UT.
Tap the foot/resume switch to resume the calibration process.
•To ensure successful auto-steering calibration, try to minimize the number of pauses.
•If an error message is displayed during calibration, refer to Chapter 9, Diagnostics and
Troubleshooting on page 67 for possible causes and corrective action steps to be taken.
INITIAL MACHINE CALIBRATION
Initial calibration of the SC1/TC1 system consists of the following component setup calibrations:
•GPS Setup
•Terrain Compensation Calibration
•Auto-Steering Calibration
NOTE: The SC1/TC1 system can be used for GPS only or for GPS and auto-steering. The following sections
walk through the calibration procedures for both GPS only as well as GPS guidance and auto-
steering. If using the system for GPS only, the steering calibration steps will not be completed.
1. When prompted, accept Operator Liability. Refer to the Operator Liability section on page 25 for additional
information.
NOTE: The calibration wizard will be displayed the first time the SC1/TC1 module is accessed after installation
or any time the Reset SC1/TC1 option is selected. Refer to Resetting Calibrated Gains section on
page 113 for additional information about resetting the SC1/TC1 system.
2. Select the Guidance and Steering terminal from the UT menu. The Machine Selection page will be displayed.

Initial Machine Calibration: Initial Machine Calibration 9
INITIAL MACHINE CALIBRATION
GPS SETUP
NOTE: System Information, Diagnostic Trouble Codes (DTCs),
and Machine Test pages may be viewed during the
calibration process. For additional assistance with the
settings available on these pages, please refer to the:
•System Information section on page 89
•Diagnostic Trouble Codes (DTC) section on page 67
•Wheel Angle Sensor Settings section on page 46.
NOTE: The Machine Test icon will only be displayed if a Steering Partner is detected.
3. Use the drop-down options to select the Machine Type, Machine Make, and Machine Model most closely
matching the equipment used for the current machine configuration.
4. When all options have been set, select the Next button. One of the two following pages will be displayed.
•SteeringPartnerNotFound
• Steering Configuration

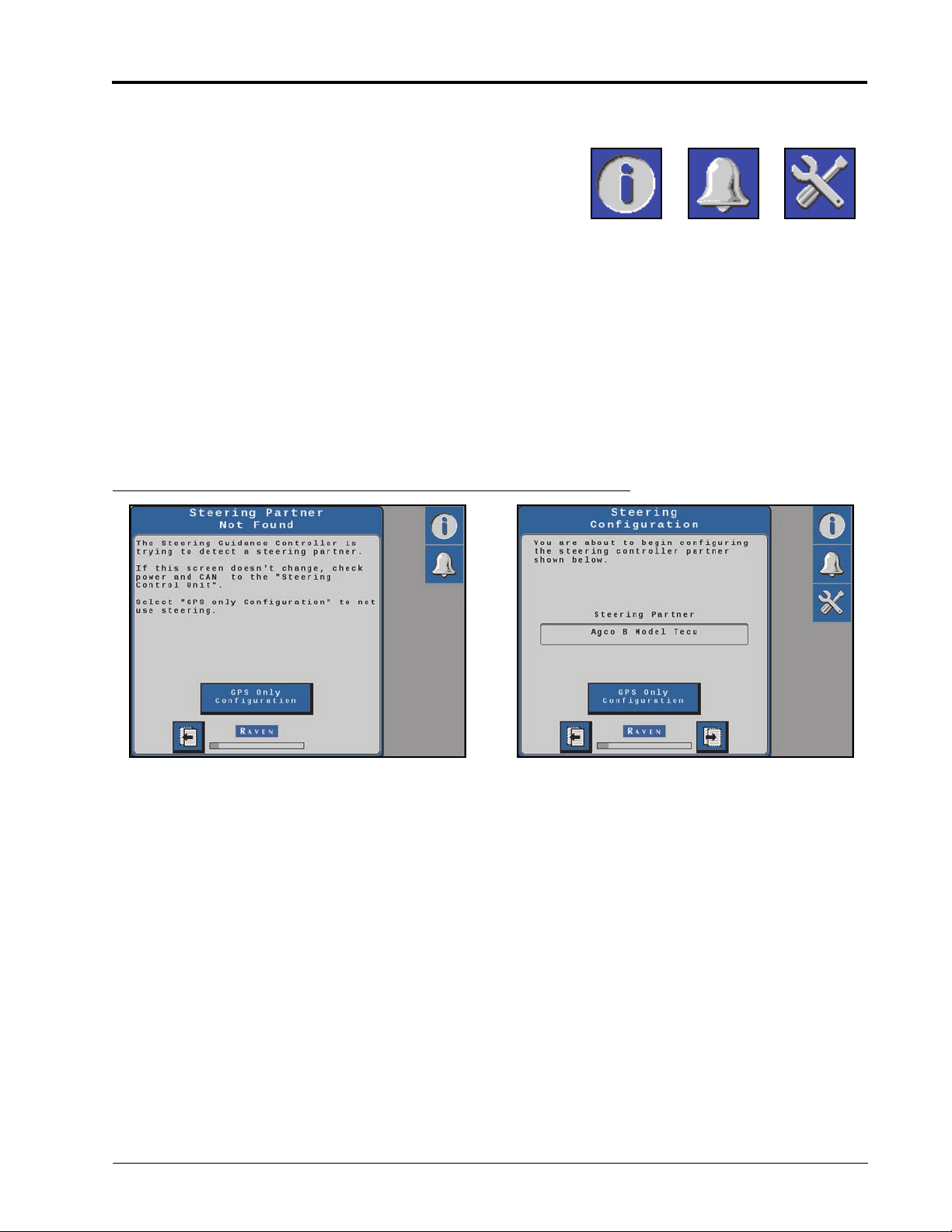

FIGURE 1. Steering Partner and Configuration
5. Select the GPS Only Configuration button to set up and use only the GPS features of the SC1/TC1 system.
Proceed to step 6 to continue the GPS Only Configuration.
To calibrate both the GPS and auto-steering features of the SC1/TC1 system, confirm that the Steering
Configuration page displays the correct Steering Partner and touch the Next button.
6. Use the drop-down to select the appropriate GPS receiver.
Information Alarms Machine
Test

CHAPTER 3
10 Raven SC1™/TC1™ (software version 1.5) Calibration & Operation Manual for Tractors and Sprayers

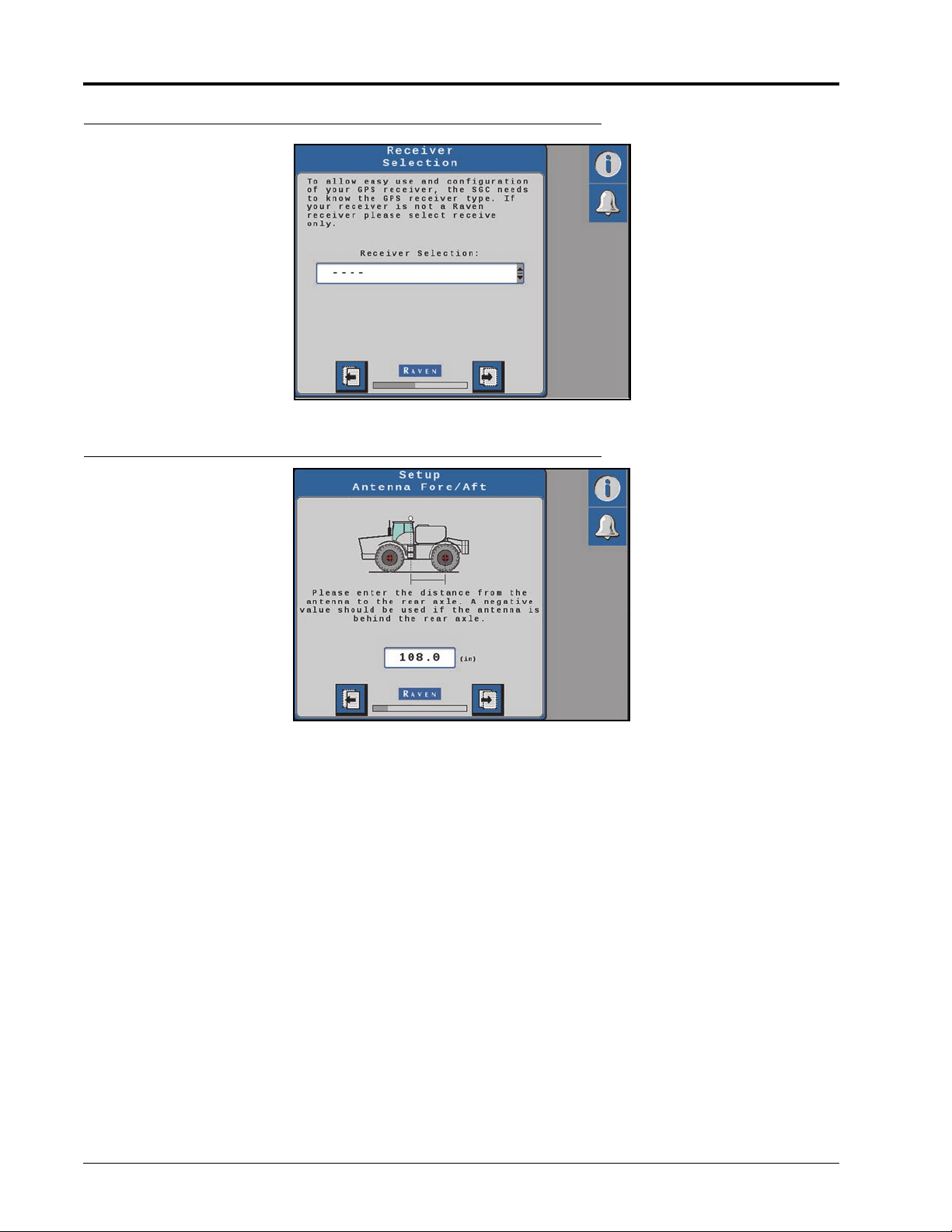

FIGURE 2. Receiver Selection
FIGURE 3. Antenna Fore/Aft Page
7. Select the value box to enter the Antenna Fore/Aft position.
NOTE: The Antenna Fore/Aft Offset is measured from the rear axle of the machine to the center of the GPS
antenna. A negative value should be entered if the GPS antenna is located behind the rear axle.
8. Select the Next arrow.

Initial Machine Calibration: Initial Machine Calibration 11
INITIAL MACHINE CALIBRATION
FIGURE 4. Antenna Center Offset Page
9. Select the value box to enter the Antenna Center Offset position.
NOTE: The Antenna Center Offset position is measured from the centerline of the machine to the center of
the GPS antenna. A negative value should be entered if the GPS antenna is located to the left of the
centerline.
10. Select the Next arrow.
FIGURE 5. Antenna Height Page
11. Select the value box to enter the Antenna Height.
NOTE: The Antenna Height is measured from the ground to the mid-point of the GPS antenna.
12. Select the Next arrow.

CHAPTER 3
12 Raven SC1™/TC1™ (software version 1.5) Calibration & Operation Manual for Tractors and Sprayers
FIGURE 6. Wheel Base Page
13. Select the value box to enter the Wheel Base.
NOTE: The Wheel Base is calculated by measuring from the center of the front tire to the center of the rear
tire on both sides of the machine. Add these measurements together and then divide by 2 to get the
average Wheel Base value.
14. Select the Next arrow.
FIGURE 7. GPS Differential Configuration Page
15. Select the appropriate GPS Differential Configuration from the drop-down box:
NOTE: Some differential sources may require a feature unlock. Refer to Chapter 7, Feature Unlock Codes, for
additional assistance with entering feature unlocks. Contact your local Raven dealer for assistance
with purchasing feature unlocks.
16. Select the Next arrow.

Initial Machine Calibration: Initial Machine Calibration 13
INITIAL MACHINE CALIBRATION
FIGURE 8. Position Accuracy Page
17. Review the GPS Status Information displayed and select the Next button to proceed with the calibration
process.
NOTE: The GPS solution must be converged to calibrate and proceed with the initial system calibration.
18. Select the Next arrow.
19. Use the rotation buttons until the on-screen display matches the orientation of the SC1/TC1 ECU.
FIGURE 9. SC1/TC1 ECU Orientation
20.Select the Next arrow.

CHAPTER 3
14 Raven SC1™/TC1™ (software version 1.5) Calibration & Operation Manual for Tractors and Sprayers
TERRAIN COMPENSATION CALIBRATION
FIGURE 10. Terrain Compensation Calibration (page 1)
1. Drive the machine forward 10 m [33 feet] and park on a flat surface.
NOTE: The SC1/TC1 system must detect the direction of forward travel to properly calibrate the terrain
compensation features.
FIGURE 11. Terrain Compensation Calibration (page 2)
2. Stop the machine on a level surface.
3. Place flags or markers to mark rear tire position on each side of the machine.
4. Select the Next button and follow the on-screen instructions to begin the terrain compensation calibration.

Initial Machine Calibration: Initial Machine Calibration 15
INITIAL MACHINE CALIBRATION

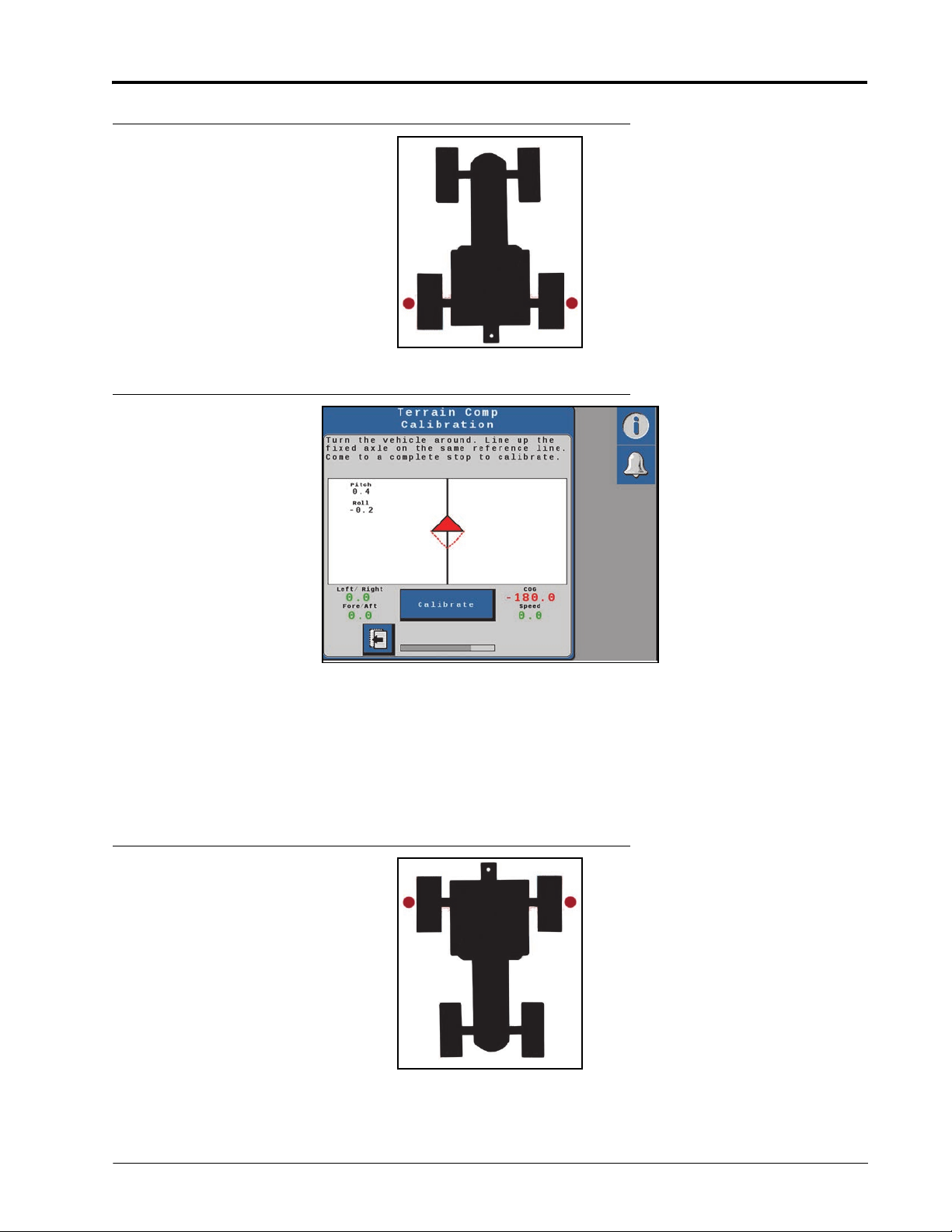

FIGURE 12. Step 1 - Marking the Pivot Point Before Calibration
FIGURE 13. Terrain Compensation Calibration
5. Select the Calibrate button to begin the calibration process.
6. The progress of the terrain compensation calibration will be displayed on the page. Wait for the calibration
process to be completed before moving the vehicle.
7. Drive forward and turn the machine around (180°). Park the vehicle between the markers facing in the opposite
direction as when the Calibrate button was first selected. Make sure the markers are aligned with the pivot
point of the machine on opposite sides of the machine.
FIGURE 14. Step 2 - Machine Orientation to Complete Calibration
NOTE: The two triangles on the display should line up on top of each other when the machine is in the
correct position.

CHAPTER 3
16 Raven SC1™/TC1™ (software version 1.5) Calibration & Operation Manual for Tractors and Sprayers
FIGURE 15. Terrain Comp Calibration Page
8. Select the Calibrate button again to complete the Terrain Compensation Calibration.
9. Select the Next arrow.
NOTE: If calibrating the SC1/TC1 system for GPS only operation, the Calibration Wizard Summary will be
displayed. Touch the Accept button to go to the GPS Only Home page. Refer to Chapter 4, Routine
Machine Operation, for assistance with operating the SC1/TC1 system in GPS only mode.
If calibrating the auto-steering features, continue to the next section to continue the SC1/TC1 system
calibration.
FIGURE 16. Calibration Summary
AUTO-STEERING CALIBRATION
The Auto-Steering calibration consists of the following component setup calibrations:
•Resume and Disengage Switch Calibration
•Wheel Angle Sensor (WAS) Calibration
