Rayrun T112 User manual

Single Color LED Dimmer
Introduction
1. Power supply input
The controller supply voltage range is from DC 5V to 24V.
Please refer to the print on the controller for cable polarity.
The output voltage is at the same level as the power voltage,
please make sure the power supply voltage is correct and the
power wattage is capable for the load wattage. Please be
noted the positive power cable is directly connected to the
output  cable inside the controller.
Model: T112(-H)
1
32
Wireless Remote
Overheat Protection
Wide Voltage Range
Memory Function
Ultra Compact

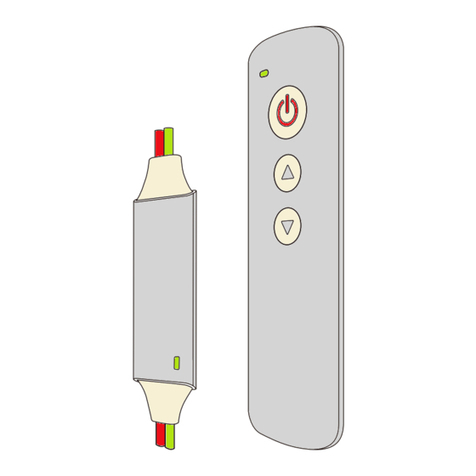

T112 LED dimmer is designed to drive constant voltage
single color LED products such as LED strip or LED module in
voltage range of DC5-24V. The receiver works with the RF
wireless remote controller, user can setup LED brightness
from the remote controller.
Receiver & wiring
12
50mm
15mm
38mm
Connect to LED loads. Please refer to the print on the
controller for cable polarity and connect LED load with
2. LED output
according polarity. Please make sure the LED rated voltage is
same as the power supply and the maximum load current is
below the controller rated current.
CAUTION! The controller might be permanently
damaged if output cables short circuit. Please ensure the
cables are well insulated to each other.
To 110/230
AC power
5-24V DC output
Power supply
T112 LED
Controller
5-24V DC
LED Loads
LED Controller
5-24V Driving
3. Wiring diagram
Please connect the controller output to LED loads and
power supply to the controller power input. The output
voltage of power supply must be same as the LED load's
rated voltage. Check all cables to be well connected and
insulated before power on.
Remote
Controller
Remote controller function
4
6
4. Turn ON / OFF
Press to turn on or off the output. The controller will
memorize the on/off status and will restore to the previous
status on the next power on. Please use remote controller to
turn on the unit if it was switched to off status before power
cut.
5. Brightness adjust
Press and key to adjust brightness sequentially.
Hold press these two keys will adjust the LED brightness
smoothly.
* H version picture
5
Advanced RF Remote

54
6. Remote indicator
This indicator blinks when remote controller is working.
If the indicator flashes slowly when pressing keys, it means
the remote battery is used up and please change the battery
in this case. The battery type is CR2032.
Remote controller operation
7. Using the remote controller
Please pull out the battery insulate tape before using.
The RF wireless remote signal can pass through some
nonmetal barrier. For proper receiving remote signal, please
do not install the controller in closed metal parts.
8. Pair a new remote controller
The remote controller and receiver is 1 to 1 paired as
factory default. It’s possible to pair maximum 5 remote
controllers to one receiver and each remote controller could
be paired to any receivers.
To pair a new remote controller, please follow two steps:
1). Plug off the power of receiver and plug in again after
more than 5 seconds.
2). Press and key simultaneously for about 3
seconds, within 10 seconds after the receiver powered on.
After this operation, the LED fixture will flash quickly to
acknowledge that remote pairing is accomplished.
9. Keep one remote and forget others
Output mode
PWM constant voltage
Working voltage
DC 5-24V
Rated output current
5A
White brightness grade
11 levels
PWM frequency
1KHz
PWM physical grade
256 steps
Overheat protection
Yes
Remote frequency
433.92MHz
Remote control distance
>15m at open area
Power off memorizing
Yes, restore to previous mode before off.
Housing
Tubed for standard, ABS+Slicon for -H version
Controller dimension
50x15x7mm
Specification
In some cases, one receiver might be paired with several
remote controllers but extra remote controllers are no
longer needed except current using one. User can simply
pair the current using remote to receiver again, then the
receiver will dis-pair all other remote controllers and
recognize current one only.
Overheat Protection
The controller has overheat protection feature and it can
protect itself from damage caused by some abnormal usage
such as overloading which generates excess heat. At
overheat situation, the controller will shutdown the output for
a short while and recover when temperature drops to a safe
range.
Please check the output current and make sure it’s under
rated level at this situation.

简介
1.电源输⼊
控制器可接受电压为5V到24V的直流电源供电。请按
照按照控制器上标明的电源极性进⾏连接。控制器的输
出电平与电源输⼊电压相同，请确保L ED灯具额定电压
与电源相同，且电源的功率满⾜控制器和灯具的需求。
型号:T112（-H）
1
32
无线遥控
过热保护
宽压输出
记忆功能
小尺寸
T112单⾊LED控制器⽤来驱动电压范围为5V到
24V的LED灯带或LED模块等恒压LED灯具。⽤⼾可以通
过射频控制器来调节LED灯具的亮度。控制器需要直流
电源供电，并根据接收到的遥控器指令驱动LED灯具，
实现亮度调节功能。
主机和接线
12
50mm
15mm
38mm
2.LED输出
连接L ED灯具。LED灯具必须为恒压型且适⽤于
PW M驱动。请参考控制器上标明的电缆极性，并连接
LE D灯具的同极性电缆。请确保LED的额定电压与电源
相同，并且最⼤负载电流低于控制器额定电流。
请注意！如果控制器输出电缆被意外短路，可能将导
致控制器严重损坏，请确保电缆可靠连接并良好绝缘。
3.接线图解
请将控制器输出与恒压LED灯具相连接，并将控制
器输⼊与电源相连接。电源电压需与LED恒压灯具的额
定电压相同。请在通电前检查所有电缆连接是否正确。
功能
4.开/关
此按键可开启或关闭控制器。⻓按此键可以强制关
闭控制器。控制器会记忆断电前的开关状态，如果断电
前为关闭状态，下次通电后请使⽤遥控器开启。
5.亮度调节
按向上键增加亮度，按向下键降低亮度。⻓按亮度调
节键时亮度会连续平滑变化。
本机的调光控制应⽤了伽玛校正原理，可以使亮度
调节更加顺滑，更符合⼈眼的视觉体验。
* -H版本图⽚
6
4
55
接交流电 5-24V
直流电源 T112控制器
5-24V DC
LED恒压灯具
RF遥控器
RF⽆线遥控
单⾊LED控制器

54
6.遥控器指⽰灯
按下遥控器按键时，该指⽰灯会快速闪烁。如果指⽰
灯慢闪，则说明遥控器电池电量已耗尽，请更换遥控器
电池（CR203 2型纽扣电池）。
操作⽅法
7.使⽤遥控器
使⽤前请拔出遥控器电池绝缘⽚。RF⽆线遥控信号可以
穿过⼀定的⾮⾦属屏障，为了保证控制器的接收效果，请勿
将控制器安装在有⼤⾯积⾦属遮挡的位置。
8.与新遥控器配对
遥控器和控制器出⼚默认为1对1的配对状态。1个控
制器最多可配对5个遥控器，⽽遥控器可配对到任意的
控制器。
如需配对新遥控器，请按以下两个步骤操作：
1）断开控制器电源，并在超过5秒后重新通电。
2）在控制器通电后的10秒内，同时按下新遥控器的
和键约3秒钟
配对成功后，LED灯具将快速闪烁提⽰配对成功。
9.保留当前遥控器并清除其他遥控器
在控制器已与多个遥控器配对，⽽仅想保留当前遥
控器的情况下，可以将正在使⽤的遥控器与控制器再进
⾏⼀次配对操作，此后控制器将清除其他已配对的遥控
器⽽仅保留当前使⽤的遥控器。
输出⽅式
PWM恒压
⼯作电压
DC5-24V
额定输出电流
5A
⽩光亮度可调级数
11级
PWM分辨率
4000级
过热保护
有
遥控器⼯作频率
433.92MHz
遥控器⼯作距离
空旷地带>15m
断电记忆功能
有，含开关状态
外壳类型
热缩套管/ABS+硅胶(-H版本)
控制器尺⼨
50x15x7mm
规格
过热保护
本机具有过热保护功能，可防⽌控制器因负载过重
引起异常发热⽽导致损坏。过热保护时控制器将关断输
出，当温度下降到安全范围时，将尝试恢复正常⼯作。过
热保护功能仅能在⼀定程度上防⽌控制器损坏，为确保
安全，请勿将控制器输出过载或短路。
