The Razer Orbweaver is the world’s first mechanical gaming keypad that binds every
command and skill from any FPS, RTS, and MMORPG to 20 mechanical keys at your
fingertips. With that many keys within quick reach, and requiring only 50g of force to
actuate, you’ll be able to react to any challenge at an unrivaled speed. The distinctive
tactile feedback from the mechanical keys also provides a whole new feel to your
gaming experience, and for maximum comfort, the Razer Orbweaver features
adjustable hand size, thumb, and palm-rest modules to provide the most ergonomic
form factor, just the way you like it.
With the Razer Orbweaver, get complete control for complete victory.

2 | For gamers. by gamers™
CONTENTS
1. PACKAGE CONTENTS / SYSTEM REQUIREMENTS.................................... 3
2. REGISTRATION / TECHNICAL SUPPORT................................................... 3
3. TECHNICAL SPECIFICATIONS................................................................... 4
4. DEVICE LAYOUT ...................................................................................... 5
5. USING YOUR RAZER ORBWEAVER .......................................................... 6
6. INSTALLING YOUR RAZER ORBWEAVER................................................ 10
7. CONFIGURING YOUR RAZER ORBWEAVER............................................ 11
8. SAFETY AND MAINTENANCE................................................................. 26
9. LEGALESE.............................................................................................. 28

3 | razer
1. PACKAGE CONTENTS / SYSTEM REQUIREMENTS
PACKAGE CONTENTS
Razer Orbweaver Elite Mechanical Gaming Keypad
Quick Start Guide
SYSTEM REQUIREMENTS
PC/Mac with a free USB port
Windows® 8 / Windows® 7 / Windows Vista® / Windows® XP (32-bit) /
Mac OS X (10.6-10.7)
Internet connection
200MB of free hard disk space
2. REGISTRATION / TECHNICAL SUPPORT
REGISTRATION
Please visit www.razerzone.com/registration for online product registration.
TECHNICAL SUPPORT
What you’ll get:
1 year limited manufacturer’s warranty.
Free online technical support at www.razersupport.com.

4 | For gamers. by gamers™
3. TECHNICAL SPECIFICATIONS
Full mechanical keys with 50g actuation force
20 fully programmable keys
Programmable 8-way directional thumb pad
Adjustable hand , thumb, and palm-rests modules for maximum comfort
Instantaneous switching between 8 keymaps
Unlimited macro lengths
Unlimited game profiles
Backlit keypad for total control even in dark conditions
Synapse 2.0 enabled
Approximate dimensions: 154mm/6.06" (width) x 202mm / 7.95" (length) x
55mm/2.17"(depth)
Approximate weight: 300g/0.66lbs

5 | razer
4. DEVICE LAYOUT
A. 20 Fully Programmable Mechanical Backlit Keys
B. Swiveling Palm Rest
C. Adjustable Soft-Touch Wrist Pad
D. Adjustable Thumb Module
E. Hyperesponse Thumb Key
F. Keymap Indicator
G. Programmable 8-Way Directional Thumb Pad
H. Spacebar Actuator

6 | For gamers. by gamers™
5. USING YOUR RAZER ORBWEAVER
ADJUSTING THE THUMB MODULE
1. Press and hold the button to unlock the thumb module.
2. Slide the thumb module diagonally to adjust.

7 | razer
3. Release the button to lock the thumb module into position.
ADJUSTING THE OVERALL LENGTH
1. Press and hold the lever to unlock the bottom half of the Razer Orbweaver.

8 | For gamers. by gamers™
2. Slide the bottom half of the Razer Orbweaver vertically to adjust.
3. Release the lever to lock the bottom half into position.

9 | razer
ADJUSTING THE PALM REST
Free-Play Mode
Pull the locking pin to allow the palm rest to swing.
Locked Mode
Push the locking pin to secure the palm rest to its current position.

10 | For gamers. by gamers™
6. INSTALLING YOUR RAZER ORBWEAVER
Note: You may skip Steps 2-4 if you already have a Razer Synapse 2.0 installed and an existing account.
Step 1: Plug the Razer Orbweaver into the USB port of your computer.
Step 2: Download the Razer Synapse 2.0 installer from www.razersupport.com.
Step 3: Run the installer and follow the onscreen instructions.
Step 4: Register for a Razer Synapse 2.0 account and confirm your new account.
Step 5: Launch Razer Synapse 2.0 and login to your account.
Step 6: Wait until the software automatically downloads and installs.

11 | razer
7. CONFIGURING YOUR RAZER ORBWEAVER
Disclaimer: The features listed here require you to log in to Razer Synapse 2.0. These features are also subject
to change based on the current software version and your Operating System.
KEYPAD TAB

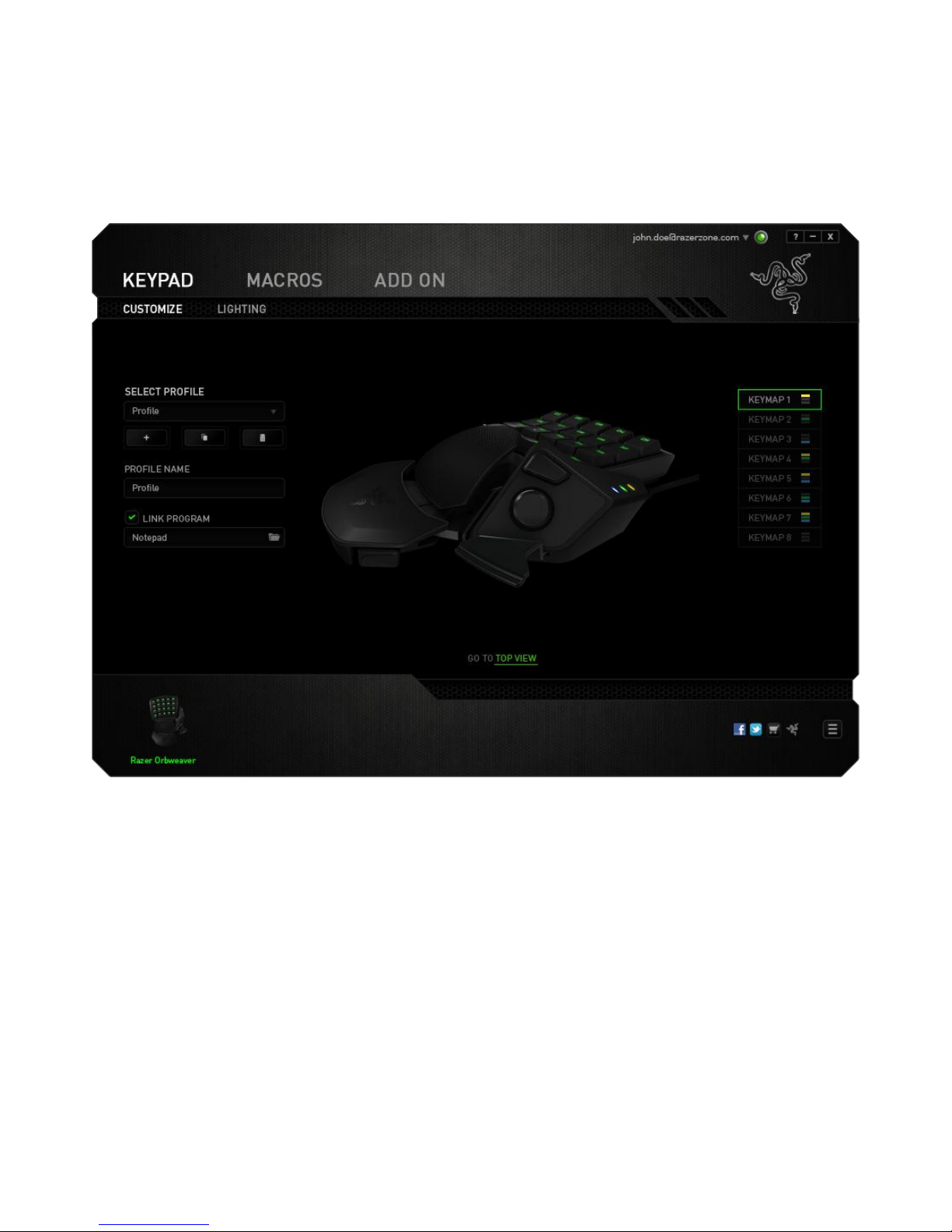

The Keypad Tab is your default tab when you first install Razer Synapse 2.0. This tab
allows you to customize your device’s profiles, key assignments and lighting.

12 | For gamers. by gamers™
PROFILE
A Profile is a convenient way of saving all of the changes you have made on your
device. A single Profile can store numerous settings such as key assignments.
Profile contains the default settings of your device. Any changes made within the
Customize Tab will be automatically saved. If you want to rename this profile, you may
do so by typing on the field below PROFILE NAME.
There are other options available in the profile section such as creating a new profile by
clicking the button, deleting the current profile by clicking the button
and duplicating the current profile by clicking the button. You may even set a
profile to work with a specific program or application by using the LINK PROGRAM
option and clicking the button to search for it.
KEYMAPS
Keymaps are especially useful for games which require different play-styles for
different character classes. With Keymaps, you can have up to 8 sets of key
assignments per profile. Each keymap has an equivalent color on the Keymap Indicator
to make it easier to check your current keymap.

13 | razer
CUSTOMIZE TAB
The Customize Tab is where you can modify the basic functionalities of your device
such as key assignments to suit your gaming needs. The changes made in this tab are
automatically saved to your current profile.
Top View
The Top View is where you can customize the 20 fully programmable keys.

14 | For gamers. by gamers™
Side View
The Side View is where you can customize the Thumb Key, the Directional Thumb Pad
and the Spacebar Actuator.

15 | razer
KEY ASSIGNMENT MENU
Initially, each key is set to DEFAULT.However, you may change the function of this key
by clicking the desired key to access the Key Assignment Menu.
Listed below are the customization options and their description.
Default
This option enables you to return the key to its original function. To choose the
DEFAULT, simple select it from the Key Assignment Menu.
Keyboard Function
This option enables you to change any key into another keyboard function. To choose
a keyboard function, select KEYBOARD FUNCTION from the Key Assignment Menu and
enter the key you wish to use on the given field below. You may also include modifier
keys such as Ctrl, Shift, Alt or any of those combinations.

16 | For gamers. by gamers™
Mouse Function
This option allows you to change any key into a mouse button function. To choose a
mouse function, select MOUSE FUNCTION from the Key Assignment Menu and an
ASSIGN BUTTON submenu will appear.
Listed below are the functions which you can choose from the Assign Button submenu:
Left Click - Performs a left mouse click using the assigned button.
Right Click - Performs a right mouse click using the assigned button.
Scroll Click - Activates the universal scrolling function.
Double Click - Performs a double left click using the assigned button.
Mouse Button 4 - Performs a “Backward” command for most internet browsers.
Mouse Button 5 - Performs a “Forward” command for most internet browsers.
Scroll Up - Performs a “Scroll Up” command using the assigned button.
Scroll Down - Performs a “Scroll Down” command using the assigned button.
Macro
A Macro is a prerecorded sequence of keystrokes and button presses that is executed
with precise timing. By setting a key to Macro, you can conveniently execute a chain of
commands. When you select this option from the Key Assignment Menu, a submenu
will appear which allows you to choose a prerecorded macro command. See the
Macros Tab to learn more about creating Macro commands.
Inter-device
Inter-device allows you to change the functionality of other Razer Synapse 2.0-enabled
devices. Some of these functionalities are device-specific such as using your Razer
gaming keyboard to change the Sensitivity Stage of your Razer gaming mouse. When
you select Inter-device from the Key Assignment Menu, a sub-menu will appear.
DEVICE TO LINK allows you to choose which currently connected Razer device can be
linked while FUNCTION allows you to choose which functionality you want to use for
the linked device.

17 | razer
Switch Keymap
The Switch Keymap allows you to easily swap key assignments with a press of a key.
When you select Switch Keymap from the Key Assignment Menu, a submenu will
appear wherein you can choose which keymap to use. The LED on the thumb module
will automatically change color to correspond with the keymap.
Switch Profile
The Switch Profile enables you to change profiles on the fly and immediately load all
your pre-configured settings. When you select Switch Profile from the Key Assignment
Menu, a sub-menu will appear that will allow you to choose which profile to use. An
on-screen display will automatically appear whenever you switch profiles.
Launch Program
The Launch Program allows you to run a program or application using the assigned key.
When you select Launch Program from the Key Assignment Menu, a button will
appear which allows you to search for the specific program you want to use.
Joystick Function
With this option you can change the functionality of any key into a joystick button or
an analog stick direction. To choose a joystick function, select JOYSTICK FUNCTION
from the Key Assignment Menu and an ASSIGN BUTTON submenu will appear.
Disable
This option renders the assigned key unusable. Use Disable if you do not want to use
the key or if it interferes with your gaming.

18 | For gamers. by gamers™
LIGHTING TAB
The Lighting Tab allows you to adjust the backlight by using the BRIGHTNESS slider or
by using the PULSATE option.
This tab also allows you to turn off the backlighting whenever your screen enters sleep
mode.

19 | razer
MACROS TAB
The Macros Tab allows you to create a series of precise keystrokes and button presses.
This tab also allows you to have numerous macros and extremely long macro
commands at your disposal.
The Macro section works similarly to Profile wherein you can rename a macro by
typing on the field below MACRO NAME. There are also other options available in the
macro section such as creating a new macro by clicking the button, deleting
the current macro by clicking the button or duplicating the current macro by
clicking the button.
To create a macro command, simply click the button and all your
keystrokes and button presses will automatically register on the macro screen. When
you are done recording your macro commands, click on the button to end
the session.

20 | For gamers. by gamers™
The Macro section allows you to input the delay in-between commands. In RECORD
DELAY the delay in-between commands are registered as how it is entered. The
DEFAULT DELAY uses a predefined time (expressed in seconds) as the delay. And NO
DELAY omits all the pauses in-between keystrokes and button presses.
Note: You may use up to three decimal places when inserting values on the seconds (sec) field.
