RBA1211-600 ‘Formatta’ Sensor Tapware
Sourced/ Supplied under QMS
Date 04/08/20
Model
Sensor Tapware
Supercedes all previous
Doc#
ii/rba1211-600/0820

INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
SYDNEY |MELBOURNE | BRISBANE | PERTH | AUCKLAND
Australia 1300 788 778 | www.rba.com.au New Zealand 0800 722 111 | www.rbagroup.co.nz
SYDNEY |MELBOURNE | BRISBANE | PERTH | AUCKLAND
Australia 1300 788 778 www.rba.com.au | New Zealand 0800 722 111 www.rbagroup.co.nz
2
Description
Constructed from heavy duty DR brass with a polished chrome nish and an
above bench solenoid for ease of maintenance, the Formatta sensor tap is
suitable for public washrooms, ofces, schools, shopping centres, stadiums,
airports & accessible installations. The sensor detects the presence of the
user’s hand(s) in the eld directly in front of the sensor in the water stream -
this activates the ow of water until the hands are removed from the eld.
Technical Data
Inlet ½” BSP (G1/2”)
Operating Pressure 200 – 500 kPa
Flow Time On detection in eld + 2 seconds [60s
max.]
Maximum Temp. 50ºC
Flow Rate 5L per minute
Warranty 1 Year
Electric Power Supply 190 - 240 VAC/ 50 - 60 Hz
Product Operation Voltage DC 12V
Bench Hole Size Ø 28-32mm
Maximum Bench Thickness 38mm

INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
SYDNEY |MELBOURNE | BRISBANE | PERTH | AUCKLAND
Australia 1300 788 778 | www.rba.com.au New Zealand 0800 722 111 | www.rbagroup.co.nz
SYDNEY |MELBOURNE | BRISBANE | PERTH | AUCKLAND
Australia 1300 788 778 www.rba.com.au | New Zealand 0800 722 111 www.rbagroup.co.nz
3

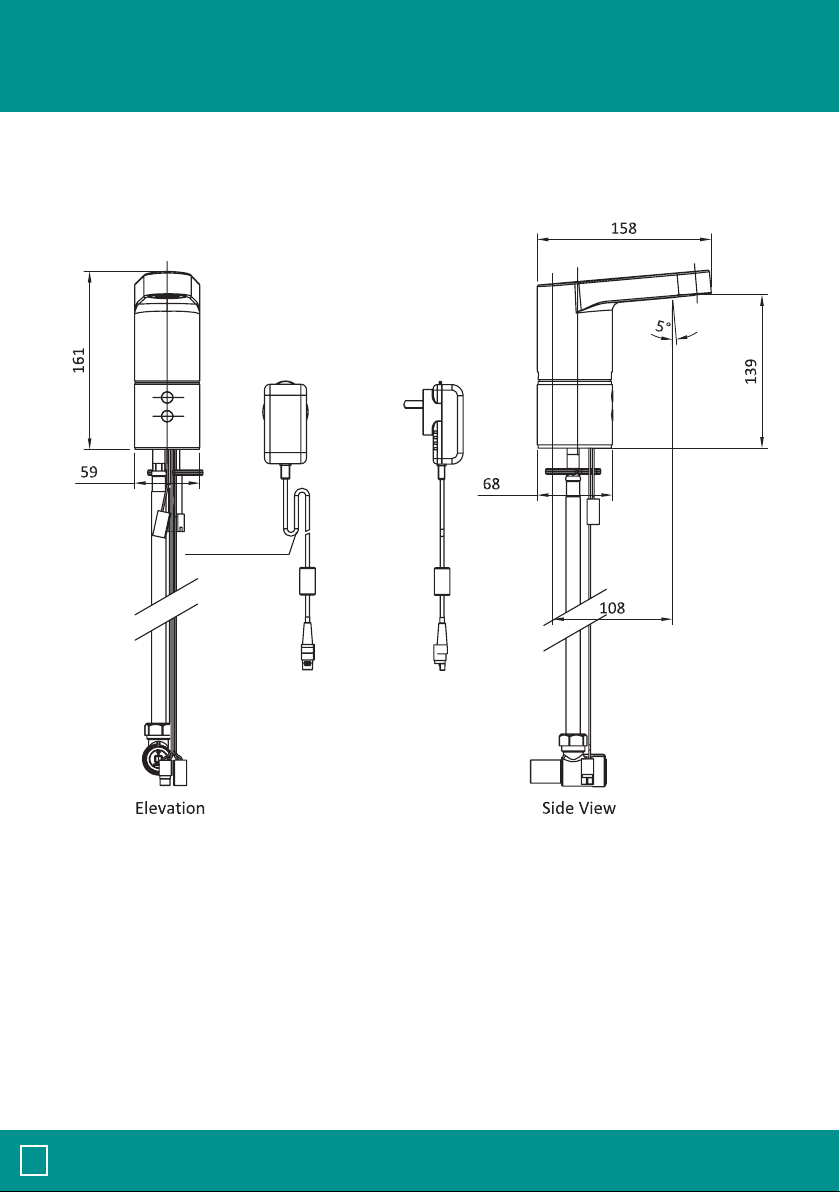

Dimensions
Length ± 1.8M

INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
SYDNEY |MELBOURNE | BRISBANE | PERTH | AUCKLAND
Australia 1300 788 778 | www.rba.com.au New Zealand 0800 722 111 | www.rbagroup.co.nz
SYDNEY |MELBOURNE | BRISBANE | PERTH | AUCKLAND
Australia 1300 788 778 www.rba.com.au | New Zealand 0800 722 111 www.rbagroup.co.nz
4
Installation Instructions
Installation must be carried out in accordance with local authority
requirements.
1. Installation to be in accordance with the AS/NZ3500 series of
Standards plus all local and statutory requirements. For Australia,
Installation shall be in accordance with the PCA [Plumbing Code of
Australia] and any relevant local authority requirements.
2. Flush the line thoroughly and remove all dirt and grit from the line
before connecting the tap
3. Install the taps as shown in diagrams A-H (on page 5)
4. Before turning on the water, remove aerator and ush the tap
5. Replace aerator and check for leaks
6. Insert the appropriate coloured indicator into the hole at the tap base
(typically blue for cold and yellow for warm water)
RBA1074-999-001 Details
The RBA1074-999-001 Angle Valve is a stop strainer that is supplied with the
Formatta Sensor Tap. This must be installed as part of the sensor tap
installation as it prevents debris from entering the sensor and causing issues
with diaphragm and ow control. Failure to install will void warranty.
To clean the strainer or isolate the sensor tap, simply use the special key
provided and turn the strainer counter clock wise and remove. The angle valve
contains a spring loaded stop that will automatically turn the water supply off
on removal. Clean strainer or isolate tap where required. Replace strainer to
turn the water supply back on.
+
-

INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
SYDNEY |MELBOURNE | BRISBANE | PERTH | AUCKLAND
Australia 1300 788 778 | www.rba.com.au New Zealand 0800 722 111 | www.rbagroup.co.nz
SYDNEY |MELBOURNE | BRISBANE | PERTH | AUCKLAND
Australia 1300 788 778 www.rba.com.au | New Zealand 0800 722 111 www.rbagroup.co.nz
5
+
-
Close
Open
INST ALLA TION
1) Installation must be carried out in accordance with local authority requirements
2) Flush the line thoroughly and remove all dirt and grit from the line before connecting the tap
3) Install the taps according shown bellow, according each model
4) Before turning on the water, remove aerator and flush the tap
5) Replace aerator and check for leaks
6) Fit the appropriated "water coloured indicator" on the existing hole at the tap base or tap
escutcheon
5
A C
EF
D
B
9/16"
1
2
00547406
00824906
1 3
5
4
2
9/16"
1
2
678
Aling high-
relief marks
G
Coloured water
indicator
H
9
2
1
10
INST ALLA TION
Aling high-
relief marks
4
Gasket
Gasket
Gasket
Gasket
Gasket
Gasket

INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
SYDNEY |MELBOURNE | BRISBANE | PERTH | AUCKLAND
Australia 1300 788 778 | www.rba.com.au New Zealand 0800 722 111 | www.rbagroup.co.nz
SYDNEY |MELBOURNE | BRISBANE | PERTH | AUCKLAND
Australia 1300 788 778 www.rba.com.au | New Zealand 0800 722 111 www.rbagroup.co.nz
6
Spare Parts
Code Number Part Description
RBA1211-999-001 M8 Locknut
RBA1211-999-005 Aerator Cache HC 5Lpm w/ key
RBA1211-999-006 Aerator key
RBA1211-999-002‘ FORMATTA’ sensor
RBA1211-999-003‘ FORMATTA’ valve body
RBA1211-999-013 Solenoid valve
RBA1211-999-004 Power supply unit
RBA1074-999-001 Angled stop strainer valve & key
RBA1211-999-012B raided Hose
RBA1211-999-001
RBA1211-999-002
RBA1211-999-003
RBA1211-999-004
RBA1211-999-005
RBA1211-999-006
RBA1211-999-013
‘
‘
B

INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
SYDNEY |MELBOURNE | BRISBANE | PERTH | AUCKLAND
Australia 1300 788 778 | www.rba.com.au New Zealand 0800 722 111 | www.rbagroup.co.nz
SYDNEY |MELBOURNE | BRISBANE | PERTH | AUCKLAND
Australia 1300 788 778 www.rba.com.au | New Zealand 0800 722 111 www.rbagroup.co.nz
7
Trouble Shooting
PROBLEM PROBABLE CAUSE SOLUTION
Water droplets appearing
under basin
Gasket improperly
installed
Install or realign gasket
Temperature indicator not
installed
Insert appropriate
temperature indicator
Damaged ‘Formatta’ Valve
Body O-ring
Replace O-ring
Water does not ow and
solenoid valve does
produce an audible CLICK
Water turned off Turn water on
Inlet valve closed or
clogged
Open valve or remove
and clean strainer (refer
RBA1074-999-001
detail)
Aerator clogged Remove and clean aerator
Braided hose kinked Replace braided hose
Solenoid valve incorrectly
installed
Check ow direction on
valve’s body. Reassemble
if necessary
Water does not ow and
solenoid valve does not
produce an audible CLICK
No power connected Check power supply &
breaker
Power supply unit
disconnected
Check it and plug it in
Sensor, cables or power
supply unit damaged
Check electrical plug pins
are OK. Where damage
has occurred contact
product distributor
Direct/bright light Remove direct/bright light
Sensor light
registers but no ow
Direct/bright light Remove direct/bright light
Continued...

INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
SYDNEY |MELBOURNE | BRISBANE | PERTH | AUCKLAND
Australia 1300 788 778 | www.rba.com.au New Zealand 0800 722 111 | www.rbagroup.co.nz
SYDNEY |MELBOURNE | BRISBANE | PERTH | AUCKLAND
Australia 1300 788 778 www.rba.com.au | New Zealand 0800 722 111 www.rbagroup.co.nz
8
PROBLEM PROBABLE CAUSE SOLUTION
Water ows continuously
(does not stop)
Object in front or within
sensor’s range
Remove the object
Sensor, cables or power
supply unit damaged
Contact product
distributor
Power supply connected
directly to solenoid valve
Disconnect power supply
wiring under basin and
connect power supply to
sensor plug. Ensure to
also connect sensor to
solenoid plug.
Dirt in diaphragm Turn water and power
off. Clean and replace
diaphragm. Turn water
and power on.
Water Flows (intermittent
failures or incorrect
function)
Highly reective surface Unit not recommended
for use with high polished
stainless steel basins
(satin nish OK). Place
dull coloured strip
opposite sensor.
Hands too low or high in
basin & not directly in
front of sensor when in
use
Users to place hands in
ow stream directly in
front of sensor to correctly
activate
