RCA 32F530TYX1 User manual

Television
User's Guide
Changing Entertainment.

Important +rfformat+or
WARNING
To reduce the risk of fire or
this product to rain or moisture.
electric shock, do not expose RISKOFELECTRICSHOCKDO
NOTOPEN
Caution: To reduce the risk of electric
shock, do not remove cover (or back). No
user serviceable parts inside. Refer
servicing to qualified service personnel.
,_1_ Thissymbol indicates
"dangerous voltage"
inside the product that
presentsariskof electric
shock or personal injury.
_. This symbol indicatesimportant instructions
accompanying the product.
Caution: To prevent electric shock, match wide blade of plug to wide slot, fully insert.
Attention: Pour 6viter los ehocs 61eetriques, introduire la lame la plus large de la fiche
duns la borne correspondante de la prise et pousser jusqR at+fond.
Refer to the identification/rating label located on the back panel of your product for its
proper operating voltage.
FCCRegulations state that unauthorized changes or modifications to this equipment may
void the user's authority to operate it.
Caution: Using video games or any external accessory with fixed images For extended
periods of time can causethem to be permanently imprinted on the picture tube (or
projection TVpicture tubes). ALSO,some network/program logos, phone numbers, etc. may
cause similar damage. This damage is not covered by your warranty.
Cable IV Installer: This reminder is provided to call your attention to Article 820-40 of the
National Electrical Code (Section 54 of the Canadian Electrical Code, Part 1) wh+ch provides
guidelines lor proper grounding and, in particular, specifies that the cable ground shall be
connected to the grounding system of the building as close to the point of cable entry as
practical.
Product Registration
Please fill out the product registration card (packed separately] and return it immediately. For U.S
customers: Your RCA Consumer Electronics product may also be registered at www.rca.com/
productregistration. Registering this product allows us to contact you if needed.
Product Information
Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here
and record the serial and model numbers. These numbers are located on the product.
Model No. Serial No. Purchase Date:
Dealer/Address/Phone:
VCR Plus+, C;, PlusCode, G-LINK,and GUIDE Plus+ are trademarks of Gemstar Development Corporation.
TheVCRPlus+and GUIDEPlus+systemsare manufactured under license from Gemstar Development Corporation and
VCRIndex SystemsB.V.,respectively.
THOMSON INC.AND GEMSTARARE NOTIN ANY WAY LIABLEFORTHEACCURACYOFTHEPROGRAM
INFORMATIONPROVIDEDBYTHE GUIDEPLUS+SYSTEM.IN NO EVENTSHALLTHOMSONINC. OR GEMSTARBE
UABLE FORANY AMOUNT REPRESENTINGLOSSOFPROFITS,LOSSOFBUSINESS,OR INDIRECT,SPECIAL,OR
CONSEQUENTIALDAMAGESIN CONNECTIONWITH THEPROVISIONOR USEOFANY INFORMATION,EQUIPMENT,
ORSERVICESRELATINGTOTHEGUIDEPLUS+SYSTEM.
VCR required for recording.

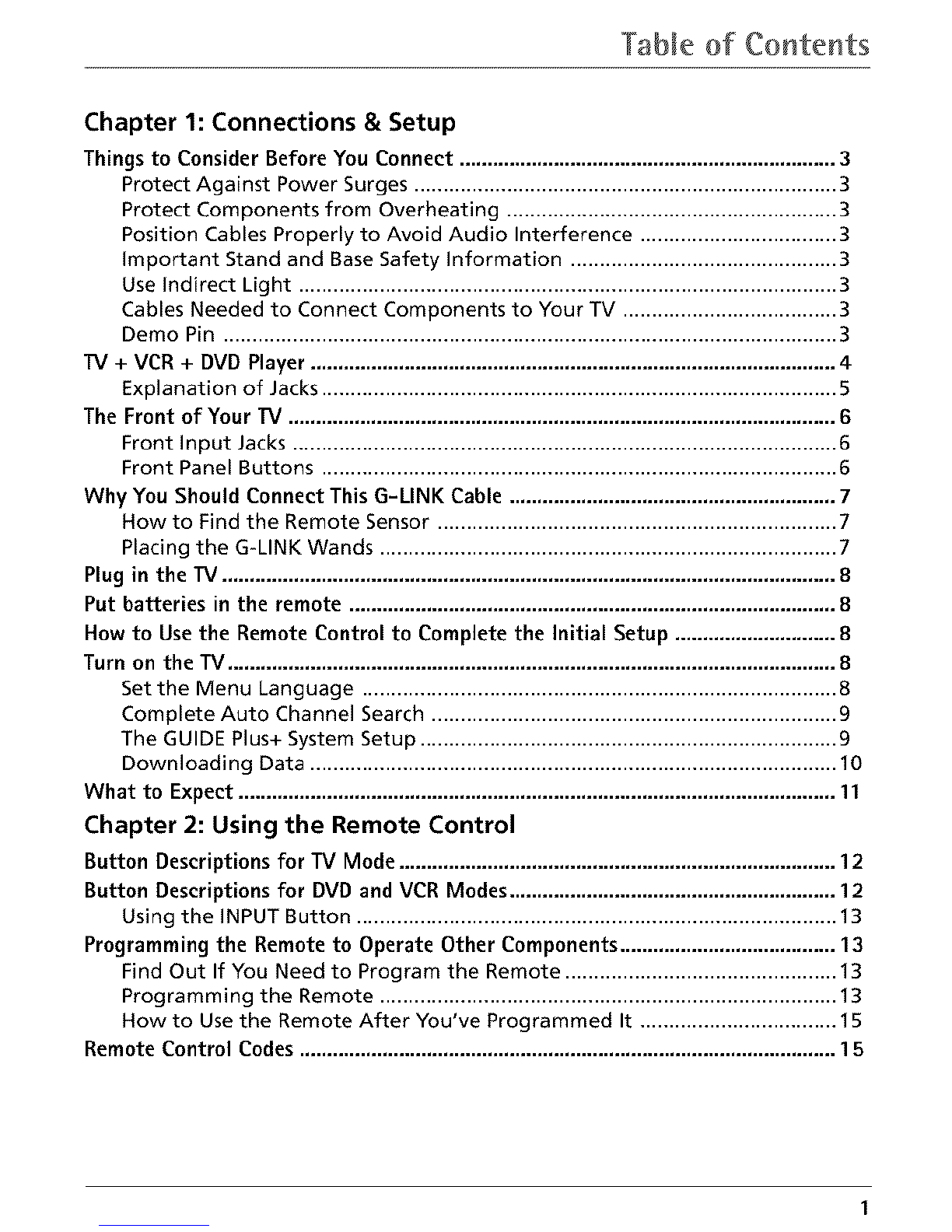

Table of Cow,tents
Chapter 1: Connections & Setup
Things to Consider Before You Connect .................................................................... 3
Protect Against Power Surges ......................................................................... 3
Protect Cornponents from Overheating ......................................................... 3
Position Cables Properly to Avoid Audio Interference .................................. 3
important Stand and Base Safety information .............................................. 3
Use indirect Light ............................................................................................. 3
Cables Needed to Connect Components to Your TV ..................................... 3
Demo Pin .......................................................................................................... 3
TV + VCR + DVD Player ............................................................................................... 4
Explanation of Jacks ......................................................................................... 5

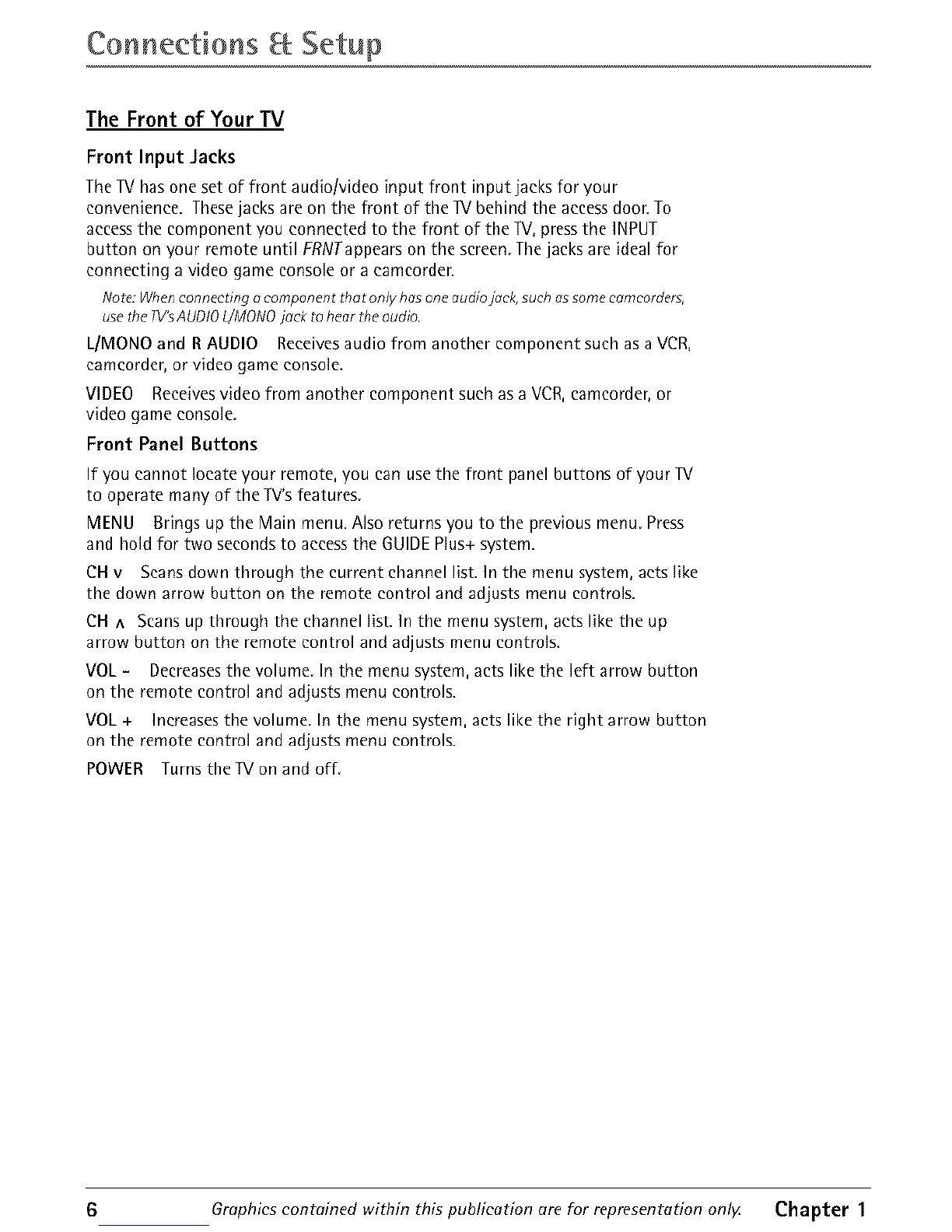

The Front of Your TV ................................................................................................... 6
Front input Jacks .............................................................................................. 6
Front Panel Buttons ......................................................................................... 6

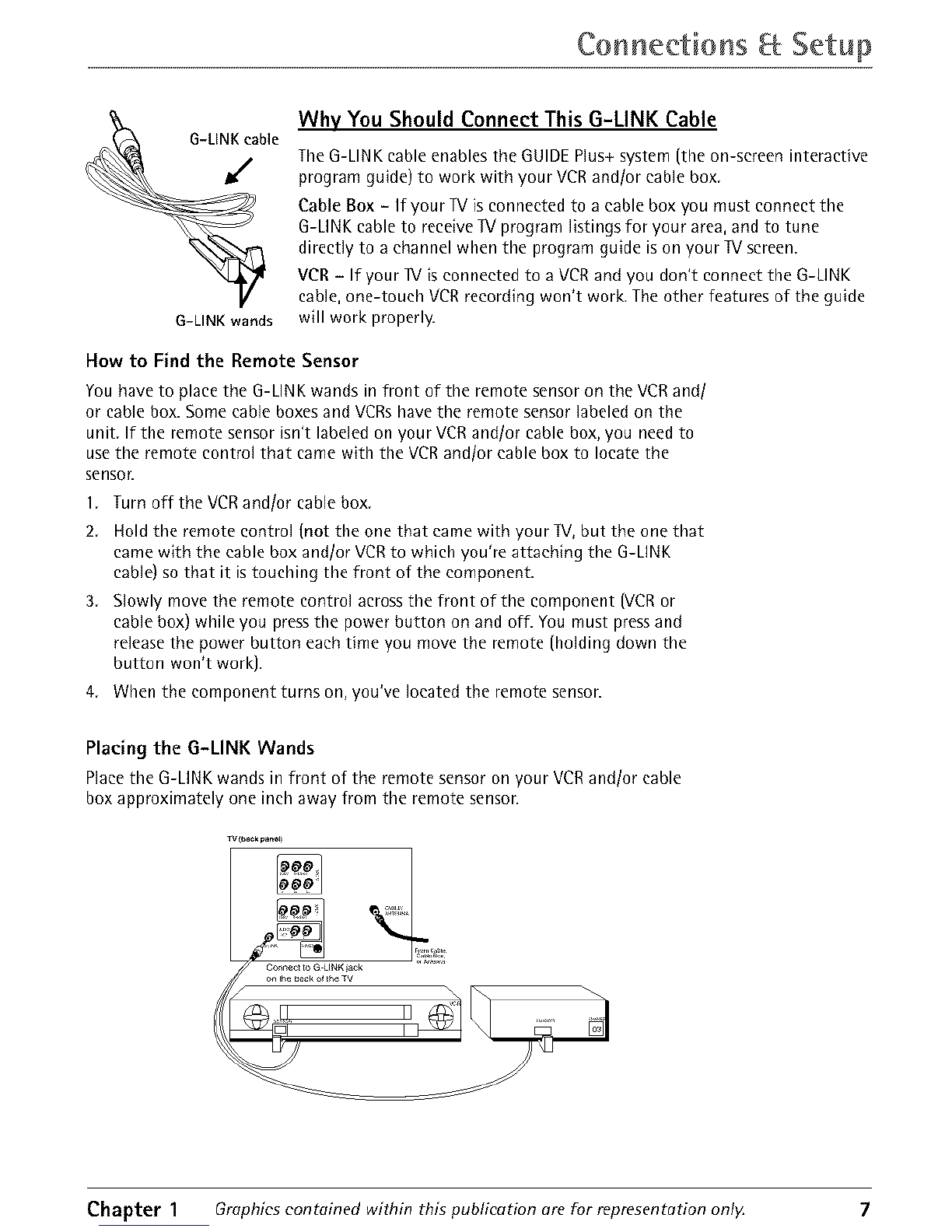

Why You Should Connect This G-LINK Cable ........................................................... 7
How to Find the Remote Sensor ..................................................................... 7
Placing the G-LINK Wands ............................................................................... 7

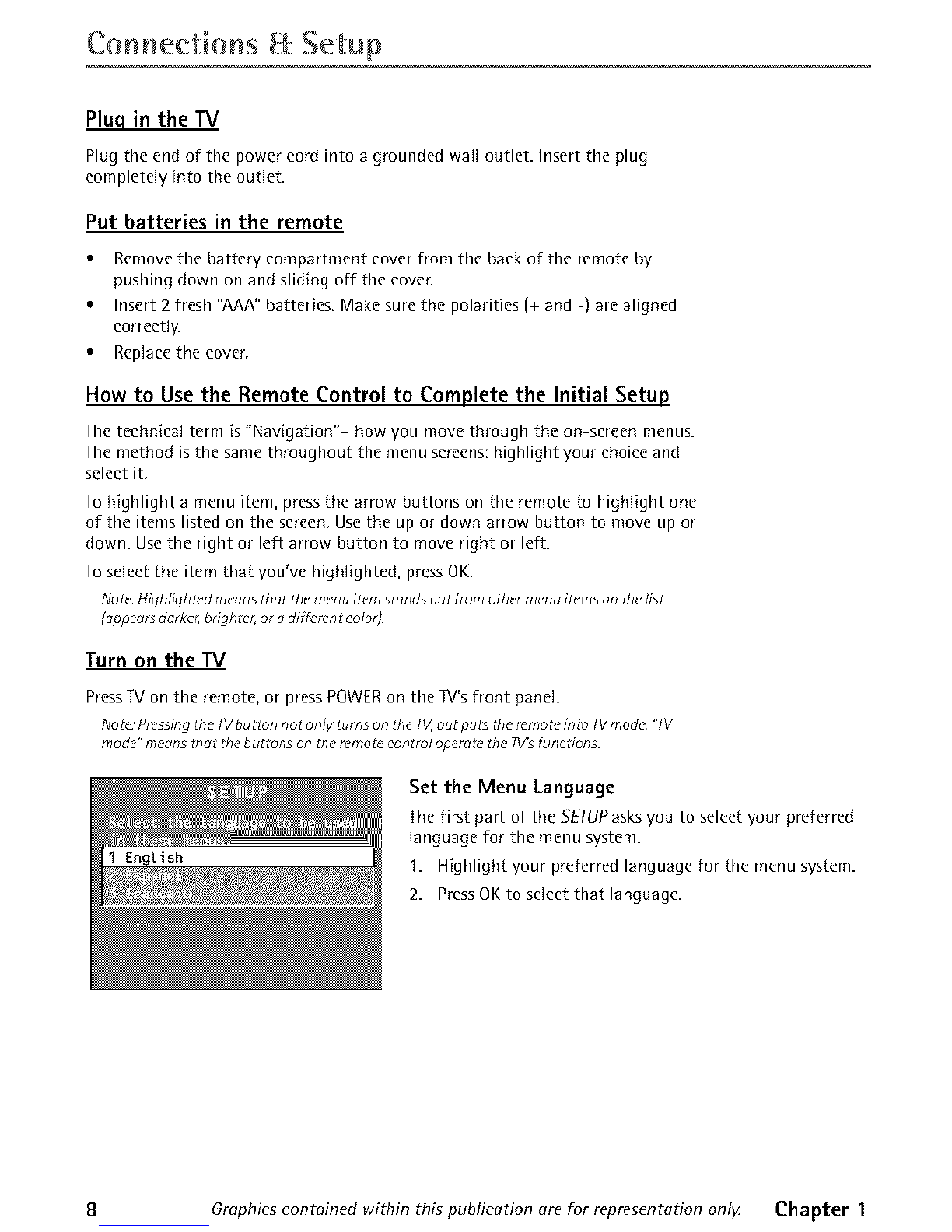

Plug in the TV ............................................................................................................... 8
Put batteries in the remote ........................................................................................ 8
How to Usethe Remote Control to Complete the Initial Setup ............................. 8
Turn on the TV.............................................................................................................. 8
Set the Menu Language .................................................................................. 8
Complete Auto Channel Search ...................................................................... 9
The GUIDE Plus+ System Setup ........................................................................ 9
Downloading Data ........................................................................................... 10

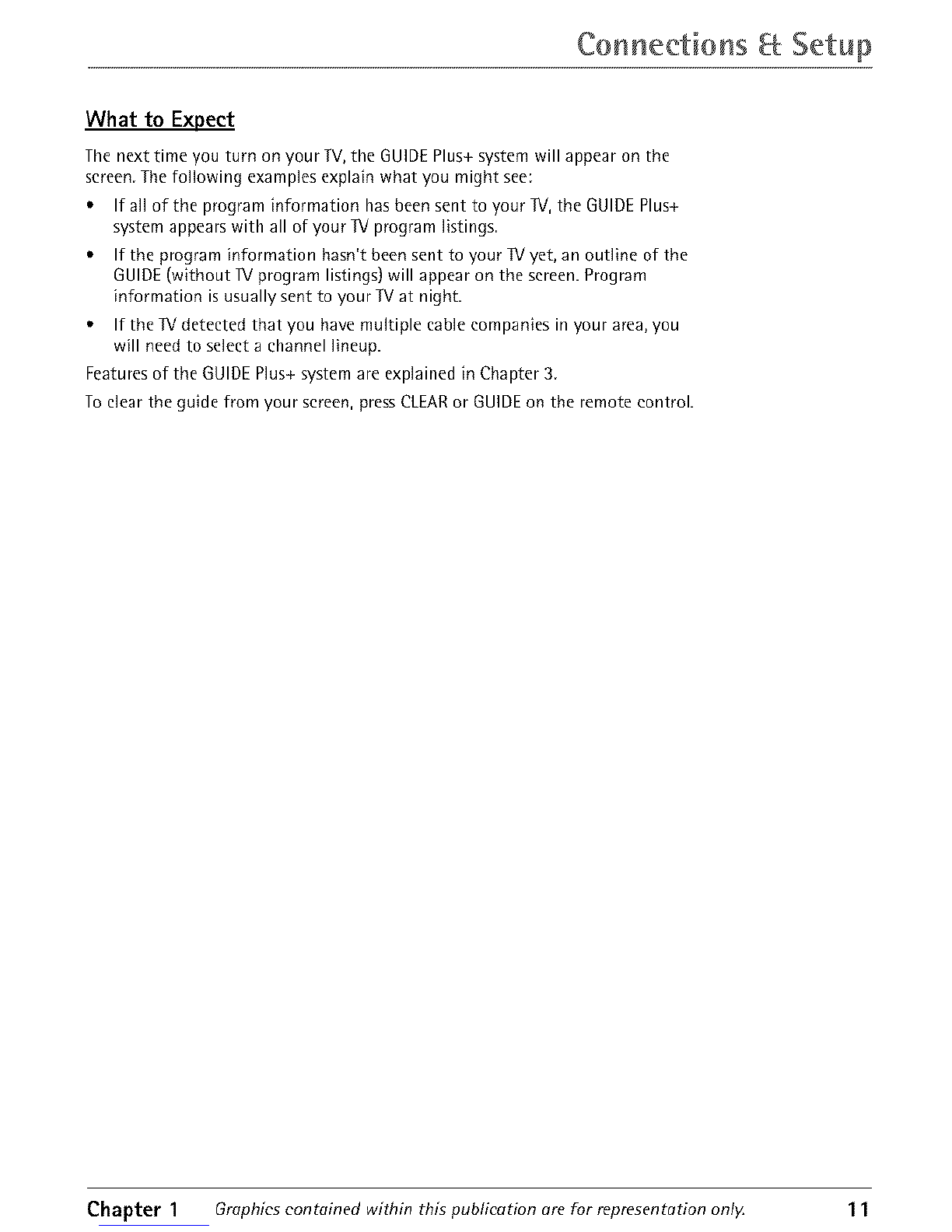

What to Expect ............................................................................................................ 11
Chapter 2: Using the Remote Control

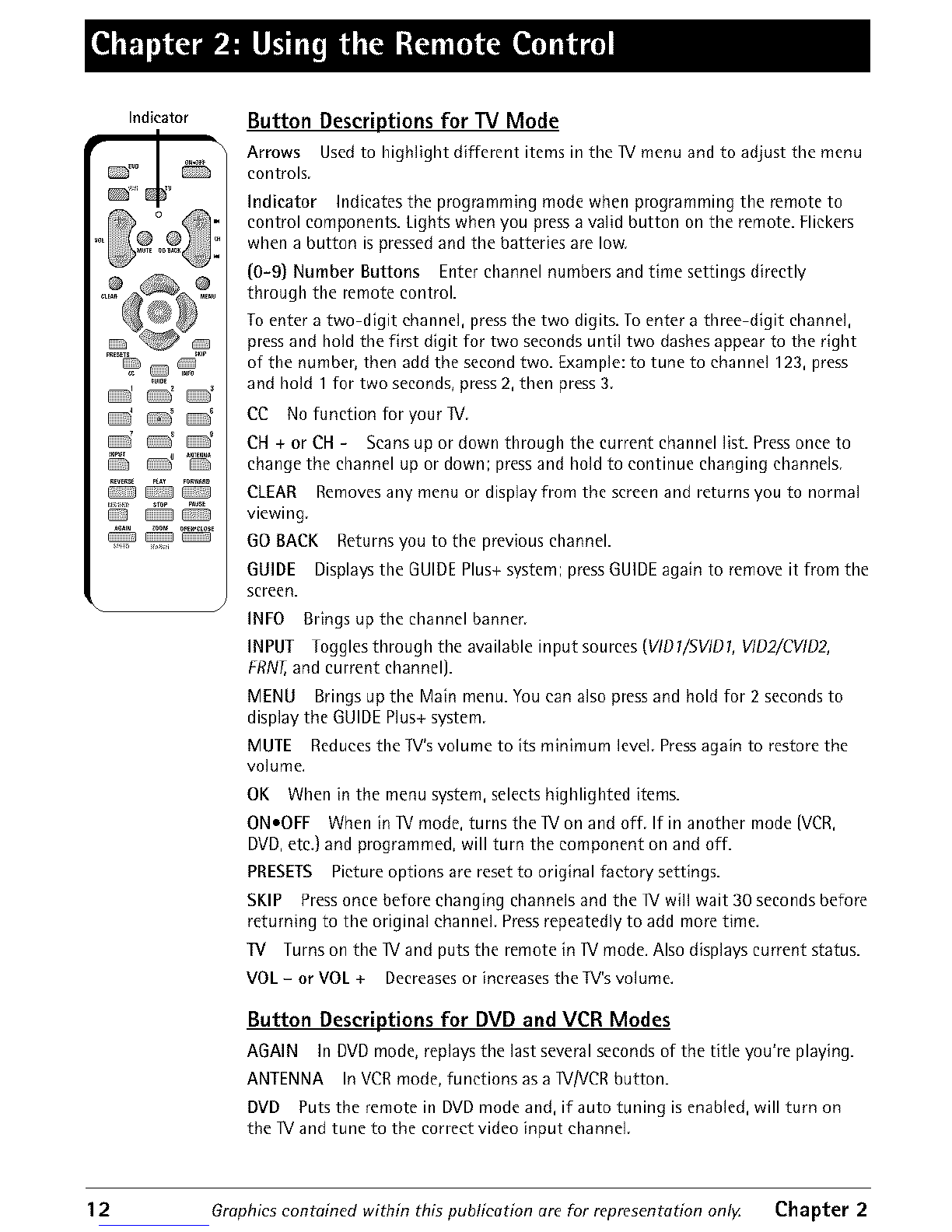

Button Descriptions for TV Mode ............................................................................... 12
Button Descriptions for DVD and VCR Modes ........................................................... 12

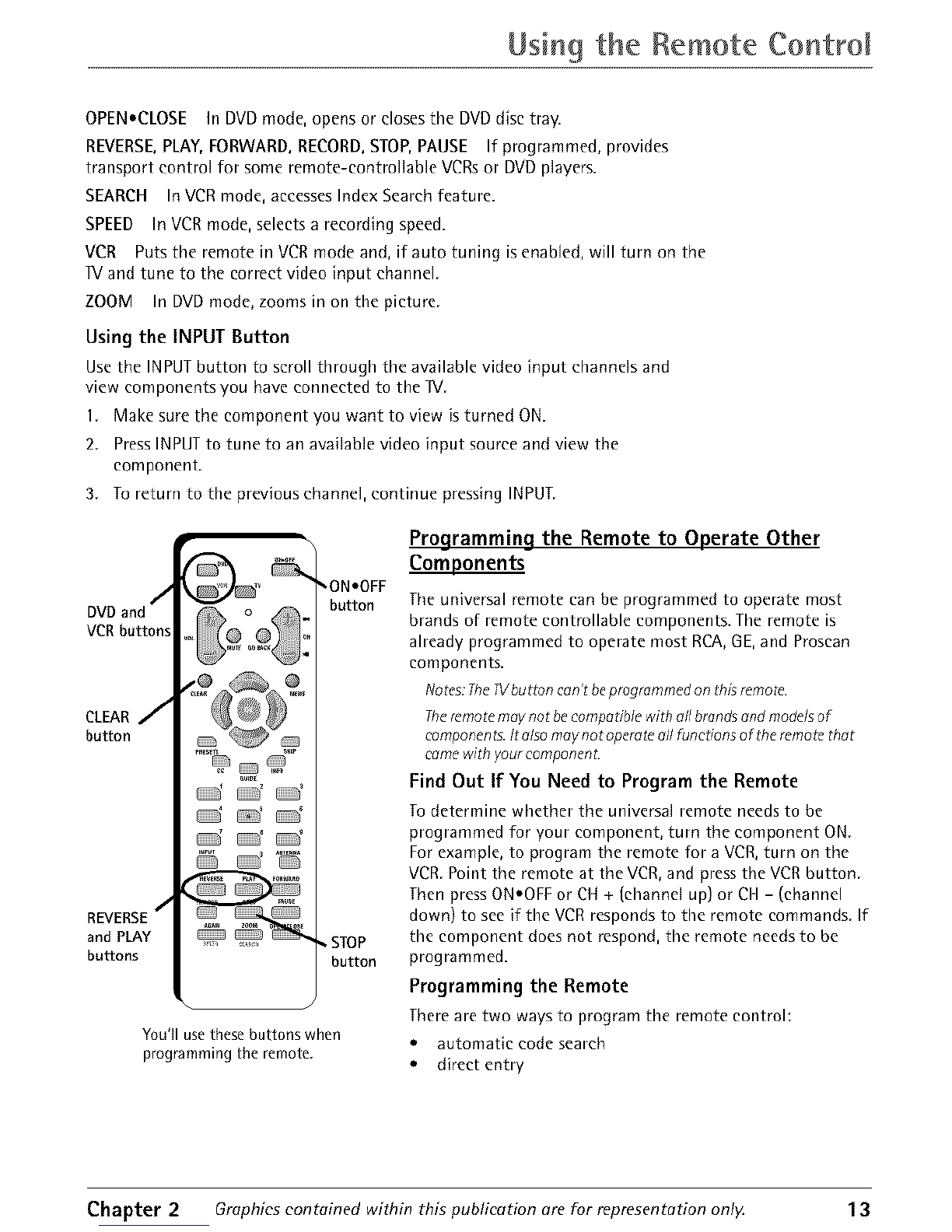

Using the iNPUT Button ................................................................................... 13
Programming the Remote to Operate Other Components ....................................... 13
Find Out If You Need to Program the Remote ............................................... 13
Programming the Remote ............................................................................... 13
How to Use the Remote After You've Programmed It .................................. 15

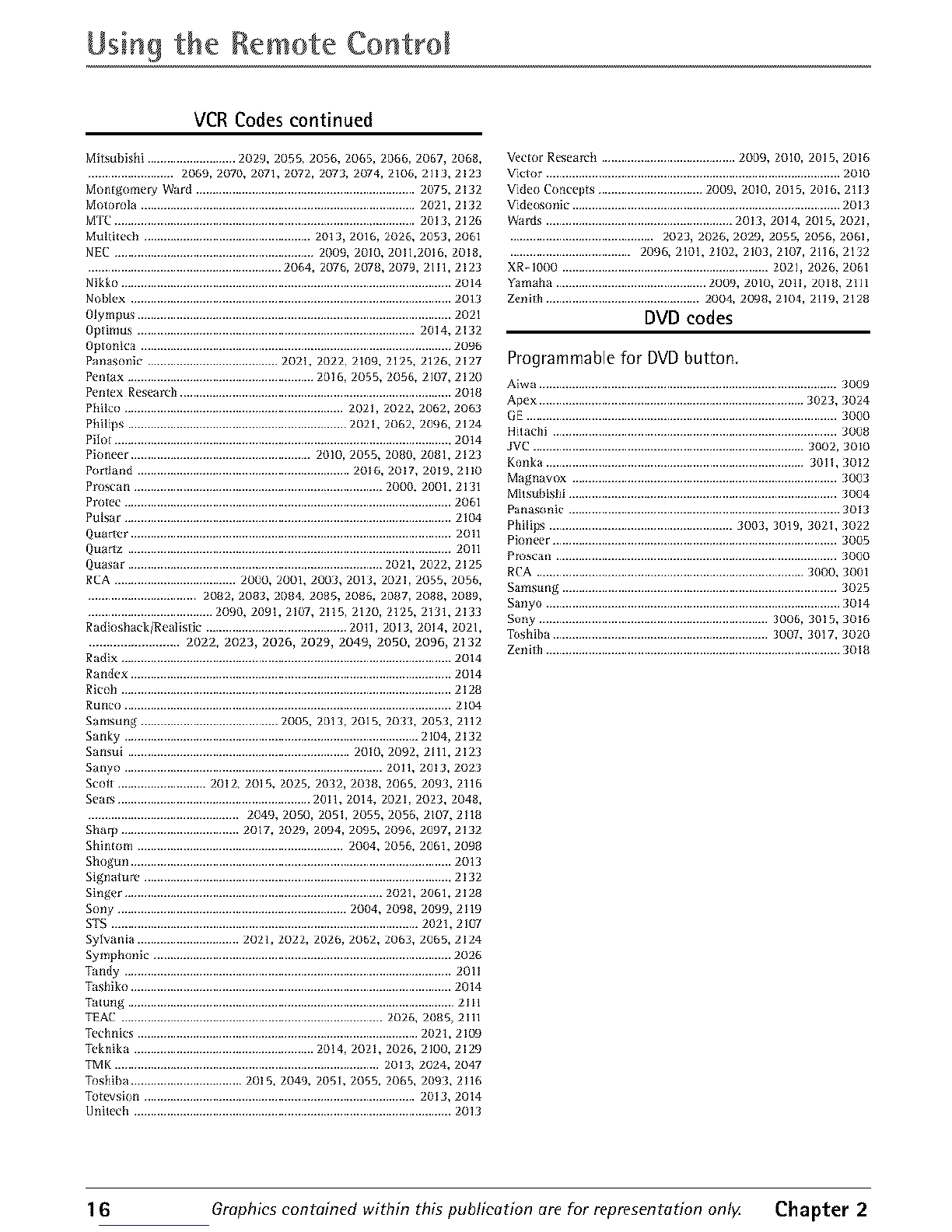

Remote Control Codes ................................................................................................. 15

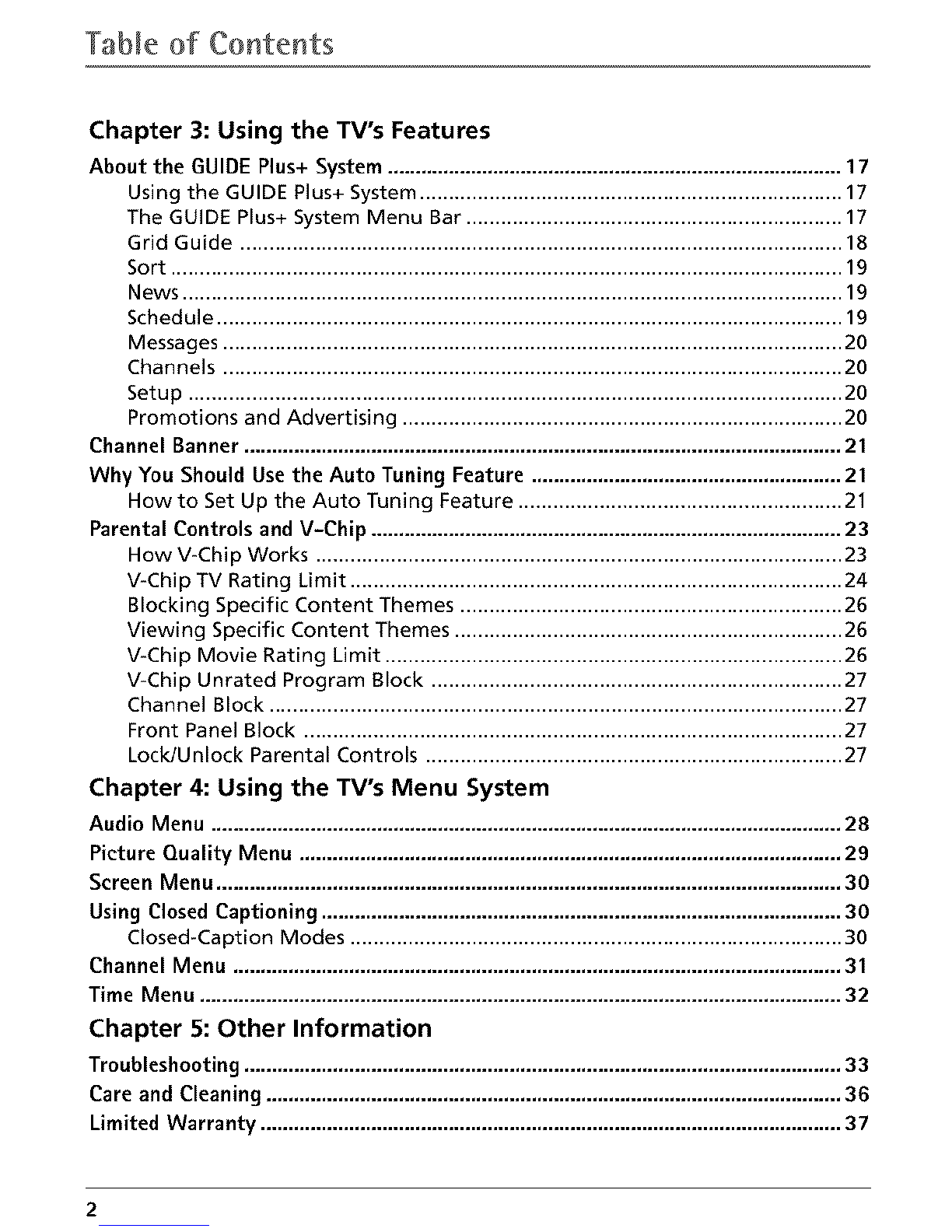

Table of Contents
Chapter 3: Using the TV's Features
About the GUIDE Plus+ System .................................................................................. 17
Using the GUIDE Plus+ System ......................................................................... 17
The GUIDE Plus+ System Menu Bar ................................................................. 17
Grid Guide ........................................................................................................ 18
Sort .................................................................................................................... 19
News .................................................................................................................. 19
Schedule ............................................................................................................ 19
Messages ........................................................................................................... 20
Channels ........................................................................................................... 20
Setup ................................................................................................................. 20
Promotions and Advertising ............................................................................ 20
Channel Banner ............................................................................................................ 21
Why You Should Use the Auto Tuning Feature ........................................................ 21
How to Set Up the Auto Tuning Feature ........................................................ 21
Parental Controls and V-Chip ..................................................................................... 23
How V-Chip Works ........................................................................................... 23
V-Chip TV Rating Limit ..................................................................................... 24
Blocking Specific Content Themes .................................................................. 26
Viewing Specific Content Themes ................................................................... 26
V-Chip Movie Rating Limit ............................................................................... 26
V-Chip Unrated Program Block ....................................................................... 27
Channel Block ................................................................................................... 27
Front Panel Block ............................................................................................. 27
Lock/Unlock Parental Controls ........................................................................ 27
Chapter 4: Using the TV's Menu System
Audio Menu .................................................................................................................. 28
Picture Quality Menu .................................................................................................. 29
Screen Menu ................................................................................................................. 30
Using Closed Captioning .............................................................................................. 30
Closed-Caption Modes ..................................................................................... 30
Channel Menu .............................................................................................................. 31
Time Menu .................................................................................................................... 32
Chapter 5: Other Information
Troubleshooting ............................................................................................................ 33
Care and Cleaning ........................................................................................................ 36
Limited Warranty ......................................................................................................... 37
2

Things to Consider Before You Connect
Protect Against Power Surges
*Connect all components before you plug any of their power cords into the wall outlet
*Turn off the Wand/or component before you connect or disconnect any cables.
• Make sure all antennas and cables are properly grounded. Refer to the Important Safety Instructions
packed separately.
Protect Components from Overheating
•Don't block ventilation holes on any of the components Arrange the components so that air can
circulate freely.
• Don't stack components.
• If you place components in a stand, make sure you allow adequate ventilation.
• If you connect an audio receiver or amplifier, place it on the top shelf so the heated air from it
won't flow around other components.
Position Cables Properly to Avoid Audio Interference
•Insert each cable firmly into the designated jack
• If you place components above the IV, route all cables down the side of the back of the I1/instead
of straight down the middle of the IV.
• If your antenna uses 3OO-ohm twin lead cables, do not coil the canes. ABo, keep the twin lead
cables away from aud{olvideo cables.
Important Stand and Base Safety Information
Choose the location for your IV carefully. Place the IV on a stand or base that is of adequate size and
strength to prevent the IV from being accidentally tipped over, pushed off, or pulled off. This could
cause personal injury andlor damage the IV. Refer to the Important Safety Instructions packed
separately.
Use Indirect Light
Don't place the IV where sunlight or room lighting will be directed toward the screen. Use soft or
indirect lighting.
Cables Needed to Connect Components to Your TV
The pictures below show the cables needed for the connections represented in this book.
No_e:PIc,ase/oc_'tctheG LINKcable(providcd) whenyou'r_getting ready toset upyour 71ZYouneedtoconnect this
cable_oyour#V,,_nd_oyourVCRand/or e_bleboxin order for dl of thefeatures oflbe progrem guide _oworkproperly
G LtNKcable Coaxiai cable S Video cable AudioNideo cables Component Video (Y,Pb,Pr) cables
Demo Pin
You must removethe Demo Pinfrom the G-LINKjack on the back of your IV in
order for your IV to operate properly and to connect the G-LINKcable.
Chapter 1 Graphics contained within this publication are For representation only. 3

Connections getup
TV (Pack panel)
DVD
From Cable
orAfltanna
[f you connect an S Video cable, you must
connect the audio cables to the INPUTI AUDIO
jacks on the back of the TV, not the INPUT2 AUDIO
jacks.
TV + VCR + DVD Player
1. Connect your TV to your DVD player
A. Connect the audio cables (white and red) to the INPUT2 AUDIO Rand Ljacks on the back of the
IV and to the Audio Output Jacks on the DVD player.
B. If your DVD player has Component Output Jacks (Y, PB,PR),connect three video grade cables to
the Y, PB,P, jacks on the DVD player and to the Y, P_,P, jacks on the back of the IV. If your DVD
player doesn't have Y, PB,P_ jacks, go to C. -OR-
C. If your DVD player has an S-Video jack, connect an S-Video cable to the S-Video jack on the DVD
player and the S-VIDEO jack on the back of the IV. If your DVD player doesn't have an S-Video
jack, go to D.
No_c:If you connectan S-Videocable,you must connect theaudio cablesto theINPUT1AUDIORand Ljacks on theback
of the_not theINPUT2AUDIOjack, -OR-
D. Connect a video cable (yellow) to the Video Output Jack on the DVD player and to the INPUT2
VIDEOjack on the back of the IV.
2. Connect your TV to your VCR
Connect a coaxial cable to tbe CABLE/ANTENNA jack on your IV and to the Output Jack on your VCR
(sometimes labeled OUT TOTV}.
Note If your VCRhasA/V mputj_cks, youconconnect your71/toyourVCRusingaudio/wdeo cablesfor betterqudily
3. Connect cable or antenna to your VCR
Connect tbe coaxial cable from your cable outlet or antenna to tbe Input Jack on your VCR
(sometimes labeled IN FROM ANTENNA or IN FROM ANT].
4. Connect the G-LINK cable to the TV
If you baven't already done so, remove the Demo Pin from tbe G-LINK jack. Tben, connect the
G-LINK cable to the G-LINK jack on the IV. Next step, place one of the wands of tbe G-LINK cable to
work witb your VCR (instructions are on page 7}.
Go to page 7
4Graphics contained within this publication are for representation only. Chapter 1

Co mectio s getup
Explanation of Jacks
Thissection deseribesthe jacks you can useto make connections,Thereare several
ways to connect components to your IV,
G-LINK Connect the end of the G-LINKcane {provided) to this jack,TheG-LINK
cable enablesthe TV'sGuidePlus+ system to interactwith the cable box and/or the
VCR.A picture of the G-LINKcable ison page 3.
CABLE]ANTENNA Letsyou connect acoaxial cane to receivethe signal from the
antenna, cable or cable box.
R-AUDIO-L
S-VIDEO@
VIDEO R-AUDIO-L c
Y PB PR
AUDIO
INPUTI
VIDEO,AUDIORand LINPUTS Letsyou connect a
component such asa VCRor DVDplayer.
• RAUDIO Providesright audio connection, Theright
audio connector is usually red.
• L AUDIO Provides left audio connection. The left audio
connector is usually white.
• VIDEO Provides composite video connection. The video
connector is usually yellow.
S-VIDEO Provides better picture quality than the video
jacks because the color part of the signal is separated
from the black and white part of the picture When using
S-VIDEO,make sure to connect left and right audio
cablesto the INPUTI AUDIO Input jacks
INPUT2
VIDEO,AUDIORand Land Y,Pb,PrINPUTS Letsyou
connect a component video source,such asa DVDplayer.
•Y, Pb, Pr Provides optimum picture quality because the
video is separated into three signals. Use three video-
grade cables for the connection. When using Y,Pb, Pr,
make sure to connect left and right audio cables to the
INPUT2 AUDIO Input jacks.
• R and L/MONO AUDIO and VIDEO Their description is
the same as INPUTI.
AUDIOOUT Letsyou connect an amplifier or audio receiver
for improved sound quality.
Chapter 1 Graphics contained within this publication ore for representotion ontg 5

Connections getup
The Front of Your TV
Front Input Jacks
The 13/has one set of front audio/video input front input jacks for your
convenience. These jacks are on the front of the IV behind the access doon To
access the component you connected to the front of the IV, press the INPUT
button on your remote until FRNTappears on the screen The jacks are ideal for
connecting a video game console or a eamcorder.
No_c:Whenconnecting_ component thet onlyhas oneaudiojack, suchassomec_mcordcrs,
usetheW_ AUDIOL/MONOjock to hearzhceudio
L/MONO and R AUDIO Receives audio from another component such as a VCR,
eamcorder, or video game console.
VIDEO Receives video from another component such as a VCR, camcorder, or
video game console.
Front Panel Buttons
If you cannot locate your remote, you can use the front panel buttons of your IV
to operate many of the TV's features.
MENU Brings up the Main menu. Also returns you to the previous menu. Press
and hold for two seconds to access the GUIDE Plus+ system.
CH v Scans down through the current channel list. In the menu system, acts like
the down arrow button on the remote control and adjusts menu controls.
CH ^ Scans up through the channel list. In the menu system, acts like the up
arrow button on the remote control and adjusts menu controls.
VOL - Decreases the volume. In the menu system, acts like the left arrow button
on the remote control and adjusts menu controls.
VOL + Increases the volume. In the menu system, acts like the right arrow button
on the remote control and adjusts menu controls.
POWER Turns the IV on and off.
6Graphics contained within this publication are for representation only Chapter 1

Co meetio s getup
G-LINK wands
Why You Should Connect This G-LINK Cable
TheG-LINKcable enablesthe GUIDEPlus+system (the on-screen interactive
program guide) to work with your VCRand/or cane box
Cable Box - If your IV isconnected to acable box you must connect the
G-LINKcable to receiveIV program listings for your area, andto tune
directly to a channel when the program guide ison your TVscreen.
VCR- If your IV isconnected to aVCRand you don't connect the G-LINK
cane, one-touch VCRrecording won't work Theother features of the guide
will work properly.
How to Find the Remote Sensor
You have to place the G-LIN K wands in front of the remote sensor on the VCRand/
or cable box. Some cable boxes and VCRs have the remote sensor labeled on the
unit. If the remote sensor isn't labeled on your VCR andtor cable box, you need to
use the remote control that came with the VCR and/or cable box to locate the
sensor.
1. Turn off the VCR and/or cable box.
2. Hold the remote control (not the one that came with your IV, but the one that
came with the cable box andtor VCR to which you're attaching the G-LINK
cable) so that it is touching the front of the component.
3. Slowly move the remote control across the front of the component (VCR or
cable box) while you press the power button on and off. You must press and
release the power button each time you move the remote (holding down the
button won't work).
4. When the component turns on, you've located the remote sensor.
Placing the G-LINK Wands
Place the G-LINK wands in front of the remote sensor on your VCR and/or cable
box approximately one inch away from the remote senson
Chapter 1 Graphics contained within this publication are for representation only. 7

Connections getup
Plug in the TV
Plug the end of the power cord into a grounded wall outlet. Insert the plug
completely into the outlet.
Put batteries in the remote
• Remove the battery compartment cover from the back of the remote by
pushing down on and sliding offthe cover.
• Insert 2 fresh "AAA" batteries Make sure the polarities (+ and -) are aligned
correctly.
• Replace the cover
How to Use the Remote Control to Complete the Initial Setup
The technical term is "Navigation"- how you move through the on-screen menus.
The method is the same throughout the menu screens: highlight your choice and
select it
To highlight amenu item, press the arrow buttons on the remote to highlight one
of the items listed on the screen Use the up or down arrow button to move up or
down. Use the right or left arrow button to move right or left.
To select the item that you've highlighted, press OK.
Nolo:Highlighzedmeansthut themenu izemstand, out from olhcr menu items onthe list
(oppearsdarker,brighzer,or _di_rcnt colo_
Turn on the TV
PressTV on the remote, or press POWER on the IV's front panel.
Nolo'PressingtheTVbutton not only turnson ff_eT_,but pu_stheremote,m_o?Vmode "71/
mode"means_hutthebuttons on_heremo1ccontrol operatethe7V'sfunctions
Set the Menu Language
The first part of the SETUPasks you to select your preferred
language for the menu system.
I. Highlight your preferred language for the menu system.
2. Press OK to select that language.
8Graphics contained within this publication ure for representation onl ZChapter 1

Connections getup
Compiete Auto Channel Search
The next part of the SETUP asks if you want the IX! to search
for all available channels. This is sometimes called "auto
programming."
I. Press OK to tell the IX! to begin searching for channels. A
progress report appears on the screen.
2. When the screen on the IX/tells you the search [s
complete, press OK (the first GUIDE Plus+ system setup
screen appears).
No_c*:If yousklp Auto Chonnd Scarchno_ youc_n accessit later
_hroughtheChannelmenu Scc,ChopPer4for morndctoils
The GUIDE Plus+ System Setup
The GUIDE Plus+ system [s an on-screen interactive program
guide that lists what shows are on TV [n your area. In order to
receive program listings, you need to complete the following
steps.
The G-LIN K cable must be connected to the back of your IX/,
and the wands must be placed in front of the remote sensor
on your cable box and/or VCR [n order For the GUIDE Plus+
system to work (go back to page 7 for details}.
Step 1:Identifying Your TV's Location
Use the arrow buttons to select country and press OK. Then
use the digits or arrow buttons to enter your zip code or
postal code and press OK.
Step 2: Configuring for Cable
The next series of screens asks you about your cable setup.
If you use a cable box, you will need to identify the channel
you tune your IV to when using the cable box, and the brand
of cable box.
If your brand is not listed, choose "not listed" to run the test.
Follow the on-screen instructions to test your cable box.
Chapter 1 Graphics contained within this publication are for representation ont}4 9

Connections getup
Step 3: Configuring for a VCR
The next series of screens asks you about your VCR setup.
If you connected a VCR to the IV, you will need to follow the
on-screen instructions to select your brand of VCR and run a
system test so that the one-touch record feature will work
properly.
No tes: If your VCRbrand isn't listed, choose the No t Listcd ophon.
Lc_w* 1hecable box on _o download program hstmgs Lcow* your
VCR off to record programs wJzh thc Guide Plus+ One Touch Rccord
fcdtufc
Step 4: Confirming Your Settings
•Check to make sure all settings are complete and correct.
If all settings are complete, highlight Yes, end setup and
press OK. If your cable box and/or VCR code testing
failed, you should see INCOMPIETEwhere the cable
box and VCR codes are listed. Once setup is complete,
additional screens appear.
If any settings are incomplete or incorrect, highlight No,
repeat setup process and press OK. Follow the
instructions on the screen.
You can choose to view a demo of the GUIDE Plus+
features, which may take a few minutes to load. If you
don't want to see the demo right now, press OK to watch
13/.
Downloading Data
The GUIDE Plus+ system is not available until it completes its
first download of program information. To ensure that your
first download of data is complete, you should leave your IV
off overnight. If you use a cable box, be sure to leave it on.
Downloads occur several times a day. The IV must be turned
off for GUIDE Plus+ system data to download.
10 Graphics contained within this publication are for representation only Chapter 1

Connections Setup
What to Expect
The next time you turn on your IV, the GUIDE Plus+ system will appear on the
screen. The following examples explain what you might see:
If all of the program information hasbeen sent to your IV, the GUIDEPlus+
systemappearswith all of your IV program listings
If the program information hasn't been sent to your IV yet, an outline of the
GUIDE(without IV program listings) will appear on the screen.Program
information is usually sent to your IV at night.
If the IV detected that you have multiple cable companies in your area, you
will need to select a channel lineup.
Features of the GUIDE Plus+ system are explained in Chapter 3.
To clear the guide from your screen, press CLEAR or GUIDE on the remote control.
Chapter 1 Graphics contained within this publication are for representation ont_ 1 1

Indicator
C_:CZ2?C_?
Button Descriptions for TV Mode
Arrows Usedto highlight different items in the IX/menu andto adjust the menu
controls
Indicator Indicates the programming mode when programming the remote to
control components. Lights when you press a valid button on the remote. Flickers
when a button is pressed and the batteries are low.
(0-9} Number Buttons Enter channel numbers and time settings directly
through the remote control.
To enter a two-digit channel, press the two digits. To enter a three-digit channel,
press and hold the first digit for two seconds until two dashes appear to the right
of the number, then add the second two. Example: to tune to channel 123, press
and hold 1 for two seconds, press 2, then press 3.
CC No function for your IV,
CH + or CH -Scans up or down through the current channel list. Press once to
change the channel up or down; press and how to continue changing channels
CLEAR Removes any menu or display from the screen and returns you to normal
viewing.
GO BACK Returns you to the previous channel.
GUIDE Displays the GUIDE Plus+ system; press GUIDE again to remove it from the
screen.
INFO Brings up the channel banner.
INPUT Toggles through the available input sources (VIDl/SVIDl, VID2/CVID2,
FRNT,and current channel).
MENU Brings up the Main menu. You can also press and hold for 2 seconds to
display the GUIDE Plus+ system.
MUTE Reducesthe Iv's volume to itsminimum level. Pressagain to restorethe
volume.
OK When in the menu system, selects highlighted items.
ONoOFF When in IV mode, turns the IV on and off. If in another mode (VCR,
DVD, etc.) and programmed, will turn the component on and off.
PRESETS Picture options are reset to original factory settings.
SKIP Press once before changing channels and the IV will wait 30 seconds before
returning to the original channel. Press repeatedly to add more time.
lV Turns on the IV and puts the remote in IV mode. Also displays current status.
VOL -or VOL + Decreases or increases the TV'svolume.
Button Descriptions for DVD and VCR Modes
AGAIN In DVD mode, replays the last several seconds of the title you're playing.
ANTENNA In VCR mode, functions as a IViVCR button.
DVD Puts the remote in DVD mode and, if auto tuning is enabled, will turn on
the IV and tune to the correct video input channel.
12 Graphics contained within this publication are for representation only Chapter 2

Using the Remote Co trol
OPEN.CLOSE In DVD mode, opens or closes the DVD disc tray.
REVERSE, PLAY, FORWARD, RECORD, STOP, PAUSE If programmed, provides
transport control for some remote-controllable VCRs or DVD players.
SEARCH In VCR mode, accesses Index Search feature.
SPEED In VCR mode, selects a recording speed.
VCR Puts the remote in VCR mode and, if auto tuning is enabled, will turn on the
IX/and tune to the correct video input channel.
ZOOM In DVD mode, zooms in on the picture.
Using the INPUT Button
Use the INPUT button to scroll through the available video input channels and
view components you have connected to the IV
1 Make sure the component you want to view is turned ON.
2. Press INPUT to tune to an available video input source and view the
component.
3. To return to the previous channel, continue pressing INPUT.
DVD and /
VCR buttons
CLEAR J
button
/
REVERSE
and PLAY
buttons
@@@
,ONeOFF
button
, STOP
button
You'Husethese buttons when
programming the remote.
Programming the Remote to Operate Other
Com Loonents
The universal remote can be programmed to operate most
brands of remote controllable components. The remote is
already programmed to operate most RCA, GE, and Proscan
components.
Notes: Tbc g/button can't be progrdmrned on this remozc
The mmote may no t be eompoz_ble with ell bronds end models of
componen ts. lt _lso moy not opcrate _l/ funczions of the remotc thdt
cemc* with your componcnL
Find Out If You Need to Program the Remote
To determine whether the universal remote needs to be
programmed for your component, turn the component ON.
For example, to program the remote for a VCR, turn on the
VCR. Point the remote at the VCR, and press the VCR button.
Then press ON.OFF or CH + (channel up) or CH - (channel
down) to see if the VCR responds to the remote commands. If
the component does not respond, the remote needs to be
programmed.
Programming the Remote
There are two ways to program the remote control:
• automatic code search
• direct entry
Chapter 2 Graphics contained within this publication ere for representetion only. 13

Usingthe Remote Co trol
Using Automatic Code Search
The following instructions can be used to program the remote to operate each of
your components. If you want to stop the automatic code search without
programming any of your components, press CLEAR until the indicator on the
remote turns off.
1. Turn on the component you want to operate (VCR or DVD player)
2. Pressand hold the component button you want to program (VCR or DVD).
While holding the component button, press and hold ON.OFF until the
indicator on the remote turns on, then release both buttons.
3, Point the remote at the component. Press and release PLAY(the indieator light
on the remote flashes).
The remote is searching for the correct code to program. When the indicator
stops flashing ]after about 5 seconds], press PLAY again to tell the remote to
search the next set of codes.
Continue pressing PLAY until the component turns off or the indicator light on
the remote turns off. If the indicator light turns off, then all the codes for that
particular component have been tested once. If the component does not turn
off, then the remote can't be programmed to operate that component.
No_c:Eachtimeyou pressPLAY,the remotesendsabout 10setsof codesTherefore,you
might have_opressthe PLAYbudon up to20 times¸
If the component you want to operate does turn off:
1. Pressand release REVERSE,then wait 2 seconds. Repeat this step until the
device turns back ON.
2. To finish, press and hold STOPuntil the indicator on the remote turns off.
Using Direct Entry
1. Turn on the component to be programmed.
2. Look up the brand and code number(s) for the component on the code list in
this section.
3. Pressand hold the component button you want to program on the remote.
4. Enter the code from the remote control code list on the following pages. If the
indicator flashes, you have either entered an invalid code or the button isn't
programmable.
5. Release the component button.
6. Point the remote at the component. Press ON.OFF to see if the component
responds to the command. If it doesn't, try pressing the component button and
then ON.OFF again.
• If you get no response, repeat these steps using the next code listed for your
brand, until the component responds to the remote commands.
• If you try all the codes for your component brand and none work, try the
automatic code search method. If automatic code search doesn't find the code,
the remote is not compatible with your component.
14 Graphics contained within this publication are for representation only Chapter 2

Using the Remote Cor troi
How to Use the Remote After You've Programmed It
Because this universal remote can operate several different components it uses
operational modes triggered by the component buttons. For example, if you want
the remote to operate the IV, you would press the IV button to put the remote
into IV mode before you could operate the IV.
1. Pressthe appropriate component button (DVD, IV, VCR} to set the remote to
operate the component.
2. PressON_OFFto turn the component ON or OFE
3. Use the remote buttons that apply to that component.
No_c:If you keeppressingbuttons andnaming happens,Meremo_cisprobably in th(, wrong
mod_ Youmust pressthe componentbutton Mut motches Mecomponentyou wont to
operate_c, if you want to opemlc theVCR,pressVCRon theremotecontrol toput Mefemale
in VCRmo_ )
Remote Control Codes
VCR Codes
Programmable for VCR button.
Admiral ........................................................................................... 2132 F@ ........................................................................................ 2021, 2119
Adven[u_ ....................................................................................... 2026 Funai ............................................................................................... 2026
Aiko ................................................................................................. 2027 Garmrd ............................................................................................ 2026
Aiwa ................................................................................................ 2026 GE .............................................................................. 2000,2001,2013,
Akal ........................ 2003,2004,2005,2007,2008,2111,2112,2113 .................................................... 2021,2022,2053,2115,2120,2131
Amebean High ............................................................................... 2021 Golds_ar .......................................................... 2009, 2014,2018,2054
Asba ................................................................................................ 2013 G_dlente ........................................................................................ 2026
Audio Dynamics .................................................................. 2009, 2010 Harley Davidson ............................................................................ 2026
Aud klvox ........................................................................................ 2014 Harman Kardon ............................................................................. 2009
Bell _!_Howell .................................................................................. 2011 Harwood ......................................................................................... 2061
Beaumark ....................................................................................... 2013 H_adllUa_er .................................................................................... 2011
Broksonic ............................................................................. 2012, 2025 Hilaebl ................................................................................ 2055, 2056,
Cali× ................................................................................................ 2014 ................................................................ 2057, 2107, 211I, 2120, 2122
Candle ............................................................ 2013, 2014, 2015, 2016, Hi Q................................................................................................. 2023
.................................................................................... 2017, 2018, 2019 Instan[ Replay ................................................................................ 2021
Canon ......................................................................... 2021,2022,2114 JCL ................................................................................................... 2021
Capehar[ ............................................................................... 2020, 2110 JCPenney ....................................................... 2009, 2010, 2011, 2013,
Carver .............................................................................................. 2062 ............................................................. 2014,2021,2022,2055,2056,
CCE ....................................................................................... 2027,2061 ............................................................... 2058,2059,2060,2107,2118
Ci[izen .................................................................................. 2013, 2014,
.................................................... 2015,2016,2017,2018,2019,2027
Colllrlyme ....................................................................................... 2009
Colt .................................................................................................. 206I
Craig ................................................................ 2013,2014,2023,2061
Curlls Malhes ........................................................... 2000, 2009, 2013,
.......................................... 2016, 2018, 2021,2022,2024,2115,2131
Cybernex ........................................................................................ 2013
Daewoo ................. 2015, 2017, 2019, 2025, 2026, 2027, 2028, 2110
Jensen ........................................................................ 2055,2056,2111
JVC .............................................. 2009,2010,2011,2018,2111,2123
Kenwood ........................... 2009, 2010, 2011, 2016, 2018, 2111, 2123
KLH ................................................................................................. 2061
Kodak ................................................................................... 2014,2021
Lloyd ............................................................................................... 2026
Logik ............................................................................................... 2061
LXI ................................................................................................... 2014
Magnavox ............................................................... 2021, 2022, 2062,
Daytrlnl ............................................................................................ 2110 ............................................................... 2063, 2104, 2105, 2108, 2124
DBX ....................................................................................... 2009, 2010
Dimensla ............................................................................... 2000, 213 I
Dynalech ........................................................................................ 2026
Electrobome ........................................................................ 2014, 2029
Electrophonic ................................................................................. 2014
Emerson .................................... 2012, 2014, 2015, 2021, 2024, 2025,
.......... 2026, 2029, 2030, 2031, 2032, 2033, 2034,2035, 2036,
.......... 2037, 2038, 2019, 2040, 204I, 2042,2044, 2045, 21)46,
............................................ 2047, 2065, 2113, 2116, 2117, 2130
Fislmr .................... 2011, 2023, 2048, 2049, 2050, 2051, 2052, 2118
Magnln ........................................................................................... 20I:1
Maramz ................ 2009, 2010, 20H, 2016, 2018, 2021, 2062, 2064
Marta ............................................................................................... 2014
Masusblta ....................................................................................... 2021
Mei .................................................................................................. 2021
Memor_x .............. 2011, 2013, 2014, 2021, 2023, 2026, 2104, 2132
MGA ........................................................................... 2029, 2065, 2111
MGN Tt'cbnology ........................................................................... 2013
Midland .......................................................................................... 2053
Minolla ...................................................................... 2055, 2056, 2107
Chapter 2 Graphics contained within this publication are for representation ant}4 1 5

Usingthe Remote Control
VCR Codes continued
Mil,ulllshi ........................... 2029, 2055, 2056, 2065, 2066, 2067, 2068, Vecfor Research ......................................... 2009, 2010, 2015, 2016
.......................... 2069, 2070, 2071, 2072, 2073, 2074, 2106, 2113, 2123 Victor .......................................................................................... 2010
Montgomery Ward ................................................................... 2075, 2132 Video Concepl, ................................ 2009, 2010, 2015, 2016, 2113
Molorola .................................................................................... 2021, 2112 Videosonlc .................................................................................. 2013
MTC ............................................................................................ 2013, 2126 Wards ......................................................... 2013, 2014, 2015, 2021,
Muldtecb ................................................... 2013, 2016, 2026, 2053, 2061 ............................................ 2023, 2026, 2029, 2055, 2056, 2061,
NEC ............................................................. 2009, 2010, 2011,2016, 2018, ..................................... 2096, 2101, 2102, 2103, 2107, 2116, 2132
........................................................... 2064, 20/'6, 2078, 2079, 2111, 2123
Nik£o ..................................................................................................... 2014
Noblex .................................................................................................. 2013
Olympus ................................................................................................ 2021
OpIifllus ..................................................................................... 2014, 2132
Oplonica ............................................................................................... 2096
Panasonlc ........................................ 2021, 2022, 2109, 2125, 2126, 2127
Pen[ax ......................................................... 2016, 2055, 205 f,, 2107, 2120
Pen[ex Research ................................................................................... 201{}
Philco ................................................................... 202h 2022, 2062, 2063
Philips ................................................................... 2021, 2062, 20_,, 2124
Pilo[ ....................................................................................................... 2014
Pioneer ....................................................... 2oio, 2055, 2080, 2081, 2123
Portland ................................................................. 2016, 2017, 2019, 2110
Proscan ............................................................................ 2000, 2001, 2131
Prolec .................................................................................................... 2061
Pulsar .................................................................................................... 2104
Quarter .................................................................................................. 2011
Quartz ................................................................................................... 2011
Quasar .............................................................................. 2021, 2022, 2125
RCA ..................................... 2000, 2001, 2003, 2013, 2021, 2055, 2056,
................................. 2082, 2083, 2084, 2085, 2086, 2087, 2088, 2089,
...................................... 20_Jo, 2091, 2107, 2115, 2120, 2125, 2131, 2133
Radiosback/Realislic ........................................... 2Oli, 2013, 2014, 2021,
.......................... 2022, 2023, 2026, 2029, 2049, 2050, 2096, 2132
Radix ..................................................................................................... 2014
Rande× .................................................................................................. 2014
Rieob ..................................................................................................... 2128
Runco .................................................................................................... 2104
Sarnsung .......................................... 2005, 2013, 2oi 5, 20_1, 2053, 2112
Sanky .......................................................................................... 2IO4, 2132
Sansul .................................................................... 2010, 2092, 2111, 2123
Sanyo ............................................................................... 2011, 2013, 2023
Scoll ........................... 2012, 2015, 2025, 2032, 2038, 2065, 2093, 2116
Sear, ........................................................... 2011, 2014, 202I, 2023, 2048,
.............................................. 2049, 2050, 2051, 2055, 2056, 2107, 2118
Sharp .................................... 2017, 2020, 2094, 2095, 2096, 2097, 2132
Shlntorn ............................................................... 2004, 2056, 2061, 2098
Shogun .................................................................................................. 2013
Signature .............................................................................................. 2132
Singer ............................................................................... 2021, 2061, 2128
Sony ...................................................................... 2004, 2008, 2099, 2119
STS .............................................................................................. 2021, 2107
Sylvania ............................... 2021, 2022, 2026, 2062, 2063, 2065, 2124
Symphonic ........................................................................................... 202_,
Tandy .................................................................................................... 2011
TasJllko .................................................................................................. 2014
Tamng .................................................................................................... 2111
T£AC ................................................................................ 2026, 2085, 2Ill
Technics ...................................................................................... 2021, 2109
Teknika ....................................................... 2014, 2021, 2026, 2100, 2129
TMK ................................................................................. 2013, 2024, 2047
Toshiba .................................. 2015, 2049, 2051, 2055, 2065, 209J, 2116
Tolevsion ................................................................................... 2013, 2014
Unileeh ................................................................................................. 2013
XRMO00 ............................................................... 2021,2026,2061
Yamaha .............................................. 2009,2010,2Oli, 2018,2111
Zenilh ............................................... 2004, 2098, 2104, 2119, 2128
DVD codes
Programmable for DVD button.
Aiwa ........................................................................................... 3009
Apex ................................................................................. 3023, 3024
GE ............................................................................................... 3000
Hilaebl ....................................................................................... 3008
JVC ................................................................................... 3002, 3010
Koilka ............................................................................... 3011, 1012
Magnavo× ................................................................................. _003
Milsubishl .................................................................................. 3004
Panasonie ................................................................................... 3013
Philips ........................................................ 3003, 3019, 3021, _022
Pioneer ....................................................................................... 3005
Prosean ...................................................................................... _000
RCA .................................................................................. 3000, 3001
Samsung .................................................................................... 3025
Sailyo .......................................................................................... 1014
Sony ...................................................................... 3006, 3oi5, 3016
Toshiba .................................................................. 3002, 3017, 3020
Zeililh .......................................................................................... ]018
16 Graphics contained within this publication are for representation only Chapter 2

Action Video Program Menu
buttons window information options
Promotional Channel listings
information
Nolo: fhe GUIOE plus+ syszcm scmens
iflustm_cd in this book arc represd,ntations
of wh at you are likely _o see No t all
channels, programs, and GUIDE Plus+
information dcpicZed wi// be available
youl" (l_d
New f_atums and opbons can bd"
downloodcd zo the GUIDE Plus+ syslcm, so
these' too ore subject to chongc
About the GUIDE Plus+ System
The GUIDE Plus+ system is a no-fee, interactive on-screen
program guide that lists IV schedules for your area and
allows your IV direct control of a cable box and VCR.
There are six sections of the GUIDE Plus+ system:
*ArowofActionbuttonsatthetopofthescreen(1,2
and 3)
.Video window
e Program information
e A row of menu options (Grid, Sort, News, Schedule,
Messages, Promotions, Channels, Setup)
e Channel listings
e Promotional information
Using the GUIDE Plus+ System
To enter the GUIDE Plus+ system:
.Press GUIDE on the remote.
To exit the GUIDE Plus+ system:
e Highlight a program and press OK to exit the GUIDE
Plus+ system and tune to the channel
e Press GUIDE to exit the GUIDE Plus+ system and tune to
the channel displayed in the video window.
e Press CLEAR to exit the GUIDE Plus+ system and return to
the original channel.
The GUIDE Plus+ System Menu Bar
The GUIDE Plus+ system offers eight different options on the
Menu bar: Grid, Sort, News, Schedule, Messages, Promotions,
Channels and Setup. To access the Menu bar:
I. Press GUIDE to access the GUIDE Plus+ system.
2. Press MENU or use the up and down arrow buttons to
select the Menu bar (the Grid Guide appears by default).
3. Use the left and right arrow buttons to access other
m_nus.
4. Press OK, or MENU, or use the down arrow button to see
the menu options.
Chapter 3 Graphics contained within this publication are For representation ont}4 17

Grid guide Grid guide
menu selection action buttons
Network icons
Grid Guide
TheGrid Guideappearseach time you enter the GUIDEPlus+
system.It displays the current programming for each
channel. The current program isdisplayed in the video
window.
*Press the up and down arrow buttons on the remote to
browse channel listings and the channel up and down
buttons to page through the listings. Use the right and
left arrow buttons to browse future program listings.
• To tune to a channel, highlight the program you want to
view in the channel listing and press OK. Press CLEAR to
exit the GUIDE Plus+ system and return to the original
channel PressGUIDE to exit the GUIDE Plus+ system and
tune to the channel in the video window.
Use the Grid Guide Action Buttons as described below.
Grid Guide Action Buttons
Action buttons will change according to where you are in the
GUIDE Plus+ system. Be sure to look at the action bar before
pressing the command numbers.
When highlighting the program, the following Action
buttons appear:
•Watch Press 1 on the remote to place a timer in the
Schedule for thelVto turn on and tune to the program
highlighted in the channel listing
• Go To Press 2 on the remote to bring up the direct dial
box and enter the number of the channel you want
•Record Press 3 on the remote to place a timer in the
Schedule for the VCR to record the program highlighted
in the channel listing.
Expanded Information
Press INFO on the remote to see additional program
information.
Lockingthe Video Window
Highlight the network icon and press I to lock or unlock the
video window.
When highlighting the Channel names (the left column on
the channel listing), the following Action buttons appear:
•Lock/Unlock Press I to lock or unlock the video window
to either stay at one channel asyou browse the GUIDE
Plus+ system (lock) or change as you browse through
different channels (unlock].
18Graphics contained within this publication are for representation only Chapter 3
