RCA E13335 User manual

USER'S
GUIDE.
C0

Important Information
WARNING
To reduce the risk of fire or shock
hazard, do not expose this "13/to rain
ormoisture.
II
I I I
RISK OF B.EC'rRIc SHOCK
DO NOT OPEN
This symbol indicates
"dangerous voltage" inside
the product that presents a
risk of electric shock or
personal injury.
_K his symbol indicates
important instructions
accompanying the
product.
Cautions CAUTION:
To reduce the risk of electric shock, match wide blade of plug to
wide slot, fully insert.
ATTENTION:
Pour _viter les chocs _lectriques, introduirela lame la pins large
de la fiche dans la borne correspondante de la prise et ponsser
jusq6 au fond.
Operate "IV only on 120 volts, 60 I-IzAC power (normal house power).
FCC Regulations state that unauthorized changes or modifications to this equipment
may void the user's authority to operate it.
Note To Cable TV Installer Ttds reminder is provided tOcall your attention to Article 820-40 of the National
Electrical Code (Section 54 of the Canadian Electrical Code, Part 1) which provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall
be connected to the grounding system of the building as close to the point of cable entry
as practical.
Product
Registration
Please fill out the product registration card and return it immediately. Returning this
card allows us to contact you if needed.
Keep your sales receipt to obtain warranty parts and service and for proof of pur-
chase. Attach it here and record the serial and model numbers in case you ever need
them. The numbers are located on the back of the TV.
Model No
Serial No
Purchase Date:
Dealer/Address/Phone

Introduction
Thank you for choosing RCA
Your television •is designed for long
life and superior operation. Despite its
sophistication, your new TV is
amazingly simple to operate because it
has so many automatic features.
Table of Contents
Getting Started
First-Time Operation .................................................................. 2-3
Controlling Your TV
Front Panel ..................................................................................... 4
On-Screen Displays ....................................................................... 5
Remote Operation .......................................................................... 6
Operating Features
VIDEO Menu ................................................................................. 7
Languages (English, French, Spanish) .......................................... 8
Closed Captioning ......................................................................... 9
SETUP Menu. .............................................................................. 10
Sleep Timer Operation ................................................................. 11
Alarm Timer Operation ............................................................... 12
Autoprogramming Channel Memory .......................................... 13
Editing Channel Memory ............................................................. 13
Connecting Your TV
Antenna/Cable Information ........................... _............................. 14
Dipole Antenna Connection ......... ................................................ 15
Home Antenna Connections ........................................................ 16
Cable-TV Connections ................................................................ 17
Cable-TV operation .................................................................... 18
Using Optiona! DC Power Cord ................................................... 19
Caring for Your TV
Cleaning & Care .......................................................................... 20
Accessories
Accessories .................................................................................. 21
Order Form ............................................................................. 21-22
Trouble Checks ......................................................................... 23
Limited Warranty .................................................................... 24

Getting Started

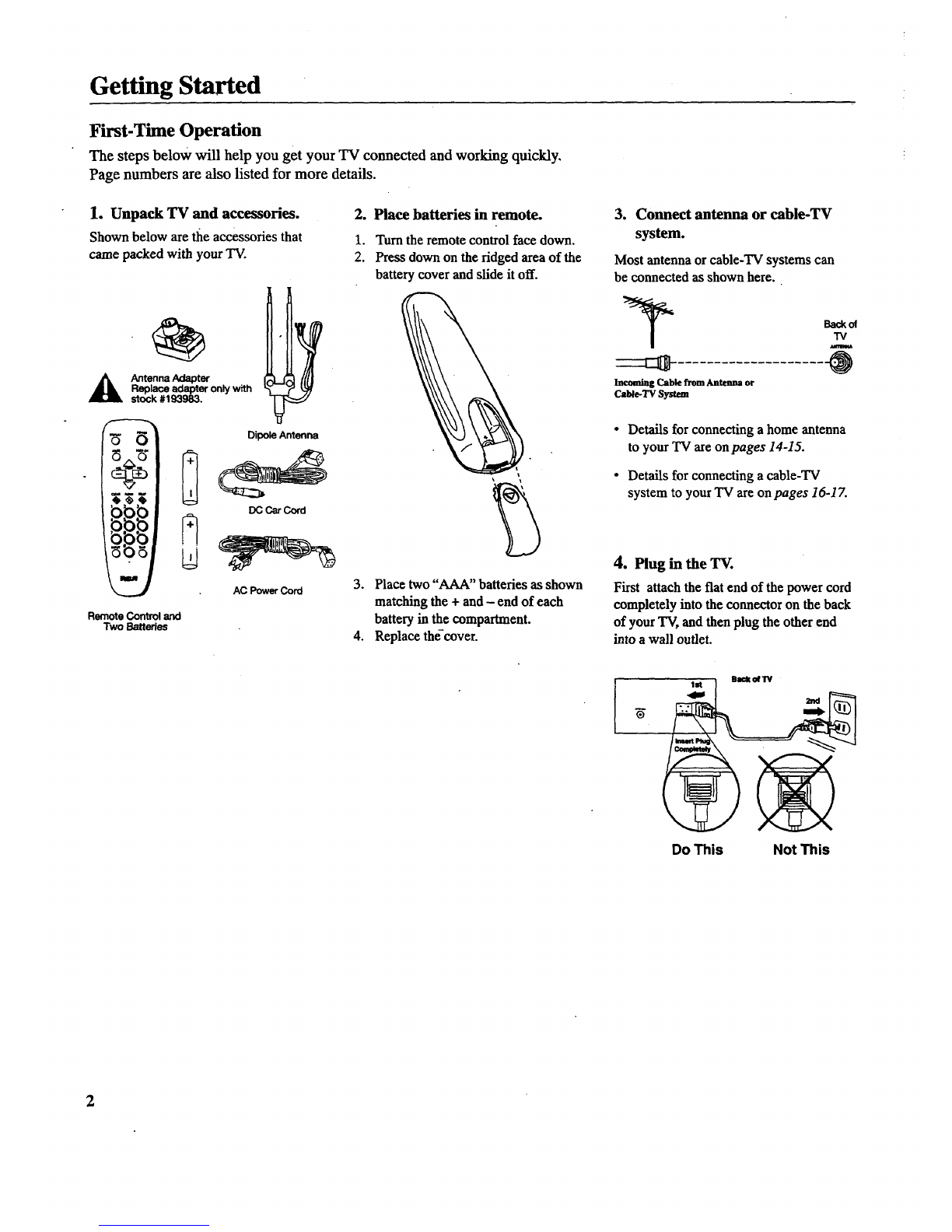

First-Time Operation
The steps below will help you get your TV connected and working quickly.
Page numbers are also listed for more details.
1. Unpack TV and accessories.
Shown below are the accessories that
came packed with your "IV.
aAntennaAdapter
Replace adapter only with
stock #193983.
2. Place batteries in remote.
1. Turn the remote control face down.
2. Press down on the ridged area of the
battery cover and slide it off.
3. Connect antenna or cable-TV
system.
Most antenna orcable-TV systems can
be connected as shown here.
Incoming Cable from Antenna or
Cable-TVSystem
Backof
"IV
m
RemoteControland
Two Batteries
Dipole Antenna
_ Car C_rd
N
U
AC Power Cord 3. Place two "AAA" batteries as shown
matching the + and - end of each
battery in the compartment.
4. Replace the-cover.
Details for connecting ahome antenna
to your TV are onpages 14-15.
Details for connecting a cable-TV
system to your TV are on pages 16-1Z
4. Plug in the TV.
First attachthe flat end of the power cord
completely into the connector on the back
of your "IV, and then plug the other end
into a wall outlet.
Do This Not This

Getting Started
First-Time Operation
5. Turn on TV and place channels
in memory.
Your TV is designed to place active
channels into your TV's memory the first
time you turn it on.
Rttvm
;0o
Press POWER on the TV or remote to
turn on the TV.
The TV automatically cycles through all
channel numbers and places active
channels into the channel memory.
When your TV is finished, it tunes to
the lowest channel number in its
channel memory.
6. Edit the channel memory.
You can add and erase channels from
memory as desired.
• Press MENU repeatedly to highlight
SETUP. Then press + to select the
SETUP menu.
7. Set the clock.
• Press MENU repeatedly until SETUP is
highlighted. Then press + to select the
SETUP menu.
•Press MENU repeatedly to highlight
EDIT CHANNELS.
• Repeatedly press MENU to select
CLOCK.
AUTOPROGRAM
Press MENU
repeatedly to
see 2nd setup
menu.
Press + to select EDIT CHANNELS.
• Press and hold -to set the correct hour.
Then press and hold + to set the correct
minutes.
Select the desired channel number by
pressing the CHANNEL up or down
button orby pressing two number
buttons.
•Press CLEAR to remove the menu from
the screen.
Then press + to add a chafinel, or
press:-- to erase achannel. Details
are on page 13.
Press CLEAR to remove the menu from
the screen.
3

Controlling Your TV

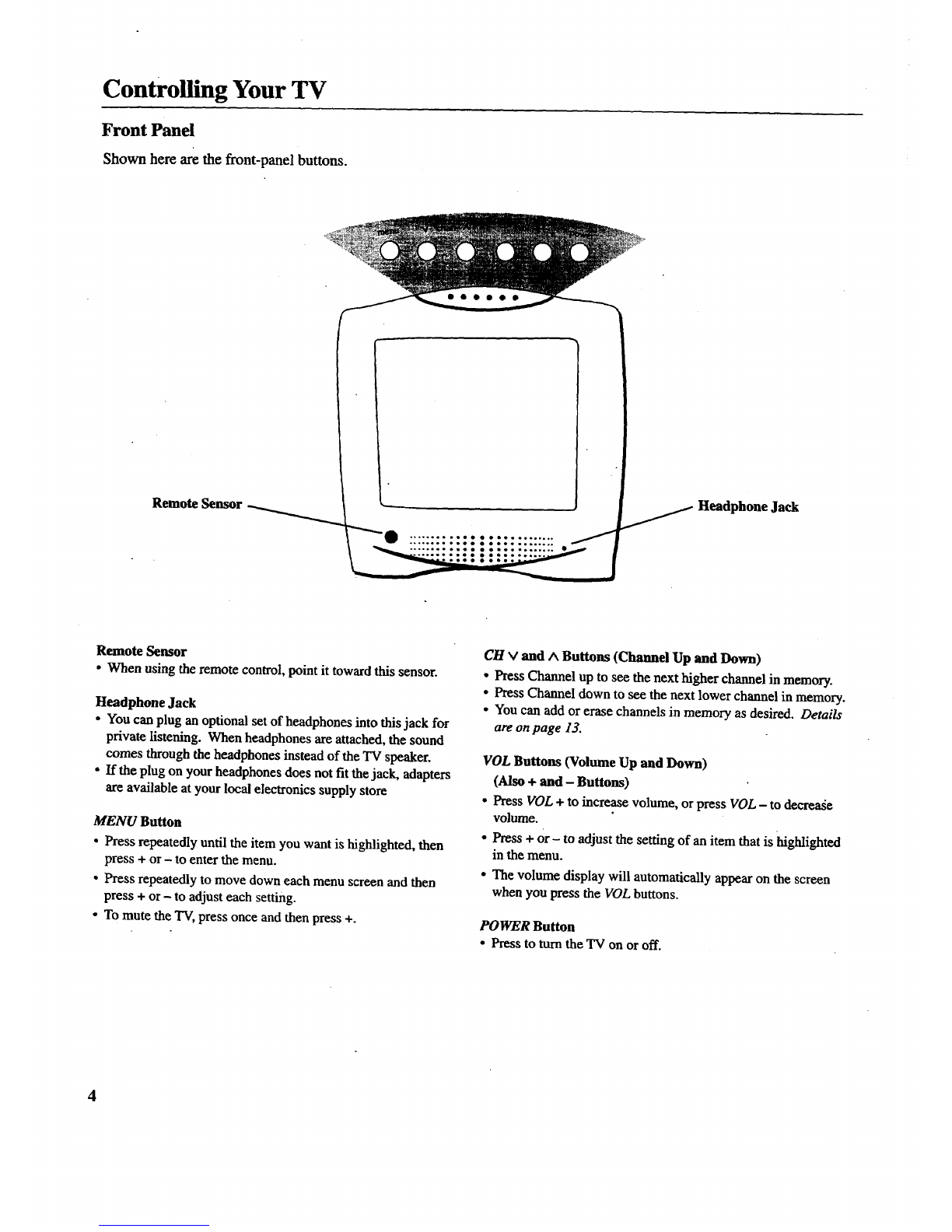

Front Panel
Shown here are the front-panel buttons.
Remote Sensor L_ Headphone Jack
Remote Sensor
• When using the remote control, point ittoward this sensor.
Headphone Jack
• You can plug an optional set of headphones into this jack for
private listening. When headphones areattached, the sound
comes through the headphones instead of the TV speaker.
• If the plug on your headphones does not fit the jack, adapters
are available atyour local electronics supply store
MENU Button
• Press repeatedly until the item you want is highlighted, then
press + or-to enter the menu.
• Press repeatedly to move down each menu screen and then
press + or-to adjust each setting.
• To mute the "IV,press once and then press +.
CH w and ^ Buttons (Channel Up and Down)
• Press Channel up to see the next higher channel in memory.
• Press Channel down to see the next lower channel in memory.
• You can add orerase channels in memory as desired. Details
are onpage 13.
VOL Buttons (Volume Up and Down)
(Also + and- Buttons)
• Press VOL + to increase volume, orpress VOL- to decrease
volume.
•Press + or- to adjust the setting of an item that is highlighted
in the menu.
• The volume display will automatically appear on the screen
when you press the VOL buttons.
POWER Button
•Press to turnthe TV on or off.
4

Controlling Your TV
On-Screen Displays
(_) Sleep
QAlarm Timer
(_ MUTE
QChannel Number
(_ Time
(_) Sleep Timer
This display appears when the sleep timer has been set.
Details are onpage 11.
_ Alarm Timer
This display appears when the alarm timer has been set.
Details are on page 12.
(_'r'mae
This display appears after the clock is set whenever you
change channels or press DISPLAY
QChannel Number
This display appears whenever you change channels or press
DISPLAY.
GUTE
This display appears when the TV's sound is muted. Press
MUTE on the remote. Details are on page 6.
5

Controlling Your TV

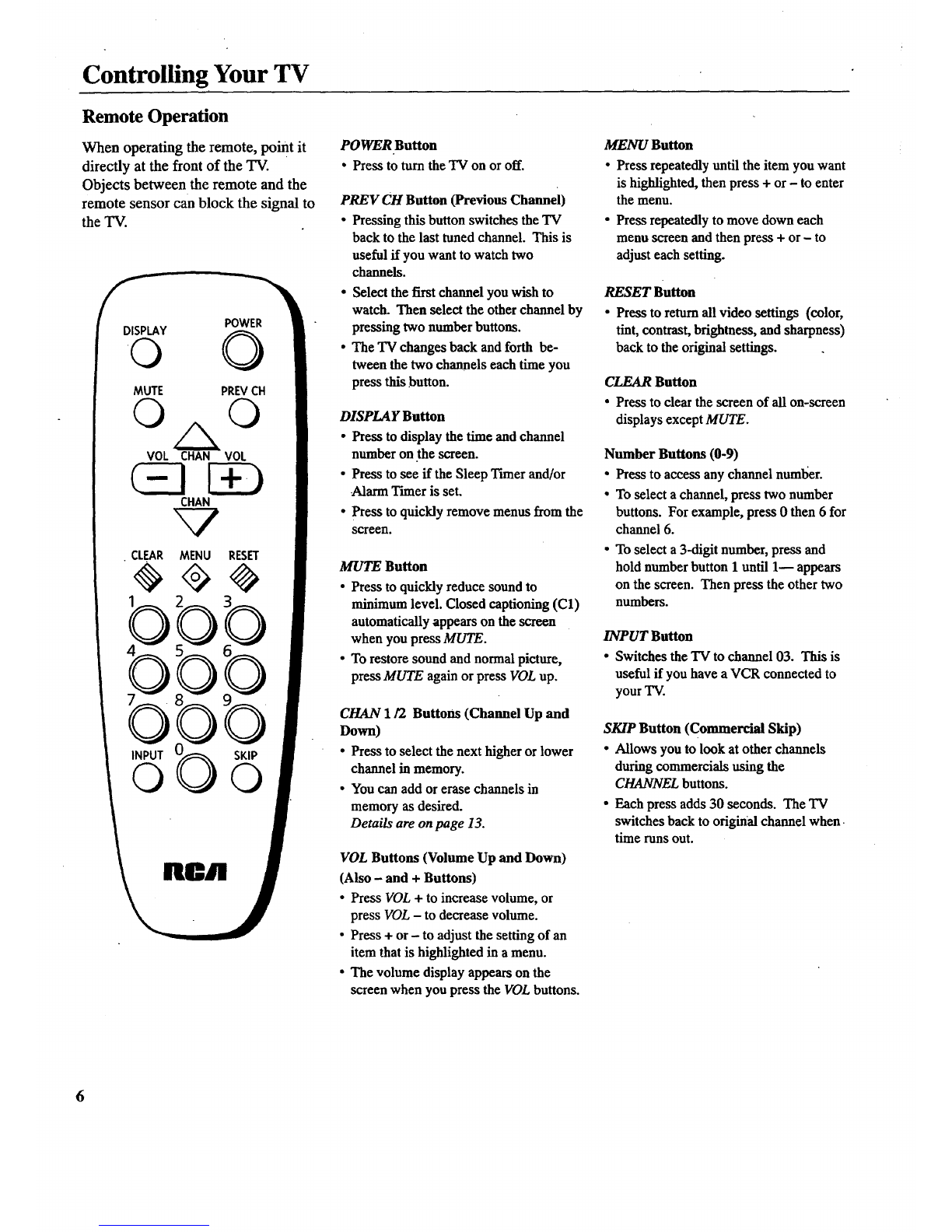

Remote Operation
When operating the remote, point it
directly at the front of the TV.
Objects between the remote and the
remote sensor can block the signal to
the TV.
f
POWER
©
MUTE PREVCH
O O
VOL CHAN VOL
•CLEAR
b
INPUT
O
CHAN
MENU RESET
3b
SKIP
neA
POWER Button
•Press to turn the TV on or off.
PREV CH Button (Previous Channel)
• Pressing this button switches theTV
back to the last tuned channel. This is
useful if you want to watch two
channels.
•Select the first channel you wish to
watch. Then select the otherchannel by
pressing two number buttons.
• The TV changes back and forth be-
tween the two channels each time you
press this button.
DISPLAY Button
• Press to display the time andchannel
number on the screen.
• Press to see if the Sleep Timer and/or
Alarm Timer is set.
• Press to quickly remove menus from the
screen.
MUTE Button
• Press to quickly reduce sound to
minimum level. Closed captioning (C1)
automatically appears on the screen
when you press MUTE.
• To restore sound and normal picture,
press MUTE again or press VOL up.
CHAN 1/2 Buttons (Channel Up and
Down)
• Press to select the next higher or lower
channel in memory.
•You can addor erase channels in
memory as desired.
Details are on page 13.
VOL Buttons (Volume Up and Down)
(Also - and + Buttons)
• Press VOL +to increase volume, or
press VOL - to decrease volume.
• Press + or - to adjust the setting of an
item that is highlighted in a menu.
• The volume display appears on the
screen when you press the VOL buttons.
MENU Button
•Press repeatedly until the item you want
is highlighted, then press + or-to enter
the menu.
• Press repeatedly to move down each
menu screen and then press + or - to
adjust each setting.
RESET Button
•Press to return all video settings (color,
tint, contrast, brightness, and sharpness)
back to the original settings.
CLEAR Button
•Press to clear the screen of all on-screen
displays except MUTE.
Number Buttons (0-9)
* Press to access any channel number.
• Toselect a channel, press two number
buttons. For example, press 0 then 6 for
channel 6.
• To select a 3-digit number, press and
hold number button 1 until 1-- appears
on the screen. Then press the other two
numbers.
INPUT Button
•Switches the TV to channel 03. This is
useful if you have a VCR connected to
your TV.
SKIP Button (Commercial Skip)
•Allows you to look at other channels
during commercials using the
CHANNEL buttons.
• Each press adds 30 seconds. The TV
switches back to original channel when
time runs out.
6

Operating Features

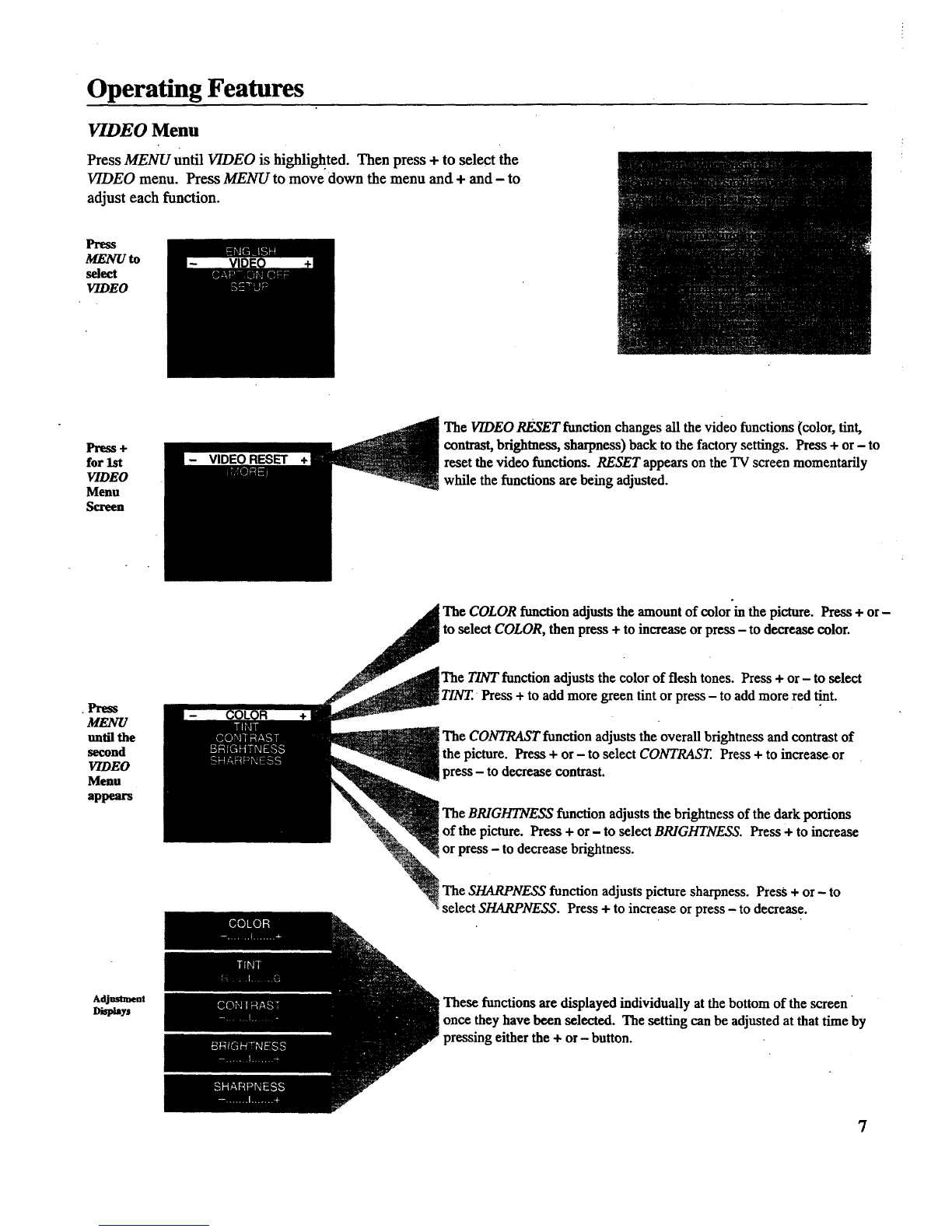

VIDEO Menu
Press MENU until VIDEO is highliglated. Then press + to select the
VIDEO menu. Press MENU to move down the menu and + and - to
adjust each function.
Press
MENU to
sdect
VIDEO
Press÷
for 1st
VIDEO
Menu
Screen
The VIDEO RESET function changes all the video functions (color,tint,
contrast, brightness, sharpness) back to the factory settings. Press +or -to
reset the video functions. RESET appears on the TV screen momentarily
while the functions are being adjusted.
.
The COLOR function adjusts the amount of color in the picture. Press + or-
to select COLOR, then press + to increase or press - to decrease color.
Press
MEN//
until the
second
VIDEO
Menu
appears
The T/NT function adjusts the color of flesh tones. Press + or- to select
TINT.. Press + to add more green tint or press - to add more red tint.
The CONTRAST function adjusts the overall brightness and contrast of
the picture. Press + or - to select CONTRASZ Press + to increase or
press -to decrease contrast.
The BRIGHTNESS function adjusts the brightness of the dark portions
of the picture. Press + or - to select BRIGHTNESS. Press + to increase
or press - to decrease brightness.
The SHARPNESS function adjusts picture sharpness. Press + or - to
Press + to increase orpress - to decrease.
These functions are displayed individually at the bottom of the screen
once they have been selected. The setting can be adjusted at that time by
pressing either the + or- button.
7

Operating Features

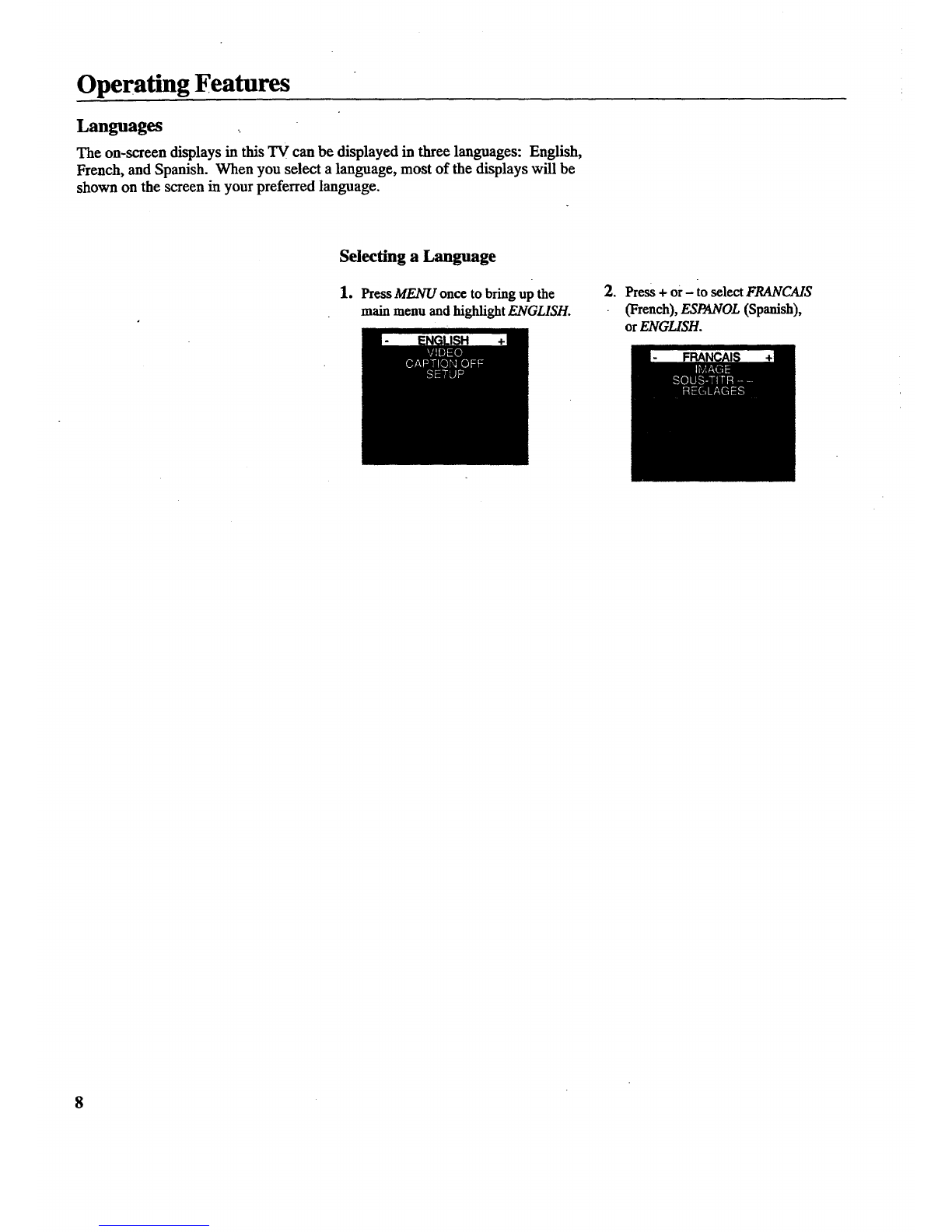

Languages
The on-screen displays in this 'IV can be displayed in three languages: English,
French, and Spanish. When you select a language, most of the displays will be
shown on the screen in your preferred language.
Selecting a Language
1. Press MENU once to bring up the
main menu and highlight ENGLISH.
2. Press + ok- to select FRANCAIS
(French), ESPANOL (Spanish),
or ENGLISH.
8

Operating Features

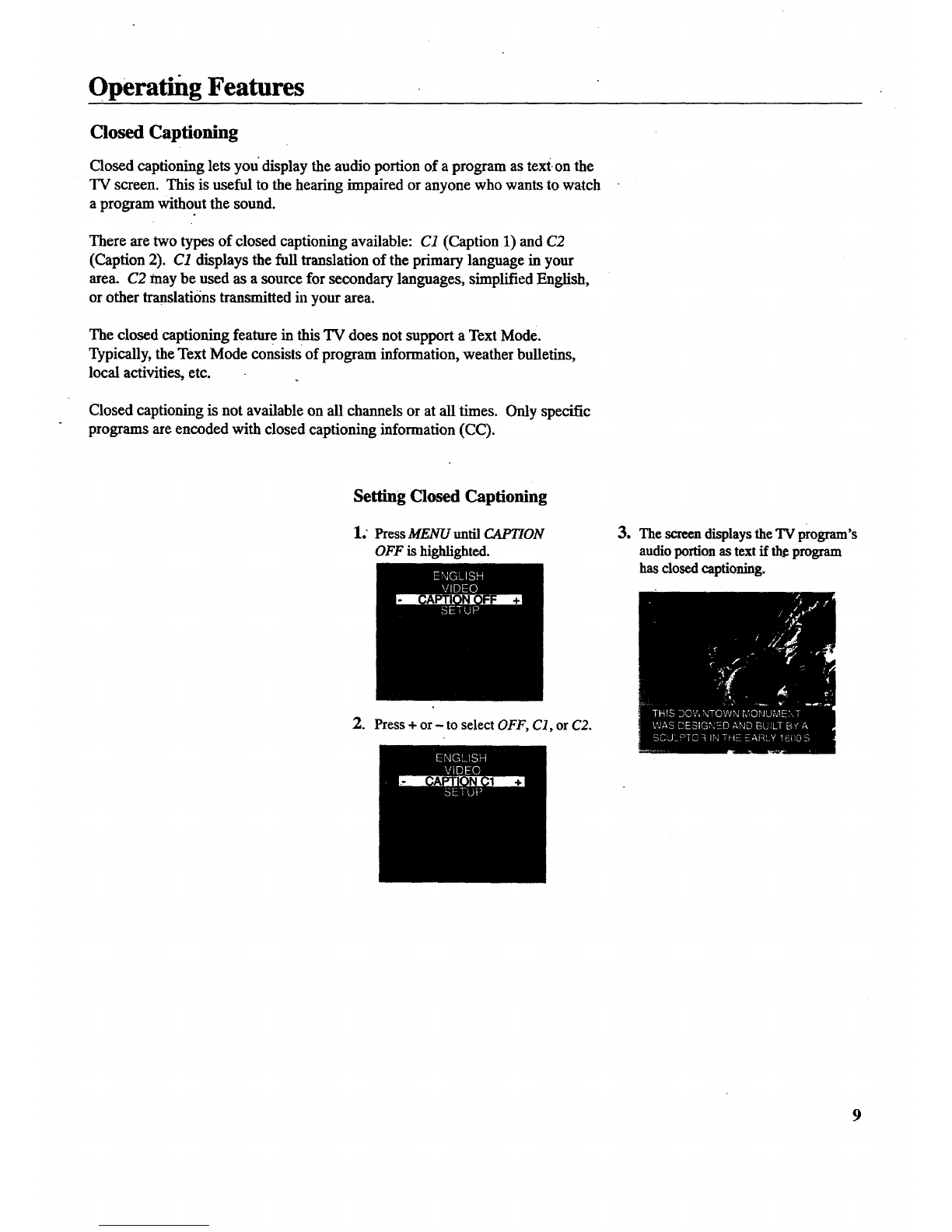

Closed Captioning
Closed captioning lets you display the audio portion of aprogram as text on the
TV screen. This is useful to the heating impaired or anyone who wants to watch
a program without the sound.
There are two types of closed captioning available: (71 (Caption 1) and C2
(Caption 2). C1 displays the full translation of the primary language in your
area. C2 may be used as a source for secondary languages, simplified English,
or other translations transmitted ha your area.
The closed captioning featur e in this TV does not support a Text Mode.
Typically, the Text Mode consists of program information, weather bulletins,
local activities, etc.
Closed captioning is not available on all channels or at all times. Only specific
programs are encoded with closed captioning information (CC).
Setting Closed Captioning
1. Press MENU until CAPTION
OFF is highlighted. 3. The screen displays the TV program's audio portion as text ff th_program
has dosed captioning.
2. Press + or - to select OFF, C1, or C2.

Operating Features

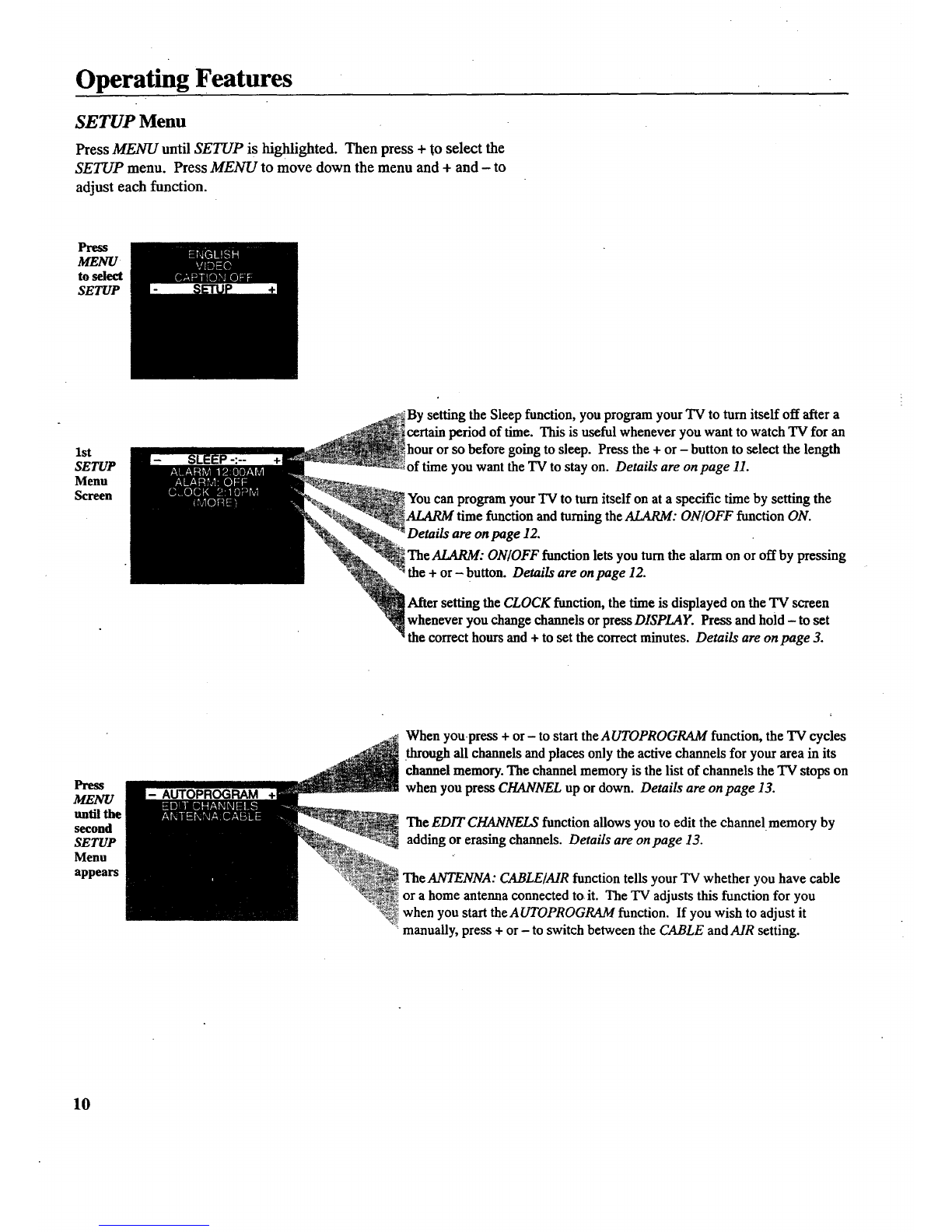

SETUP Menu
Press MENU until SETUP is highlighted. Then press + to select the
SETUP menu. Press MENU to move down the menu and + and - to
adjust each function.
Press
MENU
to select
SETUP
1st
SETUP
Menu
Screen
By setting the Sleep function, you program your TV to turn itself off after a
certain period of time. This is useful whenever you want to watch TV for an
hour orso before going to sleep. Press the + or- button to select the length
of time you want the TV to stay on. Details are onpage 1I.
[You can program your'IV to turn itself on at a specific time by setting the
ALARM time function and turning theAL4RM: ON/OFF function ON.
Details are onpage 12.
TheALARM: ON/OFF fimction lets you turnthe alarm on or off by pressing
the + or -button. Details are onpage 12.
After setting the CLOCK function, the time is displayed on the TV screen
whenever you change channels or press DISPLAY. Press and hold - to set
the correct hours and + to set the correct minutes. Details are onpage 3.
Press
M_VU
until the
second
SETUP
Menu
appears
AUTOPROGF
When you-press + or -to starttheAUTOPROGRAM function, the TV cycles
through all channels and places only the active channels for your area in its
channel memory. The channel memory is the list of channels the "IV stops on
when you press CHANNEL up or down. Details are on page 13.
The EDIT CHANNELS function allows you to edit the channel memory by
adding or erasing channels. Details are on page 13.
The ANTENNA: CABLE/AIR function tells your TV whether you have cable
or a home antenna connected toit. The TV adjusts this function for you
when you start theAUTOPROGRAM function. If you wish to adjust it
_manually, press + or - to switch between the CABLE and AIR setting.
10

Operating Features
Sleep Timer Operation
By setting the Sleep Timer, you can
program your TV to turn itself off
after a certain period of time (up to
four hours). This is useful whenever
you Want to watch TV for an hour or
so before going to sleep.
Setting the Sleep Timer
1. Press MENU until SETUP is high-
lighted. Then press + to select the
SETUP menu.
4. When the Sleep Timer is turned on, the
letters SLP appear on the screen
whenever you change channels or
stations or press DISPLAY.
2. Press +to select the length of time you
want the TV to stay on. Each press of
the +button adds 30 minutes. Each
press of the - button subtracts 30
minutes.
5. Repeat step 1 to see the amount of time
remaining before the TV shuts itself off.
;2 minutes
remaining
3. When finished, the display disappears
from the screen in afew seconds. To
make it disappear more quickly, press
CLEAR on the remote.
6. When the Sleep Timer counts down to
one minute, the Sleep Timer display
appears on the screen. When this
display appears, press CLEAR to cancel
the Sleep Timer if you want the TV to
remain on.
Cancelling sleep Timer
Press MENU until SETUP is highlighted.
Then press + to select the SETUP menu.
Press the -buttonuntil the screen
shows "-:- -".
11

Operating Features

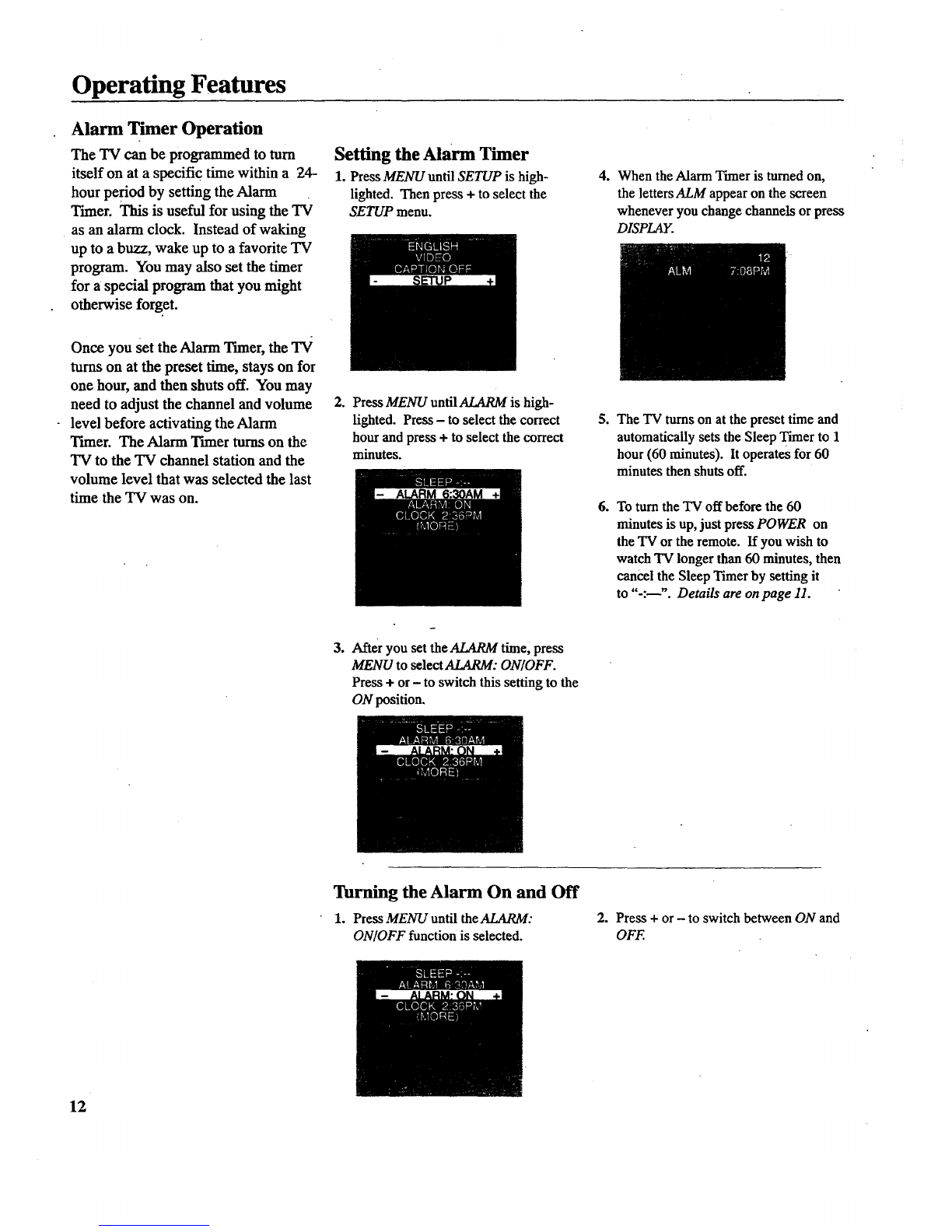

Alarm Timer Operation
The TV can be programmed to turn
itself on at a specific time within a 24-
hour period by setting the Alarm
Timer. This is useful for using the TV
as an alarm clock. Instead of waking
up to a buzz, wake up to a favorite TV
program. You may also set the timer
for a special program that you might
otherwise forget.
Once you Set the Alarm Tuner, the "IV
turns on at the preset time, stays on for
one hour, and then shuts off. You may
need to adjust the channel and volume
level before activating the Alarm
Tuner. The Alarm Tuner turns on the
TV to the TV channel station and the
volume level that was selected the last
time the TV was on.
Setting the Alarm Timer
1. PressMENU until SETUP is high-
lighted. Then press + to select the
SETUP menu.
2. Press MENU untilALARM is high-
lighted. Press - to select the correct
hour and press + to select the correct
minutes.
4. When the Alarm Timer is turned on,
the letters ALM appear on the screen
whenever you change channels or press
DISPLAY.
SQ
.
The TV turns on at the preset time and
automatically sets the Sleep Timer to 1
hour (60 minutes). It operates for 60
minutes then shuts off.
To turnthe TV off before the 60
minutes is up, just press POWER on
the TV or the remote. If you wish to
watch "IV longer than 60 minutes, then
cancel the Sleep Timer by setting it
to "-:--". Details are on page 11.
3. After you set the ALARM time, press
MENU to select ALARM: ON/OFF.
Press + or - to switch this setting to the
ON position.
Turning the Alarm On and Off
1. Press MENU until theM_ARM:
ON/OFF function is selected. 2. Press + or -to switch between ON and
OFF.
12

Operating Features
•AutoProgramming Channel Memory
The Channel Memory is the listbof TV 1. Connect home antenna(s) or cable to
channel numbers your "IV will stop on your set.
when you press the CHANNEL up or
down button. You can program any
list of channels into the channel
memory although your TV is so
automatic that you will probab!y never
need"to manually operate this feature.
If you do, follow the instructions at the
right.
The first time you turn on the 'IV, it
cycles through all channels and places
active channels into the channel
memory. You can then add or erase
channels as desired by following the
instructions in the "Editing Channel
Memory" section at the right.
.Press ,,,,atSETUPishigh
lighted. Press + to select the SETUP
menu.
3. Repeate_y press MENU u_.til
A UTOPROGRAM is highlighted.
Editing Channel Memory
Follow these instructions to erase and add
channels.
1. Press MENU until SETUP is high
lighted. Press + to select the SETUP
menu.
2. Repeatedly press MENU until EDIT
CHANNELS is highlighted. Press +to
select EDIT CHANNELS.
Notes:"
• Signals from scrambled cable channels and
some cable channels having unusual signal
conditions may not be autoprogrammed.
• To prevent the TV from losing its channel
memory, make sure _he outlet you plug your
"IVinto is "on" all the time. Do not plug
the TV into an outlet that can be turned on
and off by a wall switch. Also do not plug
the TV into an outlet on the back of another
device (such as a cable-TV converter box)
that is turned off when the device is turned
off.
•If there is an extended power failure, your
"IVwill automatically reprogram active
channels the first time you turn it on after
the power failure.
2rid
SETUP
Menu
4. Press +to begin AutoProgramming.
The TV cycles through all channels
and places only active channels into
memoi'y.
5. When the TV finishes cycling, you can
check the channels in memory by
pressing CHANNEL up or down.
2rid
SETUP
Menu
oSelect the channel number by pressing
CHANNEL up or down or two number
buttons on the remote.
When "+" appears next to the channel
number, the channel is in the channel
list. Press -to erase the channel.
When "-" appears next to the channel
number, the channel is not in the
channel list. Press + to add the
channel.
4. Press - to erase or press the + to add.
13

Connecting Your TV

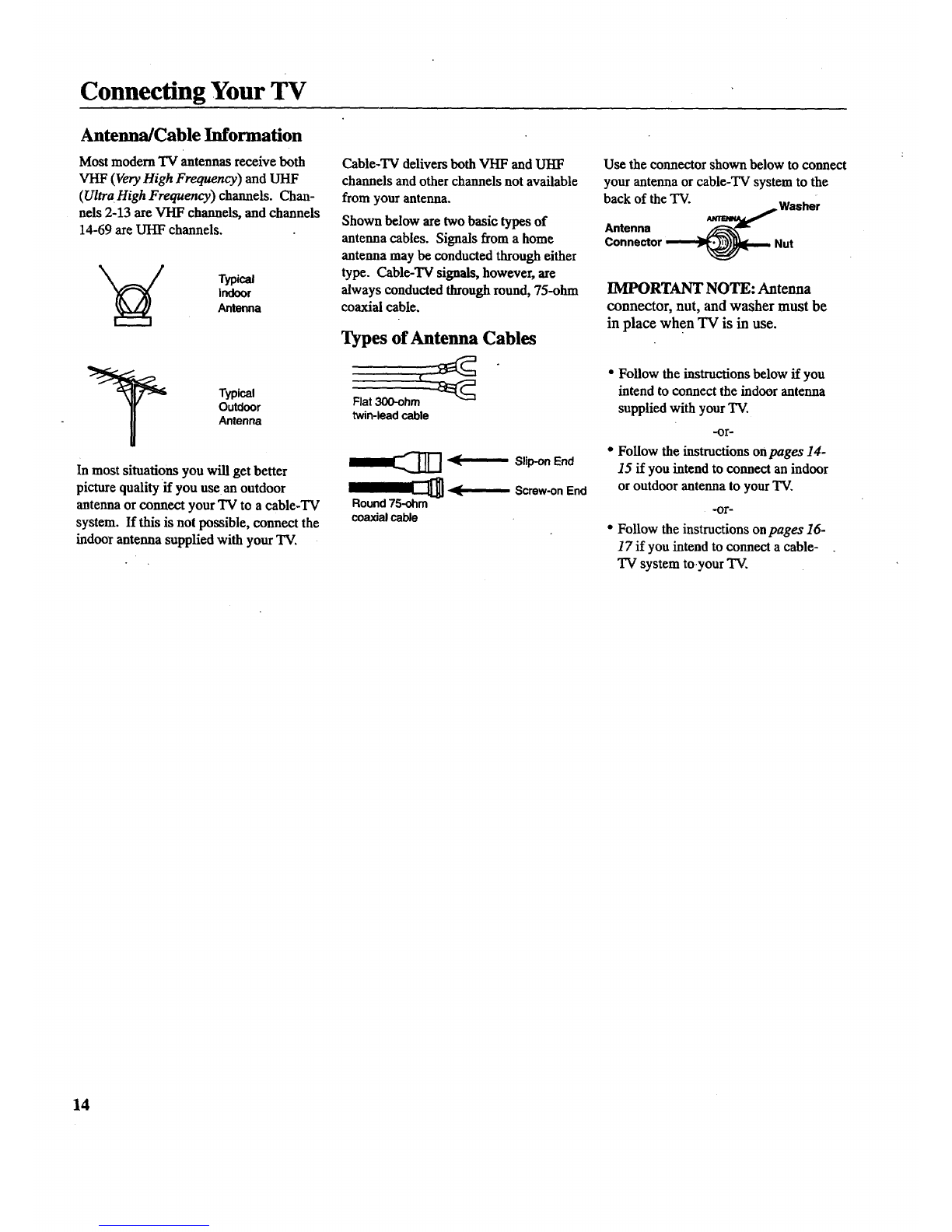

Antenna/Cable Information
Most modem TV antennas receive both
VHF (VeryHigh Frequency) and UHF
(UltraHigh Frequency) channels. Chan-
nels 2-13 areVHF channels, and channels
14-69 areUHF channels.
T_
Indoor
Antenna
Typical
Outdoor
Antenna
In most situations you will get better
picture quality if you use an outdoor
antenna or connect your TV to a cable-TV
system. If this is not possible, connect the
indoor antenna supplied with your "IV.
Cable-TV delivers both VHF and UHF
channels and other channels not available
from your antenna.
Shown below are two basic types of
antenna cables. Signals from a home
antenna may be conducted through either
type. Cable-TV signals, however, are
always conducted through round, 75-olma
coaxial cable,
Types of Antenna Cables
Flat300-ohm
twin-leadcable
Round75-ohm
coaxialcable
Slip-on End
Screw-onEnd
Use the connector shown below to connect
your antenna or cable-TV system to the
back of the TV. _Wastmr
_:nnenc_or=__N ut
IMPORTANT NOTE: Antenna
connector, nut, and washer must be
in place when TV is in use.
•Follow the instructions below if you
intend to connect the indoor antenna
supplied with your "IV.
-or-
•Follow the instructions on pages 14-
15 if you intend to connect an indoor
or outdoor antenna to your TV.
-Or-
"Follow the instructions onpages 16-
17 if you intend to connect a cable-
TV system to.your TV.
14

Connecting Your TV

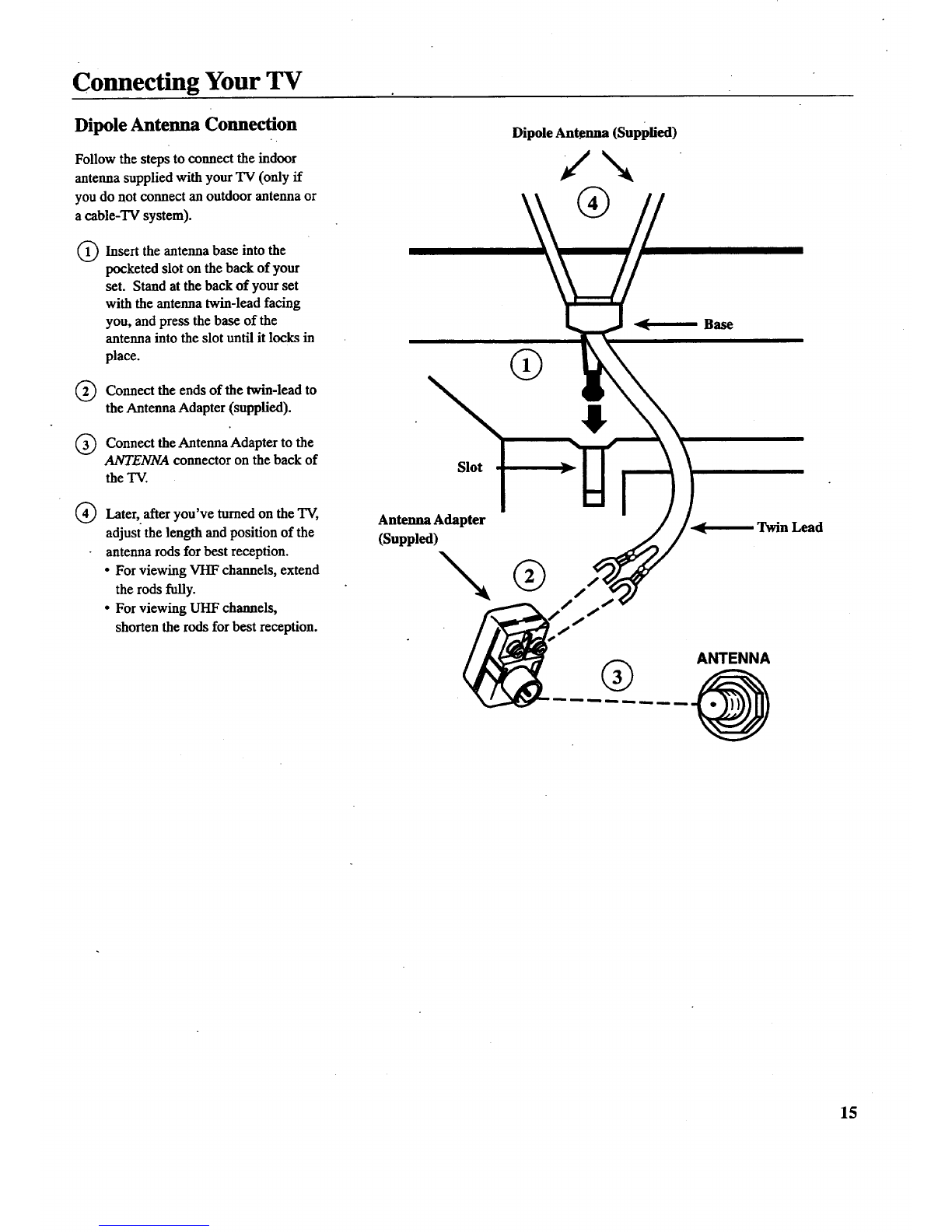

Dipole Antenna Connection
Follow the steps to connect the indoor
antenna supplied with your TV (only if
you do not connect an outdoor antenna or
a cable-TV system).
Dipole Antenna (Supplied)
OInsert the antenna base into the
pocketed slot on the back of your
set. Stand at the back of your set
with the antenna twin-lead facing
you, and press the base of the
antenna into the slot until it locks in
place.
(Z) Connect the ends of the twin-lead to
the Antenna Adapter (supplied).
®Connect the Antenna Adapter to the
ANTENNA connector on the back of
the TV. Slot
®Later, after you've turned on the "IV,
adjust the length and position of the
antenna rods for best reception.
•For viewing VHF channels, extend
the rods fully.
•For viewing UHF channels,
shorten the rods for best reception.
Antenna Adapter
(Suppled) Lead
15

Connecting Your TV
Home Antenna Connections

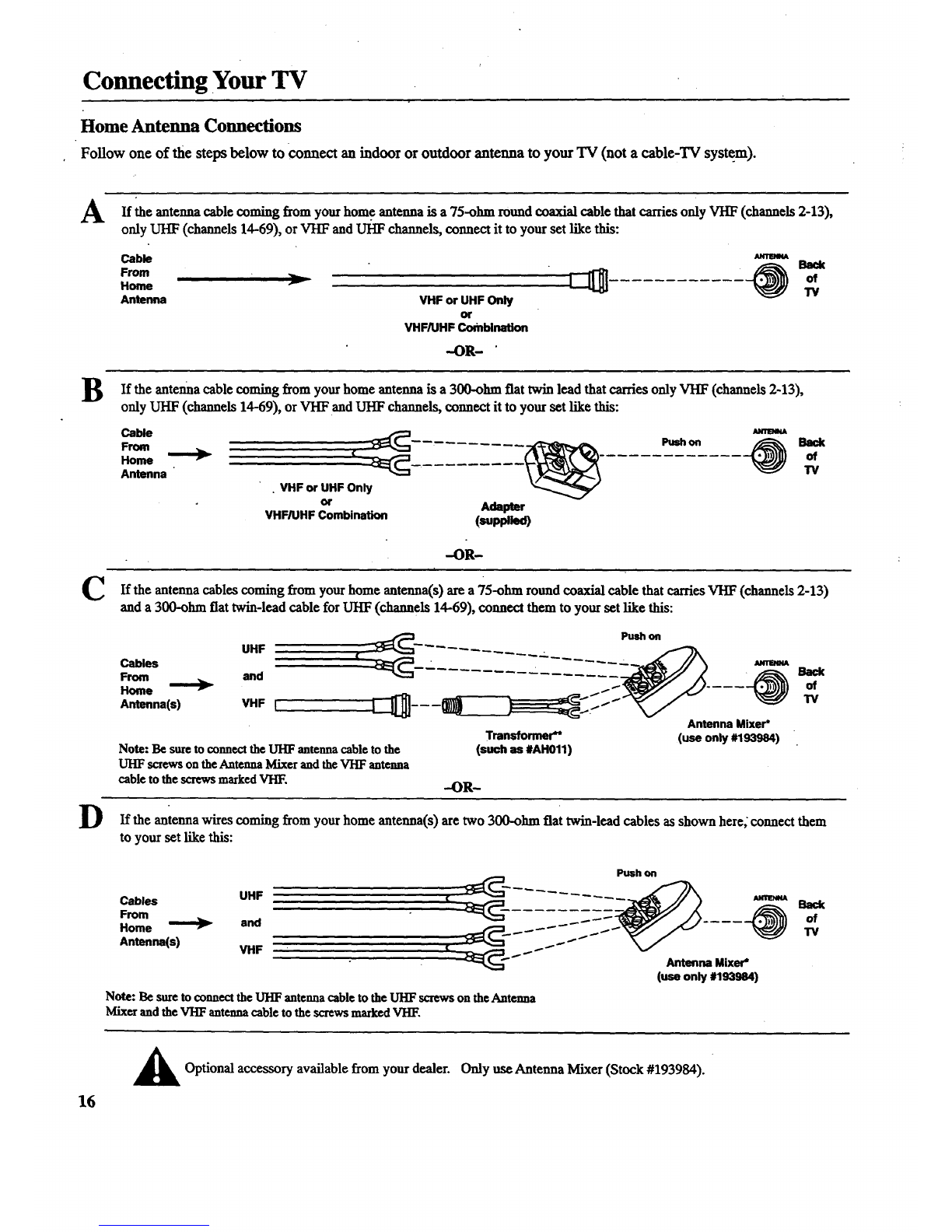

Follow oneof the stepsbelow to connectan indoororoutdoorantennato yourTV(notacable-TVsystem).
AIf the antenna cable coming from your home antenna is a 75-ohm round coaxial cable that carries only VHF (channels 2-13),
only UHF (channels 14-69), or VHF and UHF channels, connect it to your set like this:
Cable m
Home "_ TV
Antenna VHForUHFOnly
or
VHF/1JHF CombinaUon
-OR-
B If the antenna cable from home antenna is 300-ohm fiat twin lead that carries VHF
coming your aonly (channels2-13),
only UHF (channels 14-69), or VHF and UHF channels, connect itto your set like this:
C
D
From _. ------ ...... Push on Back
Home of
_TV
Antenna " . HF or UHF Only
or Adapter
VHF/UHF Combination (supplied)
-OR-
If the antenna cables coming from your home antenna(s) area75-ohm round coaxial cable that carriesVHF (channels 2-13)
and a 300-ohm flat twin-lead cable for UHF (channels 14-69), connect them to your set like this:
UHF
Cables
From and
Home
Antenna(s) VHF L
Note: Be sure to connect the UHF antenna cable to the
UHF screws on the Antenna Mixer and the VHF antenna
cable to the screws marked VHE
Antenna Mixer*
_l"mnsformer*" (use only #193984)
(such as #AH011)
-OR-
Ifthe antenna wires coming from your home antenna(s) are two 300-ohm fiat twin-lead cables as shown here, connect them
to your set like this:
Push on
Antenna(s)CablesH°meFr°mvHFUHFand . _iii}_._ _Antenna .....Mixer* _BackTVOf
(use only #193984)
Note: Be sureto connect the UHF antenna cable to the UHF screws on the Antenna
Mixer and the VHF antenna cable to the screws marked VIII:.
16 AOptional accessory available from your dealer. Only use Antenna Mixer (Stock #193984).

Connecting Your TV
Cable-TV Connections
Follow one of these steps to connect a cable-TV system to your TV instead of ahome.antenna. Since cable-TV systems
vary, you may wish to consult your local cable-TV company for additional information.
A Follow this diagram if your cable company does not requireacable box (no scrambled channels)-
m
Back
Incoming _ _ of
Cable ,'-- Ie.Ll:lJ TV
B Follow this diagram if your cable company requires a cable box that can be controlled by remote control:
m
Incoming _Back
Cable _of
"IV
OUT
r.Am.E IK_
Remember to tune your TV to the
outputchannel of the cable box (usually
2, 3, or4) when selecting channels via
thecable box.
C Follow this diagram if your cable company requires a cable box that cannot be controlled by remote control:
©
Incoming
Cable
CABLEBOX
Note: These optional accessories (2-way
spfitter_ A/B switch(_ and three coaxial
cables (.c)) are available as akit under
#AH041BL.*
The "A"position on the A/B switch lets you select all
non-scrambled channels by the TV's remote. The "B" position allows you to select scrambled channels
via the cable box. Remember to tune your TV to the
output channel of the cable box (usually 2, 3, or 4)
when selecting channels via the cable box.
* Optional accessories are available from must dealers or electronics supply stores.
17

Connecting Your TV
Cable-TV Operation

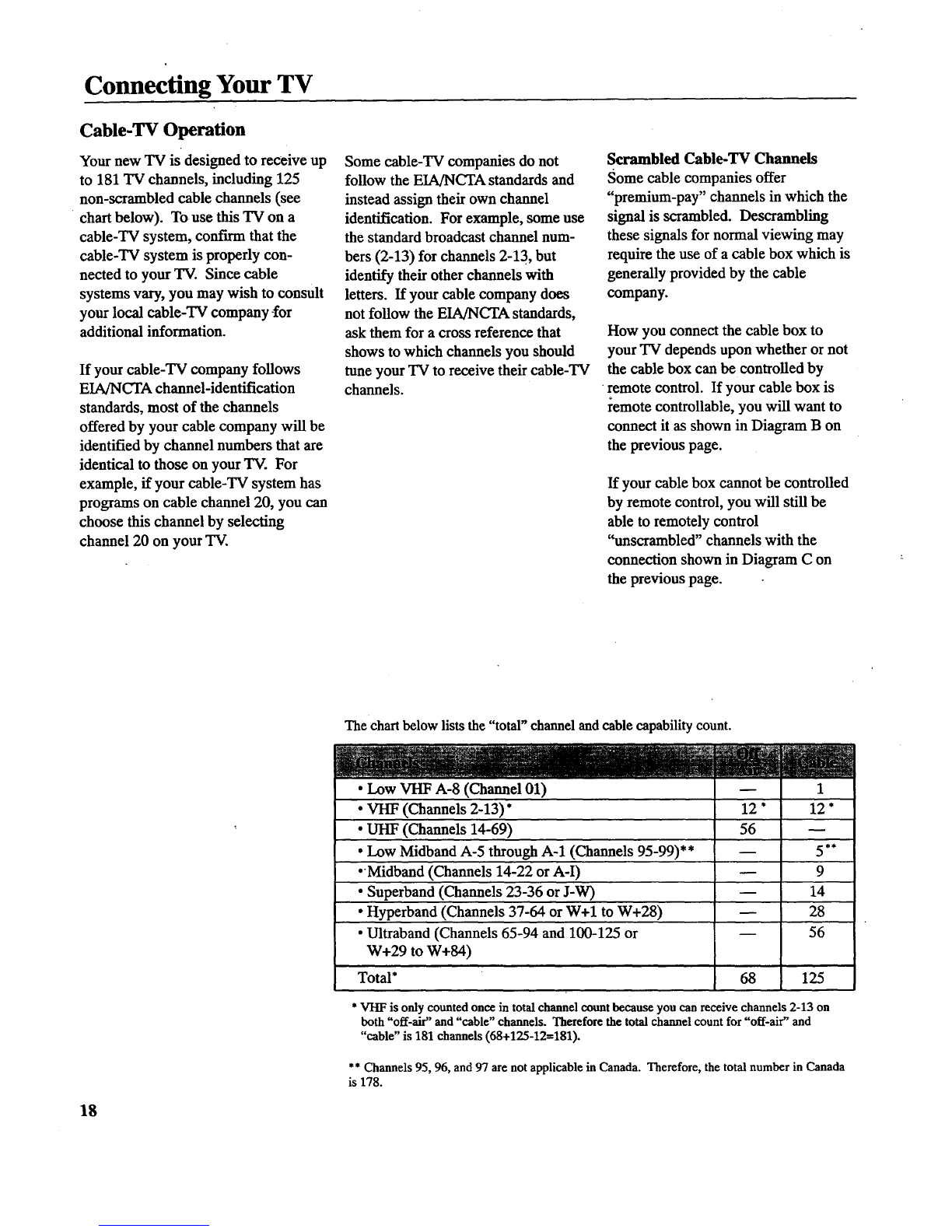

Your new TV is designed to receive up
to 181 TV channels, including 125
non-scrambled cable channels (see
chart below). To use this TV on a
cable-TV system, confirm that the
cable-TV system is properly con-
nected to your TV. Since cable
systems vary, you may wish to consult
your local eable-TV company-for
additional information.
If your cable-TV company follows
EIA/NCTA channel-identification
standards, most of the channels
offered by your cable company will be
identified by channel numbers that are
identical to those on your TV. For
example, if your cable-TV system has
programs on cable channel 20, you can
choose this channel by selecting
channel 20 on your TV.
Some cable-TV companies do not
follow the EIA/NCTA standards and
instead assign their own channel
identification. For example, some use
the standard broadcast channel num-
bers (2-13) for channels 2-13, but
identify their other channels with
letters. If your cable company does
not follow the EIA/NCTA standards,
ask them for a cross reference that
shows to which channels you should
tune your TV to receive their cable-TV
channels.
Scrambled Cable-TV Channels
Some cable companies offer
"premium-pay" channels in which the
signal is scrambled. Descrambling
these signals for normal viewing may
require the use of a cable box which is
generally provided by the cable
company.
How you connect the cable box to
your TV depends upon whether or not
the cable box can be controlled by
•remote control. If your cable box is
remote controllable, you will want to
connect it as shown in Diagram B on
the previous page.
If your cable box cannot be controlled
by remote control, you will still be
able to remotely control
"unscrambled" channels with the
connection shown in Diagram C on
the previous page.
The chart below lists the "total" channel and cable capability count.
18
•Low VHF A-8 (Channel 01)
•VHF (Channels 2-13) •
• UHF (Channels 14-69)
•Low Midband A-5 through A-1 (Channels 95-99)**
•Midband (Channels 14-22 or A-I)
• Superband (Channels 23-36 or J-W)
• Hyperband (Channels 37-64 or W+I to W+28)
• Ultraband (Channels 65-94 and 100-125 or
W+29 to W+84)
12 *
56
Total* 68 125
1
12"
5**
9
14
28
56
•VHF is only counted once in total channel count because you can receive channels 2-13 on
both "off-air" and "cable" channels. Therefore the total channel count for "off-air" and
"cable" is 181 channels (68+125-12=181).
** Channels 95, 96, and 97 are not applicable in Canada. Therefore, the total number in Canada
is 178.
