Real-El STAB SLIM-300 User manual

STAB SLIM-300
STAB SLIM-500
STAB SLIM-1000
STAB SLIM-2000
AUTOMATIC VOLTAGE
REGULATOR
OPERATION MANUAL

Technical support www.real-el.com
1
Operation Manual
STAB SLIM
ENG
2
2
2
3
3
3
4
5
5
5
6
CONTENTS
1. SAFETY PRECAUTIONS ...........................................................................
2. PACKAGE CONTENTS .............................................................................
3. SPECIAL FEATURES ...............................................................................
4. DESCRIPTION ......................................................................................
5. APPLICATION ........................................................................................
6. MOUNTING ..........................................................................................
7. INSTALLATION ......................................................................................
8. PAUSE FUNCTION
................................................................................
9. PROTECTION FROM HIGH INPUT VOLTAGE, OVERLOAD AND OVERHEAT .............
10. TROUBLESHOOTING .............................................................................
11. TECHNICAL SPECIFICATIONS ...................................................................
Congratulations on the purchase of TM REAL-EL automatic voltage regulator!
Please read this Operation Manual before using the unit and retain this Operation Manual in a safe
place for future reference.
COPYRIGHT
© 2016. ENEL GROUP OU.
This manual and information contained in it are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted efforts to make this Manual more exact, some discrepancies may occur. The
information in this Manual is given on “as is” terms. The author and the publisher do not bear any
liability to a person or an organization for loss or damage, which has arisen from the information con
tained in this Manual.
UNPACKING
Unpack the device carefully. Make sure there are no accessories left in the box. Check up the device
for damage; if the product was damaged during transportation, address the firm, which carried out
the delivery; if the product functions incorrectly, address the dealer at once.

Technical support: www.real-el.com
2
Automatic Voltage Regulator
ENG
STAB SLIM
Caution! There is high voltage inside on unsolated components,
which can result in electric shock.
1. SAFETY PRECAUTIONS
Before using this device, please read the safety rules carefully:
• It is strongly forbidden to open the cover of the device, there is high voltage inside. If some prob-
lems occur, please read the operation manual carefully and address an authorized service center.
For the list of authorized service centers please go to www.real-el.com.
• Do not let liquid get inside the device, it can cause short circuit or electric shock.
• In case there are signs of improper operation of the device (sparkling, unusual smells, etc.),
unplug the device from the mains immediately and address your nearest authorized service center.
• It is forbidden to connect the automatic voltage regulator to devices with power consumption
higher than its maximum output power. It can cause breakdown of the device.
• Do not let children operate the device.
It is strongly forbidden to operate the device in the following conditions:
–in dusty environment or environment containing highly inflammable gas;
–at temperature higher than 40 °C or lower than 0 °C;
–at humidity level higher than 90 %;
–in direct sunlight or next to heating elements;
–in vibration areas;
–outdoors.
• In case of fire use only powder fire extinguisher, as water can cause electric shock.
• The automatic voltage regulator should be installed in proximity to power supply, then it will be
easier to unplug the device if necessary.
2. PACKAGE CONTENTS
• Automatic voltage regulator – 1 pc
•Operation Manual – 1 pc
•Warranty card – 1 pc
3. SPECIAL FEATURES
• Slim metal case with possibility of fixing on the wall
• Protection of consumer-devices against high or low output voltage
• Protecting of consumer-devices from high-frequency and pulsed interference
• AVR protection from overload and short circuit
• Wide range of input voltages 140-260 V
• Extended precision of output voltage regulation
• CPU control
• Digital displays of input/output voltage
• Toroidal transformer with built-in restorable thermal protection
• PAUSE function (6 or 180 s) for safe voltage supply after power supply renewal

Technical support: www.real-el.com
3
ENG
Operation Manual
STAB SLIM
180 с
6 с
ÌÅÐÅÆÀ ÇÀÒÐÈÌÊÀ ÇÀÕÈÑÒ
ÂÕ²ÄÍÀ ÍÀÏÐÓÃÀ
ÂÈÕ²ÄÍÀ ÍÀÏÐÓÃÀ
4. DESCRIPTION
Digital display of the output voltage level
МЕРЕЖА (Power): LED (green) lights up when there is a input voltage
Digital display of the input voltage level
ЗАТРИМКА (Delaying): LED (yellow) blinks at working offdelay
ЗАХИСТ (Protection): LED (red) lights up in case of accident (high/
low voltage protection operation, transformer thermal overload))
Wall mounting holes
Output socket (the STAB SLIM-2000 has 2 output sockets)
Delay selection button (180 or 6 s): while pressing the delay time will be
180 s, when not pressed – 6 seconds
RESET/OFF: power switch with built-in fuse
Built-in power cord
5. APPLICATION
Automatic voltage regulator (AVR) is designed for providing various
equipment with high-quality stable electric power supply in conditions of
significant and continuous deviations of voltage and protecting your
equipment against high-voltage and pulsed interference.
6. MOUNTING
Important! Before mountint the regulator, make sure that all fixing
elements durable fastened to the wall!
• For securely wall mounting it is necessary to determine the type of wall material (wood, brick,
concrete, drywall, and etc.) for corresponding fastener selection.
• Mounting stabilizer location should be close to the wall outlet, considering the stabilizer power
cord length.
• Next, make a mounting fasteners (not included) to the wall, considering the wall mounting holes
location on the stabilizer rear panel (see Fig. 2).
• Then hang the stabilizer on fixing elements.

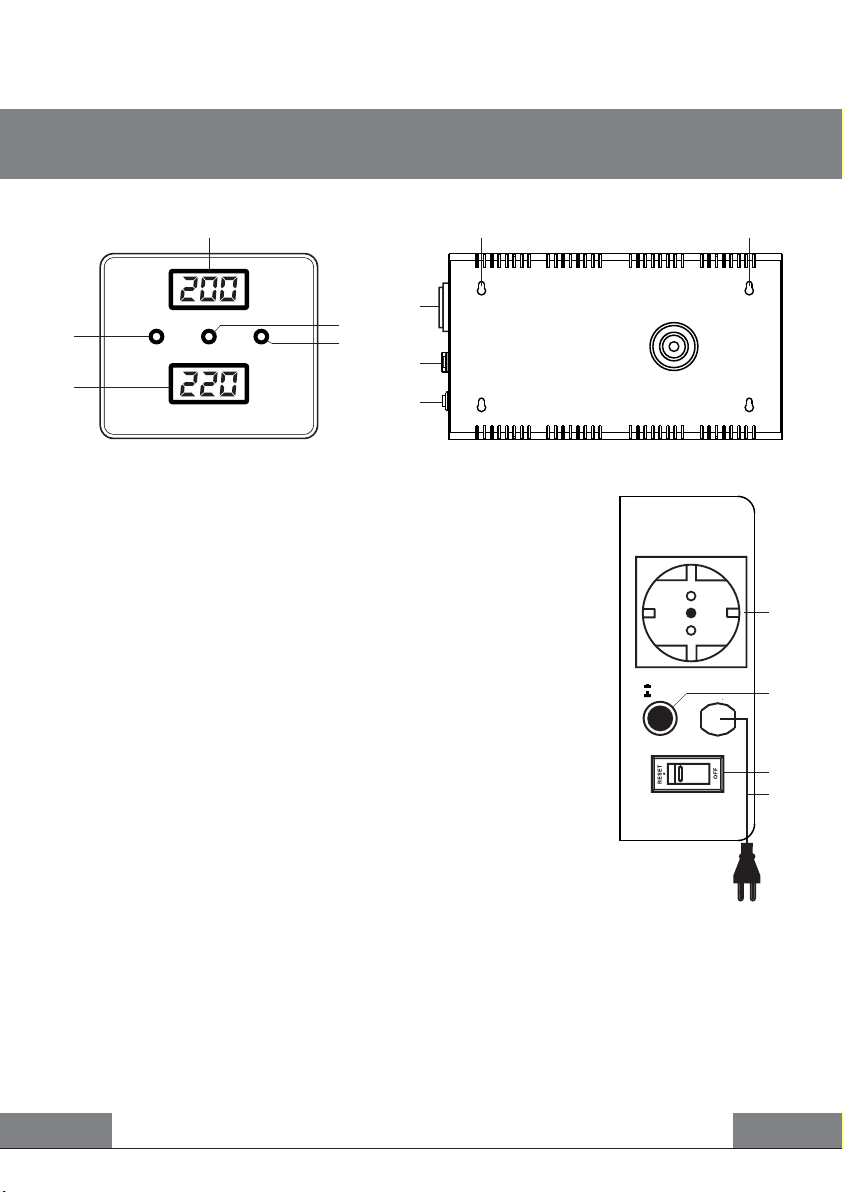

Fig. 2. Rear panel
Fig. 3. Side panel
Fig. 1. Control panel
ЗАТРИМКА
ВИХІДНА НАПРУГА
~220 В± 8%
~220 В/ 50 Гц














Technical support: www.real-el.com
4
ENG
Automatic Voltage Regulator
STAB SLIM
7. INSTALLATION
Attention! Before connecting the regulator, make sure that all consuming devices con-
nected to the regulator are switched off and the switch is in OFF position.
• Before installing the AVR, please make sure that total power of all consumers is lower than AVR
output power. Taking into account the starting loads and power factor of consumers, it is
necessary to apply power margin factor with the coefficient 1.2–1.5; but for such equipment as air
conditioners, fridges, etc., it should be 1.5–2.
Attention! When choosing an AVR, it is necessary to know that reduction of input voltage
increases an input current value, consequently, the maximum power of AVR is reduced
too! Such dependence is shown in the graph below:
Note. Adhere strictly to such dependence. If the condition stated above is not adhered to,
warranty servicing becomes void!
• Plug the stabilizer power cord in the wall outlet.
• Turn on stabilizer with switch (RESET position).
• If the AVR operates properly, green LED illuminates, and yellow LED will blink. At the same
time the digital indicator will show the input voltage. The total delay makes 6 or 180 s depending
on the "ЗАТРИМКА (Delaying)" button (Увімк./Вимк. (ON/ OFF)) position. After the delay time
yellow LED turns offand digital indicator will show the output voltage of the regulator. And only
after that you can turn on the connected devices, consumers.
• When the mains voltage exceeds the allowable rate (lower threshold is 140 V, upper threshold is
260 V) the red LED illuminates, the AVR disconnects the load automatically.
Attention! It is recommended to switch off the AVR and every connected consumer device
when the power supply is dropped.
140 150 160 170 180 187 200 210 220 230 240 250 260 2700
50
25
75
100
100 110 120 130
Output power, %
Input
voltage, V

Technical support: www.real-el.com
5
ENG
Operation Manual
STAB SLIM
Attention! If the AVR is not used for a long time, it is recommended to disconnect the AVR
and all consumer devices from the power supply network.
1. The switch is off.
2. There is no power in the
socket.
3. The AVR power switch 
has activated.
The AVR is out of order.
Input voltage is very unstable.
Input voltage is beyond
possible regulation range of
140 – 260 V.
8. PAUSE FUNCTION
• The Pause mode feature is designed to protect equipment in case of frequent drops of the mains
supply. This is particularly important for consumer appliances with electric motors or compressors.
After power supply has been recovered, the AVR switches on within 6 or 180 seconds, depending
on the "ЗАТРИМКА (Delaying)" button (Увімк./Вимк. (ON/ OFF)) position.
9. PROTECTION FUNCTION AGAINST HIGH AND LOW INPUT VOLTAGE, OVERLOAD AND
OVERHEAT
• The stabilizer is equipped with an circuit overvoltage and undervoltage protection. In the case of
mains voltage deviation over 260 V or below 140 V it turns offthe load automatically. At the same
time red LED illuminates. When the input voltage range returning to 140-260 V the stabilizer
automatically resumes operation.
• In case of overload or short-circuit AVR power switch will triggered. After elimination overload
cause or short circuits, press AVR power switch (RESET position), and stabilizer will resume
operation.
10. TROUBLESHOOTING
If none of the above methods can solve the problem, please seek professional advice at your
nearest service center. Never attempt to repair the product yourself.
1. Press the switch once again.
2. Make sure there is electric
power supply.
3. Disconnect part of the load
and switch on the AVR again.
If the fault is not eliminated,
please address to an authorized
service center.
The AVR is regulating output
voltage.
When input voltage is normalized,
the AVR tuns on automatically.
The AVR does not start.
The AVR is in operation mode,
but there is no output voltage.
The AVR often produces
clicking sound.
The AVR has disconnected
the load.
CauseProblem Solution

Technical support: www.real-el.com
6
ENG
Automatic Voltage Regulator
STAB SLIM
Total power, VА
Maximum output
power, W*
Fuse, А
Input voltage, V
Input frequency, Hz
Output voltage, V
Output frequency, Hz
Switch time, ms
Short circuit protection
Environment temperature, °C
Humidity, %
Dimensions, mm
Weight, kg
~140 – 260
50
~220 ± 8 %
50
≤10
fuse
0 – 40
up to 90
Models
Parameters
240 1600800
400
300 20001000
500
53 157
2,2 2,6 5,0
330 × 160 × 60 370×200×60
3,2
STAB
SLIM-300
STAB
SLIM-500
STAB
SLIM-2000
STAB
SLIM-1000
* The AVR output power is rated for the input voltage of 187 V (220 V – 15 %) (according to the
requirements of GOST
27699−88).
11 .
TECHNICAL SPECIFICATIONS
Notes:
• Technical specifications given in this table are supplemental information and cannot give
occasion to claims.
• Technical specifications and package contents are subject to change without notice due
to the improvement of TM REAL-EL production
.

Models: STAB SLIM-300, STAB SLIM-500, STAB SLIM-1000,
STAB SLIM-2000
Manufacturer: ENEL GROUP OU, Katusepapi tn 6, Lasnamäe linnaosa, Tallinn,
Harju maakond, 11412, Estonia. Made in China.
® Registered Trademark of ENEL GROUP OU. Estonia.
