RealFlame 26100244 User manual

!
Warning:
For outdoor use only
DO NOT use for cooking
DO NOT use under any
overhead enclosure
!
Warning:
If the information in this manual is not
followed exactly, a fire or explosion
may result causing property damage,
personal injury or loss of life.
Installation and service must be
performed by a qualified installer,
service agency or gas supplier.
Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage.
Read the installation, operation
and maintenance instructions
thoroughly before installing or
servicing this equipment.
Save these instructions for future
reference. If you are assembling
this unit for someone else, give
this manual to him or her to read
and save for future reference.
!
!
!
!
!
Designed and Engineered by
Real Flame. Manufactured as
Model # 11511N in China
USC DANGER
!
If you smell gas:
away from the appliance and
immediately call your gas supplier
!WARNING
Do not store or use gasoline or other
vicinity of this or any other appliance.
This unit is not for use with propane.
Use only with Natural Gas.
Lot: _______________
PO: _______________
Round Natural Gas Fire Table Owner’s Manual
Style # 26100244
For Technical Support call
1-800-654-1704

Table of Contents
Important Safety Information
Natural Gas Warnings
Parts List and Descriptions
Base Assembly Instructions
Pre-Use Instructions
Assembly Instructions
Connecting to Natural Gas Source
Lighting
Care and Cleaning
Gas Component Connection Checks
Troubleshooting
3
5
7
8
9
10
11
13
14
15
17
!
CARBON MONOXIDE HAZARD
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed
space such as a camper,tent,car or home.
DANGER
2

Important Safety Information
3
WARNING FIRE TABLE IS FOR OUTDOOR USE ONLY
đƫIMPORTANT NOTICE Read and understand all warnings and precautions prior to assembly and
use of your gas fire table. Improper installation, adjustment, alteration, service or maintenance
can cause injury or property damage.
đƫNOTE The use and installation of this product must conform to local codes. In the absence of
conform with local codes, or in the absence of local codes with the National Fuel Gas Code,
ANSI Z223.1/NFPA 54, or Internationial Fuel Gas Code.
local codes, use the National Fuel Gas Code, ANSI Z21.97. Reference to Natural Gas and Propane
Installation code CSA B149.1 or Propane Storage and Handling code B149.2.
đƫNOTE When an appliance is for connection to a fixed piping system, the installation must
đƫ
đƫ
WARNING
WARNING Installation and service must be preformed by a qualified installer, service agency or
gas supplier.
đƫWARNING
socket from the main gas supply when the fire table is not in use.
Always shut ogas supply at the shut-ovalve and disconnect the quick disconnect
Failure to follow the dangers, warning and cautions in this manual may result in
serious bodily injury or death, or in a fire or an explosion causing damage to property.
!
!
đMinimum Clearance from Unit to Combustible Materials
72”(182.9cm) from the top; 48” (121.9 cm) from all sides and back. Do not locate this fire table
under any overhead enclosure.
đƫ
đƫ
T
Always use this outdoor fire table on a hard, level non-combustible surface such a concrete,
rock or stone. An asphalt or blacktop surface may not be acceptable for this purpose. Surfaces
such as dirt and grass may prevent the unit from having proper ventilation.
his gas fire table and its individual shutovalve must be disconnected from the gas supply.
piping system during any pressure testing of that system at test pressures in excess of 1/2 of psi
(3.5 kPa). The appliance must be isolated from the gas supply piping system by closing its
individual manual shutovalve during any pressure testing of the gas supply piping system at
test pressures equal to or less than 1/2 psi (3.5 kPa).
đƫKeep these instructions for future reference. If you are assembling this unit for someone else,
give this manual to him or her to read and keep for future reference.
đƫThis gas fire tablemust be used ONLY outdoors in a well-ventilated space and shall NOT be used
inside a building, garage, or any other enclosed area.
đƫDO NOT use this outdoor gas fire table for indoor heating. TOXIC carbon monoxide fum es can
accumulate and cause asphyxiation.
đƫNEVER LEAVE this gas fire time unattended when in use.
đƫChildren should be alerted to the hazards of high surface temperatures and kept at a safe
distance while fire table is in use.
WARNING NOT FOR USE WITH LIQUID PROPANE
IF YOU SMELL GAS:
đƫShut o gas supply to the fire table.
đƫExtinguish any open flame.
đƫo not try lighting any appliance.
đƫDo not touch any electrical switch; do not use any phone in your building.
đƫImmediately call your gas supplier from a neighbor’s phone.
đƫFollow the gas supplier’s instructions.
đƫIf you cannot reach your gas supplier, call the fire department.

Important Safety Information (Continued)
4
đƫ+ƫ*+0ƫ/0+.!ƫ+.ƫ1/!ƫ#/+(%*!ƫ+.ƫ+0$!.ƫý))(!ƫ2,+./ƫ* ƫ(%-uids within 25 feet (7.62m) of this
or any other appliance.
đƫ+ƫ*+0ƫ/0+.!ƫ*5ƫ+)1/0%(!ƫ)0!.%(/ƫ%*ƫ0$!ƫ/!ƫ!*(+/1.!ċ
đƫƫƫ1/!ƫ%*ƫ*ƫ!4,(+/%2!ƫ0)+/,$!.!ċƫ!!,ƫ#/ƫü.!ƫ0(!ƫ.!a clear and free from
combustible materials, gasoline and other flammable vapors and liquids.
đƫ$%/ƫ+10 ++.ƫü.!ƫ0(!ƫ%/ƫƫ0+ƫ!ƫ+,!.0! ƫ5ƫ$%( .!*ċƫ+1ng children should be closely
supervised when in the vicinity of this outdoor fire table.
đƫ$%/ƫ+10 ++.ƫü.!ƫ0(!ƫ%/ƫ*+0ƫ0+ƫ!ƫ%*/0((! ƫ+.ƫ1/! ƫ%*ƫ+.ƫ+n recreation vehicles and/or boats.
đƫ(35/ƫ1/!ƫ%*ƫ+. *!ƫ3%0$ƫ((ƫ,,(%(!ƫ(+(Čƫ/00!ƫ* national codes. Contact your local
fire department for details on outdoor burning.
đƫ/!ƫ0$!ƫ/)!ƫ,.!10%+*/ƫ5+1ƫ3+1( ƫ3%0$ƫ*5ƫ+,!*ƫü.!ƫ3$!*ƫ1/%ng this outdoor fire table.
đƫƫƫ1.*ƫ/+(% ƫ"1!(/ƫ/1$ƫ/čƫ3++ Čƫ$.+(ƫ.%-1!00!/Čƫ(ump charcoal, manufactured logs,
driftwood, trash, leaves, paper, cardboard, plywood, painted or stained or pressure treated wood
in this outdoor fire table.
đƫƫƫ1/!ƫ0$%/ƫ+10 ++.ƫü.!ƫ0(!ƫ1*0%(ƫ%0ƫ%/ƫƫ//!mbled and all parts are securely
fastened and tightened.
đƫƫƫ1/!ƫ0$%/ƫ+10 ++.ƫü.!ƫ0(!ƫ*!.ƫ10+)+%(!/Čƫ0.1'/Čƫ2ans or recreational vehicles.
đƫƫƫ1/!ƫ0$%/ƫ+10 ++.ƫü.!ƫ0(!ƫ1* !.ƫ*5ƫ+2!.$! ƫ/0.101.
đƫ$!ƫ1/!ƫ+"ƫ(+$+(Čƫ,.!/.%,0%+*ƫ+.ƫ*+*ġ,.!/.%,0%+*ƫ .1#/ƫ)y impair an individual’s ability to
properly assemble or safely operate this outdoor fire table.
e or near any unprotected
combustible constructions. Avoid using near or under overhanging trees and shrubs.
đƫƫƫ1/!ƫ0$%/ƫ+10 ++.ƫü.!ƫ0(!ƫ%"ƫ*5ƫ,.0ƫ$/ƫ!!*ƫ1* !.ƫwater. Immediately call a qualified
service technician to inspect the fire table and to replace any part or control system and any gas
control which has been under water.
đƫƫOT wear flammable or loose clothing when operating this outdoor fire table.
đƫƫOT use in windy conditions.
đƫKeep all electrical cords away from a hot outdoor fire table.
đƫertain areas of this outdoor fire table when in use will become too hot to touch. Do not touch
hot surfaces until the unit has cooled unless you are wearing protective gear such as insulated
pot holders or heat resistant gloves or mittens to avoid burns.
đƫƫOT hang or place clothing or other flammable materials on or near the gas fire table.
đƫAny guard or other protective device removed for servicing the fire table must be replaced prior
to operating the fire table.
đƫƫOT attempt to move or store this outdoor fire table until all parts are cool.
đƫƫOT lean over this outdoor fire table when lighting or when in use.
đƫse only the Natural Gas hose and quick disconnect assembly provided. The replacement
Natural Gas hose and quick disconnect assembly shall be that specified by the manufacturer.
đƫƫƫattempt to disconnect Natural Gas hose or quick disconnect socket from the main gas
supply or any gas fitting while the outdoor fire table is in use.
đƫAlways shut ogas supply at the shut-ovalve and disconnect the quick disconnect socket
from the main gas supply when the fire table is not in use
đƫƫOT sit on the fire table when the unit is in operation.
đƫƫƫ0hrow anything onto the fire when the unit is in operation.
đƫava rocks are very hot; please keep children and pets at a safe distance.
đƫ0ƫis essential to keep the outdoor fire table valve compartment, burners, and circulating air
passages clean. Inspect outdoor fire table before each use.
đPrior to each fire table operation, check the hose for evidence of excessive abrasion or wear by
looking through the visual check hole. If the hose is damaged, cracked or cut, it must be replaced
before using the gas fire table. The hose assembly can only be replaced with a hose assembly
specified by the manufacturer. Please call Real Flame at 1-800-654-1704.

5
NATURAL GAS DANGERS AND WARNINGS
đ!"+.!ƫ!$ƫ1/!Čƫ.!)+2!ƫ0$!ƫ(2ƫ.+'/ċƫ4)%*!ƫ0$!ƫ1.*!.ƫ* ƫ%0/ƫ+),+*!*0/ċƫ"ƫ %.05Čƫ(!*ƫ
with a soft brush and soapy water solution. Also examine the area around the burner. Any dirt or
foreign material, such as spider webs or nests in this area should be removed. If it is evident that
the burner is damaged, the fire table must not be used. The burner assembly can not be
replaced. Please contact Real Flame at 1-800-654-1704 for technical support.
đƫ(!ƫ0$!ƫ$+/!ƫ+10ƫ+"ƫ0$!ƫ,0$35/ƫ3$!.!ƫ,!+,(!ƫ)5ƫ0.%,ƫ+2!.ƫ%0ċƫ+ƫ*+0ƫ,(!ƫ0$!ƫ$+/!ƫ%*ƫ.!/ƫ
where it may be subjected to accidental damage.
DANGER
This outdoor fire table is for use with Natural Gas only. The conversion to or attempted use
of Liquid Propane in this outdoor fire table is dangerous and could result in serious personal
injury, or property damage.
čƫ*5ƫ(0!.0%+*ƫ+"ƫ0$!ƫ+10 ++.ƫü.!ƫ0(!ƫ0$0ƫ%/ƫ*+0ƫ/,!%ü((5ƫ %.!0! ƫ
in the operations manual will void manufacturer warranty.
Natural Gas is flammable and hazardous if handled improperly. Become aware of the
characteristics before using any natural gas product.
Natural Gas Characteristics
đƫ())(!Čƫ!4,(+/%2!ƫ1* !.ƫ,.!//1.!Čƫ(%#$0!.ƫ0$*ƫ%.ƫ* ƫ/!00(!/ƫ%*ƫ,++(/ƫ%*ƫ$%#$ƫ.!/ċ
đƫn its natural state, Natural Gas has no odor. For your safety, an odorant has been added.
đƫ+*00ƫ3%0$ƫ01.(ƫ/ƫ+1( ƫ1.*ƫ0$!ƫ/'%*ċ
đƫ01.(ƫ/ƫ%/ƫ!40.!)!(5ƫý))(!ƫ* ƫ$6. +1/ƫ%"ƫ$* (! ƫ%),.+,!.(5ċ
Chemicals known to the state of California to cause cancer, birth defects, or other
reproductive harm are created by the combustion of Natural Gas.
Your Natural Gas fire pit is designed to operate on Natural Gas only, at a pressure of
seven inches water column (7" W.C.) Check with your gas utility for local gas pressure,
because in some areas Natural Gas pressure varies. Also, check with your gas company
or with local building codes for instructions to install gas supply line, or call a licensed
and qualified installer.
It is recommended that an ON/OFF manual shut–ovalve be installed at the gas supply
/+1.!Čƫ+10 ++./čƫ"0!.ƫ0$!ƫ#/ƫ(%*!ƫ!4%0/ƫ+10/% !ƫ3((ƫ* ƫ!"+.!ƫ-1%'ƫ %/+**!0ƫ+.ƫ
!"+.!ƫ#/ƫ/1,,(5ƫ(%*!ƫ!*0!./ƫ#.+1* Čƫ%* ++./čƫ%*ƫ0$!ƫ.*$ƫ#/ƫ(%*!ƫ%*ƫ*ƫ!//%(!ƫ
location near the gas supply line.
Pipe sealing compound or pipe thread tape of the type resistant to the action of Natural
Gas must be used on all male pipe threads. Apply compound or tape to at least the first
three to four threads when making a connection.
!
Important Safety Information (Continued)

Caution:
During any high pressure testing of the gas supply piping system at test pressures in excess
from the gas supply piping system.
(
NATURAL GAS DANGERS AND WARNINGS (Continued)
Never store or use gasoline or other volatile substance in the vicinity of this fire table.
Natural Gas Connection
of the type resistant to the action of Natural Gas on all male pipe threads. Connect the end,
supply.
The outdoor fire table must be isolated from the gas supply piping system by closing the
least equal to or less than 1/2 psi (3.5 kPa).
!
Warning:
Burner valves are pre-tested at the factory to operate on Natural Gas. Do not attempt to
convert or change.
!
6
(i) Children and adults should be alerted to the hazards of high surface temperatures and should
(ii) Young children should be carefully supervised when they are in the area of the appliance.
(iii) Clothing or other flammable materials should not be hung from the appliance, or placed on
(iv) Any guard or other protective device removed for servicing the appliance shall be replaced
(v) Installation and repair should be done by a qualified service person. The appliance should be
stay away to avoid burns or clothing ignition.
or near the appliance.
prior to operating the appliance.
inspected before use and at least annually by a qualified service person. More frequent
cleaning may be required as necessary. It is imperative that the control compartment, burners,
and circulating air passageways of the appliance are kept clean.
Lava Rock Warning:
1. Do not light or use this firetable if lava rocks are wet. Ensure lava rocks are completely dry
before lighting. Intense heat can cause wet lava rocks to explode and they could hit someone
causing injury.
2. Please keep away from the firetable for at least 20 minutes during initial start-up as lava
rocks could retain some moisture from manufacturing and shipping.

7
1
2
3
4
56
Parts List
1Fire Table 1
Natural Gas Hose 056NG010 1
and Quick Disconnect
Feet 05600006 4
Lava Rock 05603408 28 kgs (4 boxes)
AAA Battery 00500000 1
Vinyl Cover 1
2
3
4
5
6

Assembly Instructions
1
8
ă
ă
ă
ă
The fire table is very heavy, make sure that another person is
available to help you when moving it or flipping it over.

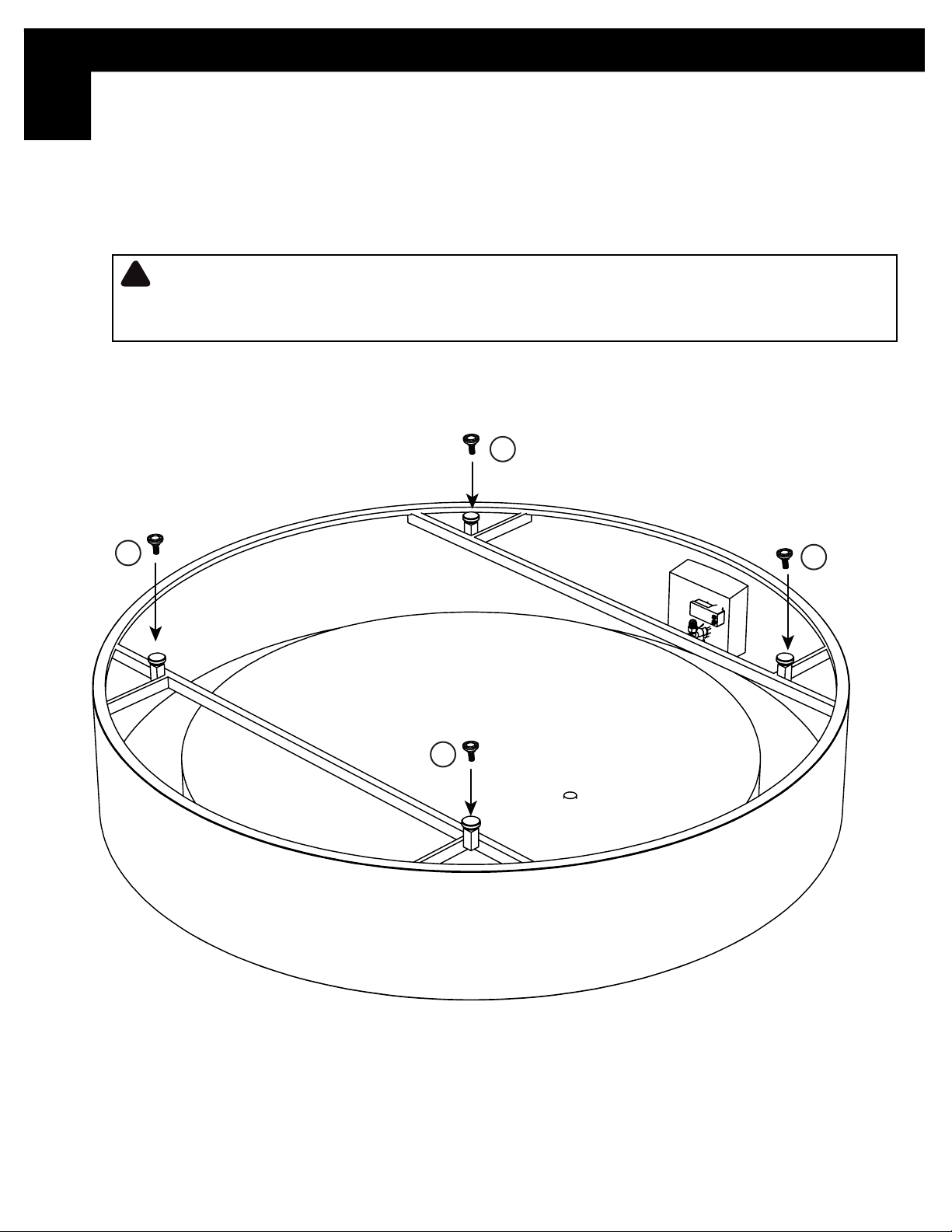

With the fire table upside down, install the four feet (ă) by
screwing them into the holes located in the corners of the unit.
!WARNING
Flip the table over with the help of another person. Do not attempt to turn the table
upright by yourself as injury to yourself or damage to the table may occur.

ą
2
Assembly Instructions
9
Igniter box

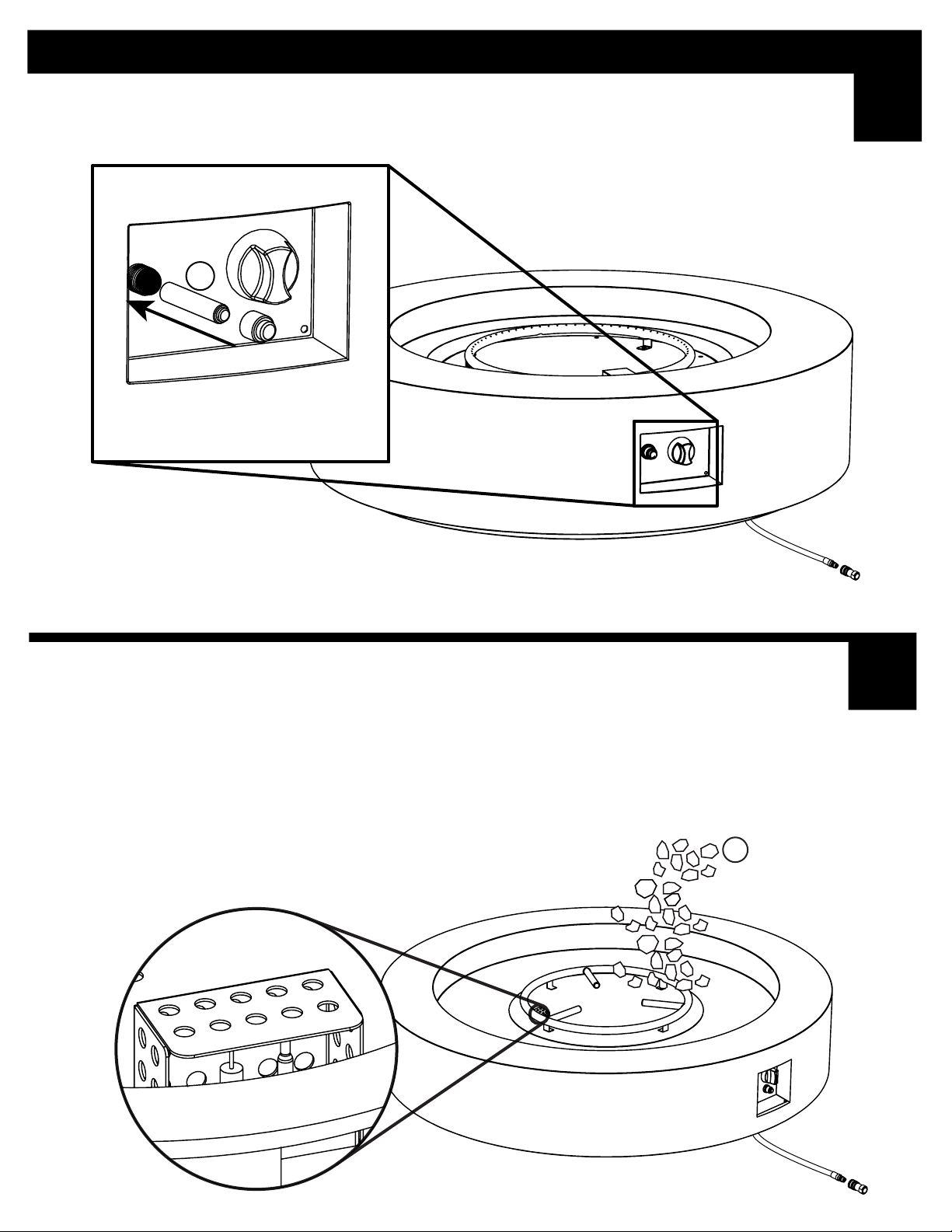

Remove the blue protective film from stainless burn tray.
Place lava rock by hand. DO NOT dump bag out into tray to avoid clogging the burner
with dust. Position the lava rock (28kgs) across the bowl to a level about 1” above the
0+,ƫ+"ƫ0$!ƫ1.*!.ċƫ'!ƫ/1.!ƫ0$0ƫ5+1ƫ +ƫ*+0ƫ(+'ƫ0$!ƫ%#*%0!.ƫ+4ƫ3%0$ƫ(2ƫ.+'ƫ0+ƫ
ensure proper ignition.
3
+
-
Ć
Install the AAA battery as shown in the diagram below.

10
Connecting your fire table to the Natural Gas source:
recommended by the National Fuel Gas Code. Socket connection must be made
A professionally installed shut-ovalve between the supply piping and the socket is
outdoors.
4

11
5
6
Connecting the Socket
Coat the gas supply pipe nipple with gas
resistant pipe compound or approved teflon tape.
Screw socket onto gas supply pipe (house
gas source) as shown to the right, and wrench
tighten.
The quick disconnect socket should never be
connected to the fire table. Direction of gas flow is
indicated on the socket.
Using the Quick Connect Socket
Pull back the sleeve on the quick disconnect
socket and insert the unattached end of the
gas hose into the socket. Release the sleeve
and continue pushing the hose into the socket
until the sleeve snaps into the locked
position.
After making all connections, perform a leak
test as described on page 9 of this manual.

12
Pre-Use Instructions
7

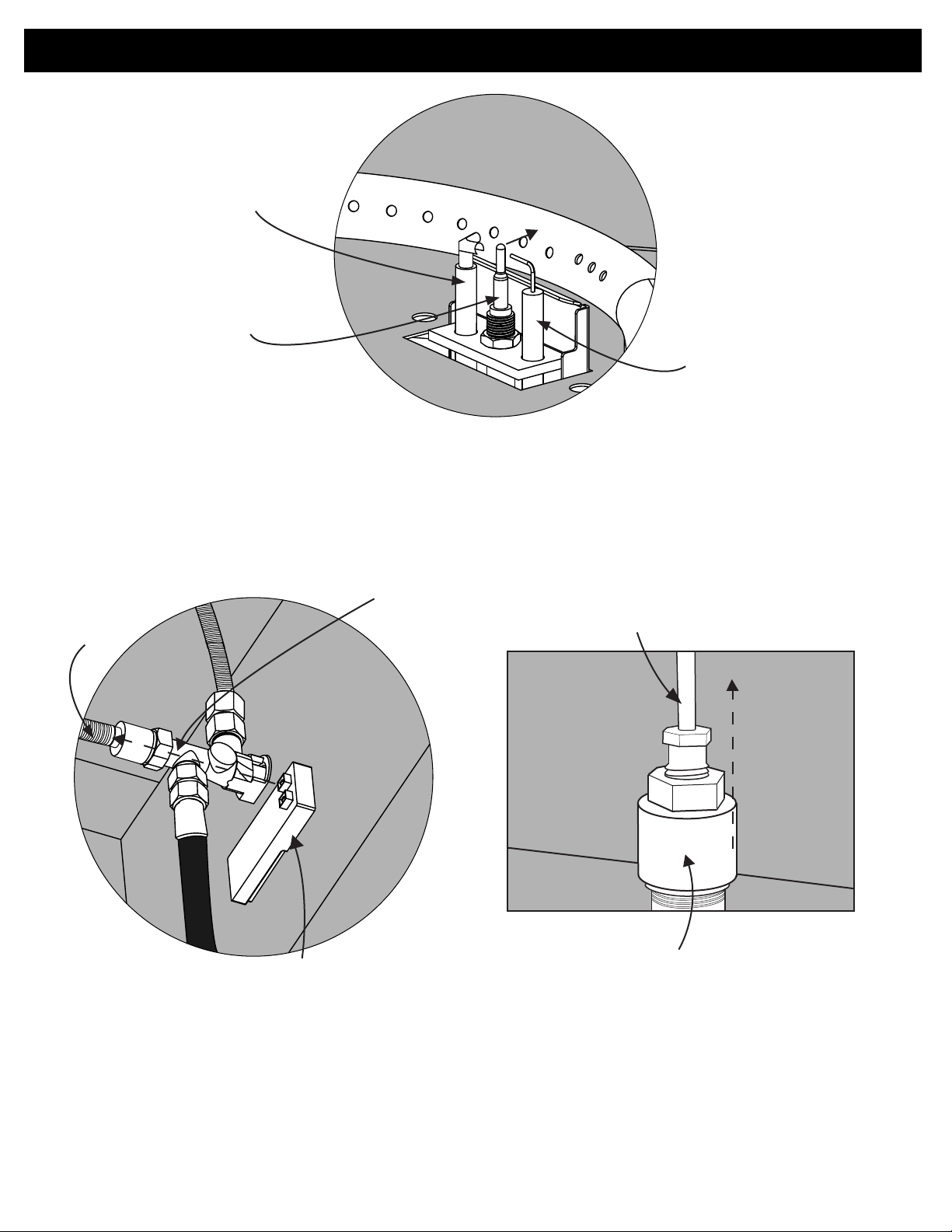

Check for leaks at these locations
Prior to each gas fire tableoperation, check the hose and
valve for evidence of excessive abrasion or wear.
CHECKING FOR LEAKS
WARNING Before using this outdoor fire table, make
sure you have read, understand and are following all
information provided in the Important Safety Information
section of this manual. Failure to follow those instructions
can cause death, serious injury or property damage.
BURNER CONNECTIONS
Warning: Failure to inspect this connection or follow
these instructions could cause a fire or an explosion,
which can cause death, serious bodily injury, or damage
to property.
Please refer to diagram for proper installation.
If the burner pipe does not rest flush to the orifice please
contact Real Flame at 1-800-654-1704 for assistance.

'!ƫƫ(!'ƫ$!'ƫ/+(10%+*ƫ5ƫ)%4%*#ƫāƫ,.0ƫ %/$3/$%*#ƫ
soap with 3 parts water in a spray bottle.
ke sure control knob is “OFF.” Then, turn Natural Gas
on at its source.
Spray leak solution on valve connections paying particular
attention to the areas indicated by arrows.
If an , reconnect and
re-test. If you continue to see bubbles after
several attempts, disconnect Natural Gas source and
contact Real Flame® at 1-800-654-1704 for assistance.
If no bubbles appear after one minute turn source OFF,
wipe away solution and proceed.
ke sure the Natural Gas hose and quick disconnect
socket connections are securely fastened to the burner
and the gas supply. If your unit was assembled for you,
visually check the connection between the burner pipe
and orificeċƫke sure the burner pipe fits over the
orifice.
!
!
Orice is located in this connection
Burner Pipe

8
Lighting Instructions
13
PILOT
Control Knob
PUSH
IN
1. Read and understand all operating instructions before lighting.
2. Burner control knob must be in the “OFF” position.
3. Connect Natural Gas source (see above pages).
4. Open the Natural Gas supply to the unit.
5. Push and hold igniter button to create sparks.
6. While holding the igniter button with one hand, use your other hand to
push and turn the control knob to the “Pilot” position to light the pilot
flame. If ignition does NOT immediately take place on pilot, turn the
burner control knob to "OFF", wait 5 minutes for gas to clear and repeat
the lighting procedure. If pilot still will not light, refer to the Troubleshooting Section.
7. After ignition, release the igniter button and keep Burner Control Knob pressed in for 15-30
seconds after ignition.
8. Release burner control knob. Pilot flame will remain lit. If not, return to Step 1.
Using the Igniter
WARNING
When using this method to light
your fire table use heat resistant
gloves and follow the step by step
instructions. Failure to do so could
result in severe injury.
9. *!ƫ0$!ƫ,%(+0ƫ%/ƫ(%0Čƫ01.*ƫ0$!ƫ1.*!.ƫ+*0.+(ƫ'*+ƫ0+ƫŎ+3Ŏƫ,+/%0%+*ċƫ%*ƫ1.*!.ƫ3%((ƫ(%#$0ƫ
immediately. If not, turn control knob to the “O” position and turn gas oat the source,
wait 5 minutes until gas has cleared and repeat
lighting procedure. If main burner still will not light,
refer to the Troubleshooting Section.
WARNING If burner flame goes out during operation,
immediately turn the control knob “OFF” and let the gas
clear a minimum of 5 minutes before attempting to re-light
the fireplace.
!
!
WARNING
!Do not wear loose or flammable clothing
while lighting fire table.
Using a Long Match or Lighter
1. Prior to lighting, use a shovel to move the lava rocks for access to the pilot.
5. Once the pilot is lit, turn the burner control knob to
ƫƫƫƫŎ+3Ŏƫ,+/%0%+*ċƫ%*ƫ1.*!.ƫ3%((ƫ(%#$0ƫ%))! %0!(5ċƫ
If not, turn control knob to the “O” position and turn
gas oat the source, wait 5 minutes until gas has
cleared and repeat lighting procedure. If main burner
still will not light, refer to the Troubleshooting Section.
Wearing heat resistant gloves, position the burning long match or burning butane
lighter near the pilot. DO NOT lean over the fire table while lighting!
3. Turn control knob counterclockwise to “Pilot” to light the pilot flame. If ignition
does NOT immediately take place on pilot, turn the burner control knob to "OFF",
wait 5 minutes for gas to clear and repeat the lighting procedure. If pilot still will not
light, refer to the Troubleshooting Section.
4. Remove long match/long butane lighter.
7. Adjust the flame to the desired height with the control knob.
Note: For initial start or after any cylinder change, continue to push the Control Knob IN
for 2 minutes to purge air from gas lines before proceeding.
10. Adjust the flame to the desired height with the
control knob
6. After lighting, use a shovel and heat resistant gloves to carefully move the lava rocks back
into their proper position.

Care and Cleaning
Inspecting
product life.
WARNING
1. Check the burner to make sure it is securely in place.
2. Check the
WARNING DO NOT tamper with this appliance. This is DANGEROUS and will void the warranty. Any part found to
Real Flame at: 1-800-654-1704. For replacement parts contact Restoration Hardware at: 1-800-816-0901.
venturi tube to make sure it is clear and free of insects, spider nests and other debris.
3. Check all gas connections for leaks.
4. Check ignition system to insure proper sparking.
5. Check components for any signs of damage, rust or excessive wear.
This outdoor re table should be cleaned regularly to ensure safe use and extend product life.
Note: After repeated use, a slight discoloration of the nishes may occur.
ARNING
cool to the touch.
General Care and Cleaning
W
DO NOT use oven cleaner or abrasive cleaners as they will damage this product.
1. Wipe exterior surfaces with a mild dishwashing soap or baking soda, then rinse clean with water.
Storage:
WARNING
1.
3. ALWAYS cover your outdoor re table when not in use. The cover will protect the mechanical components from
dirt and debris, prevent water from pooling on the surface of the ber cast concrete and will prevent fading and
discoloration of the nish.
4. Store in a cool, dry location away from children and pets.
14
Table
Stainless Steel
1. For general cleaning usewarm water, soap, ammonia, or detergent apply with a soft cloth or sponge.
2.
3. For stubborn stains and discoloration use 3M Stainless Steel Cleaner and Polish, Allchem Concentrated Cleaner,Samae,
Twinkle, Cameo Copper Cleaner, Liquid Nu Steel, Copper’s or Revere Stainless Steel Cleaner, apply usinga soft cloth in
the same direction of the polish lines.*
4.
wiping should be done in the direction of polish lines.
DO NOT USE SOLVENTS while in closed spaces or while smoking.
* Use of proprietary names is intended only to indicatea type of cleaner and does not constitute an endorsement. Omission of any proprietary cleanser does not
imply its inadequacy. All products should be used in strict accordance with instructions on package.
!
!
!
!

Gas Component Connection Checks
16
āċƫke sure the electrode wire is correctly connected.
Both electrode wires must be fully inserted into the igniter box.
Ăċƫke sure that the pilot housing is unobstructed.
Clear any debris on top of the pilot housing and make sure there is no debris
between the igniter pin, thermocouple and the burner tube.
If the burner will not light or stay lit, please perform the following checks.
CORRECT INCORRECT
Pilot Housing
Burner
Tube
Do not block
opening

16
Gas Component Connection Checks (Cont.)
ăċƫke sure that the igniter pin and thermocouple are correctly positioned.
- The igniter pin should be pointed straight to the thermocouple.
- The thermocouple should be positioned 5mm away from the burner tube.
ąċƫke sure that the thermocouple wire is correctly positioned. The
thermocouple wire should be in line with the valve.
Igniter Box
Thermocouple Wire
Thermocouple
Wire
Wire should
be in line
with valve
Valve
Valve
5mm
Thermocouple
Igniter Pin
Pilot Light

For Technical Support Contact Real Flame at: 1-800-654-1704
Restoration Hardware Customer Service: 1-800-816-0901
Problem: Burner will not light using igniter
Possible Cause 1: Electrode and burners are wet.
-Wipe dry with cloth.
.kcarctaskraps-nekorbrodekcarcniPret ingI:3esuaCelbissoP
-Call Real Flame at 1-800-654-1704 for technical support.
Possible Cause 2: Igniter battery is dead.
-Check or replace the AAA battery in the igniter.
Possible Cause 4: Wire loose or disconnected.
-Reference page 15, step 1, reconnect wire. Call Real Flame at 1-800-654-1704.
Possible Cause 5: Wire is shorting (sparking) between igniter and electrode.
-Call Real Flame at 1-800-654-1704 for support.
.elpuocomrehttagnitnioptonniPretingI:6esuaCelbissoP
-Reference page 16, turn electrode to point at the thermocouple.
Possible Cause 7: Bad Igniter
-Call Real Flame at
1-800-654-1704 for
support.
Possible Cause 1: No Gas Flow.
-Check if Natural Gas supply is stopped. If it is not stopped, refer to
ė.+(!)čƫ1 !*ƫ .+,ƫ%*ƫ#/ƫý+3Ęƫ+*ƫ0$!ƫ"+((+3%*#ƫ,#!ċ
Possible Cause 2: Quick Connect not fully engaged.
-Disconnect the quick connect at the gas supply and reconnect to ensure a
proper connection is made.
Possible Cause 3: Obstruction of gas flow.
- Check for bent or kinked hose.
- Clean the venturi or pilot housing.
Possible Cause 4: Spider webs or insect nest in the venturi.
Possible Cause 5: Burner ports clogged or blocked.
-Reference “Pr+(!)čƫ.regular flame pattern” on the following page. Clean the
burner ports as described there.
Problem: Burner will not light with match
Problem: The fire table emits a lot of black smoke when in use
Possible Cause 1: Hose from gas fire table is pinched.
ġke sure the hose is not pinched between the
fire table and the source of the gas.
Possible Cause 2: Flame is being obstructed at burner ports.
ġke sure that the gas ports on the burner are free
of any lava rocks so that the flame can flow naturally.
Troubleshooting
17
Burner
Thermocouple
Igniter Pin
Pilot Light
Venturi
Burner Ports

For Technical Support Contact Real Flame at: 1-800-654-1704
Problem: Sudden drop in gas flow, or a reduced flame height
Possible Cause 1: Out of Gas.
-Call your local gas company.
Possible Cause 2: Excess flow safety device may have been activated.
-Turn control knob to “OFF”, wait 30 seconds and light outdoor fire table. If
the control knob and the gas supply. Disconnect the quick disconnect
socket.Turn Burner Control Knob to “HIGH”. Wait 1 minute. Turn Burner
gas supply and perform a leak check at the Natural Gas connection.
Problem: Irregular flame pattern, flame does not run the full length of the burner
Possible Cause: Burner ports are clogged or blocked.
-Clean burner ports. Do this by inserting a
paperclip into each of the burner ports to
ensure they are not clogged. Wčƫke
time to cool before touching it.
Problem: Flame blow out
Possible Cause 1: High or gusting winds.
-Increase flame to “HIGH” setting.
Possible Cause 2: Low on Natural gas.
-Call your local gas company.
Possible Cause 3: Excess flow valve tripped.
-Refer to “Pr+(!)čƫ1 !*ƫ rop in gas flow”
If these trouble shooting steps are unable to resolve the problem,
please call the numbers listed below.
Troubleshooting
18
Burner Ports

AVERTISSEMENT
Pour un usage extérieur
exclusivement. NE PAS
utiliser pour la cuisson. NE
PAS utiliser sous une
enceinte couverte.
!
AVERTISSEMENT
!
DANGER
IMPORTANT
!AVERTISSEMENT





C SU
CONSERVER CES
INSTRUCTIONS
Pour le support technique
S’il vous plaît nous contacter:
1-800-654-1704
!
La négligence à suivre
scrupuleusement les instructions
contenues dans ce manuel peut
provoquer un incendie ou une
explosion occasionnant des
dommages à la propriété, des
blessures sérieuses et même la
mort.
L’installation et l’entretien doivent
être faits par un installeur qualifié,
une compagnie d’entretien ou un
fournisseur de gaz.
Une installation, une mise au point, une
modification ou un entretien inappropriés
peuvent occasionner des blessures ou des
dommages à la propriété.
Lire attentivement les instructions
concernant l’installation, l’utilisation et
l’entretien avant d’installer ou d’utiliser
l’appareil.
Garder ces instructions pour une
consultation future. Si vous assemblez cet
appareil pour quelqu’un d’autre, lui
donner le manuel pour lecture et
consultation futures.



s

a

!
Style # 261002044
Lot: _______________
Designed and Engineered by
Real Flame. Manufactured as
Model # 11511N in China
Manuel du propriétaire de la table-foyer bas tour Laguna

!
DANGER
DANGER DE MONOXYDE DE CARBONE

lequel est toujours inodore.

causer la mort.



3
Table Des Matières
Instruction de sécurité importante
Avertissements de gaz naturel
Liste des pièces
Les instructions d'assemblage de base
Instructions Avant Usage
Instructions pour l’assemblage
Connexion à une source de gaz naturel
Instructions pour l’allumage
Entretien Et Nettoyage
Vérifications entourant le gaz
Dépannage
Accessoires Optionnels
3
5
7
8
9
10
11
13
14
15
17
19
