RealFlame Sedona 11819LP User manual

If the information in this manual
is not followed exactly, a fire or
explosion may result causing
property damage personal injury
or loss of life.
Installation and service must be
performed by a qualified installer,
service agency or gas supplier.
Improper Installation, adjustment,
alteration, service or maintenance
can cause injury or property
damage.
Read the installation, operation
and maintenance instructions
thoroughly before installing or
servicing this equipment.
Save these instructions for
future reference. If you are
assembling this unit for
someone else, give this manual
to him or her to read and save
for future reference.
! !
IMPORTANT WARNING
SAVE THESE
INSTRUCTIONS
!DANGER
If you smell gas:
2. Extinguish any open flame.
1. Shut o gas to the appliance.
3. If odor continues, keep away from the appliance and
immediately call your gas supplier or fire department.
!
!
WARNING
WARNING
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
An LP-cylinder not connected for use should be
stored in vicinity of this or any other appliance.
For outdoor use only. DO NOT use
for cooking. DO NOT use under any
overhead enclosure.
USC
For Technical Support Please Contact Real Flame® At: 1-800-654-1704
11819LP Sedona
LOT#________
PO#________
32” LP Fire Column Owner’s Manual

!DANGER
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed
space such as a camper, tent, car or home.
CARBON MONOXIDE HAZARD
TABLE OF CONTENTS
Important Safety Information
Propane (LP) Dangers and Warnings
Parts List
Assembly Instructions
Lighting Instructions
Care and Cleaning
Troubleshooting
Warranty
3
5
7
8
12
13
14
16
2

IF YOU SMELL GAS
• Do not try lighting any appliance.
• Extinguish any open flame.
• Shut o gas supply to the fire column.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone.
• Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
• WARNING Failure to follow the dangers, warning and cautions in this manual may
property.
result in serious bodily injury or death, or in a fire or explosion causing damage to
• IMPORTANT NOTICE Read and understand all warnings and precautions prior to
alteration, service or maintenance can cause injury or property damage.
• Note The use and installation of this product must conform to local codes. In the
absence of local codes, use the National Fuel Gas Code, ANSI Z21.97. Reference to
Natural Gas and Propane Installation code CSA B149.1 or Propane Storage and
Handling code B149.2.
•Minimum Clearance from Unit to Combustible Materials
72”(182.9cm) from the top; 48” (121.9 cm) from all sides and back. Do not locate this
fire column under any overhead enclosure.
supply piping system during any pressure testing of that system at test pressures in
excess of 1/2 of psi (3.5 kPa). The appliance must be isolated from the gas supply
testing of the gas supply piping system at test pressures equal to or less than 1/2 psi
(3.5 kPa).
• Keep these instructions for future reference. If you are assembling this unit for someone
• This gas fire column and its individual shuto valve must be disconnected from the gas
• This gas fire column must be used ONLY outdoors in a well-ventilated space and shall NOT
else, give this manual to him or her to read and keep for future reference.
be used inside a building, garage, or any other enclosed area.
fumes can accumulate and cause asphyxiation.
• Children should be alerted to the hazards of high surface temperatures and kept at a
(7.62m) of this or any other appliance.
• Do not store any combustible materials in the base enclosure.
• The use of alcohol, prescription or non-prescription drugs may impair an individual’s
IMPORTANT SAFETY INFORMATION
!WARNING FIRE COLUMN IS FOR OUTDOOR USE ONLY
3

• Always use in accordance with all applicable local, state and national codes. Contact your local
• DO NOT burn solid fuels such as: wood, charcoal briquettes, lump charcoal, manufactured
logs, driftwood, trash, leaves, paper, cardboard, plywood, painted or stained or pressure
securely fastened and tightened.
is in operation.
combustible constructions. Avoid using near or under overhanging trees and shrubs.
rock or stone. An asphalt or blacktop surface may not be acceptable for this purpose.
system and any gas control which has been under water.
• DO NOT use in windy conditions.
touch hot surfaces until the unit has cooled unless you are wearing protective gear such as
insulated pot holders or heat resistant gloves or mittens to avoid burns.
• Use only the gas assembly provided. The replacement gas assembly shall be that specified by
the manufacturer.
• Always disconnect the LP tank when the unit is not in use.
• Lava rocks are very hot; please keep the children or pets away at a safe distance.
abrasion or wear by looking through the access panel. If if any part is damaged, it must be
IMPORTANT SAFETY INFORMATION (continued)
4

5

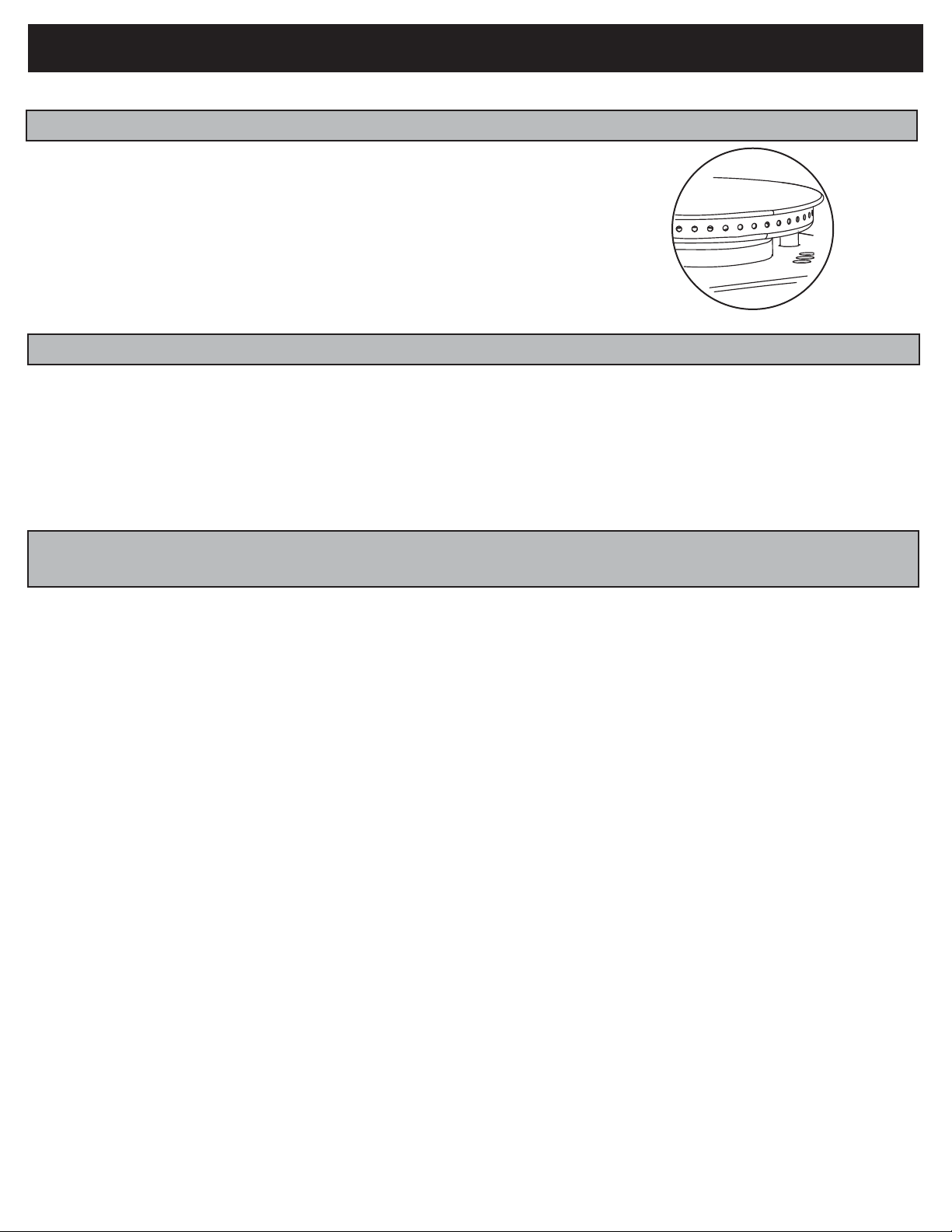

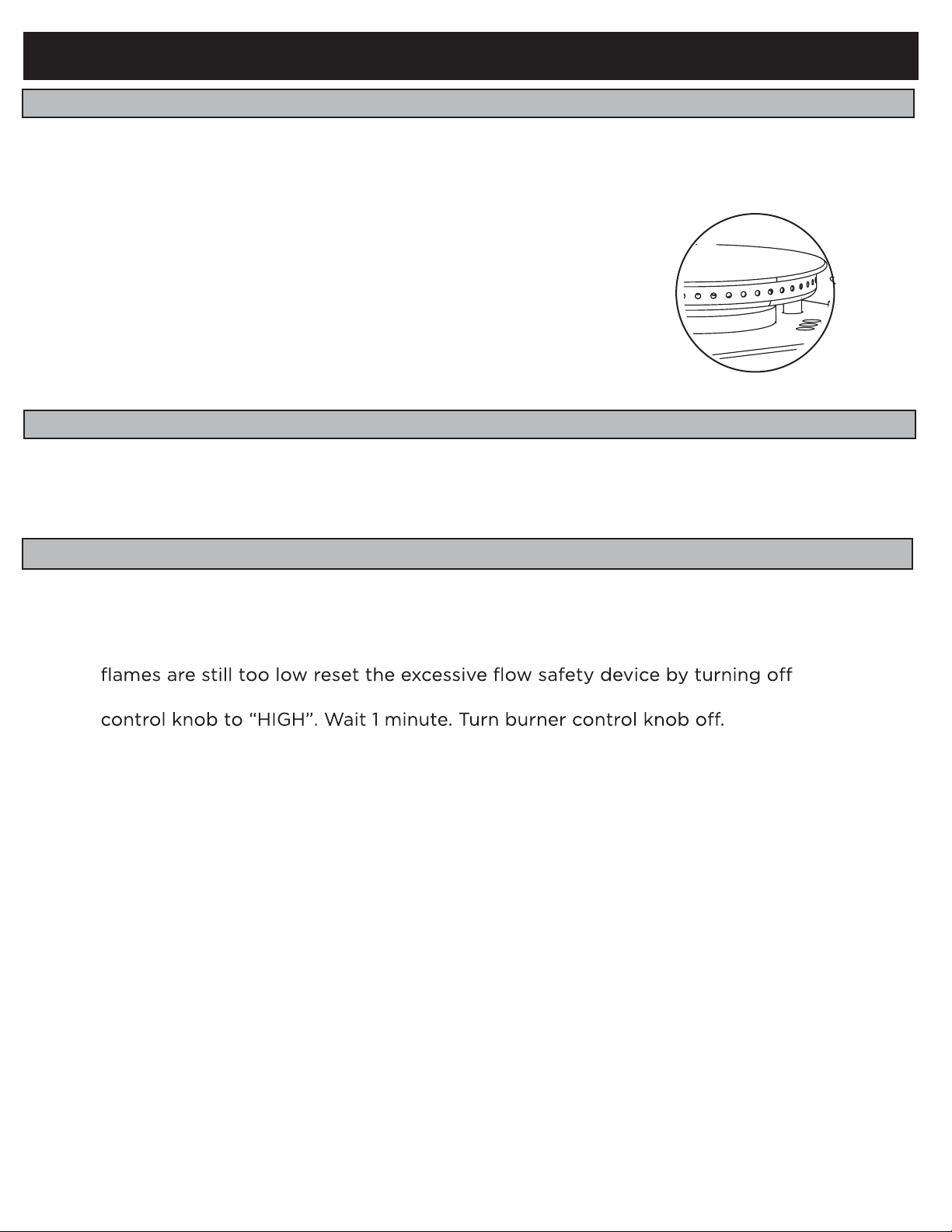

•Before each use, remove the lava rocks. Examine the burner and its components.If dirty,
clean withasoft brush and soapy water solution. Examine the area around the burner;
any dirt or foreignmaterial, such as spider webs or nests inthis area should be removed.
assembly cannot be replaced. Please contact Real Flame at 1-800-654-1704 for technical support.
LP GAS
characteristics before using any LP gas product.
Propane Characteristics
• Flammable, explosive under pressure, heavier than air and settles in pools in low areas.
• In its natural state, propane has no odor. For your safety, an odorant has been added.
• Contact with propane could burn your skin.
LP GAS WARNINGS
• Cylinders must be stored outdoors in a well-ventilated area out of reach of children.
• Disconnected cylinders must have threaded valve plugs tightly installed and must not be
stored in a building, garage or any other enclosed area.
• Never use a propane cylinder with a damaged body, valve, collar or footing.
• Dented or rusted propane cylinders may be hazardous and should be checked by your
propane gas supplier.
• Be sure to use only one 1 lb (465 g) LP gas cylinder in this appliance.
• Only tanks marked “propane” may be used.
• The LP gas supply tank must be constructed and marked in accordance with the
the National Standard of Canada, CAN/CSA-B339, LP gas tanks, Spheres and Tubes for
the Transportation of Dangerous Goods; and Commission.
• LP gas tank must be arranged for vapor withdrawal.
Type I (CGA810) LP gas tank connection.
the operations manual will void manufacturer warranty.
IMPORTANT SAFETY INFORMATION (continued)

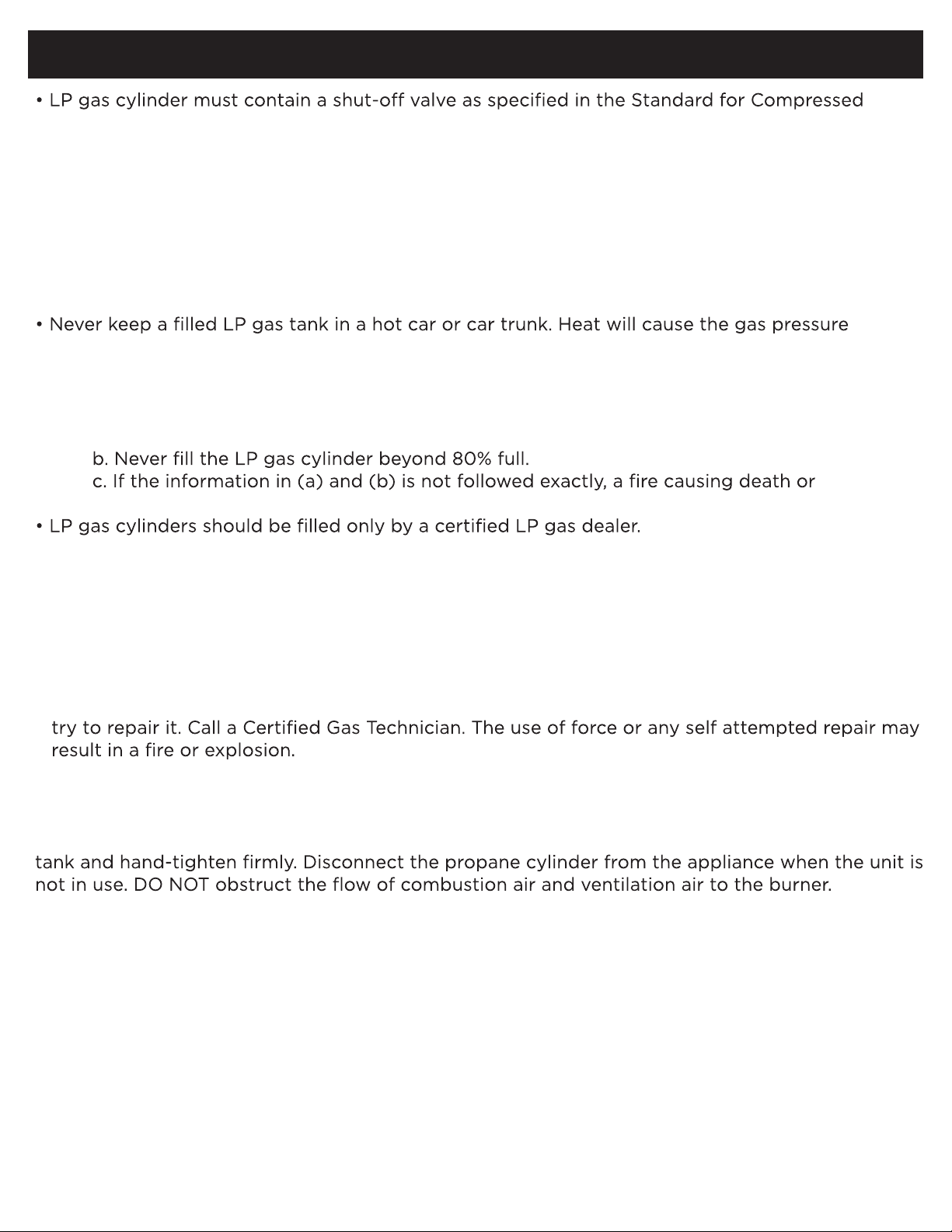

PROPANE (LP) DANGERS AND WARNINGS
!WARNING
serious personal injury, or property damage.

6
Gas Cylinder Valve Outlet and Inlet Connection, ANSI/CGA-V-1-1977, CSA B96.
• Never use an LP gas tank with a damaged body, valve, collar, or footing. Dented or rusted
LP gas tanks may be hazardous and should be checked by your LP gas supplier prior to
use.
• The LP gas tank should not be dropped or handled roughly.
• Tanks must be stored outdoors out of the reach of children. Do NOT store in a building,
garage, or any other enclosed area.
• Never store your LP gas tank where temperatures can reach over 125°F.
• Do not store the LP gas cylinder in direct sunlight or near a source of heat or combustion.
to increase, which may open the relief valve and allow gas to escape.
• Place dust cap on valve outlet whenever the LP gas tank is not in use. Only install the
type of dust cap on the LP gas tank valve outlet that is provided with the LP gas tank
valve. Other types of caps or plugs may result in leakage of propane.
a. Do not store a spare LP gas cylinder under or near this appliance.
serious injury may occur.
• The pressure regulator is set for 11 inches of water column (pressure).
• The maximum inlet gas pressure for this appliance is 14 inches of water column pressure.
• Never attempt to attach this appliance to the self-contained LP gas system of a camper trailer,
motor home or house.
• Always use the gas assembly provided with the appliance to connect to a LP gas cylinder. Never
connect to an unregulated LP gas supply. For technical support contact Real Flame at 1-800-654-1704.
• Hand turn the 1 lb LP gas tank. Never use tools. If the tank will not turn by hand, do not
Connecting your gas cylinder
Before connection, be sure that there is no debris caught in the head of the gas cylinder, head of
the regulator valve or in the head of the burner and burner ports. Connect screw on the 1 lb LP
PROPANE (LP) DANGERS AND WARNINGS

7
PARTS LIST
Fire Column 1
118197302
Glass panes 4
Door
1Lava Rock 118167100
1
1
2
3
4
118000003
N/A
4
5
1Vinyl Cover 118190006
5
3
6
6Glass Hardware Kit 118020007 4
1
2

8
ASSEMBLY INSTRUCTIONS
1

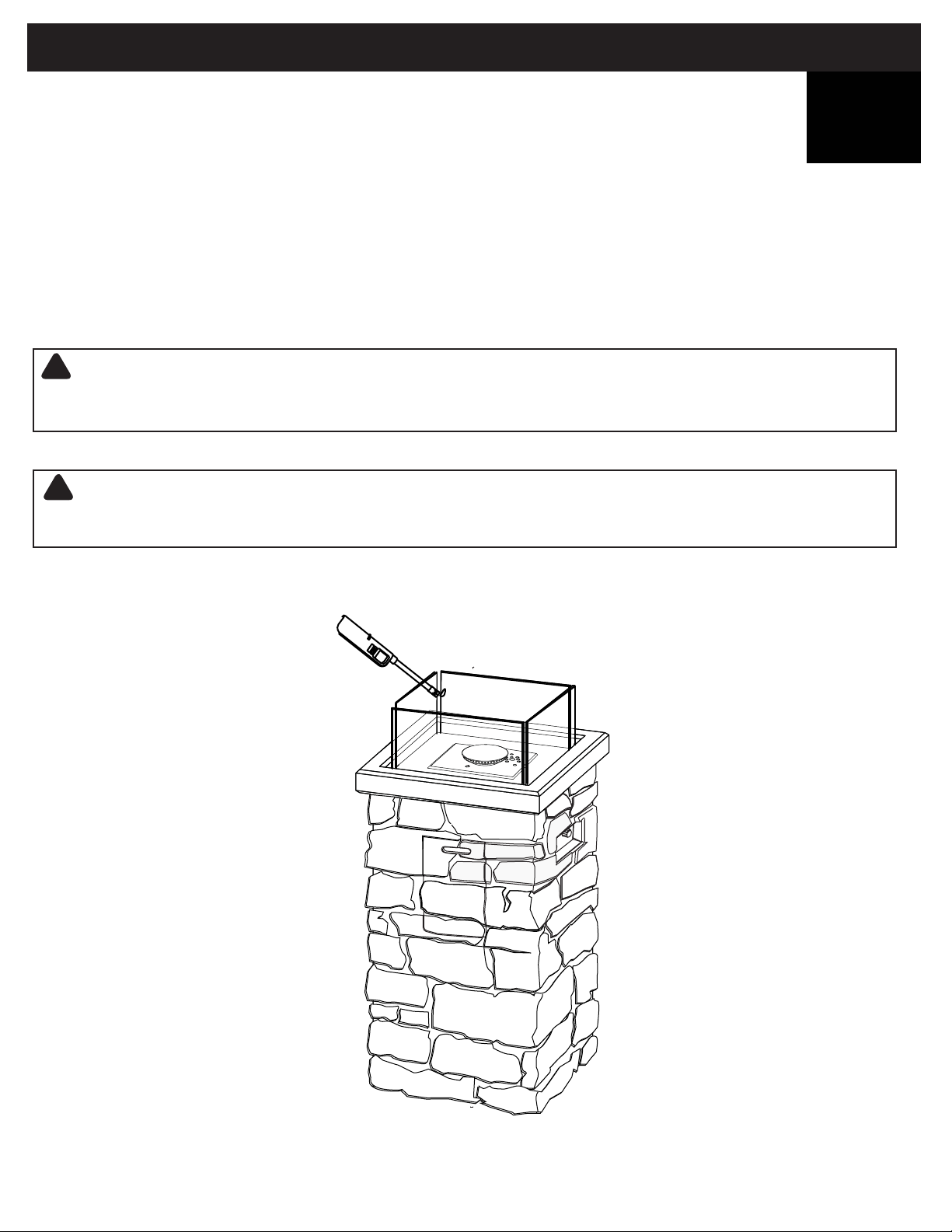

Insert the glass panes (3) into the corner brackets (6).
Secure the glass into place by tightening the screws with a screwdriver. Do not
overtighten the screws.
3
3
33
6
6

9

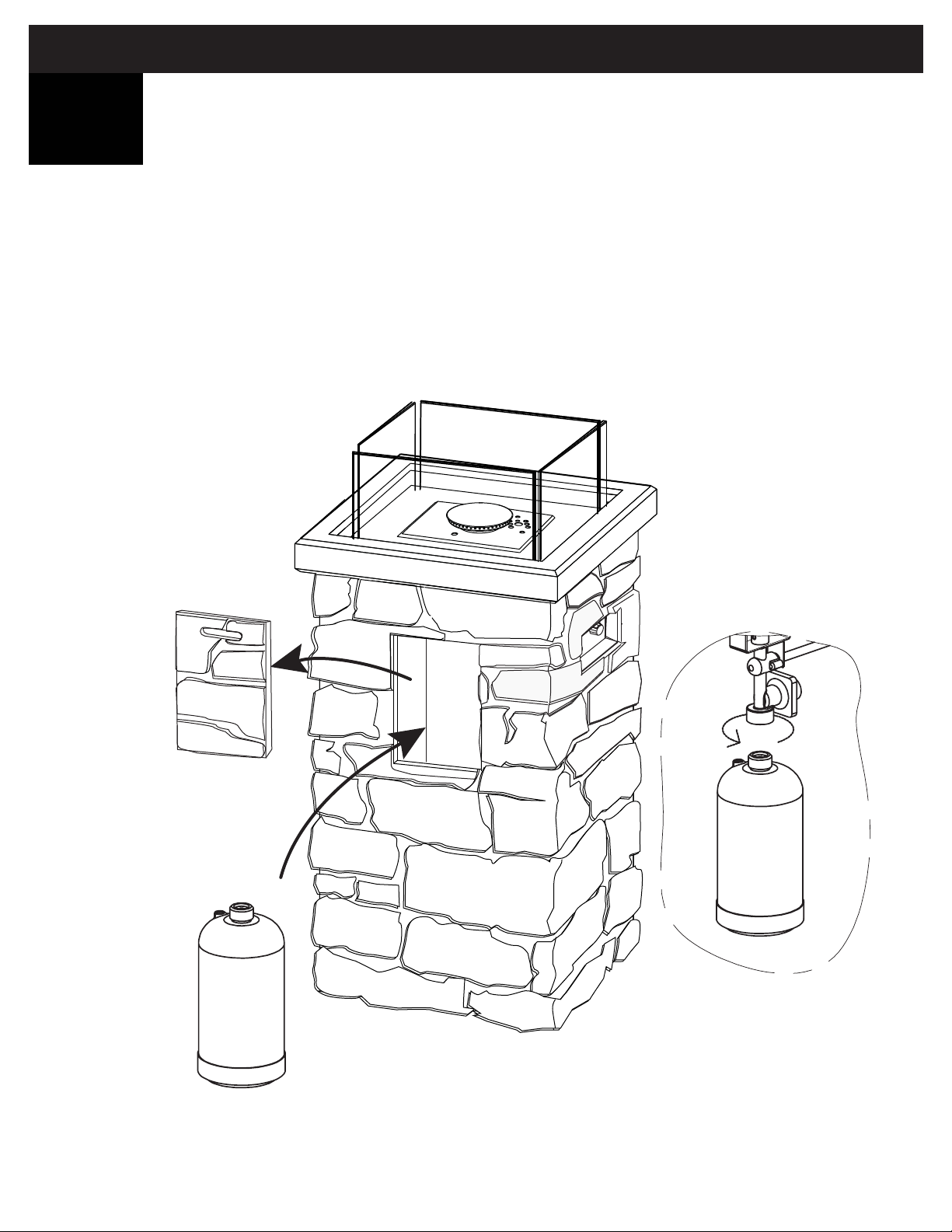

Check to make sure there is no debris in the head of the LP gas
tank or in the head of the regulator valve. Make sure you check the
burner and burner ports as well.
Connect the tank to the valve by threading clockwise. Hand tighten
only. Disconnect when not in use.
Connecting the LP Gas Tank
ASSEMBLY INSTRUCTIONS
2

10
3
ASSEMBLY INSTRUCTIONS
Place lava rock by hand. DO NOT dump bag out into tray to avoid
clogging the burner with dust. Position the lava rocks (0.8kgs) to a
level about 1” above the top of the burner.
