RealRelax FAVOR 04 User manual

MASSAGE CHAIR
USER MANUAL
PLEASE READ AND SAVE THESE INSTRUCTIONS
FAVOR 04
WWW.REALRELAXMASSAGE.COM
USA:[phone]
RealRelax Inc.

- Thank for your purchase of this product. Before using, please read this
USER MANUAL carefully,and pay special attention to the safety precaution
to ensure proper operation and use.
- Please keep this USER MANUAL properly for further reference.
SAFETY PRECAUTIONS
NAME AND FUNCTION OF EACH COMPONENT
PREPARATION BEFORE USING
PRODUCE STORAGE AND MAINTENANCE
TROUBLESHOOTING GUIDE
MEDICAL WARNINGS ----------------------------------------------
WARNING -------------------------------------------------------
FORBIDDEN------------------------------------------------------
REMOVE PLUG ---------------------------------------------------
EXTERNAL STRUCTURE ------------------------------------------
INTERNAL STRUCTURE -------------------------------------------
CONTROLLER ---------------------------------------------------
REMOTE CONTROLLER INSTRUCTION -------------------------------
INSTALLATION METHOD -------------------------------------------

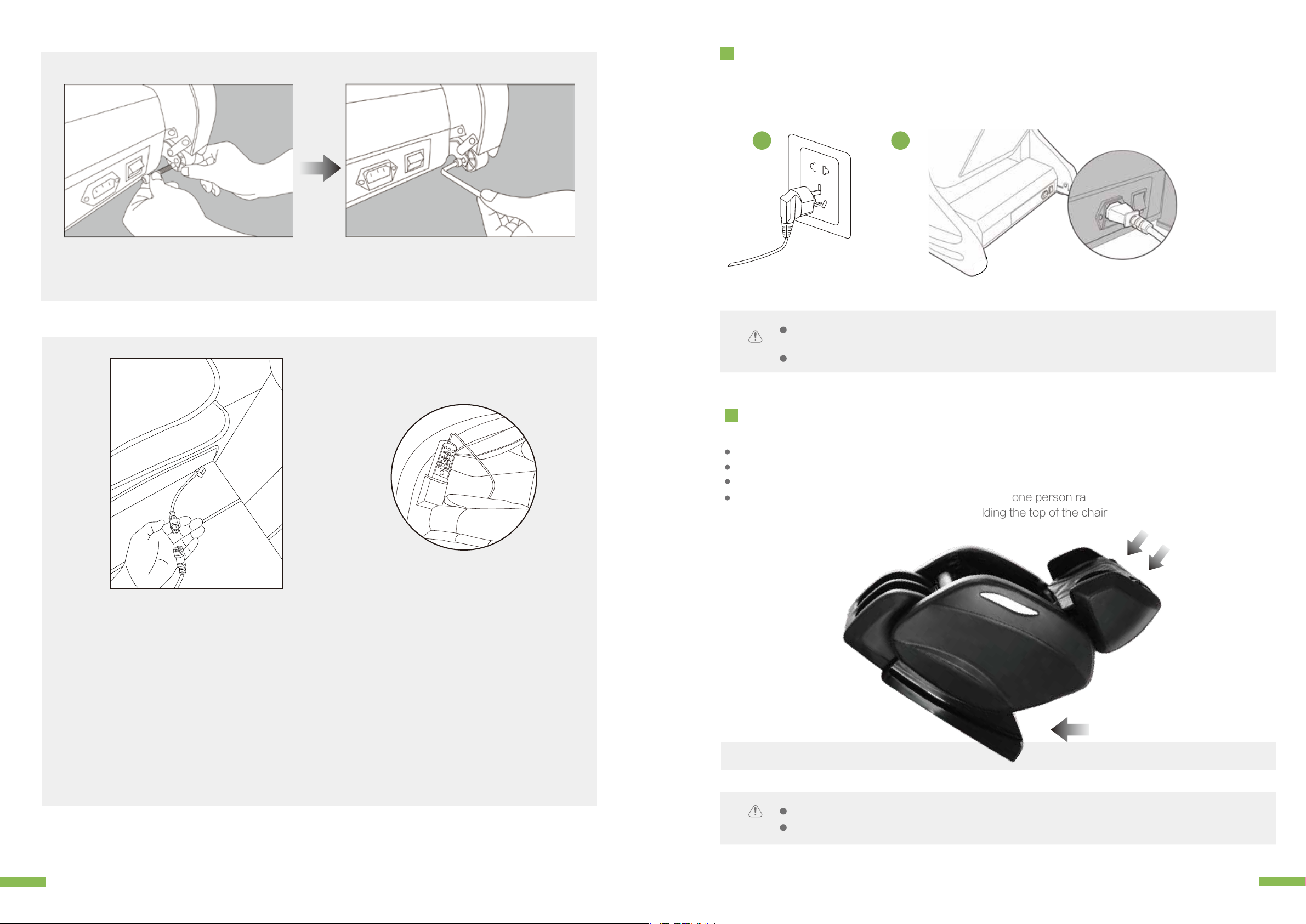

TURN ON POWER SUPPLY -----------------------------------------
MOVE METHOD --------------------------------------------------
INSTALLATION POSITION ------------------------------------------
GROUNDING INSTRUCTIONS ---------------------------------------
AFTER USING THE CHAIR -----------------------------------------
KIND REMINDING ------------------------------------------------
TROUBLESHOOTING GUIDE ---------------------------------------
01 - 02
03
03 - 04
04
05
06
07
08
AUTO MASSAGE MODE -------------------------------------------
CUSTOM MASSAGE MODE -----------------------------------------
09
09
MUSIC SYSTEM -------------------------------------------------- 10
12-17
18
18
19
20
20
METHODS OF STORAGE ------------------------------------------
MAINTENANCE --------------------------------------------------
20
20
21
21
TECHNICAL SPECIFICATIONS -------------------------------------- 22
TABLE OF
CONTENTS

SAFETY
PRECAUTIONS
Patients with serious hyperostosis
Swollen lump and patient thrombosis
Before using, please read this "SAFETY PRECAUTIONS" carefully to ensure proper operation.
The following "SAFETY PRECAUTIONS" is of great help to your correctly use of this massage chair.
To clearly indicate the degrees of danger and damage, the classes of accidents caused by incorrect.
use are classified into "WARNING" and "FORBIDDEN". Instructions marked as followings should be
strictly followed.
NOT RECOMMENDED FOR THE FOLLOWING PEOPLE.
MEDICAL WARNINGS
01
Patients with serious heart conditions
Pregnant Women
People that consume large amounts of alcohol
People with diabetes
People suffering from high fever
Patients with malignant tumors or malignant abscesses
People with distorted joints
People with serious skin conditions
People with spinal injuries
All people should consult a physian and exercise care when operating this system
Minors under 16 years or people unable to control his/her behavior,i.e.mental patients,people
with paralysis,etc.
Should not be allowed to operate the massage chair.
02

Use this appliance only for its intended use as described in this manual.
Do not use attachments not recommended by the manufacturer.
Never operate this appliance if it has a damaged cord or plug.
Keep the cord away from heated surfaces.
Please empty pockets and remove all your arm Jewellery and watch before using this chair
Do not operate where aerosol (spray) products are being used.
To disconnect, turn all controls to the off position, then remove plug from outlet.
Connect this appliance to a properly grounded outlet only. See Grounding Instructions.
Do not remove the back cushion and do not play with roller mechanism.
Do not remove the bottom seat and do not play with actuators.
Keep the cord out of heavy traffic area.
Always unplug the power cord from the electrical outlet 0immediately after use.
Only people less than 120kgs are acceptable.
Do not operate any equipment with damaged parts.
Any other use not recommended by the manufacturer may cause electrical shock or injury.
Do not touch or re-wire the wires connected to the master-box.
Do not attempt to repair or adjust any electrical or mechanical functions on this unit.
Doing so will void the warranty.
Do not put your hands or head under the chair
When using the massage chair, ascertain that the footrest is in the lowest position.
Do not allow children to play near the chair especially during operation
Do not leave mobility impaired or speech impaired people alone in chair
Do not place or stock this machine near damp places such as swimming pools or
bathrooms
Do not press by force on the massage rollers
Do not stand on the chair or store heavy items on the chair
Do not use in the environment which is dusty, greasy or lacking oxygen
WARNINGS
FORBIDDEN
03
Before maintenance, please pull out power plug. In addition,please do not insert or unplug the
power plug with damp hands, to avoid electric shock.
When the massage chair is not in use, please switch off power and remove the plug from socket.
When power is off, please cut off power supply immediately and pull out the power plug from
socket.
Do not place near steam oven, open fire, or heat
Wear suitable clothing, do not massage with bare skin
Do not place directly in the sun
Do not use electric blanket while using the massage chair
Do not use outdoors
Do not use while smoking
Do no use immediately after meals
Do not sit on the back cushions, armrest, or legs
Don't use the massage chair when your body is wet or moist as it can result in
electrical shock
Do not operate with more than one person
Don't use when using head ornamentation as it can result in injury
Do not stumble over electrical wires or connections
Please avoid using a massager after drinking or when you are not feeling well.
Do not massage the head, elbow joints, knees, chest, abdomen, etc. directly on the massage
ball.
Do not damage the power cord or operate the massager while the power cord is damaged. This
may result in electric shock or mechanical failure. Please contact the service center for a
detailed inspection.
BE CAREFUL
04
REMOVE PLUG

NAME AND FUNCTION
OF EACH COMPONENT
9.Air Vent
10.Specification Label
11.Power Supply
12.Wheels
13.Power Switch
14.Electrical Fuse
15.Cord Connector
1.Pillow
2.Backpad
3.Forearm Units
4.Heater
5.Seat
6.Footrest
7.Armrest
8.Shoulder Units
EXTERNAL STRUCTURE
05
1
2
4
5
8
7
6
9
10
11
12 14 13 15
3
1
2
3
4
5
6
7
8
9
10
Shoulder Air
Massage Unit
Armrest Air
Massage Unit
Seat Air
Massage Unit
Foot Air
Massage Unit
Sole Air
Massage Unit
Back Massage
Points
Waist Massage
Points
Foot Roller
Massage Unit
Back Heat
Slide Rail
6
1
3
4
5
10
9
8
7
2
06
INTERNAL STRUCTURE

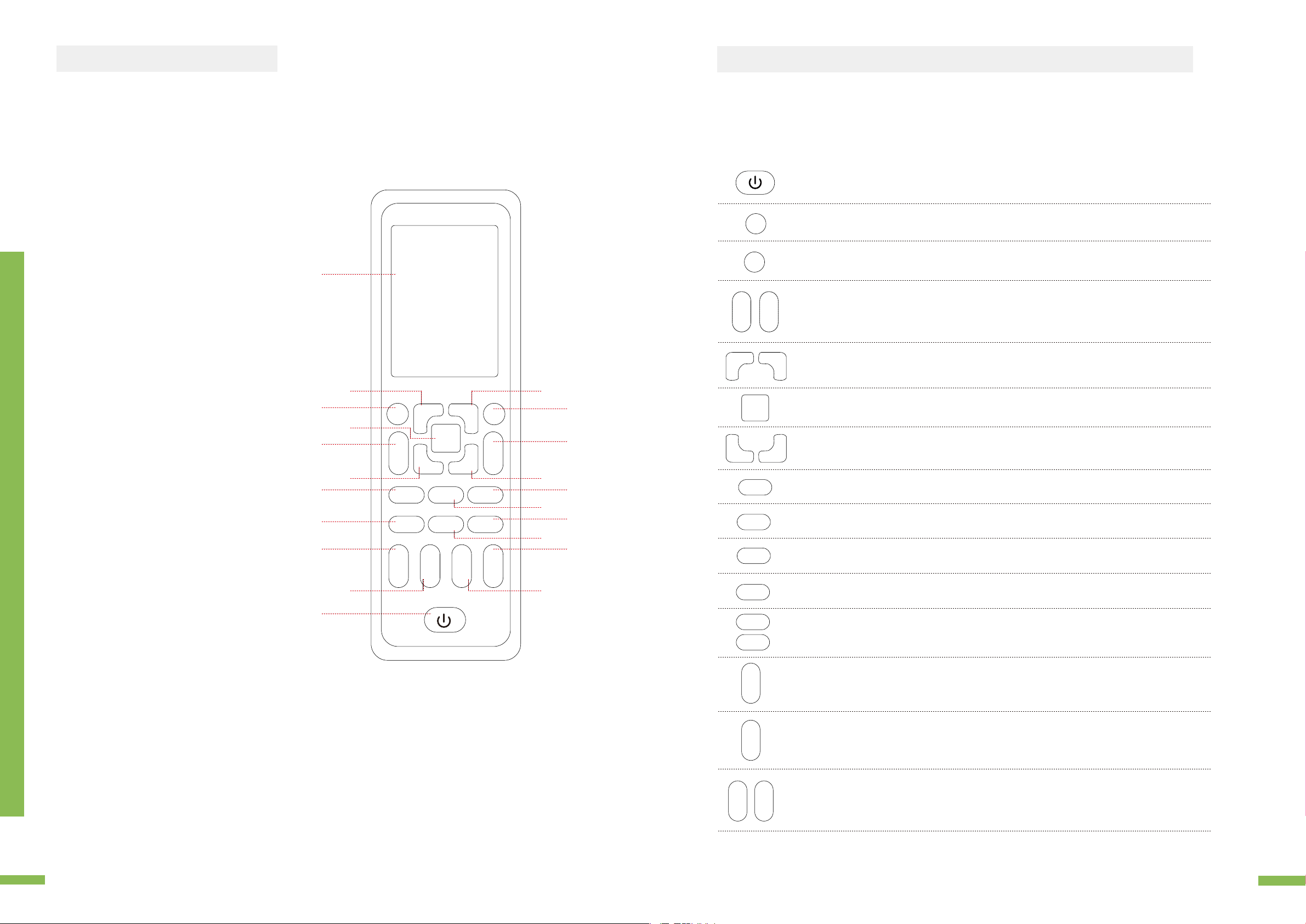

REMOTE CONTROL
07
1
3
4
6
10 21
19
17
15
122
5
7
8
9
11
13
14
16
18
20
Back Massage Forward and Reverse
Foot Massage ON/OFF
Buttock Airbags ON/OFF
Calf Airbags ON/OFF
Backrest UP
Heater ON/OFF
Power Button
Massage Rollers speed-
Waist Massage ON/OFF
5
6
7
8
9
10
11
12
13
TFT Display
Massage Rollers speed+
Back Massage ON/OFF
AUTO Programs Switch
1
2
3
4
Waist Massage Forward and Reverse
Foot Roller Speed
Airbags Strength+
Arm Airbags ON/OFF
14
15
16
17
Airbags Strength-
18
Shoulder Airbags ON/OFF
Backrest Down
One-button Zero-Gravity
19
20
21
Back Speed Speed
Foot Foot.spd
AUTO
+ -
Waist
Mode Mode
Buttock Arm Strength +
Calf Shoulder Strength -
Back
Up
Back
ZERO-GHeater
Down
REMOTE CONTROL FUNCTION INTRODUCTION
08
Back
Foot Foot.spd
AUTO
Speed
+
Speed
-
Waist
Mode Mode
Buttock
Arm
Calf
Shoulder
Strength +
Strength -
Back
Up
Back
ZERO-G
Heater
Down
On/Off: press power button to turn on the chair or adjust time frame,
press for more than 2 second to turn off.
Back: manual mode up back massage
Speed + and Speed -: back roller speed adjustment
AUTO: auto mode switch
Buttock: hips air bag switch
Foot and Foot.spd: foot roller and speed adjustment
Mode: up back , waist forward and reversal
Waist: manual mode waist massage
Calf: calf air bag switch
Arm: arm air bag switch
Shoulder: shoulder air bag switch
Strength + and Strength -: air bag strength adjustment
ZERO-G: recline till zero gravity
Heater: turn on heat function
Back Up and Back Down: backrest recline and forward adjustment when
chair is working(can be adjusted to find the best position for rest when
hand controller is off.)

Adjusting the reclining angle
Adjust the angle between backrest and footrest.
Leg extension settings
Select Auto massage mode
1.Power: when the unit is turned on it will
automatically start to massage.
In automatic massage modes intensity and
strength cannot be adjusted.If you would like
to adjust intensity and strength please select a
specific area.
such as: arm , foot, or shoulders.
Press “Power” to switch time from 15/20/25/30
Press Power button for 3 seconds to turn off
massage chair.
2.Press "AUTO" to switch six modes:
We have six Automatic modes,press "AUTO"
to switch six modes.
3.Auto massge mode will stop automati-
cally after 15/20/25/30 minutes.
Footrest unit will automatically extend to
suit taller individvals.
AUTO MODE
09
When the massage time is finished the unit will return to upright position and shut down automatically.
By selecting a single massage area, auto massage will stop
You can turn on a single massage area, or multiple areas.
This allows you to give yourself a complete customizable massage.
You can also adjust the strength of the air bags and intensity of the rollers.
CUSTOM MASSAGE MODE
1
2
Back Speed Speed
Foot Foot.spd
AUTO
+ -
Waist
Mode Mode
Buttock Arm Strength +
Calf Shoulder Strength -
Back
Up
Back
ZERO-GHeater
Down
How to use:
1. Open mobile-phone/ipad/computer BLUETOOTH capabilities,and access to the search
state, your device will automatically search neighboring BLUETOOTH devices.
2. In a few seconds,our massage chair name will show up under the device list, select
massage chair name,and the connection complete.
MUSIC SYSTEM
Our product is designed with Bluetooth audio connection function.It can play music
through connect with smart phone,tablet computer or other audio devices.
1
10
Back Speed Speed
Foot Foot.spd
AUTO
+ -
Waist
Mode Mode
Buttock Arm Strength +
Calf Shoulder Strength -
Back
Up
Back
ZERO-GHeater
Down

PREPARATION
BEFORE USING
This model is divided into packaging.
After dismounting the package, carefully remove the
Massage chair and install it according to the instructions.
INSTALLATION METHOD
ACCESSORIES FROM BOX
1
3
1 2
1
2
3
MAIN UNIT
PILLOW
ARMREST
CUSHIONBACKREST
Step 1: Unpack the three packages
Take out the main unit, armrest, backrest from
the carton carefully.
12

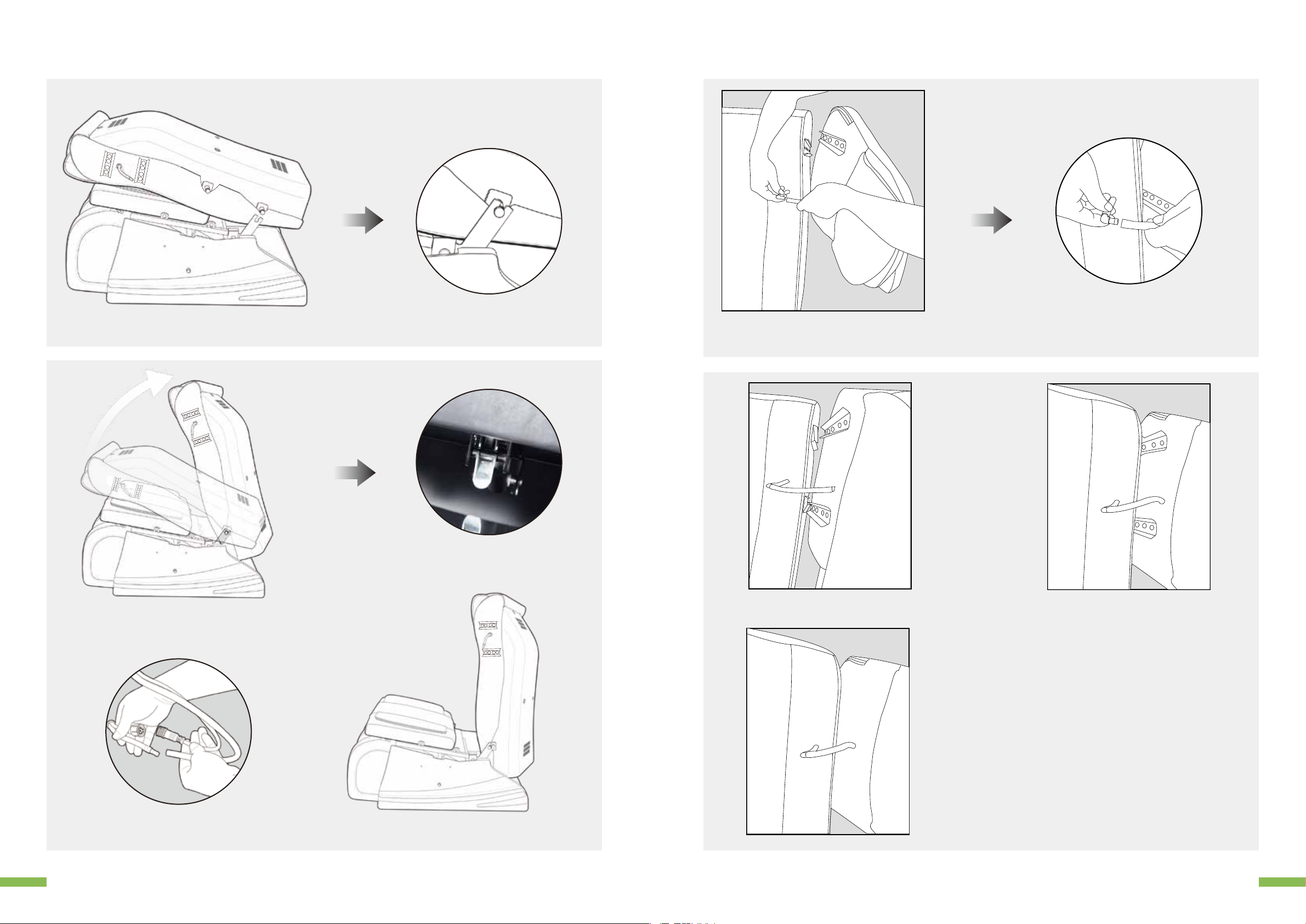

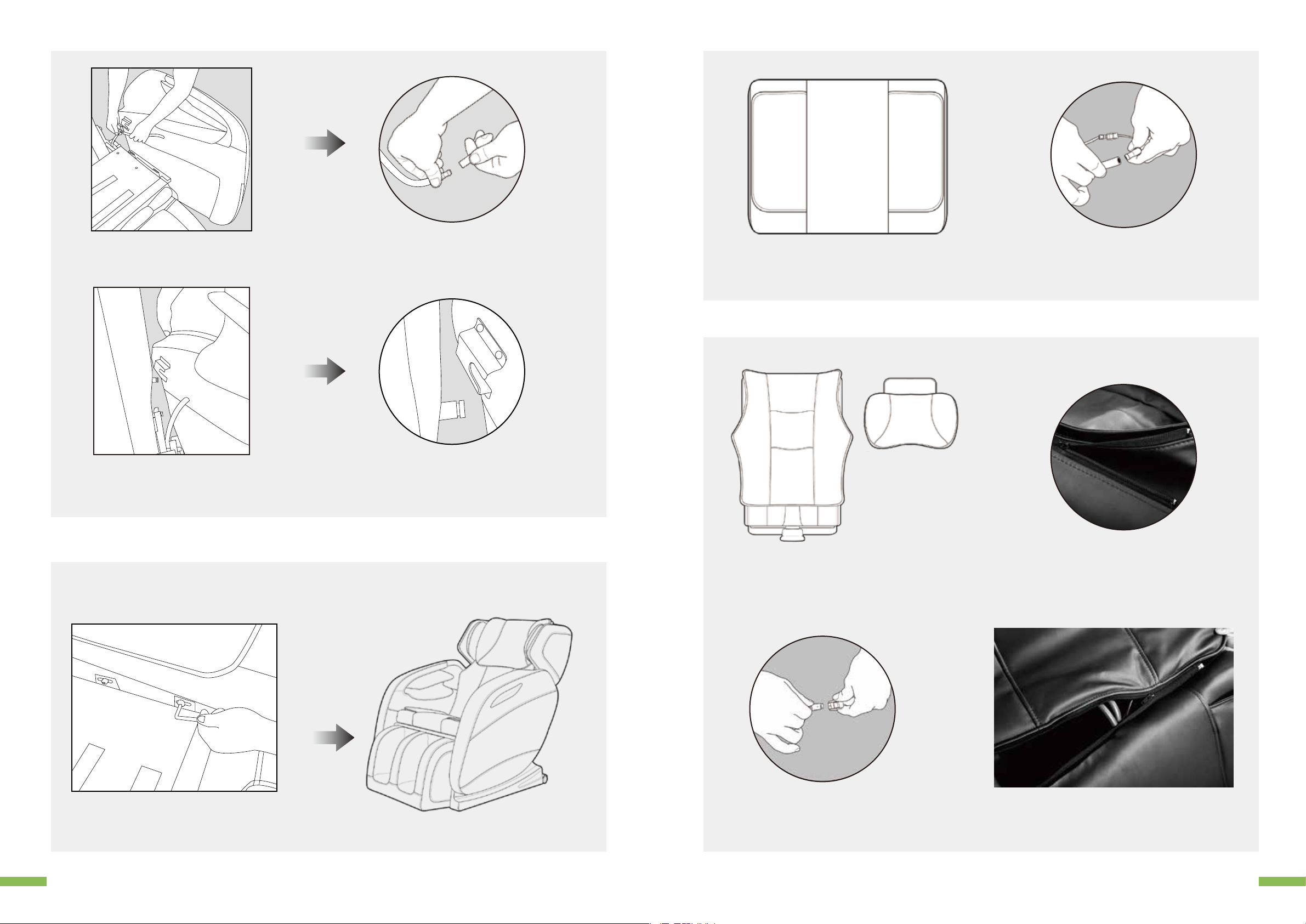

INSTALLATION STEPS
1、Put the cushion on the mainunit,
Plave the backrest on the cushion.
4、When you hear a click , the
backrest is hookup with main unit.
3、Iift the backrest.
5、Connect the airplug and wires. 6、Backrest installed.
2、Insert the backrest plug into main unit.
13 14
9.Slip shoulder into the mainunit.
7.Connect the two air plugs.
8.Align the two tracks.

11.Insert the U groove into the bolt.
10.Connect the two air plugs.
13、Armrest installed.12、Fasten the armrest with two screws.
15
14、Next, install the seat. 15、Connect the two air plugs,and the wire firmly.
16、Next install the chair pad. 17、The chair pad is attached at the top with a zipper.
18、Connect the pad wire to the main unit. 19、Attach the seat to the chair pad by connecting
the zipper found at the rear of the seat to the bottom
of the chair pad.
16

22、Put the remote control into the bag.21、Connect the remote to the plug beside the seat.
20、Fix the wheel with a screw.
17
TURN ON POWER SUPPLY
1.Plug the power cord into three core socket with well grounding.
2.Turn on the power switch on the bottom of massage chair.
2
MOVE METHOD
3
There are moving rollers at the bottom of the chair.
Raise the back to the highest point.
Switch off and plug out the chair.
Lift the front part of the chair as showed in the figure(one person raise the front part via holding moving
holder, another person push the chair when holding the top of the chair), move the chair by the rollers.
Before switching on the chair, please make sure there is no damage on the power wire and other
exposed wires.
Make sure the power switch is off before the chair is connected to electricity.
CAUTION
Don’t move it when there is people in it.
Don’t use the armrest while moving the chair, only hold the moving holder in the back and front.
CAUTION
1 2
18

(1) Place a massage chair in a place where there is enough space for the back of the chair
to recline and the stand to rise.
(2) Make sure that there is at least 50 cm in the back of the massage chair and at least 50 cm in front
of the massage chair.In order to prevent from signal interference, please keep at least 1m away from
the TV, radio and other video and audio devices.
PLEASE LEAVE THE SPACE AROUND THE MASSAGE CHAIR WHEN PREPARING THE MASSAGE.
Greater than or equal to 50 Greater than or equal to 50
INSTALLATION
POSITION
SURROUNDING ENVIRONMENT
Keep the massage chair away from damp places (for example: bathroom) to avoid electric leakage
Keep the massage chair away from high temperatures sources (for example: stove) to avoid fire or
damage to leather material
CAUTION
Before using, please tidy up well the cables to avoid twining or damage When the whole chair
makes slide movement forward or backward to original position, please check first whether
there are kids,pets or any other objects to avoid accidents.Please put carpet or other pad
under the massage chair,in order to avoid any unpredictable impression on the floor.
19
This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate
outlet that is properly installed and grounded in accordance with all local codes and ordinances.
DANGER - Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly
grounded. Do not modify the plug provided with the product - if it will not fit the outlet; have a proper outlet
installed by a qualified electrician.
GROUNDING INSTRUCTIONS
AFTER USING THE CHAIR
Please power off the chair and unplug power cable from power the supply socket after using disconnect the
controller and store carefully
Please power off the chair and unplug the chair from the power supply socket when the chair is not in use,
to avoid children to start the chair accidentally
Please store well the chair if it is not in use for a long time.
Do not dismount the back of the chair
Cover the chair with dust-free cloth to prevent dust from collecting
Keep the massage chair free of dust
METHODS OF STORAGE
Do no store in a hot, humid, damp place or in direct sunlight or heat
Do not store in an overly cold place
Before cleaning unplug from electrical source to avoid shock
Dust can be cleaned off with a damp cloth of mild detergent and air dry
Clean the cloth surface with neutral detergent or special mild detergent for cloth
MAINTENANCE
Do not spray pesticide on device
Specified cleaner can be used on the leather, plastic, and dried with a cloth
Do not use a damp cloth on the electronic components which can cause shock and damage
The leather covers (headrest, seat cushion, foot cushion) can be removed for cleaning
20

During daily use, please check whether the following phenomenon exist: Scorched smell
When touch the wire, the power is on, but sometimes off
The power supply cord is hot
Other abnormal phenomenon
KIND REMINDING
If problems happen above, please turn off power supply and contact the distributor or manufacturer
for assistance.
CAUTION
Note : Do not dismantle the produce by yourself, and our company shall shoulder no responsibility to the
damage of the product or the inquiry of people caused by improper use. Thanks for your cooperation !
Problems/Issues Possible Cause Trouble Shooting Method
Sounds like tapping or hum sounds
Suddenly stops working
Sounds from air pump,
motor or other mechanical parts
TROUBLESHOOTING GUIDE
Normal phenomenon
Does not work after power up
1. Power switch is not turned on
2. Bad connection between plug
and socket
3. Massage remote is not turned on
4. Have broken power wire plug
5. Bad fuse
6. Control unit for functioning properly
1. Turn power switch on
2. Connection power cord again
3. Press power button on remote
4. Contact professional technician
5. Replace fuse
6. Contact professional technician
Abnormal sounds suddenly
while working
Maybe from over working the
massage chair
1.Cut down usage
2. Contact professional technician
Can not recline the chair Obstruction-be sure that the chair is
allowed enough room to fully recline
Stop chair opearion, and
move obstruction
can not restore position after
reclined
Problem on electric motion pole or
plug under bad connection
Contact professional technician
ATTENTION
If problems are not from above reasons,please turn off power supply and contact the distributor or
manufacturer for assistance.
1. Bad power connection
2. Auto program timers is up
1. Unplug and reinsert power cord
to he chair
2. Normal
Roller height changes Rollers work alternately Normal phenomenon
21
Name : RealRelax Favor-04 Massage Chair
Rated Voltage: 110V
Rated Frequency: 60hz
Rated Power :100w
Safety Design : Class I
TECHNICAL SPECIFICATIONS
Manufacturer Reserves The Right To Make Changes To Informations Published In This Document,
Including Without Limitation Specifications And Product Descriptions, At Any Time And Without Notice.
22
