RealRelax Z01 User manual

MASSAGE CHAIR
USER MANUAL
PLEASE READ AND SAVE THESE INSTRUCTIONS
Z01
WWW.REALRELAXMASSAGE.COM
USA:[phone]
RealRelax Inc.

- Thank for your purchase of this product. Before using, please read this
USER MANUAL carefully,and pay special attention to the safety precaution
to ensure proper operation and use.
- Please keep this USER MANUAL properly for further reference.
SAFETY PRECAUTIONS
NAME AND FUNCTION OF EACH COMPONENT
PREPARATION BEFORE USING
PRODUCE STORAGE AND MAINTENANCE
TROUBLESHOOTING GUIDE
MEDICAL WARNINGS ----------------------------------------------
WARNING -------------------------------------------------------
FORBIDDEN------------------------------------------------------
REMOVE PLUG ---------------------------------------------------
EXTERNAL STRUCTURE ------------------------------------------
INTERNAL STRUCTURE -------------------------------------------
REMOTE CONTROLLER INSTRUCTION -------------------------------
INSTALLATION METHOD -------------------------------------------
TURN ON POWER SUPPLY -----------------------------------------
MOVE METHOD --------------------------------------------------
INSTALLATION POSITION ------------------------------------------
GROUNDING INSTRUCTIONS ---------------------------------------
AFTER USING THE CHAIR -----------------------------------------
KIND REMINDING ------------------------------------------------
TROUBLESHOOTING GUIDE ---------------------------------------
CLEANING INSTRUCTIONS
TECHNICAL SPECIFICATIONS
CLEANING THE PLASTIC PARTS ------------------------------------
CLEANING THE MASSAGECHAIR SYNTHETIC LEATHER ----------------
ENVIRONMENT WHEN USING PRODUCT -----------------------------
01 - 02
03
03 - 04
04
05
06
07
REMOTE CONTROLLER KEY FUNCTIONS ---------------------------- 08
MUSIC SYSTEM -------------------------------------------------- 09
11
12
12
13
14
14
METHODS OF STORAGE ------------------------------------------
MAINTENANCE --------------------------------------------------
14
14
15
16
17
18
15
TECHNICAL SPECIFICATIONS -------------------------------------- 19
TABLE OF
CONTENTS

SAFETY
PRECAUTIONS
Patients with serious hyperostosis
Swollen lump and patient thrombosis
Before using, please read this "SAFETY PRECAUTIONS" carefully to ensure proper operation.
The following "SAFETY PRECAUTIONS" is of great help to your correctly use of this massage chair.
To clearly indicate the degrees of danger and damage, the classes of accidents caused by incorrect.
use are classified into "WARNING" and "FORBIDDEN". Instructions marked as followings should be
strictly followed.
NOT RECOMMENDED FOR THE FOLLOWING PEOPLE.
MEDICAL WARNINGS
01
Patients with serious heart conditions
Pregnant Women
People that consume large amounts of alcohol
People with diabetes
People suffering from high fever
Patients with malignant tumors or malignant abscesses
People with distorted joints
People with serious skin conditions
People with spinal injuries
All people should consult a physian and exercise care when operating this system
Minors under 16 years or people unable to control his/her behavior,i.e.mental patients,people
with paralysis,etc.
02

Use this appliance only for its intended use as described in this manual.
Do not use attachments not recommended by the manufacturer.
Never operate this appliance if it has a damaged cord or plug.
Keep the cord away from heated surfaces.
Please empty pockets and remove all your arm Jewellery and watch before using this chair
Do not operate where aerosol (spray) products are being used.
To disconnect, turn all controls to the off position, then remove plug from outlet.
Connect this appliance to a properly grounded outlet only. See Grounding Instructions.
Do not remove the back cushion and do not play with roller mechanism.
Do not remove the bottom seat and do not play with actuators.
Keep the cord out of heavy traffic area.
Always unplug the power cord from the electrical outlet 0immediately after use.
Only people less than 120kgs are acceptable.
Do not operate any equipment with damaged parts.
Any other use not recommended by the manufacturer may cause electrical shock or injury.
Do not touch or re-wire the wires connected to the master-box.
Do not attempt to repair or adjust any electrical or mechanical functions on this unit.
Doing so will void the warranty.
Do not put your hands or head under the chair
When using the massage chair, ascertain that the footrest is in the lowest position.
Do not allow children to play near the chair especially during operation
Do not leave mobility impaired or speech impaired people alone in chair
Do not place or stock this machine near damp places such as swimming pools or
bathrooms
Do not press by force on the massage rollers
Do not stand on the chair or store heavy items on the chair
Do not use in the environment which is dusty, greasy or lacking oxygen
WARNINGS
FORBIDDEN
03
Before maintenance, please pull out power plug. In addition,please do not insert or unplug the
power plug with damp hands, to avoid electric shock.
When the massage chair is not in use, please switch off power and remove the plug from socket.
When power is off, please cut off power supply immediately and pull out the power plug from
socket.
Do not place near steam oven, open fire, or heat
Wear suitable clothing, do not massage with bare skin
Do not place directly in the sun
Do not use electric blanket while using the massage chair
Do not use outdoors
Do not use while smoking
Do no use immediately after meals
Do not sit on the back cushions, armrest, or legs
Don't use the massage chair when your body is wet or moist as it can result in
electrical shock
Do not operate with more than one person
Don't use when using head ornamentation as it can result in injury
Do not stumble over electrical wires or connections
Please avoid using a massager after drinking or when you are not feeling well.
Do not massage the head, elbow joints, knees, chest, abdomen, etc. directly on the massage
ball.
Do not damage the power cord or operate the massager while the power cord is damaged. This
may result in electric shock or mechanical failure. Please contact the service center for a
detailed inspection.
BE CAREFUL
REMOVE PLUG
04

05
NAME AND FUNCTION
OF EACH COMPONENT
7.Wheels
8.Power Switch
9.Cord Connector
1.Backpad
2.Shoulder Air Massage Unit
3.Armrest
4.Seat
5.Footrest
6.Backrest
EXTERNAL STRUCTURE
1
4
6
5
3
2
98
7
06
1
2
3
4
5
6
7
Shoulder Air
Massage Unit
Armrest Air
Massage Unit
Calf Air
Massage Unit
Foot Air
Massage Unit
SL Massage Track
Back Heat
Slide Rail
8
Massage Unit
Foot Roller
INTERNAL STRUCTURE
1
3
4
8
7
6
5
2

07 08

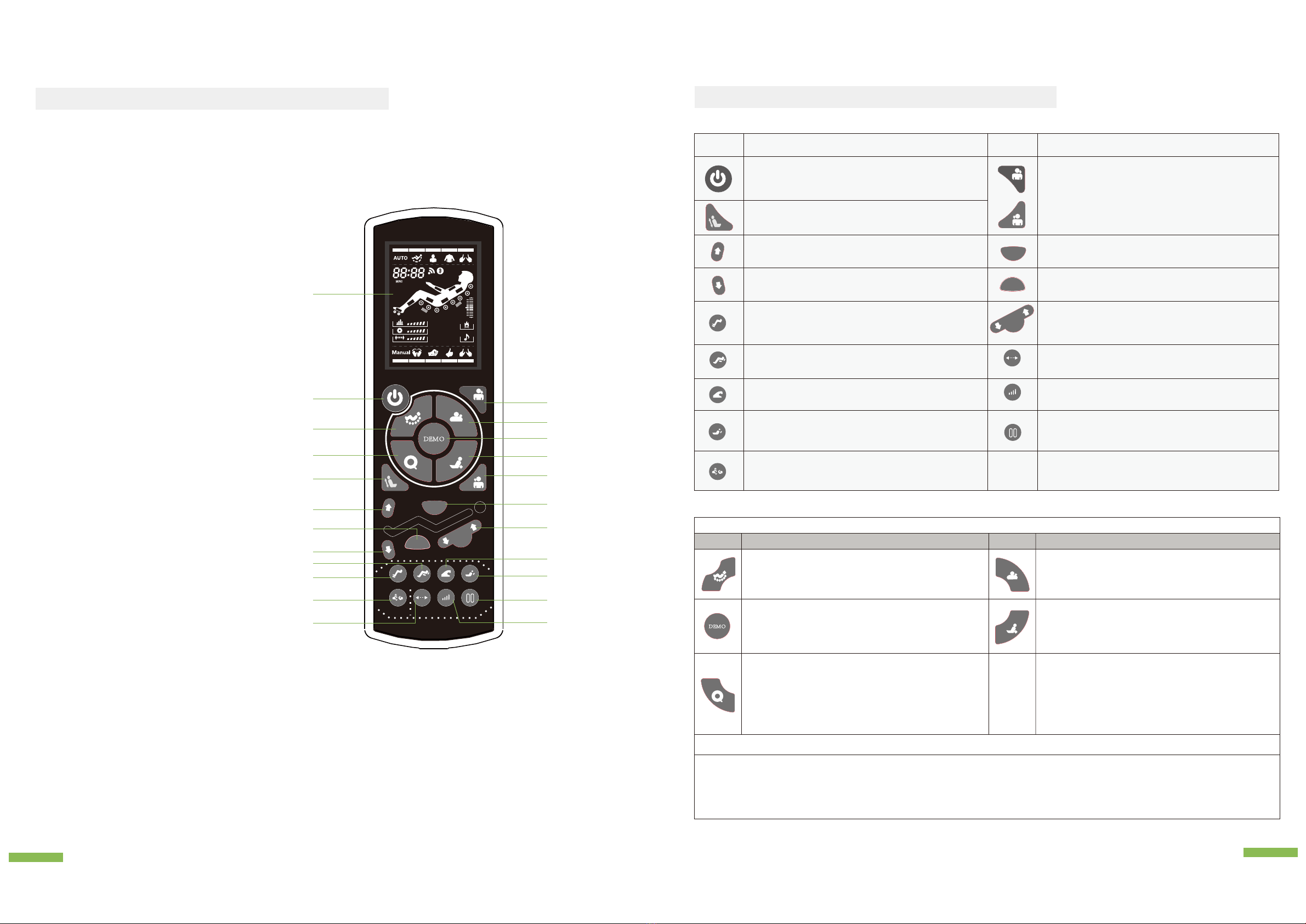

REMOTE CONTROLLER INSTRUCTION
LCD screen
Power
Full-body massage mode
Shiatsu massage mode
Back roller
Time +
Heat
Time -
Leg & Waist airbag
Foot Roller
Manual
Width
Shoulder Up
Shoulder massage Mode
DEMO
Waist massage Mode
Shoulder Dowen
G-Zero
Angle Adjust
Arm airbag
Shoulder airbag
Pressure
Intensity
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
REMOTE CONTROLLER KEY FUNCTIONS
Button Button Function
Function
Press this button to turn the massage chair on,
Long press for 1.5 seconds to shut down
In manual mode, you can adjust the manipulator's
fixed point, area, and whole body work
Increase working time Make the machine in zero gravity
Turn on or off the heating function
When the massage chair is energized, whether it is
turned on or not, the lifting angle of the chair can be
adjusted through this button
Reduce working time
Turn on or off the foot rollers
Turn on or off the Leg & Waist airbag
Turn on or off the Arm airbag
Turn on or off the Shoulder airbag
The width of the manipulator can be adjusted in part
of the manual mode
Adjust the working
Intensity of the manipulator
Adjust the pressure of the airbag
Switch to manual mode
The upper and lower positions of the manipulator
can be adjusted in the last 5 seconds of the first
shoulder detection after power-on, and the
fixed-point working position of the movement can
be adjusted in manual mode
Button
Manual Mode:
Auto Mode:
Button FunctionFunction
Full-body massage mode:
manipulator performs full-track cycle massage
Shoulder massage mode:
Manipulator performs circular massage of the
shoulder area
DEMO massage mode:
the manipulator performs a soothing and relaxing
cycle massage
Waist massage mode:
manipulator performs circular massage of the
waist area
Shiatsu massage mode:
Manipulator performs Shiatsu massage mode
full-track cycle massage
Manual massage of neck / back / waist area:
Switch to manual mode through the Manual button, you can choose one of the manual modes, and select heating, airbag,
angle adjustment and other related functions according to your needs
Foot Roller
Manual
Leg & Waist
Width Intensity Pressure
Arm
Shoulder
Heat on/off
Angle Adjust
Time +
Back Roller Shoulder Down
Shoulder Up
Power-Pause
Auto Mode
Manual Mode
Time -
DEMO
G-Zero
Heat
G-Zero
Heat
DEMO
2
1
3
4
5
6
7
8
10
9
12
11 22
23
21
20
19
18
17
16
15
14
13

PREPARATION
BEFORE USING
09
How to use:
1. Open mobile-phone/ipad/computer BLUETOOTH capabilities,and access to the search state,
your device will automatically search neighboring BLUETOOTH devices.
2. In a few seconds,our massage chair name will show up under the device list,select massage
chair name,and the connection complete.

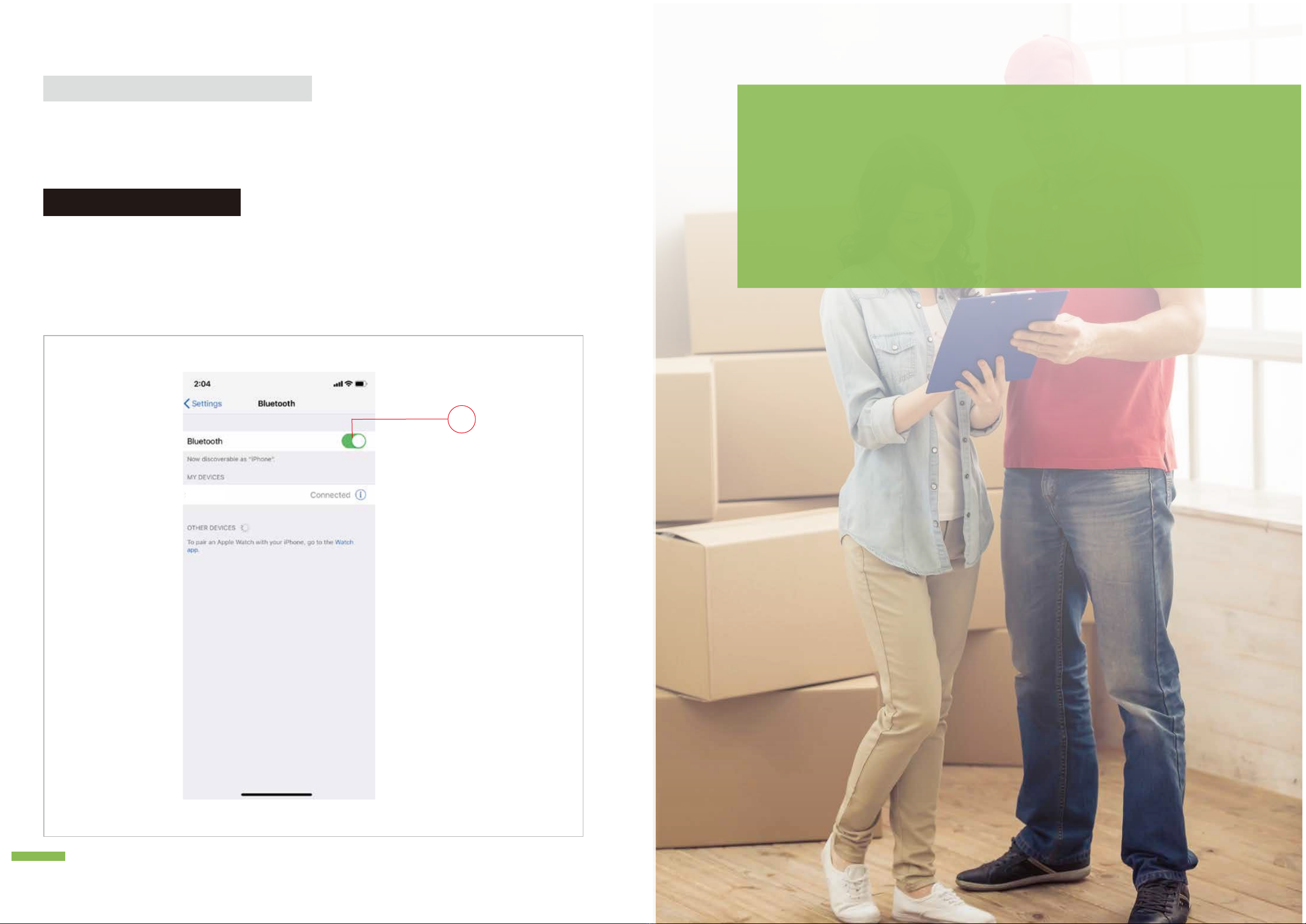

MUSIC SYSTEM
Our product is designed with Bluetooth audio connection function.It can play music
through connect with smart phone,tablet computer or other audio devices.
1
RealRelax

INSTALLATION METHOD
ACCESSORIES FROM BOX
1
Lay down the footrest
Our chair is shipped in one box.
Lift up the outer box
Remove around
Setps:
TURN ON POWER SUPPLY
1.Plug the power cord into three core socket with well grounding.
2.Turn on the power switch on the bottom of massage chair.
2
MOVE METHOD
3
There are moving rollers at the bottom of the chair.
Raise the back to the highest point.
Switch off and plug out the chair.
Lift the front part of the chair as showed in the figure(one person raise the front part via holding moving
holder, another person push the chair when holding the top of the chair), move the chair by the rollers.
迅捷
PDF
阅读
器
Before switching on the chair, please make sure there is no damage on the power wire and other
exposed wires.
Make sure the power switch is off before the chair is connected to electricity.
CAUTION
Don’t move it when there is people in it.
Don’t use the armrest while moving the chair, only hold the moving holder in the back and front.
CAUTION
2
1
11 12

(1) Place a massage chair in a place where there is enough space for the back of the chair
to recline and the stand to rise.
(2) Make sure that there is at least 30 cm in the back of the massage chair and at least 30 cm in front
of the massage chair.In order to prevent from signal interference, please keep at least 1m away from
the TV, radio and other video and audio devices.
PLEASE LEAVE THE SPACE AROUND THE MASSAGE CHAIR WHEN PREPARING THE MASSAGE.
INSTALLATION
POSITION
SURROUNDING ENVIRONMENT
Keep the massage chair away from damp places (for example: bathroom) to avoid electric leakage
Keep the massage chair away from high temperatures sources (for example: stove) to avoid fire or
damage to leather material
CAUTION
Before using, please tidy up well the cables to avoid twining or damage When the whole chair
makes slide movement forward or backward to original position, please check first whether
there are kids,pets or any other objects to avoid accidents.Please put carpet or other pad
under the massage chair,in order to avoid any unpredictable impression on the floor.
This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate
outlet that is properly installed and grounded in accordance with all local codes and ordinances.
DANGER - Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly
grounded. Do not modify the plug provided with the product - if it will not fit the outlet; have a proper outlet
installed by a qualified electrician.
GROUNDING INSTRUCTIONS
迅捷
PDF
阅读
器
AFTER USING THE CHAIR
Please power off the chair and unplug power cable from power the supply socket after using disconnect the
controller and store carefully
Please power off the chair and unplug the chair from the power supply socket when the chair is not in use,
to avoid children to start the chair accidentally
Please store well the chair if it is not in use for a long time.
Do not dismount the back of the chair
Cover the chair with dust-free cloth to prevent dust from collecting
Keep the massage chair free of dust
METHODS OF STORAGE
Do no store in a hot, humid, damp place or in direct sunlight or heat
Do not store in an overly cold place
Before cleaning unplug from electrical source to avoid shock
Dust can be cleaned off with a damp cloth of mild detergent and air dry
Clean the cloth surface with neutral detergent or special mild detergent for cloth
MAINTENANCE
Do not spray pesticide on device
Specified cleaner can be used on the leather, plastic, and dried with a cloth
Do not use a damp cloth on the electronic components which can cause shock and damage
The leather covers (headrest, seat cushion, foot cushion) can be removed for cleaning
13 14

During daily use, please check whether the following phenomenon exist: Scorched smell
When touch the wire, the power is on, but sometimes off
The power supply cord is hot
Other abnormal phenomenon
KIND REMINDING
If problems happen above, please turn off power supply and contact the distributor or manufacturer
for assistance.
CAUTION
Note : Do not dismantle the produce by yourself, and our company shall shoulder no responsibility to the
damage of the product or the inquiry of people caused by improper use. Thanks for your cooperation !
Problems/Issues Possible Cause Trouble Shooting Method
Sounds like tapping or hum sounds
Suddenly stops working
Sounds from air pump,
motor or other mechanical parts
TROUBLESHOOTING GUIDE
Normal phenomenon
Does not work after power up
1. Power switch is not turned on
2. Bad connection between plug
and socket
3. Massage remote is not turned on
4. Have broken power wire plug
5. Bad fuse
6. Control unit for functioning properly
1. Turn power switch on
2. Connection power cord again
3. Press power button on remote
4. Contact professional technician
5. Replace fuse
6. Contact professional technician
Abnormal sounds suddenly
while working
Maybe from over working the
massage chair
1.Cut down usage
2. Contact professional technician
Can not recline the chair Obstruction-be sure that the chair is
allowed enough room to fully recline
Stop chair opearion, and
move obstruction
can not restore position after
reclined
Problem on electric motion pole or
plug under bad connection
Contact professional technician
ATTENTION
If problems are not from above reasons,please turn off power supply and contact the distributor or
manufacturer for assistance.
1. Bad power connection
2. Auto program timers is up
1. Unplug and reinsert power cord
to he chair
2. Normal
Roller height changes Rollers work alternately Normal phenomenon
15 16

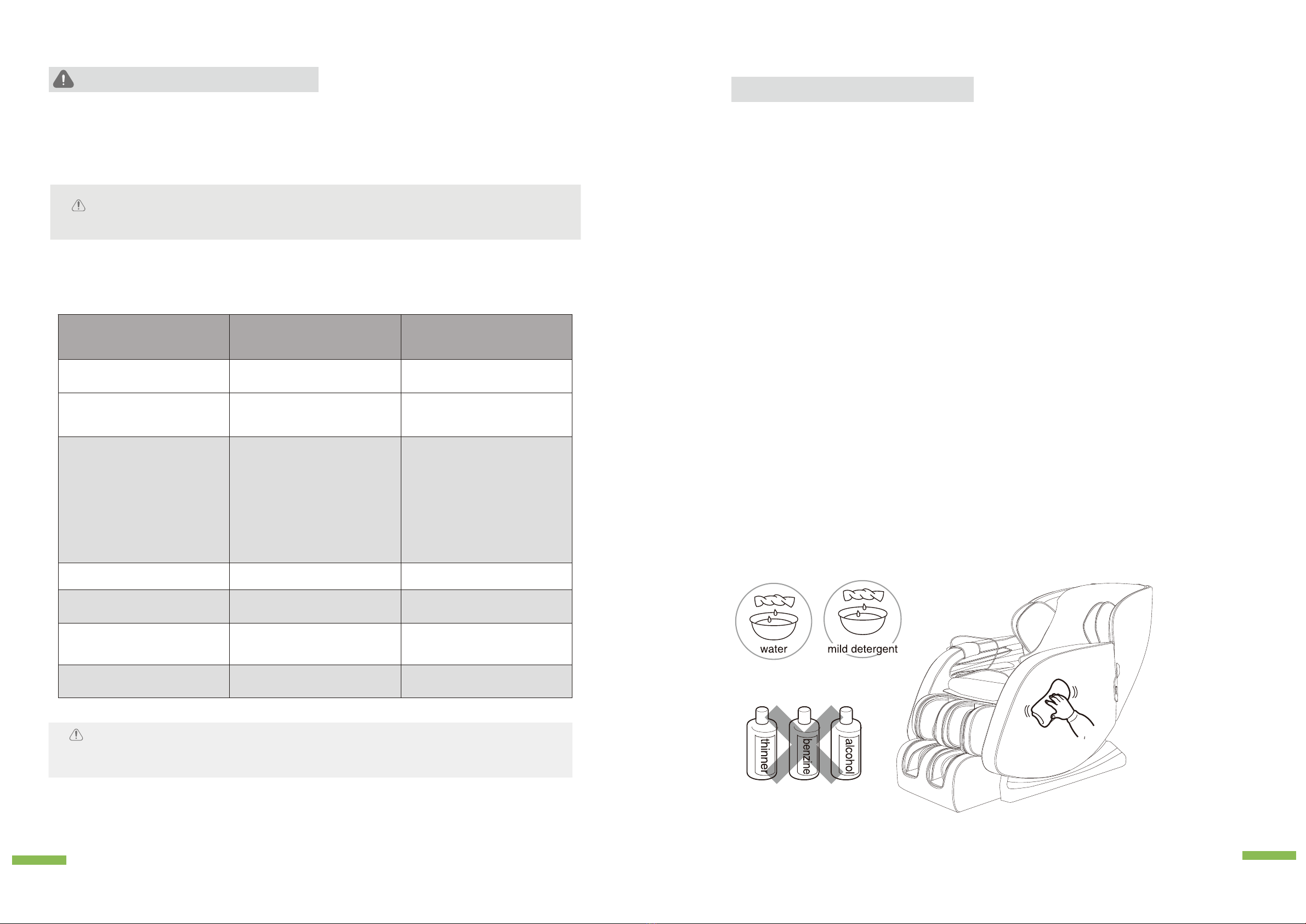

Cleaning the plastic parts
1. Soak a piece of soft cloth in hot water or neutral detergent mixed with hot water,
wring it out and wipe the plastic parts.
· Do not clean the p roduct with chemicals such as thinners, alc ohol.
2. Wipe residue away with a clean soft cloth that has been
water and wrung out.
· Wring the cloth out tho roughly be fore using it to wipe the remo te c ontroller.
3. Let the plastic parts air dry.
gasoline and
soaked in clean
CLEANING INSTRUCTIONS

17 18
· Do not use this applian ce in a hot and humid environment, such as a b athroom.
so m ay result in an a c cidental dumping.
· Do not use this applian c e in dusty or corrosive atmosphe res.
· Do not smo ke on this applian ce to a void scalding the leather cover.
Environment When Using Product
· If you suff er from s evere osteopo rosis
· If you wear an elect ronic medical d evice such as a pacema ker
· If you have a high fever or feel unwell
· If you are pregnant or men struating
· If you suff er from a p hysical condition
· If you have been o r dered to recupe rate by a doc tor
· If your body is wet
· This p roduct is forbidden for children under the age of 14 without supervision
You Should Not Use This Device If
· Place and use the unit on a flat surface. Failure to do
Cleaning the Massagechair Synthetic Leather
· Do not clean the p roduct with chemicals such as thinners, and alcohol.
·When using a le ather maintenance p roduct (i. e. cleaning cloth s ) on the mar ket,
follow its directions for us e.
· If the synthetic leather is very dirty, try the method bel ow.
1. Soak a soft cloth in to a solution of 3% to 5% neut ral detergent and hot water. W ring it out.
2. Wipe the sur face of the synthetic leather with the moist cloth.
3. W ipe the detergent residue off of the chair with a soft that has been soa ked in clean
water and wrung out.
4. All ow the s ynthetic leather to air dry on its own.
· If the stains a re difficult to remove with the method ab ove, piec e of melamine
foam into a neut ral de tergent and use product.
· Do not dry the sur face using a hai r dryer.
· F abric colors m a y dye the sur face of the synthetic leather, be reful when wiping
the product with denim or c olored cloth.
CLEANING INSTRUCTIONS CLEANING INSTRUCTIONS
gasoline
sold
soft
cloth
the
a
ca
wipe
soak
it
Wipe off the synthetic leather with a soft dry cloth.

Model: Z01
Rated Voltage: 110V
Rated Frequency: 60hz
Rated Power :120w
Safety Design : Class I
Manufacturer Reserves The Right To Make Changes To Informations
Published In This Document, Including Without Limitation Specifications
And Product Descriptions, At Any Time And Without Notice.
19
PRODUCT SPECIFICATIONS
