RED DEVIL 1400-A1 User manual

Owner’s Manual:Owner’s Manual:
1400 & 1410 Air & Explosion1400 & 1410 Air & Explosion
One-Gallon Shaker
Models 1400-A1, 1410-A1, 1400-X1
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
1400-X1 on Pedestal Base
(5152-00)
1410-A1 on Counter Base
(5153-00)

2
Owner’s Manual:1400 & 1410 1787021 REV H
ECO 16-0082
Feb 2021
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
Table of ContentsTable of Contents
Safety InformationSafety Information
1.1 Safety Precaution Labels
1.2 Safety Precaution Summary
IntroductionIntroduction
2.1 Application
2.2 Specifications
2.3 Specifictations Continued
Assemble & TestAssemble & Test
3.1 Prepare for Use
3.2 Assemble the Counter Base
3.3 Assemble the Pedestal Base
3.4 Valve Cap Removal
3.5 Connect to Power
OperationOperation
4.1 Install a Pail and Mix
Care and MaintenanceCare and Maintenance
5.1 Cleaning
5.2 Maintenance (All Models)
5.3 Maintenance (1410-X1)

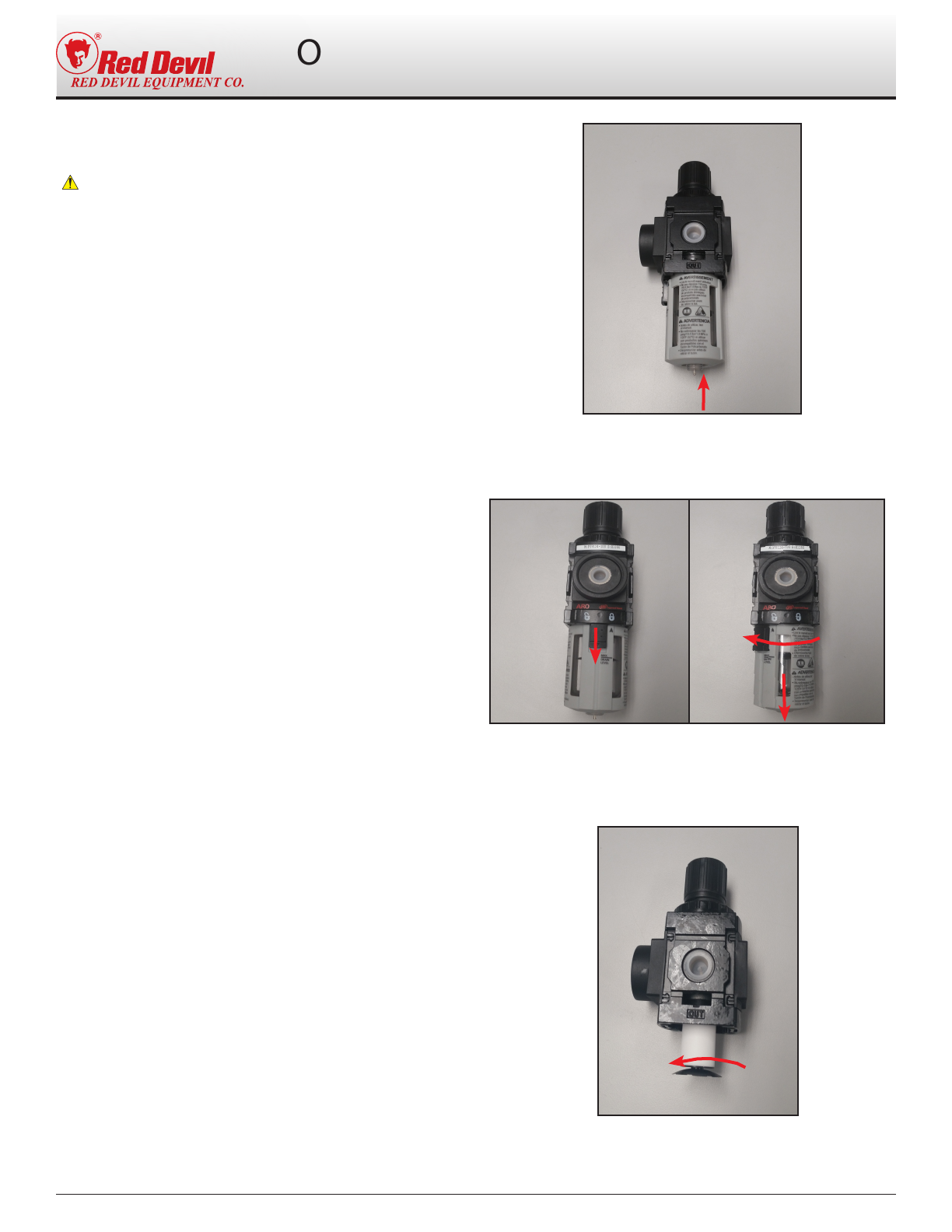

5.4 Maintenance (Air Models)
Trouble ShootingTrouble Shooting
Wiring DiagramWiring Diagram
7.1 1400 - X1 Wiring Diagram
7.2 Pneumatic Schematic
1.1.
2.2.
3.3.
4.4.
5.5.
6.6.
7.7.
33
4
5
66
6
6
6-76-7
88
8
8
8-98-9
99
99
1010
1010
1010
10
10
10
11
1212
1313
13
14
Exploded ViewsExploded Views
8.1 Drive System 1400 - X1
8.2 Transmission Assembly
8.3 Drive System 1400 & 1410 - A1

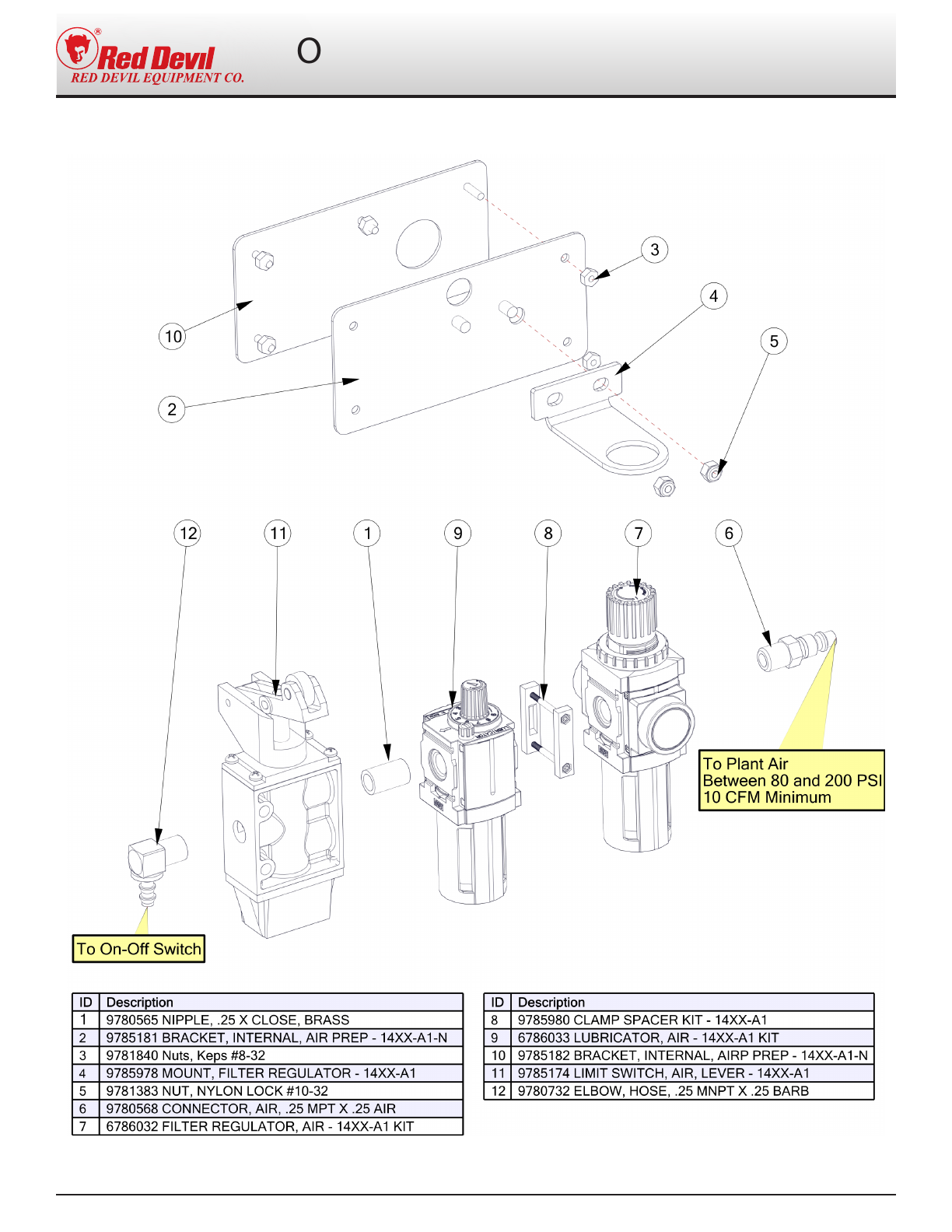

8.4 Air Assembly
8.5 Clamp Assembly, Left
8.6 Camp Assembly, Right
8.7 Enclosure Assembly
8.8 Clamp Cover Assembly
8.9 Electrical Assembly 1400-X1
8.10 Counter Base 5153-00
8.11 Pedestal Base 5152-00
OrderingOrdering
Replacement Parts
WarrantyWarranty
NotesNotes
8.8.
9.9.
11.11.
1515
15
16
17
18
19
20
21
22
23
24
25
2626
26
2727
2828
10.10.

3
Owner’s Manual:1400 & 1410 1787021 REV H
ECO 16-0082
Feb 2021
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
“WARNING!” indicates a hazardous situation, which, if not avoided, could
result in death or serious injury. These serious injuries could include permanent
loss of function or significant disfigurement, disability, considerable pain
and suffering, amputations, severe burns, and loss or impairment of vision or
hearing. Take all necessary precautions to avoid unnecessary injury.
“CAUTION!” indicates a hazardous situation, which, if not avoided,
could result in minor or moderate injury.
“NOTICE” indicates practices that do not involve physical injury
but may damage the machine.
NOTICE
1. Safety Information1. Safety Information
Review this owner’s manual and read all warning labels on the machine prior to use.
The three main safety notifications used in this manual and on the warning labels are WARNING, CAUTION
and NOTICE. They have specific meanings and indicate the potential dangers from misuse of the machine.
Safety Information, Continued..

4
Owner’s Manual:1400 & 1410 1787021 REV H
ECO 16-0082
Feb 2021
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
Safety Information, continued...
Part No. 1785065
CAUTION
MOVING PARTS INSIDE
AVERTISSEMENT
LES PARTIES EN MOUVEMENT À
L'INTERIEUR DE LA MACHINE
PRECAUCIÓN
PIEZAS MÓVILES ADENTRO
- Do not operate with safety
guard open.
- Do not open safety guard until
machine comes to a complete
stop.
- Ne pas mettre en service si le
dispositif de protection est ouvert.
- Ne pas ouvrir le dispositif de
protection avant I'immobilisation
complete de la machine.
- No operar con el protector
de seguridad abierto.
- No abrir el protector de
seguridad hasta que la
màquina este completamente
parada.
- Machine must be properly grounded before use; improper grounding could
cause electric shock and injury.
-Disconnect power cord before servicing, cleaning or removing any
cover, and follow lockout/ tagout procedures in owner manual; failure to
disconnect power could cause electric shock and injury.
-Review Owners Manual before installing or operating.
- La maquinaria debe ser apoyada correctamente en el suelo antes de usar, el no apoyarla
puede casuar choque elêctrico y daños.
-Desconecte la energía antes de dar mantenimiento, limpiar o quitar caulquier cubierta, y
siga los procedimientos de bloqueo/etiquetado del manual, Fallar en desconectar puede
causar choque eléctrico y daños.
- Revise el manual del usuario antes de instalar u operar.
- La machine doit e'tre correctement mis a' la terre avant de les utilizer mise a' la terre
incorrecte peut provoquer un choc e'lectrique et de blessure.
- De'branchez le cordon d'alimentation avant de proce'der a'l'entretien, le nettoyage ou le
retrait des capots: suivez la proce'dure d'isolation/consignation proce'dures dans le manul
de l'opre'rateur; E'chec de de'brancher la source d'alimentation peut provoquer shock and
e'lectrique blessyres.
-Re'examiner le fonctionnement manuel avant l'installation.
WARNING
ADVERTENCIA
AVERTISSEMENT
Part No. 1781570
Part No. 1780668
1400 & 1410-A1 only
AIR SUPPLY NOT TO EXCEED 150 PSI MINIMUM AIR SUPPLY
REQUIREMENT IS 80 PSI
EL SUMINISTRO DE AIRE NO DEBE EXCEDER LOS 150 PSI
MÍNIMO REQUISTIO DE SUMINISTRO DE AIRE ES DE 80 PSI
LA PRESSION DE L'ALIMENTATION EN AIR NE DOIT PAS
DÉPASSER 1034 KPA (150LB/PO)
LA PRESSION MINIMALE DE L'ALIMENTATION EN AIR EST DE
551,6 KPA (80 LB/PO)
CAUTION
1.1 Safety Precaution labels1.1 Safety Precaution labels
Safety Information, Continued..

5
Owner’s Manual:1400 & 1410 1787021 REV H
ECO 16-0082
Feb 2021
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
WARNING!
BE SURE that the remote power switch is
installed by a qualified electrician. Refer
to local codes for proper placement of
the remote power switch.
Review this owner's manual before
installing or operating.
The machine must be properly grounded
prior to use. In the case of an electrical
short circuit, grounding reduces the risk
of electric shock by providing an escape
wire for the electric current.
Check with a qualified electrician if
you don’t completely understand these
grounding instructions, or if you are not
sure whether the machine is properly
grounded.
Follow the lockout/tagout procedures of
your company.
DO NOT open the door until the machine
comes to a complete stop.
Review product label, Material Safety
Data Sheet, and HMIS rating of materials
prior to mixing to determine potential
hazards.
Do not use solvent-based cleaners or
thinners.
1.2 Safety Precaution Summary1.2 Safety Precaution Summary
Safety Information, Continued..
CAUTION!
Keep the work area free of clutter and
electrical cords.
DO NOT disable the limit switch. This
switch interrupts power when the mixer
door is opened
Avoid extension cords. To minimize the risk of
improper electrical grounding, extension cords
are not recommended. If an extension cords
are not recommended. If an extension cord
is unavoidable, consult a qualified electrician
to determine what type of extension cord will
satisfy the grounding, current capacity, and
other requirements of the particular situsation.
Use the proper power source. Refer to the
machine data plate on the right side panel or
the section 2.1, Specifications, in this manual.
Keep customers away from the work area.
This machine should be used only by properly
trained individuals.
Clamp the can carefully to ensure that it is
held securely durning the mixing cycle.
Product safety labels should be inspected
and cleaned periodically to maintain good
legibility. Replace any labels that are no
longer legible.
WARNING: This product may expose you to
chemicals including DEHP, which is known to
the State of California to cause cancer. For more
information, go to www.P65Warnings.ca.gov

6
Owner’s Manual:1400 & 1410 1787021 REV H
ECO 16-0082
Feb 2021
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015

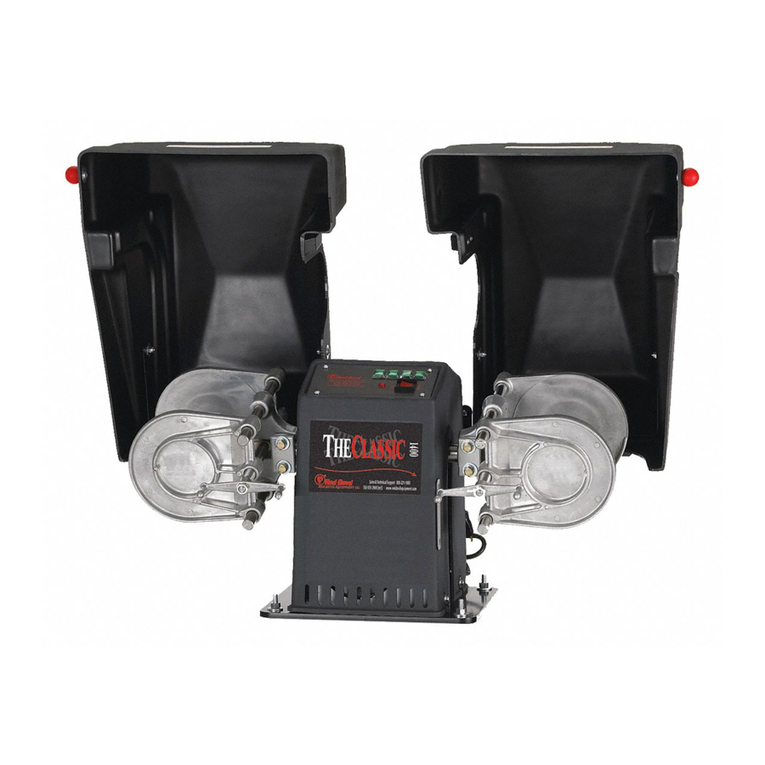

Congratulations on your purchase of the
Classic Shaker. This machine is designed to
accommodate standard gallon, quart and
pint plastic or metal cans weighing up to 18 lb.
(8.2 kg).
This mixer MUST BE USED in conjunction with
either a countertop or pedestal base, sold
separately.
Understand your machine's features and
proper operation to take full advantage of its
capabilities.
Read this entire manual completely before
operating the machine. Practice installing and
removing a container before mixing for the first
time.
Keep this manual for future reference.
Always follow all safety instructions!
Unit Size
• 1400-A1 W 41.63 in. (105.74 cm) D32.25 in.
(75.26 cm) H 31.50 in. (80.01 cm)
• 1410-A1, W27.88 in. (70.81 cm) D 29.63 in.
(75.26 cm) H 31.5 in. (80.01 cm)
• 1400-X1
Shipping Weight:
• 1400-A1, 1400-X1,: 192 lb. (87.1 kg)
• 1410-A1: 152 lb. (68.9kg)
Electric Service: 120 V 60 Hz ( -X1)
Air Service: 10 CFM, Min. 80 PSI, Max 150 PSI
(-A1)
Capacity: 18 lb. (8.2 kg) per clamp
Sizes Mixed: 1 gal., 1 qt., 1 pt.
1400 & 1410-A1 Mounted on either Pedestal or Counter Top bases.
1400-X1 Mounted on pedestal base only
Introduction, Continued..
Single GallonSingle Gallon
1410-A1 No Timer
2.2 Specifications2.2 Specifications
2. Introduction2. Introduction
2.1 Application2.1 Application

7
Owner’s Manual:1400 & 1410 1787021 REV H
ECO 16-0082
Feb 2021
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015

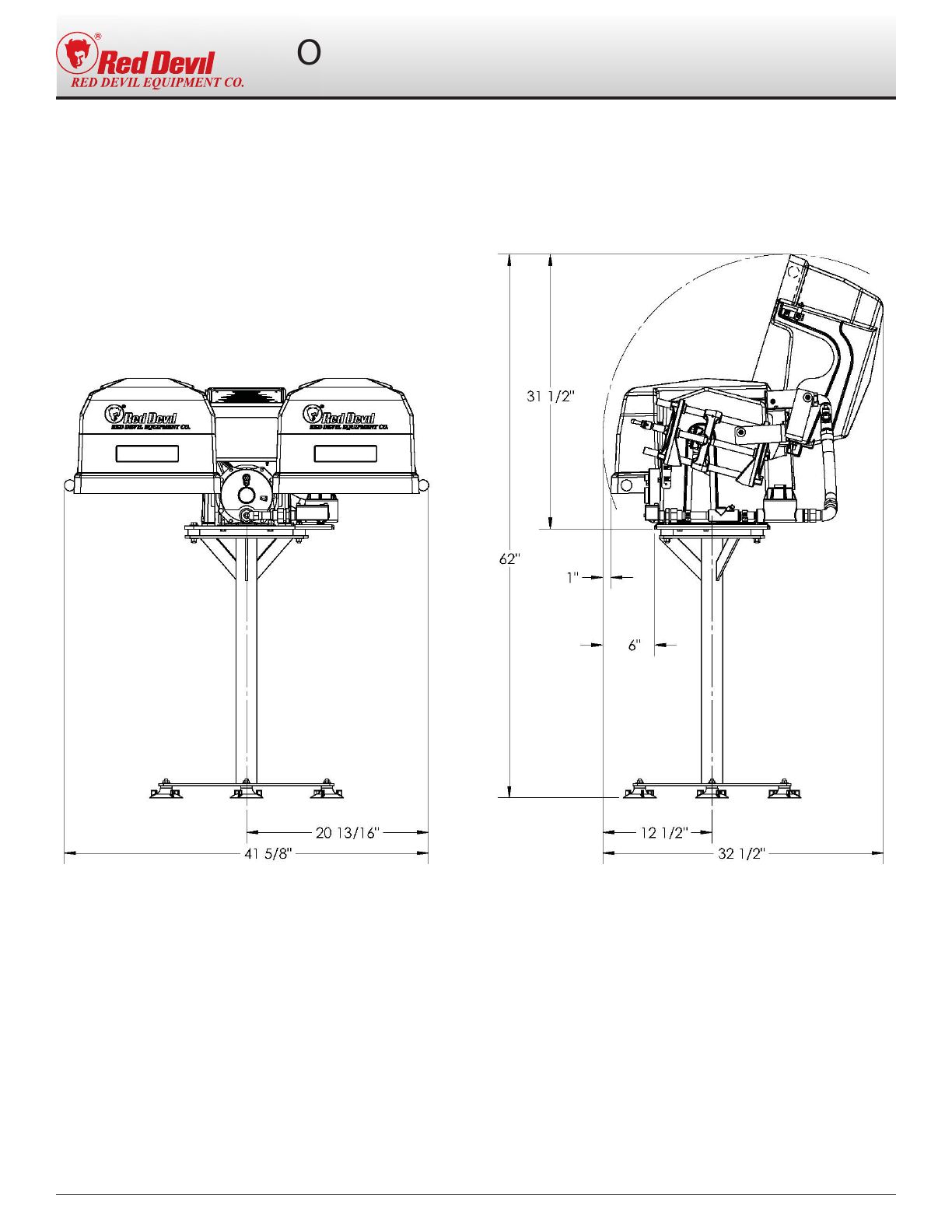

2.2 Specifications Continued2.2 Specifications Continued
Twin GallonTwin Gallon
1410-A1 No Timer
1400-X1 120V / 60Hz No Timer

8
Owner’s Manual:1400 & 1410 1787021 REV H
ECO 16-0082
Feb 2021
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
IMPORTANT: Before attempting to operate the
machine:
1. Remove all packing material from the unit.
2. Remove all packing material from the base.
1. Attach both base castings (A) to the mixer, using
the four carriage bolts (B),washers (C),and nuts (D)
provided.
2. Install a rubber foot (E) into each end of the
springs (F).
3. Lift one side of the mixer. Insert a spring and foot
assembly into the depression in the bottom of each
corner of the base (G).
4. Lift the other side of the mixer, and repeat the
third step.
NOTE: Be sure that the machine and base are placed
on a flat, stable countertop surface.
(A)
(D)
(C)
(B)
(E)
(E)
(G)
(F)
NOT FOR USE WITH 1400-X1
3. Assemble and Test3. Assemble and Test
3.1 Prepare for Use3.1 Prepare for Use
3.2 Assemble the Countertop3.2 Assemble the Countertop
BaseBase (See Section 8.10)(See Section 8.10)
Assembly and Test, Continued..
1. Wipe bottom of pedestal base with alcohol, acetone,
or equivalent.
2. Sweep floor and wipe with alcohol, acetone, or
equivalent.
3. Adhere VHB pads (4) to bottom of pedestal base as
shown above.
4. Place pedestal base on clean floor.
3.3 Assemble the Pedestal Base3.3 Assemble the Pedestal Base
(See Section 8.11)
NOTE: Moving Pedestal Base: If it becomes
necessary to move the machine to a different
location, release the bond between the floor and
pedestal base by inserting a wall scraper between
them. Contact Red Devil Equipment Co. / Radia for
replacement VHB pads.

9
Owner’s Manual:1400 & 1410 1787021 REV H
ECO 16-0082
Feb 2021
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
1. Insert the studs of the suction cups (A) up through
the eight holes in the bottom of the base (B).
2. Secure them by installing the washers (C) and
acorn nuts (D) provided.
3. Hand tighten first, then tighten the nuts one complete
turn with a wrench.
4. Align the openings of the rubber bumpers (F) over
those on the upper plate of the base (E).
5. Set the mixer on the upper plate of the base, on top of
the rubber bumpers (F).
6. Secure the mixer to the base using the four rubber
bumpers, bolts (G) , washers (H), and nuts (I)
(I)
(G)
(H)
(H)
(F)
1/2"
1. X1 machines
Follow the electrical instructions described in
sections 1.2 & 2.2
2. A1 machines
Connect a 10 CFM air supply to the inlet side of the
filter regulator. The air supply must be at least 80 PSI
to reliably operate the machine, and MUST NOT
EXCEED 150 PSI.
The Lubricator requires air tool oil. It is
shipped without oil to prevent leaking during
shipment. See Section 5.4.
Assembly and Test, Continued..
3.5 Connect to Power3.5 Connect to Power
Lubricator
3.4 Valve Cap Removal3.4 Valve Cap Removal
1. Remove the Valve Cap prior to operation.

10
Owner’s Manual:1400 & 1410 1787021 REV H
ECO 16-0082
Feb 2021
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
1. Turn the handle counter-clockwise to open the
clamping jaws about 1/2” wider than the length of
the container.
2. Insert the can and turn the handle clockwise
to secure the can for mixing. Before turning on the
mixer, always be sure that the container is held
tightly-but don’t use excessive pressure that could
damage the can or clamping assembly.
3. If mixing with only one clamp on a Model 1400, install
an empty can (or a piece of 2” x 4” board) in the other
clamp.
4. Close the guards to activate the air switch.
Notice: Avoid damage to the machine. Do not operate
the machine without a can installed in a clamp..
≈ ½
5. For Air models turn the Flow Control Valve on for the
desired amount of time
6. For Explosion proof models, turn the power
on at the remote power switch for the desired
amount of time.
Lubrication:
• Measure the oil level periodically. Be sure
the oil level is between the two marks on
the dip stick. Use a good grade SAE 10W 30
motor oil.
• Avoid using too much oil as it could cause
seepage around the main shaft. The
capacity of the transmission is 10 oz.
• Keep the guide rods free of dirt, dried
paint, and other foreign matter.
• Remove any small nicks with a fine file.
• Whenever the guide rods feel dry, wipe a
little oil over them with a rag.
• Occasionally apply a thin film of oil to the
clamp screws.
WARNING!Avoid serious personal injury.
Always turn the power off before performing
maintenance tasks.
Disconnect the air for air operated models
and bleed air pressure from the mixer.
• Remove water-based/glycol colorants or
base paints spilled on machine surfaces
using lukewarm water and mild detergent.
• Do not use abrasives to clean machine
surfaces. Doing so may damage the
appearance of the machine.
• Keep the machine clean for reliable
operation.
5.3 Maintenance (1400-X1)
Belt tension (1400-X1)
• Maintain the belt tension. To adjust, loosen
the two screws on the idler support bracket.
Slide the idler to tighten the belt, then
retighten the screws.
4. Operation4. Operation
4.1 Install a Pail and Mix4.1 Install a Pail and Mix
5. Care & Maintenance5. Care & Maintenance
5.1 Cleaning5.1 Cleaning
5.2 Maintenance5.2 Maintenance (All Models)(All Models)

11
Owner’s Manual:1400 & 1410 1787021 REV H
ECO 16-0082
Feb 2021
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
CAUTION - ALWAYS SHUT OFF THE AIR SUPPLY
LINE AND BLEED THE AIR PRESSURE FROM THE MIXER
BEFORE SERVICING!
1. Drain the filter of accumulated water as often as
required.
NOTE: FAILURE TO DRAIN THE FILTER CAN
RESULT IN MOTOR FAILURE. CHECK AND
DRAIN THE FILTER REGULARLY.
a. Push pin at bottom of filter bowl to drain
water (Figure 1).
2. Change the air filter element (Radia part
#9787499) when it becomes dirty or when the shake
speed of the mixer becomes slow.
a. Remove the bowl from the Filter Regulator
(Figure 2).
b. Twist of the disc shaped end piece and
then replace the cylinder shaped filter.
(Figure 3)
3. Refill the Air Lubricator
NOTE: FAILURE TO KEEP THE MIXER
PROPERLY LUBRICATED CAN RESULT IN
FAILURE OF THE AIR MOTOR. CHECK THE OIL LEVEL
REGULARLY.
a. Remove the lubricator bowl (Figure 2)
b. Fill the bowl with air tool oil to ¼” to top of
the bowl
c. Reinstall the bowl to the air lubricator
4. Adjust the drip rate of the air lubricator.
NOTE: INADEQUATE LUBRICATION CAN
RESULT IN PRE-MATURE FAILURE OF
THE MOTOR. OVER LUBRICATION CAN
LEAD TO EXCESSIVE OIL DRIP FROM THE
MUFFLER OR CLOGGING THE MOTOR.
a. Turn the clear knob on top of the lubricator to
maintain a drip rate of 1 drop every
1-2 minutes.
5.4 Maintenance (Air Models)
Fig. 2: Removing the regulator
or lubricator bowl
Fig. 1: Draining accumulated
water in air filter
Fig. 3: Replacing air filter

12
Owner’s Manual:1400 & 1410 1787021 REV H
ECO 16-0082
Feb 2021
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
PROBLEM CAUSE REMEDY
Mixer will not operate
Not connected to power source Connect to power source
Loose or broken wire connection Have a qualified electrician replace or
repair the wire connection
Limit switch actuator does not
make contact with limit switch
Readjust switch to make contact with limit
switch screw when the cover is closed
Mixer guard is not closed
completely
Remove any obstruction and close the
guard properly
Motor thermal protector activated Allow to cool, then restart
Faulty Remote Switch/Air Switch Contact Red Devil Equipment Co.
Customer Care
Faulty motor Contact Red Devil Equipment Co.
Customer Care
Air pressure low or restricted Check air supply lines
Air lubricator not dripping oil. re-fill oil reservoir, adjust drip rate, or
replace o-ring.
Pail won’t fit properly into
clamping plates Pail damaged Fix or replace pail
Clamp does not hold cans
securely Clamp threads are worn Replace the clamp assembly
Mixer does not shut off at the
end of a mixing cycle Faulty Remote Switch/Air Switch Contact Red Devil Equipment Co. Customer Care
Mixer does not shut off when
guards are lifted Faulty Limit Switch/Air Switch Contact Red Devil Equipment Co. Customer Care
Mixer walking
Machine is not on a Red Devil
Equipment Co. approved base
Contact Red Devil Equipment Co.
Customer Care to order a base
Floor is not smooth Anchor base to the floor, see section 3.5
Excessive noise
Loose nuts on the mounting base. Tighten the nuts.
Guards are loose Tighten the nuts.
Clamp plate loose Contact Red Devil Equipment Co.
Customer Care
Worn transmission bearings Replace transmission assembly
Mixer starts slowly or runs
slowly
Loose drive belt Tighten or replace drive belt
Air pressure low or restricted Check air supply lines.
Air lubricator not dripping oil Re-fill oil reservoir, adjust drip rate, replace
o-ring.
Dirty or clogged air filter Replace air filter
6. Troubleshooting6. Troubleshooting

13
Owner’s Manual:1400 & 1410 1787021 REV H
ECO 16-0082
Feb 2021
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
C
BROWN
WHITE
RELAY
120V 5784622
EXPLOSION PROOF MOTOR 5784615
RED
1
4
8
2
0
6
GREEN START
P/B (N/O)
RED STOP
P/B (N/C)
LINE 1 LINE 2 GROUND
SUPPLY FUSE OR BREAKER
RED
BLACK
BROWN
MOTOR AND RELAY
WIRING DETAIL
FROM MACHINE
PUSH BUTTON CONTROL STATION
PART NUMBER 5784642
Mounted by end user
GREEN
GREEN
WHITE
BLACK
5784065
LIMIT SWITCH (N/O)
RED
RED
BROWN
BLUE
WHITE
B/W
WHITE
BROWN
RED
BLUE
GREEN GREEN
CONDULET BODY, L
9785153
CONDUIT BOX, T
9785155
GREEN
THERMAL O/L
7. Wiring Diagrams7. Wiring Diagrams
7.1 1400-X1 Model Wiring Diagram7.1 1400-X1 Model Wiring Diagram

14
Owner’s Manual:1400 & 1410 1787021 REV H
ECO 16-0082
Feb 2021
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
Back
Front
Ball Valve (On-Off Switch) 9785173
Air Motor 9786128
Muffler
(Reference)
Base
Plant Air Between 80 & 200 PSI 10 CFM Minimum
Filter/regulator 9785976
Lubricator 9785977
Air Switch 9785174
...Wiring Diagrams, Continued
7.3 1400 & 1410-A1 Pneumatic Schematic7.3 1400 & 1410-A1 Pneumatic Schematic

15
Owner’s Manual:1400 & 1410 1787021 REV H
ECO 16-0082
Feb 2021
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
8. Exploded Views8. Exploded Views
8.1 Drive System8.1 Drive System 1400-X11400-X1
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued..
*

16
Owner’s Manual:1400 & 1410 1787021 REV H
ECO 16-0082
Feb 2021
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
8.2 Transmission Assembly8.2 Transmission Assembly
...Exploded Views, Continued
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued..

17
Owner’s Manual:1400 & 1410 1787021 REV H
ECO 16-0082
Feb 2021
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
11
24
9
25
10
22
12
21
23
To Air Limit Switch
21
20
16
19
18
17
16
29
1
29 8
28
7
13
14
3
15
24
6
526
27
11
24
9
25
10
22
12
21
23
To Air Limit Switch
21
20
16
19
18
17
16
29
1
29 8
28
7
13
14
3
15
24
6
526
27
ID Description
1 8621200 BASE WELDMENT, 54XX
2 6785060 TRANSMISSION ASSEMBLY - 1400
3 9785061 HINGE BRACKET, TRANS LEFT - 14XX
4 9785062 HINGE BRACKET, TRANS RIGHT - 14XX
5 9785092 Screw Hex 3_8-16 X 1.75 FULL THD
6 9780402 Washer 3_8 split lock
7 9785123 MOUNT, VALVE - 14XX-A1
8 9780193 NUT, NYLOCK 3_8-16
9 9780725 PLATE, MOTOR MOUNT - 14XX-A1
10 9786128 MOTOR, AIR, CCW
11 9780353 Screw Hex 1_4 X 1 1_2
12 9780343 Nut 1_4-20 Nylon Lock
13 9785172 PLATE, VALVE - 14XX-A1
14 9785190 SCREW, FLAT HD, PH #10-32 x .50 BLK OXIDE
15 9759820 Screw, Ph Pan Hd 6-32 X .375
ID Description
16 9780732 ELBOW, HOSE, .25 MNPT X .25 BARB
17 9786121 HOSE, AIR, VALVE TO MOTOR - 14XX-A1
18 9785178 HOSE, AIR, PREP TO VALVE - 14XX-A1
19 9785180 HOSE, AIR, MOTOR TO MUFFLER - 14XX-A1
20 9780567 BARB, HOSE, .25 FNPT X .25 BARB
21 9688200 Washer 1_2
22 MUFFLER, AIR MOTOR
23 9785177 BRACKET, MUFFLER - 14XX-A1
24 9619000 PULLEY, STD, 60Hz MTR - 54XX
25 9159800 SCREW, SET, …-20 X .50, CUP PT
26 9622800 VALVE, TIRE
27 9622600 CAP, SCHRADER VALVE, NYLON - 54XX
28 9592800 BELT, ROUND
29 9785173 VALVE, BALL, PANEL
...Exploded Views, Continued
8.3 Drive System 1400 & 1410-A18.3 Drive System 1400 & 1410-A1
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued..

18
Owner’s Manual:1400 & 1410 1787021 REV H
ECO 16-0082
Feb 2021
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
...Exploded Views, Continued
8.4 Air Assembly8.4 Air Assembly
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued..

19
Owner’s Manual:1400 & 1410 1787021 REV H
ECO 16-0082
Feb 2021
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
2
6
7
1
8
3
4
5
12
11
10
9
2
6
7
1
8
3
4
5
12
11
10
9
ID Description
1 9784822 CLAMP JAW, LEFT FRONT - 54XX
2 9784821 CLAMP JAW, LEFT REAR - 54XX
3 9188100 HANDLE, CLAMP, 5400
4 9785071 WASHER, LOCK, INTERNAL TOOTH, M12
5 9785072 NUT, HEX JAM, M12X1.75
6 9784830 CLAMP SCREW - 14XX
7 9782216 Thrust Washer
ID Description
8 9140200 Key, Woodru No 404
9 9690800 SCREW, HEX 3_8-16 X 2.00
10 9780402 Washer 3_8 split lock
11 9161100 Washer, Flat 3_8 USS
12 6784823 ASSY, GUIDE ROD, HD - 14XX
13 6785100 - Left Side Assembly Kit
13
8.5 Clamp Assembly, Left8.5 Clamp Assembly, Left
...Exploded Views, Continued
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued..

20
Owner’s Manual:1400 & 1410 1787021 REV H
ECO 16-0082
Feb 2021
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
12
11
10
9
2
6
7
8
1
3
4
5
12
11
10
9
2
6
7
8
1
3
4
5
ID Description
19784820 CLAMP JAW, RIGHT FRONT - 54XX
29784819 CLAMP JAW, RIGHT REAR - 54XX
39188100 HANDLE, CLAMP, 5400
49785071 WASHER, LOCK, INTERNAL TOOTH, M12
59785072 NUT, HEX JAM, M12X1.75
69784830 CLAMP SCREW - 14XX
79782216 Thrust Washer
ID Description
8 9140200 Key, Woodru No 404
9 9690800 SCREW, HEX 3_8-16 X 2.00
10 9161100 Washer, Flat 3_8 USS
11 9780402 Washer 3_8 split lock
12 6784823 ASSY, GUIDE ROD, HD - 14XX
13
6785101 - Right Side Assembly Kit13
8.6 Clamp Assembly Right8.6 Clamp Assembly Right
...Exploded Views, Continued
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued..
