RED DEVIL 1400 User manual

Owner’s Manual:Owner’s Manual:
1400 & 1410 Classic1400 & 1410 Classic
One-Gallon Shaker
Models 1400, 1410-PB, 1410-00, 1410-OH, 1400-OH-E5,
1400-00-N
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
1400 shown on (5152-00) Pedestal Base
Optional (5153-00) Counter Base not shown

2
Owner’s Manual:1400 & 1410
1785069 Rev AB
ECO 19-0002
June 2020
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
Table of ContentsTable of Contents
Safety InformationSafety Information
1.1 Safety Precaution Labels
1.2 Safety Precaution Summary
IntroductionIntroduction
2.1 Application
2.2 Specifications

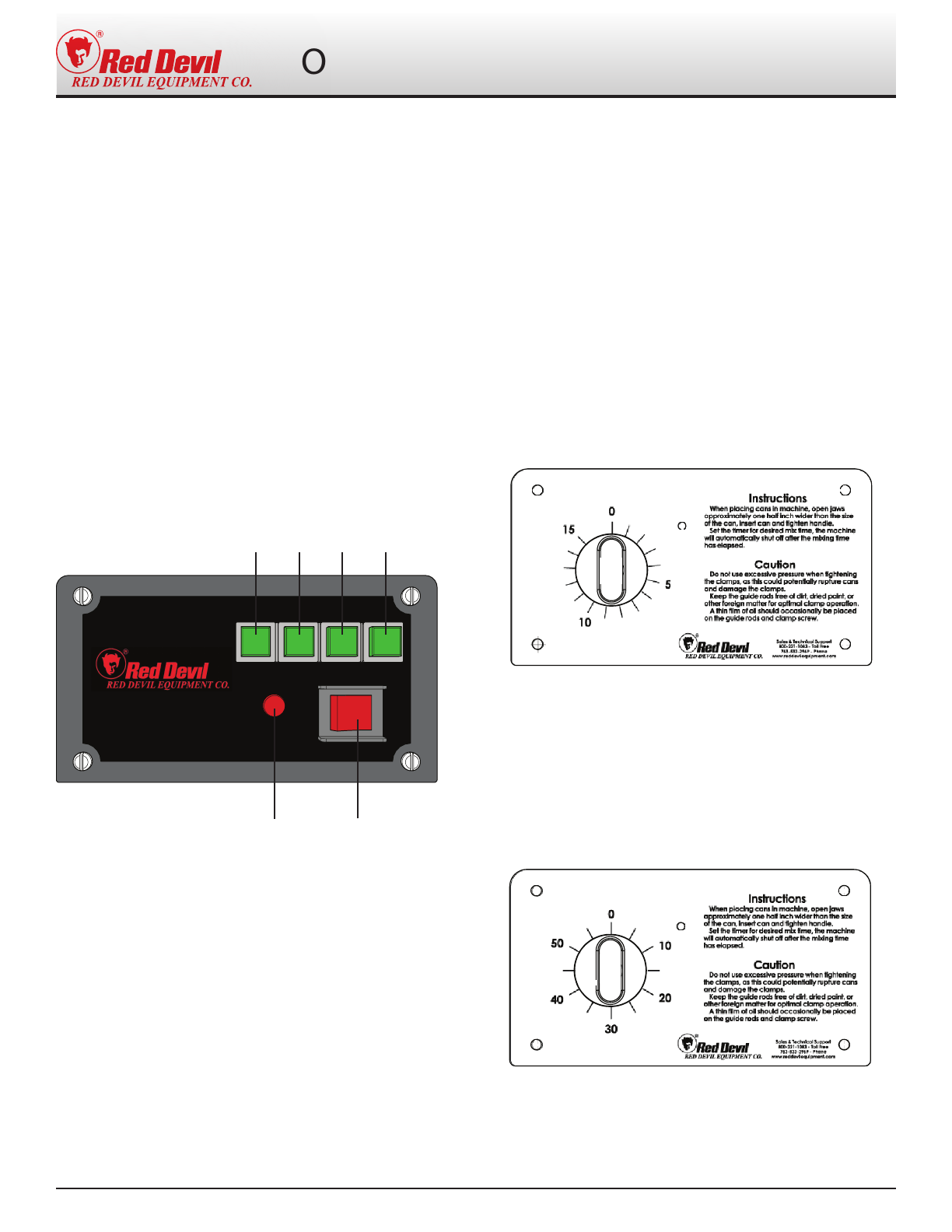

2.3 Control Panel - Push Button Timer
2.3 Control Panel - Mechanical Timer
Assemble & TestAssemble & Test
3.1 Prepare for Use
3.2 Assemble the Counter Base
3.3 Assemble the Pedestal Base
3.4 Valve Cap Removal
3.5 Connect to Power
OperationOperation
4.1 Install a Pail and Mix
Care and MaintenanceCare and Maintenance
5.1 Cleaning
5.2 Maintenance
Trouble ShootingTrouble Shooting

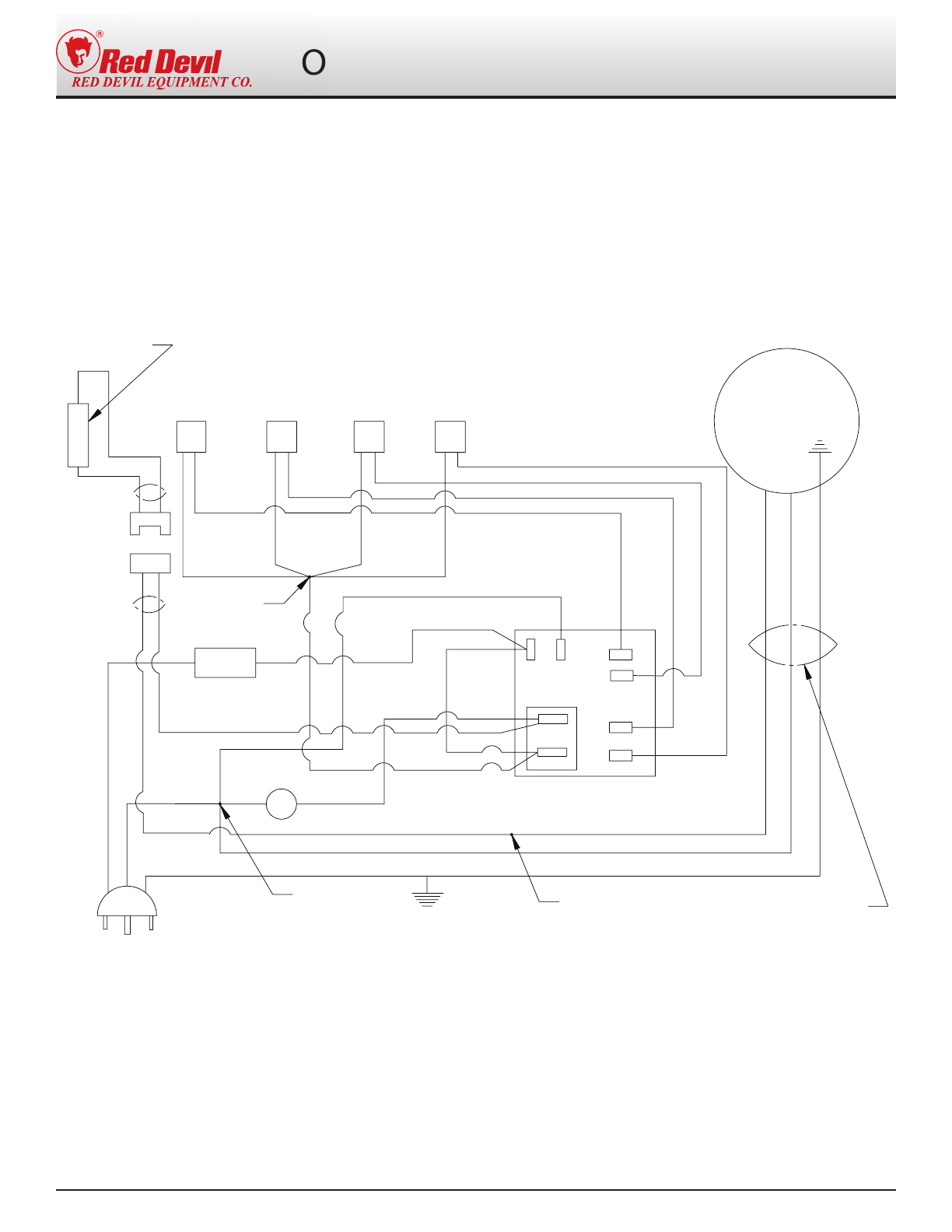

Wiring DiagramWiring Diagram
7.1 1400/1410 - PB Models
7.2 1400/1410 - 00 and -OH Models
7.3 1400/1410 - 00-N, -OH-N Models
1.1.
2.2.
3.3.
4.4.
5.5.
6.6.
7.7.
Exploded ViewsExploded Views
8.1 Drive System
8.2 Transmission Assembly
8.3 Clamp Assembly, Left
8.4 Camp Assembly, Right
8.5 Enclosure Assembly
8.6 Clamp Cover Assembly
8.7 Electrical Assembly PB
8.8 Electrical Assembly 00
8.9 Electrical Assembly 0H
8.10 Counter Base
8.11 Pedestal Base
OrderingOrdering
Replacement Parts
WarrantyWarranty
NotesNotes
8.8.
9.9.
11.11.
33
3-4
5
66
6
6-7
88
88
99
9
9
99
1010
1010
1111
1111
1111
11
11
1212
1313
13
14
15
1717
17
18
19
20
21
22
23
24
25
26
27
2828
28
2929
30-3130-31
10.10.

3
Owner’s Manual:1400 & 1410
1785069 Rev AB
ECO 19-0002
June 2020
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
“WARNING!” indicates a hazardous situation, which, if not avoided, could
result in death or serious injury. These serious injuries could include permanent
loss of function or significant disfigurement, disability, considerable pain
and suffering, amputations, severe burns, and loss or impairment of vision or
hearing. Take all necessary precautions to avoid unnecessary injury.
“CAUTION!” indicates a hazardous situation, which, if not avoided,
could result in minor or moderate injury.
“NOTICE” indicates practices that do not involve physical injury
but may damage the machine.
NOTICE
1. Safety Information1. Safety Information
Review this owner’s manual and read all warning labels on the machine prior to use.
The three main safety notifications used in this manual and on the warning labels are
WARNING, CAUTION and NOTICE. They have specific meanings and indicate the potential
dangers from misuse of the machine.
Safety Information, Continued..

4
Owner’s Manual:1400 & 1410
1785069 Rev AB
ECO 19-0002
June 2020
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
Part No. 1780899
-This machine is not explosion proof rated.
-Review product label, Material saftey Data Sheet, and HMIS rating of
materials and exposures prior to mixing to determine potentional hazards.
-Use in dry and well-ventilated environment where dust and ammable
vapors are not present; risk of physical injury exists if used in hazardous
environment.
-All containers must be properly sealed and void of leaks.
-Esta máquina no tiene la clasicatión de prueba de explosion.
-Revise la etiqueta del producto, la hoja informativa de datos de
seguridad, su clasicatión HMIS antes de mezclar y exposiciones de
materiales peligrosos para determinar los peligros potenciales.
-Use en un ambiente seco y bien ventilado donde polvo y vapores
inamables no estên presentes; Riesgo de daño sco existe si es untilizado en
un ambiente peligrosos.
-Todos los contenedores deben estar bien sellados y sin fugas.
-Cette machine n'est pas classê antidêagrant.
-Examen e'tiquette du prodiut, Fiche de dane;es de se'curite', Et
mate'riel HMIS cote et expositions, avant de faire le me'lange pour
de'terminer les risques poteniels.
-Utilisation a'sec et bien aere' environnement ou'la possie're et les
vapeurs inammables ne sont pas presents; risque de blessure physique
existe si ultilise' en environnement dangereux.
-Tous les conteneurs doivent être concenablement scellês pour èviter
les fuites.
- Machine must be properly grounded before use; improper grounding could
cause electric shock and injury.
-Disconnect power cord before servicing, cleaning or removing any
cover, and follow lockout/ tagout procedures in owner manual; failure to
disconnect power could cause electric shock and injury.
-Review Owners Manual before installing or operating.
- La maquinaria debe ser apoyada correctamente en el suelo antes de usar,
el no apoyarla puede casuar choque elêctrico y daños.
-Desconecte la energía antes de dar mantenimiento, limpiar o quitar
caulquier cubierta, y siga los procedimientos de bloqueo/etiquetado del
manual, Fallar en desconectar puede causar choque eléctrico y daños.
- Revise el manual del usuario antes de instalar u operar.
- La machine doit e'tre correctement mis a' la terre avant de les utilizer mise a' la terre
incorrecte peut provoquer un choc e'lectrique et de blessure.
- De'branchez le cordon d'alimentation avant de proce'der a'l'entretien, le nettoyage ou
le retrait des capots: suivez la proce'dure d'isolation/consignation proce'dures dans le
manul de l'opre'rateur; E'chec de de'brancher la source d'alimentation peut provoquer
shock and e'lectrique blessyres.
-Re'examiner le fonctionnement manuel avant l'installation.
WARNING
ADVERTENCIA
AVERTISSEMENT
Part No. 1781570
WARNING
ADVERTENCIA
AVERTISSEMENT
1.1 Safety Precaution labels1.1 Safety Precaution labels
Safety Information, Continued..
Safety Information, Continued..
Part No. 1785065
CAUTION
MOVING PARTS INSIDE
AVERTISSEMENT
LES PARTIES EN MOUVEMENT À
L'INTERIEUR DE LA MACHINE
PRECAUCIÓN
PIEZAS MÓVILES ADENTRO
- Do not operate with safety
guard open.
- Do not open safety guard until
machine comes to a complete
stop.
- Ne pas mettre en service si le
dispositif de protection est ouvert.
- Ne pas ouvrir le dispositif de
protection avant I'immobilisation
complete de la machine.
- No operar con el protector
de seguridad abierto.
- No abrir el protector de
seguridad hasta que la
màquina este completamente
parada.

5
Owner’s Manual:1400 & 1410
1785069 Rev AB
ECO 19-0002
June 2020
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
1.2 Safety Precaution Summary1.2 Safety Precaution Summary
Safety Information, Continued..
WARNING!
DO NOT attempt to replace any damaged electrical
wire or components. Improper replacement could
result in electric shock and serious injury. Only a
qualified service representative should attempt
to repair or replace any damged electrical
components.
Review this owner's manuals before installing or
operating.
The machine must be properly grounded prior to
use. In case of eletcrical short circuit grounding
reduces the risk of electric shock by providing an
escape wire for the electric current.
The machine’s power cord has a grounding wire
with an appropriate grounding plug. This plug must
be inserted into an electrical outlet that is properly
installed and grounded according to all local
codes and ordinances.
If you must repair or replace the power cord or
plug, DO NOT connect the grounding wire to either
flat-blade terminal. The wire with insulting having an
outer surface that is green (with or without yellow
stripes) is the grounding wire.
Check with a qualified electrician if you don't
completey understand these grounding instructions,
or if you are not sure whether the machine is properly
grounded.DO NOT Modify the plug provided; if it
won't fit in the outlet, have a proper outlet installed
by a qualified electrician.
Disconnect the power cord before servicing,
cleaning, or removing and covers.
Follow the lockout/tagout producers of your
company.
Do Not use the door until the machine comes to a
complete stop.
To avoid electric shock, dont get the timer, control
panel, or wiring wet.
This machine is not explosion proof rated.
All containers must be properly sealed and void of
leaks.
CAUTION!
Keep the work area free of clutter and
electrical cords.
Avoid extension cords. To minimize the risk of
improper electrical grounding, extension cords are not
recommended. If an extension cord is unavoidable,
consult a qualified electrician to determine what type
of extension cord will satisfy the grounding, current
capacity, and other requirements of the particular
situsation.
Use the proper power source. Refer to the
machine data plate on the right side panel or
the section 2.1, Specifications, in this manual.
Keep customers away from the work area.
This machine should be used only by properly
trained individuals.
Clamp the can carefully to ensure that it is
held securely durning the mixing cycle.
Review product label, Material Saftey Data
Sheet, and HMIS rating of material prior to
mixing to determine potential hazards.
Do not use solvent-based cleaners or thinners
Use in a dry and well-ventilated environment where
dust and flammable vapor are not present.
Product safety labels should be inspected
and cleaned periodically to maintain good
legibility. Replace any labels that are no
longer legible.
WARNING: This product may expose
you to chemicals including DEHP, which
is known to the State of California to
cause cancer. For more information, go to
www.P65Warnings.ca.gov

6
Owner’s Manual:1400 & 1410
1785069 Rev AB
ECO 19-0002
June 2020
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
21 7/8"
31 3/4"
20 13/16"
19 3/4"
1 3/4"
35"
32 1/2"
Congratulations on your purchase of the
Classic Shaker. This machine is designed to
accommodate standard gallon, quart and
pint plastic or metal cans weighing up to 18
lb. (8.2 kg).
This mixer MUST BE USED in conjunction with
either a countertop or pedestal base, sold
separately.
Understand your machine's features and
proper operation to take full advantage of its
capabilities.
Read this entire manual completely before
operating the machine. Practice installing
and removing a container before mixing for
the first time.
Keep this manual for future reference.
Always follow all safety instructions!
Unit Size
• 1400-00, 1400-PB, and 1400-OH:
W41.63 in. (105.74 cm) D29.63 in. (75.26 cm) H31.50
in. (80.01 cm)
• 1410-00, 1410-PB, and 1400-OH:
W27.88 in. (70.81 cm) D29.63 in. (75.26 cm) H31.5 in.
(80.01 cm)
Shipping Weight:
• 1400-00, 1400-PB, and 1400-OH: 191 lb. (86.6 kg)
• 1410-00, 1410-PB, and 1400-OH: 160 lb. (72.6 kg)
Electric Service: 120 V 60 Hz or 220 V 50 Hz (E5 only)
Capacity: 18 lb. (8.2 kg)
Sizes Mixed: 1 gal., 1qt., 1 pt.
2. Introduction2. Introduction
2.1 Application2.1 Application 2.2 Specifications2.2 Specifications
Single GallonSingle Gallon
1410-PB 120V/60 Hz 6 Min Pushbutton Timer
1410-00 120V/60Hz 15 Min Mech Timer
1410-0H 120V/60Hz 1 Hour Mech Timer
Mounted on Countertop or Pedestal Base. Introduction, Continued..

7
Owner’s Manual:1400 & 1410
1785069 Rev AB
ECO 19-0002
June 2020
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
41 5/8"
20 13/16"
62"
31 1/2"
32 1/2"
12 1/2"
6"
1"
... Introduction, Continued
2.2 Specifications2.2 Specifications
41 5/8"
20 13/16"
62"
31 1/2"
32 1/2"
12 1/2"
6"
1"
1400-PB 120V/60 Hz 6 Min Pushbutton Timer
1400-00 120V/60Hz 15 Min Mech Timer
1400-0H 120V/50Hz 1 Hour Mech Timer
1400-00-N 120V/60Hz 15 Min Mech Timer, No Guards
Mounted on Countertop or Pedestal Base.
Twin GallonTwin Gallon

8
Owner’s Manual:1400 & 1410
1785069 Rev AB
ECO 19-0002
June 2020
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
45 90 180 360
O
N
O
F
F
• Timer Selection (A-D): Select the desired
mix time. The machine starts to mix when the
time is selected.
• Mixing Indicator (E): This light is on during a
mix cycle.
• On/O Switch (F): Turn on before starting a
mix cycle. Turn o when the machine is not in
use.
(A) (B) (C) (D)
(E) (F)
Turn the dial to the appropriate mix time.
The machine starts to mix when the time is
selected.
-PB
-00 (15 Minute Timer)
-0H (1 Hour Timer)
2.3 Control Panel Pushbutton2.3 Control Panel Pushbutton
TimerTimer
... Introduction, Continued
2.3 Control Panel Mechanical2.3 Control Panel Mechanical
TimerTimer

9
Owner’s Manual:1400 & 1410
1785069 Rev AB
ECO 19-0002
June 2020
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
IMPORTANT: Before attempting to operate the
machine:
1. Remove all packing material.
2. Assemble the base.
1. Attach both base castings (A) to the mixer,
using the four carriage bolts (B), washers (C),
and nuts (D) provided.
2. Install a rubber foot (E) into each end of the
springs (F).
3. Lift one side of the mixer. Insert a spring and
foot assembly into the depression in the bottom
of each corner of the base (G).
4. Lift the other side of the mixer, and repeat
the third step.
NOTE: Be sure that the machine and base are
placed on a flat, stable countertop surface.
1. Wipe bottom of pedestal base with alcohol, acetone,
or equivalent.
2. Sweep floor and wipe with alcohol, acetone, or
equivalent.
3. Adhere VHB pads (4) to bottom of pedestal base as
shown above.
4. Place pedestal base on clean floor.
(A)
(D)
(C)
(B)
(E)
(E)
(G)
(F)
3. Assemble and Test3. Assemble and Test
3.1 Prepare for Use3.1 Prepare for Use
3.2 Assemble the Countertop3.2 Assemble the Countertop
BaseBase
3.3 Assemble the Pedestal Base3.3 Assemble the Pedestal Base
(See Section 8.11)
Installation, Continued..
NOTE: Moving Pedestal Base: If it becomes
necessary to move the machine to a different
location, release the bond between the floor and
pedestal base by inserting a wall scraper between
them. Contact Red Devil Equipment Co. / Radia for
replacement VHB pads.

10
Owner’s Manual:1400 & 1410
1785069 Rev AB
ECO 19-0002
June 2020
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
(I)
(G)
(H)
(H)
(F)
1/2"
Assembly and Test, Continued..
Set the mixer on the upper plate of the base,
on top of the rubber bumpers (F)
Secure the mixer to the base using the four
rubber bumpers, bolts (G), washers (H), and
nuts (I) provided.
5.
6.
Adjust the fasteners.
a. Tighten all four bolts to just snug
b. Turn all four bolts 1 1/2 more turns.
c. Adjust the bolts as required to ensure the gap
between the mounting base and the unit is 1/2 inch at
all four bolts. This compresses the isolators equally.
7.
3.5 Connect to Power3.5 Connect to Power
1. Follow the electrical instructions described in
sections 1.2 & 2.2
The machine power cord has a grounding wire with an
appropriate grounding plug. This plug must be inserted
into an electrical outlet that is properly installed and
grounded according to all local codes and ordinances.
NOTE: DO NOT overtighten the nuts.
3.4 Valve Cap Removal3.4 Valve Cap Removal
1. Remove the Valve Cap prior to operation.

11
Owner’s Manual:1400 & 1410
1785069 Rev AB
ECO 19-0002
June 2020
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
WARNING! Avoid serious personal injury.
Do not mix flammable or combustible materials
in this mixer.
1. Turn the handle counter-clockwise to open
the clamping jaws about 1/2” wider than the
length of the container.
2. Insert the can and turn the handle clockwise to
secure the can for mixing. Before turning on the mixer,
always be sure that the container is held tightly-but
don’t use excessive pressure that could damage the can
or clamping assembly.
Notice: Avoid damage to the machine. Do not
operate the machine without a can installed.
≈ ½
3. If mixing with only one clamp on a Model
1400, install an empty can (or a piece of 2” x 4”
board) in the other clamp.
4. If your model has a pushbutton timer, close
the clamp guard, then:
a. Set the power switch to ON.
b. Select desired mixing time by pressing the
appropriate button to initiate the mix cycle.
5. If your model has a mechanical timer, turn
the dial to the appropriate time increment. The
machine will start automatically once the dial is
moved off of zero.
Lubrication:
• Measure the oil level periodically. Be sure
the oil level is between the two marks on
the dip stick. Use a good grade SAE 10W 30
motor oil.
• Avoid using too much oil as it could cause
seepage around the main shaft. The
capacity of the transmission is 11 oz.
• Keep the guide rods free of dirt, dried paint,
and other foreign matter.
• Remove any small nicks with a fine file.
• Whenever the guide rods feel dry, wipe a
little oil over them with a rag.
• Occasionally apply a thin film of oil to the
clamp screws.
WARNING! Avoid serious personal injury! DO
NOT use solvent-based cleaners or thinners, or
other combustible cleaners.
WARNING!Avoid serious personal injury.
Always unplug the power cord before performing
maintenance tasks.
• Remove water-based/glycol colorants or
base paints spilled on machine surfaces
using lukewarm water and mild detergent.
• Do not use abrasives to clean machine
surfaces. Doing so may damage the
appearance of the machine.
• Keep the machine clean for reliable
operation.
4. Operation4. Operation 5. Care & Maintenance5. Care & Maintenance
4.1 Install a Pail and Mix4.1 Install a Pail and Mix
5.1 Cleaning5.1 Cleaning
5.2 Maintenance5.2 Maintenance

12
Owner’s Manual:1400 & 1410
1785069 Rev AB
ECO 19-0002
June 2020
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
6. Troubleshooting6. Troubleshooting
PROBLEM CAUSE REMEDY
Not connected to power source
Limit switch actuator does not
make contact with limit switch
Loose or broken wire
connection
Machine door does not make
contact with limit switch
Motor Thermal Protector Activated
Loose nuts on the mounting base
Guards are loose
Faulty timer/contoller
Connect to power source
Have a qualified electrician replace
or repair the wire connection
Readjust switch to make contact with limit
switch tab when door is closed
Fix or replace Can
Contact Radia Customer Care
Contact Radia Customer Care
Contact Radia Customer Care
Readjust switch to make contact with limit
switch screw when the cover is closed
Machine won't operate
Mixer Walking
Machine doesn't shut off
at end of mixing cycle
Machine doesn't shut off when
guards are lifted
Mixer is not on a Radia
Equipment approved base
Allow to cool, then restart
Faulty Motor Contact Radia Customer Care
Contact Radia Customer Care
Squeaking noise at the
back of the machine
Floor is not smooth
Clamp plate loose
Anchor base to Floor, see section 3.5
Excessive Noise
Worn transmission bearings
Faulty limit switch
Contact Radia Customer Care
Mixer guard is not closed completely Remove any obstruction and close the guard
properly
Faulty Control Panel Contact Radia Customer Care
Can won't fit properly into
clamping plates Can damaged
Clamp does not hold cans
securely Clamp threads are worn Replace the clamp assembly
Tighten the nuts
Tighten the nuts
Machine starts or runs
slowly
Hinge parts on the clap gaurds
are rubbing against each other
Loose drive belt
Use spray lubricant on the hinge
Tighten or replace the drive belt

13
Owner’s Manual:1400 & 1410
1785069 Rev AB
ECO 19-0002
June 2020
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
2
4
7
3
6
5
B/W
W
G
5782877 YELLOW
B
B
B
W
B
B/W
5782894 CONTROLLER 110V 60HZ
5782584 GREEN PUSHBUTTTONS
SW3
(180 SEC)
SW4
(360 SEC)
B/W
SW1
(45 SEC)
SW2
(90 SEC)
L
W
G
W
5782565 GREY
5782876 RED
5782879 BROWN
5782878 BLUE
5782479
GREY
5782479
GREY
5782479
GREY
9782621
WIRE NUT
5782561 WHITE
5782558
BLACK
5180300 MOTOR CORD
5782479
GREY
5180200 POWER CORD
5782445
POWER
SWITCH
5782448 LAMP
9780543
WIRE NUT,
YELLOW
5783815
LIMIT SWITCH
5785064
SWITCH
CABLE
5785070
SWITCH
HARNESS
B
W
9780542
WIRE NUT,
ORANGE
5782880 B/W
B
B/W
B/W
MOTOR KIT
6784902 -110V, 60Hz
7. Wiring Diagrams7. Wiring Diagrams
7.1 1400/1410 - PB Models7.1 1400/1410 - PB Models
Wiring Diagrams, Continued..

14
Owner’s Manual:1400 & 1410
1785069 Rev AB
ECO 19-0002
June 2020
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
B
B
15 MINUTE DIAL TIMER 5782184
1 HOUR DIAL TIMER 5758710
W
G
W
POWER CORD
5180200 - 110V, 60HZ MACHINES
5781665 - 220V, 50HZ MACHINES
G
9780543
WIRE NUT
5785070
SWITCH HARNESS
5785064
CABLE HARNESS
B W
B/W
B/W
12
21
5783815
LIMIT SWITCH
MOTOR KIT
6784902 - 110V, 60HZ
6785268 - 220V, 50HZ
5180300 MOTOR CORD
...Wiring Diagrams, Continued
7.1 1400/1410 - 00 and 0H Models7.1 1400/1410 - 00 and 0H Models
Wiring Diagrams, Continued..

15
Owner’s Manual:1400 & 1410
1785069 Rev AB
ECO 19-0002
June 2020
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
B
B
15 MINUTE DIAL TIMER 5782184
W
G
W
5180300 MOTOR CORD
G
9780543
WIRE NUT
B
12
21
POWER CORD
5180200 - 110V, 60HZ MACHINES
MOTOR KIT
6784902 - 110V, 60HZ
7.1 1400-00-N7.1 1400-00-N
...Wiring Diagrams, Continued
Wiring Diagrams, Continued..

16
Owner’s Manual:1400 & 1410
1785069 Rev AB
ECO 19-0002
June 2020
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
Motor Voltage Connections for 120 and 220 V
Lead 120V 220V
Brown 5 4
Line In-------------- White 2 5
Red A A
Ungrounded Line Black 5 5
7.4 Internal Motor Wiring for 120V/60 Hz and 220V / 50 Hz7.4 Internal Motor Wiring for 120V/60 Hz and 220V / 50 Hz
ModelsModels
...Wiring Diagrams, Continued

17
Owner’s Manual:1400 & 1410
1785069 Rev AB
ECO 19-0002
June 2020
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
8. Exploded Views8. Exploded Views
8.1 Drive system8.1 Drive system
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued..
*

18
Owner’s Manual:1400 & 1410
1785069 Rev AB
ECO 19-0002
June 2020
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued..
...Exploded Views, Continued
8.2 Transmission Assembly8.2 Transmission Assembly
1400 Transmission Kit: 6785273
1410 Transmission Kit: 6785275
*

19
Owner’s Manual:1400 & 1410
1785069 Rev AB
ECO 19-0002
June 2020
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
8.2 Clamp Assembly, Left8.2 Clamp Assembly, Left
...Exploded Views, Continued
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued..
*6785100 Kit, 14XX Clamp Assembly - Left Side

20
Owner’s Manual:1400 & 1410
1785069 Rev AB
ECO 19-0002
June 2020
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
*6785101 Kit, 14XX Clamp Assembly - Right Side
8.4 Clamp Assembly Right8.4 Clamp Assembly Right
...Exploded Views, Continued
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued..
