RED DEVIL 1400 User manual

Owner’s Manual:
1400 & 1410 Air & Explosion
One-Gallon Shaker
Models 1400, 1410-A1, 1400-X1
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
1410-A1 on Counter Base
(5153-00)
1400-X1 on Pedestal Base
(5151-00)

2
Owner’s Manual:1400 & 1410 1787021 REV D
ECO 16-0082
May 2017
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
Table of Contents
Safety Information
1.1 Safety Precaution Labels
1.2 Saftey Precaution Summary
Introduction
2.1 Application
2.2 Specifications
2.3 Specifictaions Continued
Assemble & Test
3.1 Prepare for Use
3.2 Assemble the Counter Base
3.3 Assemble the Pedestal Base
3.4 Connect to Power
3.5 Test Operation
Operation
4.1 Install a Pail and Mix
Care and Maintenance
5.1 Cleaning
5.2 Mainenance (All Models)
5.3 Maintenacne (1410-X1)
5.4 Maintenance (Air Models)
Trouble Shooting
Wiring Diagram
7.1 1400 - X1 Wiring Diagram
7.2 Pneumatic Schematic
1.
2.
3.
4.
5.
6.
7.
3
4
5
6
6
6
6-7
8
8
8
8-9
9
10
11
11
11
11
11
11
12
13
14
14
15
Exploded Views
8.1 Drive System 1400 - X1
8.2 Transmission Assembly

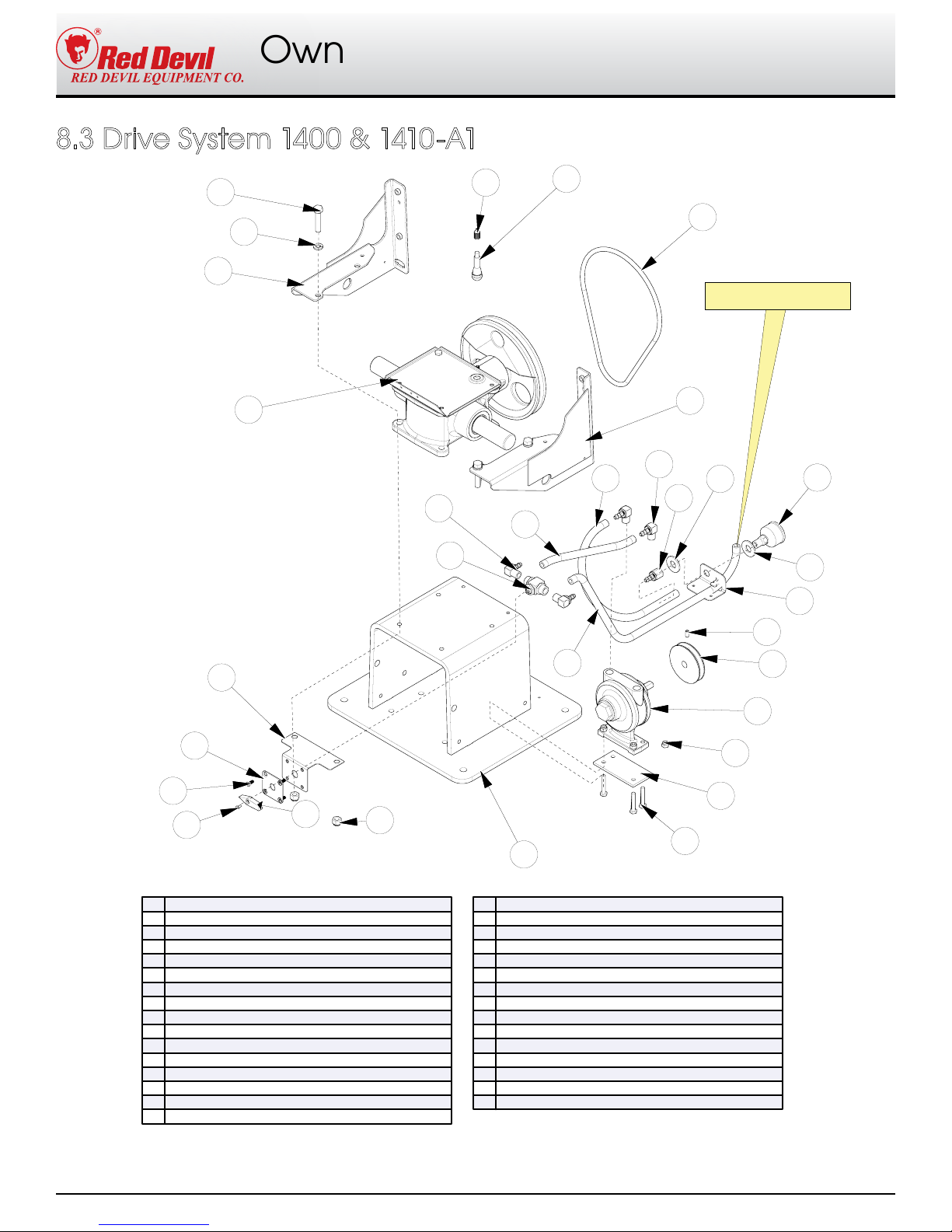

8.3 Drive System 1400 & 1410 - A1
8.4 Air Assembly
8.5 Clamp Assembly, Left
8.6 Camp Assembly, Right
8.7 Enclousre Assembly
8.8 Clamp Cover Assembly
8.9 Electrical Assembly 1400-X1
8.10 Counter Base 5153-00
8.11 Pesestal Base5151-00
Ordering
Replacement Parts
Warranty
Notes
8.
9.
11.
16
16
17
18
19
20
21
22
23
24
25
26
27
27
28
29
10.

3
Owner’s Manual:1400 & 1410 1787021 REV D
ECO 16-0082
May 2017
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
“WARNING!” indicates a hazardous situation, which, if not
avoided, could result in death or serious injury. These serious
injuries could include permanent loss of function or significant
disfigurement, disability, considerable pain and suffering,
amputations, se vere burns, and loss or impairment of vision or
hearing. Take all necessary precautions to avoid unnecessary
“CAUTION!” indicates a hazardous situation, which, if not avoided,
could result in minor or moderate injury.
“NOTICE” indicates practices that do not involve physical injury
but may damage the machine.
NOTICE
1. Saftey Information
Review this owner’s manual and read all warning labels on the machine prior to use.
The three main safety notifications used in this manual and on the warning labels are
WARNING, CAUTION and NOTICE. They have specific meanings and indicate the potential
Safety Information, Continued..

4
Owner’s Manual:1400 & 1410 1787021 REV D
ECO 16-0082
May 2017
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
Safety Information, continued...
Part No. 1785065
CAUTION
MOVING PARTS INSIDE
AVERTISSEMENT
LES PARTIES EN MOUVEMENT À
L'INTERIEUR DE LA MACHINE
PRECAUCIÓN
PIEZAS MÓVILES ADENTRO
- Do not operate with safety
gaurd open.
- Do not open safety gaurd
until machine comes to a
complete stop.
- Ne pas mettre en service si le
dispositif de protection est ouvert.
- Ne pas ouvrir le dispositif de
protection avant I'immobilisation
complete de la machine.
- No operar con el protector
de seguridad abierto.
- No abrir el protector de
seguridad hasta que la
màquina este completamente
parada.
- Machine must be properly grounded before use; improper grounding could
cause electric shock and injury.
-Disconnect power cord before servicing, cleaning or removing any
cover, and follow lockout/ tagout procedures in owner manual; failure to
disconnect power could cause electric shock and injury.
-Review Owners Manual before installing or operating.
- La maquinaria debe ser apoyada correctamente en el suelo antes de usar,
el no apoyarla puede casuar choque elêctrico y daños.
-Desconecte la energía antes de dar mantenimiento, limpiar o quitar
caulquier cubierta, y siga los procedimientos de bloqueo/etiquetado del
manual, Fallar en desconectar puede causar choque eléctrico y daños.
- La machine doit e'tre correctement mis a' la terre avant de les utilizer
mise a' la terre incorrecte peut provoquer un choc e'lectrique et de
blessure.
- De'branchez le cordon d'alimentation avant de proce'der a'l'entretien,
le nettoyage ou le retrait des capots: suivez la proce'dure d'isolation/
consignation proce'dures dans le manul de l'opre'rateur; E'chec de
WARNING
ADVERTENCIA
AVERTISSEMENT
Part No. 1781570
Part No. 1780668
1400 & 1410 -A1 only
AIR SUPPLY NOT TO EXCEED 150 PSI MINIMUM AIR SUPPLY
REQUIREMENT IS 80 PSI
EL SUMINISTRO DE AIRE NO DEBE EXCEDER LOS 150 PSI
MÍNIMO REQUISTIO DE SUMINISTRO DE AIRE ES DE 80 PSI
LA PRESSION DE L'ALIMENTATION EN AIR NE DOIT PAS
DÉPASSER 1034 KPA (150LB/PO)
LA PRESSION MINIMALE DE L'ALIMENTATION EN AIR EST DE
551,6 KPA (80 LB/PO)
CAUTION
1.1 Safety Precaution labels
Safety Information, Continued..

5
Owner’s Manual:1400 & 1410 1787021 REV D
ECO 16-0082
May 2017
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
WARNING!
BE SURE that the remote power switch is
installed by a qualified electrician. Refer
to local codes for proper placement of
the remote power switch.
Review this owner's manual before
installing or operating.
The machine must be properly grounded
prior to use. In the case of an electrical
short circuit, grounding reduces the risk
of electric shock by providing an escape
wire for the electric current.
Check with a qualified electrician if
you don’t completely understand these
grounding instructions, or if you are not
sure whether the machine is properly
grounded.
Follow the lockout/tagout procedures of
your company.
DO NOT open the door until the machine
comes to a complete stop.
Review product label, Material Safety
Data Sheet, and HMIS rating of materials
prior to mixing to determine potential
hazards.
Do not use solvent-based cleaners or
thinners.
1.2 Safety Precaution Summary
Safety Information, Continued..
CAUTION!
Keep the work area free of clutter and
electrical cords.
DO NOT disable the limit switch. This
switch interrupts power when the mixer
door is opened
Avoid extension cords. To minimize the risk of
improper electrical grounding, extension cords
are not recommended. If an extension cords
are not recommended. If an extension cord
is unavoidable, consult a qualified electrician
to determine what type of extension cord will
satisfy the grounding, current capacity, and
other requirements of the particular situsation.
Use the proper power source. Refer to the
machine data plate on the right side panel or
the section 2.1, Specifications, in this manual.
Keep customers away from the work area.
This machine should be used only by properly
trained individuals.
Clamp the can carefully to ensure that it is
held securely durning the mixing cycle.
Product safety labels should be inspected
and cleaned periodically to maintain good
legibility. Replace any labels that are no
longer legible.

6
Owner’s Manual:1400 & 1410 1787021 REV D
ECO 16-0082
May 2017
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
Congratulations on your purchase of the
Classic Shaker. This machine is designed to
accommodate standard gallon, quart and
pint plastic or metal cans weighing up to 18 lb.
(8.2 kg).
This mixer MUST BE USED in conjunction with
either a countertop or pedestal base, sold
separately.
Understand your machine's features and
proper operation to take full advantage of its
capabilities.
Read this entire manual completely before
operating the machine. Practice installing and
removing a container before mixing for the first
time.
Keep this manual for future reference.
Always follow all safety instructions!
Unit Size
• 1400-A1 W 41.63 in. (105.74 cm) D32.25 in.
(75.26 cm) H 31.50 in. (80.01 cm)
• 1410-A1, W27.88 in. (70.81 cm) D 29.63 in.
(75.26 cm) H 31.5 in. (80.01 cm)
• 1400-X1
Shipping Weight:
• 1400-A1, 1400-X1,: 192 lb. (87.1 kg)
• 1410-A1: 152 lb. (68.9kg)
Electric Service: 120 V 60 Hz ( -X1)
Air Service: 10 CFM, Min. 80 PSI, Max 150 PSI
(-A1)
Capacity: 18 lb. (8.2 kg) per clamp
Sizes Mixed: 1 gal., 1 qt., 1 pt.
31 3/4"
21 7/8"
20 13/16"
19 3/4"
1 3/4""
35"
32 1/2"
1400 & 1410-A1 Mounted on either Pedestal or Counter Top bases.
1400-X1 Mounted on pedestal base only
Introduction, Continued..

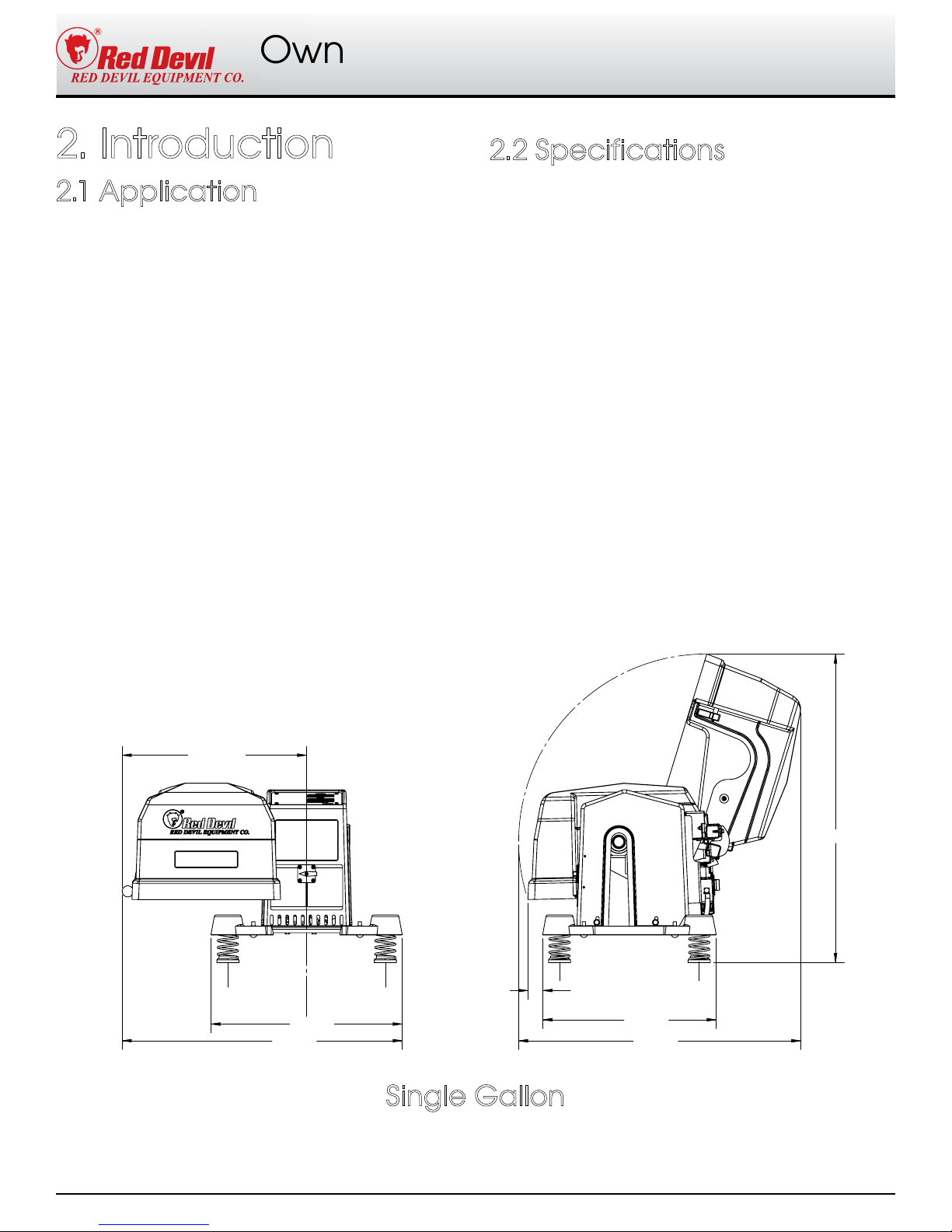

Single Gallon
1410-A1 No Timer
2.2 Specifications
2. Introduction
2.1 Application

7
Owner’s Manual:1400 & 1410 1787021 REV D
ECO 16-0082
May 2017
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
41 5/8"
20 13/16"
32 1/2"
31 1/2"
6"
12 1/2"
62"
1"
2.2 Specifications Conitued

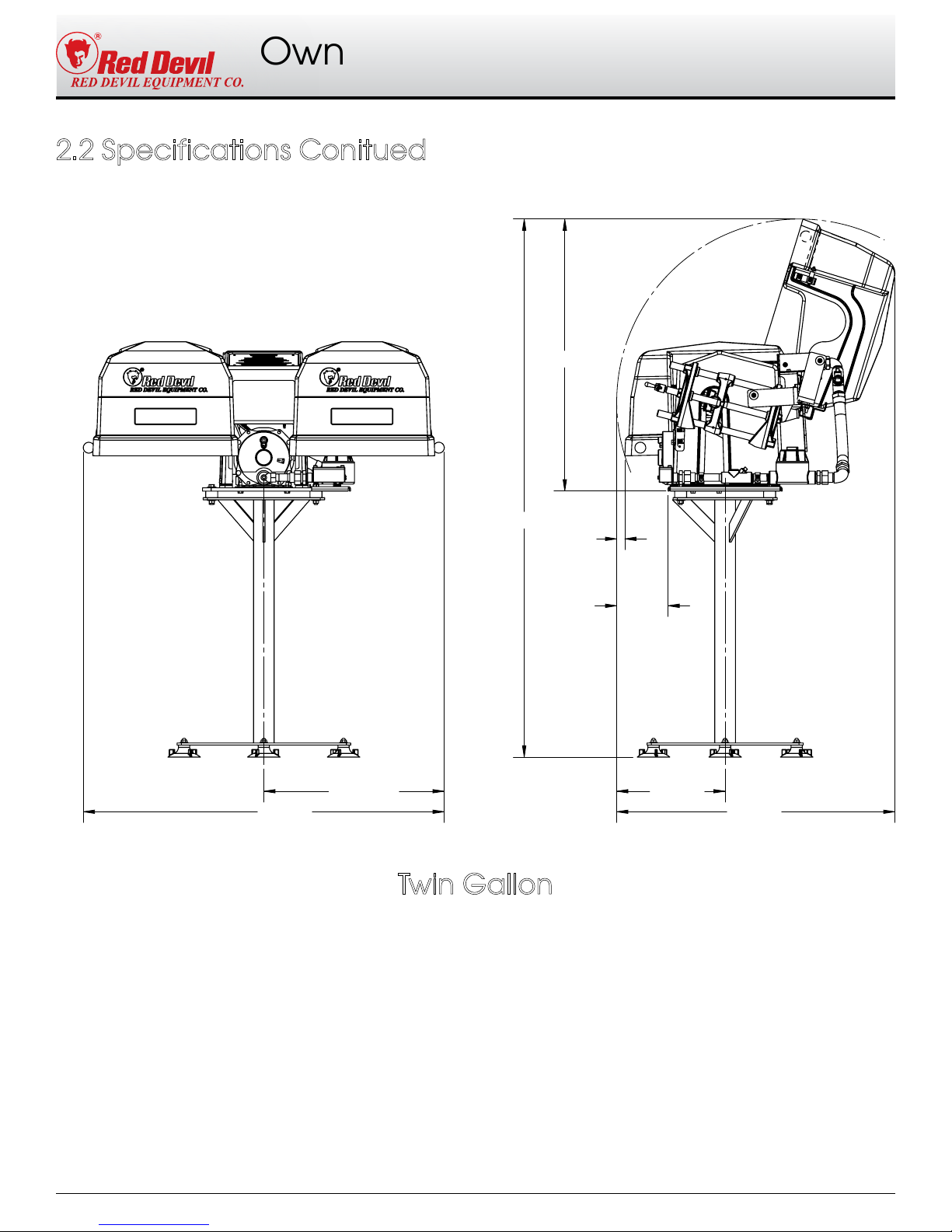

Twin Gallon
1410-A1 No Timer
1400-X1 120V / 60Hz No Timer

8
Owner’s Manual:1400 & 1410 1787021 REV D
ECO 16-0082
May 2017
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
IMPORTANT: Before attempting to operate the
machine:
1. Remove all packing material from the unit.
2. Remove all packing material from the
1. Attach both base castings (A) to the mixer,
using the four carriage bolts (B),washers (C),and
nuts (D) provided.
2. Install a rubber foot (E) into each end of the
springs (F).
3. Lift one side of the mixer. Insert a spring and
foot assembly into the depression in the bottom of
each corner of the base (G).
4. Lift the other side of the mixer, and repeat the
third step.
NOTE: Be sure that the machine and base are
placed on a flat, stable countertop surface.

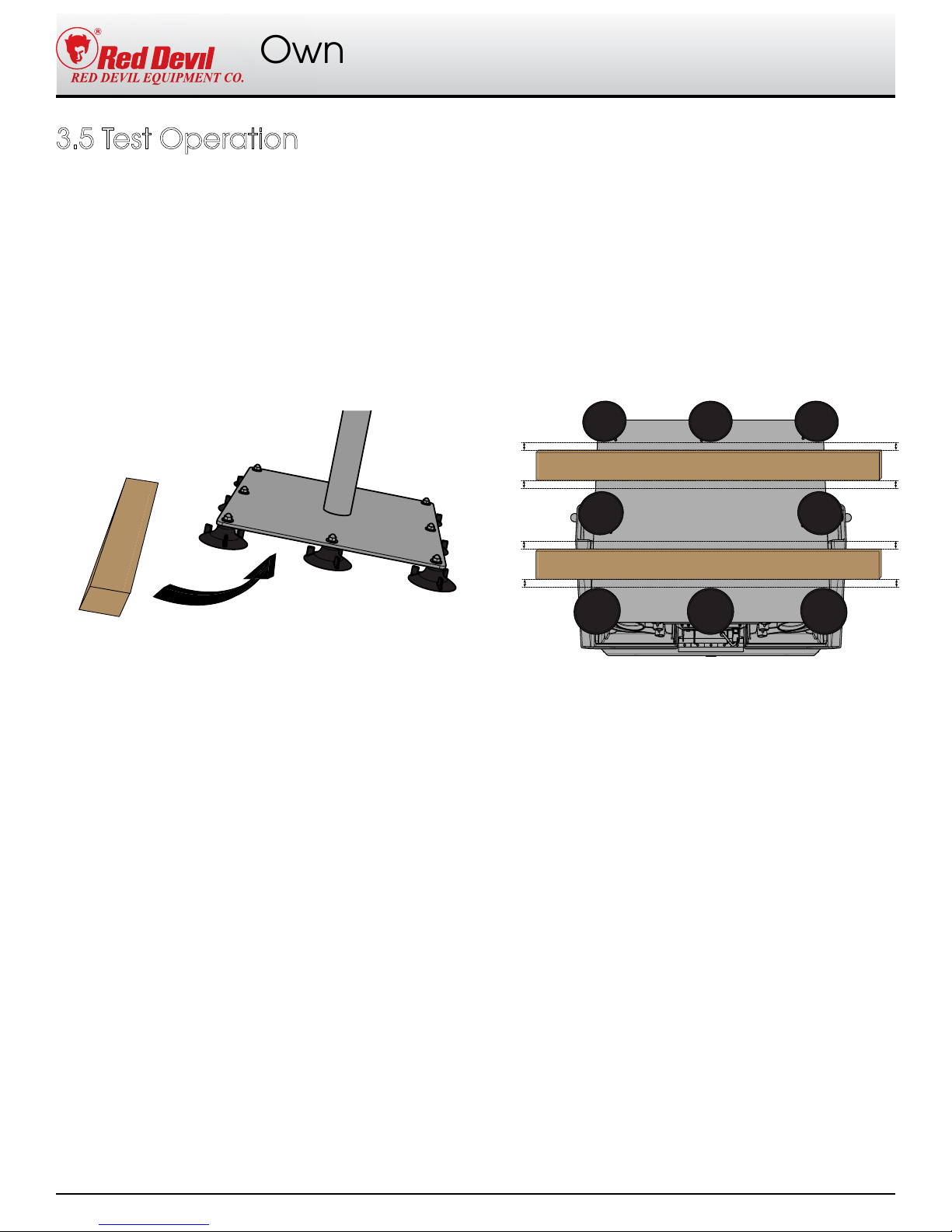

1. Insert the studs of the suction cups (A) up
through the eight holes in the bottom of the
base (B).
2. Secure them by installing the washers (C)
and acorn nuts (D) provided.
3. Hand tighten first, then tighten the nuts one
complete turn with a wrench.
4. Align the openings of the rubber bumpers
(F) over those on the upper plate of the
base (E).
NOTE: DO NOT overtighten the nuts.
(A)
(D)
(C)
(B)
(E)
(E)
(G)
(F)
NOT FOR USE WITH 1400-X1
(C)
(F)
(D)
(E)
(A)
(B)
3. Assemble and Test
3.1 Prepare for Use
3.2 Assemble the Countertop
Base (See Section 8.10)
3.3 Assemble the Pedestal
Base (See Section 8.11)
Assembly and Test, Continued..

9
Owner’s Manual:1400 & 1410 1787021 REV D
ECO 16-0082
May 2017
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015

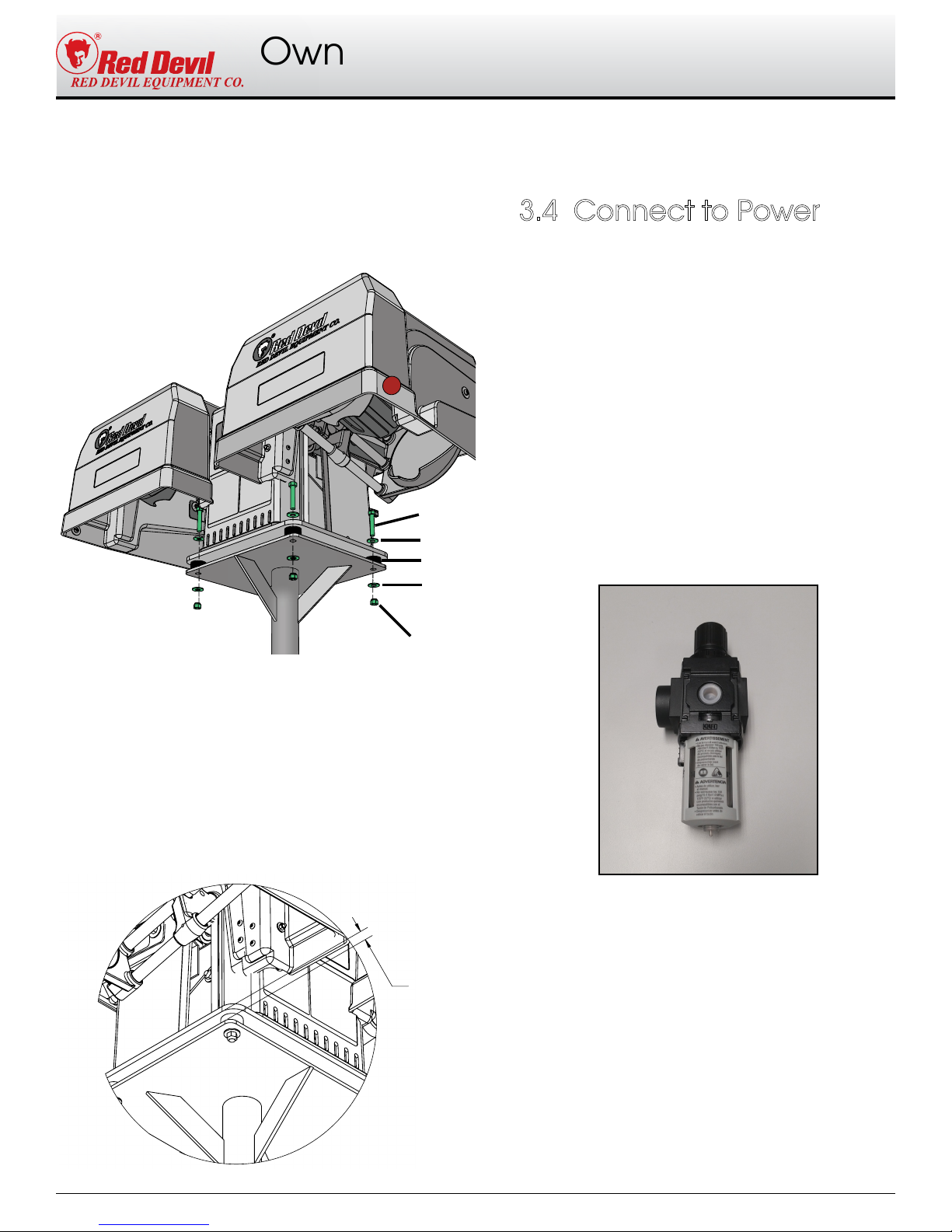

5. Set the mixer on the upper plate of the
base, on top of the rubber bumpers (F).
6. Secure the mixer to the base using the four
rubber bumpers, bolts (G) , washers (H), and
nuts (I) provided.
7. Adjust the fasteners.
a. Tighten all four bolts to just snug
b. turn all four bolt 1 1/2 more turns.
c. Adjust the bolts as required to ensure
the gap between the mounting base
and the unit is 1/2" at all four bolts. This
compresses the isolators equally.
(I)
(G)
(H)
(H)
(F)
1/2"
1. X1 machines
Follow the electrical instructions described in
sections 1.2 & 2.2
2. A1 machines
Connect a 10 CFM air supply to the inlet side
of the filter regulator. The air supply must
be at least 80 PSI to reliably operate the
machine, and MUST NOT EXCEED 150 PSI.
The Lubicator requires air tool oil. It is
shipped without oil to prevent leaking during
shipment. See Section 5.4.
Assembly and Test, Continued..
3.4 Connect to Power
Lubicator

10
Owner’s Manual:1400 & 1410 1787021 REV D
ECO 16-0082
May 2017
Air & Explosion
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
c. Clean the contacting surfaces of the
suction cups, and the oor where the cups will
make contact.
d. Apply an even layer of rubber cement
(or equivalent adhesive) to the contacting
surfaces of the suction cups and to the oor
directly under the cups.
e. IMPORTANT: If the layer of rubber
cement is too thick, it won't dry proerly and
won't anchor the unit adequately.
f. Allow the cement to dry until it becomes
tacky.
g. Remove the 2' x 4's and lower the entire
machine to the oor. For long lasting adhesion,
allow the cement to dry overnight before
running the mixer.
h. Clean the contacting surfaces of the
suction cups, and the oor where the cups will
make contact.
8. If the pedestal unit walks (moves) during
operation the floor may be rough or uneven.
Anchor the base to the floor as follows:
a. Tilt the mixer and base backward until you
can insert a 2' x 4' board under the base. Make
sure the board is clear of the front suction
cups.
b. Tilt the mixer and base forward and insert
another 2' x 4' under the rear of the base.
Again, be sure the board clears the suction
cups.
Assembly and Test, Continued..
3.5 Test Operation
