RED DEVIL 1400 User manual

Owner’s Manual:
1400 & 1410 Classic
One-Gallon Shaker
Models 1400, 1410-PB, 1410-00, 1410-OH, 1400-OH-E5,
1400-00-N
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
1410 on Counter Base
(5153-00)
1400 on Pedestal Base
(5151-00)

2
Owner’s Manual:1400 & 1410
1785069 Rev Y
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
Table of Contents
Safety Information
1.1 Safety Precaution Labels
1.2 Saftey Precaution Summary
Introduction
2.1 Application
2.2 Specifications
2.3 Control Panel - Push Button timer
2.3 Control panel - Mechanical Timer
Assemble & Test
3.1 Prepare for Use
3.2 Assemble the Counter Base

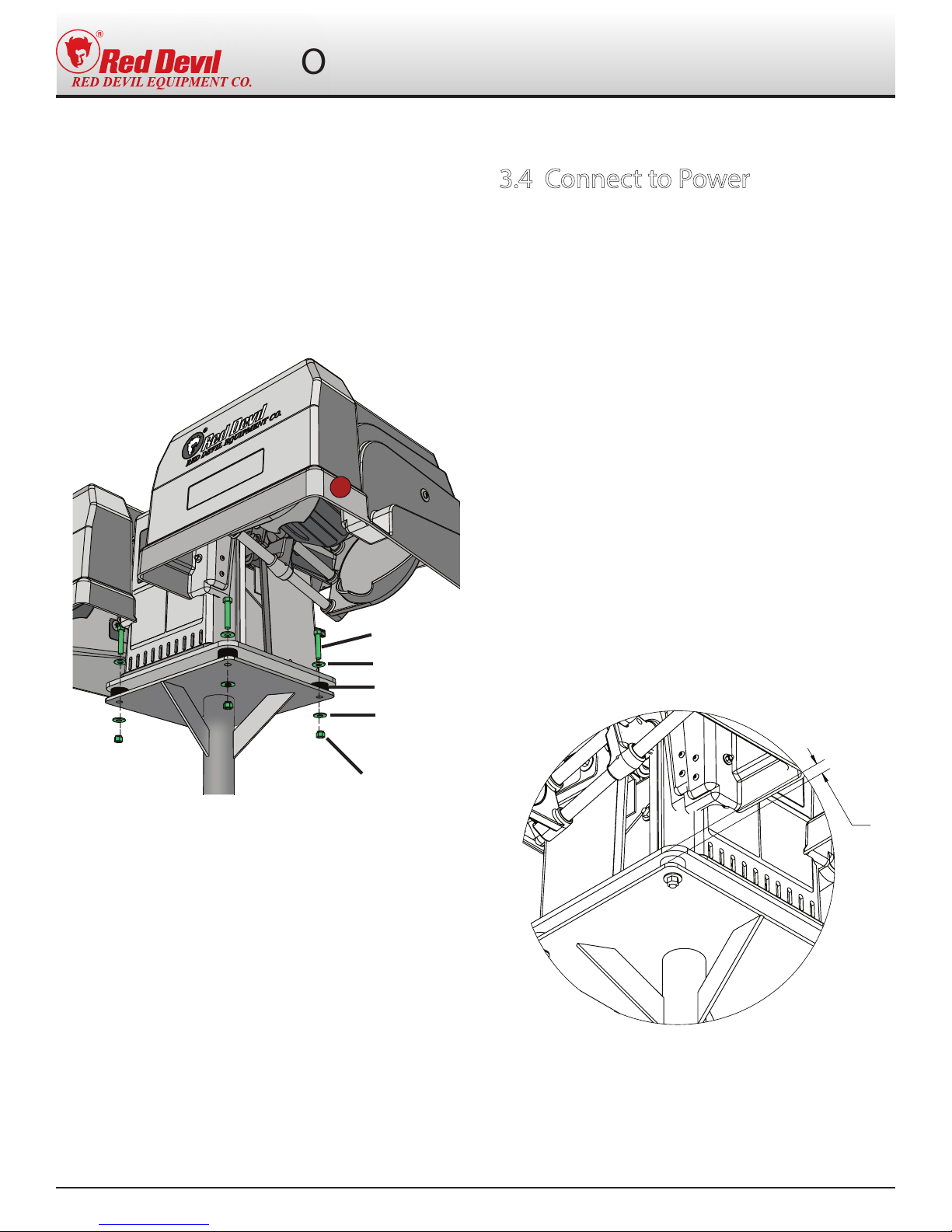

3.3 Assemble the Pedestal Base
3.4 Connect to Power
3.5 Test Operation
Operation
4.1 Install a Pail and Mix
Care and Maintenance
5.1 Cleaning
5.2 Mainenance
Trouble Shooting
Wiring Diagram

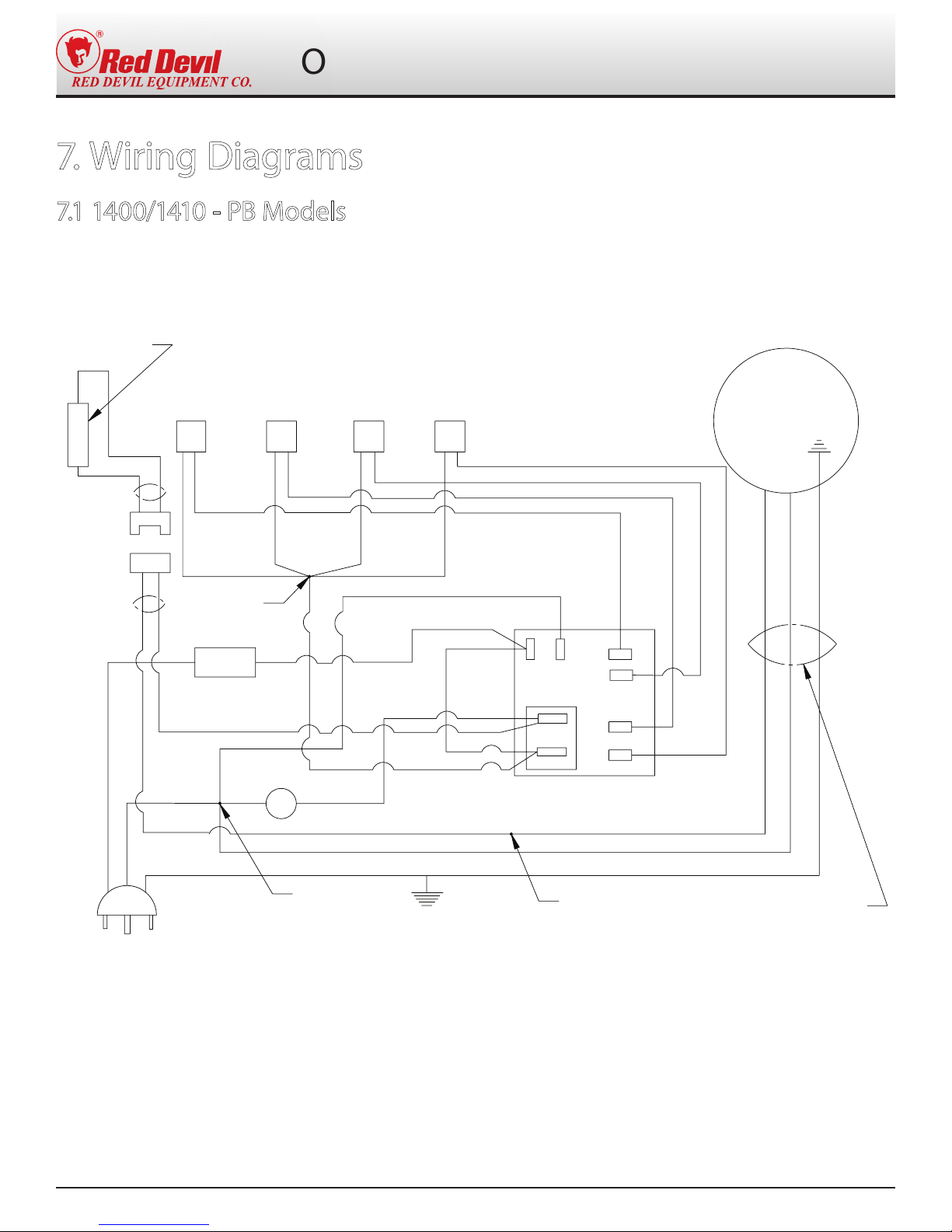

7.1 1400/1410 - PB Models
7.2 1400/1410 - 00 and -OH Models
7.3 1400/1410 - 00-N, -OH-N Models
7.4 Internal Motor wiring for 120V/60 Hz
and 220V / 50 Hz Models
1.
2.
3.
4.
5.
6.
7.
Exploded Views
8.1 Drive System
8.2 Transmission Assembly
8.3 Clamp Assembly, Left
8.4 Camp Assembly, Right
8.5 Enclousre Assembly
8.6 Clamp Cover Assembly
8.7 Electrical Assembly PB
8.8 Electrical Assembly OO
8.9 Electrical Assembly Oh
8.10 Counter Base
8.11 Pesestal Base
Ordering
Replacement Parts
Warranty
Notes
8.
9.
11.
3
3-4
5
6
6
6-7
8
8
9
9
9
9
10
11
12
12
12
12
12
13
14
14
15
16
17
18
18
19
20
21
22
23
24
25
26
27
28
29
29
30
31
10.

3
Owner’s Manual:1400 & 1410
1785069 Rev Y
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
“WARNING!” indicates a hazardous situation, which, if not
avoided, could result in death or serious injury. These serious
injuries could include permanent loss of function or significant
disfigurement, disability, considerable pain and suffering,
amputations, se vere burns, and loss or impairment of vision or
hearing. Take all necessary precautions to avoid unnecessary
“CAUTION!” indicates a hazardous situation, which, if not avoided,
could result in minor or moderate injury.
“NOTICE” indicates practices that do not involve physical injury
but may damage the machine.
NOTICE
1. Saftey Information
Review this owner’s manual and read all warning labels on the machine prior to use.
The three main safety notifications used in this manual and on the warning labels are
WARNING, CAUTION and NOTICE. They have specific meanings and indicate the potential
Safety Information, Continued..

4
Owner’s Manual:1400 & 1410
1785069 Rev Y
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
Part No. 1780899
-This machine is not explosion proof rated.
-Review product label, Material saftey Data Sheet, and HMIS rating of
materials and exposures prior to mixing to determine potentional hazards.
-Use in dry and well-ventilated environment where dust and ammable
vapors are not present; risk of physical injury exists if used in hazardous
environment.
-All containers must be properly sealed and void of leaks.
-Esta máquina no tiene la clasicatión de prueba de explosion.
-Revise la etiqueta del producto, la hoja informativa de datos de
seguridad, su clasicatión HMIS antes de mezclar y exposiciones de
materiales peligrosos para determinar los peligros potenciales.
-Use en un ambiente seco y bien ventilado donde polvo y vapores
inamables no estên presentes; Riesgo de daño sco existe si es untilizado en
un ambiente peligrosos.
-Todos los contenedores deben estar bien sellados y sin fugas.
-Cette machine n'est pas classê antidêagrant.
-Examen e'tiquette du prodiut, Fiche de dane;es de se'curite', Et
mate'riel HMIS cote et expositions, avant de faire le me'lange pour
de'terminer les risques poteniels.
-Utilisation a'sec et bien aere' environnement ou'la possie're et les
vapeurs inammables ne sont pas presents; risque de blessure physique
existe si ultilise' en environnement dangereux.
-Tous les conteneurs doivent être concenablement scellês pour èviter
les fuites.
- Machine must be properly grounded before use; improper grounding could
cause electric shock and injury.
-Disconnect power cord before servicing, cleaning or removing any
cover, and follow lockout/ tagout procedures in owner manual; failure to
disconnect power could cause electric shock and injury.
-Review Owners Manual before installing or operating.
- La maquinaria debe ser apoyada correctamente en el suelo antes de usar,
el no apoyarla puede casuar choque elêctrico y daños.
-Desconecte la energía antes de dar mantenimiento, limpiar o quitar
caulquier cubierta, y siga los procedimientos de bloqueo/etiquetado del
manual, Fallar en desconectar puede causar choque eléctrico y daños.
- La machine doit e'tre correctement mis a' la terre avant de les utilizer
mise a' la terre incorrecte peut provoquer un choc e'lectrique et de
blessure.
- De'branchez le cordon d'alimentation avant de proce'der a'l'entretien,
le nettoyage ou le retrait des capots: suivez la proce'dure d'isolation/
consignation proce'dures dans le manul de l'opre'rateur; E'chec de
WARNING
ADVERTENCIA
AVERTISSEMENT
Part No. 1781570
WARNING
ADVERTENCIA
AVERTISSEMENT
1.1 Safety Precaution labels
Safety Information, Continued..
Safety Information, Continued..
Part No. 1785065
CAUTION
MOVING PARTS INSIDE
AVERTISSEMENT
LES PARTIES EN MOUVEMENT À
L'INTERIEUR DE LA MACHINE
PRECAUCIÓN
PIEZAS MÓVILES ADENTRO
- Do not operate with safety
gaurd open.
- Do not open safety gaurd
until machine comes to a
complete stop.
- Ne pas mettre en service si le
dispositif de protection est ouvert.
- Ne pas ouvrir le dispositif de
protection avant I'immobilisation
complete de la machine.
- No operar con el protector
de seguridad abierto.
- No abrir el protector de
seguridad hasta que la
màquina este completamente
parada.

5
Owner’s Manual:1400 & 1410
1785069 Rev Y
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
1.2 Safety Precaution Summary
Safety Information, Continued..
WARNING!
DO NOT attempt to replace any damaged electrical
wire or components. Improper replacement could
result in electric shock and serious injury. Only a
qualified service representative should attempt
to repair or replace any damged electrical
components.
Review this owner's manuals before installing or
operating.
The machine must be properly grounded prior to
use. In case of eletcrical short circuit grounding
reduces the risk of electric shock by providing an
escape wire for the electric current.
The machine’s power cord has a grounding wire
with an appropriate grounding plug. This plug must
be inserted into an electrical outlet that is properly
installed and grounded according to all local
codes and ordinances.
If you must repair or replace the power cord or
plug, DO NOT connect the grounding wire to either
flat-blade terminal. The wire with insulting having an
outer surface that is green (with or without yellow
stripes) is the grounding wire.
Check with a qualified electrician if you don't
completey understand these grounding instructions,
or if you are not sure whether the machine is properly
grounded.DO NOT Modify the plug provided; if it
won't fit in the outlet, have a proper outlet installed
by a qualified electrician.
Disconnect the power cord before servicing,
cleaning, or removing and covers.
Follow the lockout/tagout producers of your
company.
Do Not use the door until the machine comes to a
complete stop.
To avoid electric shock, dont get the timer, control
panel, or wiring wet.
This machine is not explosion proof rated.
All containers must be properly sealed and void of
leaks.
CAUTION!
Keep the work area free of clutter and
electrical cords.
Avoid extension cords. To minimize the risk of
improper electrical grounding, extension cords
are not recommended. If an extension cords
are not recommended. If an extension cord
is unavoidable, consult a qualified electrician
to determine what type of extension cord will
satisfy the grounding, current capacity, and
other requirements of the particular situsation.
Use the proper power source. Refer to the
machine data plate on the right side panel or
the section 2.1, Specifications, in this manual.
Keep customers away from the work area.
This machine should be used only by properly
trained individuals.
Clamp the can carefully to ensure that it is
held securely durning the mixing cycle.
Review product label, Material Saftey Data
Sheet, and HMIS rating of material prior to
mixing to determine potential hazards.
Do not use solvent-based cleaners or thinners
Use in a dry and well-ventilated environment
where dust ad flammable vapor are not
present.
Product safety labels should be inspected
and cleaned periodically to maintain good
legibility. Replace any labels that are no
longer legible.
WARNING: This product may
expose you to chemicals including
DEHP, which is known to the State of
California to cause cancer. For more
information, go to www.P65Warnings.

6
Owner’s Manual:1400 & 1410
1785069 Rev Y
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
21 7/8"
31 3/4"
20 13/16"
19 3/4"
1 3/4"
35"
32 1/2"
Congratulations on your purchase of the
Classic Shaker. This machine is designed to
accommodate standard gallon, quart and
pint plastic or metal cans weighing up to 18
lb. (8.2 kg).
This mixer MUST BE USED in conjunction with
either a countertop or pedestal base, sold
separately.
Understand your machine's features and
proper operation to take full advantage of its
capabilities.
Read this entire manual completely before
operating the machine. Practice installing
and removing a container before mixing for
the first time.
Keep this manual for future reference.
Always follow all safety instructions!
Unit Size
• 1400-00, 1400-PB, and 1400-OH:
W41.63 in. (105.74 cm) D29.63 in. (75.26 cm) H
31.50 in. (80.01 cm)
• 1410-00, 1410-PB, and 1400-OH:
W27.88 in. (70.81 cm) D29.63 in. (75.26 cm) H
31.5 in. (80.01 cm)
Shipping Weight:
• 1400-00, 1400-PB, and 1400-OH: 191 lb. (86.6
kg)
• 1410-00, 1410-PB, and 1400-OH: 160 lb. (72.6
kg)
Electric Service: 120 V 60 Hz or 220 V 50 Hz (E5
only)
Capacity: 18 lb. (8.2 kg)
Sizes Mixed: 1 gal., 1qt., 1 pt.
2. Introduction
2.1 Application 2.2 Specifications
Single Gallon
1410-PB 120V/60 Hz 6 Min Pushbutton Timer
1410-00 120V/60Hz 15 Min Mech Timer
1410-0H 120V/60Hz 1 Hour Mech Timer
Mounted on Countertop or Pedestal Base. Introduction, Continued..

7
Owner’s Manual:1400 & 1410
1785069 Rev Y
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
41 5/8"
20 13/16"
62"
31 1/2"
32 1/2"
12 1/2"
6"
1"
... Introduction, Continued
2.2 Specifications
41 5/8"
20 13/16"
62"
31 1/2"
32 1/2"
12 1/2"
6"
1"
1410-PB 120V/60 Hz 6 Min Pushbutton Timer
1410-00 120V/60Hz 15 Min Mech Timer
1410-0H 120V/60Hz 1 Hour Mech Timer
1400-0H 120V/50Hz 1 Hour Mech Timer
1400-00-N 120V/60Hz 15 Min Mech Timer
Mounted on Countertop or Pedestal Base.
Twin Gallon

8
Owner’s Manual:1400 & 1410
1785069 Rev Y
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
45 90 180 360
O
N
O
F
F
• Timer Selection (A-D): Select the desired
mix time. The machine starts to mix when the
time is selected.
• Mixing Indicator (E): This light is on during a
mix cycle.
• On/Off Switch (F): Turn on before starting a
mix cycle. Turn o when the machine is not in
use.
(A) (B) (C) (D)
(E) (F)
Turn the dial to the appropriate mix time.
The machine starts to mix when the time is
selected.
-PB
-00 (15 Minute Timer)
-0H (1 Hour Timer)
2.3 Control Panel Pushbutton
Timer
... Introduction, Continued
2.3 Control PanelMechanical
Timer

9
Owner’s Manual:1400 & 1410
1785069 Rev Y
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
IMPORTANT: Before attempting to operate the
machine:
1. Remove all packing material.
2. Assemble the base.
1. Attach both base castings (A) to the mixer,
using the four carriage bolts (B), washers (C),
and nuts (D) provided.
2. Install a rubber foot (E) into each end of the
springs (F).
3. Lift one side of the mixer. Insert a spring and
foot assembly into the depression in the bottom
of each corner of the base (G).
4. Lift the other side of the mixer, and repeat
the third step.
NOTE: Be sure that the machine and base are
placed on a flat, stable countertop surface.
1. Insert the studs of the suction cups (A) up
through the eight holes in the bottom of the
base (B).
2. Secure them by installing the washers (C) and
acorn nuts (D) provided.
3. Hand tighten first, then tighten the nuts one
complete turn with a wrench.
4. Align the openings of the rubber bumpers (F)
over those on the upper plate of the base
(E).
5. Set the mixer on the upper plate of the base,
on top of the rubber bumpers (F).
6. Secure the mixer to the base using the four
rubber bumpers, bolts (G), washers (H), and
nuts (I) provided.
7. Adjust the fasteners.
a. Tighten all four bolts to just snug
b. Turn all four bolt 1 1/2 more turns.
c. Adjust the bolts as required to ensure the
gap between the mounting base and the
unit is 1/2" at all four bolts. This compresses
the isolators equally.
NOTE: DO NOT overtighten the nuts.
(A)
(D)
(C)
(B)
(E)
(E)
(G)
(F)
(C)
(F)
(D)
(E)
(A)
(B)
3. Assemble and Test
3.1 Prepare for Use
3.2 Assemble the Countertop
Base
3.3 Assemble the Pedestal
Base (See Section 8.11)
Installation, Continued..

10
Owner’s Manual:1400 & 1410
1785069 Rev Y
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
(I)
(G)
(H)
(H)
(F)
1/2"
Assembly and Test, Continued..
Set the mixer on the upper plate of the base,
on top of the rubber bumpers (F)
Secure the mixer to the base using the four
rubber bumpers, bolts (G), washers (H), and
nuts (I) provided.
5.
6.
Adjust the fastners.
a. Tighten all four bolts to just snug
b. Turn all four bolts 1 1/2 more turns.
c. Adjust the bolts as required to ensure the
gap between the mounting base and the
unit is 1/2 at all four bolts. This compresses the
isolators equally.
7.
3.4 Connect to Power
1. Follow the electrical intrusctions described in
sections 1.2 & 2.2
The machine power cord has a grounding wire
with an appropriate grounding plug. This plug
must be inserted into an electrical outlet that is
properly installed and grounded according to
all local codes and ordinances.

11
Owner’s Manual:1400 & 1410
1785069 Rev Y
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
1. If the pedestal unit walks (moves) during
operation the floor may be rough or uneven.
Anchor the base to the floor as follows:
a. Tilt the mixer and base backward until
you can insert a 2' x 4' board under the base.
Make sure the board is clear of the front
suction cups.
b. Tilt the mixer and base forward and insert
another 2' x 4' under the rear of the base.
Again, be sure the board clears the suction
cups.
c. Clean the contacting surfaces of the
suction cups, and the oor where the cups
will make contact.
d. Apply an even layer of rubber cement
(or equivalent adhesive) to the contacting
surfaces of the suction cups and to the oor
directly under the cups.
e. IMPORTANT: If the layer of rubber
cement is too thick, it won't dry proerly
and won't anchor the unit adequately.
f. Allow the cement to dry until it becomes
tacky.
g. Remove the 2' x 4's and lower the
entire machine to the oor. For long lasting
adhesion, allow the cement to dry overnight
before running the mixer.
h. Clean the contacting surfaces of the
suction cups, and the oor where the cups
will make contact.
3.5 Test Operation

12
Owner’s Manual:1400 & 1410
1785069 Rev Y
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
WARNING! Avoid serious personal injury.
Do not mix flammable or combustible materials
in this mixer.
1. Turn the handle counter-clockwise to open
the clamping jaws about 1/2” wider than the
length of the container.
2. Insert the can and turn the handle clockwise
to secure the can for mixing. Before turning on
the mixer, always be sure that the container is
held tightly-but don’t use excessive pressure
that could damage the can or clamping
assembly.
Notice: Avoid damage to the machine.
Do not operate the machine without a can
≈ ½
3. If mixing with only one clamp on a Model
1400, install an empty can (or a piece of 2” x 4”
board) in the other clamp.
4. If your model has a pushbutton timer, close
the clamp guard, then:
a. Set the power switch to ON.
b. Select desired mixing time by pressing the
appropriate button to initiate the mix cycle.
5. If your model has a mechanical timer, turn
the dial to the appropriate time increment. The
machine will start automatically once the dial is
moved off of zero.
Lubrication:
• Measure the oil level periodically. Be sure
the oil level is between the two marks on
the dip stick. Use a good grade SAE 10W 30
motor oil.
• Avoid using too much oil as it could cause
seepage around the main shaft. The
capacity of the transmission is 11 oz.
• Keep the guide rods free of dirt, dried paint,
and other foreign matter.
• Remove any small nicks with a fine file.
• Whenever the guide rods feel dry, wipe a
little oil over them with a rag.
• Occasionally apply a thin film of oil to the
clamp screws.
WARNING! Avoid serious personal injury! DO
NOT use solvent-based cleaners or thinners, or
other combustible cleaners.
WARNING!Avoid serious personal injury.
Always unplug the power cord before performing
maintenance tasks.
• Remove water-based/glycol colorants or
base paints spilled on machine surfaces
using lukewarm water and mild detergent.
• Do not use abrasives to clean machine
surfaces. Doing so may damage the
appearance of the machine.
• Keep the machine clean for reliable
4. Operation 5. Care & Maintance
4.1 Install a Pail and Mix
5.1 Cleaning
5.2 Maintenance

13
Owner’s Manual:1400 & 1410
1785069 Rev Y
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
6. Troubleshooting
PROBLEM CAUSE REMEDY
Not connected to power source
Limit switch actuator does not
make contact with limit switch
Loose or broken wire
connection
Machine door does not make
contact with limit switch
Motor Thermal Protector
Activated
Loose nuts on the mounting base
Gaurds are loose
Faulty timer/contoller
Connect to power source
Have a qualified electrician replace
or repair the wire connection
Read just switch to make contact with
limit switch tab when door is closed
Fix or replace Can
Contact Radia Customer Care
Contact Radia Customer Care
Contact Radia Customer Care
Readjust switch to make contact with limit
switch screw when the cover is closed
Machine won't operate
Mixer Walking
Machine doesn't shut off
at end of mixing cycle
Machine doesn't shut off
when gaurds are lifted
Mixer is not on a Radia
Equipment approved base
Allow to cool, then restart
Faulty Motor Contact Radia Customer Care
Contact Radia Customer Care
Squeaking noise at the
back of the machine
Floor is not smooth
Clamp plate loose
Anchor base to Floor, see section 3.5
Exessive Noise
Worn transmission bearings
Faulty limit switch
Contact Radia Customer Care
Mixer gaurd is not closed
completely
Remove any obstruction and close the
gaurd properly
Faulty Control Panel Contact Radia Customer Care
Can won't fit properly into
clamping plates Can damaged
Clamp does not hold
cans sercurely Clamp threads are worn Replace the clamp assembly
Tighten the nuts
Tighten the nuts
Machine starts or runs
slowly
Hinge parts on the clap gaurds
are rubbing against each other
Loose drive belt
Use spray lubricant on the hinge
Tighten or replace the drive belt

14
Owner’s Manual:1400 & 1410
1785069 Rev Y
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
2
4
7
3
6
5
B/W
W
G
5782877 YELLOW
B
B
B
W
B
B/W
5782894 CONTROLLER 110V 60HZ
5782584 GREEN PUSHBUTTTONS
SW3
(180 SEC)
SW4
(360 SEC)
B/W
SW1
(45 SEC)
SW2
(90 SEC)
L
W
G
W
5782565 GREY
5782876 RED
5782879 BROWN
5782878 BLUE
5782479
GREY
5782479
GREY
5782479
GREY
9782621
WIRE NUT
5782561 WHITE
5782558
BLACK
5180300 MOTOR CORD
5782479
GREY
5180200 POWER CORD
5782445
POWER
SWITCH
5782448 LAMP
9780543
WIRE NUT,
YELLOW
5783815
LIMIT SWITCH
5785064
SWITCH
CABLE
5785070
SWITCH
HARNESS
B
W
9780542
WIRE NUT,
ORANGE
5782880 B/W
B
B/W
B/W
MOTOR KIT
6784902 -110V, 60Hz
7. Wiring Diagrams
7.1 1400/1410 - PB Models
Wiring Diagrams, Continued..

15
Owner’s Manual:1400 & 1410
1785069 Rev Y
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
B
B
15 MINUTE DIAL TIMER 5782184
1 HOUR DIAL TIMER 5758710
W
G
W
POWER CORD
5180200 - 110V, 60HZ MACHINES
5781665 - 220V, 50HZ MACHINES
G
9780543
WIRE NUT
5785070
SWITCH HARNESS
5785064
CABLE HARNESS
B W
B/W
B/W
12
21
5783815
LIMIT SWITCH
MOTOR KIT
6784902 - 110V, 60HZ
6785268 - 220V, 50HZ
5180300 MOTOR CORD
...Wiring Diagrams, Continued
7.1 1400/1410 - 00 and 0H Models
Wiring Diagrams, Continued..

16
Owner’s Manual:1400 & 1410
1785069 Rev Y
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
B
B
15 MINUTE DIAL TIMER 5782184
W
G
W
5180300 MOTOR CORD
G
9780543
WIRE NUT
B
12
21
POWER CORD
5180200 - 110V, 60HZ MACHINES
MOTOR KIT
6784902 - 110V, 60HZ
7.1 1400-00-N
...Wiring Diagrams, Continued
Wiring Diagrams, Continued..

17
Owner’s Manual:1400 & 1410
1785069 Rev Y
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
Motor Voltage Connections for 120 and 220 V
Lead 120V 220V
Brown 5 4
Line In-------------- White2 5
Red A A
Ungrounded Line Black 5 5
7.4 Internal Motor Wiring for 120V/60 Hz and 220V / 50 Hz
Models
...Wiring Diagrams, Continued

18
Owner’s Manual:1400 & 1410
1785069 Rev Y
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
19
2
4
21
3
5
6
11
20
15
22
1
14
10
7
17
13
18
12
8
9
19
2
4
21
3
5
6
11
20
15
22
1
14
10
7
17
13
18
12
8
9
**** 1400-0H-E5
*** 1410 All
ID Description
1 8621200 BASE WELDMENT, 54XX
2 6784902 MOTOR, AC, 1_3 HP, DUAL RATED
3 9561700 Screw Hex 5_16 X 1
4 9760521 Washer 5_16 Lock, Split
5 9100023 WASHER, FLAT 5_16 USS
6 9781493 Nut 5_16 Jam
7 9621600 RING, COMPRESSION, FAN - 54XX
8 9786120 FAN, 5 BLADE, CCW, 5.0 DIA
9 9621700 BAFFLE, FAN - 5400
10 9785062 HINGE BRACKET, TRANS RIGHT - 14XX
11 9785061 HINGE BRACKET, TRANS LEFT - 14XX
12 9780886 SCREW HEX 3_8-16 X 1.00
ID Description
13 9780402 Washer 3_8 split lock
14 6785273 TRANSMISSION ASSEMBLY - 1400
15 6785085 TRANSMISSION ASSY - 1410
17 9622600 CAP, SCHRADER VALVE, NYLON - 54XX
18 9622700 DIPSTICK - 54XX
19 9619000 PULLEY, STD, 60Hz MTR - 54XX
20 9786047 PULLEY , STANDARD, 50Hz MTR
21 9159800 SCREW, SET, …-20 X .50, CUP PT
22 9592800 BELT, ROUND
*
**
***
****
8. Exploded Views
8.1 Drive system
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued..

19
Owner’s Manual:1400 & 1410
1785069 Rev Y
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
6
5
16
4
14
3
2
1
17
15
13
7
12
9
8
10
11
6
5
16
4
14
3
2
1
17
15
13
7
12
9
8
10
11
* 1400-PB & 1400 -00-N
** 1410 MODELS
ID Description
1 9786258 MACHINING, BEARING HOUSING - 14XX
2 6808900 ASSY, CRANKSHAFT - 54XX
3 9124700 KEY, WOODRUFF, NO. 606
4 9694000 PULLEY, COUNTERWEIGHT - 54XX
5 9690300 WASHER, COPPER, FLAT
6 9694100 NUT, NYLON LOCK, THIN, 0.625-18
7 9430300 GASKET, BEARING HOUSING - 54XX
8 9668300 COVER, BEARING HOUSING - 54XX
9 9781831 Screw, Hex 1_4 X 1
ID Description
10 9622800 VALVE, TIRE
11 9622600 CAP, SCHRADER VALVE, NYLON - 54XX
12 9787092 BLOCK, UNIVERSAL - 14XX
13 9157400 SEAL, OIL, AGITATOR SHAFT
14 9359200 SEAL, OIL, CRANKSHAFT
15 9786147 SEAL, OIL, CRANKSHAFT
16 9341700 SHAFT, AGITATOR, DUAL - 5400
17 9339600 Shaft, Agitator, Single
*
**
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued..
...Exploded Views, Continued
8.2 Transmission Assembly

20
Owner’s Manual:1400 & 1410
1785069 Rev Y
ECO 18-0034
July 2018
www.radiaproducts.com (PHONE) 800-221-1083 | (INTL) [phone] | (FAX) 763-533-0015
2
6
7
1
8
3
4
5
12
11
10
9
2
6
7
1
8
3
4
5
12
11
10
9
ID Description
1 9784822 CLAMP JAW, LEFT FRONT - 54XX
2 9784821 CLAMP JAW, LEFT REAR - 54XX
3 9188100 HANDLE, CLAMP, 5400
4 9785071 WASHER, LOCK, INTERNAL TOOTH, M12
5 9785072 NUT, HEX JAM, M12X1.75
6 9784830 CLAMP SCREW - 14XX
7 9782216 Thrust Washer
ID Description
8 9140200 Key, Woodru No 404
9 9690800 SCREW, HEX 3_8-16 X 2.00
10 9780402 Washer 3_8 split lock
11 9161100 Washer, Flat 3_8 USS
12 6784823 ASSY, GUIDE ROD, HD - 14XX
13 6785100 - Left Side Assembly Kit
13
8.2 Clamp Assembly, Left
...Exploded Views, Continued
PART NUMBERS LISTED MAY ONLY BE AVAILABLE IN KIT FORM OR AS AN ASSEMBLY
Exploded Views, Continued..
