Redsail M3050 User manual
This type of Laser Machine is GB4 series
Laser Product .Please note laser radiation
when use it. Avoid your eyes or skin get
direct or scattering radiation!
Prolog
Thank you for choosing Redsail Products ! This use manual provides the users
with Machine’s Safety, installation, operation and daily maintenance of the
relevant considerations and guidance.
For your safety，proper use the product，be sure to read this manual carefully
before operation, to be fully understood and save it for your later use.After
purchase this machine, check the model, all parts listed on the packing list and
check for shipping damage . If any part is missing or damage, Please immediately
contact local dealer or manufacture. Thank you for choosing Redsail Products
again !
This user manual operating instruction is for convenient understanding. It may
be some different from the product, there may be some different when the
products get upgrade , it is only for reference.
This User Manual Application:
This manual applies to Redsail Laser Machine M3050.
Matters need attention
All of the products will be full tested before delivery. Considering transportation
and other reasons, please confirm the following points:
During transport, device is deformed or damage, please dont use if the device
is damaged to avoid the hurt from danger, please inform our company or local
agent in time for such condition.
Please make sure the package is intact, accessories and User Manual is
complete. Please keep the User manual and accessories well for the future use.
Please make sure this device is consistent with that you have ordered,
otherwise it maybe cause the fire or device damaged because of the wrong
power connection.
Chapter 1 Safety Directions
1.1 Machinery Safety
1.1.1 General Safety Rules
(1) Know your machine
For your personal safety ，read this manual and CNC system manual carefully, Know
applications and limitations of the machine,and potential danger related to the machine,
make the operation according to the manual direction.
(2) Keep working area clean
Mussy environment and working table may cause an accident.
(3)Don’t use it in the dangerous environment
Don’t use it in wet or rainy place, or expose it to rain. Keep good lighting in working area.
(4) Non-professionals don’t touch
All visitors must keep a safe distance in working area.
(5) Please don’t make the forcible operation for the machine
(6) The machine need to work in the safety speed.
(7) Please use the right tools, don’t take the forcible operation to make the machine
or additional device working.
(8) Wear the proper clothing
Avoid wearing loose clothing, gloves, necklaces, bracelets or jewelry which is possible to
go with the moving part of the machine. Recommend to take non-slip shoes, wear the
cap which can cover the long hair.
(9) Please don’t do maintenance when the machine is working
Machine maintenance should be made properly, such as lubrication and adjustment.
(10) Must be close the machine power when repair, replace the parts or assembly and
reassemble the motor.
(11) Dont make the machine running when nobody
1.1.2 General Safety Items
Please read this manual and CNC system manual carefully before operation, make the
operation according to according to the User Manual directions.
1.1.3 Machine Hanging and Transport safety
Dangerous Remind
Total weight of CM series device is about 300KGS---600KGS (you can check the weight
from the packing list), all handling equipment’s safe loading-bear must more than 50%
of your device. Must use the enough strength rope when hanging the machine, in order to
avoid damaging the machine, otherwise may cause the rope broken, handling
equipment or machinery fall damaged, even causing casualties.
Warning
No matter how to lift the machine, please check the balance carefully, prohibit to
move the machine without balance, otherwise will cause injuries or damage the
machine.
When machine lifting and falling, pay more attention not to make the up and down
speed too fast, it maybe bring unexpected shake or strike, otherwise it will make the
machine lose balance, and cause injuries or damage the machine.
When machine lifting, prohibit anybody, car to go under the machine in order to
avoid the accident.
When machine lifting, prohibit to cling to the machine and also prohibit to cling to
the hanger and rope in order to avoid the accident .
Attention Items
When machine lifting and handling, please note whether there is an barrier or person
around the machine, please clean the barrier and let people leave before hanging. To
avoid the collision and danger.
When machine is lifting and handling, control the speed not too fast, should forbid
the urgent brake, in order to avoid the machine shaking to lose balance and fall down.
1.1.4 Electrical Safety
Before wiring，be sure to turn off the power.
Electronic components inside the device are particularly sensitive to static
electricity ,so please don’t put the foreign body inside the equipment or touch
the main circuit board.
AC off , the device 's internal drives, motherboards, laser power indicator
light does not go out it shows that high pressure inside the device is still very
dangerous , do not touch the internal circuits and components.
Please use the power which is same as the rated voltage frequency.
Must install the power stabilizer, when the grid voltage exceeds the rated voltage ±
10%, should not turn on the machine.
Please confirmed all wires insulation is under the good condition, avoid the leakage
and electric shock.
Please check and make sure all indicators for accessories are working properly.
Be sure the machine enclosure right grounding use of range.
1.1.5 Mechanical Safety
After unpacking, firstly you must check the equipment is intact after long transportation.
Turn on the machine when the first time or when stopping using for a long time, please
check if there is interfere in all axis, then lubricate the machine fully before you run the
machine.
Before turn on the machine, please must check whether there are more than 2/3 coolant
in the cooling tank (distilled water or purified water), when the water circulation inside the
laser tube is normal, you can run the laser.
1.2 Safety Signs
For the security part in this User Manual, take the following mark, the statements about
safety signs is very important, please be sure to observe! To avoid the people’s injury and
machine’s damage.
Danger Potentially dangerous situation, it will be happened under the wrong
operation.
Attention Potentially dangerous situation, it will cause the low-grade injury or
middle-grade injury.
Forbid Forbid (Never do)
Force Force(Must do)
Safety Attention:
This section is direction for the important iterms that the user must abey, such as
receipt confirmation, storage, handling, installation, wiring, operation, inspection, liquid
waste disposal, etc.
Danger
Please supply the power for the machine according to the mentioned voltage,
frequency in this manual. Otherwise the machine will be burned or cannot run
normally.
When machine running, don’t touch the slip or rotating parts. Otherwise will cause
injury.
When machine running, don’t touch the terminal inside the machine. Otherwise
will get an electric shock.
Within 5 minutes after the main power switch turn off , don’t touch the terminal
inside the machine. Otherwise will get an electric shock.
When machine running, open flame is strictly prohibited. Otherwise will cause the
fire.
Please make the test run for the machine according to the direction in this
manual.
If appear the wrong operation , it may damage the machine, even cause the
personal injury.
DONT allow to remove the cover , remove the connector, pull electric cables, etc
when the power is opened. Otherwise it may damage the machine, even cause
the personal injury .
Settings, checking, fault diagnosis and troubleshooting should be done by
qualified person. Otherwise will cause the fire, electric shock or injury.
Please don’ t damage or pulling electric cable vigorously, don ’ t make too big
pulling force to the cable, don’t embed the fixture in the cables. Otherwise will get
an electric shock and damage the machine.
If meed the sudden power cut when machine is running, please turn off the main
switch immediately. Otherwise the machine may start suddenly to endanger the
personal safety.
Please dont modify the machine. Otherwise may will damage the machine.
The handling, wiring and inspectionfor the machine can be done after 5 minutes
when the power is turned off . Otherwise will get an electric shock.
■Environment Attention
Note
Please don’t put the machine in the following environments, otherwise may be
cause product breakdown or life reduction.
Direct Sunlight
Ambient temperature exceeds the keep, setting and the relative temperature
Relative humidity exceeds the keep, setting and relative humidity
Large temperature difference and condensation
Near to corrosive gas, flammable gas
Too much dust, salinity and metal-powder
Water, oil and medicines and chemical reagents may drip
Vibration or impact can be transmitted to machine.
■Installation Attention
Note
This machine is the precise product , please avoid the strong impact.
Otherwise will cause the malfunction.
Please don’t thead on the product or place the heavy objects on it. Otherwise
will damage the machine.
Please don’t make the metal sheet or combustible materials into the machine.
Otherwise will damage the machine.
Please according to the required size to confirm the installation location for the
machine.
■Wiring Attention
Note
Please use the specified power voltage. Don’t connect the machine to 380V
power supply directly. Otherwise machine will be burned out. Special voltage
need to consult with the factory or supplier）
Please don ’ t turn on / off power frequently, please control that below 1
times/minute if need to turn on/off many times.
There are large apacitor in the machine, the large charging current will flow
when the power is turned on, so the performance for the internal components
of machine will descend if power is turned on / off frequently.
■Running Attention
Note
When running, must turn off the power immediately for any abnormal
situation. Otherwise will damage the machine.
Operator must be qualified. Otherwise will damage the machine or make the
personal injury.
Forbid printing ink, cleaning liquid or water on any circuit board. Otherwise
may cause the machine cannot work preperly or be damged.
■Maintenance and Inspection Attention
Note
Even if the power is off, still remain high voltage inside the machine, so please
don ’ t touch the power terminals within 5 minutes after the power is off.
Otherwise it will get an electric shock.
Please don’t plug any connector when the power is on. Otherwise it will get an
electric shock, or damage the accessories..
■General Attention Items
Please note when operating
1
Redsail have no responsibility for any damage and loss made by unauthorized
modification for the machine.
2
Corrosive liquid is forbidden for lead rail and working table when cleaning the
machine.
3
Prepare two units portable - type dry powder fire extinguisher to avoid the
accident.
4
Please use the ink with ignition point higher than 60 ℃.
5
In any emergency condition, please press the emergency stop switch.
6
When power failure, be sure to turn off the main power switch. Recover the
operation after professional technician checks and repairs it.
7
In the event of fire, please turn off the main power switch firstly, use dry
powder fire extinguishers to stop the fire. Don ’ t hurry, the professional
technician should check the fire reason. DONT open main power switch before
finding the reason.
1.3 Warning signs
Warning sign on the machine to ensure proper and safe operation.
Warning sign on the machine is for pointing out the dangerous position and case for
operator.
Please don’t remove safety signs from the machine.
Chapter 2 Summary

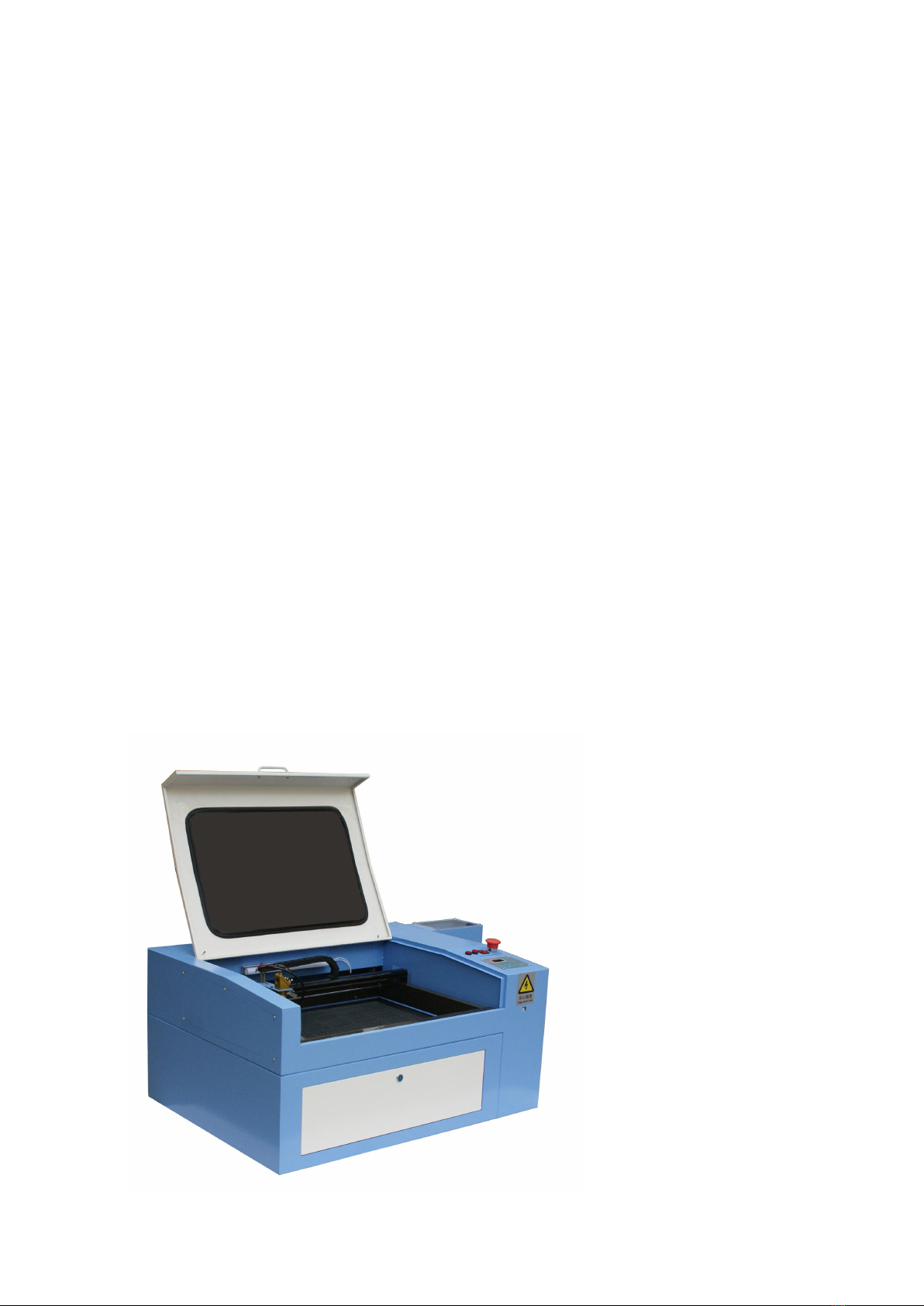

Redsail M3050 Laser Machine is with high speed engraving and high running accuracy;
2.1 character:
Laser Type: Sealed Co2 glass, Laser Power: 50W
Working Area: 300*500mm
Cutting Speed: 0 - 500mm/s
Repeatability:±0.05mm
Power Voltage: AC 220V±10%, 50/60Hz
Humidity:5 - 95%
Min molding text: English 2×2mm
Image Form: BMP,HPGL, PLT, DST, DXF, AI...
Driver Motor: Micro Stepping Motor
Cooling-down method: Forcing water cooling and protection system
Servicing structure:Exhaust fan and exhaust duct
Control System: DSP control system
Compatible Software:CorelDraw with dongle
Chapter 3 Machine Installation and Directions
3.1 Laser Tube Installation
1·Mirror Holder 2·Water outlet 3Cathode- 4·Water in 5·Anode+ 6·Tube holder 7·Laser out
Please refer to the above Figure when you install the laser tube. According to Figure,
solder the anode wire (red/thick), the cathode wire (black/thin) in the correct location of
laser tube.(While soldering, please don’t keep the electric soldering iron touching the
welding point in so long a time in case it burn out the laser tube), poor soldering is not
allowed. After finish soldering, please package the welding point with high voltage tape.
Especially the anode wire must be isolated from the metal parts, otherwise will appear
leakage of electricity and damage the laser tube.
After soldering, connect the in/out water pipe with the entrance/exit on the laser
machine (The connection of laser tube must comply with the principle water come in
from the anode and out from the cathode).

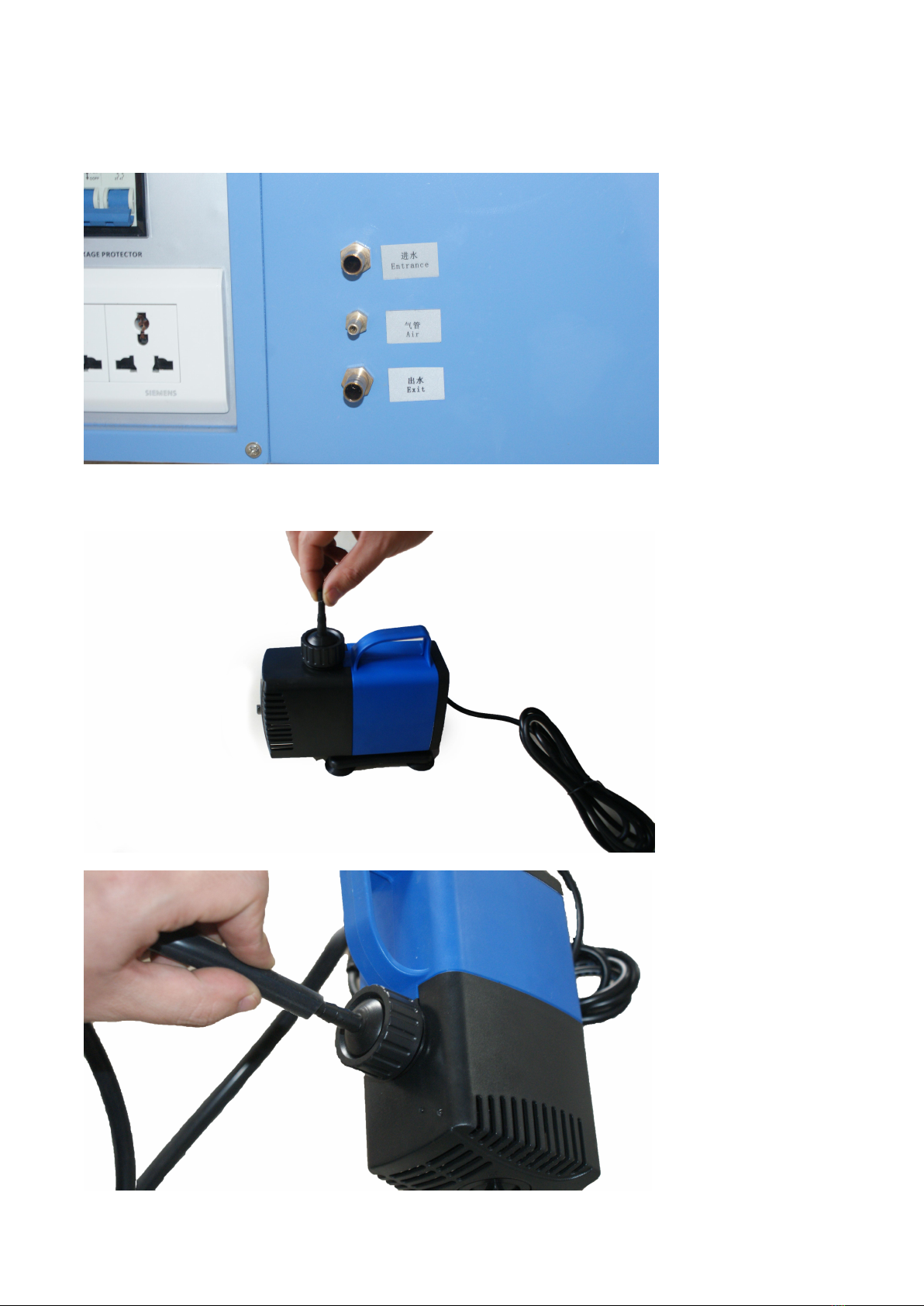

3.2 Water Pump Installation
Fill water into water tank, the water must cover the water pump at least.
Connect the water pipe to Entrance and Exit at back of machine
Connect the water pipe into the water pump

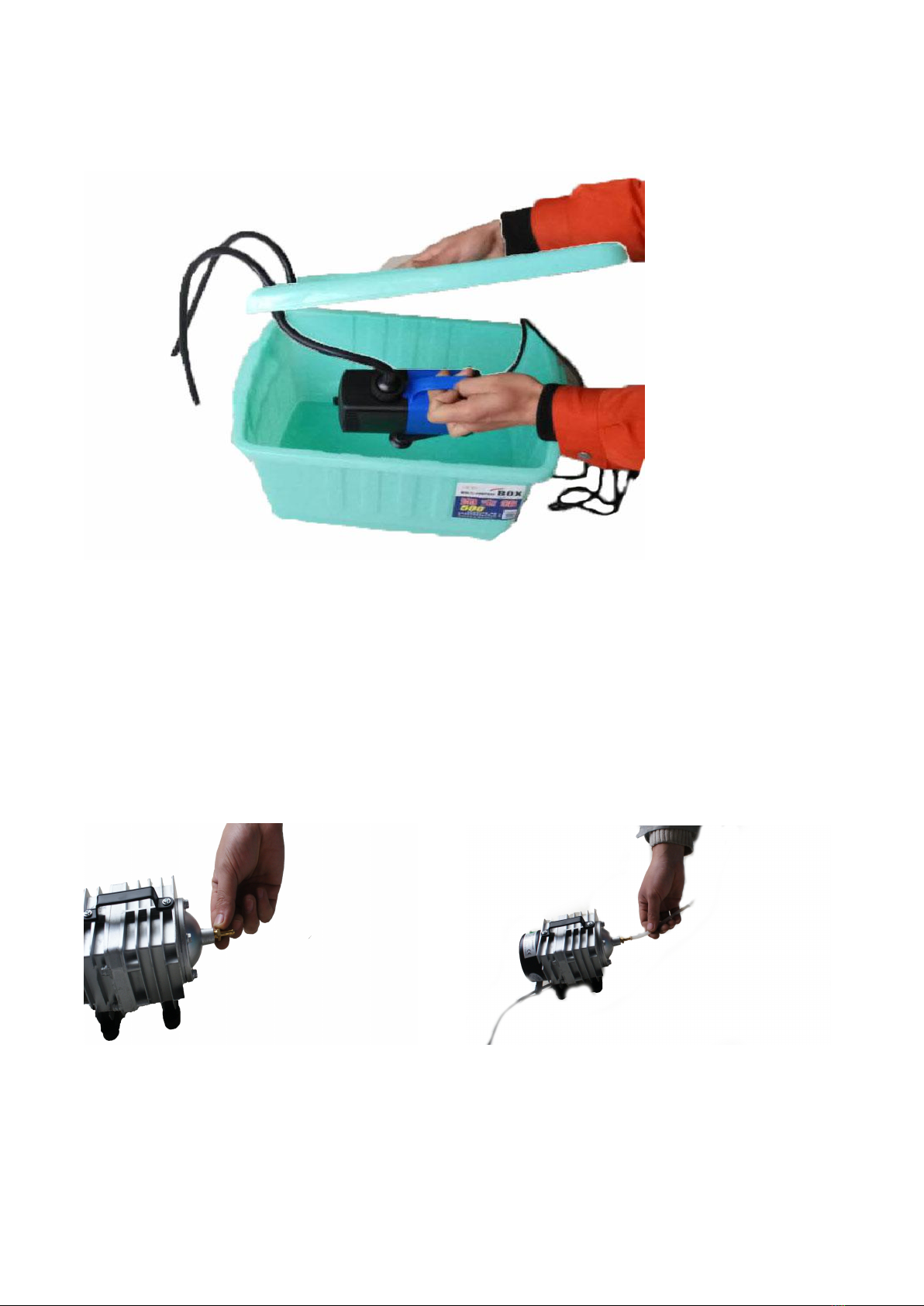

Put the water pump and output pipe into the water tank
Connect the power, then the water will be flow into the laser tube and keep the water
circulation.
3.3 Air Pump Installation
Connect the air pump with the machine together.
Connect the power cable, the gas will come out from the air pipe near to the laser head,
it can keep the lens clean, also can avoid the materials burned during working.
3.4 Installation for vent pipe
3.5 Connect the ground wire
3.5 Connect the power cable

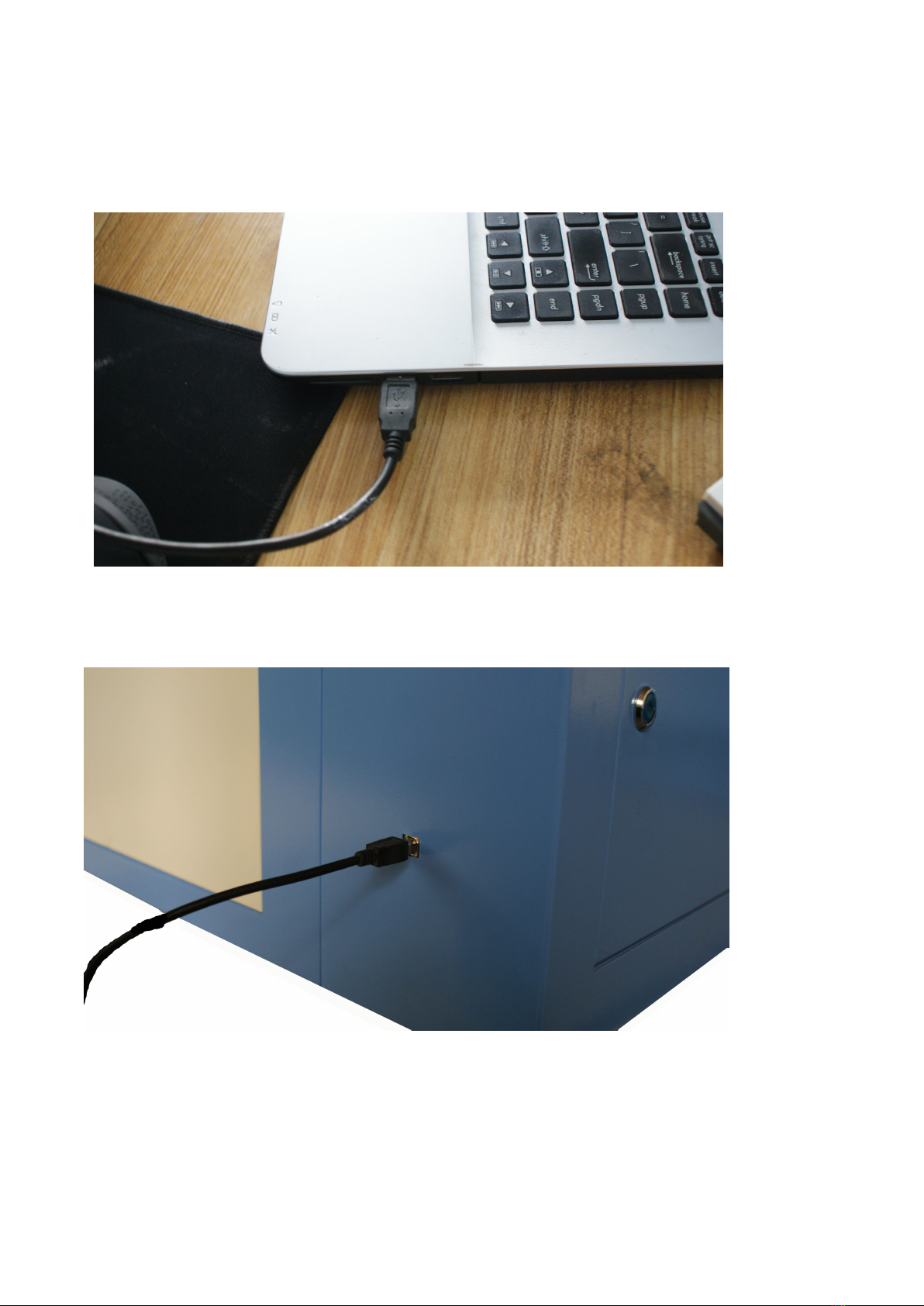

Connect the machine with the computer
Table of contents
Other Redsail Engraver manuals
