Redwood RWC2010M User manual

RWC2010M Digital Radio Tester
Operating Manual
Version 1.00
(F/W Version 1.00)
2022 / 12 / 13

Contents
1 General Information 4
1.1 Warranty 5
1.2 Safety Considerations 5
1.2.1 Injury Precautions 5
1.2.2 Product Damage Precautions 6
1.2.3 Safety Symbols and Terms 6
1.3 General Information 7
1.3.1 Key Feature 7
1.3.2 Specification 8
1.4 Power Requirement 9
1.5 Operating Environment 9
1.6 Ordering Information 10
2. Basic Operation 11
2.1 Exterior 11
2.1.1 Front Panel View 11
2.1.2 Rear Panel View 11
2.2 Screen Layout 12
2.2.1 Booting Screen 12
2.2.1 Information 13
2.2.3 Setup parameters 14
2.3 Operation 14
2.3.1 Standalone 15
2.3.2 Controlling with PC Software 15
2.3.3 Operation Mode 15
2.4 Content file 16
2.4.1 ETI, MDI, WAV files 16
2.4.2 RDS files 17
2.4.3 Downloading files from RedwoodComm’s Server 17
2.4.4 Downloading files from PC to RWC2010M 18
2.4.5 Internal Storage 19
2.5 Firmware Upgrade 19
2.5.1 Normal Firmware Upgrade 19
2.5.2 Emergency Firmware Upgrade Sequence 20
3. Transmission Mode 21
3.1 ETI Play Mode 21
3.1.1 ETI File Transmission 21
3.1.2 ETI Contents File 22
3.2 MDI Play Mode 22
3.2.1 MDI File Transmission 22
3.2.2 MDI Content Files 22
RedwoodComm Co., Ltd. 2/42

3.3 FM Transmission 23
3.3.1 Parameters 23
3.3.2 AUDIO SOURCE 24
3.4 AM Transmission 26
3.4.1 PARAMETERS 26
3.4.2 AUDIO SOURCE 27
4. Audio Analyzer 29
4.1 Operation 29
4.1.1 Specification 29
4.1.2 Zooming audio waveform 29
4.1.3 Fitting audio waveform 30
4.1.4 Zooming audio spectrum 30
4.1.5 Max hold of spectrum analyzer 30
4.2 Parameters 31
4.2.1 CONFIGURATION PARAMETER 31
4.2.2 TRIGGER 31
4.2.3 REFERENCE FREQUENCY 31
4.2.4 Measurement average 32
4.3 Measurement 32
4.3.1 Frequency 32
4.3.2 SINAD (Signal-to-noise and distortion ratio) 32
4.3.3 SNR (Signal to noise ratio) 33
4.3.4 THD (Total Harmonic Distortion) 33
4.3.5 THDN 33
4.3.6 AVERAGED 33
5. Remote Control Programming 34
5.1 Introduction 35
5.1.1 Command Structure 35
5.1.2 Command Parameter Types 36
5.1.3 Response to Query 36
5.2 Interface for Remote Control 36
5.2.1 RS-232C interface 36
5.2.2 Ethernet Interface 37
5.2.3 Remote Programming guide 38
5.3 Command Tables 38
5.3.1 Common Commands 38
5.3.2 ETI SETUP 39
5.3.3 ANALOG FM 39
5.3.4 ANALOG RDS 40
5.3.5 ANALOG AM 41
5.3.6 SETUP SYSTEM 41
RedwoodComm Co., Ltd. 3/42

1 General Information
This chapter covers instrument Specifications, Key Features and Safety Consideration.
1.1 Warranty
1.2 Safety Considerations
1.3 General Information
1.4 Exterior
1.5 Operating Environment
1.6 Ordering Information
RedwoodComm Co., Ltd. 4/42

1.1 Warranty
RedwoodComm Warrants that this product will be free from defects in materials and
workmanship for a period of two(2) years from the date of shipment. During the warranty period,
RedwoodComm Company will, at its option, either repair or replace products that prove to be
defective.
For warranty service or repair, customers must notify RedwoodComm of the defect before the
expiration of the warranty period and make suitable arrangements for the performance of
service. Customers shall be responsible for packaging and shipping the defective product to the
service center designated by RedwoodComm. Customers shall prepay shipping charge to
RedwoodComm designated service center and RedwoodComm shall pay shipping charge to return
the product to customer. Customer is responsible for all shipping charges including freight, taxes,
and any other charge if the product is returned for service to RedwoodComm, if the customer is
located outside of Korea.
LIMITATION OF WARRANTY
The foregoing warranty shall not apply to defects resulting from improper or inadequate
malignance by buyer, Buyer-supplied software or interfacing, unauthorized modification or
misuse, accident or abnormal conditions of operations.
RedwoodComm responsibility to repair or replace deductive products is the sole and exclusive
remedy provided to the customer for breach of this warranty. RedwoodComm will not be liable
for any indirect, special, incidental, or consequential damages irrespective of whether
RedwoodComm has advance notice of the possibility of such damages.
1.2 Safety Considerations
Review the following safety precautions to avoid injury and prevent damage to this product or
any product connected to it.
1.2.1 Injury Precautions
Use Proper Power Cord
To avoid fire hazard, use only the power cord specified for this product.
Avoid Electric Overload
To avoid electric shock or fire hazard, do not apply a voltage to a terminal that is specified
beyond the range.
Ground the Product
This product is grounded through the grounding conductor of the power cord. In case no
ground is available at the power outlet, it is recommended to provide a separate grounding
path to the instrument by connecting wire between the instrument ground terminal and an
RedwoodComm Co., Ltd. 5/42

earth ground to avoid electric shock or instrument damage. Before making connections to the
input or output terminals of the product, ensure that the product is properly grounded.
Do Not Operate Without Covers
To avoid electric shock or product damage, do not operate this product with protective covers
removed.
Do Not Operate in Wet/Damp Conditions
To avoid injury or fire hazard, do not operate this product in wet or damp conditions.
Do not use in a manner not specified by the manufacturer
1.2.2 Product Damage Precautions
Use Proper Power Source
Do not operate this product from a power source that applies more than the voltage specified.
Main supply voltage fluctuations not to exceed ± 10% of the nominal voltage.
Provided Proper Ventilation
To prevent product overheating, provide proper ventilation.
Do Not Operate With Suspected Failures
If there is damage to this product, have it inspected by qualified service personnel.
Environmental Conditions
Refrain from using this equipment in a place subject to much vibration, direct sunlight,
outdoor and where the flat is not level. Also, do not use it where the ambient temperature is
outside 5 °C to 40 °C, and altitude is more than 2000m. The maximum relative humidity is
80% for temperatures up to 31 °C decreasing linearity to 50% relative humidity at 40 °C. Over
voltage Installation Category II for mains supply. Pollution Degree 2
1.2.3 Safety Symbols and Terms
Symbols on the Product : The following symbols may appear on the product
WARNING
Warning statements identify conditions or practices that could result in injury or loss of life.
RedwoodComm Co., Ltd. 6/42

CAUTION
Caution statements identify conditions or practices that could result in damage to this
product or other property.
1.3 General Information
ETI (or MDI) files describe the characteristics of a signal suitable for transporting a full DAB
Ensemble (or DRM Multiplex), where the ETI comprises a number of subchannels and a formatted
Fast Information Channel (FIC) between a DAB Ensemble provider and a transmission network
provider, and the MDI comprises a number of streams and a formatted Service Description Channel
(SDC) between a DRM Multiplex provider and a transmission network provider. It means that if a
specific broadcasting station’s T-DMB/DAB (or DRM) signal is recorded as an ETI (or MDI) file, the
recorded file contains all the information about the station.
Using the RWC2010M’s ETI/MDI player function with these files, specific broadcasting stations’
T-DMB/DAB signals or DRM signals can be easily regenerated in labs. The RWC2010M also provides
analog functions as AM/FM transmission and audio analyzer. It also provides RDS functionality as a
way to play pre-encoded RDS files.
It can be operated stand-alone, and also can be controlled and played with the RWC2010x PC
application. The RWC2010x PC application provides various control and measurement functions such
as file handling, AM/FM setting, remote controlling and gathering audio measurement data from
RWC2010M. Audio measurement data includes SINAD, SNR, THD, waveform and spectrum.
1.3.1 Key Feature
ETI/MDI
●Support ETI/MDI player
●Provide tone ETI/MDI files
FM RDS/AM Transmitter
● Support a single FM/AM transmission
●Support various Audio Modes (MONO / STEREO / WAV File / SWEEP)
Audio Analyzer (TBD)
● Make it possible to test receiver sensitivity
●Audio measurement: SINAD / SNR / THDN
●Audio waveform and spectrum
File Play
●Stand alone playable
●PC application controllable
RedwoodComm Co., Ltd. 7/42

1.3.2 Specification
Frequency
● LF/MF/HF Band: 0.15 to 30MHz
● BAND I/II/III: 47 to 68MHz, 87 to 108MHz, 174 to 250MHz
● Resolution: 1kHz
● Accuracy: ±1.5ppm/yr @ operating temperature
Output Level
● 0 to -110dBm (OFDM: -10 to -120dBm) for BAND I/II/III
● -10 to -110dBm (OFDM: -20 to -120dBm) for LF/MF/HF BAND
● Resolution: 0.1dB
● Accuracy: ±1dB
Output Level with RWC9500B (optional)
● +15 to -55dBm (CW/OFDM)
● Resolution: 0.1dB
● Accuracy: ±1dB
Audio Analyzer Characteristics
●Input Frequency: 0.1 to 20 kHz
●Input Range: Single Ended 2.25 Vrms
●Bandwidth: 20 kHz
●Common-Mode Rejection Ratio(CMRR): 56 dB
●Connection Type: 3.5 pi Stereo
VSWR
● Better than 1:1.5
Frequency Reference
● Internal Reference & Stability: 10MHz, ±1.5ppm/yr @ operating temperature
● External Reference Input: 10MHz, 0 to +20dBm MAX.
Data IO Port
●Ethernet for Remote: RJ45
● RS232 for Remote: D-sub 9
Miscellaneous
●Operating temperature: 5 to 40℃
●DC Power: 12V/3A VDC
●Dimension: 200(W) x 70(H) x 220(D) mm
●Weight: 2.2kg
●Display: 2.8” gray OLED
RedwoodComm Co., Ltd. 8/42

●Internal storage: 256GB
* The specifications are subject to change without notice.
1.4 Power Requirement
This Tester is a portable instrument and requires no physical installation other than connection to
a power source. The manufacturer does not take any responsibility for problems that occur when
the adapter provided with the product is not used.
Items
Specifications
Input voltage
Input current
Power Consumption
12V/3A VDC
1.50A
Less than 20 watt
CAUTION:If AC power is beyond the range of operation, the equipment may malfunction
or could be permanently damaged. Main supply voltage fluctuations should be not to exceed
±10% of the nominal voltage.
1.5 Operating Environment
Refrain from using this equipment in a place subject to much vibration, direct sunlight, outdoor
and where the flat is not level. Also, do not use it where the ambient temperature is outside 5 °C
to 40 °C, and altitude is more than 2000m.
The maximum relative humidity is 80% for temperatures up to 31 °C decreasing linearity to 50%
relative humidity at 40 °C. Over voltage Installation Category II for mains supply. Pollution
Degree 2.
The storage temperature range for this equipment is –20 °C to 70 °C. When this equipment is not
used for a long period of time, store it in a dry place away from direct sunlight, covered with
vinyl or placed in a cardboard box.
RedwoodComm Co., Ltd. 9/42

1.6 Ordering Information
C2010M-00: Digital Radio Tester - Full Option
ETI/MDI Player, RDS/FM/AM Transmitter
C2010M-01: Digital Radio Tester - ETI+MDI
ETI/MDI Player
C2010M-02: Digital Radio Tester - ETI+Analog
ETI Player, RDS/FM/AM Transmitter
C2010M-03: Digital Radio Tester - MDI+Analog
MDI Player, RDS/FM/AM Transmitter
C2010M-04: Digital Radio Tester - ETI Only
ETI Player
C2010M-05: Digital Radio Tester - MDI Only
MDI Player
C2010M-06: Digital Radio Tester - Analog Only
RDS/FM/AM Transmitter
RedwoodComm Co., Ltd. 10/42

2. Basic Operation
This section describes the basic concepts and details of operating RWC2010M ETI/MDI Player.
Understanding the basic concepts of your RWC2010M helps you use it effectively.
2.1 Exterior
2.1.1 Front Panel View
Fig. RWC2010M Front Panel View
1. POWER ON/OFF SWITCH
2. 2.8” Grayscale OLED
3. N-type RF OUT Port
2.1.2 Rear Panel View
RedwoodComm Co., Ltd. 11/42

Fig. RWC2010M Rear Panel View
1. 12V DC power input
2. RJ45 connector
3. RS232 male connector
4. Function button
5. 10MHz input BNC
6. Audio In 3.5pi
7. GND Terminal
2.2 Screen Layout
2.2.1 Booting Screen
When the power is turned on, the FW version and serial number are displayed as shown in the
screen below.
Fig. Screen to select test mode
RedwoodComm Co., Ltd. 12/42

2.2.1 Information

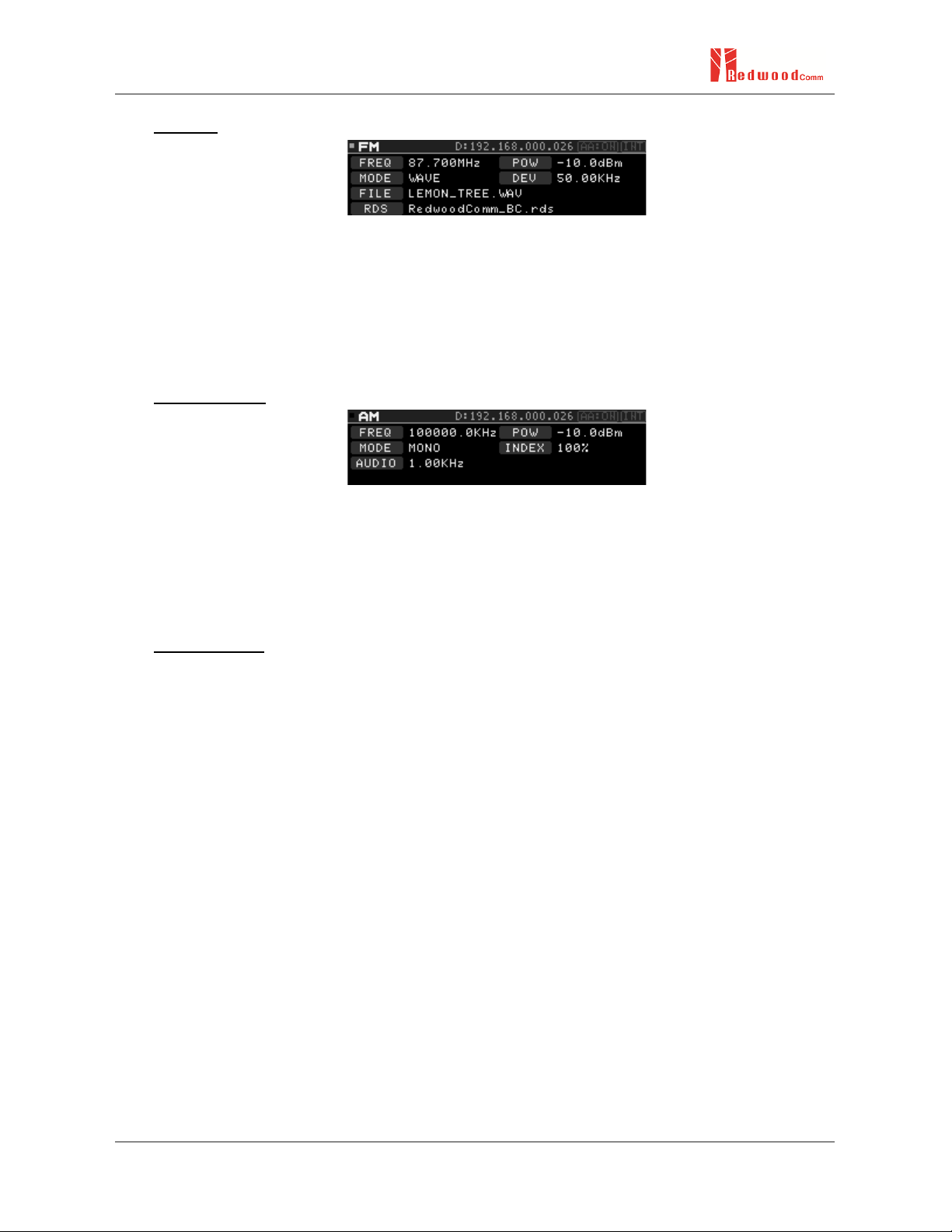

Fig. Screen Layout
Common Information
Transmission MODE ETI/MDI/FM/AM
Frequency Transmission Frequency MHz
Power Transmission Power dBm or dBuV
IP Address IP4 D:123.123.123.123 D:Dynamic S:Static
AA ON/OFF Audio Analyzer ON/OFF status
INT/EXT INTernal or EXTernal 10MHz reference use
ETI Mode
ETI Transmission mode
FILE Playback content file
NSVC Number of service
EID Ensemble ID
LABEL SERVICE LABEL, rotationally display
MDI Mode
FILE Playback content file
ROB Robustness A,B,C,D,E
BW Signal Bandwidth 4.5/5/9/10/18/20 kHz
MSC Modulation method for Main Service Channel
SDC Modulation method for Service Description Channel
RedwoodComm Co., Ltd. 13/42

FM Mode
MODE MONO / STEREO / SWEEP / WAVE
DEV FM Deviation
AUDIO FREQUENCY Left / Right audio frequency kHz
SWEEP CONDITION START - STOP / STEP kHz
WAVE FILE NAME playback .wav filename stored in RWC2010M
RDS playback .rds filename stored in RWC2010M
AM information
MODE MONO / SWEEP / FILE
AUDIO FREQUENCY audio signal frequency kHz
SWEEP CONDITION START - STOP / STEP kHz
INDEX Modulation Index 1-100%
WAVE FILE NAME playback .wav filename stored in RWC2010M
Audio Analyzer
ON/OFF ON / OFF status
SNR Signal to Noise Ratio, Left/Right, Unit dB
SINAD Signal to Noise and Distortion Ratio, Left/Right, Unit dB
THDN Total Harmonic Distortion and Noise, Left/Right, Unit %
2.2.3 Setup parameters
RWC2010M, a dongle type device, does not have any console key, so direct parameter setting through
the device is impossible. Even RF basic parameters such as frequency and power must be set through
the PC application. However, in case of standalone operation, the last setup values are saved and
recalled when booting, so it can be used repeatedly without setting parameters.
2.3 Operation
When booting, RWC2010M automatically operates in the last setting mode and setting conditions
and outputs RF transmission signals. We define a mode that works without a PC application as
standalone.
RedwoodComm Co., Ltd. 14/42

RWC2010M can be used while controlling it with a PC application software. Users can control it
with users’ own designed software, remote commands, or can use RWC2010x_application.exe
which controls through Ethernet or RS232.
2.3.1 Standalone
For standalone operation, a file that can be played during booting must be downloaded in
advance. If there is no file, automatic play does not work, and no RF signal is output.
The file setting should be set by PC software, and the mode last used is automatically saved, and
when the mode is changed or terminated in the PC application, it is automatically saved.
2.3.2 Controlling with PC Software
RedwoodComm provides RWC2010x PC application program for RWC201B/C/M control. Users can
use RWC2010x to download content files, delete downloaded files, set play mode, and perform
tasks such as ETI/EMI play and FM-RDS/AM transmission. Also, if the Audio Analyzer option is
included, you can control the Audio Analyzer and save audio data using the application. In
addition, standalone mode of RWC2010M and related parameters can be set.
When RWC2010x PC software is connected to RWC2010M, functions such as Multi Control, DRM
MRR, RT editor provided for RWC2010B/C cannot be used.
Fig. Menus of the RWC2010x PC application
Fig. Menus of the RWC2010x PC application after RWC2010M connection
2.3.3 Operation Mode
RWC2010M supports ETI/MDI player and FM-RDS/AM transmission mode. All transmission modes
operate one mode at a time.
Fig. Transmitter Mode Selection
●ETI Player: Plays ETI files. The ETI file must be saved in RWC2010M internal storage.
●MDI Player: Plays DMI files. The MDI file must be saved in RWC2010M internal storage.
RedwoodComm Co., Ltd. 15/42

●FM transmitter: Select Mode to generate tone or select WAV file to transmit as FM modulated
signal. In order to transmit the WAVE file, the wave file must be saved in the internal storage of
RWC2010M. At this time, the RDS signal can be simultaneously transmitted by selecting the RDS
file.
●AM Transmitter: Select Mode to generate tone or select WAV file to transmit AM modulated
signal. In order to transmit the WAVE file, the wave file must be saved in the internal storage of
RWC2010M.
●Audio Analyzer : RWC2010M provides audio analyzer function. This measures the audio signal
input to the 3.5pi stereo jack on the rear panel of RWC2010M. Since it is independent of the
transmitter, it can be operated concurrently with the transmission. To use Audio Analyzer, you
need to activate the function using PC software.
Fig. The screen of the audio analyzer of the RWC2010x PC application
If the IP setting and connection is done successfully, there will be a “Connected” icon displayed
in the left bottom of screen. If there is no “Connected” icon, please try again step 1~5.
2.4 Content file
When RWC2010M operates as an ETI/MDI player or FM/AM transmitter, the necessary files (ETI,
MDI, RDS, WAV) depending on the mode are called content files.
The content files stored in the internal storage space of RWC2010M can be downloaded from the
RWC file server to the user's PC at any time using the RWC2010x application, and can also be
downloaded to the RWC2010M internal storage.
2.4.1 ETI, MDI, WAV files
ETI, MDI, and WAV files created or owned by the user can be downloaded to RWC2010M using the
RWC2010x PC application.
RedwoodComm Co., Ltd. 16/42

Please refer to chapter 2.4 to know how to download content files for detail.
2.4.2 RDS files
In the case of RDS files, due to compatibility issues, the user's own files cannot be used. The RDS
files provided by RedwoodComm can be used, or dumped ones using the RWC2100F sold by
RedwoodComm can be used.
Fig. Recording RDS data using RWC2100F PC Application software
2.4.3 Downloading files from RedwoodComm’s Server
Click the UPDATE LIST button of SERVER, then the FILE MANAGER will update the file list.
RedwoodComm Co., Ltd. 17/42

Fig. Updating file list of RWC file server
Users can download content files from the server to the users’ PC by clicking the DOWNLOAD
button(▶). All Files are selective. The FILE MANAGER shows duplicate files between server and PC
with highlighted background color after selecting files.
Fig. Getting content files from RWC file server
2.4.4 Downloading files from PC to RWC2010M
Click the “UPDATE LIST” button of the PC before starting to download, then the FILE MANAGER
will update the file list of the user PC. Users can download files from the PC to the RWC2010M by
clicking the DOWNLOAD button(▶). All Files are selective. The FILE MANAGER shows replicated
files between the PC and the RWC2010M with highlighted background color after selecting files.
RedwoodComm Co., Ltd. 18/42

Fig. Downloading content files from User pc to RWC2010M equipment
2.4.5 Internal Storage
RWC2010M has 256 GBytes internal storage. All types of content files are saved in it. Users can
format it. Free space of the storage displayed in the FILE MANAGER tab.
2.5 Firmware Upgrade
As RWC2010M adapted Flash Memory, it is available to upgrade easily by using the PC without changing
the Hardware. For upgrading, RWC2010M Application Program shall be used. The program is provided
together with the product and it is available to download the upgrade data from RedwoodComm Website
or provide it via post-mail. The information for upgrading shall be kept in providing to the user via email
or website.
2.5.1 Normal Firmware Upgrade
Setup Ethernet connection between RW2010M and RWC_upgrader.exe
The download sequence is as follows. For the next processing, click the NEXT button.
●Execute RWC_upgrader.exe
●Click the CONNECT button for the recognition the RWC2010M
●Upgrader will find the valid equipment, and check the version of equipment and bin file
●Click the NEXT button for confirming upgrade
●A confirming window will pop up again to make sure of the download.
●Upgrading firmware will be starting
●After downloading the binary file, reboot the RWC2010M
RedwoodComm Co., Ltd. 19/42

Fig. RWC UPGRADER Screen
2.5.2 Emergency Firmware Upgrade Sequence
Failing of Normal Upgrading can affect or disable RWC2010M. In this case, the RWC2010M should
be booted in Emergency Upgrade mode.
If the normal program behaves abnormally and cannot be upgraded with the Upgrader program,
the normal program must be deleted for emergency booting. To delete the normal program,
please keep pressing the FCN key on the rear panel, and turn the RWC2010M power ON.
RWC2010M will ask if you want to delete normal programs. Please reboot the RWC2010M after
deleting the normal program for emergency upgrade mode.
Repeat the upgrading sequence from the beginning.
RedwoodComm Co., Ltd. 20/42
