Reebok RB 345 User manual

_m
Model No. RBEX69740
Serial No.
SeriaU
Number
DecaU
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing parts, we will guarantee
complete satisfaction through
direct assistance from our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE.
The trained technicians on our
customer hot tine will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1-877-994-4999
Mon.=Fd., 6 a.m.=6 p.m. MST
CAUTION
Read all precautions and i r_etruc-
tions in this manuaJ before using
this equipment. Keep this manual
for future reference.
\,\I
Patent Pending
,Visit our website at
www.reebokhomefitness.com
new products, prizes,
fitness tips, and much more r.

iMPORTANTPRECAUTIONS................................................................ 2
BEFOREYOUBEGIN...................................................................... 3
ASSEMBLY............................................................................... 4
EXERCISECYCLEOPERATION.............................................................. 8
MAINTENANCEANDTROUBLESHOOTING................................................... 20
EXERCISEGUiDELiNES................................................................... 21
PARTLiST .............................................................................. 22
EXPLODEDDRAWING.................................................................... 23
ORDERINGREPLACEMENTPARTS.................................................. BackCover
LiMiTEDWARRANTY.............................................................. BackCover
WARN ING: Toreducethedekofseriousinjuryreadthefollowingimportant precau-
tionsbefore using the exercise cycle.
1. Read all instructions in this manual before 10. Wear appropriate clothes when exercising;
using the exercise cycle, do not wear loose clothes that could become
caught on the exercise cycle° Always wear
2. Use the exercise cycle only as described in athletic shoes.
.
4. The exercise cycle is intended for in-home
use only. Do not use the exercise cycle in a
commercial, rental, or institutional setting.
this manual 11. The puJse sensor is not a medieaJ device.
It is the responsibility of the owner to ensure Various factors, including the user's move-
that aH users of the exercise cycb are adeo merit, may affect the accuracy of heart rate
quately informed of aH precautions, readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general
5. Use the exercise cycle indoors on a level
surface. Keep the exercise cycle away from 13. The decaJ shown at the
moisture and dust. Place a mat under the right has been placed on
exercise cycle to protect the floor or carpet, the exercise cycJe in the
.location shown on page
tighten aH parts regular
6. Inspect and properly "3. If the decal is missing
ly. Replace any worn parts immediately, or illegible, call tolFfree
7. Keep children under the age of 12 and pets 1-877-994o4999, Monday
away from the exercise cycle at aHtimes, through Friday, 6 a.m.
until 6 p.m. Mountain
8. The exercise cycle should not be used by Time, and order a free
persons weighing more than 250 pounds, replacement decal. Apply
the replacement decal in
9. Always keep your back straight when using the location shown.
the exercise cycle. Do not arch your back.
12. If you feeJ pain or dizziness while exercising,
stop immediately and cool down.
Misuse of this
product may result
serious Injury.
Read user's
manual and follow
aH warnings an(]
opera[ing nstruc-
lIOnS Drier [o use.
Do not allow
cMdren on or
arou['_o machine.
Maximum user
Ne_ght should not
exceeo 2501bs.
Replace label if
eamagea, iHegiMe,
or removea.
,& WARN raNG:Beforebeginningth soranyexerciseprogram,consultyourphysician.
This is especially important tar persons over the age of 35 or persons with pre-existing heaJth prob°
lores. Read aH instructions before using, mCONassumes no responsibility for personal injury or
property damage sustained by or through the use of this product.

CongratulationsforselectingthenewREEBOK_RB
345exercisecycle,Cyclingisoneofthemosteffec°
tiveexercisesforincreasingcardiovascularfitness,
buildingendurance,andtoningtheentirebodyThe
RB345exercisecycleoffersanimpressivearrayof
featuresdesignedtoletyouenjoythishealthfulexer-
ciseinthecomfortandprivacyofyourhome,
Foryourbenefit,readthis manualcarefullybefore
youusetheexercise cycle, if you have questions
after reading this manual, please call our Customer
Service Department toll-free at 1°877°994°4999,
Monday through Friday, 6 a,m, until 6 p,m, Mountain
Time (excluding holidays), To help us assist you,
please mention the product model number and serial
number when calling The model number is
RBEX69740, The serial number can be found on a
decal attached to the exercise cycle (see the front
cover of this manual for the location of the decal),
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below,
Handgrip Pulse Sensor
Fan
Bookrack
Console
WARNmNG DECAL
Handlebar
W/ater Bottle Holder*
Seat with Strap
Wheel
Seat Handle
BACK RIGHT SIDE
Leveling Pad *No water bottle is included
3

Hace all parts of the exercise cycle in a cbared area and remove the packing materiab. Do not dispose of the
packing materials until assembly is completed.
Assembly requires your own adjustable wrench ©_ and phillips screwdriver C_ _.
Use the part drawings below to identify the small parts used in assembly. The number in parenthesis below
each drawing refers to the key number of the part, from the PART LIST on page 22. The second number refers
to the quantity used in assembly. Note: Some small parts may have been pre-assembled for shipping. If a
part is not in the parts bag, check to see if it has been pre-assembled.
M6 Washer M8 Nylon MIO Nylon
(25)-6 Locknut (56)-4 Locknut (63)-4
H
M8 Split M8 Fiat
Washer (65)-4 Washer (18)-4
M4 x 16mm M4 x 22mm M4 x 25mm M6 x 16mm Screw
Screw (21)-4 Screw (75)-2 Screw (66)-2 (70)-2 M8 x 19mm Button Bolt (43)-4
M8 x 25mm Button
Screw (27)-4 M6 x 16mm Hex Screw (29)-4 MIO x 92mm Carriage Bolt (77)-2
M6 x 38mm Hex
Screw (68)-4 M10 x 105mm Carriage Bolt (74)-2
identify the Front Stabilizer (2), which has Wheels
(59) attached to one side. Attach the Front Stabilizer
to the front of the Frame (1) with two MIO x 92mm
Carriage Bolts (77) and two MIO Nylon Locknuts
(63).
63
59
77

AttachtheRearStabilizer(3)totherearofthe
Frame(1)withtwoMIOx 105mmCarriageBoUts
(74)andtwoMIONyUonLocknuts(63),
WhileasecondpersonhoUdstheHandUebarPost(6)
neartheFrame(1)asshown,connecttheUpper
WireHarness(16)totheLowerWireHarness(58),
CarefullyslidetheHandUebarPost(6)ontothe
Frame(1);becarefultoavoidpinchingtheWire
Harnesses(16,58}.AttachtheHandUebarPostto
theFramewithfourM8x25mmButtonScrews(27)
andfourM8SplitWashers(65),
TheConsoUe(9)requiresfour"D"batteries(not
included);aUkaHnebatteriesarerecommended,
Presstheindicatedtabonthebatterycoverand
removethecover,Pressfourbatteriesintothebat-
teryclips;makesurethatthebatteriesareorient-
edas shownbythemarkingsinsideof thebat-
teryclips.Then,reattachthebatten,cover,
InserttheBookrack(55)intothesuetsintheConsoUe
(9),AttachtheBookracktotheConsoUewithtwoM4
x25mmScrews(66),Becarefulnotto pinchthe
wiresin theConsole.
/ /
//
//;
/ /
3
74
/
/
65 /.
/
/
65
65
Battery
Cover
Batteries
5/ /
/ /
66

ConnectthePuHseWire(60)tothewireextending
fromtheConsoHe(9),Next,connecttheUpperWire
Harness(16)tothewireharnessontheConsoHe,
HnsertaHHwiresintotheHandHebarPost(6),
AttachtheConsoHe(9)totheHandHebarPost(6)
withfourM4x 16mmScrews(21),Becarefulto
avoidpinchingthewires.
AttachtheWaterBottleHoHder(62)totheHandHebar
Post(6)withtwoM4x22mmScrews(75),Note:
TheWaterBottleHoHderisdesignedtobeusedwith
yourownwaterbottle,
AttachtheSeat(12)totheSeatCarriage(11)with
fourM6x16mmHexScrews(29)andfourM8FHat
Washers(18),
HdentifytheRightSeatHandHe(79),whichismarked
withan"R"sticker,
AttachtheRightSeatHandHe(79)totheSeat
Carriage(11)withtwoM8x 19mmButtonBoHts(43)
andtwoM8NyHonLocknuts(56)asshown,
AttachtheLeftSeatHandHe(14)totheSeat
Carriage(11)inthesameway,
ConsoHe
Wires
62
/
/
/
/
21
79

10,AttachtheBackrest(13)totheSeatCarriage(11)
withfourM6x38mmHexScrews(68)andfourM6
Washers(25),
11,PuHHtheseatknobandslidetheSeatCarriage(11)
ontotheSeatRail(7),
Seetheinsetdrawing,HoHdtheBumperAxHe(50)
insideoftheSeatRail(7),AttachthetwoBumpers
(47)totheendsoftheBumperAxHewithtwoM6x
16mmScrews(70)andtwoM6Washers(25)as
shown,PresstheSeatRailEndcap(23)intothe
endoftheSeatRail,
12,FirmHytightenthefourM8x31mmButtonScrews
(69)intheSeatCarriage(11),Note:Therearetwo
ButtonScrewsineachside,
PuHHtheseatknobandslidetheSeatCarriage(11)
tothedesiredposition,ReHeasetheseatknoband
slidetheSeatCarriagebackandforthslightJy
untilit Jocksintoposition.Makesureto reguJarJy
tightenthefourM8x 31ramButtonScrews(69}.
13, Hdentify the Right PedaH(37), which is marked with
an "R," Using an adjustabHe wrench, firmly tighten
the Right PedaHciock_{_e into the PuHHey/Crank(19),
Tighten the Left PedaH(not shown) couf_,te,_od_w/:_e
into the PuHHey/Crankon the Heftside, After using
the exercise cycle for one week, retighten the
Pedals.
Attach the Right PedaHStrap (38) to the Right PedaH
(37), and press the end of the Right PedaHStrap
onto the tab on the Right Pedal Attach the Left
PedaHStrap (not shown) in the same way,
10
25
11
Knob
12
11
/
13 /
13
11
47
70
23
25 70
69
/
/ / /
Knob
19 38
14, Make sure that aH parts are properly tightened before you use the exercise cycle. Place a mat
beneath the exercise cycle to protect the ftoor.
7

HOW TO INSTALL THE RECEmVER FOR THE OPTmONAL CHEST PULSE SENSOR
if you purchase the optional chest pulse sensor (see page 19), follow the steps bebw to install the receiver
included with the chest pube sensor,
1, See assemMy step 4 on page 5, and remove the two
M4 x 25mm Screws (not shown) and the Bookrack
(55),
Next, bok under the consob and bcate the three indi-
cated screws (not shown), Remove the three screws,
Do not remove the screws attaching the Console to
the Handlebar Post (6}.
2, Carefully lift the top of the Console (9) as shown, Using
the two small screws included with the chest pulse sen-
sor, attach the receiver to the indicated plastic posts on
the Console, Make sure that the receiver is turned
e×actly as shown. Connect the wire on the receiver to
the indicated wire on the Consob,
See step 1 above, Lower the top of the Consob (9),
Make sure that no wires are pinched. Reattach the
top of the Consob with the three screws removed in
step 1, See assemMy step 4 on page 5, and reattach
the Bookrack (55) with the two M4 x 25mm Screws (not
shown), Note: The remaining wires included with the
chest pulse sensor may be discarded,
55
HOW TO ADJUST THE POSITION OF THE SEAT
For effective exercise, the seat should be in the proper
position, As you pedal, there should be a slight bend
in your knees when the pedals are in the farthest
position, To adjust
the seat, pull the
seat knob and
slide the seat car-
riage to the desired
position, Release
the seat knob and
stide the seat car-
riage back and
forth slightly until
it tocks into posi-
tion.
Seat
Seat
Knob
HOW TO ADJUST THE PEDAL STRAPS
To adjust the pedal
straps, first pull the
ends of the straps
off the tabs on the
pedals, Adjust the
straps to the
desired positions
and press the ends
of the straps back
onto the tabs,
Strap
8

HEART RATE CONTROL
PROGRAMS
ENTER AGE 7H1 _ TO85%MAX. L,
/SELF SELECT _ I
N2 ENTER TARGET HEART RATEI
J
CERTiFiED PERSONAL TRAINER
RESISTANCE /RPM PROGRAMS
PROGRAM SELECT
/J
J
f .....
i
\, \\
//- "R
Note: if there is a sheet of clear plastic on
the face of the console, remove the plastic,
COOL|NG
FAN
SmLENT MOTORmZED ,_ age/rate set
RESmSTANCE
J[
PROGRAM DISPLAY RPM
TmME RESISTANCE
2'4:S
DIST. RPM SCAN
PULSE
J

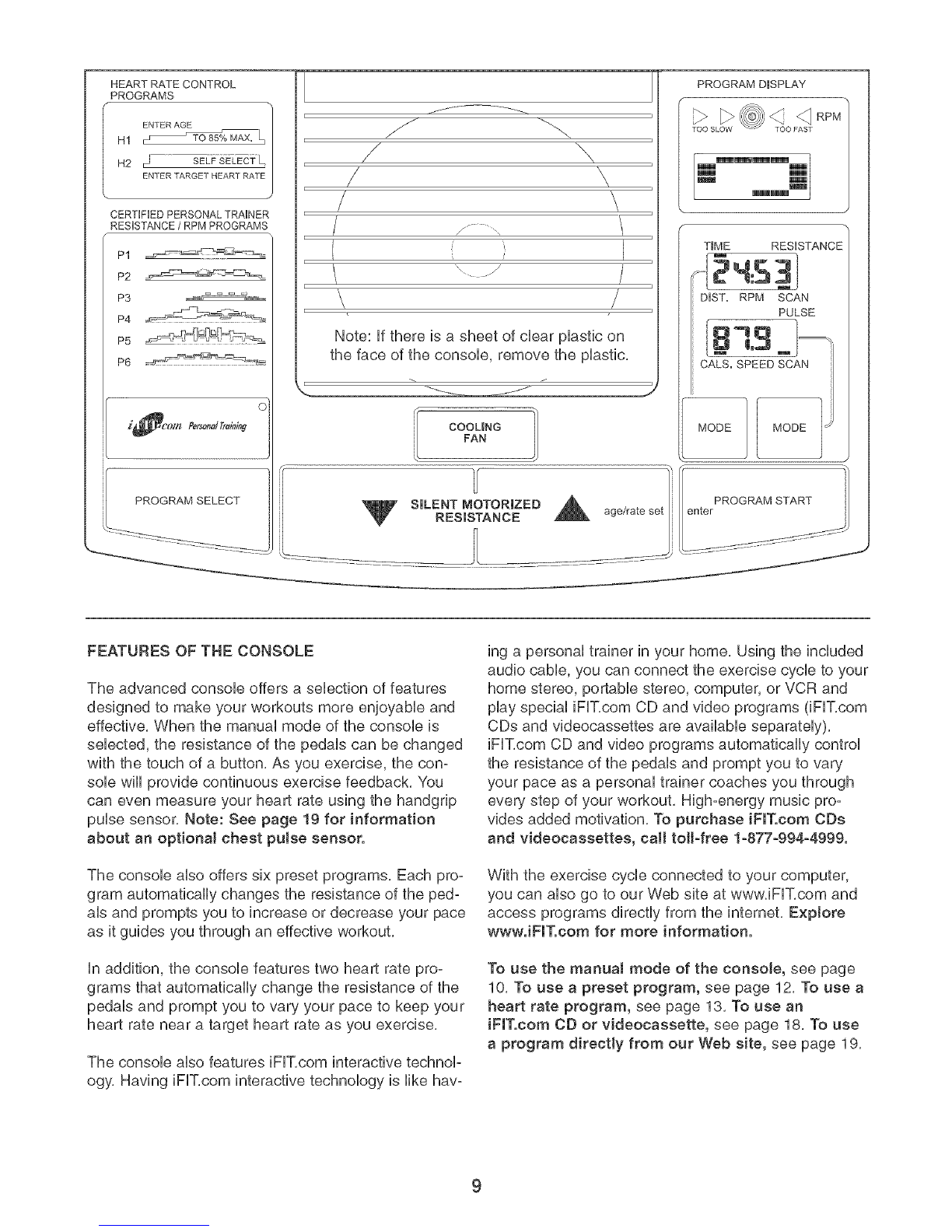

FEATURES OF THE CONSOLE
The advanced console offers a selection of features
designed to make your workouts more enjoyable and
effective, When the manual mode of the console is
selected, the resistance of the pedals can be changed
with the touch of a button, As you exercise, the con°
sob will provide continuous exercise feedback, You
can even measure your heart rate using the handgrip
pulse sensor, Note: See page 19 for information
about an optional chest pulse sensor.
The console also offers six preset programs, Each pro-
gram automatically changes the resistance of the ped-
als and prompts you to increase or decrease your pace
as it guides you through an effective workout,
in addition, the console features two heart rate pro-
grams that automatically change the resistance of the
pedals and prompt you to vary your pace to keep your
heart rate near a target heart rate as you exercise,
The console also features iFIT,com interactive technolo
ogy, Having iFIT,com interactive technology is like havo
ing a personal trainer in your home, Using the included
audio cable, you can connect the exercise cycle to your
home stereo, portable stereo, computer, or VCR and
play special iFIT,com CD and video programs (iFIT,com
CDs and videocassettes are available separately),
iFIT,com CD and video programs automatically control
the resistance of the pedals and prompt you to vary
your pace as a personal trainer coaches you through
every step of your workout, High-energy music pro-
vides added motivation, To purchase iFIT.com CDs
and videocassettes, call totFfree 1-877-994-4999.
With the exercise cycle connected to your computer,
you can also go to our Web site at www iFIT,com and
access programs directly from the internet, Explore
wwwJFIT.com for more information.
To use the manual mode of the console, see page
10, To use a preset program, see page 12, To use a
heart rate program, see page 13, To use an
iFIT.com OD or videocassette, see page 18, To use
a program directly from our Web site, see page 19,
9

HOW TO USE THE MANUAL MODE
Begin pedaling to activate the console.
To activate the consob, begin pedaling. After a
few seconds, the consob dispUays wHUHght.A
tone wHUthen sound and the consob wHUbe
ready for use.
Select the manuaJ mode.
When the power is
turned on, the
manual mode wiii
be selected, if you
have selected a
program or the
iFIT,com mode,
select the manual mode by pressing the Program
Select button repeatedly until a track appears in
the matrix,
mmmm
m m
m
m
m
mmmm
Begin pedaling and change the resistance of
the pedals as desired.
As you pedal,
change the resis° TIME RESJSTAI
tance of the ped- ?!m
als by pressing the
Resistance but- ST. RPM SCAN
tons. There are
ten resistance lev-
els. Note: After the buttons are pressed, it wiii
take a moment for the pedals to reach the select-
ed resistance level.
Monitor your progress with the matrix and the
two displays.
The matrix--
When the manual
mode or the
iFIT.com mode is
selected, the
matrix will show a
track representing
1/4 mile. As you exercise, the indicators around
the track will light, one at a time, until the entire
track is lit. The track will then darken and a new
lap will begin.
mmmm
m m
m
m
B
lm
The upper dis-
play--The upper
display wili show
the elapsed time,
the distance you
have pedaled, and
TIME RESISTA
RPM SCAN
your pedaling pace, in revolutions per minute
(RPM), The display wiii change from one number
to the next every few seconds, as shown by the
indicators in the display, Note: When a program is
selected, the display will show the time Fefr/ai/7/ng
in the program instead of the elapsed time, Each
time the resistance of the pedals changes, the
display wiii show the resistance level,
if desired, you can
select a single
mode for continu-
ous display, Press
the left Mode button
desired mode indi-
cator is lit; make sure that the Scan indicator is
not lit,
The tower
display--The lower
display wili show
number of calories
you have burned
and your pedaling
PULSE
I_
CALS. SPEED SCAN
speed, The display wili change from one number
to the next every few seconds, as shown by the
indicators in the display, The display wili also
show your heart rate (pulse) when you use the
handgrip pulse sensor or the optional chest pulse
sensor,
Note: The console
can show speed
and distance in
either miles or
kilometers. The let-
ters MPH or KPH
will appear in the
PULSE
CALS. SPEED SCAN
lower display to show which unit of measurement
is selected, To change the unit of measurement,
first hold down the Program Select button for a few
seconds, An E (for English) or an M (for metric) will
appear in the lower display, Press the Resistance
+ button to change the unit of measurement, Then,
press the Cooling Fan button, Note: When the bat-
teries are replaced, it may be necessary to rese°
lect the desired unit of measurement,
if desired, you can select a single mode for con-
tinuous display, Press the right Mode button
repeatedly until the desired mode indicator is lit;
make sure that the Scan indicator is not lit,
10

Measure your heart rate if desired.
You can measure your heart rate using either the
handgrip pube sensor or the optionaU chest pube
sensor, Note: if you hoJd the handgdp puJse
sensor and wear the chest puJse sensor at the
same time, the console wilt not display your
heart rate accurately.
If there are
thin sheets of
pJastic on the
metaJ con-
tacts on the
handgdp
puJse sensor,
peel off the
plastic. To
measure your
heart rate, hold the contacts; your palms must be
resting on the contacts closest to you, and your
fingers must be touching the opposite contacts,
Avoid moving your hands.
When your pube
is detected, the
heart-shaped indi-
cator in the bwer
dispUaywHUflash
each time your
heart beats, and
your heart rate wHUbe shown, For the most accu-
rate heart rate reading, hoUdthe contacts for at
bast 15 seconds,
PULSE
CALS. SPEED SCAN
Note: if you continue to hold the pulse sensor, the
lower display will show your heart rate for up to
30 seconds, The display will then show your heart
rate along with the other modes,
if your heart rate is not shown, make sure that
your hands are positioned as described, Avoid
moving your hands excessively or squeezing the
metal contacts too tightly, For optimal performance,
periodically clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemicals,
Turn on the fan if desired.
To turn on the fan at low speed, press the Cooling
Fan button, To turn on the fan at high speed,
press the button a second time, To turn off the
fan, press the button a third time, Note: if the fan
is turned on but the pedals are not moved for thir-
ty seconds, the fan will automatically turn off,
When you are finished exercising, the consote
wilt automatically turn off.
if the pedals are not moved for a few seconds, a
tone will sound, the console will pause, and the
upper display wiii begin to flash,
if the pedals are not moved for about five min-
utes, the console wiii turn off and the displays wiii
be reset,
11

HOW TO USE PRESET PROGRAMS
Begin pedaling to activate the console.
See step 1 on page 10.
Select one of the six preset programs.
When the power is
turned on, the
manuaU mode wHU
be sebcted. To
sebct a preset
program, press the
Program Sebct
PULSE
CALS. SPEED SCAN
button repeatedUy until "P1," "P2," "P3," "P4,"
"P5," or "P6" appears in the bwer dispUay.
When a preset program is sebcted, the matrix
wHUshow the first six resistance settings of the
program.
Press the Program Start button or begin
pedaling to start the program.
Each program is divided into severaUtime seg-
ments of different bngths. One resistance setting
is programmed for each segment. (The same
resistance setting may be programmed for two or
more consecutive segments.)
The resistance
setting for the first Current Segment
segment will be
shown in the flash-
ing Current
Segment column
of the matrix. The
resistance settings
for the next five
segments will be shown in the columns to the
right.
When only three seconds remain in the first seg-
ment of the program, a series of tones will sound;
aiireeL_tancesettingswiiithenmove one column
to theleft.The resistance setting for the second
segment will then be shown in the flashing
Current Segment column and the resistance of
the pedals will automatically change to the resis-
tance setting for the second segment.
The program wili continue until the resistance set-
ting for the last segment is shown in the Current
Segment column of the matrix and no time
remains in the program.
Note: During the program, you can override the
resistance setting for the current segment by
pressing the Resistance buttons. However, when
the next segment begins, the resistance will auto-
matically change if a different resistance setting is
programmed for the next segment, if you stop
pedaling for several seconds, a tone will sound
and the program will pause. To restart the pro-
gram, simply resume pedaling.
Use the pace (RPM} guide.
During preset pro-
grams, the pace
guide wiii prompt
you to increase or
decrease your ped-
aling pace. When
one of the indica-
tors on the left side
of the pace guide
lights, increase
your pace; when
one of the indica-
PROGRAM DISPLAY
LsLPwoFSRPM
PROGRAM DISPLAY RPM
PROGRAM DISPLAY
> ooj.RPM
tots on the right side lights, decrease your pace.
When the center indicator lights, maintain your
current pace. Important: The pace settings of
the program are intended onty to provide a
goal Make sure to peda! at a pace that is
comfortable for you.
Monitor your progress with the two displays.
See step 4 on page 10.
Measure your heart rate if desired.
See step 5 on page 11.
Turn on the fan if desired.
See step 6 on page 11.
When you are finished exercising, the consote
wilt automatically turn off.
See step 7 on page 11.
12

HOW TO USE HEART RATE PROGRAMS
Heart rate program 1 is designed to keep your heart
rate between 60% and 85% of your e_£timatedmaxi-
mz,;w hea,Y rate while you exercise, Note: Your maxi-
mum heart rate is estimated by subtracting your age
from 220, For example, if you are 30 years old, your
estimated maximum heart rate is 190 (220 - 30 =
190),
Heart rate program 2 will keep your heart rate near a
target heart rate that you select,
Follow the steps below to use a heart rate program,
Begin pedaling to activate the console.
See step 1 on page 10,
Select one of the heart rate programs.
To select a heart
rate program,
press the Program
Select button
repeatedly until
"HI" or "H2"
appears in the
lower display,
PULSE
l:o:'
CALS. SPEED SCAN
if you selected
heart rate program
1, the matrix wiii
show the first six
target heart rate
settings of the pro-
gram,
mmmm
BBmiBB
m m
mmmmm
mmmmm
mmmmm
BmmB
if you selected
heart rate program
2, a heart symbol
wiii appear in the
matrix,
If you selected heart rate program 1, go to
step 3. If you selected heart rate program 2,
go to step 4.
Enter your age.
When heart rate
program 1 is
selected, you must
enter your age, if
you have already
entered your age,
press the Enter
(Program Start)
button and go to
step 5, if you have
not entered your
age, press the + or
TmME RESmSTA
DmST. RPM SCAN
PULSE
CALS. SPEED SCAN
- button repeatedly to enter your age, and then
press the Enter button, Note: Once you have
entered your age, it will be saved in memory,
Enter a target heart rate.
When heart rate
program 2 is
selected, you must
enter a target heart
rate, (See the heart
rate chart on page
21 for heart rate
guidelines,) To
enter a target heart
rate, press the + or
- button repeated-
ly, and then press
TIME RESRSTAI
DmST. RPM SCAN
PULSE
[
CALS. SPEED SCAN
the Enter (Program Start) button,
HoJd the handgrip pulse sensor or wear the
optionaJ chest putse sensor.
To use a heart rate program, you must hold the
handgrip pulse sensor or wear the optional chest
pulse sensor, if you use the handgrip pulse sen-
sor, it is not necessary to hold the handgrips con-
tinuously during the program, However, you
should hold the handgrips frequently for the pro-
gram to operate properly, Each time you hold
the handgrips, keep your hands on the metal
contacts for at teast 30 seeonds. Note: When
you are not holding the handgrips, the letters
"PLS" will appear in the lower display instead of
your heart rate,
13

Begin pedaling.
Each heart rate program is divided into 30 one-
minute segments. One target heart rate is pro-
grammed for each segment. Note: The same tar-
get heart rate may be programmed for two or
more consecutive segments, if heart rate pro-
gram 2 is sebcted, the same target heart rate is
programmed for aHsegments.
If heart rate pro-
gram 1 is select- Current Segment
ed, the target
heart rate setting
for the first seg-
ment wHUbe
shown in the
flashing Current
Segment coUumn
of the matrix. The target heart rate settings for the
next five segments wHUbe shown in the coUumns
to the right. When onUythree seconds remain in
the first segment of the program, a series of
tones will sound; 3//target heaFi rate sett/nds" wiii
then moye on8 co/dmn to the, ie,¢,The target
heart rate setting for the second segment will
then be shown in the flashing Current Segment
column.
If heart rate program 2 is selected, the same
target heart rate is programmed for all segments;
therefore, the target heart rate settings will not be
shown in the matrix. When only three seconds
remain in the first segment of the program, a
series of tones will sound and the time will flash
in the right display.
As you pedal, the console will regularly compare
your heart rate to the target heart rate. If your
heart rate is too far below or above the target
heart rate, the resistance of the pedals will auto-
matically increase or decrease to being your heart
rate closer to the target heart rate.
The pace guide
wiii help you to
maintain a con-
stant pace during
the program, When
one of the indica-
tors on the left side
of the pace guide
lights, increase
your pace; when
one of the indica-
tors on the right
PROGRAM DISPLAY RPM
PROGRAM DISPLAY
Toos ow RPM
PROGRAM DmSPLAY
> RPM
_00 SLOW 0
side lights, decrease your pace, When the center
indicator lights, maintain your current pace,
Important: The pace settings of the program
are intended onty to provide a goal Make
sure to pedal at a pace that is comfortable for
you.
The program wili continue until the target heart
rate setting for the last segment is shown in the
Current Segment column of the matrix and no
time remains in the program,
Note: During the program, you can manually
change the resistance setting, if desired, by
pressing the Resistance buttons, However, when
the console compares your heart rate to the tar-
get heart rate, the resistance may automatically
change, if you stop pedaling for several seconds,
a tone will sound and the program will pause, To
restart the program, simply resume pedaling,
Monitor your progress with the two displays.
See step 4 on page 10.
Turn on the fan if desired.
See step 6 on page 11.
When you are finished exercising, the con-
sote wilt automatically turn off.
See step 7 on page 11.
14

HOW TO CONNECT YOUR CD PLAYER, VCR,
OR COMPUTER
To use iFIT.com CDs, the exercise cycb must be con-
nected to your portaMe CD pUayer,portable stereo,
home stereo, or computer with CD pUayer,See pages
15 and 16 for connecting instructions, To use iFIT.com
videocassettes, the exercise cycle must be connected
to your VCR, See page 17 for connecting instructions,
To use iFIT.com programs directly from our Web
site, the exercise cycb must be connected to your
home computer, See page 16 for connecting instruc-
tions,
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and
PHONES jacks, see instruction A be!ow. If your CD
player has only one jack, see instruction B.
A. Hug one end of the audio cabb into the jack
beneath the consob. Hug the other end of the
came into the MNE OUTjack on your CD player,
Hug your headphones into the PHONES jack.
A
iL'"EOO't iP"O°E'n ;
Audio _ Head-
CaMe phones
B, Hug one end of the audio came into the jack
beneath the consob, Hug the other end of the
came into a 1/8" Y-adapter (avaHabb at electronics
stores), Plug the Y-adapter into the PHONES jack
on your CD player, Plug your headphones into the
other side of the Y-adapter,
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A beJow. If your stereo has a
1t8" LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
A, Plug one end of the audio cable into the jack
beneath the console, Plug the other end of the cable
into the adapter, Plug the adapter into an AUDIO
OUT jack on your stereo,
AUDIOOUT
i[_T 1
L = = = I
B,
C,
Plug one end of the audio cable into the jack
beneath the console, Plug the other end of the
cable into the LINE OUT jack on your stereo, Do
not use the adapter,
Plug one end of the audio cable into the jack
beneath the console, Plug the other end of the
cable into a 1/8" Y-adapter (available at electronics
stores), Plug the Y-adapter into the PHONES jack
on your stereo, Plug your headphones into the
other side of the Y-adapter,
[===_
u B
i p,0,Es®i
u
15

HOW TO CONNECT YOUR HOME STEREO HOW TO CONNECT YOUR COMPUTER
Note: mfyour stereo has an unused LmNEOUT jack,
see instruction A below, mfthe LmNEOUT jack is
being used, see instruction B,
A, Hug one end of the audio cable into the jack
beneath the console, Hug the other end of the
came into the adapter, Hug the adapter into the
LiNE OUT jack on your stereo,
iu,E0 Ti
u
Audio CaMe 9=_" }
B, Hug one end of the audio cable into the jack
beneath the console, Hug the other end of the
came into the adapter, Hug the adapter into an
RCA Y-adapter (avaHabie at eHectronbs stores),
Next, remove the wire that is currently piugged into
the LiNE OUT jack on your stereo and piug the
wire into the unused side of the Y-adapter, Hug the
Y-adapter into the LiNE OUT jack on your stereo,
Ie.----_--
RCA
Audio Y-adapter
CabHe Adapter
Wire removed from
LiNE OUT jack
Note: if your computer has a 1/8" LINE OUT jack,
see instruction A, If your computer has only a
PHONES jack, see instruction B,
A, Hug one end of the audio cable into the jack
beneath the console, Hug the other end of the
came into the LiNE OUT jack on your computer,
A
UNE_T
u
Audio
Cable
B, Hug one end of the audio cable into the jack
beneath the console, Hug the other end of the
cable into a 1/8" Y-adapter (available at electronics
stores), Hug the Y-adapter into the PHONES jack
on your computer, Hug your headphones or speak-
ers into the other side of the Y-adapter,
Audio Cable = 1/8"
Y-adapter
Headphones/Speakers _
16

HOW TO CONNECT YOUR VCR
Note: if your VCR has an unused AUDIO OUT jack,
see instruction A be!ow, mfthe AUDIO OUT jack is
being used, see instruction B. mfyou have aTV
with abuNt-in VCR, see instruction B. mfyour VCR
is connected to your home stereo, see NOW TO
CONNECT YOUR HOME STEREO on page 16.
A, Hug one end of the audio cabHeinto the jack
beneath the consoHe, Hug the other end of the
came into the adapter, Hug the adapter into the
AUDHO OUT jack on your VCR,
A
AU_OOUT
RIGHT_
B, Hug one end of the audio cabHe into the jack
beneath the consoHe, Hug the other end of the
came into the adapter, Hug the adapter into an
RCA Y-adapter (avaHabHeat eHectronics stores),
Next, remove the wire that is currently pHuggedinto
the AUDHO OUT jack on your VCR and pHugthe
wire into the unused side of the Y-adapter, Hug the
Y-adapter into the AUDHO OUT jack on your VCR,
AUD]O OUT jack
17

HOWTO USE IFIT.COM CD AND VIDEO
PROGRAMS
To use iFIT,com CDs or videocassettes, the exercise
cycle must be connected to your portable CD player,
portable stereo, home stereo, computer with CD play-
er, or VCR, See HOW TO CONNECT YOUR CD
PLAYER, VCR, OR COMPUTER on pages 15 to 17,
To purchase iFIT.com CDs and videocassettes, call
toll-free 1-877-994-4999.
Follow the steps below to use an iFIT,com CD or
video program,
Begin pedaling to activate the console.
See step 1 on page 10,
Select the iFIT.com mode.
When the console is
turned on, the man-
ual mode will be
selected, To select
the iFIT,com mode,
press the iFIT,com
button, The indicator
on the button will light,
i_#_._m PersondZr_b£_£
Insert the iFIT.com CD or videocassette.
if you are using an iFIT,com CD, insert the CD
into your CD player, if you are using an iFIT,com
videocassette, insert the videocassette into your
VCR,
Press the play button on your CD player or
VCR.
A moment after the play button is pressed, your
personal trainer wiii begin guiding you through
your workout, Simply follow your personal trainer's
instructions,
The program wiii function in almost the same way
as a preset program (see steps 3 and 4 on page
12), However, an electronic "chirping" sound will
alert you when the resistance of the pedals and/or
the target pace is about to change,
Note: If the resistance of the pedals and/or the
target pace does not change when a "chirp" is
heard:
Make sure that the indicator above the
iFIT.com button is tit.
• Adjust the volume of your CD player or VCR.
If the volume is too Mgh or too low, the con-
sole may not detect the program signals.
Make sure that the audio cable is properly
connected and that it is fully plugged in.
Monitor your progress with the two displays.
See step 4 on page 10,
Measure your heart rate if desired.
See step 5 on page 11,
Turn on the fan if desired.
See step 6 on page 11,
When you are finished exercising, the consote
wilt automatically turn off.
See step 7 on page 11,
18

HOWTO USE PROGRAMS DIRECTLY FROM
OUR WEB StaTE
Our Web site at www, iFIT,com allows you to play
iFUT,com programs directly from the internet, To use
programs from our Web site, the exercise cycle must
be connected to your home computer, See HOW TO
CONNECT YOUR COMPUTER on page 16, in addi-
tion, you must have an intemet connection and an
internet service provider, A list of specific system
requirements is found on our Web site,
Follow the steps below to use a program from our
Web site,
Begin pedaling to activate the console.
See step 1 on page 10,
Select the iRT.com mode.
When the console is
turned on, the manu=
al mode will be
selected, To select
the iFIT,com mode,
press the iFIT,eom
button, The indicator
on the button wiii light,
/_,_'um Per_o_/Tr_bbg
Go to your computer and start an internet
connection.
Start your Web browser, if necessary, and go
to our Web site at wwwJRT.com.
Follow the desired links on our Web site to
select a program.
Read and follow the onqine instructions for using
a program,
Follow the on-line instructions to start the
program.
When you start the program, an on-screen count-
down wiii begin,
Return to the exercise cycle and begin
pedaling.
When the on-screen countdown ends, the pro-
gram wiii begin, The program wiii function in
almost the same way as a preset program (see
steps 3 and 4 on page 12), However, an electronic
"chirping" sound will alert you when the resistance
of the pedals and/or the target pace is about to
change,
Monitor your progress with the two displays.
See step 4 on page 10,
Measure your heart rate if desired.
See step 5 on page 11,
Turn on the fan if desired.
See step 6 on page 11,
lWhen you are finished exercising, the consote
wilt automatically turn off.
See step 7 on page 11,
THE OPTIONAL CHEST PULSE SENSOR
The optional chest pulse sensor provides hands=free
operation and continuously monitors your heart rate
during your workouts, To purchase the optional
chest pulse sensor, call toil-free 1-877-994-4999.
19

inspect and properly tighten all parts of the exercise
cycle regularly, The exercise cycle can be cleaned
with a soft, damp cloth, To prevent damage to the
consob, keep liquids away from the consob and keep
the consob out of direct sunlight,
TIGHTENING THE PEDALS
For best performance, regularly tighten both pedals,
CONSOLETROUBLESHOOTING
if the consob display becomes dim, the batteries
should be replaced, See assembly step 4 on page 5
for replacement instructions, if the consob does not
display your heart rate when you use the handgrip
pube sensor, see step 5 on page 13,
HOW TO LEVEL THE EXERCISE CYCLE
if the exercise
cycle does not sit
fiat on the floor,
turn one or both
of the leveling
pads until the
exercise cycle is
level, Leveling
Pads
HOW TO ADJUST THE REED SWITCH
if the console does not display correct feedback, the
reed switch should be adjusted, To adjust the reed
switch, remove the indicated M4 x 48mm Screws (20)
and M4 x 16mm Screws (21) from the Left Side
Shield (4), Using an adjustable wrench, turn the Left
Pedal (40) clockwise and remove it, Turn the left side
19
21
of the Crank (19) so that it is pointing toward the front
of the exercise cycle, and then slide off the Left Side
Shield,
Locate the
Reed Switch
(44), Turn the
Crank (19)
until the
Magnet (54) is
aligned with
the Reed
Switch,
Loosen, but
do not
indicated M4
_ \44
x 16mm Screw (21), Slide the Reed Switch slightly
closer to or away from the Magnet, Then, retighten
the Screw, Turn the Left Crank Arm for a moment,
Repeat until the console displays correct feedback,
When the Reed Switch is correctly adjusted, reattach
the left side shield and the left pedal,
HOW TO ADJUST THE DRIVE BELT
if you can feel the pedals slip while you are pedaling,
even when the resistance is at the highest level, the
Drive Belt (64) may need to be adjusted, See HOW
TO ADJUST THE REED SWITCH at the left, To adjust
the Drive Belt, the Right Side Shield (5) must first be
removed, Remove the indicated M4 x 48mm Screws
(20) from the Left Side Shield (4) and the M4 x 16mm
Screws (not shown) from the Right Side Shield, Using
an adjustable wrench, turn the Right Pedal (not
shown) counterclockwise and remove it, Next, turn the
right side of the Crank (19) so that it is pointing
toward the front of the exercise cycle, and then slide
off the Right Side Shield,
Next, turn the
indicated M8 x
35mm Screw
(72) until the
Drive Belt (64)
is properly
tightened,
Then, reattach
the right side
shield and the
right pedal,
2O
