Reed Instruments BX-500 User manual

www.REEDINSTRUMENTS.com
Infrared Temperature
Calibrator
Instruction
Manual
BX-500
1.888.610.7664[email protected] REED-Direct.com

2
www.REEDINSTRUMENTS.com
Table of Contents
Introduction ................................................................................................ 3
Product Quality........................................................................................... 3
Safety ......................................................................................................3-4
Features...................................................................................................... 4
Specications............................................................................................. 5
Included...................................................................................................... 5
Environmental Conditions .......................................................................... 6
Instrument Description............................................................................7-8
Status Indicator Description....................................................................... 8
Keypad Description.................................................................................... 9
Operating Instructions...........................................................................9-12
Initial Start Up........................................................................................ 9
Turning Off the Calibrator .................................................................... 10
Selecting Temperature Unit of Measure .............................................. 10
Setting the Temperature Set-Point...................................................... 10
Setting Overload Alarms 1 & 2 ............................................................ 11
Enabling/Disabling the Heating Power ................................................ 11
Keypad Lock/Unlock ........................................................................... 12
Replacing the Fuses................................................................................. 12
Product Care ............................................................................................ 13
Accessories and Replacement Parts ....................................................... 13
Applications.............................................................................................. 13
Product Warranty ..................................................................................... 13
Product Disposal and Recycling .............................................................. 14
Product Support ......................................................................................... 14
1.888.610.7664[email protected] REED-Direct.com

3
www.REEDINSTRUMENTS.com
Introduction
Thank you for purchasing your REED BX-500 Infrared Temperature
Calibrator. This calibrator provides accurate temperatures to calibrate
non-contact temperature instruments. The BX-500 is capable of generat-
ing temperatures up to 932°F (500°C) and is designed to accommodate
various infrared thermometers. Please read the following instructions
carefully before using your instrument. By following the steps outlined in
this manual your meter will provide years of reliable service.
Product Quality
This product has been manufactured in an ISO 9001 facility and has
been calibrated during the manufacturing process to meet stated product
specications. If a certicate of calibration is required please contact the
nearest authorized REED distributor or authorized Service Center. Please
note an additional fee for this service will apply.
Safety
This instrument can generate extreme temperatures. Precautions must be
taken to prevent personal injury or damage to objects. To avoid personal
injury read and follow these guidelines.
• Neverattempttorepairormodifyyourinstrument.
• Dismantlingyourinstrumentotherthanforthepurposeofreplacing
fuses may cause damage that will not be covered under the manufac-
turer's warranty. Servicing should only be provided by an authorized
Service Center.
• DonottouchtheInfraredtargetsurfaceoftheinstrument.
• Thetopcasingoftheinstrumentmayexhibithightemperaturesfor
areas close to the Infrared target surface.
• Donotturnofftheinstrumentathightemperatures.Selectaset-point
less than 212°F (100°C) and allow the unit to cool before turning it off.
• Donotoperatethisunitwithoutaproperlygrounded,properlypolarized
power cord.
continued...
1.888.610.7664[email protected] REED-Direct.com

4
www.REEDINSTRUMENTS.com
• Highvoltageisusedintheoperationofthisequipment.Severeinjuryor
death may result if one fails to observe safety precautions.
• Alwaysreplacethefusewithoneofthesamerating,voltage,andtype.
• Overheadclearanceisrequired.Donotplacethisinstrumentundera
cabinet or other structure.
• Donotoperatenearammablematerials.
• Useofthisinstrumentathightemperaturesforextendedperiodsof
time requires caution.
• Componentsandheaterlifetimecanbeshortenedbycontinuoushigh
temperature operation.
• Donotuseuidstocleanthetargetsurface.
Features
• Forcalibratingnon-contacttemperatureinstruments(infrared
thermometers,pyrometersandthermalimagers)
• Wideaperturecompensatesforopticalinfraredthermometervariations
• ContactRTDreferencewelllocateddirectlybehindtheblackbodytarget
to assure accurate results
1.888.610.7664[email protected] REED-Direct.com

5
www.REEDINSTRUMENTS.com
Specifications
Temperature Range: 122 to 932°F (50 to 500°C)
Accuracy: ≤212°F (100°C): ±1.6°F (0.8°C)
212 to 392°F (100 to 200°C): ±3.2°F (1.6°C)
392 to 932°F (200 to 500°C): ±5.6°F (2.8°C)
Stability: ≤212°F (100°C): ±0.2°F (0.1°C)
212 to 392°F (100 to 200°C): ±0.4°F (0.2°C)
392 to 932°F (200 to 500°C): ±0.8°F (0.4°C)
Resolution: 0.1°F (0.1°C)
Target Emissivity: 0.95 (Fixed)
HeatingTime: Approximately30minstomaximum
Cooling Time: Approximately 30 mins to 122°F (100°C)
Aperture Diameter: 2.28" (58mm)
Display: Dual LED
PowerSupply: 110VAC,2.5A
Product Certications: CE
Operating Temperature: 41 to 95°F (5 to 35°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
OperatingHumidity: 15to80%
Dimensions: 7.1 x 4.5 x 8.8" (180 x 114 x 233mm)
Weight: 6.6lbs (3kg)
Included
• PowerCord
1.888.610.7664[email protected] REED-Direct.com

6
www.REEDINSTRUMENTS.com
Environmental Conditions
This instrument should not be operated in an excessively dusty or dirty
environment and operates safely under the following conditions:
• Temperaturerange:41 to 95°F (5 to 35°C)
• Ambientrelativehumidity:15to80%
• Pressure:75to106kPa
• Mainsvoltagewithin±10%ofnominal
• TemperaturedifferencebetweenthetargetsurfaceandtheRTDPT100
reference well located directly behind the target surface are calculated
as shown in the graph below.
1.888.610.7664[email protected] REED-Direct.com

7
www.REEDINSTRUMENTS.com

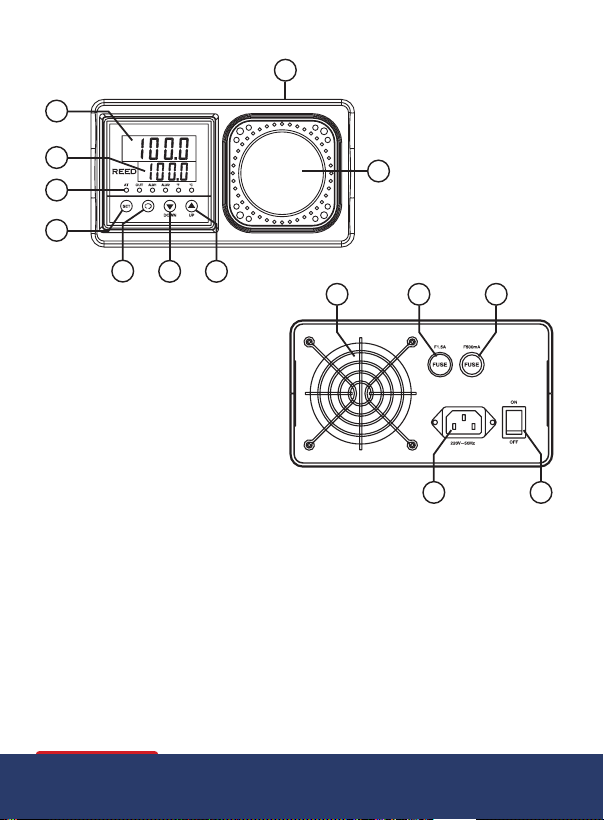

Instrument Description
1. Temperature Indicator
(Red LED)
2. Set Temperature
Indicator (Green LED)
3. Status Indicators
4. Set Button
5. Return Button
6. Down Arrow
7. UpArrow
8. Infrared Target Surface
9.
RTD Reference Well (For
Calibration Purposes Only)
10. Fan
11.HeatingSystemFuse
12. Control System Fuse
13. Power Socket
14. Power Switch
1
2
3
4
8
9
56 7
BX-500
13 14
11 1210
continued...
1.888.610.7664[email protected] REED-Direct.com

8
www.REEDINSTRUMENTS.com
Note: The fan inside the calibrator has two speeds and runs continu-
ously when the unit is in operation. The fan runs slow for heating and
maintaining operation and runs fast for rapid cooling. The area around the
calibratormustbekeptcleartoallowadequateventilation.Theairowis
directed out the front and can be extremely hot.
Status Indicator Description
Note: Using any other parameter other than the ones described in this
manual will affect performance and could damage the calibrator.
AT Auto-Tuning Parameter Adjustment (For Authorized Service
Centers Only) .
OUT HeatingOutputPowerIndicator.
ALM1
Overload Alarm indicates that the IR Calibrator temperature
exceedsthesettemperature.Tosetthealarm,referto
Setting Overload Alarms 1 & 2 for details.
Note: When triggered the heating output power is
turned off.
ALM2
Overload Alarm indicates that the IR Calibrator temperature
exceedsthesettemperature.Tosetthealarm,referto
Setting Overload Alarms 1 & 2 for details.
Note:Whentriggered,therapidcoolingprocesswillbegin.
°F/°C Temperature unit of measure.
AT °F °C OUT ALM1 ALM2
1.888.610.7664[email protected] REED-Direct.com

9
www.REEDINSTRUMENTS.com
Keypad Description
The four button keypad allows for easy set-point temperature. The
temperature set-point can be set to a resolution of 0.1°F or °C.
SET
The SET button is used to conrm the selected value
within the parameter and to exit the set up mode and
resume normal operation.
Note:Atanytime,youcanpresstheSET button to exit the
Setup mode and resume normal operation.
The enter button is used to scroll through parameters.
The up arrow is used to increase temperature values and to
toggle between menu options within the selected parameter.
The down arrow is used to decrease temperature values
and to toggle between menu options within the
selected parameter.
Operating Instructions
Initial Start up
1. Placethecalibratoronaatsurfacewithatleast8"offreespace
around the instrument.
2. Connect the included power cord and plug into a power outlet.
3. TurnthecalibratoronbytogglingthepowerswitchtoON.
4. The fan should begin blowing air through the instrument.
5. Afterabrief3secondself-test,thecalibratorwillbeginnormal
operation by displaying both the current target surface temperature
and the last registered set temperature.
Note:WhenthecalibratorisrstpoweredON,thedefaultsettemperature
is set to 50°C. Refer to Setting the Temperature Set-Point for details.
6. The calibrator will now heat up to reach the registered set temperature.
Note: The top display (Green LED) will continue to update the current
temperature until the set temperature is reached.
continued...
1.888.610.7664[email protected] REED-Direct.com

10
www.REEDINSTRUMENTS.com
Turning Off the Calibrator
It is recommended to select a set-point less than 140°F (60°C) and allow
the unit to cool down before turning it off.
Warning: Do not turn the instrument off at a temperature higher than
212°F (100°C). Lower the temperature below 212°F (100°C)
before powering off.
Selecting Temperature Unit of Measure
When the meter is rst powered on the default scale setting is set to Celsius
(°C) and the parameters are locked. In order to change the temperature
scaleandunlockparameters,followthestepsbelow.
1. Tounlock,holddownboththeSET and buttons simultaneously
and release when the display indicates "At" & "oFF" conrming that
the parameters are now unlocked.
2. Press the SET button for three seconds and release to enter the
setup mode as indicated by and .
3. Press button once and the display will indicate and
which conrms the current temperature scale.
4. Usethe and arrows to select between °C and °F.
5. Press the SET button to conrm selection.
6. Press the SET button again to exit set up mode and resume
normal operation.
Setting the Temperature Set-Point
1. Usethe and arrows to increase or decrease the temperature
set-point value.
2. Press the arrow to increase the temperature value.
3. Press the arrow to decrease the temperature value.
4. Press the SET button to conrm the new temperature set-point.
5. Press the SET button again to exit set up mode and resume
normal operation.
continued...
1.888.610.7664[email protected] REED-Direct.com

11
www.REEDINSTRUMENTS.com

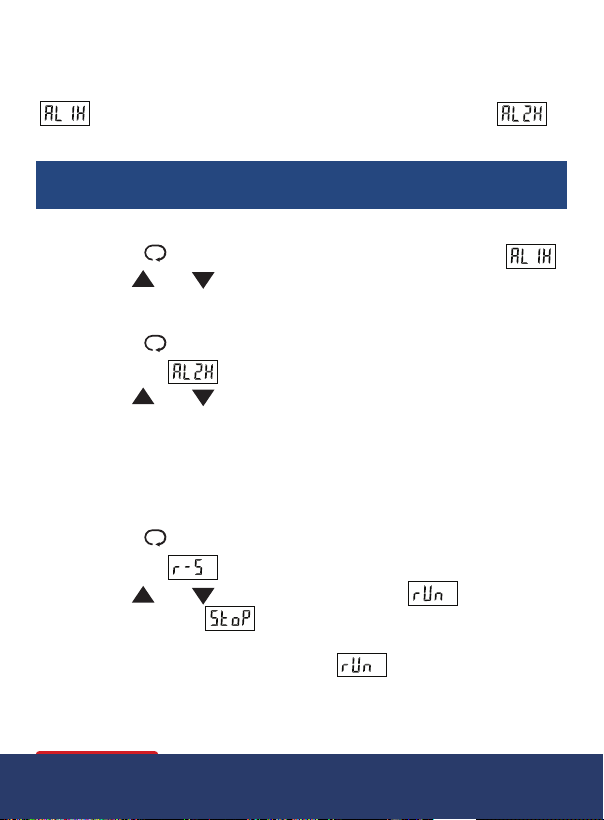

Setting Overload Alarms 1 & 2
The calibrator allows a user to set overload alarms when the calibrator
temperatureisoverthetemperatureset-point.Whensetandtriggered,
willturnofftheheatingpower.Whensetandtriggered,
will turn the cooling fan on.
Note: The default high overload alarms are set to 5°C (8°F).
These alarms can be set by following the steps below:
1. Press the button two times until the top screen displays .
2. Usethe and arrows to change the temperature value which
willashuntilconrmed.
3. Press the SET button to conrm the new high overload alarm 1.
4. Press the button once to switch to high overload alarm 2 as
indicated by .
5. Usethe and arrows to change the temperature value which
willashuntilconrmed.
6. Press the SET button to conrm the new high overload alarm 2.
7. Press the SET button again to exit set up mode and resume
normal operation.
Enabling/Disabling the Heating Power
1. Press the button once to display the heating power function as
indicated by .
2. Usethe and arrows to select between (enable
heating power) or (disableheatingpower)whichwillash
until conrmed.
Note: The default heating power is set to .
3. Press the SET button to conrm selection.
4. Press the SET button again to exit set up mode and resume
normal operation.
continued...
1.888.610.7664[email protected] REED-Direct.com

12
www.REEDINSTRUMENTS.com

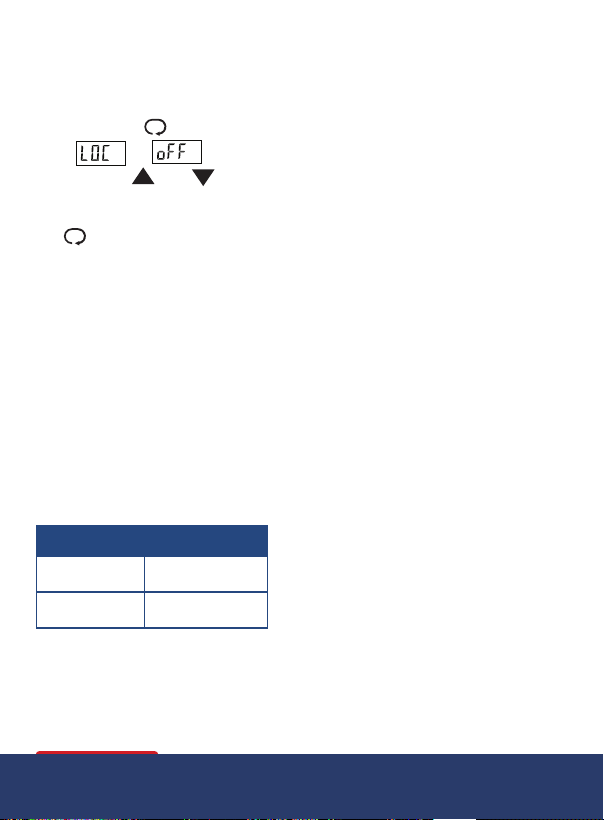

Keypad Lock/Unlock
The calibrator allows a user to lock/unlock the keypad to avoid
unwanted changes to the settings. Follow the steps below to lock or
unlock the keypad.
1. Press the button four times until the screen displays
& .
2. Usethe and arrowstoselectbetweenLoC1,LoC2&oFF
whichwillashuntilconrmed.
Note:LoC1willlockallofthekeypadbuttons,whileLoC2willonlylock
the button allowing a user to continue to modify/conrm the set
temperature if required.
3. Press the SET button to conrm selection.
4. Press the SET button again to exit set up mode and resume
normal operation.
Replacing the Fuses
The calibrator must be switched off before attempting to replace fuses.
To replace fuses:
1. Open the faulty fuse compartment by rotating it counter clockwise.
2. Gently slide out the fuse.
3. Replace with the appropriate fuse (see Specications below) and
tighten the compartment back into place.
Fuse Specifications
Fuse 1 3A/250V
Fuse 2 200mA/250V
This instrument is equipped with operator accessible fuses. If a fuse
blows,itmaybeduetoapowersurgeorfailureofaninternalcomponent.
Replacethefuseonce.Ifthefuseblowsagain,itislikelycausedbyfailure
of an internal component and you should contact an Authorized REED
Service Center.
1.888.610.7664[email protected] REED-Direct.com

13
www.REEDINSTRUMENTS.com
Product Care
To keep the instrument in good working order we recommend
the following:
• Storeyourproductinaclean,dryplace.
• Avoidoperatingtheinstrumentindirtyordustyenvironments.
• Iftheoutsideoftheinstrumentbecomesdirty,itmaybewipedclean
with a damp cloth and biodegradable cleaner.
• Donotuseharshchemicalsonthesurface,asitmaydamagethepaint.
• Thecalibratorshouldbehandledwithcare.Avoidknockingordropping
the calibrator.
Accessories and Replacement Parts
R8888DeluxeHardCarryingCase
Don't see your part listed here? For a complete list of all accessories and
replacement parts visit your product page on www.reedinstruments.com.
Applications
Calibrate non-contact temperature instruments; Infrared Thermometers
and Thermal Imagers.
Product Warranty
REED Instruments guarantees this instrument to be free of defects in
material or workmanship for a period of one (1) year from date of shipment.
Duringthewarrantyperiod,REEDInstrumentswillrepairorreplace,atno
charge,productsorpartsofaproductthatprovestobedefectivebecause
ofimpropermaterialorworkmanship,undernormaluseandmaintenance.
REED Instruments total liability is limited to repair or replacement of the
product.REEDInstrumentsshallnotbeliablefordamagestogoods,
property,orpersonsduetoimproperuseorthroughattemptstoutilizethe
instrument under conditions which exceed the designed capabilities. In
ordertobeginthewarrantyserviceprocess,pleasecontactusbyphoneat
1-877-849-2127 or by email at [email protected] to discuss the
claim and determine the appropriate steps to process the warranty.
1.888.610.7664[email protected] REED-Direct.com

14
www.REEDINSTRUMENTS.com
Product Disposal and Recycling
Please follow local laws and regulations when disposing or recycling your
instrument. Your product contains electronic components and must be
disposed of separately from standard waste products.
Product Support
Ifyouhaveanyquestionsonyourproduct,pleasecontactyourauthorized
REED distributor or REED Instruments Customer Service by phone at
1-877-849-2127 or by email at [email protected].
Please visit www.REEDINSTRUMENTS.com for the most
up-to-date manuals, datasheets, product guides and software.
Product specifications subject to change without notice.
All rights reserved. Any unauthorized copying or reproduction of
this manual is strictly prohibited without prior written permission
from REED Instruments.
1.888.610.7664[email protected] REED-Direct.com

www.REEDINSTRUMENTS.com
TEST & MEASURE
WITH CONFIDENCE
CHECK OUT OUR LATEST PRODUCTS!
1.888.610.7664[email protected] REED-Direct.com

www.REEDINSTRUMENTS.com
1.888.610.7664[email protected] REED-Direct.com
