Reelcraft Industries, Inc. RT Series User manual

Operating Instructions
Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725
Ph: 800-444-3134 / 260-248-8188 • Fax: [phone]
Customer Service: 855-634-9109 • [email protected] • www.reelcraft.com
Series RT Spring Driven Hose Reels
Low Pressure Model Numbers:
RT402-OLP RT802-OLP RT625-OLP RT635-OLPSM
RT403-OLP RT803-OLP RT635-OLP RT650-OLPSM
RT405-OLP RT805-OLP RT650-OLP RT825-OLPSM
RT406-OLP RT425-OLP RT825-OLP RT835-OLPSM
RT602-OLP RT435-OLP RT835-OLP RT850-OLPSM
RT603-OLP RT450-OLP RT850-OLP
RT605-OLP RT465-OLP RT450-OLPSM
Dimensions
• Ensure that reel is properly installed before connecting input and
output hoses.
• Bleed fluid/gas pressure from system before servicing reel.
• Before connecting reel to supply line, ensure that pressure does
not exceed maximum working pressure rating of reel.
• Remember, even low pressure is very dangerous and can cause
personal injury or death.
• Be aware of machinery and personnel in work area.
• If a leak occurs in the hose or reel, remove system pressure
immediately.
• A high tension spring assembly is contained within the reel.
Exercise extreme caution.
• Pull hose from reel by grasping the hose itself, not the control
valve.
• Ensure that reel, hose, and equipment being serviced are
properly grounded. Use an ohmmeter to check ground
continuity.
• If reel ceases to unwind or rewind, remove system pressure
immediately. Do not pull or jerk on hose!
• Treat and respect the hose reel as any other piece of machinery,
observing all common safety practices.
SAFETY
Personal injury and/or equipment damage may result if proper safety
precautions are not observed.
Form# 1121-802A Rev: 5/2021
A17 7/8”
B16 1/2”
C6”
D2 1/4”
ESee
page 6
.325
.325
(4) PLACES
(4) PLACES
A18”
B16 7/16”
C16 11/16”
D3 5/16”
ESee
page 7
B
A
E
C
D
D
B
C
A
E

Series RT Spring Driven Hose Reels
Page 2 www.reelcraft.com
Installing the Input Hose
Mounting the Hose Reel
Prior to mounting the hose reel, ensure that the supply line pressure does
not exceed the maximum working pressure of the hose reel.
Do not exceed the maximum installation height of 16’ unless the reel was
specified differently when ordering. The maximum operating temperature
is 150 °F (66 °C).
Unpack and inspect the reel for damage. Turn the spool by hand to check
for a smooth operation.
Position the reel on the floor, wall or ceiling. Secure into place using four
mounting bolts (not included). See the included mounting template for
additional instructions for your specific mounting application. Depending
on where the reel is placed, it may be necessary to adjust the bumper stop
and guide arm to use the hose properly. See the instructions on the next
page to adjust the bumper stop and reposition the guide arm.
Use a flexible hose connection at input. Do not
use rigid plumbing. (input hose not included)
Apply pipe thread sealant to threads on stan-
dard reels.
Do not over tighten the connection.
Recommended torque should not exceed 70
ft./lb.
Mounting Applications
figure 1
figure 2 figure 3 figure 4
figure 5

Series RT Spring Driven Hose Reels
www.reelcraft.com Page 3
Pull out the hose until the latch pawl is engaged.
The bumper stop may be adjusted by loosening the slotted
screws shown in figure 6.
Slide the bumper to the desired position and tighten the screws
BEFORE PULLING HOSE to disengage the latch pawl.
Adjusting the Bumper Stop
Removing the Guide Arm
Pull out hose until the latch pawl is engaged. Remove bumper
by removing the slotted screws (figure 6).
Disengage the latch pawl while maintaining a firm hold on
spool. Turn the spool hand over hand approximately two or
three revolutions in the direction of the drive spring until ten-
sion is removed.
Remove the 4 nuts holding the guide arm to base (figure 7).
figure 6
figure 7
Remove the guide arm and adjust to any of the seven
positions shown in figure 8.
See figures 2, 3, and 4, for recommended Guide Arm
positions for each mounting application.
Replace and tighten the 4 nuts.
Tighten the drive spring by turning the spool two or three
revolutions and engage the latch pawl.
Pull the hose through the roller opening in the guide arm
and replace the bumper stop (figure 6)
Positioning the Guide Arm
figure 8

Series RT Spring Driven Hose Reels
Page 4 www.reelcraft.com
Remove the hose.
See the procedure for “Replacing the Hose”.
Remove swivel by unscrewing the threaded stem from the
main shaft (figure 11).
Replace swivel by screwing threaded stem of swivel into
main shaft of reel. Replace the hose.
Replacing the Swivel
figure 10
Replacing the Latch Pawl
figure 9
Replacing the Hose
figure 11
Remove the guide arm by following the procedure for “Removing
the Guide Arm”. Remove the retaining nut as shown in figure 9.
Replace the latch pawl assembly.
Replace and tighten the retaining nut.
Replace the guide arm and bumper stop by following the proce-
dure for “Positioning the Guide Arm”.
To remove the hose
Pull out the hose leaving 2 to 3 feet on the spool. Engage the latch pawl.
Remove the U-bolt nuts on the inside of the spool (figure 10). Remove the
U-bolt.
Unthread the hose at the connection to the swivel tube. Use a wrench on
both fittings or the swivel may be damaged. Remove the hose.
To install the hose
Route the hose through the guide arm rollers and opening of the spool.
Apply thread tape or sealant to hose threads.
Screw hose fitting into threaded fitting on swivel. Tighten connection with
a wrench on both fittings. Install the U-bolt (figure 10). Install bumper
stop on working end of hose if required.
Disengage latch pawl and allow hose to retract.

Replacing the Spool Assembly
figure 12
Attach the reel securely to prevent it from moving. Pull out the
hose just until the latch pawl is engaged. Remove the bumper
stop by removing the slotted screws (figure 6).
Disengage the latch pawl while maintaining a firm hold on the
spool. Turn the spool hand over hand approximately two or three
revolutions until the spring tension is removed.
Unscrew the swivel stem from the main shaft. Next, remove
the swivel by unscrewing the swivel from the hose (figure 11).
Remove the retaining ring and spacing washer (figure 12). Pull
the spool away from the base. Unwind the hose from the spool,
remove the u-bolt (figure 10).
Install the spool assembly by inserting the shaft of the base into
the hex shaped opening of the spool. Install spacing washer and
retaining ring as shown (figure 12). Install the swivel by screw-
ing the threaded stem of swivel into the main shaft of reel (figure
11).
Install the hose by screwing the hose fitting into the threaded
fitting on the swivel. Tighten connection with a wrench on both
fittings. Install the u-bolt (figure 10).
Pull in the hose by turning the spool by hand. When the hose
is completely wound onto the spool, turn the spool in the other
direction two to three revolutions. Pull the hose through the
roller opening in the guide arm and replace the bumper stop
(figure 6).
Series RT Spring Driven Hose Reels
www.reelcraft.com Page 5

Page 6 www.reelcraft.com
Series RT Spring Driven Hose Reels

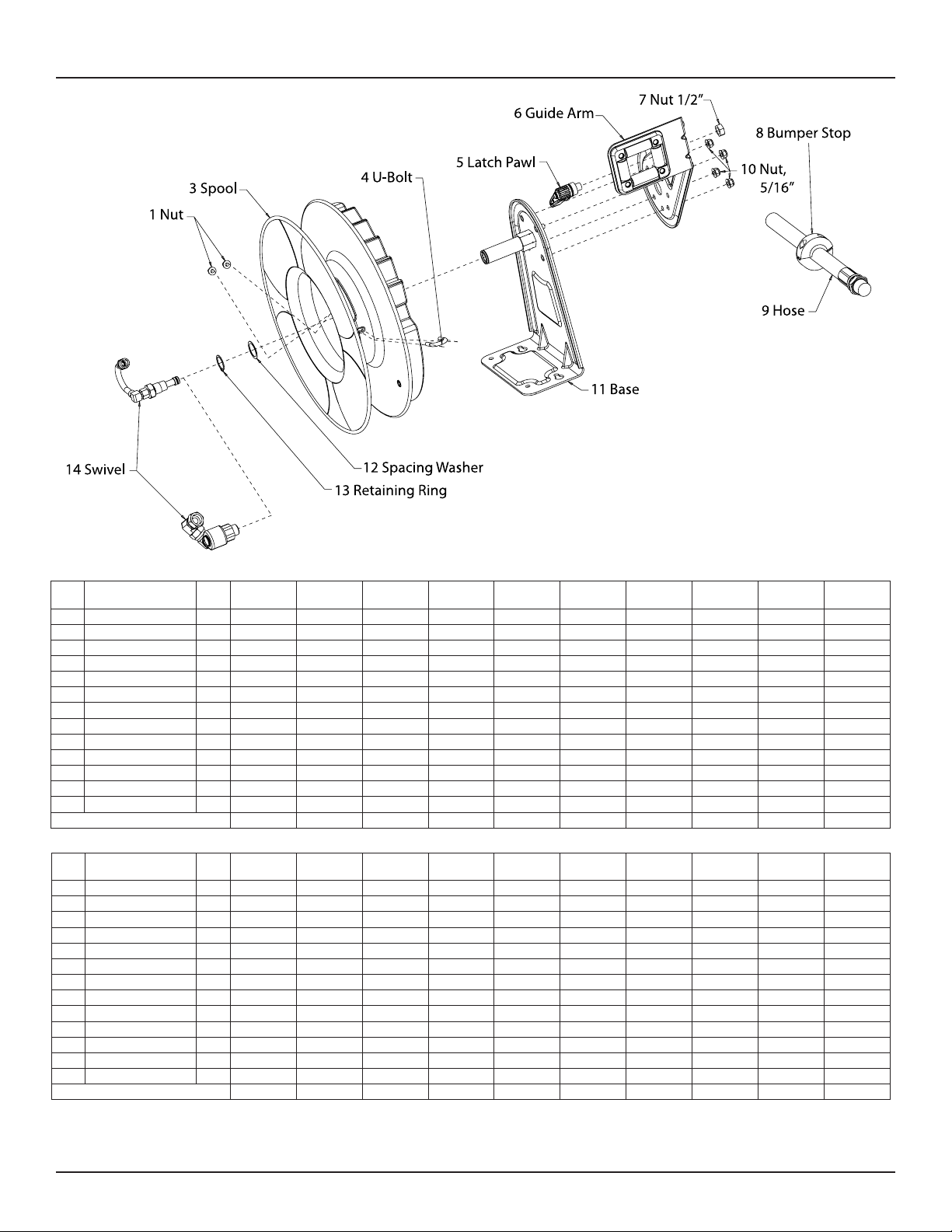

Item
#Description #
Req. RT402-OLP RT403-OLP RT405-OLP RT406-OLP RT602-OLP RT603-OLP RT605-OLP RT802-OLP RT803-OLP RT805-OLP
11/4-20 Lock Nut 2 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1
3Spool Assembly 1 S600827 S600827 S600828 602239 S600827 S600827 S600828 S600879 S600879 602011
4 U-Bolt 1 3-117440 3-117440 3-117440 3-117440 3-117440 3-117440 3-117440 3-117440 3-117440 3-117440
5Latch Pawl Assembly 1 S600823 S600823 S600823 S600823 S600823 S600823 S600823 S600823 S600823 S600823
6Guide Arm Assembly 1 602606 602606 602606 602606 602606 602606 602606 602606 602606 602607
7Nut 1/2” 1 S76-108 S76-108 S76-108 S76-108 S76-108 S76-108 S76-108 S76-108 S76-108 S76-108
8Bumper Stop 1 None None None None None None None None None None
9Hose Assembly 1 None None None None None None None None None None
10 Nut 5/16” 4 261650-2 261650-2 261650-2 261650-2 261650-2 261650-2 261650-2 261650-2 261650-2 261650-2
11 Base Assembly 1 600833 600833 600833 600833 600833 600833 600833 600833 600833 602012
12 Spacing Washer 1 300034 300034 300034 300034 300034 300034 300034 300034 300034 300034
13 Snap Ring 1 300031 300031 300031 300031 300031 300031 300031 300031 300031 300031
14 Swivel Assembly 1 S600886 S600886 S600886 S600886 S600886 S600886 S600886 600914-1 600914-1 600914-1
“E” Dimensions - See page 1 6 1/4” 6 1/4” 6 1/4” 6 1/4” 6 1/4” 6 1/4” 6 1/4” 6 1/4” 6 1/4” 7 3/4”
Item
#Description #
Req. RT425-OLP RT435-OLP RT450-OLP RT465-OLP RT625-OLP RT635-OLP RT650-OLP RT825-OLP RT835-OLP RT850-OLP
11/4-20 Lock Nut 2 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1
3Spool Assembly 1 S600827 S600827 S600828 602239 S600827 S600827 S600828 S600879 S600879 602011
4 U-Bolt 1 3-117440 3-117440 3-117440 3-117440 3-117440 3-117440 3-117440 3-117440 3-117440 3-117440
5Latch Pawl Assembly 1 S600823 S600823 S600823 S600823 S600823 S600823 S600823 S600823 S600823 S600823
6Guide Arm Assembly 1 S600826 S600826 S600826 S600826 S600826 S600826 S600826 S600826 S600826 602607
7Nut 1/2” 1 S76-109 S76-109 S76-109 S76-109 S76-109 S76-109 S76-109 S76-109 S76-109 S76-109
8Bumper Stop 11-HR1004-A 1-HR1004-A 1-HR1004-A 1-HR1004-A 1-HR1004 1-HR1004 1-HR1004 2-HR1004-3 2-HR1004-3 2-HR1004-3
9Hose Assembly 1 S601001-25 S601001-35 S601001-50 S601000-65 S601013-25 S601013-35 S601013-50 601020-25 S601022-35 S601022-50
10 Nut 5/16” 4 261650-2 261650-2 261650-2 261650-2 261650-2 261650-2 261650-2 261650-2 261650-2 261650-2
11 Base Assembly 1 600833 600833 600833 600833 600833 600833 600833 600833 600833 602012
12 Spacing Washer 1 300034 300034 300034 300034 300034 300034 300034 300034 300034 300034
13 Snap Ring 1 300031 300031 300031 300031 300031 300031 300031 300031 300031 300031
14 Swivel Assembly 1 S600886 S600886 S600886 S600886 S600886 S600886 S600886 600914-1 600914-1 600914-1
“E” Dimensions - See page 1 6 1/4” 6 1/4” 6 1/4” 6 1/4” 6 1/4” 6 1/4” 6 1/4” 6 1/4” 6 1/4” 7 3/4”

www.reelcraft.com Page 7
Series RT Spring Driven Hose Reels
Item
#Description #
Req. RT450-OLPSM RT635-OLPSM RT650-OLPSM RT825-OLPSM RT835-OLPSM RT850-OLPSM
11/4-20 Lock Nut 2 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1
3Spool Assembly 1 S600828 S600827 S600828 S600879 S600879 602011
4 U-Bolt 1 3-117440 3-117440 3-117440 3-117440 3-117440 3-117440
5Latch Pawl Assembly 1 S600823 S600823 S600823 S600823 S600823 S600823
6Guide Arm Assembly 1 S600826 S600826 S600826 S600826 S600826 602014
7Nut 1/2” 1 S76-108 S76-108 S76-108 S76-108 S76-108 S76-108
8Bumper Stop 1 1-HR1004-A 1-HR1004 1-HR1004 2-HR1004-3 2-HR1004-3 2-HR1004-3
9Hose Assembly 1 S601001-50 S601013-35 S601013-50 601020-25 S601022-35 S601022-50
10 Nut 5/16” 4 261650-2 261650-2 261650-2 261650-2 261650-2 261650-2
11 Shaft / Bracket Assembly 1 602263 602263 600264 602264 602264 602265
12 Spacing Washer 1 300034 300034 300034 300034 300034 300034
13 Snap Ring 1 300031 300031 300031 300031 300031 300031
14 Swivel Assembly 1 602262 602262 602262 602311 602311 602311
“E” Dimensions - See page 1 7 5/16” 7 5/16” 7 5/16” 7 5/16” 7 5/16” 8 5/8”
4
