Reelcraft Industries, Inc. RT635-OMP User manual

Operating Instructions
Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725
Ph: 800-444-3134 / 260-248-8188 • Fax: [phone]
[email protected] • www.reelcraft.com
Series RT Spring Driven Hose Reels
Medium and High Pressure Model Numbers:
RT602-OMP RT635-OMP RT602-OHP RT635-OHP
RT603-OMP RT650-OMP RT603-OHP RT650-OHP
RT605-OMP RT825-OMP RT605-OHP RT650-OMPSM
RT802-OMP RT835-OMP RT425-OHP
RT803-OMP RT402-OHP RT435-OHP
RT625-OMP RT403-OHP RT625-OHP
Dimensions
•Ensurethatreelisproperlyinstalledbeforeconnectinginputand
outputhoses.
•Bleedfluid/gaspressurefromsystembeforeservicingreel.
•Beforeconnectingreeltosupplyline,ensurethatpressuredoes
notexceedmaximumworkingpressureratingofreel.
•Remember,evenlowpressureisverydangerousandcancause
personalinjuryordeath.
•Beawareofmachineryandpersonnelinworkarea.
•Ifaleakoccursinthehoseorreel,removesystempressure
immediately.
•Ahightensionspringassemblyiscontainedwithinthereel.
Exerciseextremecaution.
•Pullhosefromreelbygraspingthehoseitself,notthecontrol
valve.
•Ensurethatreel,hose,andequipmentbeingservicedare
 properlygrounded.Useanohmmetertocheckground
 continuity.
•Ifreelceasestounwindorrewind,removesystempressure
immediately.Donotpullorjerkonhose!
•Treatandrespectthehosereelasanyotherpieceofmachinery,
observingallcommonsafetypractices.
SAFETY
Personalinjuryand/orequipmentdamagemayresultifpropersafety
precautionsarenotobserved.
Form#1121-802BRev:3/2012
A177/8”
B161/2”
C6”
D21/4”
ESee
page6
A
BE
D
C
A18”
B167/16”
C1611/16”
D35/16”
ESee
page7

Series RT Spring Driven Hose Reels
Page 2 www.reelcraft.com
Installing the Input Hose
Mounting the Hose Reel
Prior to mounting the hose reel, ensure that the supply line pressure does
not exceed the maximum working pressure of the hose reel.
Do not exceed the maximum installation height of 16’ unless the reel was
specified differently when ordering. The maximum operating temperature
is 150°F (66°C).
Unpack and inspect the reel for damage. Turn the spool by hand to check
for a smooth operation.
Position the reel on the floor, wall or ceiling. Secure into place using four
mounting bolts (not included). See the included mounting template for
additional instructions for your specific mounting application. Depending
on where the reel is placed, it may be necessary to adjust the hose bumper
and guide arm to use the hose properly. See the instructions on the next
page to adjust the hose bumper and reposition the guide arm.
Use a flexible hose connection at input. Do not use rigid
plumbing. (input hose not included)
Apply pipe thread sealant to threads on standard reels.
Do not over tighten the connection. Recommended torque
should not exceed 70 ft./lb.

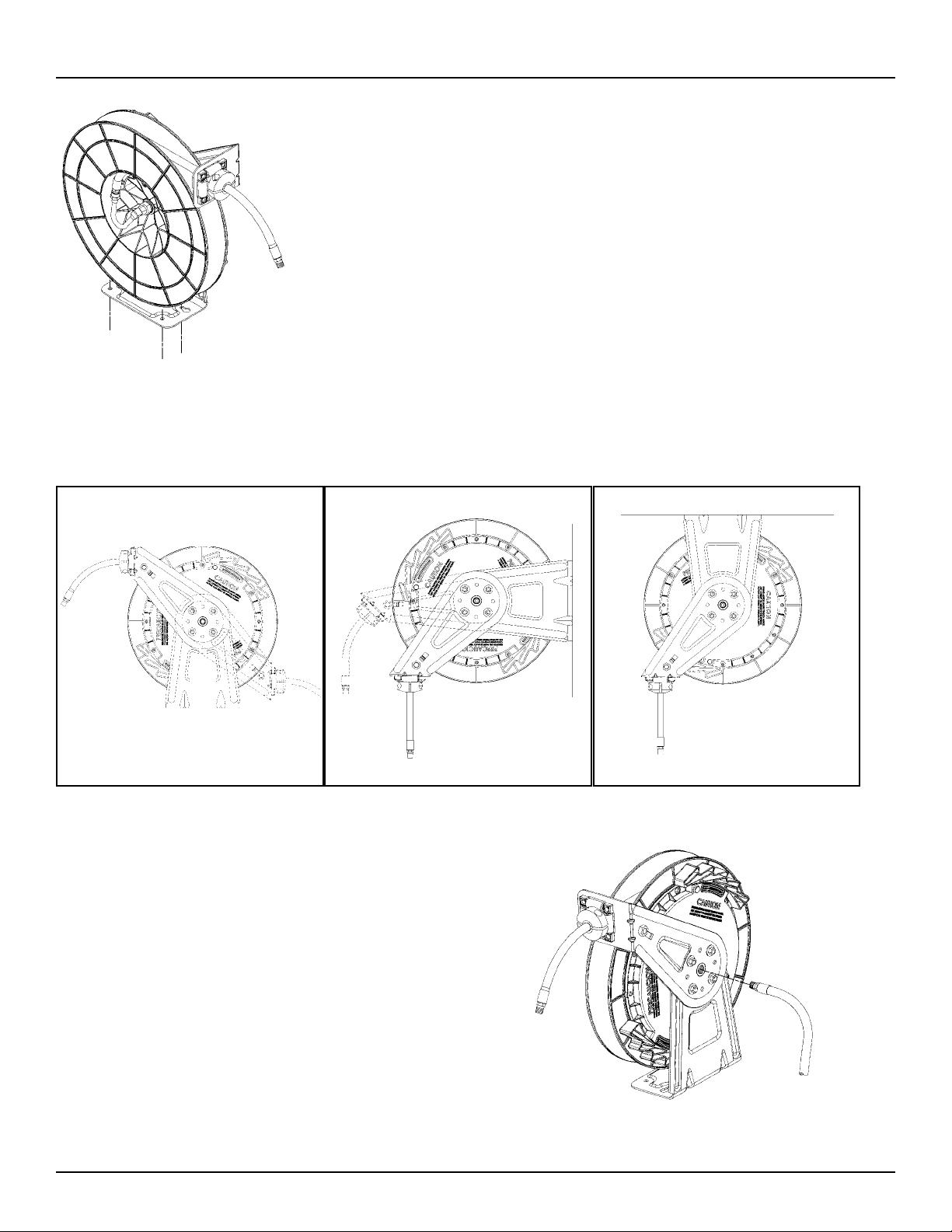

Mounting Applications
figure 1
figure 2 figure 3 figure 4
figure 5

Series RT Spring Driven Hose Reels
www.reelcraft.com Page 3
Pull out the hose until the latch pawl is engaged.
The hose bumper may be adjusted by loosening the slotted
screws shown in figure 6.
Slide the bumper to the desired position and tighten the screws
BEFORE PULLING HOSE to disengage the latch pawl.
Adjusting the Hose Bumper
Removing the Guide Arm
Pull out hose until the latch pawl is engaged. Remove bumper
by removing the slotted screws (figure 6).
Disengage the latch pawl while maintaining a firm hold on
spool. Turn the spool hand over hand approximately two or
three revolutions in the direction of the drive spring until ten-
sion is removed.
Remove the 4 nuts holding the guide arm to base (figure 7).
figure 6
figure 7
Remove the guide arm and adjust to any of the seven
positions shown in figure 8.
See figures 2, 3, and 4, for recommended Guide Arm
positions for each mounting application.
Replace and tighten the 4 nuts.
Tighten the drive spring by turning the spool two or three
revolutions and engage the latch pawl.
Pull the hose through the roller opening in the guide arm
and replace the hose bumper (figure 6)
Positioning the Guide Arm
figure 8

Series RT Spring Driven Hose Reels
Page 4 www.reelcraft.com
Remove the hose.
See the procedure for “Replacing the Hose”.
Remove swivel by unscrewing the threaded stem from the
main shaft (figure 11).
Replace swivel by screwing threaded stem of swivel into
main shaft of reel. Replace the hose.
Replacing the Swivel
figure 10
Replacing the Latch Pawl
figure 9
Replacing the Hose
figure 11
Remove the guide arm by following the procedure for “Removing
the Guide Arm”. Remove the retaining nut as shown in figure 9.
Replace the latch pawl assembly.
Replace and tighten the retaining nut.
Replace the guide arm and hose bumper by following the proce-
dure for “Positioning the Guide Arm”.
To remove the hose
Pull out the hose leaving 2 to 3 feet on the spool. Engage the latch pawl.
Remove the U-bolt nuts on the inside of the spool (figure 10). Remove the
U-bolt.
Unthread the hose at the connection to the swivel tube. Use a wrench on
both fittings or the swivel may be damaged. Remove the hose.
To install the hose
Route the hose through the guide arm rollers and opening of the spool.
Apply thread tape or sealant to hose threads.
Screw hose fitting into threaded fitting on swivel. Tighten connection
with a wrench on both fittings. Install the U-bolt (figure 10). Install hose
bumper on working end of hose if required.
Disengage latch pawl and allow hose to retract.

Replacing the Spool Assembly
figure 12
Attach the reel securely to prevent it from moving. Pull out the
hose just until the latch pawl is engaged. Remove the hose bum-
per by removing the slotted screws (figure 6).
Disengage the latch pawl while maintaining a firm hold on the
spool. Turn the spool hand over hand approximately two or three
revolutions until the spring tension is removed.
Unscrew the swivel stem from the main shaft. Next, remove
the swivel by unscrewing the swivel from the hose (figure 11).
Remove the retaining ring and spacing washer (figure 12). Pull
the spool away from the base. Unwind the hose from the spool,
remove the u-bolt (figure 10).
Install the spool assembly by inserting the shaft of the base into
the hex shaped opening of the spool. Install spacing washer and
retaining ring as shown (figure 12). Install the swivel by screw-
ing the threaded stem of swivel into the main shaft of reel (figure
11).
Install the hose by screwing the hose fitting into the threaded
fitting on the swivel. Tighten connection with a wrench on both
fittings. Install the u-bolt (figure 10).
Pull in the hose by turning the spool by hand. When the hose
is completely wound onto the spool, turn the spool in the other
direction two to three revolutions. Pull the hose through the
roller opening in the guide arm and replace the hose bumper
(figure 6).
Series RT Spring Driven Hose Reels
www.reelcraft.com Page 5

Page 6 www.reelcraft.com
Series RT Spring Driven Hose Reels
Item
#Description #
Req. RT602-
OMP
RT603-
OMP
RT605-
OMP
RT802-
OMP
RT803-
OMP
RT625-
OMP
RT635-
OMP
RT650-
OMP
RT825-
OMP
RT835-
OMP
1 1/4-20LockNut 2 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1
3 SpoolAssembly 1 600878 600878 602011 600879 600879 600878 600878 602011 600879 600879
4 U-Bolt 1 3-117440 3-117440 3-117440 3-117440 3-117440 3-117440 3-117440 3-117440 3-117440 3-117440
5 LatchPawlAssembly 1 600823 600823 600823 600823 600823 600823 600823 600823 600823 600823
6 GuideArmAssembly 1 600825 600825 602014 600826 600826 600825 600825 602014 600826 600826
7 Nut1/2” 1 S76-108 S76-108 S76-108 S76-108 S76-108 S76-108 S76-108 S76-108 S76-108 S76-108
8 HoseBumper 1 None None None None None A1-HR1004-3 A1-HR1004-3 A1-HR1004-3 A2-HR1004-3 A2-HR1004-3
9 HoseAssembly 1 None None None None None 12-260043 44-260043 46-260043 21-260043 37-260043
10 Nut5/16” 4 261650-2 261650-2 261650-2 261650-2 261650-2 261650-2 261650-2 261650-2 261650-2 261650-2
11 BaseAssembly 1 600824 600824 602012 600833 600833 600824 600824 602012 600833 600833
12 SpacingWasher 1 300034 300034 300034 300034 300034 300034 300034 300034 300034 300034
13 SnapRing 1 300031 300031 300031 300031 300031 300031 300031 300031 300031 300031
14 SwivelAssembly 1 600913 600913 600913 600914 600914 600913 600913 600913 600914 600914
“E”Dimensions-Seepage1 53/4” 53/4” 73/4” 61/4” 61/4” 53/4” 53/4” 73/4” 61/4” 61/4”
Item
#Description #
Req. RT402-
OHP
RT403-
OHP
RT602-
OHP
RT603-
OHP
RT605-
OHP
RT425-
OHP
RT435-
OHP
RT625-
OHP
RT635-
OHP
RT650-
OHP
1 1/4-20LockNut 2 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1
3 SpoolAssembly 1 600878 600878 600878 600879 602011 600878 600878 600878 600879 602011
4 U-Bolt 1 3-117440 3-117440 3-117440 3-117440 3-117440 3-117440 3-117440 3-117440 3-117440 3-117440
5 LatchPawlAssembly 1 600823 600823 600823 600823 600823 600823 600823 600823 600823 600823
6 GuideArmAssembly 1 600825 600825 600825 600826 602014 600825 600825 600825 600826 602014
7 Nut1/2” 1 S76-108 S76-108 S76-108 S76-108 S76-108 S76-108 S76-108 S76-108 S76-108 S76-108
8 HoseBumper 1 None None None None None A1-HR1004 A1-HR1004 1-HR2004-3 A2-HR1004-3 A2-HR1004-3
9 HoseAssembly 1 None None None None None 10-260044 20-260044 25-260044 24-260044 5-260044
10 Nut5/16” 4 261650-2 261650-2 261650-2 261650-2 261650-2 261650-2 261650-2 261650-2 261650-2 261650-2
11 BaseAssembly 1 600824 600824 600824 600833 602012 600824 600824 600824 600833 602012
12 SpacingWasher 1 300034 300034 300034 300034 300034 300034 300034 300034 300034 300034
13 SnapRing 1 300031 300031 300031 300031 300031 300031 300031 300031 300031 300031
14 SwivelAssembly 1 602494 602494 602495 602495 602495 602494 602494 602495 602495 602495
“E”Dimensions-Seepage1 53/4” 53/4” 53/4” 61/4” 73/4” 53/4” 53/4” 53/4” 61/4” 73/4”

www.reelcraft.com Page 7
Series RT Spring Driven Hose Reels
Item
#Description #
Req. RT650-OMPSM
1 1/4-20LockNut 2 261650-1
3 SpoolAssembly 1 600828
4 U-Bolt 1 3-117440
5 LatchPawlAssembly 1 600823
6 GuideArmAssembly 1 600826
7 Nut1/2” 1 S76-108
8 HoseBumper 1 A1-HR1004
9 HoseAssembly 1 601013-50
10 Nut5/16” 4 261650-2
11 Shaft/BracketAssembly 1 600264
12 SpacingWasher 1 300034
13 SnapRing 1 300031
14 SwivelAssembly 1 602262
“E”Dimensions-Seepage1 75/16”
