Beechcraft Debonair 35-C33 Technical specifications

PILOT'S OPERATING HtANDBOOK
AND FAA A~PROVED
AIRPlA·N.E FUGHT
1
MANUAL
jor the
~eechcrafl: Debu·nai~ 3:5-C3S·
and
'i'?onanza 633'f33
. . ., I·
FAA APPROVED IN NORMAL AND, UTILl:ff CATEGORY
BASED ON CAFI 3. THIS OOCUMIENT ,ll>tUST. l(t CARRJED IN
THE AIRPLANE AT ALL. TIME!SAND BE KEPT WiTHIN REACH
OF THE PILOT DURING ALL fLIGHT OPERATIQNS •.
THIS HANDBOOK INCLUDES THE MATERIAL,JAEQUIRED TO
BE FURNISHED TO THE PILOT BY FAB!PART 23.
Mfr's Seri11I Ne. -----------
Registration Ne. -----------
FAA APpro11ed by: ----------
W. H. SCHULTZ
BEECH AIA,Cf!AFT CORPORATION
DOA CE-2
THIS HANDBOOK SUPERSEDES . A~l-,. BEECH.„~~ED;
OWNERS MANUALS, FLIGHT MANUALS, A.ND·Cfl°ECK L.ISTS
ISSUED
FOR THIS AIRPLArte·WtT~~J.m:Of..~ffl.1."
APPROVED AIRPLANE Flt.GHT M~NUAI;, SUPPfEiifl~NTS. .
. P/N 33-590002-98
Reissued: August 1982
PIN 33-590002-981
Revised: March 1983

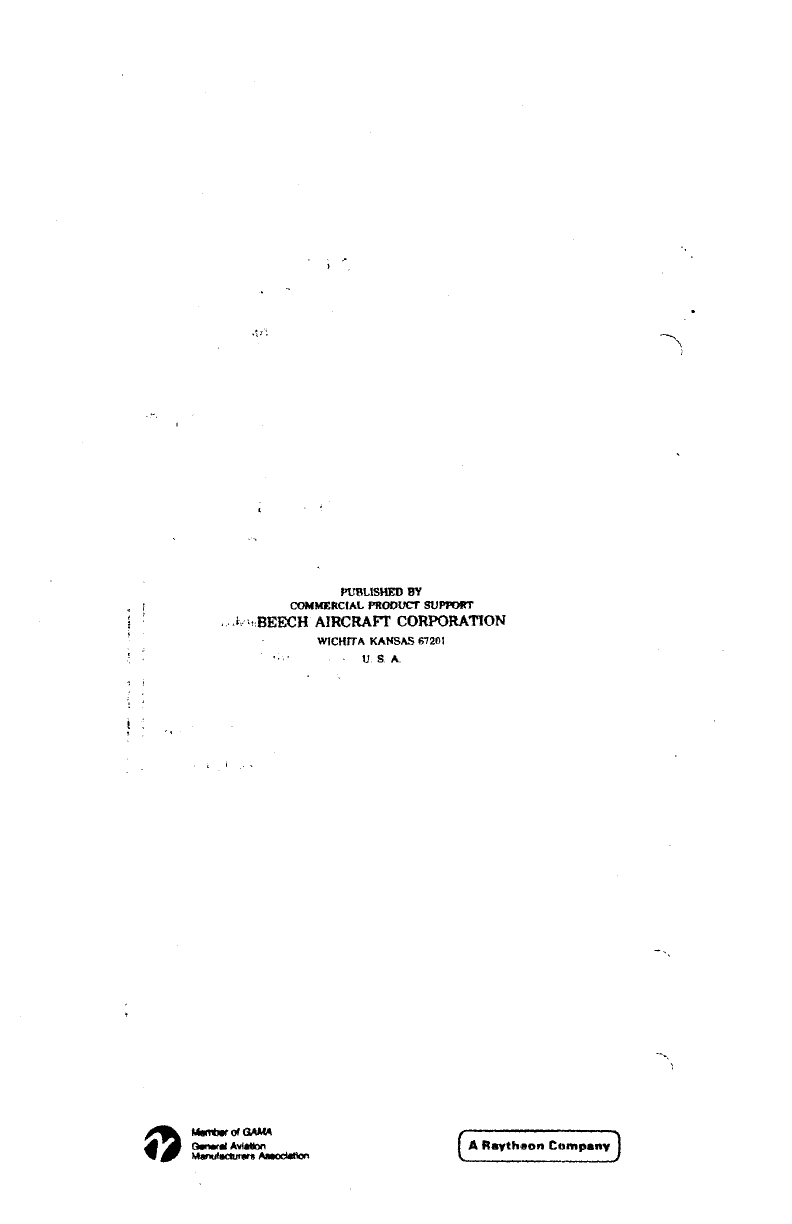

l'USLIS!IED llY
COMMERCIA.L PROIJUCT
SUPl'Ol!T
. · J,." BEECH AIRCRAFT CORPORATION
WICHTTA KANSAS 67201
U. S. A..
--~,

DEBONAIR C33
BONANZA E33 and F33
Pilot's Operating Handbook
and
FAA Approved
Airplane
Flight Manual
81 .......•.................... MARCH 1983
LOG Of REVISIONS
PAGES DESCRIPTION
Title Page Update Title Page
A Page (81 I Update
a & b Page Add "Warning"
2-17 Add "Emergency
Exit"placard
3-2 Update Table of
Co111tents
3-12, 3-13
Re11ise "'Emergency Exits''
and Shift Material
4-11 Revise "Before Takeoff"
7-1, 7-2 Update Table of Contents
7-20 Revise "Openable Cabin Windowi"
and
add "Emergency Exits"
8·29, 8-30, Revise "Cleaning -Exterior Painted
8-JOA, 8-308 Surfaces"
& 8-31
1
B1
Page A

DEBONAIR C33
BONANZA E33 ar11d F33
PILOT'S OPERATING HANDBOOK
and
FAA APPROVED AIRPLANE IFLIGHT MANUAL
LOG Of REVISIONS
ORIGINAL (A) . „ . „ „ . „. „ .. „ „ . SEPTEMBER 1977
REISSUE (B) .. „ .. „ .... „ „. „ „ .. „ AUGUST 1982
PAGE DESCRIPTION
Of REVISION
Titie Page
Logo Page
Page A
a thru b
1· 1 thru 1-20
2-1 thru 2-28
3-1 thru 3-14
4-1 thru 4-20
5-1 thru 5·32
6-1 thru 6-22
7-1 thru 7-40
8-1 thru 8-58
Section 9 See
log of
Supplements
10-1 thru 10-67 March 1981
1 B
Page A

Debonair C33
Bonanza E33 and F33
INTRODUCTION
This Pilot's Operating Handbook and FAA Approved Air-
plane Fiight Manual is in the format and contains data
recommended in the GAMA (General Aviation Manu-
facturers Association) Handbook Specification Number 1.
Use of this specification by all manufacturers will provide
the pilot the same type data in the same place in all of the
handbooks.
In recent years, BEECHCRAFT handbooks contained most
of the data now provided, however, the new handbooks
contain more detailed data and some entirely new data.
For example, .attention is called to Section X SAFETY IN-
FORMATION. BEECHCRAFT teels
it is highly important to
have SAFETY INFORMATION in a condensed form in the
hands of the pilots. The SAFETY INFORMATION should be
read
and studied. Periodic review will serve as a reminder
of good piloting techniques.
WARNING
Use only genuine BEECHCRAFT or BEECHCRAFTapproved
parts obtained from BEECHCRAFT approved sources, in
connection with the maintenance and repair of Beech
airplanes.
Genuine BEECHCRAFT parts are produced and inspected
under rigorous procedures to
ensure airworthiness and
suitability for use in Beech airplane applications. Parts
purchased
from sources other than BEECHCRAFT, even
though outwardly identical in appearance, may not have
had
the required tests and inspections performed, may be
different in fabrication techniques arid materials, and may
be dangerous
when installed in an airplane.
Revised: March 1983 a

DEBONAIR C33
BONANZA E33 and F33

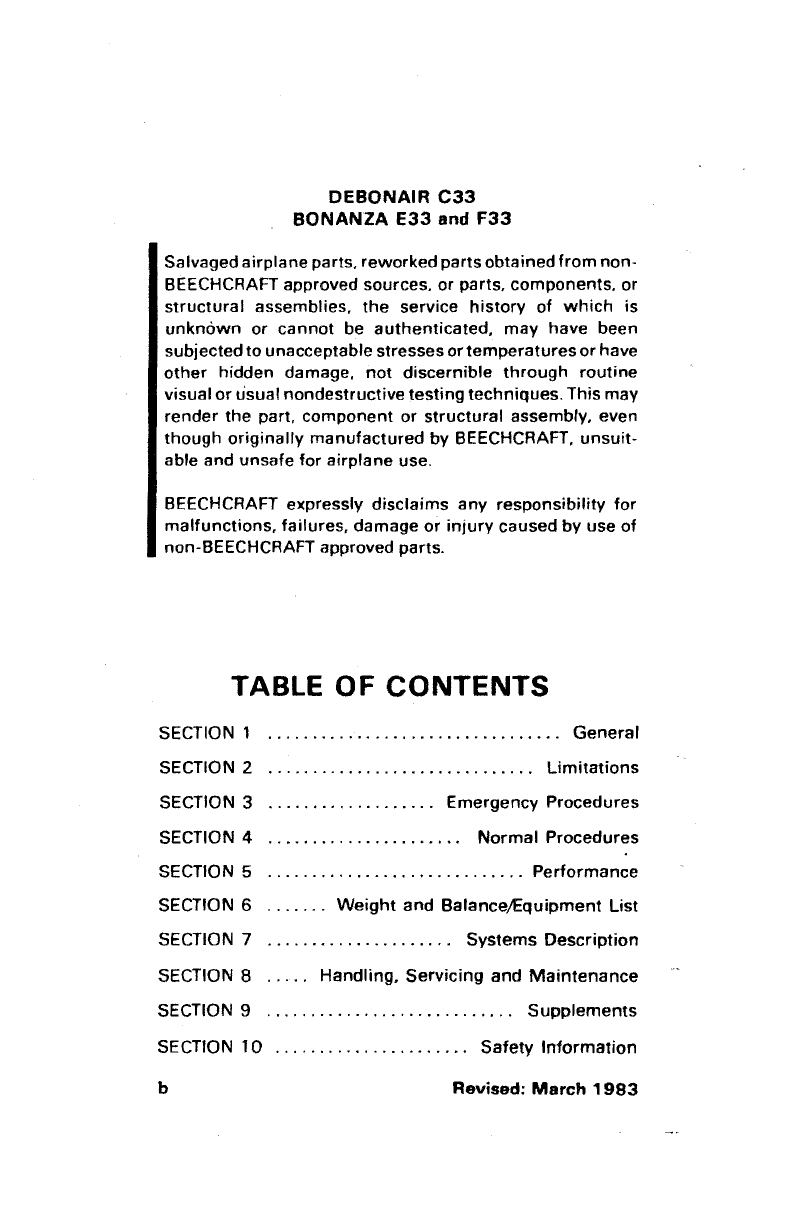

Salvaged airplane parts. reworked partsobtained from non-
BEECHCRAFT approved sources. or parts, components. or
structural assemblies. the service history of which is
unknown or cannot be authenticated, may have been
subjected
to unacceptable stressesor temperatures orhave
other hidden damage, not discernible through routine
visual or usual nondestructive testing techniques.This may
render the part, cornponent or structural assembly, even
though originally manufactured by BEECHCRAFT, unsuit-
able and unsafe for airplane use.
BEECHCRAFT expressly
disclaims any responsibility for
rnalfunctions, failures, damage or injury caused by use of
non-BEECHCRAFT approved parts.
TABLE OF CONTENTS
SECT!ON 1
General
SECTION 2 . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . Limitations
SECTION 3 . . . . . . . . . . . . . . . . . . . Emergency Procedures
SECTION 4 . . . . . . . . . . . . . . . . . . . . . . Normal Procedures
SECTION 5 ............................. Performance
SECTION 6 ....... Weight and Balance/Equipment List
SECTION 7 . . . . . . . . . . . . . . . . . . . . . Systems Description
SECTION 8 . . .. . Handling, Servicing and Maintenance
SECT!ON 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . Supplements
SECTION 10 . „ ... „. „ ....... „ .• Safety Information
b
Revised: March 1983

BEECHCRAFr
DabonairC33
Bonanza E33 and F33
SECTION 1
GENERAL
TABLE Of CONTENTS
SUBJECT PAGE
lmportant Notice . . . . .. . . . . .. . . .. . . . . . . . . . . .. . .. . 1-3
Use of the Handbook . . .. . . . . . . .. . . . .. . . . . . .. . . . . 1-4
Revising the Handbook . . .. . . . . . .. . . . . ... . . . . . . . . . 1- 7
Airplane Flight Manual Supplements
Revision Record . .. . . . . . . . . . .. . . . .. . .. . . . . . . .. . 1-8
Vendor-lssued STC Supplements . . . . . . . . . . . . . . . . . 1 -8
Airplane Three View . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
Ground Turning Clearance . . . . . . . . . . . . . . . . . . . . . . 1-10
Descriptive Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
Engine ..................................... 1-11
Propeller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
Fuel . . .. . . . . . . .. . . . . . . . . . . . . . . . . . . . .. . . .. . . 1-11
Oil Capacity . „ .. „......................... 1-12
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . 1-1 2
Cabin
And Entry Dimensions ........ , . . . . . . . 1 -1 2
Baggage Space and Entry Dimensions .... , . . 1-12
Specific Loadings . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
General Airspeed Terminology and Symbols . . . .. 1-13
Meteorological Terminology . . . . . . . . . . . . . . . . . . . . . 1-15
Power Terminology ........ : . . . .. . . . . . . . . . . . . . . . 1-16
Engine Controls and Instruments . . . . . . . . . . . . . . . . 1-16
Airpiane Performance and Flight
Planning Terminology . .. . . . . .. . . . .. . . . . . . . . . . 1-17
Weight and Balance Terminology ................ 1-18
August 1982
1-1

Section 1
General
1-2
BEECHCRAFT
Oebonair C33
Bonanza E33 and F33
INTENTIONAll V LEFT BLANK
August 1982

BEECHCRAFT
Debonair CJJ
Bonanza E33 and f33
Sectionl
General

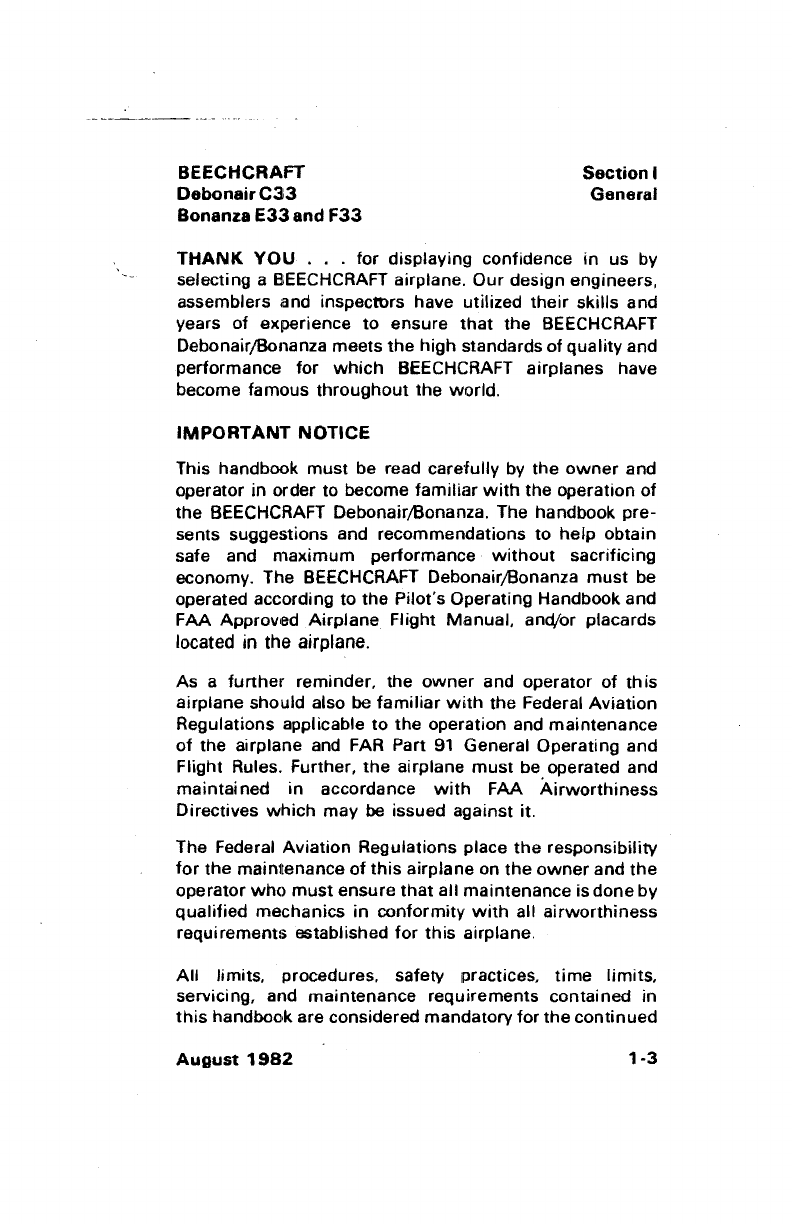

THANK YOU . . . for displaying confidence in us by
selecting a BEECHCRAFT airplane. Our design engineers,
assernblers and inspecttlrs have utilized their skills and
years
of experience to ensure that the BEECHCRAFT
Debonair/Bonanza meets the high standards of quality and
performance
for which BEECHCRAFT airplanes have
become famous
throughout the w1orld.
IMPORTANT NOTICE
This handbook must be read carefolly by the owner and
operator in order to becorne
familiar with the operation of
the BEECHCRAFT Debonair;Bonanza. The handbook pre-
sents suggestions and recornmendations to
help obtain
safe and maximurn perforrnance without sacrificing
econorny. The BEECHCRAFT Debonair;Bonanza rnust be
operated according to the Pilot's Operating Handbook and
FAA Approv1ed Airplane Flight Manual, andjor placards
located in the airplane.
As a further rerninder, the owner and operator of this
airplane should also be farniliar with the Federal Aviation
Regulations applicable to the operation and rnaintenance
of the airplane and FAR Part 91 General Operating and
Flight Rules. Further, the airplane rnust be operated and
maintained in accordance with FAA .Äirworthiness
Directives
which may be issued against it.
The Federal
Aviation Regulations place the responsibility
for the main1tenance of this airplane on the owner and the
operator who must ensure that all maintenance is done by
qualified mechanics in conformity with all airworthiness
requirement:s established for this airplane.
All limits, procedures, safety 1Practices, time limits.
servicing. and maintenance requirements contained in
this handbook are considered mandatory for the continued
August 1982
1-3

Section1
General BEECHCRAFT
Debonair C33
Bonanza E33end F33

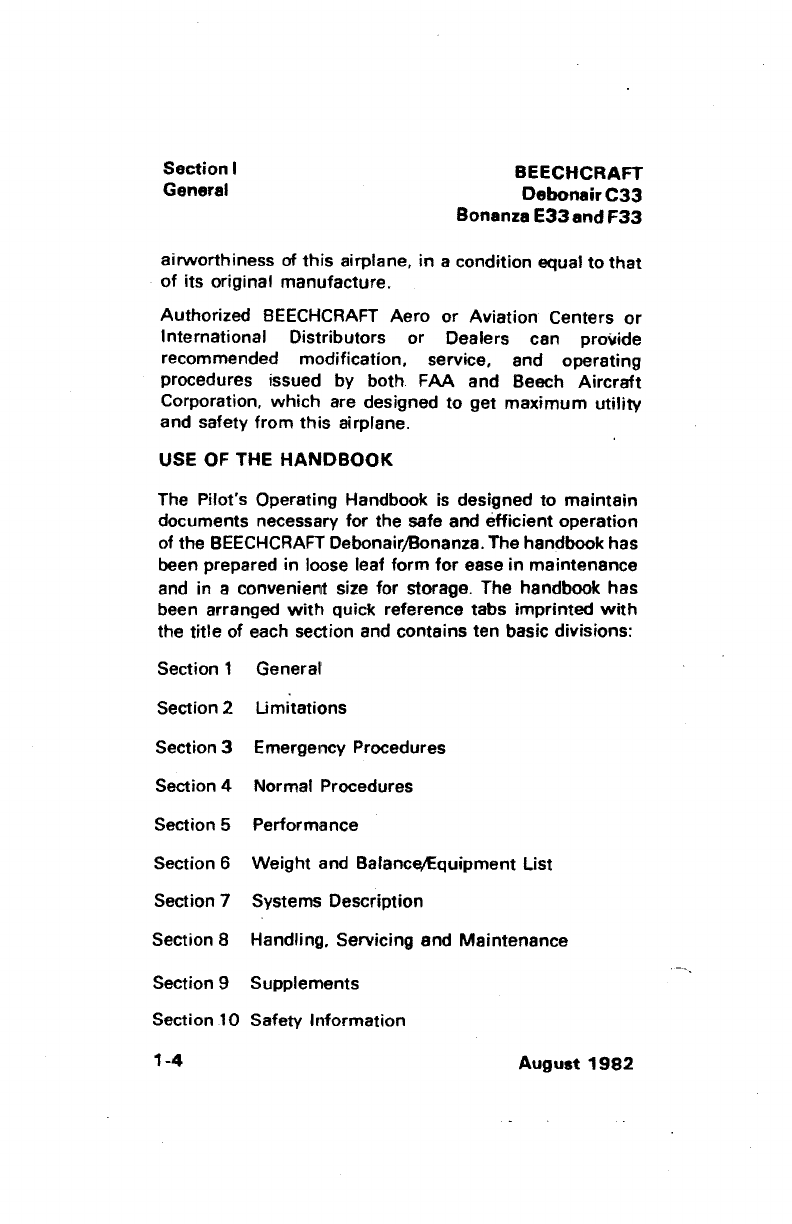

airworthiness of this airplane, in a condition equal to that
of its original manufacture.
Authorized BEECHCRAFT Aero
or Aviation Centers or
International Distributors or Dealers can provide
recommended modification, service, and operating
procedures issued by
both FAA and Beech Aircraft
Corporation. which are designed to get maximum utility
and safety from this airplane.
USE OF THE HANDBOOK
The Pilot's Operating Handbook is designed to maintain
documents necessary for the safe and efficient Operation
of the BEECHCRAFT Debonair/Bonanza. The handbook has
been prepared in loose leaf form for esse
in maintenance
and in a convenient size for storage. The handbook has
been arranged
with quick reference tabs imprinted with
the title of each section and contains ten basic divisions:
Section 1 General
Section 2 Limitations
Section 3 Emergency Procedures
Section 4 Normal Procedures
Section 5 Performance
Section 6 Weight and Balance;Equipment List
Section 7 Systems Oescription
Section 8 Handling, Servicing and Maintenance
Section 9 Supplements
Section
10 Safety Information
1-4
August 1982

~----- -··-····-·-··· -·
BEECHCRAFT
Debonair C33
Bonanza E33and F33
Sectionl
General

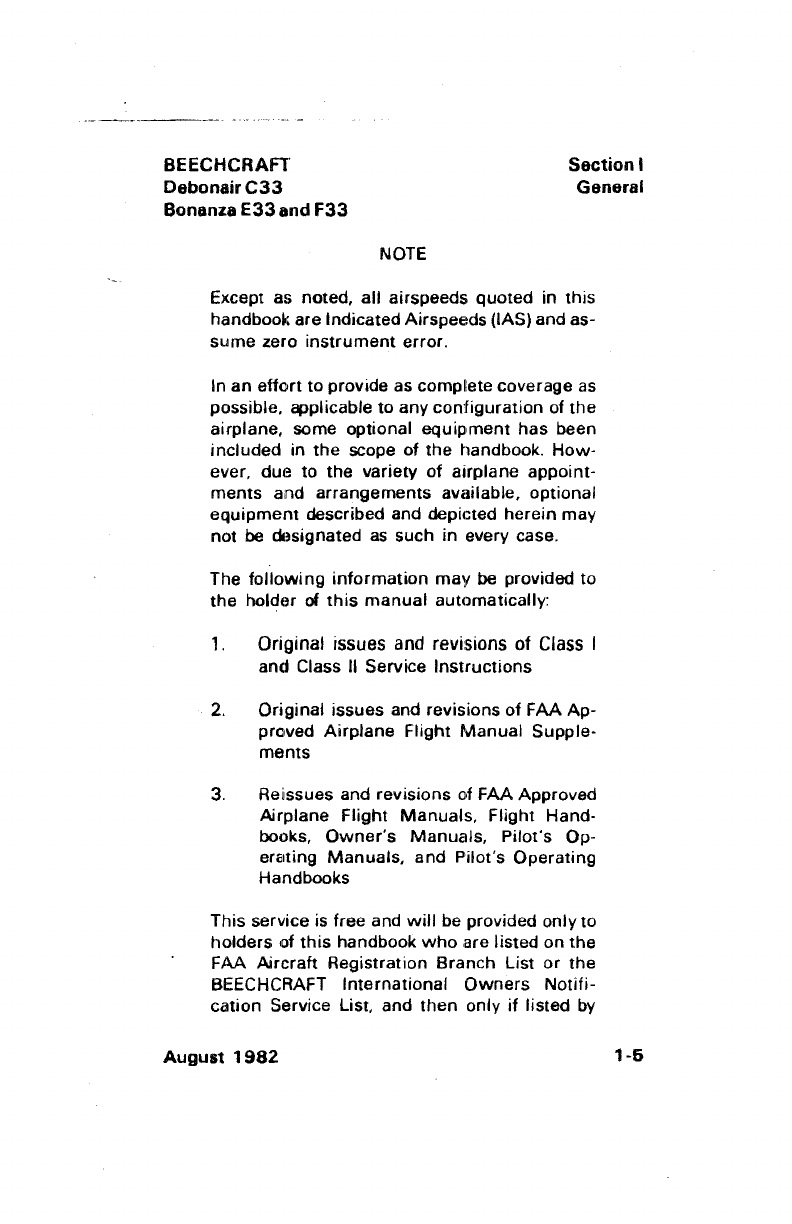

NOTE
Except as noted, all airspeeds quoted in this
handbook are lndicatedAirspeeds (lAS) and as-
sume zero instrument error.
In an effort to provide as complete coverage.as
possible, applicable to any configuration of the
airplane, some optional equipment has been
included in
the scope of the handbook. How-
ever. due to the variety of airplane appoint-
ments and arrangements available, optional
equipment described and depicted herein may
not
be designated as such in every case.
The following information may
be provided to
the holder of this manual automatically:
1. Original issues and revisions of Class 1
and Class II Service lnstructions
2. Original issues and revisions of FAA Ap-
proved Airplane Flight Manual Supple-
ments
3. Reissues and revisions of FAA Approved
Airplane Flight Manuals, Flight Hand-
books, Owner's Manuals, Pilot's Op-
erating Manuals, and Pilot's Operating
Handbooks
This service is free and will be provided only to
holders of this handbook who are listed on the
FAA Aircraft Registration Branch
List or the
BEECHCRAFT International Owners Notifi-
cation Service List. and then only if listed by
August 1982
1-5

Section1
General
BEECHCRAFT
Debonair C33
Bonenze E33 end F33
"1-6
airplane serial number for the model for which
this handbook is applicable. For detailed in-
formation on how to obtain "Revision Service"
applicable to
this handbook or other BEECH-
CRAFT Service Publications, consult a BEECH-
CRAFT Aero or Aviation Center, International
Distributor or Dealer. or refer to the latest
revision of BEECHCRAFT Service lnstructions
No. 0250-010.
BEECH AIRCRAFT CORPORATION EX-
PRESSLY RESERVES THE RIGHT TO SUPER-
SEDE. CANGEL. AND/OR DECLARE OB-
SOLETE, WITHOUT PRIOR NOTICE. ANY PART.
PART NUMBER, KIT OR PUBUCATION REF-
ERENCED IN THIS HANDBOOK.
The owner/operator should always refer to all
supplements, whether STC Supplements or
Beech Suppl•~ments, for possible placards,
limitations, ncirmal, emergency and other op-
erational procedures for proper operation of
the airplane with optional equipment installed.
August "1982

BEECHCRAFT
Debonair C33
Bonanza E33 and f33
Section 1
General

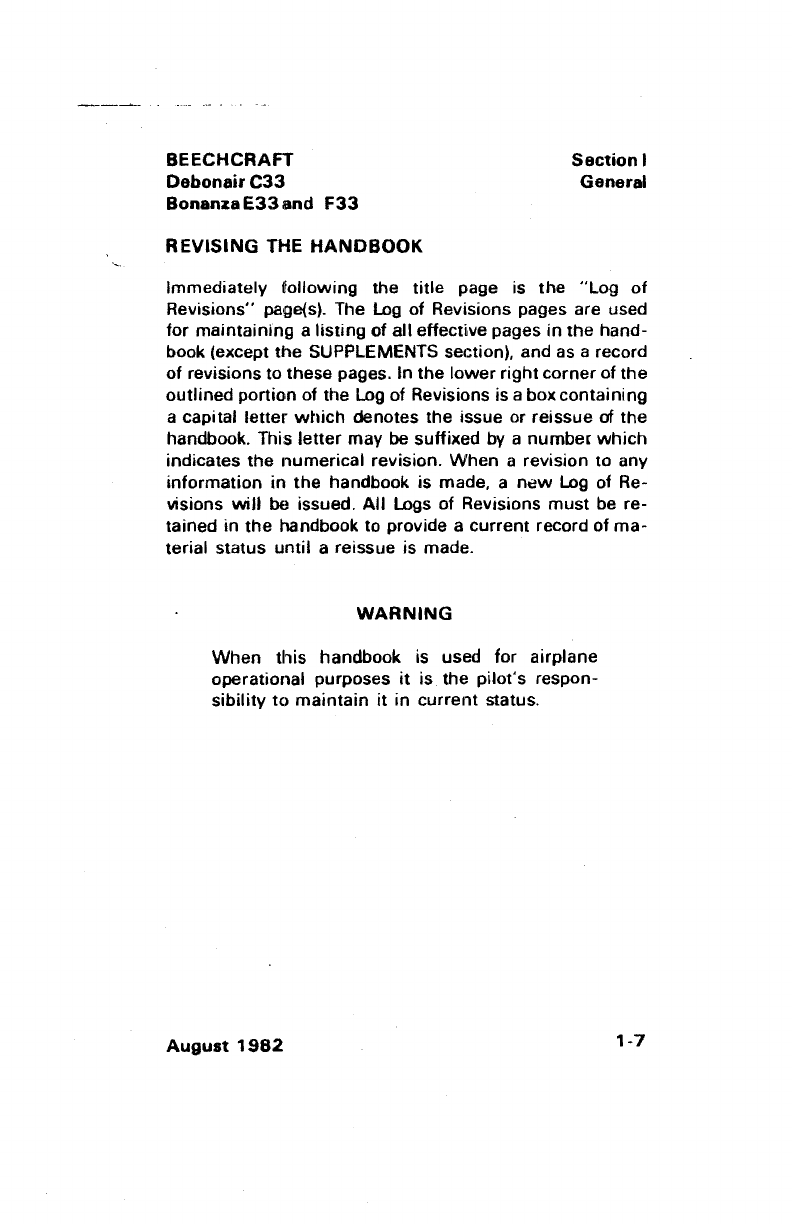

REVISING THE HANDBOOK
lmmediately following the title page is the "Log of
Revisions" page(s). The Log of Revisions pages are used
for maintaining a
listing of all effectnve pages in the hand-
book (except
the SUPPLEMENTS section), and as a record
of revisions to these pages. In
the lower right corner of the
outlined portion of the Log of Revisions is abox containing
a capital letter
which denotes the issue or reissue of the
handbook. This
letter may be suffixed by a numbec which
indicates the numerical revision. When a revision to any
information in the handbook is made. a new Log of Re-
visions will be issued. All Logs of Revisions must be re-
tained in
the handbook to provide a current record of ma-
terial status until a reissue is made.
WARNING
When this handbook is used for airplane
operational purposes it is the pilot's respon-
sibility tc> maintain it in current status.
August 1982
1-7

Section 1
General BEECHCRAFT
Debonalr C33
Bonanza E33 and F33
AIRPLANE FllGHT MANUAL
SUPPLEMENTS REVISION RECORO
Section IX contains the FAA Approved Airplane Flight
Manual Supplements headed by a Log of Supplements
page. On the "Log" page is a listing of the FAA Approved
Supplemental Equiprnent available for installation on the
airplane. When new supplements are received or existing
supplements are revised, a new "Log"' page will replace
the previous one, since it contains a listing of all previous
approvals, plus the new approval. The supplemental
material will be added to the grouping in accordance with
the descriptive listing.
NOTE
Upon receipt of a new or revised Supplement,
compare the "Log" page just received with the
existing "Log" page in the manual. Retain the
"Log" page with the latest date on the bottom
of the page and discard the other log.
VENDOR-ISSUED STC SUPPLEMENTS
When a new airplane is delivered from the factory, the
handbook delivered with it contains either an STC
(Supplemental Type Certificate)
Supplement or a Beech
Flight Manual Supplement for every installed item
requiring a supplement. lf a new handbook for operation of
the airpfane is obtained at a later date. it is the responsi-
bility of the owner/operator to ensure that all required STC
Supplements (as weil as weight and balance and other
pertinent data) are transferred into the new handbook.
1-8
August 1982

BEECHCRAFT
Debonair C33
Bonanza E33 and F33
WING AREA
177.6 sq ft. \
Section 1
General
\~·-------
-~--.:::.i:==---- - - -- --:~r---=--
F--- J 0 1_ '-------~,
1
I r' 1\
\i - -- -"1 -jlt--- ·j
--- ---3~~··---- ______ J
:----------- 26'8" ------ ---~
i-- -+t~_ ---:-_„,r=)"~- -4_/;/''j"Ll
, ~-- __ :f'CLJ ____ .OD __ __ s'J"
6'6" ~ :r_~- ~" - ------ - '
_L_I , -~-- r- l
_J t -„ -- - - - --- - - - -- - - --- - - - -
7.5" min.
- 84" DIAMETER
August 1982
1-9

Section 1
General BEECHCRAFT
Debonair C33
Bonanza E33 and F33
GROUNID TURNING ClEARANCE
@ Radius for Wing Tip ................. .
26 ft. 4 in.
12 ft. 2 in.
5 ft. 1 in.
14 ft. 8 in.
1
Radius for Nose Wheel .............. .
Radius for Inside Gear "· ............. .
Radius for Outside Gear
............. .
TURNING RADI! Af~E CALCULATED USING FULL STEER-
ING, ONE BRAKE AND PARTIAL POWER.
1-10
August 1982

BEECHCRAFT
Debonair
C33
Bonanza E33and F33
Section1
General

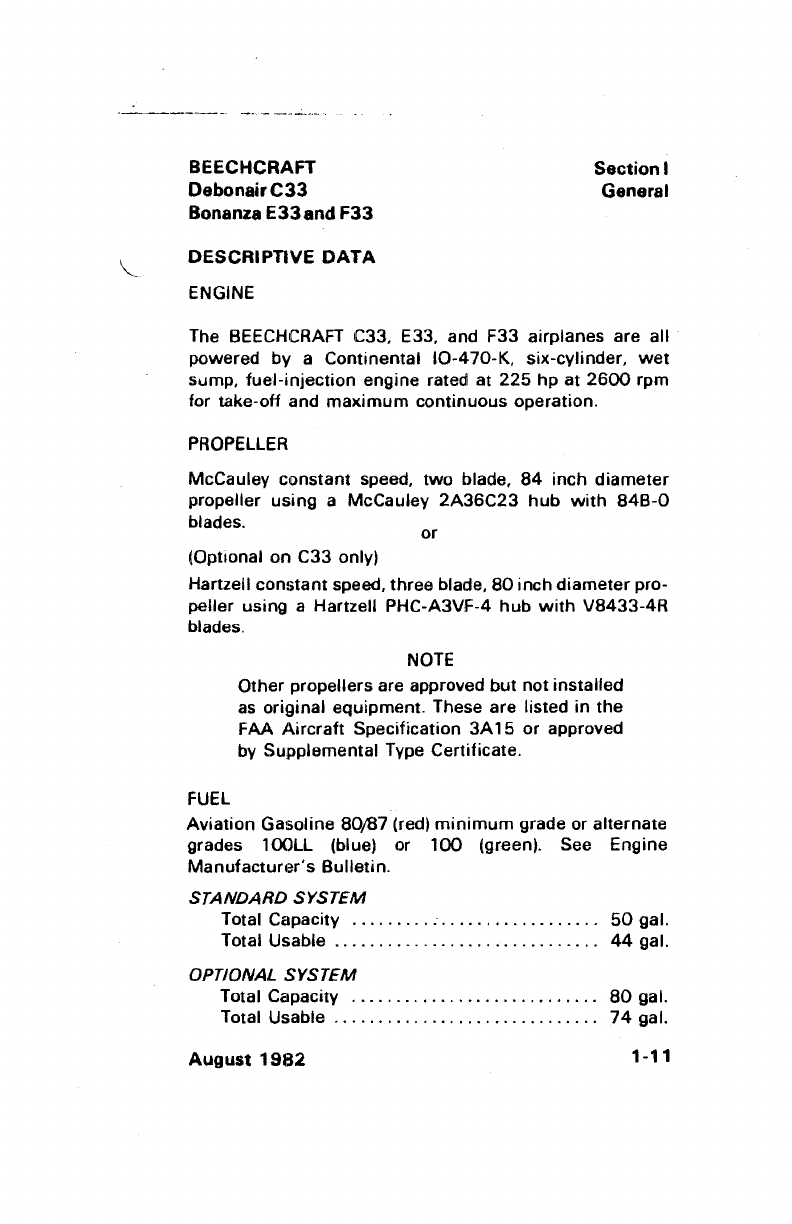

OESCRIPTIVE DATA
ENGINE
The BEECHCRAFT C33, E33, and F33 airplanes are all
powered by a Continental 10-470-K, six-cylinder, wet
sump, fuel-injection engine ratedl at 225 hp at 2600 rpm
for take-off and maximum continuous operation.
PROPELLER
McCauley constant speed, two blade, 84 inch diameter
propeller using a McCauley 2A36C23 hub with 848-0
blades.
or
(Optional on C33 only)
Hartzell
constant speed, three blade, 80 inch diameter pro-
peller using a Hartzell PHC-A3VF-4 hub with V8433-4R
blades.
FUEI..
NOTE
Other propellers are approved but not installed
as original equipment. These are listed in the
FAA Aircraft Specification 3A 15 or approved
by Supplemental Type Certificate.
Aviation Gasoline 80/87 (red) minimum grade or alternate
grades
100LL (blue) or 100 (green}. See Engine
Manufacturi1:1r's Bulletin.
STANDARD SYSTEM
Total Capacity . . .. . . . . . . . . . . . . . . . . .. . . . .. . 50 gal.
Total Usable
.............................. 44 gal.
OPTIONAL SYSTEM
Total Capacity ............................ 80 gal.
Total Usable
.............................. 74 gal.
August 1982
1-11

Sectionl
General
Oll CAPACITY
The oil capacity is 10 quarts.
WEIGHTS
BEECHCRAFT
DebonairC33
Bonanza E33 and F33
Maximum Ramp Weight . . . . .. . . .. . . . . .. . . . . 3060 lbs
Maximum Take-Off Weight . . . .. . . .. .. . . .. . .
3050 lbs
Maximum Landing Weight .................. 3050 lbs
Maximum Zero Fuel Weight . . . . . . No Structural Limit
Maximum Weight in
Baggage Cornpartment . . . . .. . . . . .. . . .. . . . 270 lbs.
CABIN AND
ENTRY DIMENSl.ONS
Length ................................... 6 ft 11 in.
Height . . . . .. . .. . . . . .. . . . .. . . .. . .. . . .. . .. . . . 4
ft 2 in.
Width . . . . .. .. . . . . .. . . .. . . . . .. . . . .. . . . . . . .. 3 ft 6 in.
Cabin Door ................ 37 in. wide by 36 in. high
BAGGAGE SPACE AND ENTRY DIMENSIONS
Cornpartment Volume . . . . .. . . .. . . .. . . . . . .. 16.5 cu ft
With Utility Shelf . . . . . .. . . . . . .. . . . . .. . . . . . . 22.4 cu ft
Door Width (Minimum) .........•............ 18.5 in.
Door Height (Minimum) . . . . .. . . . . . . . . . . . . . . . . 22.5 in.
SPECIFIC LOADINGS (Maximum Take-Off Weight)
Wing Loading .......................... 17.2 lbsßq ft
Power Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . 13.5 lbs;hp
1-12
August 1982
