Regalo Home Accents 0310 User manual

Home Accents
Extra Wide Walk Thru Gate
MODEL NO: 0310
Owner’s Manual
READ ALL INSTRUCTIONS BEFORE ASSEMBLY
AND USE OF GATE.
KEEP INSTRUCTIONS FOR FUTURE USE.
Regalo International, LLC.
3200 Corporate Center Drive, Suite 100
Burnsville, MN 55306-9803, USA
Toll Free: 866-272-5274
Made in China
...........................................................................
www.regalo-baby.com
01/06/2014_EV

Contact Regalo for questions and replacement parts.
For questions about the use of your gate, call our customer care line 866-272-5274
Regalo International, LLC.
3200 Corporate Center Drive, Suite 100
Burnsville, MN 55306-9803, USA
Made in China
Intended for young children aged 6 months through 24 months.
Check the gate regularly to see if all the hardware and mountings
are tightened.
To prevent serious injury or death, securely install gate or
enclosure and use according to manufacturer’s instructions.
Never use with a child able to climb over or dislodge the gate or
enclosure.
Never leave child unattended.
Use only with the locking/latching mechanism securely engaged.
Assembly and Installation Instructions
Read and follow all instructions carefully to ensure that your gate and extensions are
properly installed. Improper installation could result in the gate becoming unstable or
dislodged from the doorway. Always make sure the extension is securely attached to the
gate before using. The safety of your child is your responsibility. Please keep these
instructions for your reference.
NOTE:
Never use more than two extensions per gate.
It is preferable to install the extension on the hinge side of the gate. If you have an
application that requires additional extensions, please contact the manufacturer.
If hardware mounting to a surface other than drywall or wood, please consult with a
professional about installation.
If using this gate at the top of stairs, the four Wall Cups MUST be used. If not used, the
gate may be dislodged from the opening.
•
•
•
•

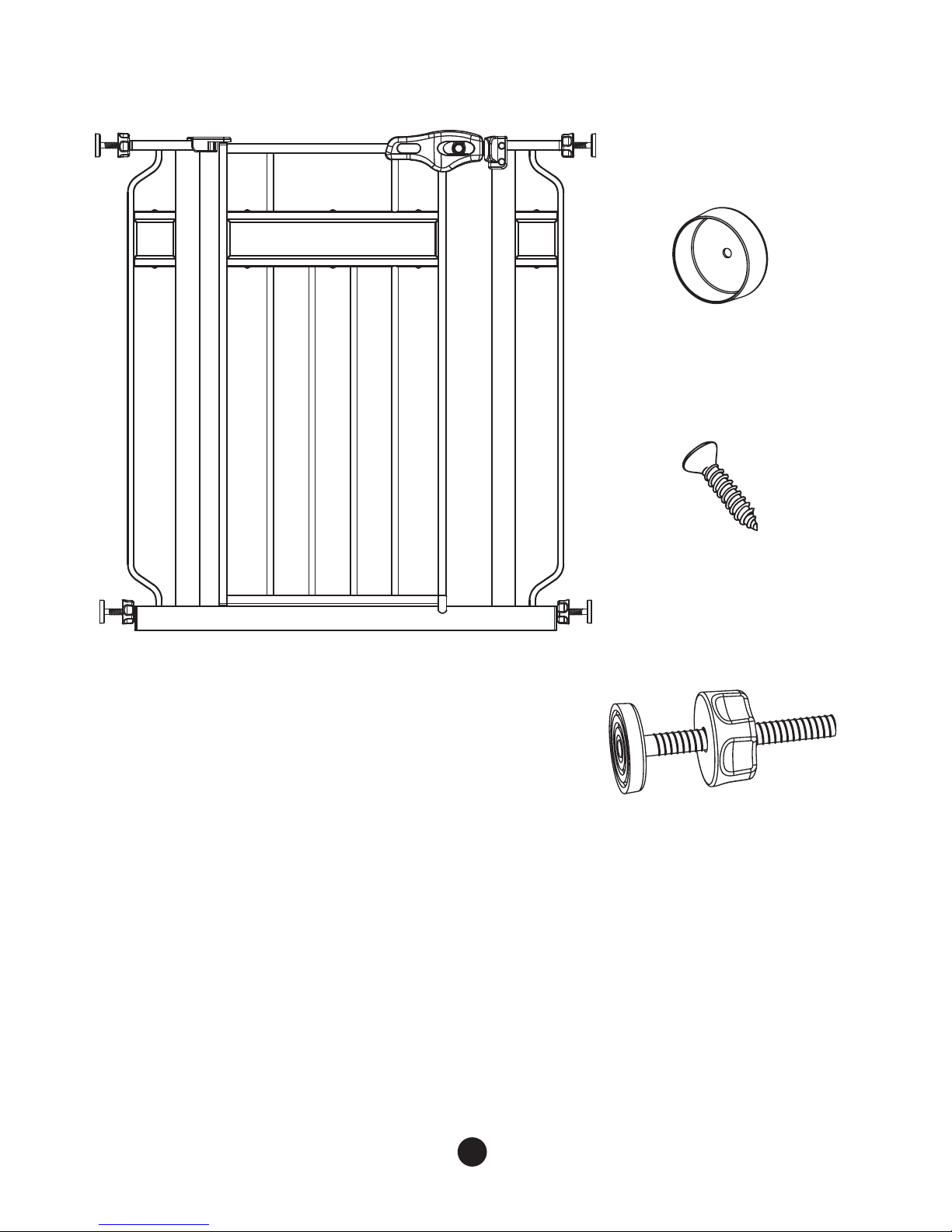

Check to make sure you have all of the parts shown:
A. Gate Frame
B. 4 Wall Cups
C. 4 Screws (requires a Phillips/crosshead screwdriver)
D. 4 Threaded Spindle Rods
C.
B.
A.
D.
1

NOTE: When installing any gate at its maximum width use Wall
Mounting Cups to ensure stability and safety.
2

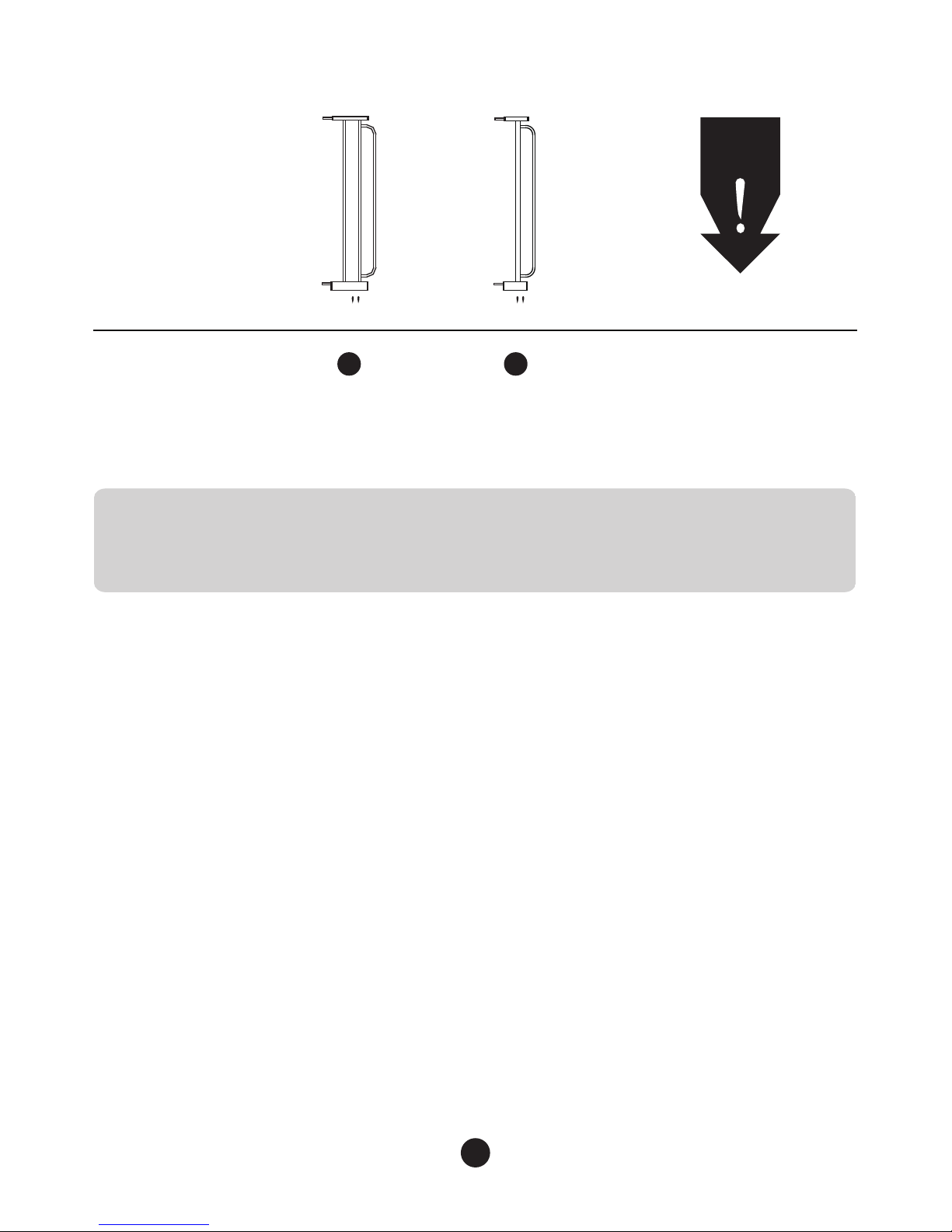

Extensions List
0310
29--44 inches
Item NO. MAX Size
NOTE
64

Assembling andInstalling Your Gate
Step 1.
Step 2.
**Note: IMPORTANT!! You will notice a slight gap between the gate door latch and the
frame. THIS IS NOT A DEFECT. Your gate is a pressure mounted gate and this gap will
disappear once you tighten your gate in its opening.
3

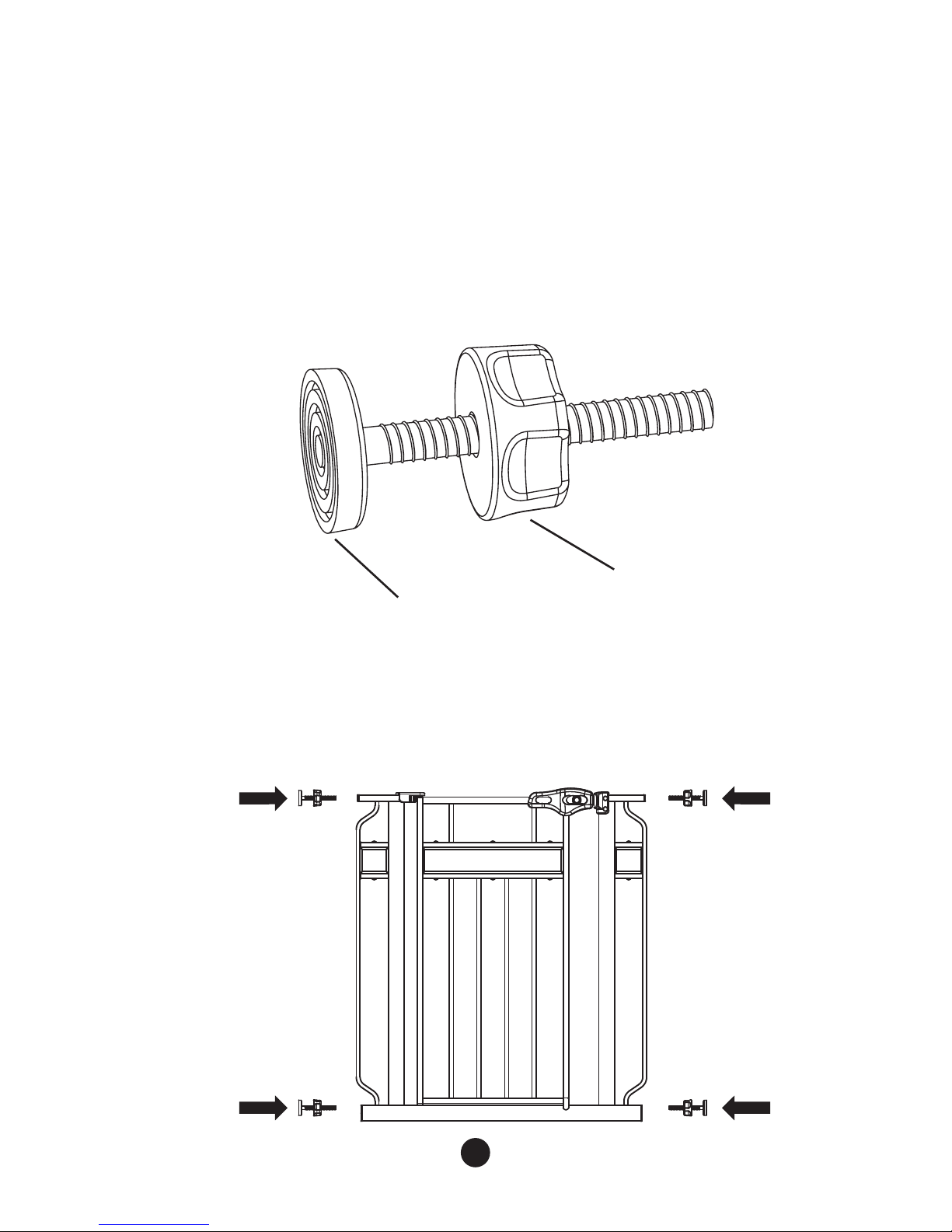

Locate the 4 threaded spindle rods. Rotate the adjustment wheels along the threading,
eliminating the gap between the adjustment wheel and the rubber foot.
Insert the 4 threaded spindle rods into the holes at each of the 4 corners of the gate as
shown in the Diagram A
Rubber Foot
Adjustment Wheel
Threaded Spindle Rod
Diagram A
Diagram B

Step 3.
4
Diagram C1
Diagram C2

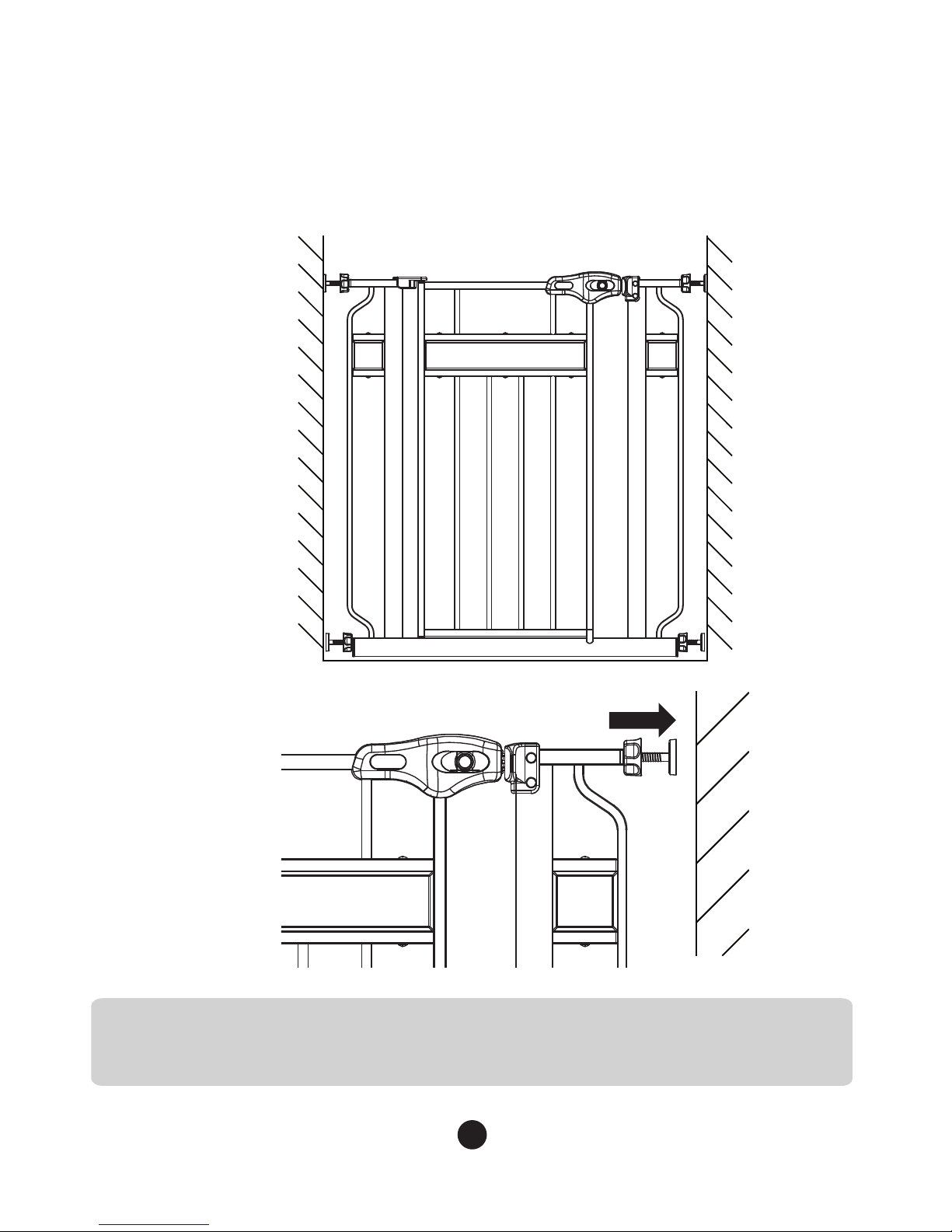

Position the gate so that it is level and centered within your doorway or opening. Rotate
the adjustment wheels on the threaded spindle rods in the opposite direction at in Step
1, expanding the gap between the rubber foot and the adjustment wheel. Expand each
of the 4 Threaded Spindle Rods until they make contact with the doorway or opening.
Do not fully tighten the Threaded Spindle Rods yet.
HINT:
It may be necessary to hold the Threaded Spindle Rods or Rubber
Feet while rotating the Adjustment Wheels to ensure the entire
unit does not rotate.

Step4.
5
NOTE:
There should be equal spacing among each of the 4 Threaded
Spindle Rods. Make the appropriate adjustment to ensure you
have installed your gate safely.
When you are satisfied with the general placement of your gate, fully tighten
the Threaded Spindle Rods attached to the lower corners of the gate by further
rotating the Adjustment Wheels.
Continue by tightening the upper Threaded Spindle Rods. As you tighten the
upper Threaded Spindle Rods, you will notice the gap between the Door Frame
and the Easy Slide Latch begin to narrow.
In order for the gate to function properly, stop tightening the upper Threaded
Spindle Rods just before the Outer Housing of the Easy slide Latch and the
Receiving Component touch.
Outer Housing Receiving Component
Easy Slide Latch
Diagram D

Positioning and Attaching the Wall Cups
Your gate is a pressure mounted gate. Therefore, it is not necessary to use the screw
attached Wall Cups in your door opening if you choose not to. However, IF YOUARE
USING THE GATE AT THE TOP OF STAIRS YOU MUST USE THE WALL CUPS. Using the Wall
Cups will affix your gate more firmly in the doorway or opening.
Step1.
6
Diagram E

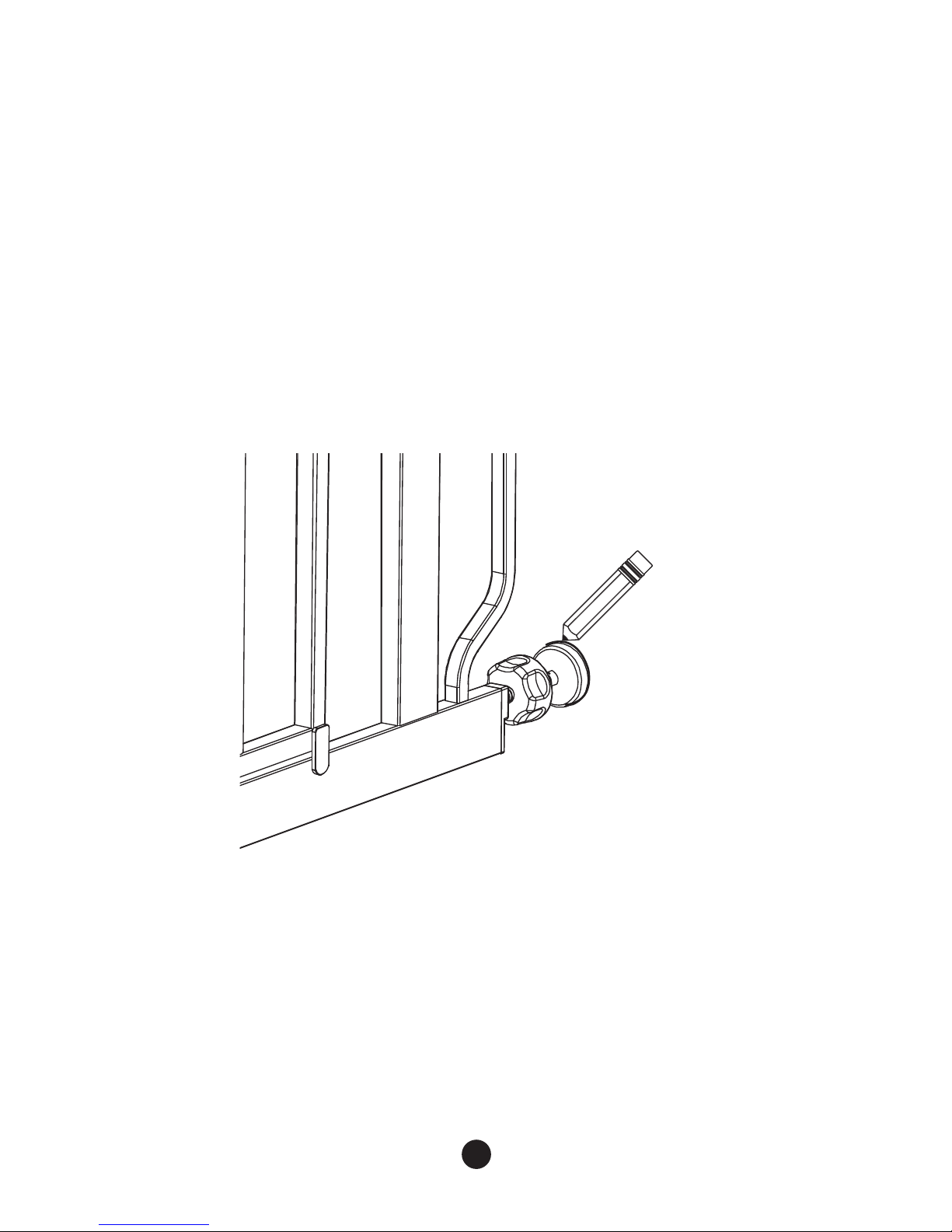

After you have mounted your gate, and you are satisfied with its positioning, use a
pencil or other marking tool to draw a circle on the surface of your doorway or
opening around the perimeter of the 4 rubber feet.
Next, completely remove the gate from the opening by loosening each of the 4
Threaded Spindle Rods and de-pressurizing the gate.
Step2.

7
Step3.
With the gate fully removed, you can now use the circles you marked during Step 1
as guides for screwing in your 4 Wall Cups.
Center each of the Wall Cups within the guide circles and use the provided
self-tapping screws to fasten them in place via the hole through the center of each
Wall Cup.
Step4.
Reinstall your gate in the doorway or opening according to the instructions, using
the newly installed Wall Cups as anchoring points for the 4 Threaded Spindle Rods
Diagram F
Diagram G

Operating the Door Latch
8
HINT:
If your Easy Slide Latch is not properly engaging with the
receiving component, ensure that your gate is level, mounted
properly, and that you have not over-tightened the threaded
Spindle Rods.
Step1.
Squeeze one or both of the Circular Buttons on the Easy Slide Latch while
simultaneously pulling back on one or both of the Locking Slides. These two actions
combined will disengage the lock and allow the gate to open freely.
Step2.
Push or pull to door open. To close, simply push or pull the door back into its original
position. The Easy Slide Latch will re-engage automatically and lock the door into its
closed position.
Diagram H
Easy Slide Latch
Locking Slide
Circular Button

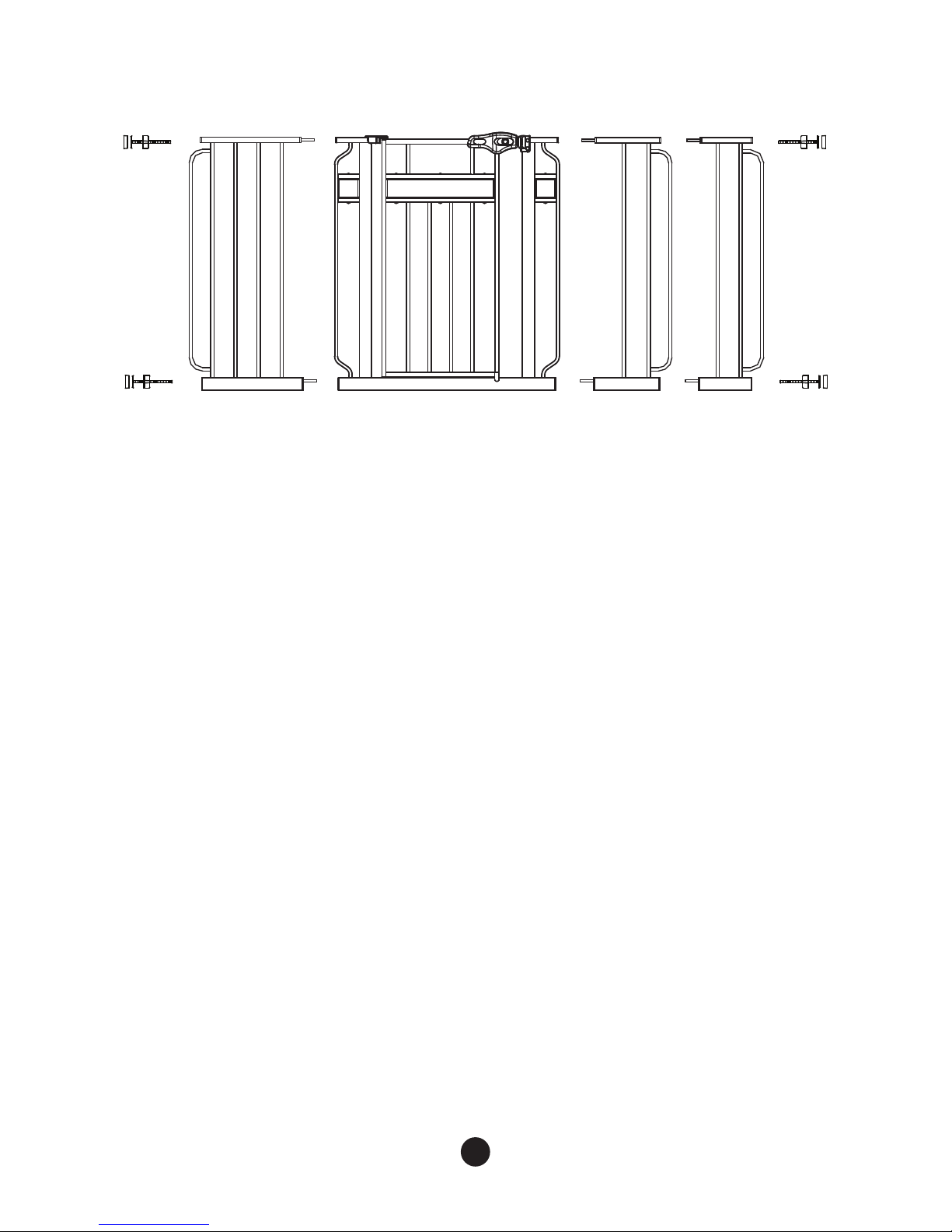

Adding a Gate Extension
Removing Your Gate From The Wall
Care And Maintenance
Step 1. Assemble the gate per the gate instructions.
Step 2. Choose the side of the gate to be extended and remove the top and
bottom Threaded Spindle Rods.
Step 3. Assemble the gate and extension as illustrated.
Step 4. Reposition the gate and fit in accordance with the gate fitting
instructions.
9
90 Days Limited Warranty:
To remove your gate from the wall, rotate the Adjustment Wheels on each of
the 4 Threaded Spindle Rods to depressurize the gate from its doorway or
opening. Then, gently pull or push the gate free from its doorway or opening.
Periodically check the gate for signs of damage, wear, or missing components.
Do not use if any part is missing, worn or damaged.
Check the gate regularly to ensure all the hardware and mountings are
tightened.
Do not use abrasive cleaners or bleach.
Clean by sponging with warm water and a mild detergent.
If, during the first 90 days after consumer purchase of the item, under reasonable
and non-commercial use and conditions of maintenance, it fails while owned by
the original purchaser because of the quality of materials or workmanship of
finish and assembly, Regalo International LLC will replace or repair it at Regalo’s
option. PROOF OF PURCHASE REQUIRED.

Replacement Parts Available
10
In the event of any damage or breakage, the following replacement parts
are available for order by contacting Regalo Customer Service.
Wall Cups
(#11015)
1” Wall Mount
Screws
(#10001)
Threaded Spindle Rods
with Adjustment Wheel
(#11016)
Easy Slide Latch
with all Internal Components
(#11017)
Bottom Plug Insert
(#11044)
Top Plug Insert
(#11020)

01/06/2014_EV
Regalo International, LLC.
3200 Corporate Center Drive, Suite 100
Burnsville, MN 55306-9803, USA
Toll Free: 866-272-5274
Made in China
