Regency Fireplace Products PG33-NG Quick start guide

Models:
PG33-NG
PG33-LPG
Owners &
Installation
PLEASE KEEP THESE INSTRUCTIONS
FOR FUTURE REFERENCE
Manual
01/09/14
LISTINGS AND CODE APPROVALS
Thesegasapplianceshavebeentested
in accordance withAS4533-2000, NZS
5262 and have been certified by the
Australian Gas Association for installa-
tionandoperationasdescribedinthese
Installation and Operating Instructions.
Your unit should be serviced annu-
allyby anauthorised service person.
918-649b
WARNING:
Improper installation, adjustment, altera-
tion, service or maintenance can cause
injury or property damage. Refer to this
manual. For assistance or additional in-
formation consult an authorised installer,
service agency or the gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or other flam-
mable vapours and liquids in the vicinity of
this or any other appliance.
Installation and service must be performed
byan authorisedinstaller,serviceagencyor
the gas supplier.
PG33 Gas Inbuilt
FOR YOUR SAFETY
What to do if you smell gas:
Donot tryto lightany appli-
ance
Do not touch any electri-
cal switch: do not use any
phone in your building.
Immediately call your gas
supplierfromaneighbour's
phone. Follow the gas sup-
plier's instructions.
If you cannot reach your
gas supplier, call the fire
department.

TO THE NEW OWNER:
Congratulations!
You are the ownerofastate-of-the-artGasStove by FPIFIREPLACE PRODUCTS INTERNATIONAL. The
PG33 has been designed to provide you with all the warmth and charm of a wood fireplace. The model
PG33 has been approved by theAustralian GasAssociation for both safety and efficiency. As it also bears
our own mark, it promises to provide you with economy, comfort and security for many trouble free years
to follow. Please take a moment now to acquaint yourself with these instructions and the many features of
your Regency Fireplace.

Regency PG33 Gas Inbuilt 33
TABLE OF CONTENTS
SAFETY LABEL
Safety Label................................................................ 4
INSTALLATION
Important Message..................................................... 5
Before You Start ......................................................... 5
General Safety Information......................................... 5
Manufactured Home Additional Requirements........... 5
Installation Checklist................................................... 6
Unit Dimensions ......................................................... 6
Locating Your Gas Stove............................................ 6
Clearances ................................................................. 7

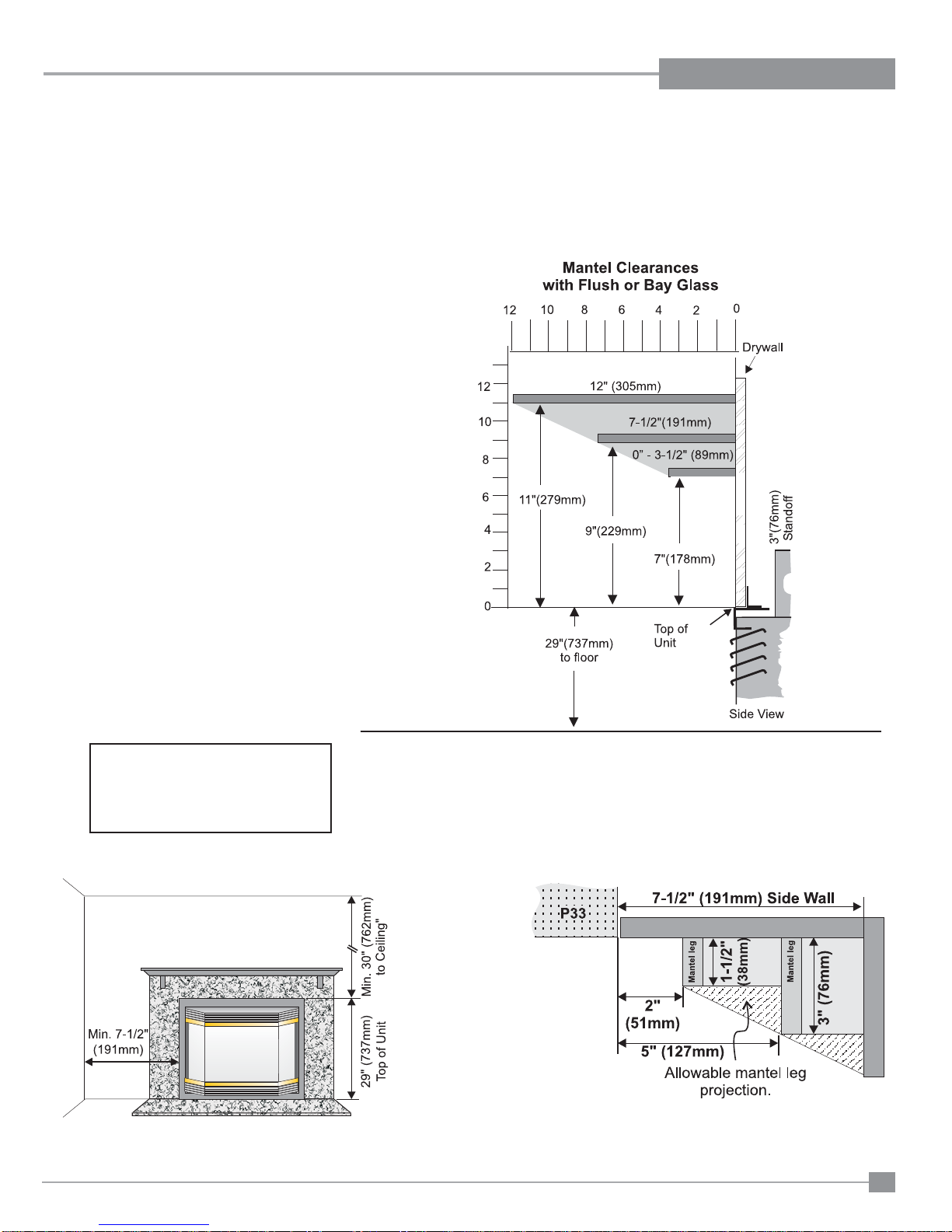

Combustible Mantel Clearances................................. 7
Mantel Leg Clearances............................................... 7
Framing and Finishing................................................ 8
Unit Assembly Prior to Installation.............................. 9
Flueing Introduction.................................................... 9
Exterior Flue Termination Locations......................... 10
Flueing - Regency Direct Flue System (Flex)
Horizontal Terminations only .....................................11
Flueing - Installation of Regency Direct Flue
System (Flex)..................................................... 12
Flueing - Simpson Dura-Flue System....................... 13
Flueing - Vertical Terminations ................................. 14
Flueing - Horizontal Terminations (NG & LPG) ........ 16
Flueing - Horizontal Terminations (ULPG) ............... 17
Flueing - Horizontal Installations .............................. 21
Flueing - Vertical Termination................................... 22
System Data............................................................. 23
Gas Connection........................................................ 23
Gas Pipe Pressure Test............................................ 23
SIT Valve Description ............................................... 23
Aeration Adjustment ................................................. 23
Conversion to LPG................................................... 24
Optional Brick Panels............................................... 27
Log Installation ......................................................... 27
Flush Door - Standard.............................................. 29
Flush Trim (optional)................................................. 29
Louvers - Flush ........................................................ 30
Wiring Diagram......................................................... 32
OPERATING INSTRUCTIONS
Lighting Plate Instructions ........................................ 30
Remote Control ........................................................ 31
Operating Instructions .............................................. 31
Lighting Procedure ................................................... 31
Resetting the Unit..................................................... 31
Shutdown Procedure................................................ 31
First Fire ................................................................... 31
Fan Operation........................................................... 31
Flame Height............................................................ 31
Summary of Controls................................................ 31
Pilot Adjustment........................................................ 31
Normal Operating Sounds........................................ 31
MAINTENANCE
Maintenance Instructions ......................................... 33
Gold-Plated or Brass Louvers .................................. 33
Gold Plated or Brass Trim........................................ 33
Log Replacement ..................................................... 33
Glass Gasket............................................................ 34
Door Glass................................................................ 34
Fan Replacement..................................................... 34
Removing Valve Tray................................................ 36
PARTS LIST
Electronic Components List...................................... 37
Replacement/Spare Parts List.................................. 38
WARRANTY
Warranty................................................................... 43

4Regency PG33 Gas Inbuilt
SAFETY LABEL
This is a copy of the label that accompanies each PG33 Gas Fireplace. We have printed a copy of the contents here for your review.
DATA BADGE NOTE: Regency units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is
the correct one.
DO NO T
DO NO T
DO NO T
DO NO T
DO NO T
DO NO T
OPERATE THIS APPLIANCE BEFORE READING THE
INSTRUCTIONS BOOKLET.
PLACE ARTICLES ON OR AGAINST THIS APPLIANCE
STORE CHEMICALS OR FLAMMABLE MATERIALS
SPRAY AEROSOLS IN THE VICINITY OF THIS
APPLIANCE WHILE IN OPERATION.
OPERATE WITH PANELS, COVERS OR GUARDS
REMOVED FROM THIS APPLIANCE.
ENCLOSE THIS APPLIANCE.
MODIFY THIS APPLIANCE.
NEAR THIS APPLIANCE.
DO NO T
908-602a
(Australia Only)

Regency PG33 Gas Inbuilt 5
INSTALLATION
IMPORTANT:
SAVE THESE
INSTRUCTIONS
TheP33-NGorP33-LPGDirectFlueFireplacemust
be installed in accordance with these instructions.
Carefully read all the instructions in this manual
first. Consult the "authority having jurisdiction" to
determinetheneedforapermitpriortostartingthe
installation. It is the responsibility of the installer
to ensure this fireplace is installed in compliance
with manufacturer's instructions and all applicable
codes.
BEFORE YOU START
Safe installation and operation of this appliance
requirescommonsense,however,wearerequired
bytheCanadianSafetyStandardsandANSIStand-
ards to make you aware of the following:
MANUFACTURED
MOBILE HOME
ADDITIONAL
REQUIREMENTS
1) Ensure that structural members are not cut or
weakened during installation.
2) Ensure proper grounding using the #8 ground
lug provided. See page 35.
GENERAL SAFETY IN-
FORMATION
1) The appliance shall be installed in accord-
ance with the manufacturer's installation
instructions,local gas fitting regulations, mu-
nicipalbuildingcodes,watersupplyregulations,
electricalwiringregulations,withAS5601-2004
(AGA gas installation code) NZS 5261 (New
Zealand)
2) InstallationandrepairshouldbedoneONLY
by an authorised person.
3) THIS APPLIANCE IS NOT INTENDED AS A
FIREPLACEINSERT.DONOTCONNECTTO
MASONARY FLUE.
4) This appliance must be connected to the
specified flue and termination cap to the
outsideofthebuilding envelope. Neverflue
to another room or inside a building. Make
sure that the flue is fitted as per Flueing
instructions.
5) Inspecttheflueingsystemannuallyforblockage
and any signs of deterioration.
6) Flueing terminals shall not be recessed into a
wall or siding.
7) Any safety glass removed for servicing must
be replaced prior to operating the appliance.
8) To prevent injury, do not allow anyone who is
unfamiliarwiththeoperationtousethefireplace.
9) Wear gloves and safety glasses for protection
while doing required maintenance.
10) Be aware of electrical wiring locations in walls
andceilingswhencuttingholesfortermination.
11) Under no circumstances should this appliance
be modified. Parts that have to be removed for
servicingshouldbereplacedprior to operating
this appliance.
12) Installation and any repairs to this appliance
should be done by an authorised service per-
son. An authorised service person should be
calledtoinspectthisappliance annually. Make
it a practice to have all of your gas appliances
checked annually.
13) Do not slam shut or strike the glass door.
14) Underno circumstancesshould anysolid fuels
(wood,paper,cardboard, coal,etc.)beused in
this appliance.
15) The appliance area must be kept clear and
freeofcombustiblematerials,(gasesandother
flammable vapours and liquids).
CLOTHING OR OTHER FLAMMABLE
MATERIAL SHOULD NOT BE PLACED
ON OR NEAR THE APPLIANCE.
CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURES, ESPE-
CIALLY THE FIREPLACE GLASS, AND
SHOULD STAY AWAYTO AVOID BURNS
OR CLOTHING IGNITION.
INSTALLATION AND REPAIR SHOULD
BE DONE BY AN AUTHORIZED
SERVICE PERSON. THE APPLIANCE
SHOULD BE INSPECTED BEFORE
USE AND AT LEAST ANNUALLY BY A
PROFESSIONAL SERVICE PERSON.
MORE FREQUENT CLEANING MAY
BE REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING, BEDDING
MATERIAL,ETC.IT IS IMPERATIVETHAT
CONTROL COMPARTMENTS,BURNERS
AND CIRCULATING AIR PASSAGEWAYS
OF THE APPLIANCE BE KEPT CLEAN.
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED
OUT OF TRAFFIC AND AWAY FROM
FURNITURE AND DRAPERIES.
WARNING: FAILURE TO INSTALL THIS
APPLIANCE CORRECTLY WILL VOID
YOUR WARRANTY AND MAY CAUSE A
SERIOUS HOUSE FIRE.
YOUNG CHILDREN SHOULD BE CARE-
FULLY SUPERVISED WHEN THEY ARE
IN THE SAME AREA AS THE APPLI-
ANCE. TODDLERS,YOUNG CHILDREN
AND OTHERS MAY BE SUSCEPTIBLE
TO ACCIDENTAL CONTACT BURNS. A
PHYSICAL BARRIERS IS RECOMMEND-
ED IF THERE ARE AT RISK INDIVIDUAL
INTHE HOUSE. TO RESTRICT ACCESS
TO A FIREPLACE OR STOVE, INSTALL
AN ADJUSTABLE SAFETY GATE TO
KEEP TODDLERS, YOUNG CHILDREN
AND OTHER AT RISK INDIVIDUALS OUT
OF THE ROOM AND AWAY FROM HOT
SURFACES.

6Regency PG33 Gas Inbuilt
INSTALLATION
INSTALLATION
CHECKLIST
1) Locate appliance
a) Room location, page 6
b) Clearances to Combustibles, page 7
c) Mantle Clearances, page 7
d) Framing & Finishing Requirements,
page 8
e) Flueing Requirements, pages 10 to 15.
2) Assemble Top Facing Support and Side
NailingStrips,page9.(NOTE:mustbedone
before installing unit into fireplace.)
3) Install flue, pages 10 to 25.
4) Make gas and electrical connections. Test
the pilot. Must be as per diagram. Page 26.
Convert to LPG if desired, page 27.
5) Install brick panels (optional), page 33.
6) Installlogsandembersandrockwoolwhere
indicated on page 33.
7) Install Flush Door Front (Standard) and
optional Flush Gold Trim, page 35.
8) Install optional Double Screen Door, page
36.
9) Install Louvers
10) Final check.
Before leaving this unit with the customer, the
installer must ensure that the appliance is fir-
ing correctly and operation fully explained
to customer.
This includes:
1) Clockingtheappliancetoensurethecorrect
firingrate (ratenotedonlabel)after burning
appliance for 15 minutes.
2) Ifrequired,adjustingtheprimaryairtoensure
that the flame does not carbon. First allow
the unit to burn for 15-20 min. to stabilize.
CAUTION:Any alterationto the productthat
causes sooting or carboning that results
in damage is not the responsibility of the
manufacturer.
LOCATING YOUR
GAS STOVE

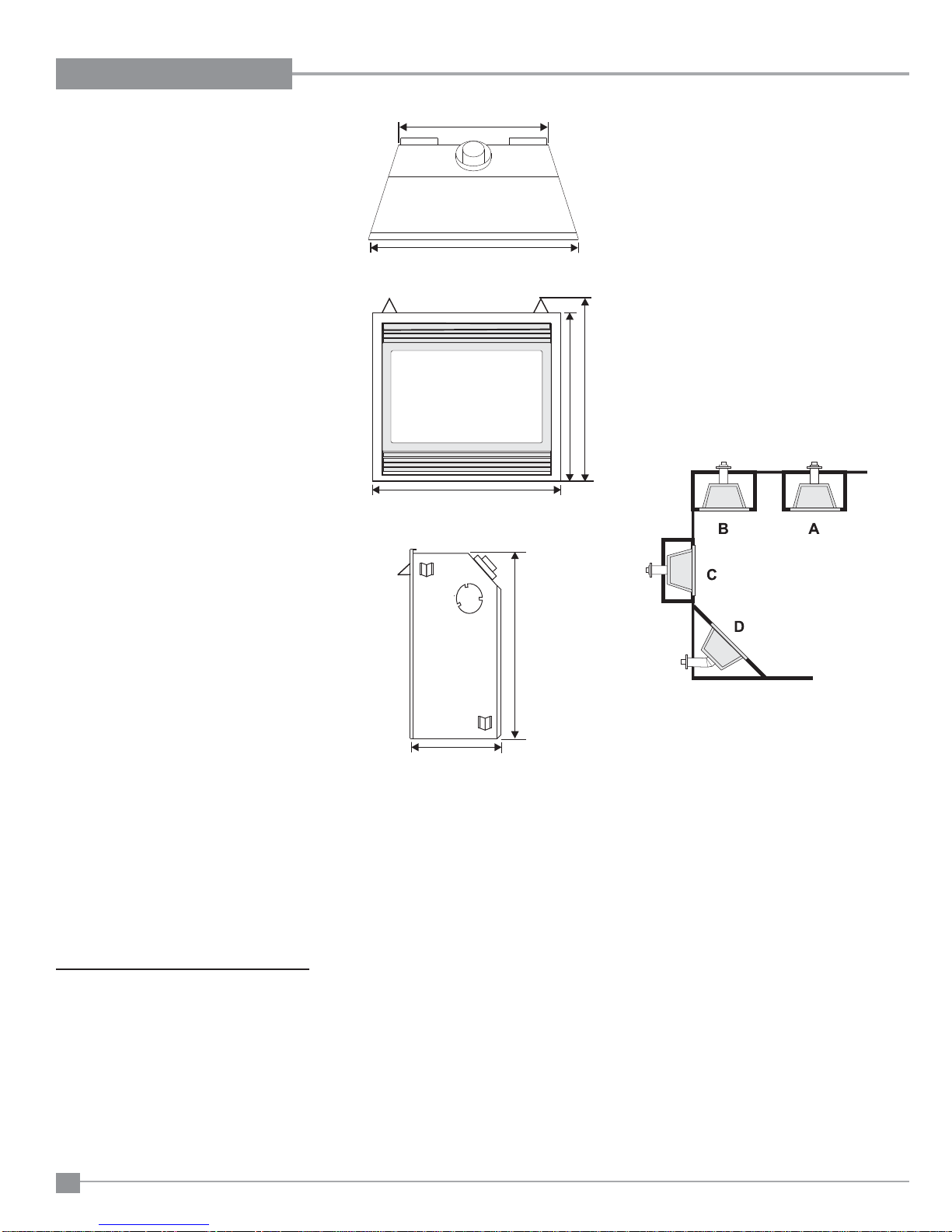

Diagram 1
1) When selecting a location for your stove,
ensure that the clearances outlined on this
page are met.
2) Provide adequate clearances for servicing.
3) The appliance must be installed on a flat,
solid,continuoussurface(e.g.wood,metal,
concrete).Thismaybethefloor,orraisedup
on a platform to enhance its visual impact.
If the appliance is going to be installed on
carpeting,combustiblelinoleumtileorother
combustiblematerial otherthan woodfloor-
ing, the appliance must be installed on a
metalorwoodpanelextendingthefullwidth
and depth of the appliance.
4) The PG33 can be installed in a recessed
position or framed out into the room as in
A, B, C, D. See Diagram 1.
5) Thisapplianceis Listed forbedroom instal-
lations when used with a Listed Millivolt
Thermostat. Some areas may have further
requirements, check local codes before
installation.
6) The PG33 Direct Flue Gas Fireplace is ap-
proved for alcove installations, which meet
the clearances listed on this page.
7) We recommend that you plan your instal-
lation on paper using exact measurements
for clearances and floor protection before
actually installing this appliance. Have a
qualifiedinspector,dealer,orinstallerreview
your plans before installation.
Note: For flue terminations see page 10.
A) Flat on Wall
B) Flat on Wall Corner
C) Recessed into Wall/Alcove
D) Corner
33"(838mm)
33"(838mm)
23"(584mm)
12-3/4"(324mm)
29"(737mm)
28-1/2"(724mm)
31-1/2"(800mm)

Regency PG33 Gas Inbuilt 7
INSTALLATION
COMBUSTIBLE MANTELS
Because of the extreme heat this fireplace emits, the mantel clearances are critical.
Combustible mantel clearances from top of unit are shown in the diagram below.
Note: A non-combustible mantel may be installed at a lower height if the framing is made of
metal studs covered with a non-combustible board.
This drawing is to scale at 1:6 (one inch = 6 inches). Mantel can be installed anywhere in shaded
Clearances for Bay or Flush Front
UNIT DIMENSIONS
The clearances listed below are Minimum dis-
tances unless otherwise stated:
area or higher using the above scale.
Note: Ensure the paint that is used on the mantel and the facing is "heat
resistant" or the paint may discolour.
MANTEL LEG CLEARANCES
Combustible mantel leg clearances as per diagram below:
Maximum
CLEARANCES
A major cause of chimney related fires is
failure to maintain required clearances (air
space) to combustible materials. It is of the
greatest importance that this fireplace and
flue system be installed only in accordance
with these instructions.
Clearance to Combustibles from:
Back 0" (0mm)
Side 0" (0mm)
Floor 0" (0mm)
NOTE: The minimum floor clearance must be
maintained from the top surface of the carpet-
ing, tile, etc.
Minimum Clearance from Top of Unit to:
Mantel* min. 7" (177mm)
Ceiling 30" (762mm)
from top of unit.
Side Wall Clearance
Bay or Flush Front 7-1/2" (191mm)
Minimum Flue Clearances:
2-1/2" (64mm) Horizontal Top
1-1/2" (38mm) Horizontal Side
1-1/2" (38mm) Horizontal Bottom
1-1/2" (38mm) projection
at 2" (51mm) minimum
clearance.
1-1/4" (32mm) Vertical Flue Clearance
(Simpson)
1-1/2" (38mm) Vertical Flue Clearance
(Flex)
Alcove Clearances:
Max. Depth 36" (914mm)
Min. Width 48" (1219mm)
Min. Height 59" (1499mm)
* see mantel clearance instructions.
WARNING
Fire hazard is an extreme risk
if these clearances are not ad-
hered to.

8Regency PG33 Gas Inbuilt
INSTALLATION
1) Determinethetotalthicknessoffacingmate-
rial (e.g. drywall plus ceramic tiles) to allow
thefinishedsurface to beflushwith the front
of the unit. Total facing thickness can vary
from 1/2" (13mm) to 1-1/4" (32mm) thick.
Install Side Nailing Strips, and Top Facing
Support before unit is slipped into position.
See page 9 for assembly details.
2) Frame in the enclosure for the unit with
framing material.
3) For exterior walls, insulate the enclosure to
the same degree as the rest of the house,
apply vapour barrier and drywall, as per lo-
cal installation codes. (Do not insulate the
fireplace itself.)
4) The top of the unit must not be closer than
30" (762mm) to the ceiling.
5) Combustible material may be brought up to
the top and sides of the unit and be covered
with ceramic tiles, bricks, rock or other suit-
able combustible finishing materials.
Note: Theunitdoesnothavetobecomplete-
lyenclosed ina chase. Theclearance
ontopoftheunitis0"tothestandoffs
socombustiblebuildingmaterialscan
belaiddirectlyontopofthestandoffs.
Youmustmaintainclearancefromthe
flue to combustible materials for flex
for Simpson Dura-Flue, see page 7.
6) Use steel studs for framing where the
1-1/2" (38mm) clearance from the flue to
combustiblematerial cannotbemaintained.

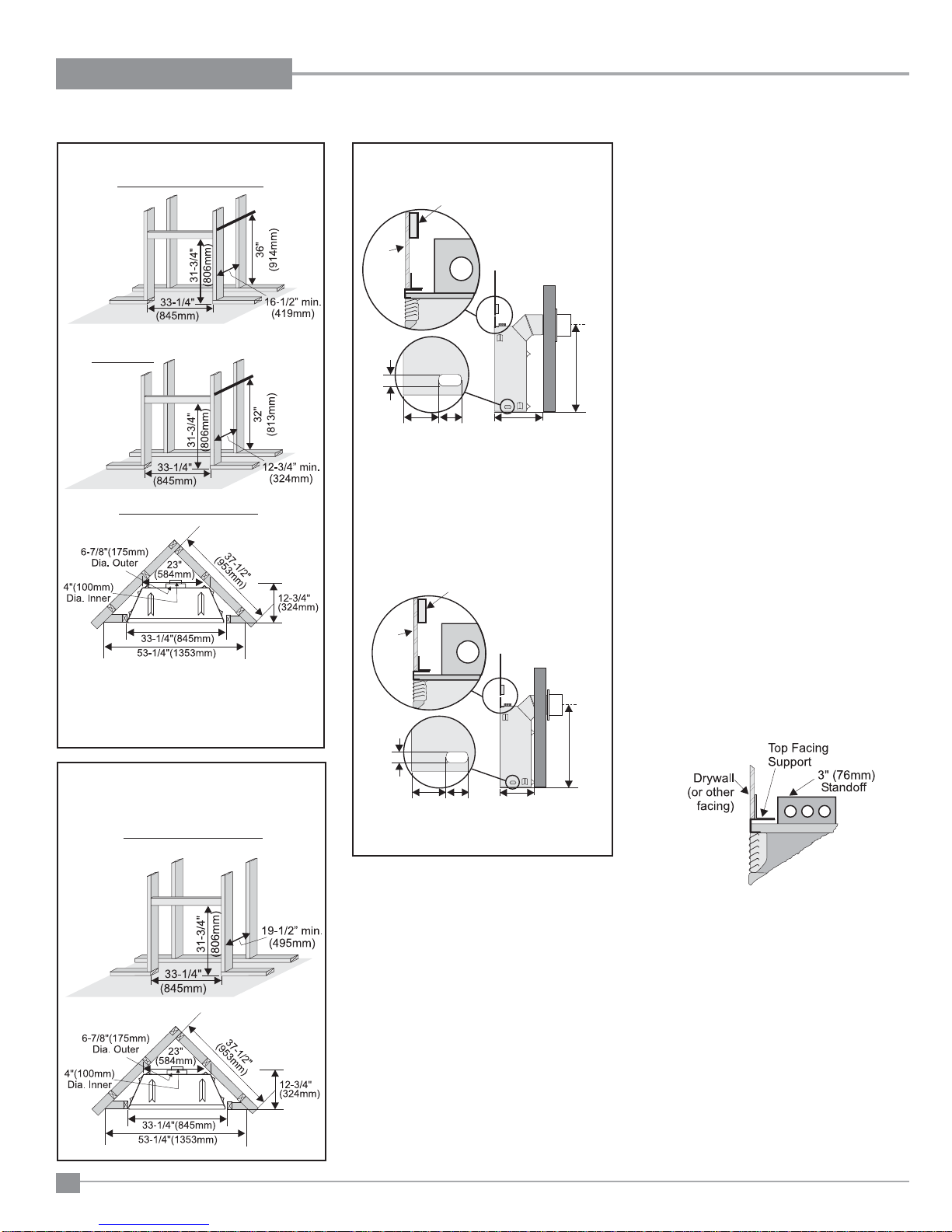

FRAMING AND FINISHING
16-1/2”
(419mm)
Minimum
4"
(102mm)
3"
(76mm)
1-1/2"
(38mm)
30”
(762mm)
10" (254mm)
dia. Hole through
wall for Dura-Vent
1/2"
(13mm)
Drywall
Top Header
Opening for gas
connection
12-3/4”
(324mm)
Minimum
4"
(102mm)
3"
(76mm)
1-1/2"
(38mm)
26”
(660mm)
10" (254mm)
dia. Hole through
wall for Flex
1/2"
(13mm)
Drywall
Top Header
Opening for gas
connection
Simpson Dura-Flue
Minimum Clearances
Flex Pipe
Minimum Clearances
NOTE:Ifthisisanoutsidecorner,theminimum
distancebetweentheflueandtheoutsidecorner
is 6" (15cm) with AstroCap termination cap or
12" (30cm) with Dura-Flue termination cap.
Vertical Termination or
Vertical Rise with Horizontal
Termination
For Both Simpson & Flex
Rear Termination
NOTE: If this is an outside corner, the minimum
distancebetweentheflueandtheoutsidecorner
is6"(15cm)withAstroCapterminationcapor12"
(30cm) with Dura-Flue termination cap.
Simpson Dura-Flue Piping
Flex Piping
For Both Simpson & Flex

Regency PG33 Gas Inbuilt 9
INSTALLATION
For a facing material depth of
1-1/4"(32mm), the top facing
support must be reversed.
TheTopFacingSupport,theSideNailingStrips
and the 2 Top Standoffs must be correctly po-
sitioned and attached to the top before the unit
is put into position.

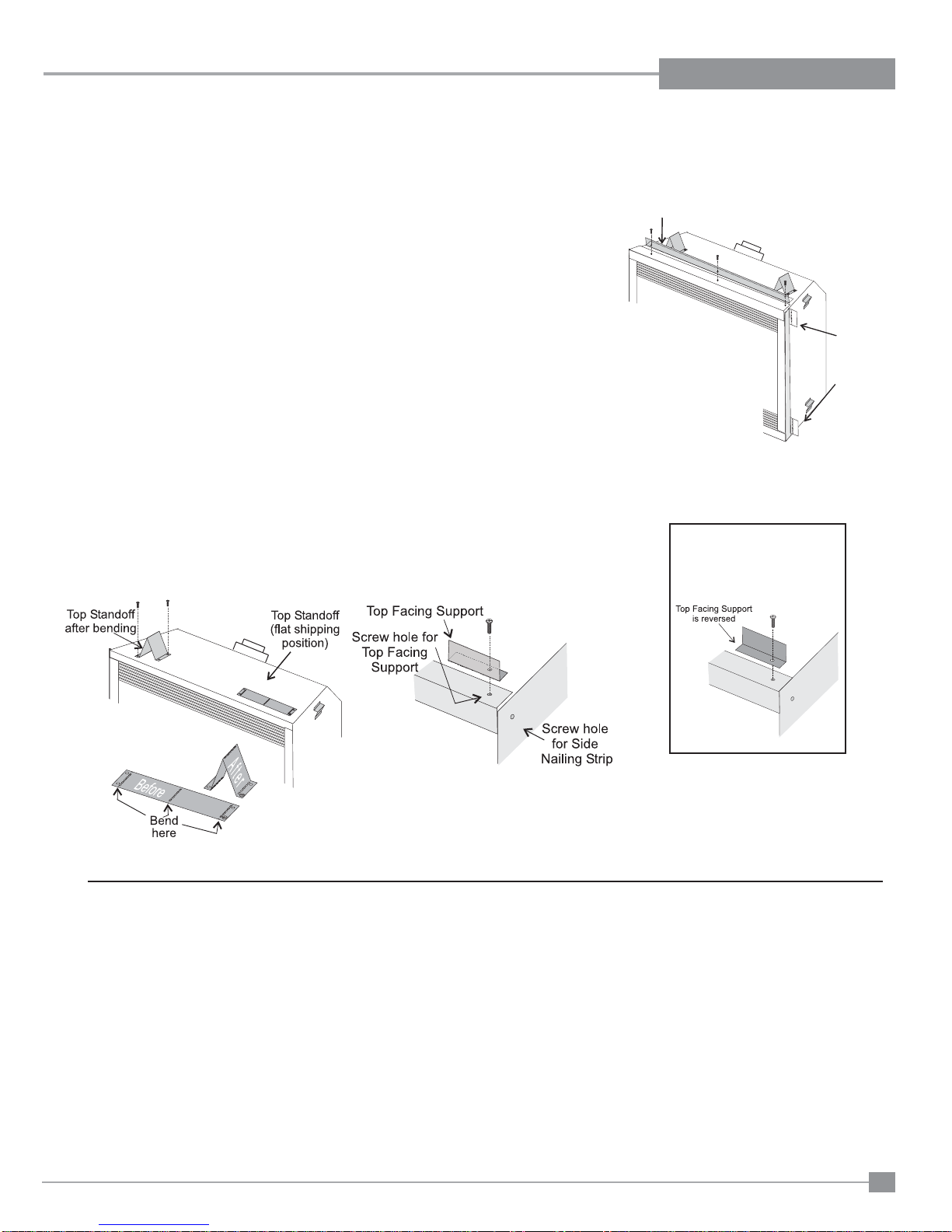

Top Standoff Assembly
The top standoffs are shipped in a flat position
and must be pulled up and bent into the cor-
rect shape.
1) Remove the standoffs from on top of the
firebox by undoing the screws.
2) Take each standoff and bend into the cor-
rect shape. Bend up at the bend lines until
the screw holes in the standoff and the
pre-punchedscrewholesonthefireboxtop
line-up.
3) Attachthestandoffssecurelytothetopwith
4 screws per standoff.
Note: Secure the standoffs to the holes
closest to the edge of the firebox top.
Top Facing Support &
Side Nailing Strips
Determine the total thickness of facing mate-
rial (e.g. drywall plus ceramic tiles) to allow the
finished surface to be flush with the front of the
unit. Total facing thickness can vary from 1/2"
(13mm) to 1-1/4" (32mm) thick.
The Top Facing Support & Side Nailing Strips
canbe mountedin variouspositionsdepending
on the thickness of the facing material.
1) Mount Top Facing Support using the 3
suppliedscrews intothethreepre-punched
screwholesonthetopfrontoftheunit.Adjust
support to desired facing material depth.
2) MountSideNailingStripusingthe3supplied
screws into the three pre-punched screw
holes at the front sides of the unit. Adjust
supporttodesiredfacingmaterialthickness.
UNIT ASSEMBLY
PRIOR TO INSTALLATION
Top Facing
Support
Side
Nailing
Strips
(folded out)
FLUEING INTRODUCTION
The PG33 uses the "balanced flue" technology CoAxial system. The inner liner flues products of combustion to the outside while the outer liner
draws outside combustion air into the combustion chamber thereby eliminating the need to use heated room air for combustion and losing warm
room air up the chimney.
There are 2 flue systems approved for use with the PG33: the Regency Direct Flue System (Flex) for Horizontal Terminations only (see pages 11-
12), and the Simpson Dura-Flue Systems for Horizontal and Vertical Terminations (see pages 13-25).
Note: These flue pipes must not be connected to any other appliance.
The gas appliance and flue system must be flueed directly to the outside of the building, and never be attached to a chimney serving a separate
solid fuel or gas burning appliance. Each direct flue gas appliance must use it's own separate flue system. Common flue systems are prohibited.
NOTE: Ensure compliance with the outside flue terminal location before cutting hole as both dimensions must be met.

10 Regency PG33 Gas Inbuilt
INSTALLATION
EXTERIOR FLUE TERMINATION LOCATIONS
Minimum clearances required for balanced flue terminals or
the flue terminals of outdoor appliances
according to AS5601-2004 (AGA gas installation code) or NZS 5261 (New Zealand)
Minimum
Clearance (mm)
a Below eaves, balconies or other projections:
- Appliances up to 50 MJ/h input 300
- Appliances over 50 MJ/h input 500
b From the ground or above a balcony 300
c From a return wall or external corner 500
d From a gas meter (M) 1000
e From an electricity meter or fuse box (P) 500
f From a drain or soil pipe 150
g Horizontal from any building structure (unless appliance is approved
for closer installation) or obstruction facing a terminal 500
h From any other flue terminal, cowl or combustion air intake 500
j Horizontally from an openable window, door, or non-mechanical air inlet, or
any other opening into a building, with the exception of sub-floor ventilation
(see also Note (I)):
- Appliances up to 150 MJ/h input 500
- Appliances over 150 MJ/h input 1500
k Vertically below an openable window, door, or non-mechanical air inlet,
or any other opening into a building, with the exception of sub-floor ventilation
(see also Note (I)): see table below
NOTES:
(I) For mechanical air inlets, including spa blowers, the clearance 'j' and 'k' shall be 1500 mm in all cases.
(II) All distances shall be measured vertically or horizontally along the wall to a point in line with the nearest par
to of the terminal.
(III)Prohibited area below electricity meter or fuse box extends to ground level.
(IV)A flue terminal of this type shall not be located under a roofed area unless the roofed area is fully open on
at least two sides and a free flow of air at the appliance is achieved.
Clearance 'k' in mm
Space Heaters All Other Appliances
Up to 50 MJ/h input Up to 50 MJ/h input Over 50 MJ/h input
to 150 MJ/h input Over 150 MJ/h input
150 500 1000 1500

Regency PG33 Gas Inbuilt 11
INSTALLATION
6-7/8"
(173mm)
dia. Flue pipe
4" (102mm)
dia. flue pipe
Wall Thimble (2 pc)
(required in
Canada only)
Termination Cap
(Part# 946-523/P)
AstroCapTM
spring
spacer
REGENCY DIRECT FLUE SYSTEM (FLEX)
HORIZONTAL TERMINATIONS ONLY
This flueing system, in combination with the PG33 Direct Flue Gas Fireplace, have been tested and listed as a direct flue heater system by AGA. The
location of the termination cap must conform to the requirements in the Flue Terminal Locations diagram on page 10.
Regency Direct Flue (Flex) System Termination Kit (Part # 946-513) includes all the parts needed to install the PG33 with a maximum
run of 2 feet. If installing the P33 with a continuous flue length of more than 2 ft (.6m) to a maximum of 10 ft. (3.0m) using Kit # 946-515 (4 ft) or
946-516 (10 ft) or see page 13 for alternate flueing arrangements.
1) 6-7/8" dia. flexible liner (2 ft. length)
2) 4" dia. flexible liner (2 ft. length)
3) spring spacers (3)
4) thimble (2)
5) AstroCap termination cap (1)
6) screws (12)
7) tube of Mill Pac (1)
8) plated screws (8)
9) screws #8 x 1-1/2" drill point, stainless steel (4)
Wherevernecessaryduetoexternal
location of cap, the AstroCap can
be replaced with the FPI Riser Flue
Termination Cap or the Dura-Vent
Snorkel Termination Cap.
See also
Figure 1 below.
Notes:
1) Linersectionsshouldbecontinuouswithoutany
joints or seams.
2) Only Flex pipe purchased from Regency may be
used for Flex installations.
Minimum Flex Kit Center-Line (NG
& LPG)
Vertical Height (M)
Min. 26”
(660mm)
Horizontal (M)
Max. 24"(0.6m)
0.6
0
1.8
1.2 2.4
0
0.6
1.2
1.8
2.4
IMPORTANT
If using any Cabinet Mantels with Part # 510956,
510958,510962,510964and510834thewallthimble
must be secured first and flueing must be attached
to unit before sliding into final position.
AlsoSimpsonDura-Flueflueing cannot beusedwith
any of the mantels noted above.
Minimum Flex Kit Center-Line
(ULPG)
0
0.6
0
1.8
1.2 2.4
Vertical Height (M)
Min. 49.6”
(1260mm)
Horizontal (M)
Max. 24"(0.6m)
0.6
1.2
1.8
2.4
IMPORTANT NOTE
IftheBurnerisnotaULPGBurner,
a minimum flue rise of 1260mm
(total height from the floor) MUST
BE adhered to.

12 Regency PG33 Gas Inbuilt
INSTALLATION
Termination Cap
Wall Thimble 2 pieces
(10" (254mm) Outer Diameter)
2”x4”or2”x6”
(21mm x 102mm
or 21mm x 152mm)
6-7/8"
(175mm)
dia. air intake
4" (102mm)
dia. flue pipe
with spring spacer
Screws
(4 per connection)
Screws
(3 per
connection)
INSTALLATION PROCEDURES
for Regency Direct Flue System (Flex)
1) Locate the unit in the framing, rough in the gas (preferably on the right side of the unit) and the electrical (Junction block is on the left side)
Minimum and Maximum Flue Clearances
on the left. Locate the centerline of the
termination and mark wall accordingly.
Cut a 10"(254mm) hole in the wall (inside
dimension).
Note: To make the installation more aes-
thetically pleasing, we recommend
framing out a square to mount the
terminal to.
Note: A 2-1/2" (64mm) horizontal top and
1-1/2" (38mm) horizontal sides &
bottom clearance around the liner
*If this is an outside corner, the minimum distance between the flue and the outside
corner is 6" (15cm) with AstroCap termination cap or 12" (30cm) with Dura-Flue
termination cap. See "F" on the diagram on page 10.
must be maintained except that only
a 1" (25mm) clearance is needed at
the termination end. We recommend
framing a 10"(254mm) x 10"(254mm)
(inside dimensions) hole to give
structural rigidity for mounting the
termination.
Note: If installing termination on a siding
covered wall, furring strips must be
used to ensure that the termination
is not recessed into the siding.
2) Levelthefireplaceandfastenittothefram-
ingusingnailsorscrewsthroughthenailing
strips.
3) Assemble the flue assembly by applying
MillPactothe4"(100mm) innercollarofthe
terminationand slippingthe4"(100mm)liner
over it at least 1-3/8" (35mm). Fasten with
the3screws(drillingpilotholeswillmakethis
easier).Apply Mill Pac or high temperature
silicone to the 6-7/8"(175mm) flex pipe and
slip it over the 6-7/8" outer collar of the flue
terminal at least 1-3/8"(35mm) and fasten
with the 3 screws.
4) Separatethe2halvesofthewallthimbleand
securely fasten the one with the tabs to the
outside wall making sure that the tabs are
ontopandbottom.Fastentheotherthimble
half to the inside wall. The thimble halves
slip inside each other and can be adjusted
for2 x4or 2x6 walls.The liners mustslip
over the collars a minimum of 1-3/8".
5) Slip the assembled liner and termination
assembly through the thimble making sure
the termination cap faces up (there are
markings on the cap that show which way
is up). This will position the termination cap
with proper down slope for draining water.
Fasten the cap to the outer wall with the 4
supplied screws.
6) Pull the centre 4"(100mm) liner and outer
6-7/8"(175mm) liner out enough to slip over
the flue collars of the fireplace.
7) ApplyMillPacoverthe fireplace inner collar
and slip the 4"(100mm) liner down over it
and attach with 3 supplied screws.
8) Do the same with the 6-7/8"(175mm) liner.
9) Applyabeadofsiliconebetweenthethimble
and termination and around the outer edge
of the terminal at the wall in order to keep
the water out.
IMPORTANT:Donotlocatetermination
hood where excessive snow or ice
buildup may occur. Be sure to check
flue termination area after snow falls,
and clear to prevent accidental block-
age of flueing system. When using
snow blowers, make sure snow is not
directedtowardsflueterminationarea.

Regency PG33 Gas Inbuilt 13
INSTALLATION
Pipe Length
Vertical
Terminal
Storm Collar
Flashing
Ceiling Firestop
24" (610mm)
Pipe Length
Adj.Pipe Length
11" - 14-5/8"
(279mm - 372mm)
90 Elbow
o
Horizontal
Termination
Cap
Wall Thimble
Vinyl Siding
Standoff (Optional)
Flue Adapter
45 Elbow
o
Adj.Pipe Length
11" - 14-5/8"
(279mm - 372mm)
Horizontal
Termination Cap
Wall Thimble
Vinyl Siding
Standoff (Optional)
Simpson Dura-Flue
Direct Flue GS
SIMPSON DURA-FLUE FLUEING
Horizontal or Vertical Terminations
TheSimpson Dura-FlueDirect FlueSystem offers
a complete line of component parts for installation
of both horizontal and vertical installations. Many
items are offered in decorative black, as well as
galvanizedfinish.Werecommendusingthegalva-
nized finish for installation with the PG33.
The minimum components required for a basic
horizontal termination are:
1 AstroCap Horizontal Termination Cap
1 45oElbow
1 Flue Adaptor
1 Wall Thimble
1 Length of pipe to suit wall thickness (see
chart)
For siding other than vinyl furring strips may be
used, instead of the vinyl siding standoff, to cre-
ate a level surface to mount the flue terminal. The
Terminal must not be recessed into siding.
If a Vinyl Siding Standoff is required (it must be
usedwithvinylsiding),measuretooutsidesurface
of wall without siding and add 2 inches.
The Regency AstroCapTM is certified for installa-
tionsusingFPIflueingsystemsaswellasSimpson
Dura-Vent® and Direct Vent GS.
RegencyTM, and Regency AstroCapTM are the
proprietary trademarks of FPI Fireplace Products
International Ltd.
Dura-Vent® and Direct Vent GS are registered
and/or proprietary trademarks of Simpson Dura-
Vent Co. Inc.
Wherever necessary due to external
location of cap, the AstroCap can be
replaced with the FPI Riser Vent Ter-
minationCaportheDura-VentSnorkel
Termination Cap.
Flat Wall Installation
7-1/4" (184mm)
10-1/4" (260mm)
13-1/4" (337mm)
12-1/4" - 15-7/8"
(311mm - 641mm)
18-1/4" - 25-1/4"
(464mm - 381mm)
Max. Wall Flue Length
Thickness Required
6" (152mm)
9" (229mm)
12" (305mm)
11" - 14-5/8" Adj. Pipe
(279mm - 371mm)
11" - 14-5/8" Adj. Pipe
(279mm - 371mm)

14 Regency PG33 Gas Inbuilt
INSTALLATION
• Flue must be supported at offsets.
• Firestops are required at each floor level and whenever passing through a wall.
• Maintain clearances to combustibles.
Note: Must use optional flue adapter when using Simpson Dura-Vent pipe (Part # 510-994).
FLUEING ARRANGEMENTS - VERTICAL TERMINATIONS
SIMPSON DURA-FLUE DIRECT FLUE GS SYSTEM
(NG, LPG & ULPG)

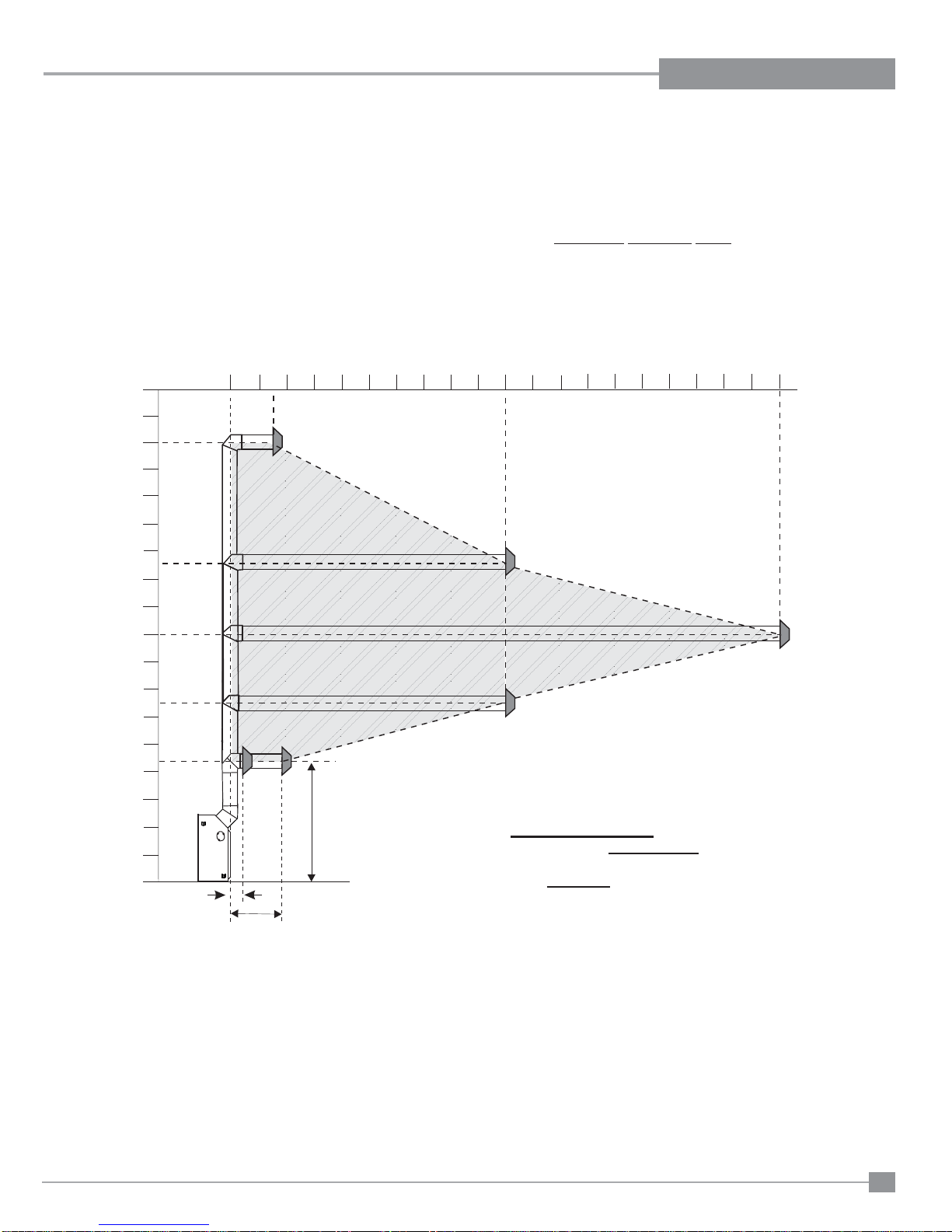

The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations , using one 90oelbow, with
Simpson Dura-Flue Direct Flue GS flue systems for NG, LPG and ULPG.
Minimum 8'6” (2.6m)
Maximum 40’ (12.2m)
40
8
10
12
14
16
18
20
22
24
26
28
30
6
0
2
4
2
0 6
4
Vertical Height (ft/m)
Horizontal (ft/m)
(5.5m)
(1.8m)
(3.7m)
(7.3m)
(9.1m)
(0.6m)
(1.2m)
(1.8m)
(10.9m)
(10.4m)
(9.8m)
(8.5m)
(7.9m)
(6.7m)
(6.1m)
(4.9m)
(4.3m)
(3.0m)
(2.4m)
(0.6m)
(1.2m)
(12.2m)
33.6
Vertical Height (M)
Minimum 8'6” (2.6m)
Maximum 27’ (8.2m)
Horizontal (M)
Min. 12” (305mm)
3
3.6
4.2
4.8
5.4
6
6.6
7.2
8
8.6
9.2
9.8
10.4
11
11.6
Max. 10’ (3m)
(centerline to centerline)
0
0.6
1.2
1.8
2.4
0.6
0
1.8
1.2 2.4

Regency PG33 Gas Inbuilt 15
INSTALLATION
The PG33 is approved for a maximum 40 ft. straight vertical, with Simpson
Dura-Flue Direct Flue GS flue systems for LPG, ULPG and NG.

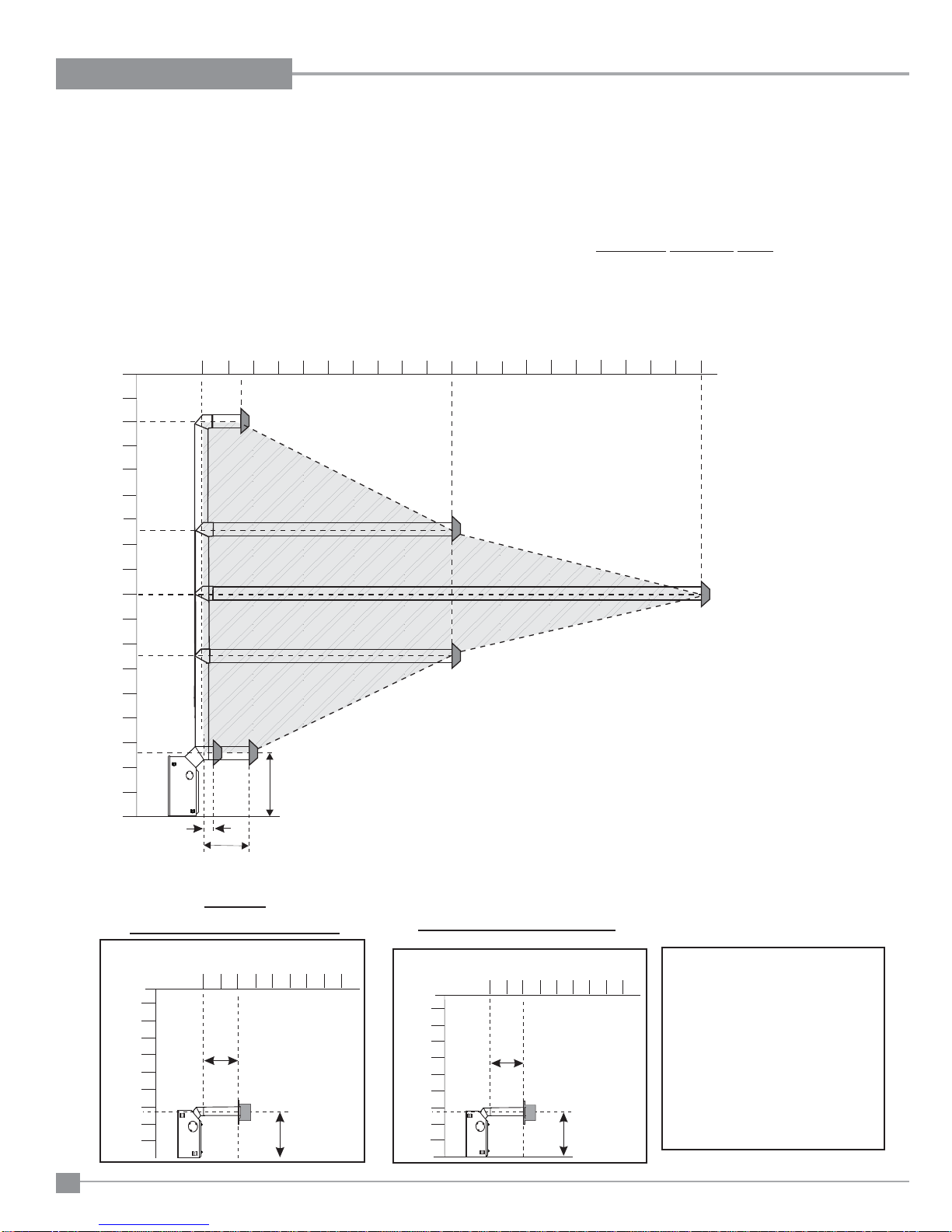

The shaded area in the diagram shows all allowable combinations of straight
verticalandoffsettoverticalterminationswithSimpsonDura-FlueDirectFlue
GS flue systems for LPG, ULPG and NG. Maximum two 45oelbows allowed.
• Flue must be supported at offsets.
• Firestops are required at each floor level and whenever passing
through a wall.
• Maintain clearances to combustibles.
Horizontal (M)
Maximum: 40 ft. (12.2m)
Minimum 9’6” (2.9m)
Minimum 8’6” (2.6m)
Vertical Height (M)
3
3.6
4.2
4.8
5.4
6
6.6
7.2
8
8.6
9.2
9.8
10.4
11
11.6
0
0.6
1.2
1.8
2.4
12.2
0.6
0
1.8
1.2 2.4

16 Regency PG33 Gas Inbuilt
INSTALLATION
0
30” (762mm)
Minimum
Height
Requirement
Horizontal (M)
8"(0.2m)
2’ (0.6m)
Vertical Height (M)
3
3.6
4.2
4.8
0
0.6
1.2
1.8
2.4
0.6 1.2 1.8 2.4
3 3.6 4.2 4.8 5.4 6
FLUEING ARRANGEMENTS - HORIZONTAL TERMINATIONS
SIMPSON DURA-FLUE DIRECT FLUE GS SYSTEM and
REGENCY DIRECT FLUE SYSTEM (FLEX)
(NG, LPG & ULPG with ULPG Burner)
This diagram shows all allowable combinations of vertical runs with horizontal terminations, using one 45oand one 90oelbow (two 45o elbows equal
one 90oelbow).
Note: Must use optional flue adapter (Part # 510-994) when using Simpson Dura-Vent pipe. (Refer to page 13.)
• Maintain clearances to combustibles.
• Horizontal flue must be supported every 3 feet.
• Firestops are required at each floor level and whenever passing through a wall.
A flue guard should be used whenever
theterminationislowerthanthespecified
minimum or as per local codes.
Note: RegencyDirectFlue System(Flex)is
onlyapprovedforhorizontaltermina-
tions.
Minimum
Simpson Dura-Flue Center-Line Minimum Flex Kit Center-Line
Min. 30"
(762mm)
Max. 24"(0.6m)
0
Vertical Height (M)
0.6
1.2
1.8
2.4
0.6
0
1.8
1.2 2.4
Horizontal (M)
Min. 26”
(660mm)
Max. 24"(0.6m)
Vertical Height (M)
0
0.6
1.2
1.8
2.4
Horizontal (M)
0.6
0
1.8
1.2 2.4
Important
If using any Cabinet Mantels with
Part # 510956, 510958, 510962,
510964and510834thewallthimble
must be secured first and flueing
must be attached to unit before
sliding into final position.
AlsoSimpsonDura-Flueflueingcan-
not be used with any of the mantels
noted above.

Regency PG33 Gas Inbuilt 17
INSTALLATION
53.6” (1362mm)
Minimum
Height
Requirement
8"(0.2m)
2’ (0.6m)
0
Horizontal (M)
0.6 1.2 1.8 2.4
3 3.6 4.2 4.8 5.4 6
Vertical Height (M)
3
3.6
4.2
4.8
0
0.6
1.2
1.8
2.4
FLUEING ARRANGEMENTS - HORIZONTAL TERMINATIONS
SIMPSON DURA-FLUE DIRECT FLUE GS SYSTEM and
REGENCY DIRECT FLUE SYSTEM (FLEX)
(ULPG with NG/LPG Burner)
This diagram shows all allowable combinations of vertical runs with horizontal terminations, using one 45oand one 90oelbow (two 45o elbows equal
one 90oelbow).
Note: Must use optional flue adapter (Part # 510-994) when using Simpson Dura-Vent pipe. (Refer to page 13.)
• Maintain clearances to combustibles.
• Horizontal flue must be supported every 3 feet.
• Firestops are required at each floor level and whenever passing through a wall.
A flue guard should be used whenever the termination is
lower than the specified minimum or as per local codes.
Note: Regency Direct Flue System (Flex) is only ap-
proved for horizontal terminations.
IMPORTANT NOTE
If the Burner is not a ULPG Burner, a
minimumflueriseof1362mm(totalheight
from the floor) MUST BE adhered to.

18 Regency PG33 Gas Inbuilt
INSTALLATION

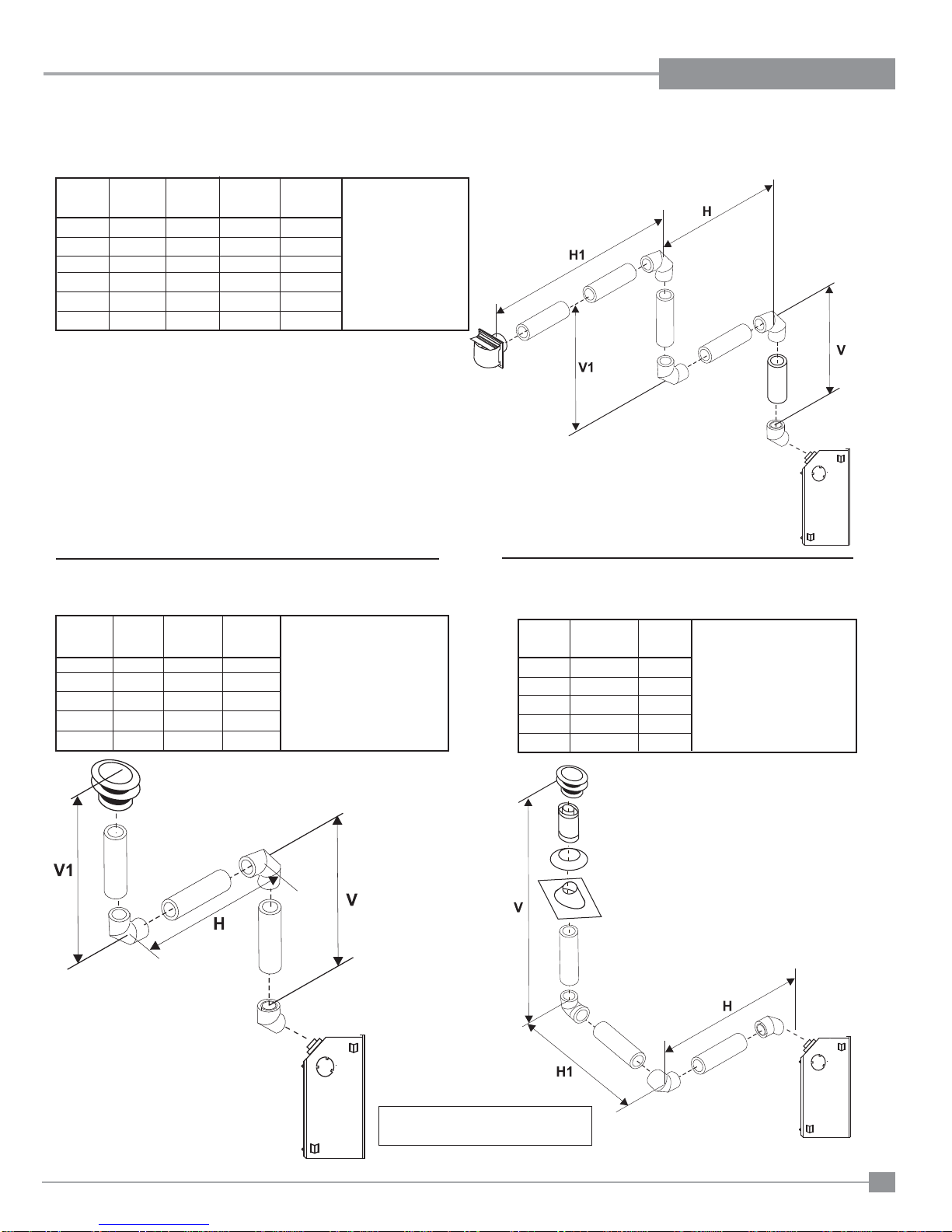

Horizontal Flueing with Two (2) 90oElbows
Horizontal Flueing with Two (2) 90oElbows
Horizontal Flueing with Three (3) 90oElbows
One 90oelbow = Two 45oelbows.
One 90oelbow = Two 45oelbows.
One 90oelbow = Two 45oelbows.
Option V H + H1 With these options,
maximum total pipe
length is 30 feet with
minimum of 6 feet total
verticalandmaximum8
feet total horizontal.
Please note minimum
1 foot between 90o
elbows is required.
A) 0.3m Min. 0.9m Max.
B) 0.6m Min. 1.2m Max.
C) 0.9mMin. 1.5m Max.
D) 1.2m Min 1.8m Max.
E) 1.5m Min. 2.1m Max.
F) 1.8m Min 2.4m Max.
Option H V H + H1 +H2 With these options,
max.totalpipelength
is 30 feet with min. of
11 feet total vertical
and max. 9 feet total
horizontal.
Please note min.
1 foot between 90o
elbows is required.
A) 0.3m Max. 0.3m Min. 0.9m Max.
B) 0.6m Max. 0.9m Min. 1.5m Max.
C) 0.9m Max. 1.5m Min. 1.8m Max.
D) 1.2m Max 2.1m Min 2.1m Max.
E) 1.5m Max 2.7m Min. 2.7m Max.
F) 1.8m Max 3.3m Min 2.7m Max.
Option H V H + H1 +H2 With these options, max.
totalpipe lengthis30feet
with min. of 8 feet total
vertical and max. 8 feet
total horizontal.
Please note min. 1 foot
between 90oelbows is
required.
A) 0.3m Max. 0.3m Min. 0.9m Max.
B) 0.6m Max. 0.9m Min. 1.5m Max.
C) 0.9m Max. 1.5m Min. 1.8m Max.
D) 1.2m Max 1.8m Min 2.1m Max.
E) 1.5m Max 2.4m Min. 2.4m Max.

Regency PG33 Gas Inbuilt 19
INSTALLATION

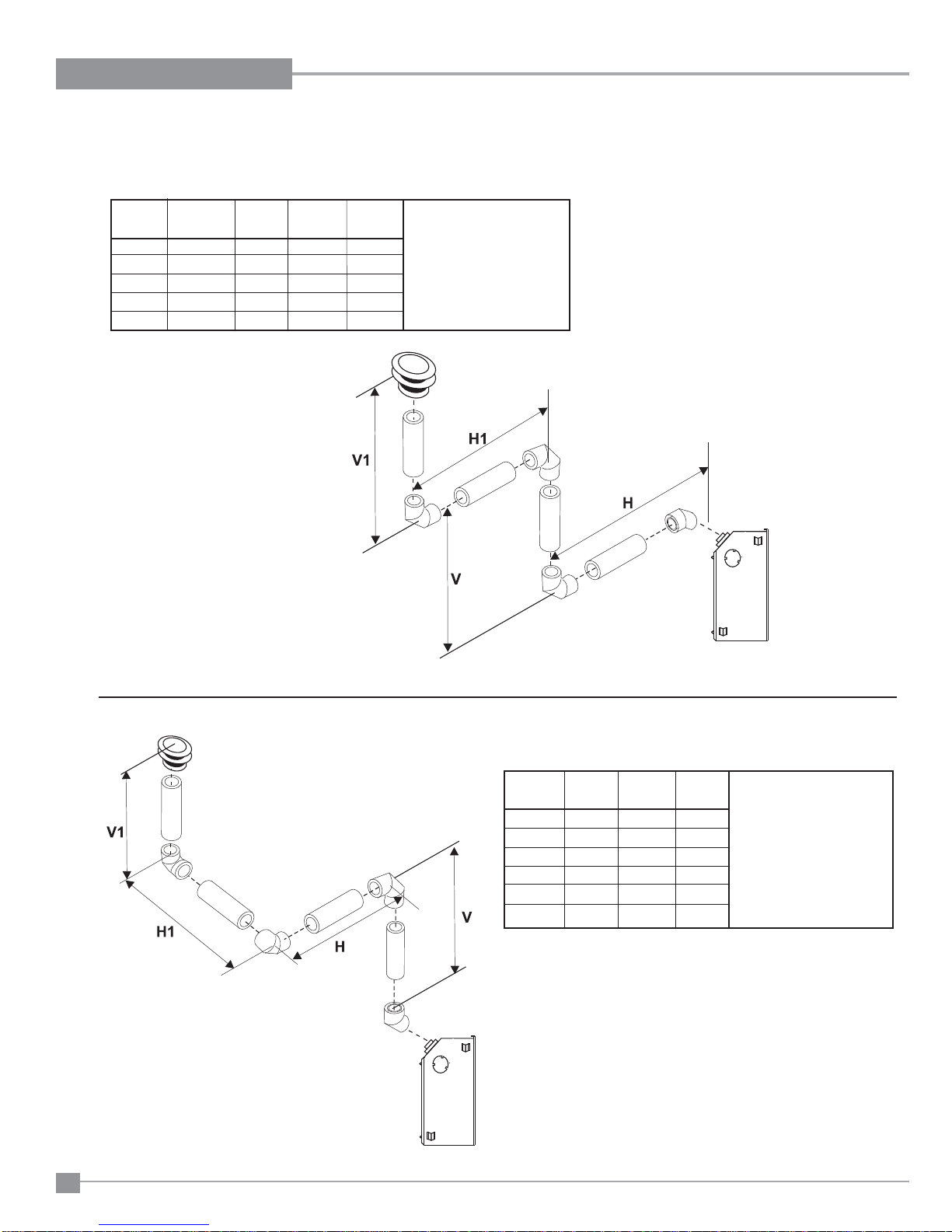

Horizontal Flueing with Three (3) 90oElbows
Option V H V + V1 H + H1
Min. Max. Min. Max.
A) 0.6m 0.3m 0.9m 1.2m
B) 0.9m 0.6m 1.2m 1.5m
C) 1.2m 0.9m 1.8m 1.8m
D) 1.5m 1.2m 2.4m 2.1m
E) 1.8m 1.5m 3m 2.4m
F) 2.1m 1.8m 3.65m 2.7m
With these options,
max. total pipe length
is 30 feet with min. of
12 feet total vertical
and max. 9 feet total
horizontal.
Please note min. 1
foot between 90o
elbows is required.
Vertical Flueing with Two (2) 90oElbows
Option V H V + V1
Min. Max. Min
A) 0.3m 1.2m 0.6m
B) 0.6m 1.5m 0.9m
C) 0.9m 1.8m 1.2m
D) 1.2m 2.1m 1.5m
E) 1.5m 2.4m 1.8m
Vertical Flueing with Two (2) 90oElbows
With these options, max. total
pipelengthis30feet withmin.
of6feettotalverticalandmax.
8 feet total horizontal.
Please note min. 1 foot
between 90oelbows is re-
quired.
Option H + H1 V
Max. Min.
A) 0.6m 0.6m
B) 0.9m 0.9m
C) 1.2m 1.2m
D) 1.5m 1.5m
E) 1.8m 1.8m
Withtheseoptions,max.total
pipelengthis30feetwithmin.
of6feettotalverticalandmax.
6 feet total horizontal.
Please note min. 1 foot
between 90oelbows is
required.
One 90oelbow = Two 45oelbows.
One 90oelbow = Two 45oelbows. One 90oelbow = Two 45oelbows.
For additional vertical flueing with
2 x 90oelbows, refer to page 15.

20 Regency PG33 Gas Inbuilt
INSTALLATION
Vertical Flueing with Three (3) 90oElbows
Option V H + H1 V + V1
Min. Max. Min.
A) 0.6m 0.9m 1.2m
B) 0.9m 1.2m 1.8m
C) 1.2m 1.5m 2.1m
D) 1.5m 1.8m 2.4m
E) 1.8m 2.1m 2.7m
F) 2.1m 2.4m 3m
Withtheseoptions,max.total
pipelengthis30feetwithmin.
of 10 feet total vertical and
max. 8 feet total horizontal.
Please note min. 1 foot
between 90oelbows is
required.
Vertical Flueing with Three (3) 90oElbows
Option H V H + H1 V + V1
Max. Min. Max. Min.
A) 0.3m 0.3m 0.9m 0.9m
B) 0.6m 0.6m 1.2m 1.5m
C) 0.9m 0.9m 1.5m 2.1m
D) 1.2m 1.2m 1.8m 2.7m
E) 1.5m 1.5m 2.1m 3.3m
Withtheseoptions,max.total
pipelengthis30feetwithmin.
of 11 feet total vertical and
max. 7 feet total horizontal.
Please note min. 1 foot
between 90oelbows is
required.
One 90oelbow = Two 45oelbows.
One 90oelbow = Two 45oelbows.
