Regency Fireplace Products Classic H2100M Quick start guide

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
919-548
MODELS: H2100M I3100L
Classic™
H2100M & I3100L
Wood
Fireplace Insert &
Hearth Heater
12.02.15
Owners & Installation Manual
Tested by:
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
www.regency-re.com

2| Regency Wood Insert & Hearth Heater
|
2
Thank-you for purchasing a REGENCY PRODUCT.
The pride of workmanship that goes into each of our products will give you years of trouble-free enjoyment. Should you have any questions about your product
that are not covered in this manual, please contact the REGENCY DEALER in your area. Keep those REGENCY FIRES burning.
“This wood heater has a manufacturer set minimum low burn rate that must not be altered. It is against federal regulations to alter this setting or otherwise
operate this wood heater in a manner inconsistent with operating instructions in this manual." Failure to follow the manual details can lead to smoke and CO
emissions spilling into the home. It is recommended to have monitors in areas that are expected to generate CO such as heater fuelling areas.
“U.S. ENVIRONMENTAL PROTECTION AGENCY Certied to comply with 2015 particulate emission standards using crib wood". Not approved for sale after
May 15, 2020.”
Model Regency H2100 – 3.5 g /hr.
Model Regency I3100 – 4.2 g/ hr.
SAFETY NOTE: If this woodstove is not properly installed, a house re may result. For your safety, follow the installation instructions, contact local building,
re ofcials, or authority having jurisdiction about restrictions and installation inspection requirements in your area.
The following statements are required by the Environmental Protection Agency:
“This manual describes the installation and operation of the Regency H2100 wood heater. This heater meets the 2015 U.S. Environmental Protection Agency’s
crib wood emission limits for wood heaters. Under specic test conditions this heater has been shown to deliver heat at rates ranging from 10,800 BTU/hr. to
46,900 BTU/hr.” This unit has been tested using 5G series and generates the best efciency when operated using well-seasoned wood and installed in the
main living areas where the majority of the chimney is within the building envelope and fully lined.”
This manual describes the installation and operation of the Regency I3100 wood heater. This heater meets the 2015 U.S. Environmental Protection Agency’s
crib wood emission limits for wood heaters. Under specic test conditions this heater has been shown to deliver heat at rates ranging from 11,900 BTU/hr. to
42,900 BTU/hr.” This unit has been tested using 5G series and generates the best efciency when operated using well-seasoned wood and installed in the
main living areas where the majority of the chimney is within the building envelope and fully lined.”
"It is against federal regulation to operate this wood heater in a manner inconsistent with operating instructions in this manual, or if any parts are removed. “
It is against federal regulation to operate this wood heater in a manner inconsistent with operating instructions in this manual.
CAUTION: BURN UNTREATED WOOD ONLY. OTHER MATERIALS SUCH AS WOOD PRESERVATIVES, METAL FOILS, COAL,
PLASTIC, GARBAGE, SULPHUR OR OIL MAY DAMAGE THE HEATER
"This heater is designed to burn natural wood only. Higher efciencies and lower emissions generally result when burning air dried seasoned hardwoods, as
compared to softwoods or to green or freshly cut hardwoods."
DO NOT BURN:
• Treated wood • Lawn clippings or yard waste • Manure or animal remains
• Coal • Materials containing rubber including tires • Saltwater driftwood or other previously salt water
saturated materials
• Garbage • Materials containing plastic • Unseasoned wood
• Cardboard • Waste petroleum products , paints or paint thinners or asphalt products • Paper products, cardboard, plywood or particle
board. The prohibition against burning these
materials does not prohibit the use of fire starters
made from paper, cardboard, saw dust, wax and
similar substances for the purpose of starting a
fire in a wood heater
• Solvents • Materials containing asbestos
• Colored Paper • Construction or demolition debris
• Trash • Railroad ties
Burning these materials may result in release of toxic fumes or render the heater ineffective and cause smoke.
The authority having jurisdiction (such as Municipal Building Department, Fire Department, Fire Prevention Bureau, etc.) should be consulted before installa-
tion to determine the need to obtain a permit.
This unit must be connected to either a listed factory built chimney suitable for use with solid fuels and conforming to ULC629 in Canada or UL-103HT in the
United States of America or code approved masonry chimney with ue liner.
H2100 is tested and certied to ULC-S628 and UL1482
I3100L is tested and certied to ULC-S628, ULC-S627 and UL1482.
SAVE THESE INSTRUCTIONS

Regency Wood Insert & Hearth Heater | 3
3
|
table of contents
SAFETY LABEL
Safety Label For I3100l .................................................4
Safety Label For H2100M..............................................5
UNIT DIMENSIONS
Unit Dimensions For I3100L..........................................6
Unit Dimensions For H2100M .......................................7
INSTALLATION
Before Installing Your Insert...........................................8
Chimney Specications .................................................8
Fireplace Specications.................................................8
Installing Your Insert ......................................................8
Optional Flue Connector Kit ..........................................9
Masonry And Factory Built Fireplace Clearances .........9
Leg Option On H2100
Hearth Heater..............................................................10
Flue Connector Bracket...............................................10
Installation Into A Factory Built Fireplace.....................10
Installation Into A Masonry Fireplace...........................10
Faceplate And Trim ..................................................... 11

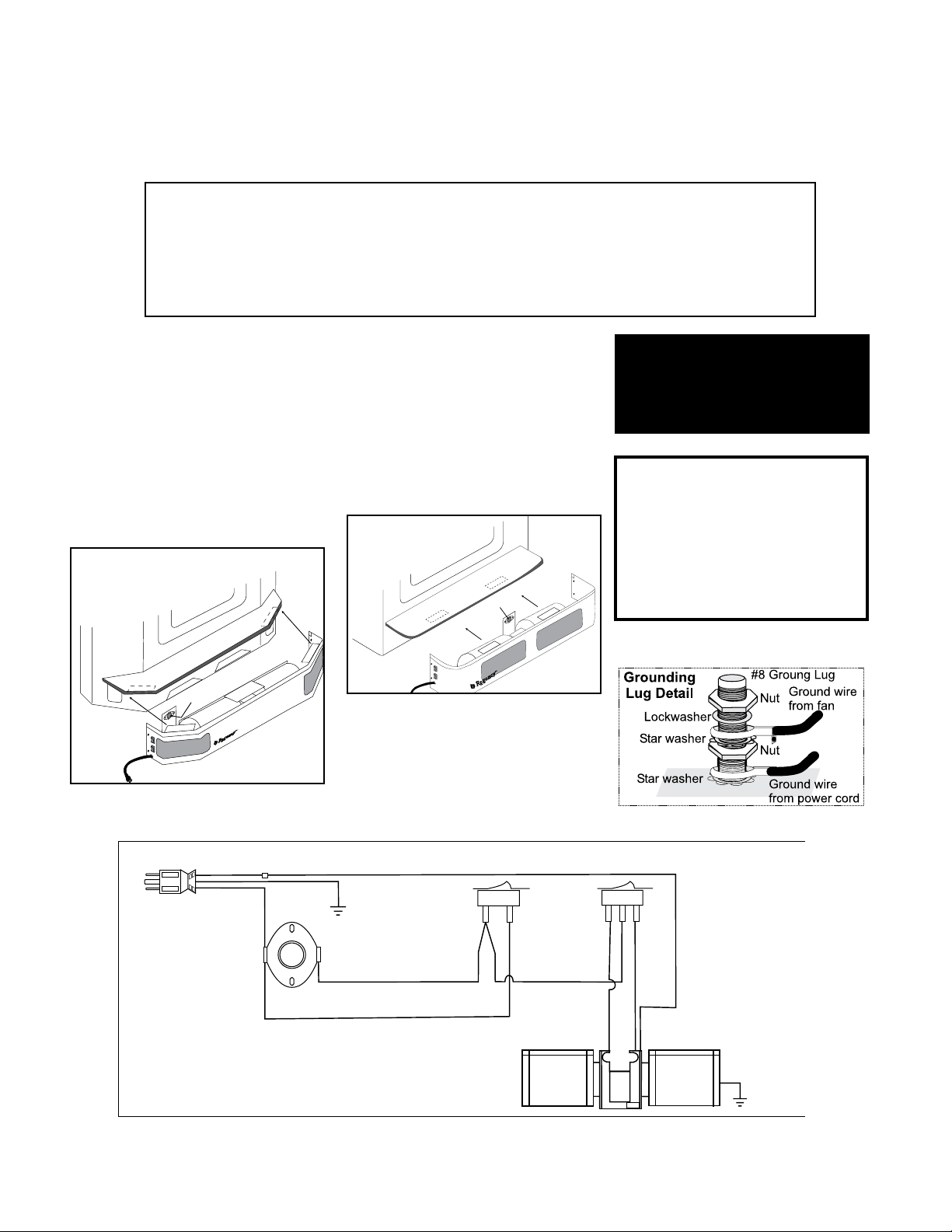

Fan / Blower ................................................................12
Floor Protection ...........................................................13
Firebrick Assembly ......................................................13
Door Handle ................................................................13

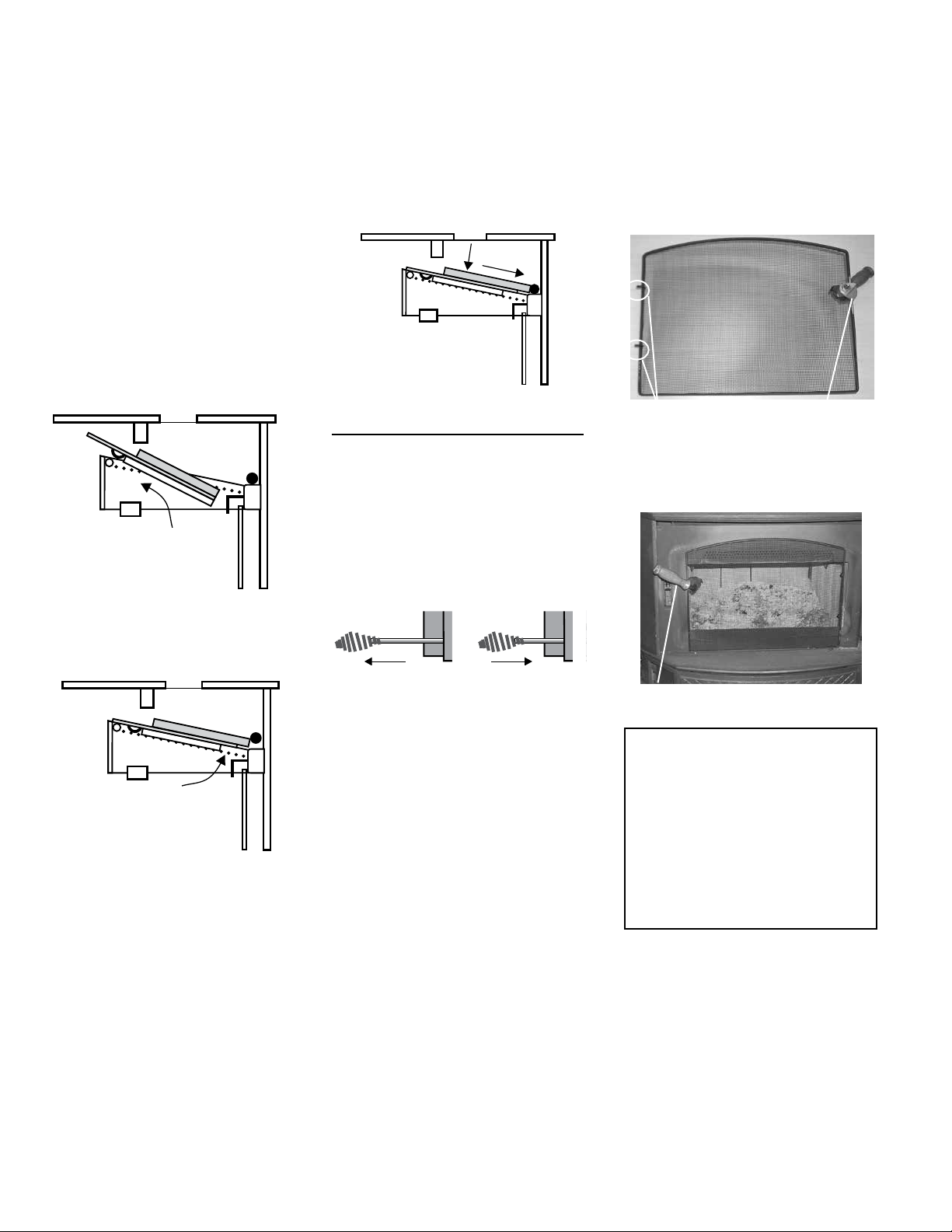

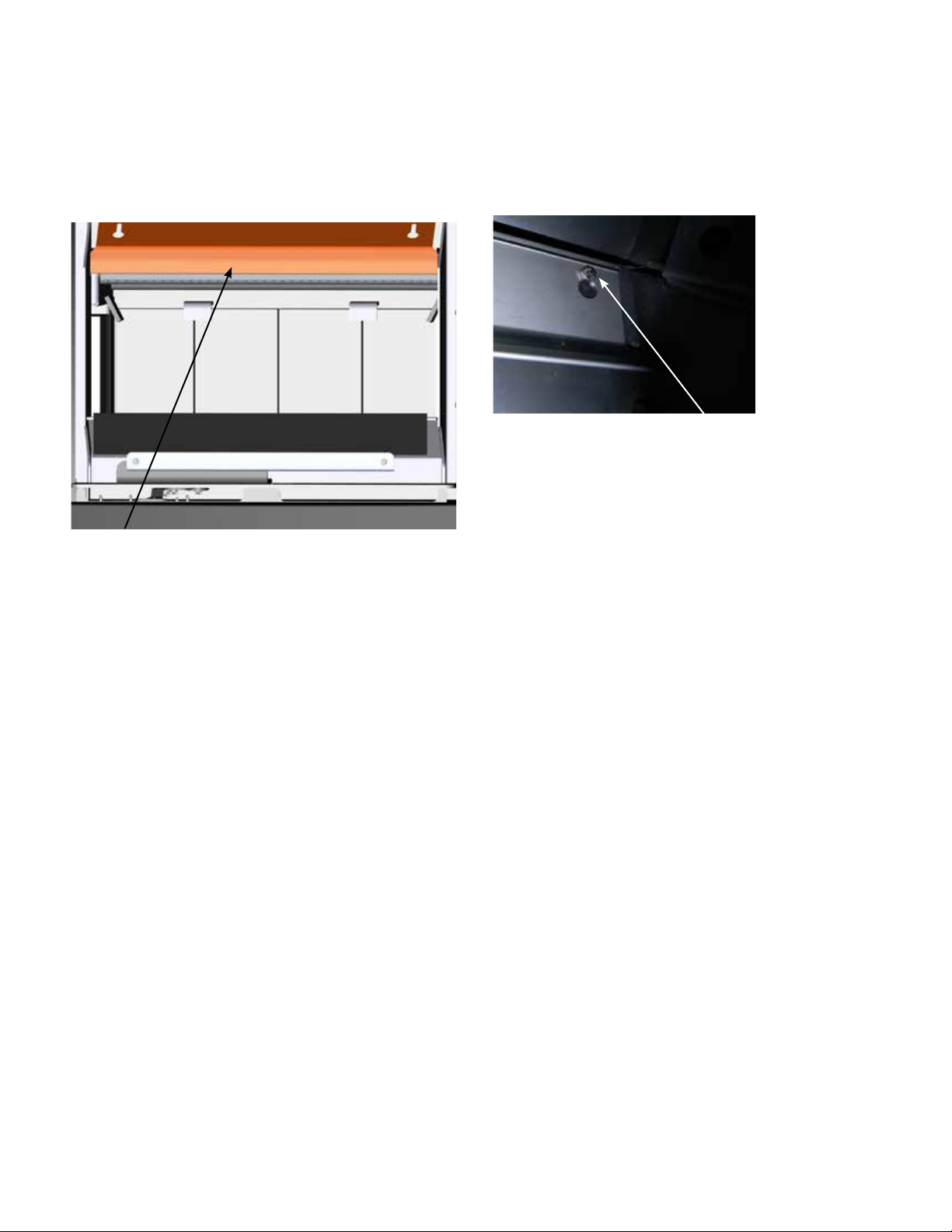

Brick Flue Bafe & Secondary Air Tube Installation ....13
Stainless Steel Smoke Deector Adjustment
/Replacement ..............................................................14
Draft Control ................................................................15
Screen Door (I3100 only) ............................................15
OPERATING INSTRUCTIONS
Seasoned Wood .......................................................... 16
First Fire ......................................................................17
Fan Operation (All Units).............................................17
Ash Disposal................................................................17
Some Safety Guidelines..............................................17
Creosote......................................................................18
MAINTENANCE
Maintenance Of Nickel-Plated Doors ..........................18
Door Gasket ................................................................18
Door Latch Adjustment ................................................18
Glass Cleaning ............................................................18
Glass Replacement .....................................................18
Glass Removal ............................................................18
PARTS LIST
I3100 Main Assembly ..................................................20
I3100 Faceplates.........................................................21
H2100 Main Assembly.................................................22
I3100 & H2100 Firebrick..............................................23
WARRANTY
Warranty ......................................................................27

4| Regency Wood Insert & Hearth Heater
|
4safety decal
This is a copy of the label that accompanies each
Regency Large Flush Insert. We have printed
a copy of the contents here for your review.
NOTE: Regency units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is
the correct one.
SAFETY LABEL FOR I3100L
LISTED FACTORY BUILT FIREPLACE INSERT
CERTIFIED FOR USE IN CANADA AND U.S.A.
MODEL: I3100L
TESTED TO:
ULC S628-M93 / UL 1482-1998 / ULC S627-00 / UL 737-2000 REPORT NO. 632-323500 (MAR.1994)
DO NOT REMOVE THIS LABEL
106
COMPONENTS REQUIRED FOR INSTALLATION: 5.5" (140mm) or 6" (152mm) STAINLESS STEEL LINER.
OPTIONAL COMPONENT: FAN, ELECTRICAL RATING: VOLTS 115, 60 HZ, 0.6 AMPS, SCREEN DOOR
DO NOT REMOVE BRICKS OR MORTAR IN MASONRY FIREPLACE. FOR USE WITH SOLID WOOD FUEL ONLY. DO
NOT USE GRATE OR ELEVATE FIRE. BUILD WOOD FIRE DIRECTLY ON HEARTH. OPERATE WITH FEED DOOR
CLOSED, OPEN TO FEED FIRE ONLY. REPLACE GLASS ONLY WITH CERAMIC GLASS (5mm). INSPECT AND CLEAN
CHIMNEY FREQUENTLY. UNDER CERTAIN CONDITIONS OF USE CREOSOTE BUILDUP MAY OCCUR RAPIDLY. DO
NOT OVERFIRE, IF INSERT GLOWS YOU ARE OVER-FIRING.
2017
DATE OF MANUFACTURE
20162015
CAUTION
908-343c
HOT WHILE IN OPERATION
DO NOT TOUCH. KEEP
CHILDREN, CLOTHING
AND FURNITURE AWAY.
CONTACT MAY CAUSE
SKIN BURNS. READ ABOVE
INSTRUCTIONS.
Install and use only in accordance with the manufacturer's installation and operating instructions. Install and use only in masonry
 replace or factory built  replace. Contact local building or  re of cials about restrictions and installation inspection in your area.
MADE IN CANADA
Manufactured by:
FPI FIREPLACE PRODUCTS
INTERNATIONAL LTD.
6988 Venture Street
Delta, BC V4G 1H4
(Duplicate Serial #)
Minimum Clearances to Combustibles
(Measured from insert body)
ADJACENT SIDEWALL A) 13"(330mm)
MANTLE B) 19"(480 mm)
TOP FACING C) 18"(455 mm)
SIDE FACING D) 6.5"(165mm)
INSTALL ONLY ON A NON-COMBUSTIBLE HEARTH RAISED (F) 1.5" (38mm)
ABOVE AN ADJACENT COMBUSTIBLE FLOOR. COMBUSTIBLE FLOOR
MUST BE PROTECTED BY NON-COMBUSTIBLE MATERIAL EXTENDING
(E) 16" (405mm) TO FRONT AND (G) 8" (205mm) TO SIDES FROM FUEL
DOOR.
UNITED STATES
ENVIRONMENTAL PROTECTION
AGENCY CERTIFIED TO COMPLY
WITH JULY 1990, PARTICULATE
EMISSION STANDARDS.
JAN FEB MAR APR MAY JUN JUL AUG SEPT OCT NOV DEC
Part #: 908-343b
Size: 9.17" W x 3.97" H (File at 100%)
Color: Everything printed black on grey except what is indicated as being printed in red.
Dec. 16/14: Rev. C Updated ETL logo and manufacture dates
Sept. 26/13:updated yrs. of manufacture.
Apr. 7/11 Added. 5.5" stainless liner size
Mar. 15/10: updated yrs. of manufacture.
Jan. 2/08: updated yrs. of manufacture.
106

Regency Wood Insert & Hearth Heater | 5
5
|
safety decal
This is a copy of the label that accompanies each
Regency Hearth Heater. We have printed a
copy of the contents here for your review.
NOTE: Regency units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is the
correct one.
SAFETY LABEL FOR H2100M
Part #: 908-389c
Size: 10.06" W x 3.27" H ( le at 100%)
Colour: Black on grey, except for what is highlighted in yellow is red.
Nov. 25/14: Updated ETL Logo
Jan. 22/14: Updated yrs of manufacture
Apr. 4/11:updated yrs. of manufacture / added 5.5" stainless liner
Mar. 15/10: updated yrs. of manufacture.
Jan. 2/08: updated yrs. of manufacture.
103
DO NOT REMOVE BRICKS OR MORTAR IN MASONRY FIREPLACE. FOR USE WITH SOLID WOOD FUEL ONLY. DO NOT USE GRATE
OR ELEVATE FIRE. BUILD WOOD FIRE DIRECTLY ON HEARTH. OPERATE WITH FEED DOOR CLOSED, OPEN TO FEED FIRE ONLY.
REPLACE GLASS ONLY WITH CERAMIC GLASS (5 MM).
INSPECT AND CLEAN CHIMNEY FREQUENTLY. UNDER CERTAIN CONDITIONS OF USE CREOSOTE BUILDUP MAY OCCUR RAPIDLY.
DO NOT OVERFIRE, IF INSERT GLOWS YOU ARE OVER-FIRING.
MANUFACTURED BY:
FIREPLACE PRODUCTS INTERNATIONAL LTD.
6988 VENTURE ST. DELTA, BC V4G 1H4
UNITED STATES ENVIRONMENTAL
PROTECTION AGENCY CERTIFIED TO
COMPLY WITH JULY 1990, PARTICULATE
EMISSION STANDARDS.
908-389c
HOT WHILE IN OPERATION
DO NOT TOUCH. KEEP CHILDREN,
CLOTHING AND FURNITURE
AWAY. CONTACT MAY CAUSE
SKIN BURNS. READ ABOVE
INSTRUCTIONS.
CAUTION
JAN FEB MAR APR MAY JUN JUL AUG SEPT OCT NOV DEC
ADJACENT SIDEWALL A) 10 in / 255 mm
MANTEL B) 25 in / 635 mm
TOP FACING C) 14 in / 355 mm
SIDE FACING D) 8.5 in/ 216mm
HEARTH EXTENSION (DEPTH) E) 18 in / 455 mm
HEARTH EXTENSION (ELEVATION) F) 1.5 in/ 38 mm
HEARTH EXTENSION (WIDTH) G) 6 in / 150 mm
INSTALL ONLY ON A NON-COMBUSTIBLE HEARTH RAISED (F) 1.5 IN / 38 MM
ABOVE AN ADJACENT COMBUSTIBLE FLOOR. COMBUSTIBLE FLOOR MUST
BE PROTECTED BY NON-COMBUSTIBLE MATERIAL EXTENDING (E) 18 IN / 455
MM TO FRONT AND (G) 6 IN / 150 MM TO SIDES.
COMPONENTS REQUIRED FOR INSTALLATION MUST HAVE EITHER A 5.5"
(140mm) or 6" (150MM) STAINLESS STEEL LINER.
MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS (MEASURED FROM INSERT BODY)
LISTED FACTORY BUILT FIREPLACE ACCESSORY HEARTH STOVE
CERTIFIED FOR USE IN CANADA AND U.S.A.
MODEL: H2100M
TESTED TO: ULC S628-M93 / UL 1482-1998 REPORT NO. 6255 (JULY 1991)
2015 2016 2017
DATE OF MANUFACTURE
MADE IN CANADA
(Duplicate Serial #)
INSTALL AND USE ONLY IN ACCORDANCE WITH THE MANUFACTURER'S INSTALLATION AND OPERATING INSTRUCTIONS. INSTALL AND USE ONLY IN MASONRY FIREPLACE
OR FACTORY BUILT FIREPLACE.
CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION IN YOUR AREA.
DO NOT REMOVE THIS LABEL
103

6| Regency Wood Insert & Hearth Heater
|
6safety decal
UNIT DIMENSIONS FOR I3100L
CHK
PROCESS :
SCALE:
DWN
BLANK SIZE :
SIGN
C.N.
DATE
THIS DRAWING IS THE PROPERTY OF FPI LTD., IT MAY NOT BE COPIED IN WHOLE OR IN PART, OR DISCLOSED TO A THIRD PARTY WITHOUT OUR PRIOR WRITTEN CONSENT.
CURRENT REVISION
PREVIOUS REVISION
PART :
MAT'L :
ANGULAR =
INSIDE BEND RADII =
UNITS IN INCHES
DIMENSIONS =
TOLERANCES UNLESS
OTHERWISE STATED
SCALE
DO NOT
PROJECTION
3RD ANGLE
MODEL #
QTY.
REV.
±1°
±0.031
PART
NO.
FIREPLACE PRODUCTS INTERNATIONAL
FEB 25, 2011
SEE ABOVE
SHEAR/ PUNCH/ FORM
A
A
- WT 23MAR 2011
163-500
BLEUNG
163-500
I3100L MAIN ASSY
-
I3100 1
1:12
A
A
(27-1/2”)
(699mm)
(26”)
(660mm)
(15-13/16”)
(402mm)
(10-3/8”)
(263mm)
(1-7/16”)
(36mm)
(6-7/8”)
(175mm)
(44”)*
(1118mm)
(32”)*
(813mm)
(4-15/16”)
(125mm)
(9-7/16”)
(240mm) (6-1/4”)
(159mm)
(22-7/8”)
(581mm)
(5-1/2”)
(140mm)
(6”)
(152mm)
(Collar)
(952mm)
(37-1/2”)
(23-1/4”)
(590mm)
* Regular Faceplate
Oversize Faceplate is 50”W x 34 1/2” H

Regency Wood Insert & Hearth Heater | 7
7
|
safety decal
UNIT DIMENSIONS FOR H2100M
CHK
PROCESS :
SCALE:
DWN
BLANK SIZE :
SIGN
C.N.
DATE
THIS DRAWING IS THE PROPERTY OF FPI LTD., IT MAY NOT BE COPIED IN WHOLE OR IN PART, OR DISCLOSED TO A THIRD PARTY WITHOUT OUR PRIOR WRITTEN CONSENT.
CURRENT REVISION
PREVIOUS REVISION
PART :
MAT'L :
ANGULAR =
INSIDE BEND RADII =
UNITS IN INCHES
DIMENSIONS =
TOLERANCES UNLESS
OTHERWISE STATED
SCALE
DO NOT
PROJECTION
3RD ANGLE
MODEL #
QTY.
REV.
±1°
±0.031
PART
NO.
FIREPLACE PRODUCTS INTERNATIONAL
FEB 25, 2011
N/A
ASSEMBLY
A
A
- WT 23 MAR 2011
120-500
BLEUNG
120-500
H2100 MAIN ASSY
-
H2100
1
1:6
(28”)
(711mm)
(24-5/8”)
(625mm)
(1-5/16”)
(33mm)
(19-13/16”)
(503mm)
(54mm)
(2-1/8”)
(20-3/8”)
(517mm)
(25-7/16”)
(646mm) (5”)
(127mm)
(16-13/16”)
(427mm)
(7”)
(178mm)
(3-3/8”)
(86mm)
(6”)
(152mm)
(22-1/2”)
(571mm)
(20”)
(508mm)
(28” with legs)
(711mm)
Regular faceplate is 40 1/4 W x 30” H
Oversize Faceplate is 48”W x 33” H
(16-1/8”)
(409mm)

8| Regency Wood Insert & Hearth Heater
|
8installation
CHIMNEY
SPECIFICATIONS
Before installing, check and clean your chimney
system thoroughly. If in doubt about its condi-
tion, seek professional advice. Your Regency
Insert is designed for installation into a masonry
replace that is constructed in accordance with
the requirements of "The Standard for Chimneys,
Fireplaces, Vents, and Solid Fuel Burning Ap-
pliance", N.F.P.A. 211, the National Building
Code of Canada, or the applicable local code
requirements.
The appliance, when installed, must be electri-
cally grounded in accordance with local codes or,
in the absence of local codes, with the National
Electrical Code, ANSI/NFPA 70, or the Canadian
Electrical code, CSA C22.1.
Regency Inserts are designed to use either a
5.5" (140mm) or 6" (152mm) ue.
Requirements for Installing
Solid-fuel Inserts in Factory-built
Fireplaces.
1) The insert must be tested and meet the
requirements of UL 1482 (U.S.) and or ULC
S628 (Canada) when tested in a masonry
replace built per ULC S628.
2) The factory-built replace must be listed per
UL 127 or ULC S610.
3) Clearances obtained from the masonry re-
place tests are also relevant for installation
in factory-built replaces.
4) Installation must include a full height listed
chimney liner type HT requirements (2100
degree F.) per UL 1777 (U.S.) or ULC
S635 (Canada). The liner must be securely
attached to the insert ue collar and the
chimney top.
5) Means must be provided to prevent room
air passage to the chimney cavity of the
replace. This may be accomplished by
sealing the damper area around the chimney
liner, or sealing the replace front.
6) Alteration of the replace in any manner is not
permitted with the following exceptions;
a. external trim pieces which do not affect
the operation of the replace may be
removed providing they can be stored
on or within the replace for re-assembly
if the insert is removed.
b. the chimney damper may be removed
to install the chimney liner.
7) Circulating air chambers (i.e. in a steel
replace liner or metal heat circulator) shall
not be blocked.
8) Means must be provided for removal of the
insert to clean the chimney ue.
Regency Inserts are constructed with the high-
est quality materials and assembled under strict
quality control procedures that insure years of
trouble free and reliable performance.
It is important that you read this manual thor-
oughly and fully understand the safe instal-
lation and operating procedures. The more
you understand the way your Regency Insert
operates, the more enjoyment you will experi-
ence from knowing that your unit is operating
at peak performance.
BEFORE INSTALLING
YOUR INSERT
1) Read all instructions before installing and
using your replace insert. Install and use
only in accordance with manufacturer’s
installation and operating instructions.
2) Check your local building codes - Building
Inspection Department. You may require
a permit before installing your insert. Be
aware that local codes and regulations may
override some items in the manual.
WARNING: Careless installation is the
major cause of safety hazard. Check all
local building and safety codes before
installation of unit.
3) Notify your home insurance company that
you plan to install a replace insert or hearth
heater.
4) Your replace insert is heavy and requires
two or more people to move it safely. The
insert can be badly damaged by mishan-
dling.
5) If your existing replace damper control
will become inaccessible once you have
installed your Regency Insert, you should
either remove or secure it in the open posi-
tion.
6) Inspect your replace and chimney prior
to installing your insert to determine that it
is free from cracks, loose mortar or other
signs of damage. If repairs are required,
they should be completed before installing
your insert. Do not remove bricks or mortar
from your masonry replace.
7) Do not connect the insert to a chimney
system servicing another appliance or an
air distribution duct.
9) Inserts that project in front of the replace
must be supplied with appropriate supporting
means.
10) Installer must mechanically attach the sup-
plied label to the inside of the rebox of the
replace into which the insert is installed.
In order for a solid-fuel insert to be certied
for use in factory-built replaces, the above
information must be clearly stated in the instal-
lation manual and appropriate markings. Final
approval is contingent on the authority having
jurisdiction.
FIREPLACE
SPECIFICATIONS
Your replace opening requires the following
minimum sizes:
Height Width Depth
Large (I3100L) 25" 28" 17"
Hearth Heater (H2100M) 20.0" -- --
Two faceplates are available to seal the re-
place opening:
Standard Oversize
Large (I3100L)
44"W x 32"H 50"W x 34.5"H
Hearth Heater (H2100M)
40 1/4"W x 30"H 48"W x 33"H
INSTALLING YOUR
INSERT
Your insert is very heavy and will require two
or three people to move it into position. The
insert can be made a little lighter by removing
the cast iron door by opening it and lifting it
off its hinges. Be sure to protect your hearth
extension with a heavy blanket or carpet scrap
during the installation.
Convection Grills for
I3100L
The convection grills are installed before the
unit is positioned inside the replace.
Emissions from burning wood or gas could
contain chemicals known to the State of Cali-
fornia to cause cancer, birth defects or other
reproductive harm.
"WARNING: This replace has been converted
for use with a wood insert only and cannot be
used for burning wood or solid fuels unless
all original parts have been replaced, and the
replace re-approved by the authority having
jurisdiction."

Regency Wood Insert & Hearth Heater | 9
9
|
installation
Clearance diagram for installations
Side and Top facing is a maximum of 1.5"
thick.
Floor protection must non-combustible, insula-
tive material with an R value of 1.1 or greater.
* If the hearth extension is ush with the oor
(F) it must extend 19.5" in front of the body
face (E).
Note: Hearth Extension Width (G) is meas-
ured from edge of fuel door to side
of hearth.
** A non-combustible mantel may be in-
stalled at a lower height if the framing
is made of metal studs covered with a
non-combustible board.
** Mantel depth - maximum of 10" (254mm)
MASONRY AND FACTORY BUILT FIREPLACE CLEARANCES
The minimum required clearances to combustible materials when installed into a masonry or factory built replace are listed below.
H
View from Rear of Insert
OPTIONAL FLUE
CONNECTOR KIT
The optional Flue Connector Kit (Part # 846-527)
and the Straight Flue Adaptor (Part #846-504)
shown here, may be used to produce a secure
connection between your ue connector and the
insert collar. Detailed installation instructions are
included with the kit.
Position the grill on the inside bodyface side and
fasten using the bolts, washers and nuts provided
(2 per side) as shown in the diagrams.
Note: The grill has a front and rear, the holes
on the front side have rounded edges
and the rear holes have at edges.
Thermal oor protection is not required if the unit is
raised 3.5" minimum (measured from the bottom of
the stove). However, standard ember oor protec-
tion is required. It will need to be a non-combustible
material that covers 16" (406 mm) in the US and
18" (450 mm) in Canada to the front of the unit and
8" (200 mm) to the sides.
If the unit is not raised, thermal oor protection
required is 18" (450 mm) in the US and Canada.
Unit
Adjacent
Side Wall
(to Side of
Unit)
Mantle**
(to Top of
unit)
Top
Facing
(to Top of Unit)
Side
Facing
(to Side of Unit)
Minimum
Hearth
Extension
Minimum
Hearth
Thickness*
Minimum
Hearth
Extension
Side
From Top of
Unit
A B C D E F G H
Large Flush
Insert I3100L
13"/330mm 19"/480mm 18"/455mm 6.5"/406mm 16"/406mm 1.5"/38mm 8"/205mm 23-1/4"/603mm
Hearth Heater
H2100M 10"/255mm 25"/635mm 14"/355mm 8.5"/216mm 18"/455mm 1.5"/38mm 6"/152mm 22-1/2"/572mm

10 | Regency Wood Insert & Hearth Heater
|
10 installation
1) Positive Flue
Connection
with Cleanout
FLUE CONNECTOR
BRACKET
Package contains: 3 brackets and 6 screws.
These brackets are to be used to hold the ue
liner (not supplied) to the Insert and keep the
connection. The brackets are screwed into the
top of the Insert in the pre-punched holes and
then screwed into the ue liner.
2) Direct Flue
Connection
with Cleanout
3a) Full Flue Liner
(No Cleanout
Required)
3b) Hearth Heater with
Full Flue Liner
(No Cleanout
Required)
Note: A clean-out door is sometimes
required, by your inspector, to be
installed when either the Positive ue
connection or Direct ue connection
method is used.
NOTE: Adding the
legs changes the
height of the unit,
make sure you have
sufficient clearance
(min. 28") for your ue
connection.
LEG OPTION ON H2100
HEARTH HEATER
The addition of legs to the Hearth Heater does
not alter its certication, it does not become a
freestanding woodstove. The H2100 can only
be installed as a Hearth Heater i.e. vented into
a masonry or factory built replace.
The instructions below apply to the cast legs.
It will be easier to attach the legs to the stove
if it is tipped on its back (preferably on a soft
surface to prevent scratching).
1) Thread the bolt and washer through the
leg, and then into the nutsert in the base
of the stove and tighten.
2) Level the stove by adjusting the levelling
bolts in the bottom of each leg.
The use of one of the connection methods listed
on this page not only increases the safety of your
insert by directing the hot gases up the ue, but
will also help increase the unit's efciency and
decrease creosote deposits in the chimney.
When a connected ue or liner is in use, the
insert is able to “breathe” better by allowing a
greater draft to be created. The greater draft can
decrease problems such as, difcult start-ups,
smoking out the door, and dirty glass.
INSTALLATION INTO A
FACTORY BUILT
FIREPLACE
1) When installed in a factory built replace, a
full stainless steel rigid or exible ue liner
is mandatory, for both safety and perform-
ance purposes. When a ue or liner is in
use, the insert is able to breathe better by
allowing a greater draft to be created. The
greater draft can decrease problems such
as, difcult start-ups, smoking out the door,
and dirty glass.
2) In order to position the ue liner, the exist-
ing rain cap must be removed from your
chimney system. In most cases the ue
damper should also be removed to allow
passage of the liner.
3) In most cases opening the existing spark
screens fully should give enough room for
the insert installation. If it does not, remove
and store.
When referencing installation or connec-
tion to masonry replaces or chimneys, the
masonry construction must or shall be code
complying.
INSTALLATION INTO A
MASONRY FIREPLACE
The insert must be installed as per the require-
ments of your local inspection authority. Three
methods of ue connection are acceptable in
most areas, these include:
1) Positive ue connection, where a large
blocking plate and a short connector pipe
is used.
2) Direct ue connection, where a smaller
blocking plate and a connector pipe to the
rst ue liner tile is used.
3) Full ue liner, where a stainless steel rigid
or exible liner pipe is routed from the insert
outlet collar to the top of the chimney.
Regency highly recommends the use of a full
liner as the safest installation and provides the
most optimum performance. Your retailer should
be able to help you decide which system would
be the best for your application.
In Canada this replace insert must be
installed with a continuous chimney liner
of either 5.5" or 6" diameter extending
from the replace insert to the top of the
chimney. The chimney liner must conform
to the Class 3 requirements of CAN/ULC-
S640, Standard for Lining Systems for
New Masonry Chimneys.

Regency Wood Insert & Hearth Heater | 11
11
|
installation
Diagram 1:
H2100M and I3100L
Faceplate Assembly
A) H2100M and I3100L Insert
1) Slide the spring nuts (supplied) over the
slots in the insert’s side convection panels
(the spring nuts may need to be squeezed
with a pair of pliers rst, to help them stay
in position).
2) Screw the side faceplate panels, (item A in
the diagram) one to each side.
3) Using the top panel (item B in the diagram)
as a gauge, check that the side panels are
within approximately 1/4" of the overall width.
If the difference is greater than this, use
the supplied washers to attain the required
width.
B) All units
The unit may now be slid into nal position and
attached to the connection system.
Once connection is made, the insulation strips
should be installed between the insert faceplates
and the replace face. The faceplate top may
now be installed (with insulation strip behind)
by aligning its brackets with the top ange on
the side shields and the angle iron bar on the
insert top. The faceplate trim may be installed
to the edge of the faceplate at this time.
Note: It may be easier to install the insula-
tion, faceplate top and faceplate trim
with the unit pulled slightly away from
the replace face. If this is done, be
very careful not to disturb the con-
nector when shifting the unit to its
nal position.
Now that your insert is installed, check once
more that all the clearances from the unit to
any combustible materials are correct as listed
earlier.
6) Once the above items have been checked,
slide your insert into position after rst po-
sitioning the ue liner and offset if required.
(Re-install raincap at completion of installa-
tion).
Flush Inserts Hearth Heater
4) If the oor of your replace is below the
level of the replace opening, adjust the
insert's levelling bolts to accommodate the
difference. When additional shimming is
required, use non-combustible masonry or
steel shims.
5) Measure approximately the alignment of
the ue liner with the position of the smoke
outlet hole on the insert to check for pos-
sible offset. If an offset is required, use a
proper stainless steel unit available with
the chimney liner.
FACEPLATE AND TRIM
Prior to sliding your insert into its nal position
and attaching the connector or liner pipe, the
faceplate side panel plates must be installed
as follows:
Draft is the force which moves air from the ap-
pliance up through the chimney. The amount of
draft in your chimney depends on the length of the
chimney, local geography, nearby obstructions
and other factors. Too much draft may cause
excessive temperatures in the appliance and
may cause damage. An uncontrollable burn or
excessive temperature indicates excessive draft.
Inadequate draft may cause back pufng into the
room and plugging of the chimney. Inadequate
draft will cause the appliance to leak smoke
into the room through appliance and chimney
connector joints. Ensure the heater is installed
in areas that are not too close to neighbors or
in valleys that would cause unhealthy air quality
or nuisance conditions.

12 | Regency Wood Insert & Hearth Heater
|
12 installation
Ground
Fan Fan
Ground Green
Neutral
Live
White
Fan
Switch
Manual/
Auto
Switch
Black Black
High (Black)
Low (Red)
Black
Fan Thermodisc
(normally open)
120V AC
60 Hz
Thermo Switch Sensor
Thermo Switch Sensor
FAN / BLOWER
Blower/Fan Wiring Diagram
3) Ensure that the power cord is not in contact
with any hot stove surfaces.
4) Push the Regency logo plate into the two
holes in the front bottom left corner of the
fan.
Do not turn fan ON until your insert has
reached operating temperature or at least
30 minutes after starting re.
Your fan should only be installed once the unit is
in place in order to prevent any damage to the
fan. To attach, follow the instructions provided
with the fan
1) Align the fan support with the offset clip
on the bottom of the ashlip.
2) Slide the supports into the clips. The tension
holding the clips in place may be adjusted by
increasing or decreasing the offset spacing
of the clips.
CAUTION: Label all wires prior
to disconnection when servic-
ing controls. Wiring errors can
cause improper and dangerous
operation.
WARNING:
Electrical Grounding Instructions
This appliance is equipped with a
three pronged (grounding) plug for
your protection against shock hazard
and should be plugged directly into
a properly grounded three-prong
receptacle. Do not cut or remove the
grounding prong from this plug.
Installer: Please record unit serial number here before installing blower.
Serial No.______________________________

Regency Wood Insert & Hearth Heater | 13
13
|
installation
BRICK FLUE BAFFLE &
SECONDARY AIR TUBE
INSTALLATION
The ue bafe system located in the upper area
of the rebox is removable to make cleaning
your chimney system easier. The brick bafes
must be installed prior to your rst re. Smoke
spillage and draft problems may occur if the
bafes are improperly positioned. Check the
position of the brick bafes on a regular basis as
they can be dislodged if too much fuel is forced
into the rebox.
The Large Insert I3100L is shipped with one of
the secondary air tubes loose inside the rebox.
It needs to be installed after the brick bafe are
installed. Follow the directions below.
Large Insert I3100L
The unit arrives with the third air tube (from the
front) and the 2 bafe bricks on the oor of the
rebox. The bafe bricks are positioned rst and
then the air tubes are installed.
1) Slide the left bafe brick over the two rear
air tubes and then push it all the way to the
left side of the rebox.
Front View
Large Insert (I3100L)
Hearth Heater (H2100M)
2) Tilt the rst Bafe Brick down and then slide
the 2nd Bafe Brick up and back. Reposition
both bafe bricks at on the air tubes.
3) Important: push both bafe bricks so
they are tight against the side walls.
4) Install the third air tube into the holes on the
side channels. The notch goes on the right
hand side with the air holes facing forward
toward the door opening. If the tube will not
slide in easily, simply use a pair of vise grips
or pliers and tap it into place with a hammer.
A tighter t will ensure the tube will not move
when the unit is burning.
FLOOR PROTECTION
Please check to ensure that your oor protection
and hearth will meet the standards for clearance
to combustibles. Your hearth extension must be
made from a non-combustible material.
FIREBRICK ASSEMBLY
Firebrick is included to extend the life of your
insert and radiate heat more evenly. Check to
see that all rebricks are in their correct posi-
tions and have not become misaligned during
shipping.
DOOR HANDLE
Attach spring handle by rotating counter clock-
wise onto rod. Ensure that the rod ts into the
entire length of the spring handle.
Note: When cleaning the chimney reverse
the above procedures, removing
the air tube and bafe bricks and
then replace them when cleaning is
completed.

14 | Regency Wood Insert & Hearth Heater
|
14 installation
STAINLESS STEEL SMOKE DEFLECTOR ADJUSTMENT / REPLACEMENT
The stainless smoke deflector is located in the upper front area of the firebox. The deflector is held in place with 2 bolts
Prior to the first fire, ensure deflector is seated properly and secured with 2 hand tightened bolts.
To replace the deflector, loosen off both bolts and slide defector upward and out. Install new defector and hand tighten bolts. Ensure positive location of
the defector prior to hand tightening.
WARNING: Operation of the unit with out proper installation of smoke deflector will void warranty.
Smoke deector is installed through the door
opening in location shown in diagram
Smoke deector
Ensure defector is seated so bolts are situated
at the top of the keyhole before tightening.

Regency Wood Insert & Hearth Heater | 15
15
|
installation
Pull Open Push Closed
Hearth Heater (H2100M)
Steel Bafe
Place the insulation batt on top of the bafe.
Make sure that this batt is laying at and does
not obstruct the smoke from getting up the ue
opening. This insulating batt may be wrapped
in paper for handling purposes and does not
require removal. Batt hold down weights are
supplied with the unit and are to be placed on
the insulation to either side of the ame spreader
as shown in the diagram and at the rear, directly
in front of the ue opening.
Lift the front end of the bafe up and over the
rear of the air tube. On Hearth Heater (H2100M)
remove center tube by sliding it sideways rst
and then down.
Lift the rear of the bafe, pivoting it on the air
tube, until it clears the rear air channel.
Slide the rear of the bafe on top of the rear
air channel in front of the locating tabs. Make
sure that the insulation is lying at and does
not obstruct the smoke from getting up the ue
opening. Place hold down weights on top of
the insulation - one on each side.
DRAFT CONTROL
Before establishing your rst re, it is important
that your fully understand the operation of you
draft control. The draft rod is on the left side of
the Inserts and it controls the intensity of the
re by increasing or decreasing the amount of
air allowed into the rebox. To increase your
draft - pull open, and to decrease - push closed.
As well as a primary and glass wash air system,
the unit has a full secondary draft system that
allows air to the induction ports at the top of
the rebox, just below the ue bafe.
WARNING: To build a re in ignorance or to
disregard the information contained in this
section can cause serious permanent dam-
age to the unit and void your warranty.
SCREEN DOOR
(I3100 ONLY)
Hook screen to the inside on the right side
of the rebox door opening. Lock in place by
turning handle.
Back Side of Screen Shown
WARNING
Fireplace Stoves equipped with doors
should be operated only with doors
fully closed. If doors are left partly
open, gas and ame may be drawn out
of the replace stove opening, creat-
ing risks from both re and smoke.
When operated with doors open the
manufacturer supplied screen must
be used.
NOTE: The handle must be positioned at 10
o'clock when closed to avoid the handle from
getting hot and to ensure the screen stays in
place.
Handle Lock
Hooks
Handle at 10 o'clock position.

16 | Regency Wood Insert & Hearth Heater
|
16 operating instructions
SEASONED WOOD
Whether you burn wood in a replace, stove or insert, good quality rewood is the key to convenience, efciency and safety. Wet wood and pieces that are
not the right size and shape for your wood burner can be frustrating, burn inefciently and deposit creosote that can fuel a dangerous chimney re. Good
planning, seasoning and storage of the rewood supply are essential to successful wood burning.
• Stack the wood in separate rows in an open location where the summer sun can warm it and breezes can carry away the moisture. Do not stack
unseasoned wood tightly in an unvented storage area.
• Do not allow rewood to lie on the ground for more than a couple of days before stacking. Mould and rot can set in quickly.
• Stack the wood up off the ground on poles, lumber rails or pallets.
• The top of the pile can be covered to keep off rain, but do not cover the sides.
Softer woods like pine, spruce and poplar/aspen that is cut, split and stacked properly in the early spring maybe be ready for burning in the fall. Extremely
hard woods like oak and maple, and large pieces of rewood, may take a minimum of a full year to dry enough. Drying may also take longer in damp climates
There are a few ways to tell if wood is dry enough to burn efciently. Use as many indicators as possible to judge the dryness of the rewood your are con-
sidering. Here are ways to judge rewood moisture.
• Using a moisture meter, select the species of fuel and then penetrate the pins into a split piece. Ideal moisture and seasoned rewood should be
less than 20% moisture content.
• Checks or cracks in the end grain can be an indication of dryness, but may not be a reliable indicator. Some wet wood has checks and some dry
wood has no checks.
• The wood tends to darken from white or cream colour to grey or yellow as it dries.
• Two dry pieces banged together sound hollow; wet pieces sound solid and dull.
• Dry wood weighs much less than wet wood.
• Split a piece of wood. If the exposed surface feels damp, the wood is too wet to burn.

Regency Wood Insert & Hearth Heater | 17
17
|
operating instructions
matic temperature sensor will engage the blower
when the unit is at temperature and will shut off
the blower once the re has gone out and the unit
has cooled to below a useful heat output range.
To manually operate the fan system, push the
rst switch to "Man" and second switch to either
"high" or "Low". This will bypass the sensing
device and allow full control of the fan. Switching
from "Auto" to "Manual" or "High" to "Low" may
be done at any time.
ASH DISPOSAL
During constant use, ashes should be removed
every few days. Please take care to prevent the
build-up of ash around the start-up air housing lo-
cated inside the rebox, under the loading door lip.
DO NOT ALLOW ASHES TO BUILD UP TO THE
LOADING DOORS.
Only remove ashes when the re has died down.
Even then, expect to nd a few hot embers. Always
leave 1 to 2 inches of ash in the bottom of the
rebox. This helps in easier starting and a more
uniform burn of your re.
Ashes should be placed in a metal container with a
tight tting lid. The closed container of ashes should
be placed on a noncombustible oor or on the
ground, well away from all combustible materials,
pending nal disposal. If the ashes are disposed
of by burial in soil or otherwise locally dispersed,
they should be retained in the closed container
until all cinders have thoroughly cooled. Other
waste should not be placed in the ash container.
SOME SAFETY
GUIDELINES
1) Never use gasoline, gasoline type lantern
fuels, kerosene, charcoal lighter fuel, or similar
liquids to start or ‘freshen up’ a re in your
heater. Keep all such liquids well away from
the heater while it is in use.
2) Keep the door closed during operation and
maintain all seals in good condition.
3) Do not burn large quantities of paper in your
insert.
4) If you have smoke detectors, prevent smoke
spillage as this may set off a false alarm.
5) Do not overre your insert. Attempts to
achieve heat output rates that exceed heater
design specications can result in permanent
damage to the heater If the insert or its ue
bafe begin to glow, you are overring. Stop
adding fuel and close the draft control. Over-
ring can cause extensive damage to your
stove including warpage and premature steel
corrosion. Overring will void your warranty.
6) Do not permit creosote or soot buildup in the
chimney system. Check and clean chimney
at regular intervals.
FIRST FIRE
When your installation is completed and in-
spected, you are ready for your rst re.
1) Open draft control fully.
2) Open rebox door and build a small re using
paper and dry kindling, wait a few minutes
for a good updraft in the ue to establish the
re. Leaving the door slightly open will help
your re start more rapidly.
CAUTION: Never leave unit unat-
tended if door is left open. This
procedure is for re start-up only,
as unit may over-heat if door is left
open for too long.
3) With the draft still in the fully open position,
add two or three seasoned logs to your re.
Form a trench in the ash bed to allow air to
reach the rear of the rebox prior to closing
the door.
4) After about 15 to 20 minutes, when your
wood has begun to burn strongly, adjust
your draft control down to keep the re at a
moderate level.
WARNING: Never build a roaring
re in a cold stove. Always warm
your stove up slowly!
5) Once a bed of coals has been established,
you may adjust the draft control to a low
setting to operate the unit in its most efcient
mode.
6) During the rst couple of hours, keep the
combustion rate at a moderate level and
avoid a large re until the paint is cured.
Only then can you operate the insert at its
maximum setting, and only after the metal
has been warmed.
7) For the rst few hours, the insert will give
off an odour from the paint. This is to be
expected as the high temperature paint
becomes seasoned. Windows and/or doors
should be left open to provide adequate
ventilation while this temporary condition
exists. Burning the insert at a very high
temperature the rst few times may damage
the paint. Burn res at a moderate level the
rst few days.
8) Do not place anything on the insert top
during the curing process. This may result
in damage to your paint nish.
9) During the rst few hours it may be more dif-
cult to start the re. As you dry out your re
brick and your masonry ue (if applicable),
your draft will increase.
10) For those units installed at higher elevations
or into sub-standard masonry replaces,
drafting problems may occur. Consult an
experienced dealer or mason on methods
of increasing your draft.
11) Some cracking and popping noises may be
experienced during the heating up process.
These noises will be minimal when your unit
reaches temperature.
12) Before opening your door to reload, open
draft fully for approximately 10 to 15 seconds
until re has been re-established. This will
minimize any smoking.
13) All fuel burning appliances consume oxygen
during operation. It is important that you
supply a source of fresh air to your unit
while burning. A slightly opened window is
sufcient for this purpose.
CAUTION: If the body of your unit
(or in the H2100M ue bafe) starts
to glow you are overring. Stop
loading fuel immediately and close
the draft control until the glow has
completely subsided.
14) Green or wet wood is not recommended for
your unit. If you must add wet or green fuel,
open the draft control fully until all moisture
has been dispersed by the intense re.
Once all moisture has been removed, the
draft control may be adjusted to maintain
the re.
15) If you have been burning your insert on a low
draft, use caution when opening the door.
After opening the damper, open the door
a crack, and allow the re to adjust before
fully opening the door.
16) The controls of your unit should not be altered
to increase ring for any reason.
FAN OPERATION
(ALL UNITS)
The fan is to be operated only with the draft
control rod pulled out at least 1/2" from the
fully closed position. The fan is not to be
operated when the draft control rod is in the
closed position (pushed in). The fully closed
position is the low burn setting.
The fan unit must not be turned on until a re
has been burning for at least 30 minutes and
the unit is hot enough. As well, after each fuel
loading the fan must be shut off until 30 minutes
has elapsed.
To operate fan automatically, push switch on side
of fan housing to "Auto" and second switch to
either "High" or "Low" for fan speed. The auto-
How to Light & Maintain a Wood Stove Fire

18 | Regency Wood Insert & Hearth Heater
|
18 maintenance
7) Your Regency Insert can be very hot. You
may be seriously burned if you touch the
insert while it is operating. Warn children of
the burn hazard.
8) The insert consumes air while operating,
provide adequate ventilation with an air
duct or open a window while the insert is
in use.
9) Do not use grates, irons or other methods
for supporting fuel. Burn directly on the
bricks.
10) Open the draft control fully for 10 to 15
seconds prior to slowly opening the door
when refuelling the re.
11) Do not connect your unit to any air distribu-
tion duct.
12) Your insert should burn dry, standard re-
wood only. The use of “mill ends” is discour-
aged as this fuel can easily overheat your
insert. Evidence of excessive overheating
will void your warranty. As well, a large
portion of sawmill waste is chemically
treated lumber, which is illegal to burn in
many areas. Chemically treated re logs
also must not be burned in your insert.
13) Do not store any fuel closer than 2 feet from
your unit.
14) Do not burn salt drift wood as it will corrode
your unit and void the warranty.
15) Do not operate the unit if the glass is broken
or missing. Do not operate the unit if the
gasketing is worn out and not sealing the
door or the glass.
It is very important to carefully maintain your
insert, including burning seasoned wood and
maintaining a clean stove and chimney system.
Have the chimney cleaned before the burning
season and as necessary during the season, as
creosote deposits may build up rapidly. Moving
parts of your insert require no lubrication.
CREOSOTE
When wood is burned slowly, it produces tar and
other organic vapors, which form creosote when
combined with moisture. The creosote vapors
condense in the relatively cool chimney ue of a
slow-burning re. As a result, creosote residue
accumulates on the ue lining. When ignited,
this creosote can make an extremely hot re.
Removal for Cleaning etc.
Removal of your insert for cleaning purposes
is usually not required if a proper installation
has been done. In the event that removal is re-
quired, be sure not to damage any parts needed
for re-installation. In most cases removal and
replacement of the bafe system should allow
full access for cleaning.
WARNING: Things to remember in case
of chimney re:
1) Close draft control
2) Call the Fire Department
Ways to Prevent and
Keep Unit Free of Creosote
1) Burn insert with draft control wide open for
about 15 minutes every morning during burn-
ing season. This helps to prevent creosote
deposits within the heating system.
2) Burn insert with draft control wide open for
about 10 - 15 minutes every time you add
fresh wood. This allows the wood to achieve
the charcoal stage faster and burns up any
wood vapors which might otherwise be
deposited within the system.
3) Only burn seasoned wood! Avoid burning
wet or green wood. Seasoned wood has
been dried at least one year.
4) A small hot re is preferable to a large
smouldering one that can deposit creosote
within the system.
5) Check the chimney at least twice a month
during the burning season for creosote
build-up.
6) Have chimney system and unit cleaned by
competent chimney sweeps twice a year
during the rst year of use and at least once
a year thereafter or when needed.
MAINTENANCE OF
NICKEL-PLATED DOORS
The nickel electroplated nish on the doors
requires little maintenance, and need only be
cleaned with a damp cloth. DO NOT use abrasive
materials or chemical cleaners, as they may
harm the nish and void the warranty.
DOOR GASKET
If the door gasket requires replacement, 7/8"
diameter material must be used. A proper high
temperature gasket adhesive is required. A
gasket repair kit, Part # 846-570 is available
from your local Regency dealer.
DOOR LATCH
ADJUSTMENT
The door latch may require adjustment as the
door gasket material compresses after a few
res. Removal of the spacer washer, shown
in the diagram below, will allow the latch to
be moved closer to the door frame, causing
a tighter seal. Remove and replace the nuts,
washer as shown.
GLASS CLEANING
Only clean your glass window when it is cool.
Your local retailer can supply you with special
glass cleaner if plain water and a soft cloth does
not remove all deposits.
GLASS
REPLACEMENT
Your Regency Insert is supplied with 5 mm.
Neoceram ceramic glass that will withstand
the highest heat that your unit will produce. In
the event that you break your glass by impact
- purchase your replacement from an authorized
Regency dealer only, and follow our step-by-step
instructions.
GLASS REMOVAL
Allow the stove to cool before removing or replac-
ing glass. Remove the door from the insert and
remove the glass retainer. Use caution when
removing broken glass to prevent injury.
When placing the replacement glass in the
door, make sure that the glass gasketing will
properly seal your unit. Replace the retainer
and tighten securely, but do not wrench down
on the glass as this may cause breakage. Do
not substitute materials. If your glass door does
break, do not continue to use your unit until it
has been replaced.
Cleaning & Maintaining Your Wood Stove

Regency Wood Insert & Hearth Heater | 19
19
|
maintenance
Annual Maintenance
Completely clean out entire unit Annually
Inspect air tubes, baffles and bricks Replace any damaged parts.
Adjust door catch / latch If unable to obtain a tight seal on the door - replace door gasket seal.
Readjust latch after new gasket installed.
Inspect condition and seal of:
Glass Gasket
Door Gasket Perform paper test - replace gasket if required
Paper Test Test the seal on the loading door with a paper bill.
Place a paper bill in the gasketed area of the door on a cold stove–close
the door.
Try to remove the paper by pulling.
The paper should not pull out easily, if it does, try adjusting the door latch,
if that doesn't solve the problem replace the door gasket.
Check and lubricate door hinge + latch Use only high temperature anti seize lube. (ie. never seize)
Check glass for cracks Replace if required.
Clean blower motor Disconnect power supply.
Remove and clean blower.
*DO NOT LUBRICATE*
Inspect and clean chimney Annual professional chimney cleaning recommended.
Cleaning & Maintaining Your Wood Stove

20 | Regency Wood Insert & Hearth Heater
|
20 parts list
I3100 MAIN ASSEMBLY
Part # Description
850-151 Door Assembly - Large Black (I3100)
850-153 Door Assembly - Large Nickel Accent (I3100)
3) 846-304 Glass - Replacement - (I3100)
4) 936-243 7/8" Adhesive Tape Gasket
5) 846-920 Glass Retainer Clips/Screws (set of 8)
6) * Screw 1/4-20 x 3/8"
7) 948-172/P Glass Retainer - Large (I3100)
9) 846-973 Door Handle Assembly
16) 846-570 Med. Density Door Gasket Kit
17) 948-079BN Hinge Caps Nickel (each)
19) 948-135 Spring Handle - Large Nickel
20) 948-136 Spring Handle - Small Nickel
23) 820-235 Flue Brackets (Pkg)
163-915 I3100L Fan/Blower Assembly
24) 910-157/P Blower/Fan Motor
25) 910-678 Power Cord (120 Volts)
27) 910-142 Fan Thermodisc
28) 910-140 Fan Speed Switch
HI/OFF/LOW (3-way)
29) 910-138 Switch - Auto/Manual (2-way)
30) * Grommet Strain Relief
35) 063-954 Air Tube - 1" I3100 (Qty:1)
36) 063-953 Air Tube - 3/4" I3100 (Qty: 3) (each)
37) 063-955 Bafe (2/set) I3100
42) 163-931 Convection Grill-Nickel (I3100)
163-930 Convection Grill-Black (I3100)
43) * Hex Nut 10-24 Zinc coated
44) * Washer #10 Flat
45) * Bolt, 10-24 x 3/4" Black Carriage
46) 820-484 Stainless smoke Deector
47) 846-103 I3100 Wood Screen
948-223 Regency Logo
919-548 Manual
*Not available as a replacement part.
46
