Regency Fireplace Products City Series User manual

City Series CB50E Direct Vent Gas Fireplace | 1
City Series CB50E Direct Vent Gas Fireplace
MODEL CB50E-NG CB50E-LP
Fuel Type Natural Gas Propane
Minimum Supply Pressure 5” W.C. (1.25 kPa) 11” W.C. (2.73 kPa)
Manifold Pressure - High 3.8” W.C. (0.94 kPa) 10.5” W.C. (2.62 kPa)
Manifold Pressure - Low 1.1” W.C. (0.27 kPa) 2.9” W.C. (0.72 kPa)
Orice Size -Altitude 0-4500 ft # 36 DMS # 52 DMS
Minimum Input
Altitude 0-4500 ft. (0-1372m)
19,000 Btu/h
(5.56 kW)
17,000 Btu/h
(4.98 kW)
Maximum Input
Altitude 0-4500 ft. (0-1372m)
35,000 Btu/h
(10.25 kW)
33,000 Btu/h
(9.66 kW)
Vent Sizing 5” Inner / 8” Outer 5” Inner / 8” Outer
CSA P.4.1. 57.49% 60.55%
NOTE: This model comes with a 5” inner and 8” outer collar (127 mm x 203 mm) which must be reduced to 4” inner x 6-5/8” outer
(102 mm x 168 mm) in all applications when used as a power vent system. See power vent manual for details.
Note: Height Dimension is taken with leveling legs fully inserted and may vary depending on the height of the leveling legs, when
unscrewed or extended.
Dimensions will appear as (inches)" / (metric) mm throughout this manual. The inches are rounded to the nearest 1/16" when con-
verted, when greater accuracy is required, use the metric dimensions.
Note: These units are non-load bearing.
ALL PICTURES / DIAGRAMS SHOWN THROUGHOUT THIS MANUAL ARE FOR ILLUSTRATION PURPOSES ONLY.
ACTUAL PRODUCT MAY VARY DUE TO PRODUCT ENHANCEMENTS.

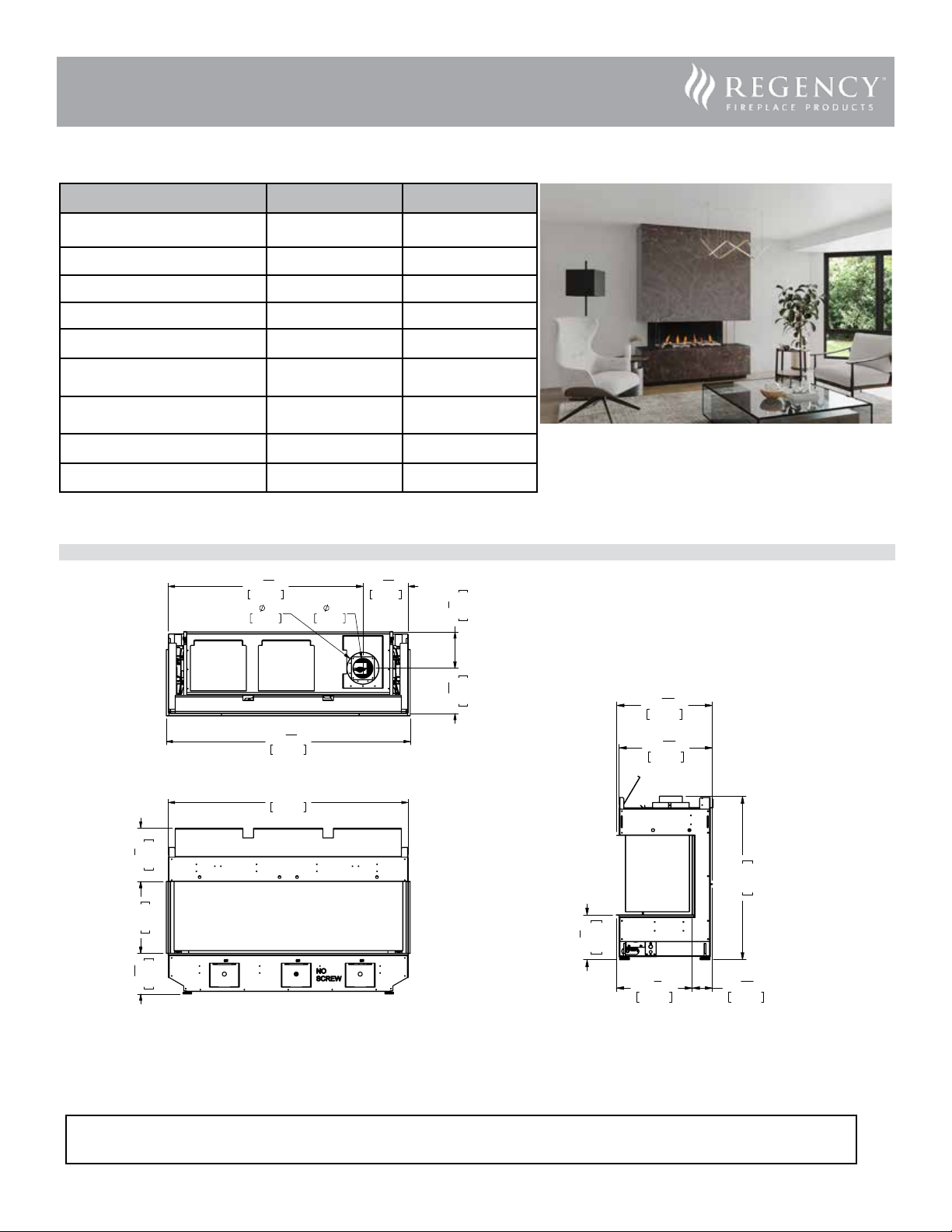

Dimensions - Bay Install
13 3
8
"
340mm
18"
457mm
10 3
16
"
259mm
60"
1524mm
61 1
16
"
1551mm
11 5
16
"
288mm
9 1
8
"
231mm
11 5
16
"
288mm
48 11
16
"
1236mm
5"
127mm
8"
203mm
37"
940mm
20 7
16
"
519mm
20 15
16
"
532mm
13 7
16
"
341mm
18"
457mm
10 1
8
"
258mm
60"
1524mm
61 1
16
"
1551mm
11 5
16
"
288mm
9 1
8
"
231mm
11 5
16
"
288mm
48 11
16
"
1236mm
5"
127mm
8"
203mm
37"
940mm
20 7
16
"
519mm
20 15
16
"
532mm
10 1
8
"
257mm
4 7
16
"
112mm
16 5
8
"
423mm

2 | City Series CB50E Direct Vent Gas Fireplace

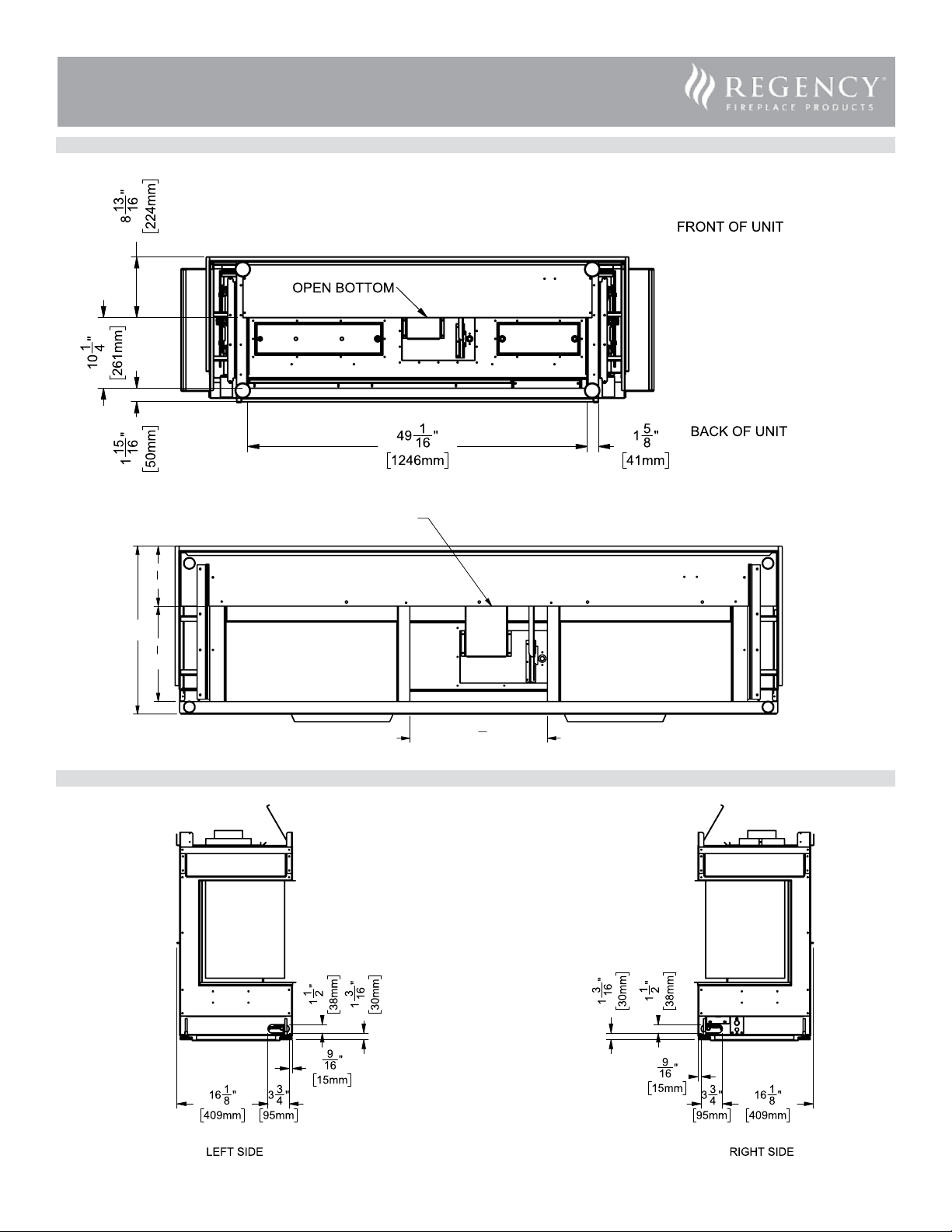

Gas Connection - Bottom of Unit
Gas Connection - Side of Unit
16 3
8
"
OPENING AT UNIT BASE
20"
7 1
8
"
11 3
8
"
GAS VALVE
FRONT OF UNIT
BACK OF UNIT

City Series CB50E Direct Vent Gas Fireplace | 3

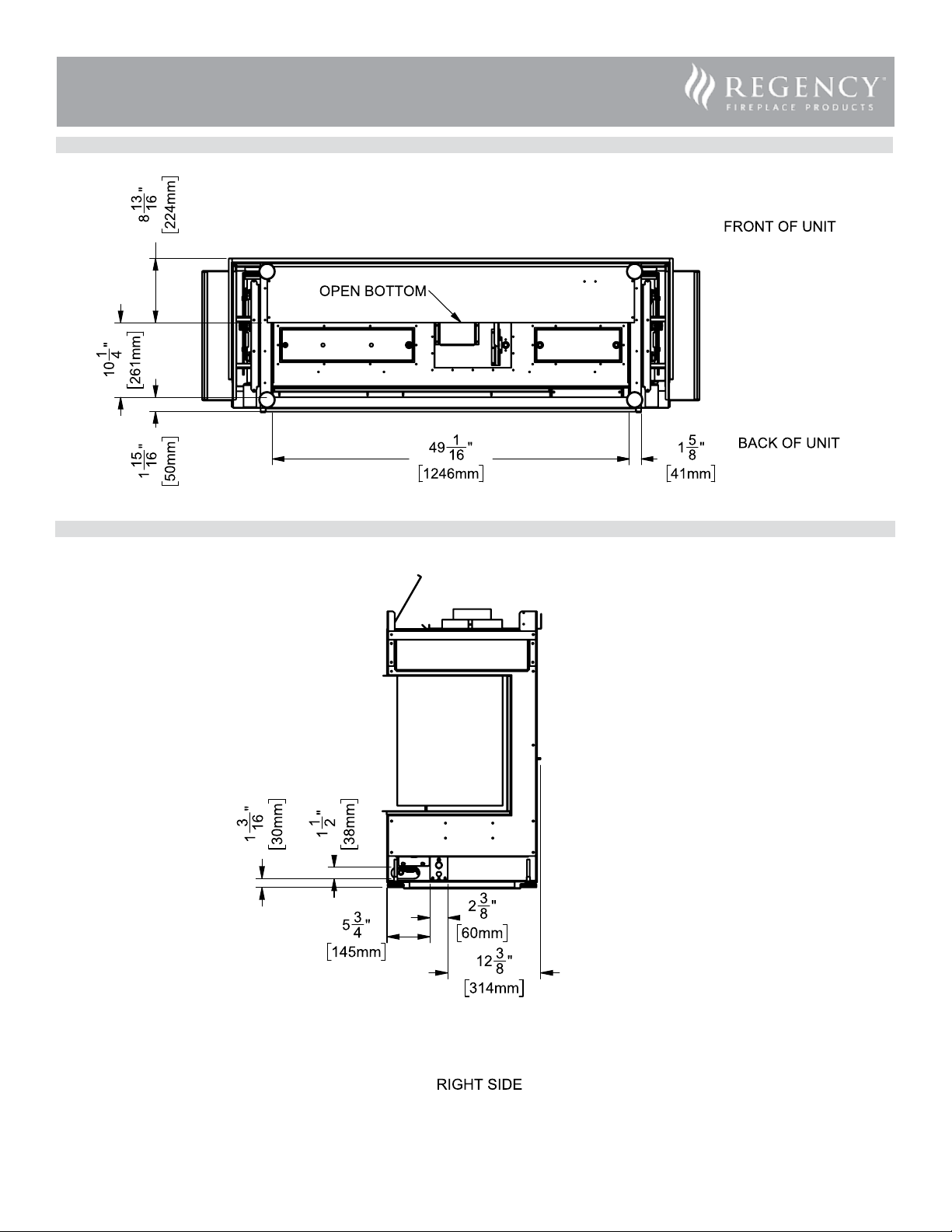

Electrical Connection - Bottom of Unit
Electrical Connection - Side of Unit

4 | City Series CB50E Direct Vent Gas Fireplace
13 7
16
"
341mm
18"
457mm
10 1
8
"
258mm
60"
1524mm
61 1
16
"
1551mm
11 5
16
"
288mm
9 1
8
"
231mm
11 5
16
"
288mm
48 11
16
"
1236mm
5"
127mm
8"
203mm
37"
940mm
20 7
16
"
519mm
20 15
16
"
532mm
16 1
2
"
419mm
3 15
16
"
101mm
Dimensions - Corner Install
Note: Height Dimension is taken with leveling legs fully inserted and may vary depending on the height of the leveling legs, when
unscrewed or extended.
Dimensions will appear as (inches)" / (metric) mm throughout this manual. The inches are rounded to the nearest 1/16" when con-
verted, when greater accuracy is required, use the metric dimensions.
Note: These units are non-load bearing.
ALL PICTURES / DIAGRAMS SHOWN THROUGHOUT THIS MANUAL ARE FOR ILLUSTRATION PURPOSES ONLY.
ACTUAL PRODUCT MAY VARY DUE TO PRODUCT ENHANCEMENTS.

City Series CB50E Direct Vent Gas Fireplace | 5

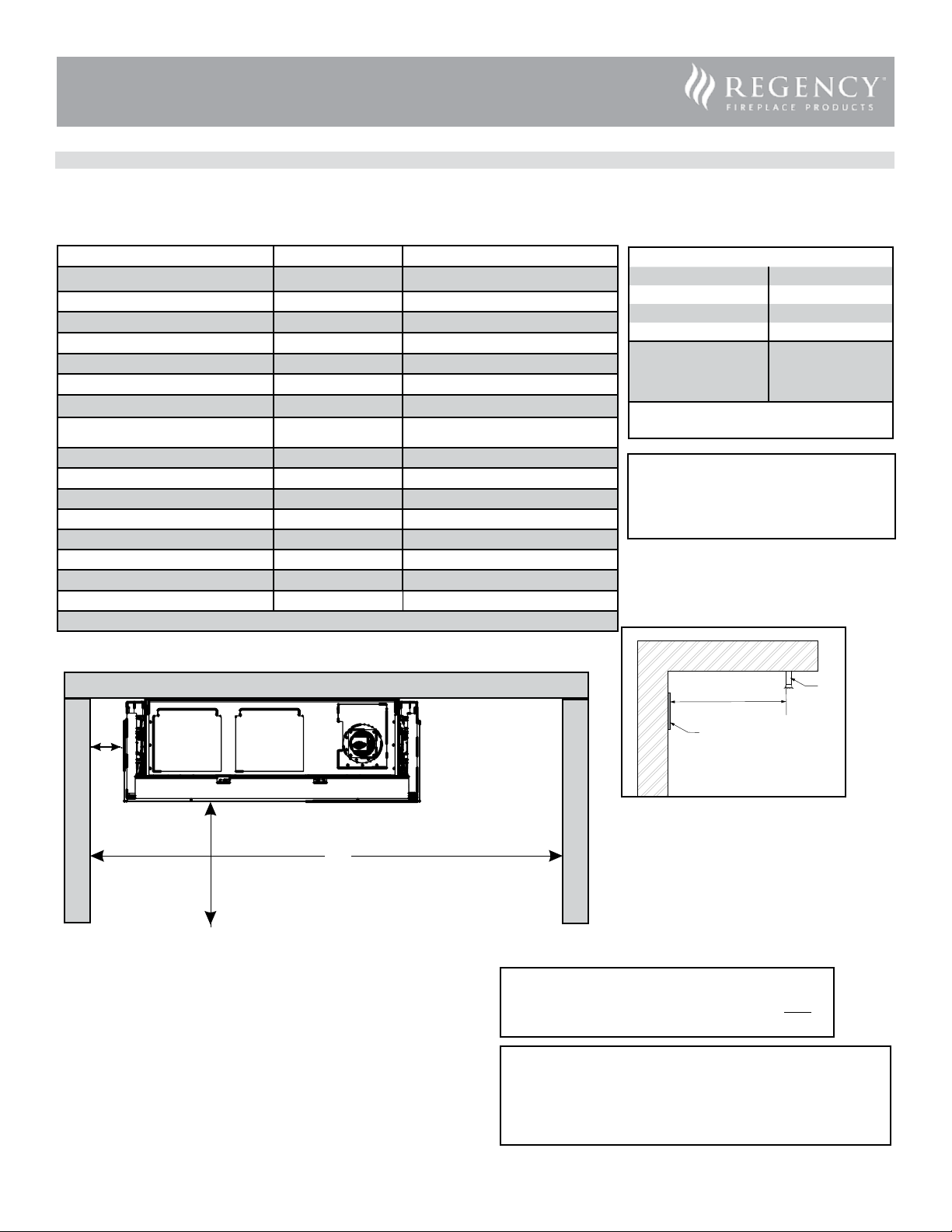

Clearances (3-sided)
The clearances listed below are minimum distances unless otherwise stated.
A major cause of chimney related res is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance that
this replace and vent system be installed only in accordance with these instructions.
Flue Clearances to Combustibles
Horizontal - Top 3" (76 mm)
Horizontal - Side 2" (51 mm)
Horizontal - Bottom 2" (51 mm)
Vertical 2" (51 mm)
Passing through wall/
floor/ceiling - when
restop is used.
1-1/2" (38 mm)
Note: This appliance uses 5" x 8" venting for
the Non Power Vent.
F
E
B
Alcove
Clearance Dimension Measured From:
A1: Mantel Height (min.) ** Top of Fireplace Opening
A: From Floor (min.) 10-3/16" (462 mm) Bottom of Fireplace Opening
B: Sidewall (on one side) min. 5" (127 mm) Side of Fireplace Opening
C: Enclosure Width (min.) 60'' (1524 mm) Minimum inside dimensions
D: Mantel Depth (max.) **
E: Alcove Width 92" (2337 mm) Sidewall to Sidewall (Minimum)
F: Alcove Depth 35" (889 mm) Front to Unit (Maximum)
G: Convection Air Outlet Opening Oset
(min.) 2" (51 mm) Max. oset from top of chase enclosure
H: Convection Air Outlet 152 in2(981 cm2)
I Enclosure Depth (min.) 20-7/16" (519 mm) Minimum inside dimensions
J: Opening Height 18" (457mm) Bottom/Top of Fireplace Opening
K: To Ceiling (min.) all 3 sides 1-3/4" (44mm) To Top of Ceiling
L: Chase Enclosure (min.) 62-7/8" (1597 mm) From base of unit/oor to top of enclosure
M:Clearance to Sprinkler Head (min.) 36" (914mm) Perpendicular from chase grill
Hearth 0" No hearth required
Ceiling Height 81-1/4" (2064 mm) From base of unit /oor to top of alcove
** See mantel clearances chart in the manual.
Caution Requirements
The top, back and sides of the replace are dened by
standos. The metal ends of the stando may NOT be
recessed into combustible construction.
WARNING
Fire hazard is an extreme risk
if these clearances (air space) to combustible materials are
not adhered to. It is of greatest importance that this replace
and vent system be installed only in accordance with these
instructions.
When installed as a power vent, the
venting must be reduced to 4" inner x 6-5/8" outer
(102 mm x 168 mm) in all applications. See
required reducers required in this manual if
using rigid/ex pipe.
L
Chase grill
Sprinkler
Side view
M

6 | City Series CB50E Direct Vent Gas Fireplace

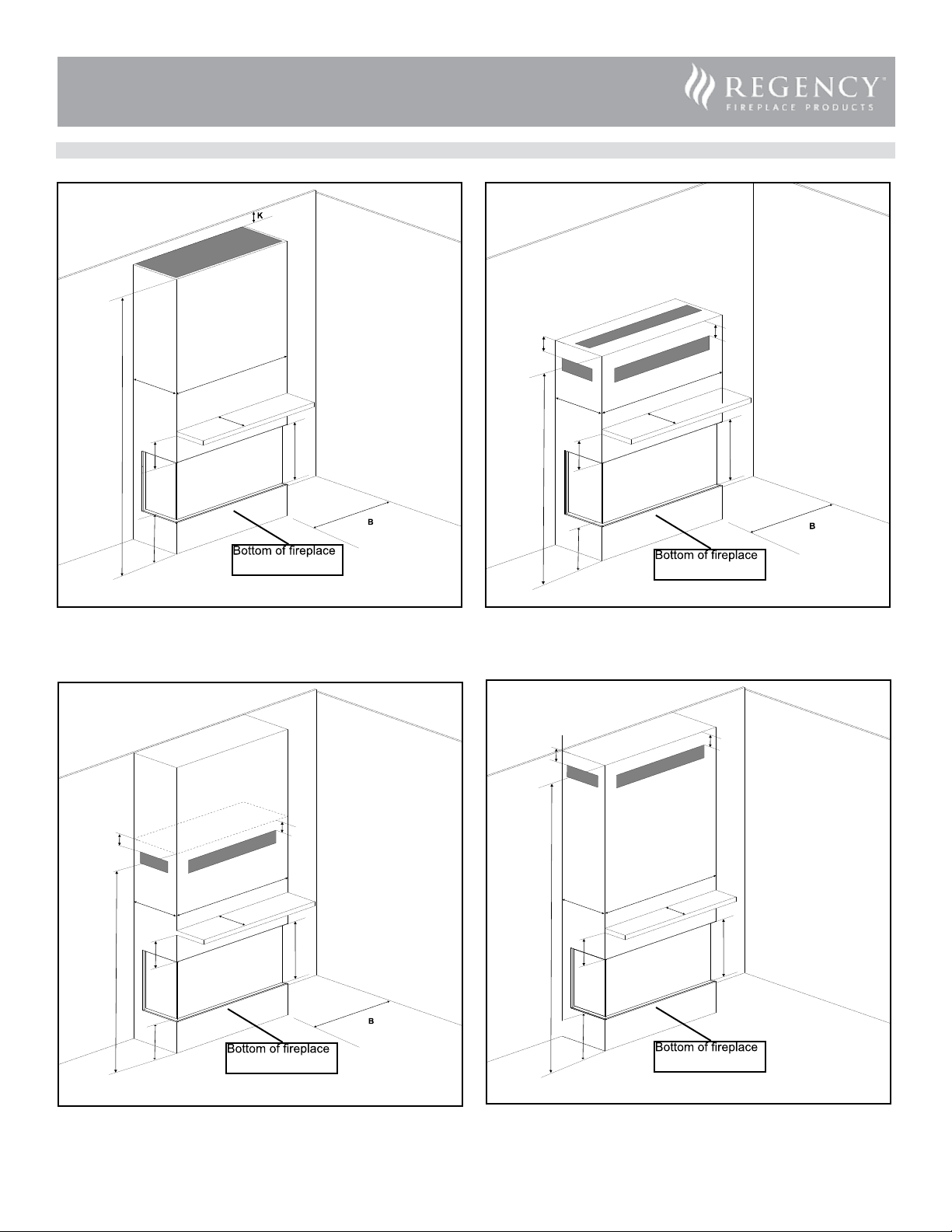

Clearances
Floor to ceiling with top opening Full framing with vents in front/2 sides or top
Full framing with low vents in front or 2 sides Full framing with vents in front or 2 sides
C
I
A1
A
D
L
J
H
L
I
C
D
A1
A
J
G
G
H
H
H
I
C
G
A
A1
G
D
J
L
H
H
I
A
D
C
J
G
G
L
H
H
A1
opening opening
opening opening

City Series CB50E Direct Vent Gas Fireplace | 7
Caution Requirements
The top, back and sides of the replace are dened by
standos. The metal ends of the stando may NOT be
recessed into combustible construction.
WARNING
Fire hazard is an extreme risk
if these clearances (air space) to combustible materials are not
adhered to. It is of greatest importance that this replace and vent
system be installed only in accordance with these instructions.

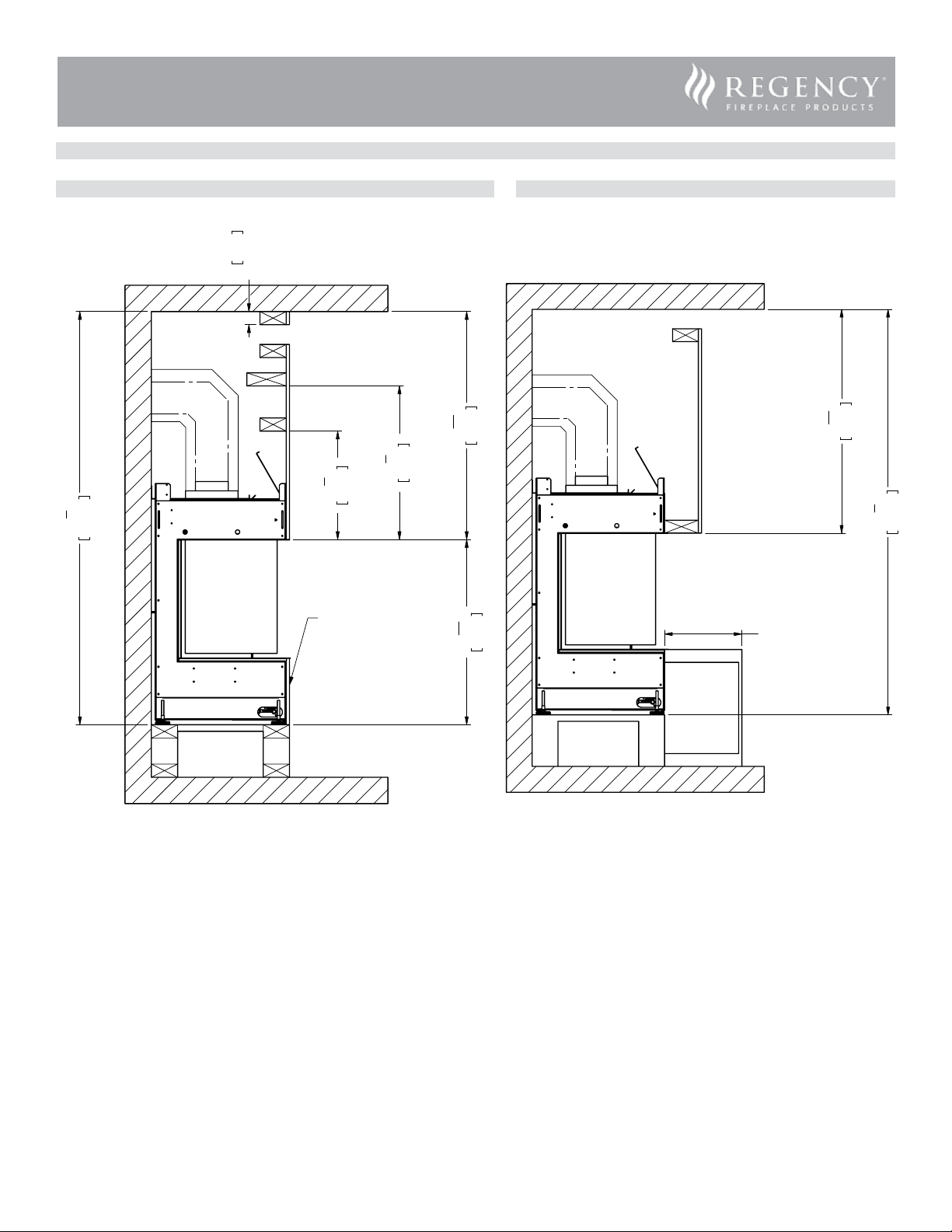

Clearances - Corner Install
The clearances listed below are minimum distances unless otherwise stated.
A major cause of chimney related res is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance that
this replace and vent system be installed only in accordance with these instructions.
Note: Left handed corner shown in illustration. Clearances will be the same for the right hand side.
Clearance: single sided Dimension Measured From:
A: Mantel Height (min.) ** Top of Fireplace Opening
B: Opening Height 18" (457 mm) Bottom/Top of Fireplace Opening
C: From Floor (min.) 10-3/16" (462 mm) Bottom of Fireplace Opening
D: Sidewall (on one side) min. 37" (940 mm) Side of Fireplace Opening
E: Mantel Depth (max.) ** Front of Fireplace Opening
F: Alcove Depth 35" (889 mm) Front of Fireplace Opening
G: Convection Air Outlet 152 square inches
(981 cm2)
H: Convection Air Outlet Opening Oset 2" (50mm) Max. oset from top of chase enclosure
I: Chase Enclosure (Min.) 62-7/8" (1597 mm) From Base of Unit/Floor to top of enclosure
J: Convection Air Outlet Opening Oset
(min.) 2" (50mm) To top of ceiling
Ceiling Height 81-1/4" (2064 mm) From base of unit/oor to top of alcove
Hearth 0" No hearth required
** See mantel clearances chart in this manual.
Flue Clearances to Combustibles
Horizontal - Top 3"
Horizontal - Side 2"
Horizontal - Bottom 2"
Vertical 2"
Passing through wall/
floor/ceiling - when
restop is used.
1-1/2"
Top View
Alcove
H
I
A
E
B
C
G
D
F
D
F
Left Corner
Shown
J
I
A
E
B
C
D
F

8 | City Series CB50E Direct Vent Gas Fireplace
Mantel Clearances
Combustible mantel clearances from top of front facing are shown in the diagram on the right.
Mantel Leg Clearances (Non Glass Side When Installed as a Left/Right Corner)
Combustible mantel leg clearances as per diagram:
212 6 4810
0
14
9” (228 mm)
18"
(457 mm)
10
20
26
To p o f
Fireplace
Opening
12" (305mm)
1/2" (13 mm) Drywall, wood, wood panel, etc.
5 1/4" (133 mm)
To Bottom of
Fireplace
Opening
Max. 12" (305 mm)
MANTEL LEG
0"

City Series CB50E Direct Vent Gas Fireplace | 9

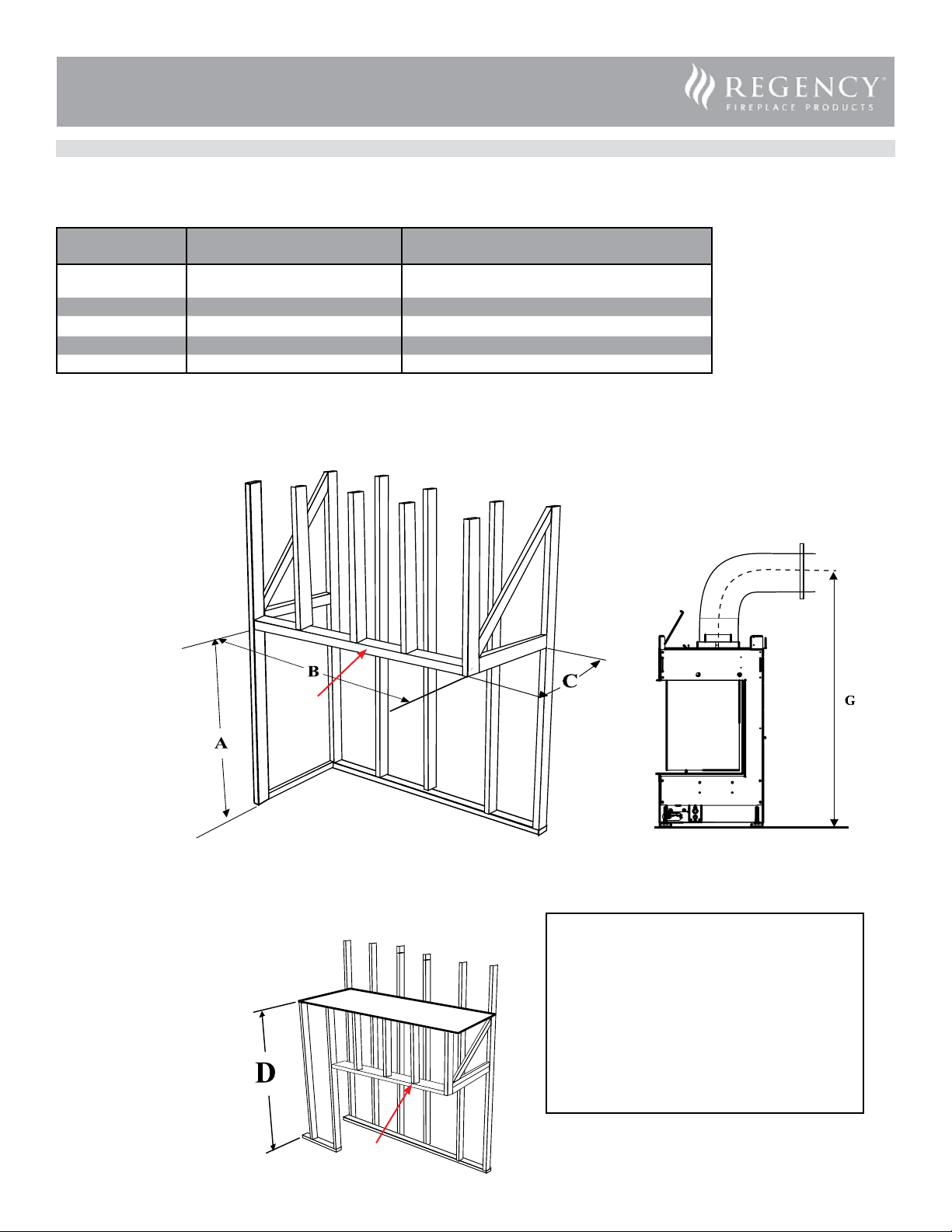

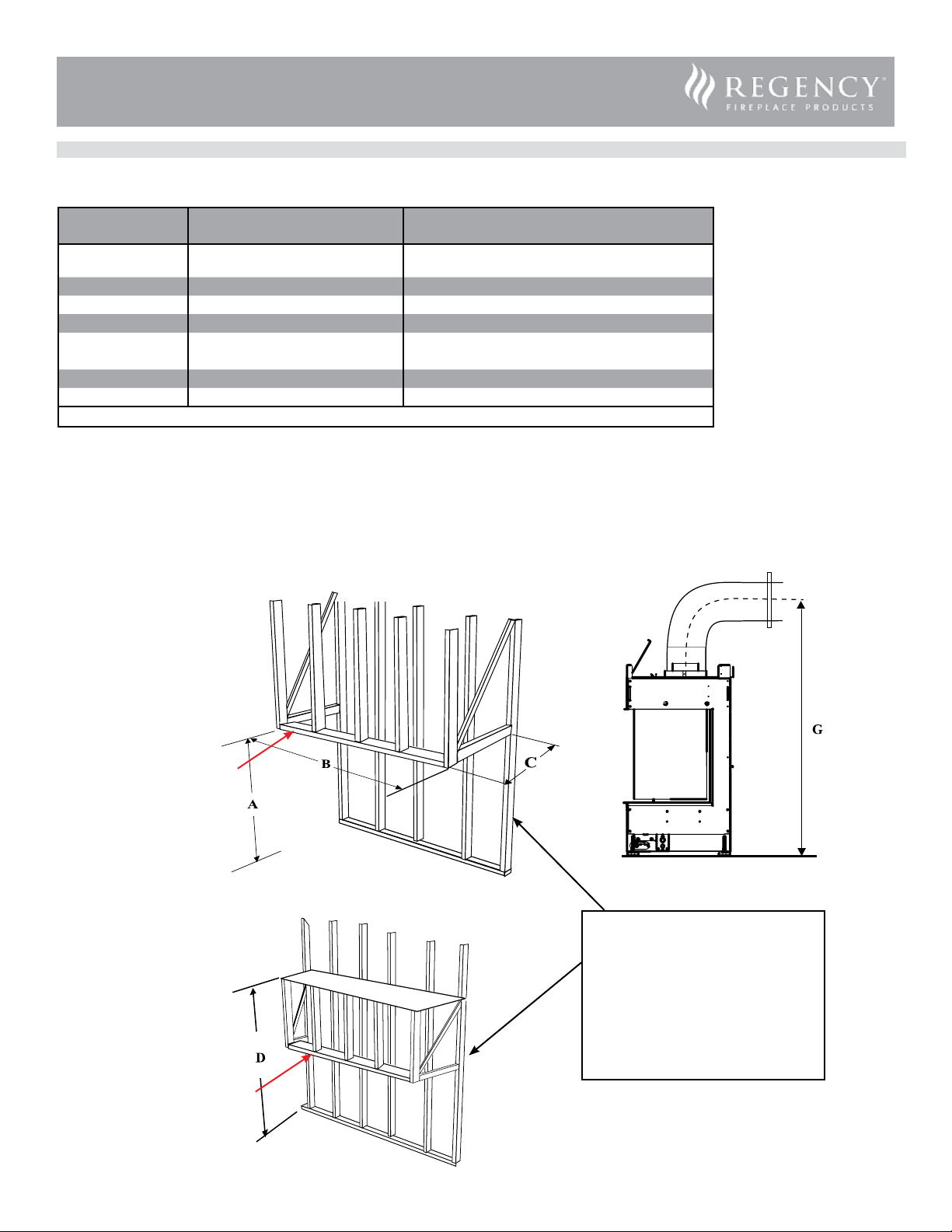

Framing Dimensions - Bay Install
NOTE: Framing may be constructed of combustible material and does not require steel studs.
Framing
Dimensions Description CB50E
AFraming Height 2 x 4: 44-3/4" (1137 mm)
2 x 6: 51-7/8" (1318 mm)
B* Framing Width 60'' (1524 mm)
C* Framing Depth 20-7/16" (519 mm)
DMinimum Height to Combustibles 62 7/8" (1597 mm)
G Vent Centerline Height 45-3/4" (1162 mm)
** Gas Connection Opening Height See gas connection location in this manual
** Gas Connection Height See gas connection location in this manual
** Gas Connection Inset-Centre Opening See gas connection location in this manual
** See manual for alternate Gas/ Electrical connection options
Note: A combined minimum
of 152 square inches of
open area is required for the
convection air outlet to cool the
enclosure. Ensure clearances
for Convection Air Outlets
are met.
See clearances CB50E in this
manual as there are dierent
methods as to how this can
be achieved.
Note: This appliance must be
installed on a solid surface
such as a plywood oor which
must be the full width and
depth of the appliance.
Ensure that the wood base that the appliance will sit on is strong enough to support the full weight of this appliance.
The overall weight of this appliance is 480 pounds (shipping weight).
Note: Unit must be installed onto a
solid backwall - do not install directly
onto studs.
*C
Note: The framing depth does not take into
account drywall/wood or similar materials
against the back wall. The framing depth will
need to change based on the thickness of the
material (example: 20-7/16 framing depth +
1/2 drywall = 20-15/16")
Max 2 x 6
Max 2 x 6
**

10 | City Series CB50E Direct Vent Gas Fireplace

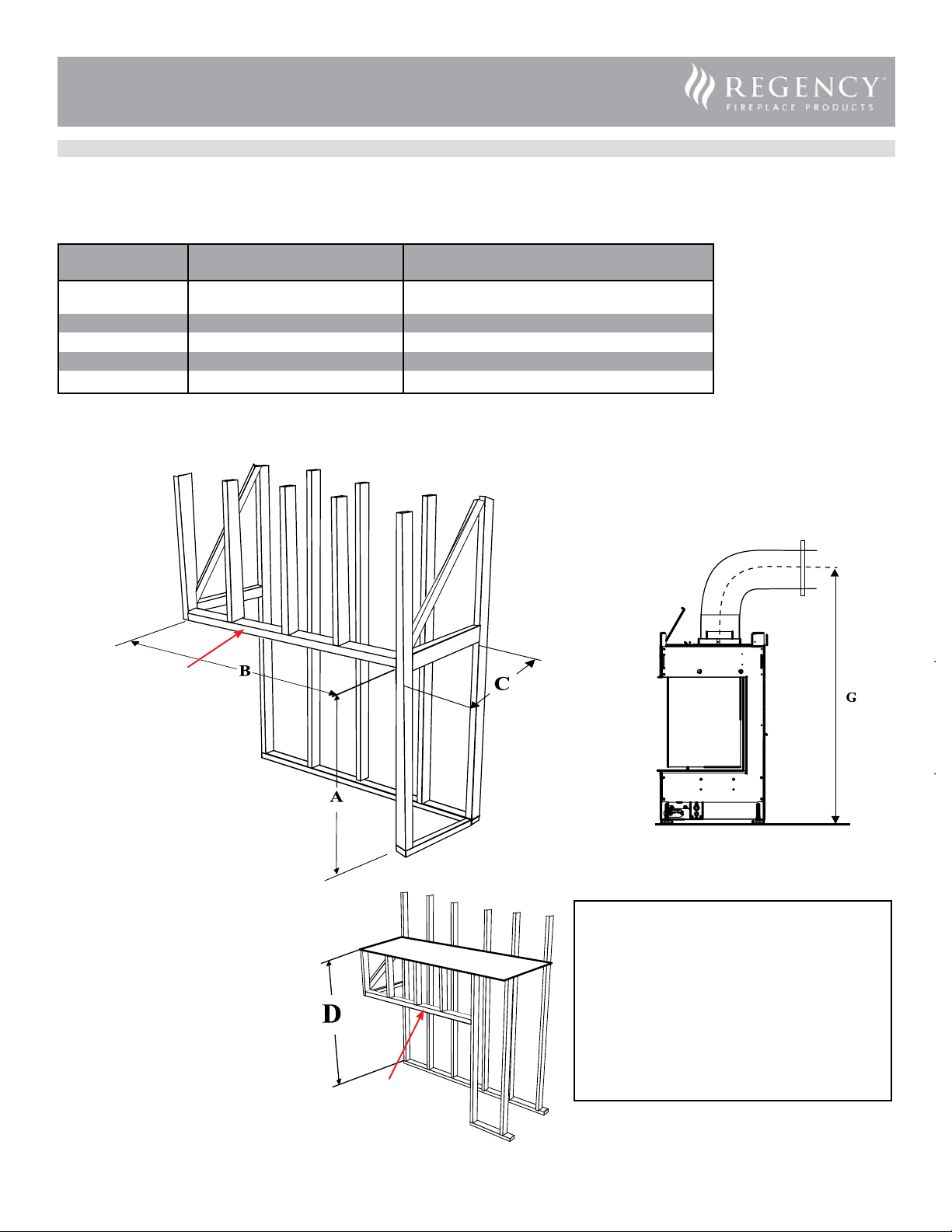

Framing Dimensions Corner Kit - Corner Install (Right Corner)
NOTE: Framing may be constructed of combustible material and does not require steel studs.
Note: A combined minimum of
152 square inches of open area
is required for the convection
air outlet to cool the enclosure.
Ensure clearances for Convection
Air Outlets are met.
See clearances in this manual
as there are dierent methods
as to how this can be achieved.
Note: This appliance must be in-
stalled on a level and solid surface
such as a plywood oor which must
be the full width and depth of the
appliance.
Framing
Dimensions Description Corner Kit
AFraming Height 2 x 4: 44-3/4" (1137 mm)
2 x 6: 51-7/8" (1318 mm)
B* Framing Width 60'' (1524 mm)
C* Framing Depth 20-7/16" (519 mm)
D Unit Base to Top Enclosure (Min.) 62-7/8" (1597 mm)
G Vent Centerline Height 45-3/4" (1162 mm)
NOTE: Unit cannot be load-bearing. All nishing materials must be supported by the framing.
Max 2 x 6
Max 2 x 6
*
*
Note: Unit must be installed onto a solid back
wall - do not install directly onto studs.
*Note:The framing width (B) and framing depth (C)
does not take into account drywall/wood or sim-
ilar materials against the back wall. The framing
width/depth will need to change based on the
thickness of the material
Example B : 71 1/4" framing width + 1/2" drywall
= 71 3/4".
Example C : 20-7/16" framing depth + 1/2"
drywall = 20-15/16".

City Series CB50E Direct Vent Gas Fireplace | 11
Framing Dimensions Corner Kit - Corner Install (Left Corner)
NOTE: Framing may be constructed of combustible material and does not require steel studs.
Note: A combined minimum of
152 square inches of open area
is required for the convection
air outlet to cool the enclosure.
Ensure clearances for Convection
Air Outlets are met.
See clearances in this manual
as there are dierent methods
as to how this can be achieved.
NOTE: Unit cannot be load-bearing. All nishing materials must be supported by the framing.
Note: This appliance must be
installed on a level and solid surface
such as a plywood oor which must
be the full width and depth of the
appliance.
Framing
Dimensions Description Corner Kit
AFraming Height 2 x 4: 44-3/4" (1137 mm)
2 x 6: 51-7/8" (1318 mm)
B* Framing Width 60'' (1524 mm)
C* Framing Depth 20-7/16" (519 mm)
D Unit Base to Top Enclosure (Min.) 62-7/8" (1597 mm )
G Vent Centerline Height 45-3/4" (1162 mm)
Max 2 x 6
Max 2 x 6
Note: Unit must be installed onto a solid back
wall - do not install directly onto studs.
*Note:The framing width (B) and framing depth (C)
does not take into account drywall/wood or sim-
ilar materials against the back wall. The framing
width/depth will need to change based on the
thickness of the material
Example B : 71 1/4" framing width + 1/2" drywall
= 71 3/4".
Example C : 20-7/16" framing depth + 1/2"
drywall = 20-15/16".
*
*

12 | City Series CB50E Direct Vent Gas Fireplace
Typical Installations
Flush Install
16 1
2
"
419mm
2 X 4 STUD
23 3
8
"
594mm
2 X 6 STUD
2"
51mm
MAX. TO
TOP OF
ENCLOSURE
34 11
16
"
881mm
MIN.
62
7
8
"
1597mm
MIN.
28 3
16
"
716mm
152 sq.in MIN.
CHASE VENT OPENING
Screws must not
penetrate unit more
than 1/2".
Adhere to "No Screw"
zones painted on unit
Glue can be used
as an alternative
2X4 OR 2X6 STUD
FLUSH INSTALL
Recessed Install
34 11
16
"
881mm
MIN.
51
4
"
133mm
MAX. DEPTH
MANTLE
See Mantel clearance in manual
62 7
8
"
1597mm
MIN.
MAX DEPTH 36" (914 MM)
HEARTH
152 sq.in MIN.
CHASE VENT OPENING
RECESSED INSTALL

City Series CB50E Direct Vent Gas Fireplace | 13
Note: The TV mounting bracket cannot be secured directly to the appliance. It must be secured to framing. The TV depicted in the
picture may need to be higher depending on the style of TV mounting bracket used.
23 3
8
"
594mm
MAX.
2"
51mm
TO TOP OF
ENCLOSURE
62 7/8"
[1597 mm]
MIN.
MAX. 2X6 STUD
Screws must not
penetrate unit
more than 1/2".
Adhere to "No Screw"
zones painted on unit.
Glue can be used as an alternative
152 sq.in MIN.
CHASE VENT OPENING
Typical Installations
Maximum TV Recess Flush TV with Hearth
MAX.
2"
51mm
TO TOP OF
ENCLOSURE
16 1
2
"
419mm
MIN.
62 7/8"
[1597 mm]
MIN.
34 11/16"
[881 mm]
MIN.
152 sq.in MIN.
CHASE VENT OPENING
MAX. 2X4 STUD
Screws must not
penetrate unit
more than 1/2".
Adhere to "No Screw"
zones painted on unit.
Glue can be used as an alternative

14 | City Series CB50E Direct Vent Gas Fireplace
Vent Guard - if required*
(Part #946-604/P)
5" (127 mm)
8" (203 mm)
Notes:
1. Liner sections should be continuous without any joints
or seams.
2. Only Flex pipe purchased from Regency®may be used
for Flex installations
3. Horizontal vent must be supported every 3 feet.
4. Regency®Direct Vent System (Flex) is only approved
for horizontal terminations.
5. Flex system can only be used up to a maximum
continuous vent length of up to 10 feet. If longer runs
are required, rigid pipe must be used.
Horizontal Terminations - Flex Vent 5" x 8" (Non Power Vent)
These venting systems, in combination with the CB50E Direct Vent Gas Fireplace, has been tested and listed as a direct vent heater system by Intertek. The
location of the termination cap must conform to the requirements in the Vent Terminal Locations diagram in "Exterior Vent Termination Locations" section.
Regency® Direct Vent (Flex) System Termination Kits include all the parts needed to install the CB50E using a exible vent.
FPI Kit # Length Contains:
#946-615 4 Feet 1) 8” exible liner (Kit length)
2) 5” exible liner (Kit length)
3) spring spacers
4) thimble
5) AstroCap XL termination cap
6) screws
7) tube of Mill Pac
8) plated screws
9) S.S. screws #8 x 1-1/2” drill point
10) vinyl siding stando
#946-618 6 Feet
#946-616 10 Feet

City Series CB50E Direct Vent Gas Fireplace | 15
1. Locate the unit in the framing, rough in the gas
(preferably on the right side of the unit). Locate
the centerline of the termination and mark wall
accordingly. Cut an square hole in the wall - see
chart (inside dimension).
Note: If installing termination on a siding
covered wall, a vinyl siding stando
or vinyl furring strips must be used
to ensure that the termination is not
recessed into the siding.
2. Level the replace and fasten it to the framing
using nails or screws through the nailing strips.
3. Assemble the vent assembly by applying Mill-Pac
to the inner ue collar of the termination and
slipping the inner ex liner over it at least 1-3/8"
(35mm). Fasten with the 3 screws (drilling pilot
holes will make this easier). Apply Mill-Pac to
the outer ex pipe and slip it over the outer ue
collar of the vent terminal at least 1-3/8"(35mm)
and fasten with the 3 screws.
Outside Wall
Mur extérieur
Furring
Strips
Fourrures en bois
Furstrp.eps
see also c34020a.eps
furstrpf.eps
french
AstroCap XL
Termination Cap
2” x4”or2”x6”
8" dia.
air intake
5” dia. flue pipe
with spring spacer
Screws
Screws
Wall Thimble
Vinyl Siding
12-1/4”
(311 mm)
12-1/4”
(311 mm)
ASTROCAP XL
DIMENSIONS (946-623/P)
Horizontal Top 3" (76mm)
Horizontal Side 2 " (51mm)
Horizontal Bottom 2" (51mm)
Vertical Vent 2" (51mm)
Minimum Vent Clearances to
Combustibles
Unit Installation with
Horizontal Termination - 5" x
8" Venting (Flex Vent Systems)
NOTE: Horizontal sections must be
supported at intervals not exceeding
3 feet (0.9 meter). (Flame picture
and performance will be aected by
sags in the liner).
4. Separate the 2 halves of the wall thimble and
securely fasten the one with the tabs to the
outside wall making sure that the tabs are
on top and bottom. Fasten the other thimble
half to the inside wall. The thimble halves slip
inside each other and can be adjusted for 2
x 4 or 2 x 6 walls.
5. Slip the assembled liner and termination
assembly through the thimble making sure the
termination cap faces up (there are markings
on the cap that show which way is up). This
will position the termination cap with proper
down slope for draining water. Fasten the cap
to the outer wall with the 4 supplied screws.
6. Pull the centre inner and outer ex liner out
enough to slip over the ue collars of the
replace. (You may wish to cut the liner
shorter to make it more workable.) Do not
bend liner more than 90º. The liners must
slip over the collars a minimum of 1-3/8".
7. Apply Mill-Pac over the replace inner ue
collar and slip the inner ex liner down over
it and attach with 3 supplied screws.
8. Do the same with the outer ue collar and
outer ex liner.
9. Apply a bead of silicone between the thimble
and termination and around the outer edge
of the terminal at the wall in order to keep
the water out.
IMPORTANT: Do not locate termination
hood where excessive snow or ice
buildup may occur. Be sure to check
vent termination area after snow
falls, and clear to prevent accidental
blockage of venting system. When
using snow blowers, make sure snow is
not directed towards vent termination
area.
* Clearances noted below must be maintained;
except when passing through a wall, ceiling or
at the termination where the use of a restop or
wall thimble reduces clearance to 1-1/2" (38mm).
Recommended Framed
Opening Size
Vent Size Framing Size
5" x 8" 11" x 11"
Below are the recommended framing dimensions
(inside measurements) for the 5" x 8" rigid vent
terminations - for use with a restop or wall
thimble.
Diagram 1

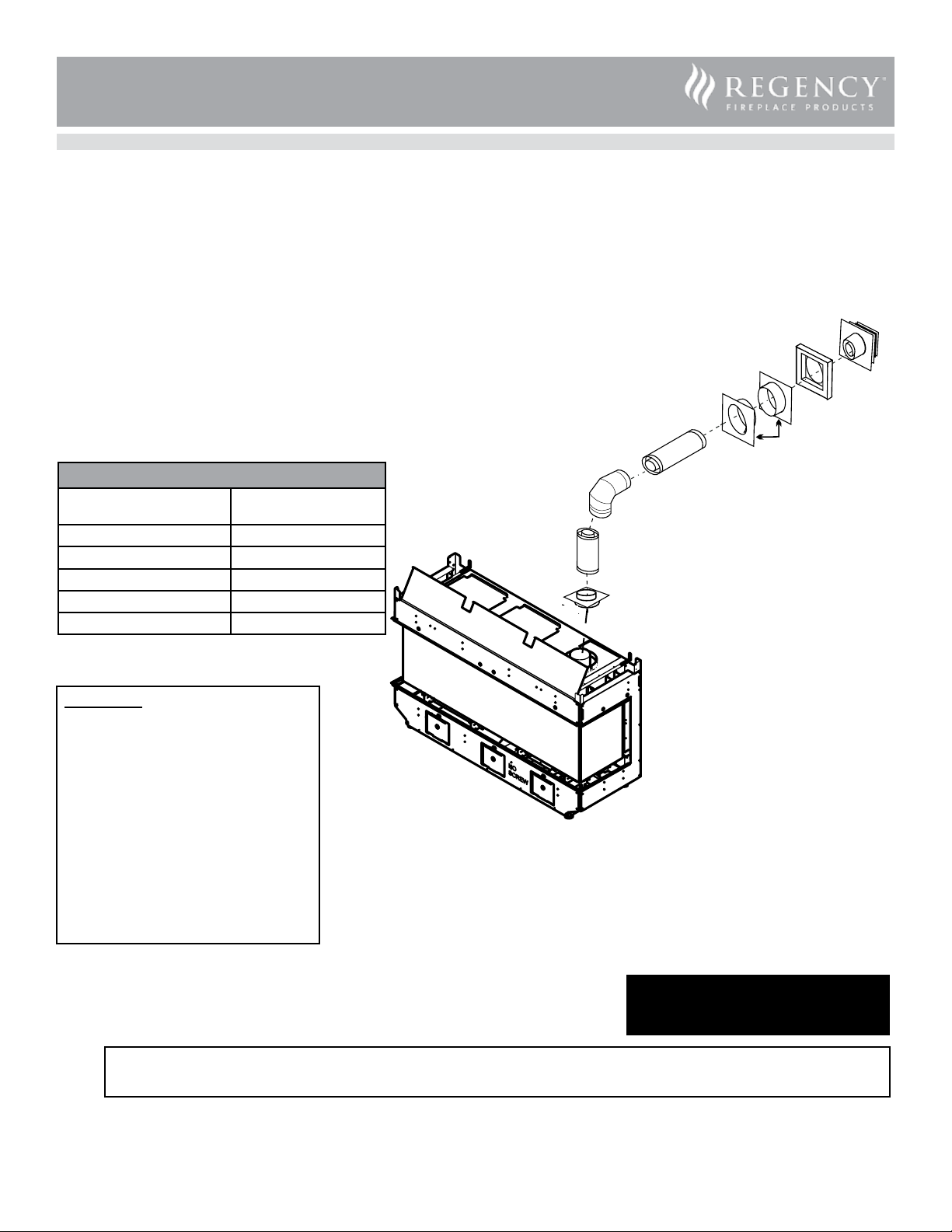

Diagram 2
Diagram 3
Min. 45-3/4’’ (1162 mm)
center
of hole
Horizontal Terminations - Flex Vent 5" x 8" (Non Power Vent)

16 | City Series CB50E Direct Vent Gas Fireplace
Venting Introduction (Non Power Vent)
The CB50E uses the "balanced ue" technology co-axial system. The inner liner vents products of combustion to the outside while the outer liner draws
outside combustion air into the combustion chamber, thereby eliminating the need to use heated room air for combustion and losing warm room air up
the chimney.
The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate solid fuel
or gas burning appliance. Each direct vent gas appliance must use it's own separate vent system. Common vent systems are prohibited.

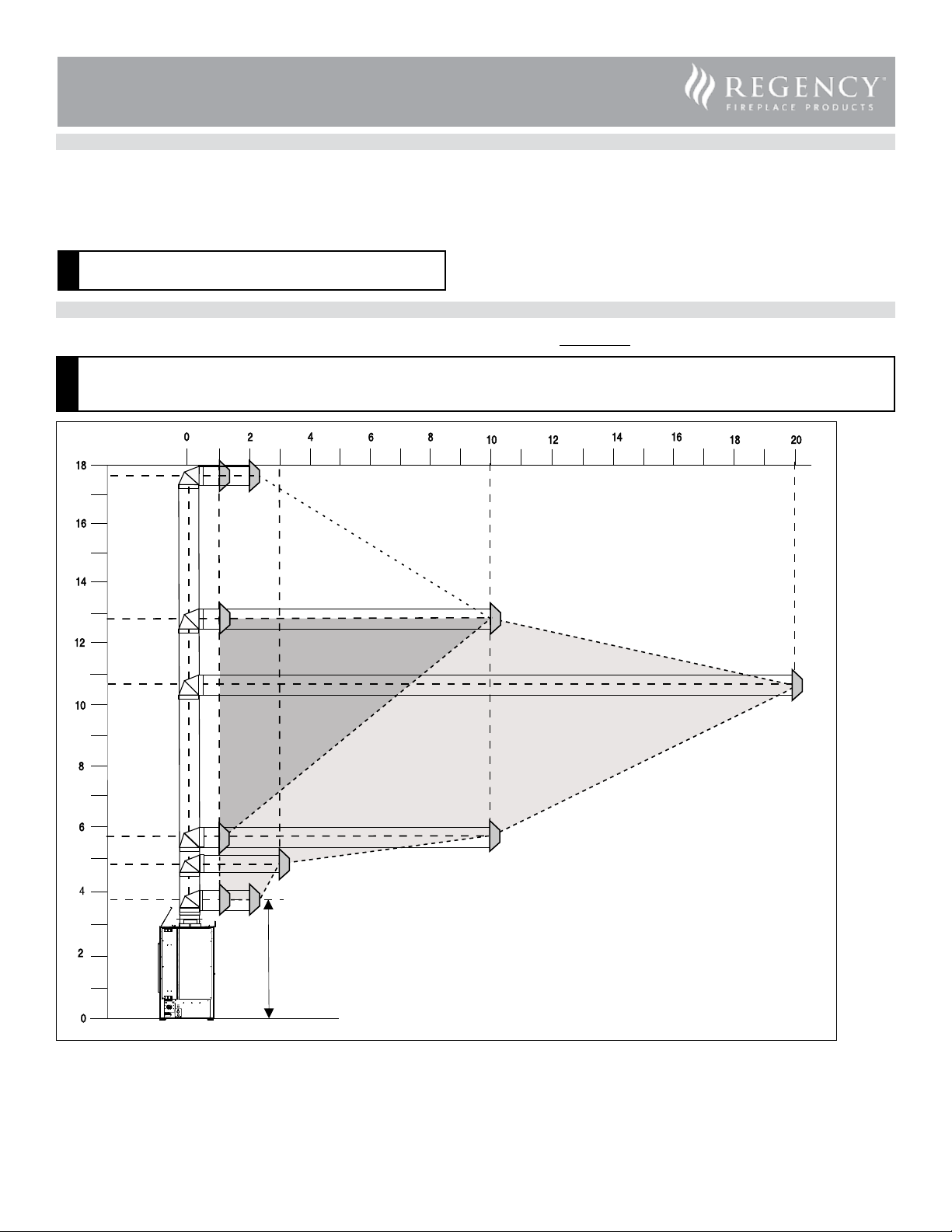

Venting Arrangement for Horizontal Terminations (Rigid and Flex)
The diagram shows all allowable combinations of vertical runs with horizontal terminations, using one 90oelbow (two 45o elbows equal one 90oelbow).
• Maintain clearances to combustibles as listed in "Clearances" section
• Horizontal vent must be supported every 3 feet.
• Firestops are required at each oor level and whenever passing through a wall.
• A vent guard should be used whenever the termination is lower than the specied minimum or as per local codes.
VENT RESTRICTOR SETTING:
Vent restrictor factory set at Set 0.
Refer to the "Vent Restrictor Position" section for details on how to change the vent restrictor from the factory setting of Set 0 to Set 3 if required.
45-3/4" (1162 mm)
Minimum Height Requirement
Vent Restrictor
Set 3: 2-3/8" Open
Vent Restrictor
Set 2: 3-1/8" Open
Set 0
Fully Open
Factory Set
NOTE
These ue pipes must not be connected to any other appliance.
NOTES
• Must use optional rigid pipe adapter (part# 770-994) when using rigid pipe venting systems.
• For horizontal terminations, the Regency direct vent ex system may be used for installations with a maximum continuous vent length of up to 10
feet. If longer runs are required, rigid pipe must be used.

City Series CB50E Direct Vent Gas Fireplace | 17
Horizontal Terminations - Rigid Pipe 5" x 8" (Non Power Vent)
The minimum components required for a basic horizontal
termination are:
1 Horizontal Termination Cap
1 Rigid Pipe Adaptor (770-994)
1 Wall Thimble
1 Length of pipe to suit wall thickness
(see chart)
Wall thickness is measured from the back standos to the inside
mounting surface of termination cap. For siding other than vinyl
furring strips may be used, instead of the vinyl siding stando, to
create a level surface to mount the vent terminal. The Terminal
must not be recessed into siding. Measure the wall thickness
including furring strips.
If a Vinyl Siding Stando is required (it must be used with vinyl
siding), measure to outside surface of wall without siding and
add 2 inches.
When using Rigid Vent other than
Simpson Dura-Vent, 3 screws must be
used to secure rigid pipe to adaptor.
This product has been evaluated by Intertek
for using a Rigid Pipe Adaptor in conjunction
with Duravent Direct-Vent, Selkirk Direct-Temp,
Ameri Vent Direct Venting, ICC Excel Direct,
Olympia Ventis DV, and Security Secure Vent
systems. Use of these systems with the Rigid
Pipe adaptor is deemed acceptable and does not
aect the Intertek WHI listing of components.
WARNING:
Do not combine venting components from
dierent venting systems.
However use of the the AstroCapTM and FPI
Riser is acceptable with all systems.
The FPI AstroCapTM and FPI Riser Vent terminal are certied for installations using FPI venting systems as well as Simpson Dura-Vent®Direct Vent, American
Metal Products Ameri Vent Direct Vent, Security Secure Vent®, ICC Excel, Olympia Ventis DV, Selkirk Direct-Temp. AstroCapTM is a proprietary trademark
of FPI Fireplace Products International Ltd. Dura-Vent® and Direct Vent are registered and/or proprietary trademarks of Simpson Dura-Vent Co. Inc.
Pipe Length
Vertical Terminal
Storm Collar
Flashing
Ceiling Firestop
Adj.Pipe Length
Horizontal
Termination Cap
Wall Thimble
Vinyl Siding
Standoff (Optional)
Rigid Pipe Adapter
o
90 Elbow
Pipe Length
Flat Wall Installation
Wall Thickness
(inches)
Vent Length Required
(inches)
4" - 5-1/2" 6"
7" - 8-1/2" 9"
10" - 11-1/2" 12"
9" - 14-1/2' 11" - 14-5/8" Adj. Pipe
15" - 23-1/2" 17" - 24" Adj. Pipe
*Unit is not exactly as shown.

18 | City Series CB50E Direct Vent Gas Fireplace
7. Ensure that the pipe clearances to combustible
materials are maintained (Diagram 55). Install
the termination cap.
Note: If installing termination on a vinyl siding
covered wall, a vinyl siding stando or
furring strips must be used to ensure
that the termination is not recessed
into the siding.
The four wood screws provided should be
replaced with appropriate fasteners for stucco,
brick, concrete, or other types of sidings.
8. Before connecting the horizontal run of vent
pipe to the vent termination, slide the Wall
Thimble over the vent pipe. The wall thimble
is required for all horizontal terminations.
9. Slide the appliance and vent assembly towards
the wall carefully inserting the vent pipe into
the vent cap assembly. It is important that the
vent pipe extends into the vent cap sucient
distance so as to result in a minimum pipe
overlap of 1-1/4 inches (32mm). Secure the
connection between the vent pipe and the vent
cap.
10. Install wall thimble in the center of the framed
hole and attach with wood screws.
Install the vent system according to the
manufacturer's instructions included with the
components.
1. Set the unit in its desired location. Check to
determine if wall studs or roof rafters are in
the way when the venting system is attached.
If this is the case, you may want to adjust the
location of the unit. Rough in the gas preferably
on the right side of the unit and the electrical
(junction block is on the left side) on the left.
2. Direct Vent pipe and ttings are designed with
special twist-lock connections to connect the
venting system to the appliance ue outlet. A
twist-lock appliance adaptor is required.
3. In conjunction with the Approved Vent system,
install the adaptor after the unit is set in its
desired location. Slip the adapter over the
existing inner and outer ue collar. Fasten to
the outer collar only with the 3 supplied screws
(drilling pilot holes will make this easier).
every 3 feet (0.9meter). Wall straps are
available for this purpose.
6. Mark the wall for a square hole.-see chart to left
for size. The center of the square hole should
line up with the center-line of the horizontal
pipe. Cut and frame the square hole in the
exterior wall where the vent will be terminated.
See diagram 54 for center line requirements.
If the wall being penetrated is constructed of
non-combustible material, i.e. masonry block
or concrete, an 8" (203mm) diameter hole is
acceptable.
Notes:
a) The horizontal run of vent must be level,
or have a 1/4 inch rise for every 1 foot of
run towards the termination. Never allow
the vent to run downward. This could cause
high temperatures and may present the
possibility of a re.
b) The location of the horizontal vent
termination on an exterior wall must meet
all local and national building codes, and
must not be blocked or obstructed. See
"Exterior Vent Termination Locations"
section for more details.
4. Level the replace and fasten it to the framing
using nails or screws through the top and side
nailing strips.
5. Assemble the desired combination of pipe and
elbows to the appliance adaptor and twist-lock
for a solid connection.
Note:Forbestresultsandoptimumperformance
with each approved venting system, it
is highly recommended to apply “Mill-
Pac” sealant (supplied) to every inner
pipe connection. Failure to do so may
result in drafting or performance issues
not covered under warranty.
Horizontal runs of vent must be supported
58-3/16" (1478 mm)
center
of hole
Horizontal Top* 3" (76mm)*
Horizontal Side 2 " (51mm)
Horizontal Bottom 2" (51mm)
Vertical Vent 2" (51mm)
Minimum Vent Clearances to
Combustibles
Unit Installation with
Horizontal Termination -
5" x 8" Venting (Rigid Vent
Systems) (Non Power Vent)
Below are the recommended framing dimensions
(inside measurements) for the 5" x 8" rigid vent
terminations - for use with a restop or wall thimble.
Diagram 2
Diagram 3
Diagram 4
* Clearances noted below must be maintained;
except when passing through a wall, ceiling or
at the termination where the use of a restop or
wall thimble reduces clearance to 1-1/2" (38mm).
c) Snorkel Terminations:
For installations requiring a vertical rise on the
exterior of the building, 14-inch and 36-inch
tall Snorkel Terminations are available, as well
as the standard Riser Vent. Follow the same
installation procedures as used for standard
Horizontal Termination. NEVER install the snorkel
upside down.
Below Grade Snorkel Installation
If the snorkel termination must be installed below
grade, i.e. basement application, proper drainage
must be provided to prevent water from entering
the snorkel termination. See diagram 56. Do not
attempt to enclose the snorkel within the wall
or any other type of enclosure.
Window
Well
Adequate
Drainage
Gravel
Snorkel
(305 mm)
Min. 12”
Min. 12"*
(305mm)
Snorkel
*As specied in CSA B149 Installation Code. Local codes or
regulations may require dierent clearances.
Diagram 5
45-3/4'' (1162 mm)

City Series CB50E Direct Vent Gas Fireplace | 19
H
H1
V

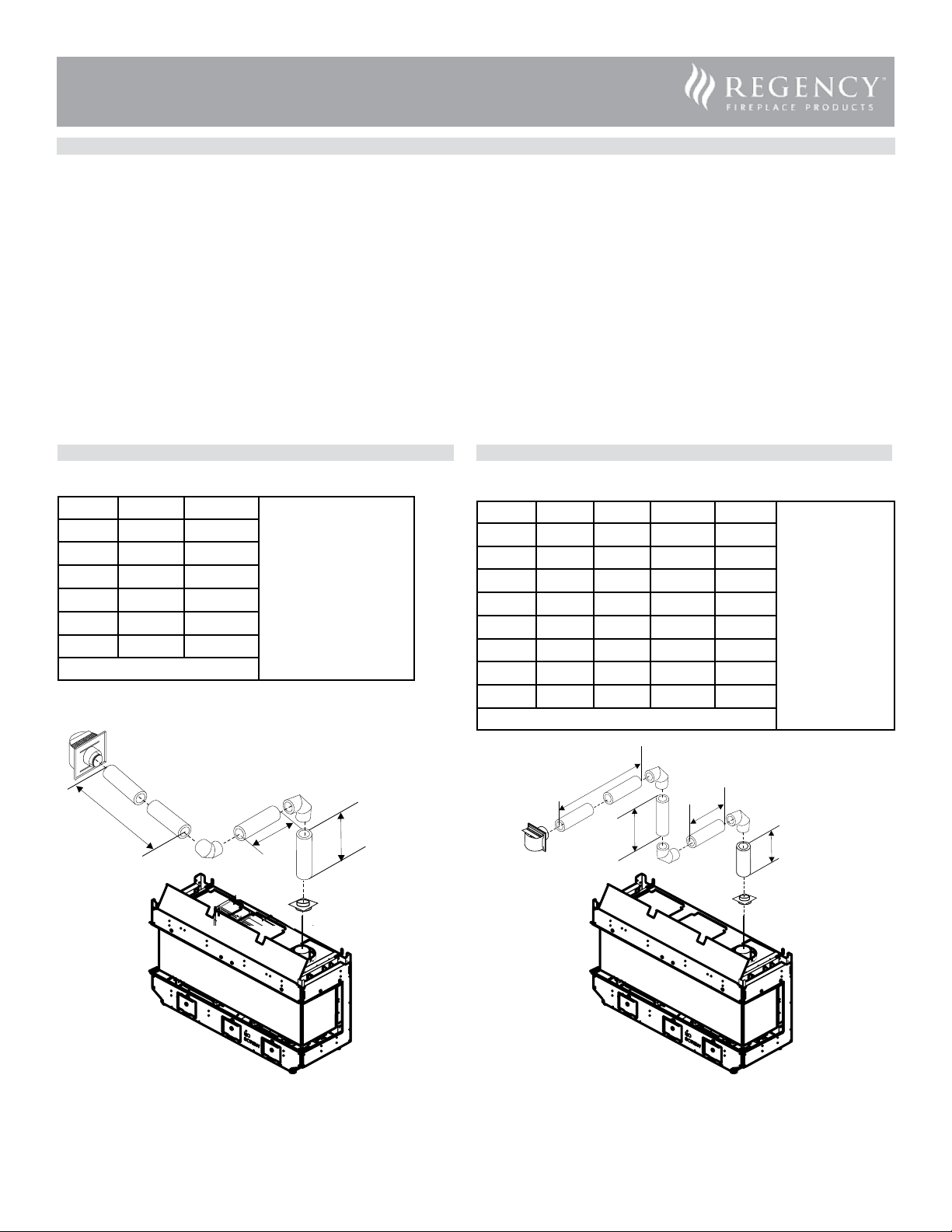

Horizontal Terminations - Rigid/Flex Pipe 5" x 8" (Non Power Vent)
The diagrams below show examples of horizontal termination arrangements using one, two, or three 90oelbows (two 45o elbows equal one 90oelbow).
1. A maximum of three 90o elbows are permitted.
2. Minimum distance between elbows is 1 ft. (305mm).
• Maintain clearances to combustibles as listed in the "Clearances" section.
• Horizontal vent must be supported every 3 feet.
• Firestops are required at each oor level and whenever passing through a wall.
• Must use optional rigid pipe adaptor (Part# 770-994) when using rigid pipe vent systems.
• A vent guard should be used whenever the termination is lower than the specied minimum or as per local codes.
• Flex system can only be used up to 10 feet - otherwise rigid venting must be used.
Horizontal Venting with Two (2) 90oElbows
One 90oelbow = Two 45oelbows.
Option V H + H1
With these options,
maximum total pipe length
is 30 feet with minimum
of 6 feet total vertical
and maximum 8 feet total
horizontal.
Please note minimum
1 foot between 90o
elbows is required.
A) 1' Min. 2' Max.
B) 2' Min. 4' Max.
C) 3' Min. 5' Max.
D) 4' Min. 6' Max.
E) 5' Min. 7' Max.
F) 6' Min. 8' Max.
Restrictor Set 0 - Factory Setting
V1
H1
H
V
Horizontal Venting with Three (3) 90oElbows
One 90oelbow = Two 45oelbows.
Option V H V + V1 H + H1
With these options,
max. total pipe
length is 30 feet with
min. of 12 feet total
vertical and max. 9
feet total horizontal.
Please note min.
1 foot between
90o elbows is
required.
A) 1' Min. 1' Max. 2' Min. 2' Max.
B) 1' Min. 2' Max. 3' Min. 3' Max.
C) 2' Min. 2' Max. 5' Min. 4' Max.
D) 3' Min. 2' Max. 7' Min. 5' Max.
E) 4' Min. 3 Max. 9' Min. 6' Max.
F) 5' Min. 4' Max. 10' Min. 7' Max.
G) 6' Min. 5' Max. 11' Min. 8' Max.
H) 7' Min. 6' Max. 12' Min. 9' Max.
Restrictor Set 0 - Factory Setting

20 | City Series CB50E Direct Vent Gas Fireplace

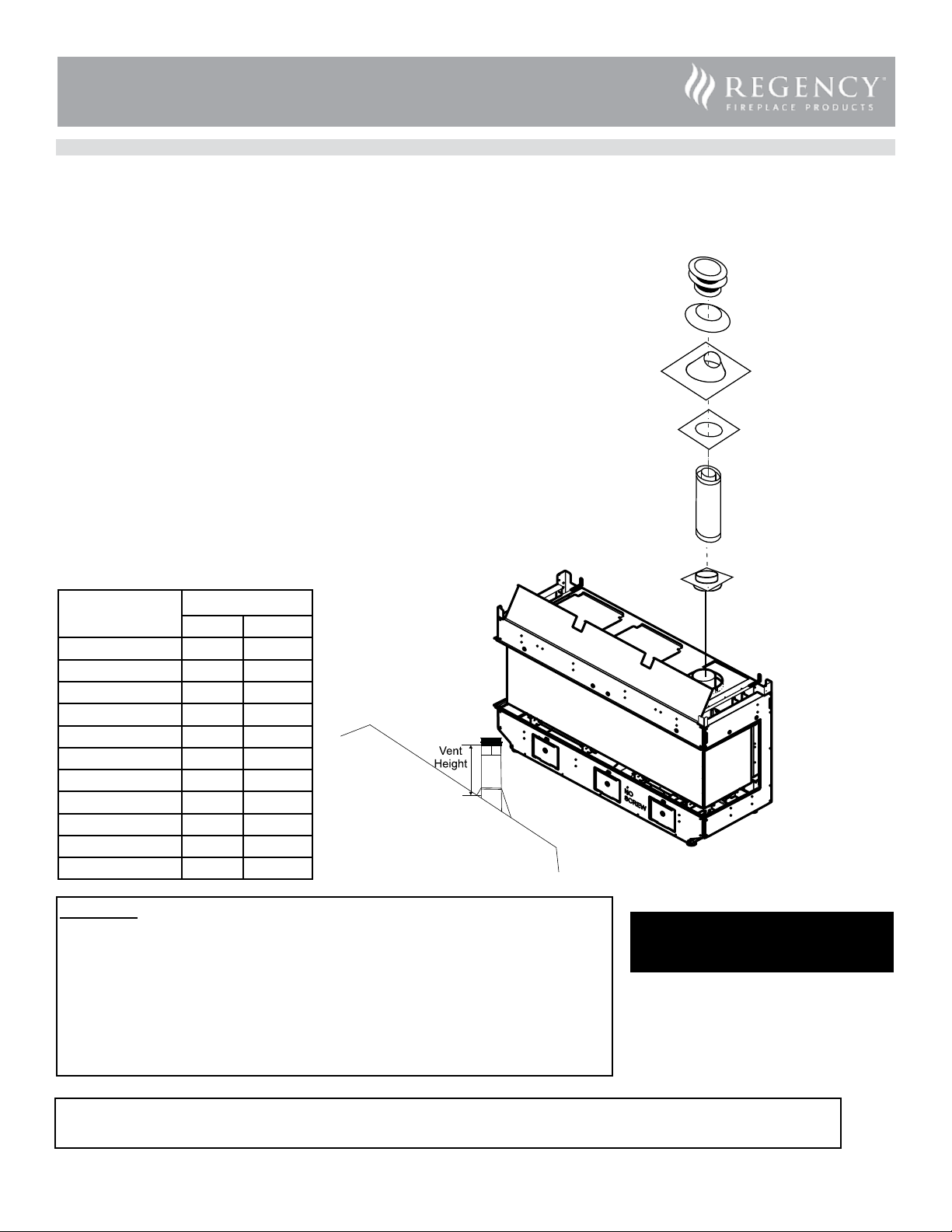

Vertical Terminations - Rigid Pipe 5" x 8" (Non Power Vent)
The minimum components required for a basic vertical termination are:
1 Vertical Termination Cap
1 Rigid Pipe Adaptor (770-994)
1 Ceiling Firestop
1 Flashing
1 Storm Collar
1 Length of pipes to suit wall thickness & vent run
(see chart)
When using Rigid Vent other than
Simpson Dura-Vent, 3 screws must be
used to secure rigid pipe to adaptor.
Galvanized pipe is desirable above the rooine due to its higher corrosion
resistance. Continue to add pipe sections through the ashing until the
height of the vent cap meets the minimum height requirements specied
in table below or local codes. Note that for steep roof pitches, the
vertical height must be increased. A poor draft, or down drafting
can result from high wind conditions near big trees or adjoining
roof lines, in these cases, increasing the vent height may solve the
problem.
Roof Pitch Minimum Vent Height
Feet Meters
at to 7/12 2 0.61
over 7/12 to 8/12 2 0.61
over 8/12 to 9/12 2 0.61
over 9/12 to 10/12 2.5 0.76
over 10/12 to 11/12 3.25 0.99
over 11/12 to 12/12 4 1.22
over 12/12 to 14/12 5 1.52
over 14/12 to 16/12 6 1.83
over 16/12 to 18/12 7 2.13
over 18/12 to 20/12 7.5 2.29
over 20/12 to 21/12 8 2.44
Pipe Length
Vertical Terminal
Storm Collar
Flashing
Ceiling Firestop
Rigid Pipe Adapter
This product has been evaluated by Intertek for using a Rigid Pipe Adaptor in conjunction with
Duravent Direct-Vent, Selkirk Direct-Temp, Ameri Vent Direct Venting, ICC Excel Direct, Olympia
Ventis DV, and Security Secure Vent systems. Use of these systems with the Rigid Pipe adaptor is
deemed acceptable and does not aect the Intertek WHI listing of components.
WARNING:
Do not combine venting components from dierent venting systems.
However use of the the AstroCapTM and FPI Riser is acceptable with all systems.
The FPI AstroCapTM and FPI Riser Vent terminal are certied for installations using FPI venting systems as well as Simpson Dura-Vent®Direct Vent, American
Metal Products Ameri Vent Direct Vent, Security Secure Vent®, ICC Excel, Olympia Ventis DV, Selkirk Direct-Temp. AstroCapTM is a proprietary trademark
of FPI Fireplace Products International Ltd. Dura-Vent® and Direct Vent are registered and/or proprietary trademarks of Simpson Dura-Vent Co. Inc.
*Unit is not exactly as shown.
